AD 4627 - Hand blender ADLER - Free user manual and instructions

USER MANUAL AD 4627 ADLER

Product photo of kitchen utensils including a blender, whisk, and blender (no text or symbols visible)

AD 4627

EN	User Manual	3	PL	Instrukcja obsługi	76
DE	Bedienungsanleitung	7	IT	Manuale d'uso	81
FR	Mode d'emploi	12	SV	Bruksanvisning	86
ES	Manual de usuario	17	BG	Ръководство за употреба	90
PT	Manual de Instruções	21	DA	Brugsanvisning	95
LT	Naudojimo instrukcija	26	SK	Používatel'ská príručka	99
LV	Lietošanas instrukcija	30	BS	Korisnički priručnik	103
ET	Kasutusjuhend	35	MK	Упатство за употреба	108
HU	Használati útmutató	39	HR	Korisnički priručnik	113
RO	Manual de utilizare	44	UK	Керівництво користувача	117
CS	Návod k použití	48	SR	Упутство за употребу	122
RU	Руководство пользователя	53	AR	دليل المستخدم	126
EL	Еүхειρίδιο хрήσης	58	AZ	İstifadəçi təlimatı	130
NL	Gebruikershandleiding	63	SQ	Manuali i përdorimit	134
SL	Navodila za uporabo	67	KA	Общめる	139
FI	Käyttöohje	72

1 a b c d e 5 1 2 3 4 AUXER

User Manual (EN)

GENERAL SAFETY CONDITIONS IMPORTANT SAFETY INSTRUCTIONS FOR USE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the instruction manual and follow the instructions contained therein. The manufacturer is not responsible for damage caused by using the device contrary to its intended use or improper operation.
2. The device is for domestic use only. Do not use for other purposes incompatible with its intended use.
3. Connect the device only to a grounded outlet with a voltage of 220-240V\~50/60Hz. In order to increase the safety of use, multiple electrical appliances should not be connected to a single circuit at the same time. In order to increase the safety of use, multiple electrical appliances should not be switched into a single circuit at the same time.
4. Be especially careful when using the device when children are around. Do not allow children to play with the appliance do not allow children or persons unfamiliar with the appliance to use it.
5. WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental ability, or persons without experience or familiarity with the equipment, if it is done under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the equipment and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the equipment should not be performed by children unless they are over 8 years of age and these activities are performed under supervision.

6. WARNING: Do not leave the device plugged into an outlet unattended.

7. WARNING: Keep the device out of the reach of children.

8. WARNING: Improper use of the device, may result in injuries such as cuts, abrasions or electric shock, among others.
9. WARNING: Always remove the plug from the power outlet after use by holding the outlet with your hand. DO NOT pull on the power cord.
10. WARNING: Do not use the device near flammable materials.
11. WARNING: Unplug the power cord from the outlet before cleaning and washing the unit.
12. WARNING: Before filling the device with water, unplug it from the power supply.
13. WARNING: Always unplug the blender from the power supply if it is left unattended, and before assembling, disassembling or cleaning the
14. WARNING: Do not move the appliance during operation.
15. Do not immerse the cable, plug or entire unit in water or other liquid. Do not expose the unit to weather conditions (rain, sun, etc.) or use in high humidity conditions (bathrooms, humid camping houses).
16. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialized repair facility to avoid danger.
17. Do not use the device with a damaged power cord or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as there is a risk of electrocution. Return a damaged device to a competent service center for inspection or repair. All repairs may be made only by authorized service centers. Improper repair may cause serious danger to the user.
18. Place the appliance on a cool stable, level surface, away from hot kitchen appliances such as electric stove, gas burner, etc..

19. The power cord must not hang over the edge of the table or touch hot surfaces.

20. To provide additional protection, it is advisable to install in the electrical circuit, a residual current device (RCD) with a rated residual current of not more than 30 mA. In this regard, consult a specialist electrician.

21. Do not insert fingers or any other objects into the container when the device is turned on.

22. Handle cutting blades with care to avoid injury.

23. Be careful not to let long hair, scarves, ties, etc. hang over the cup and working parts of the device.

24. For safety reasons, use only original accessories and spare parts adapted to your blender model, sold by an authorized service center.

25. When removing accessories, manipulate the blades very carefully: they can injure.

26. Change accessories only when the device is turned off. Disconnect the device from the power supply.

27. Do not put products other than food and liquids into the blender cup. Do not place hot products in the cup.

28. The device is not suitable for whipping egg whites and kneading dough

29. Do not use aggressive detergents to clean the housing, as they may cause the removal of applied informative graphic symbols such as graduations, markings, warning signs, etc.

30. Do not run the mixing cup without the product.

31. THE MAXIMUM CONTINUOUS RUNNING TIME OF THE BLENDER IS 1 MINUTE. After 1 minute of continuous operation, wait 10 minutes before restarting it.

32. Do not pour hot liquids (above 60^ C) into the cup.

33. If the blades are blocked, always unplug the power cord from the electrical outlet before removing the blocking parts.

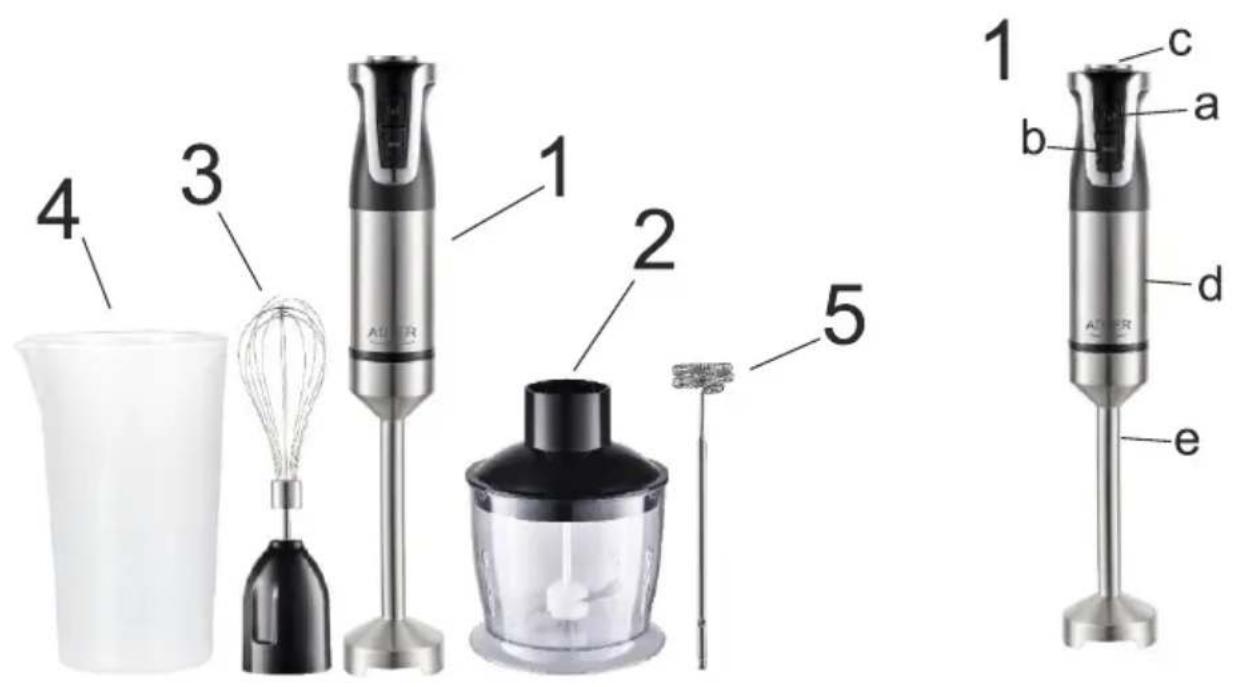

PRODUCT DESCRIPTION

1. BLENDER

a) ON/OFF switch

b) ON/OFF, TURBO switch

c) smooth speed control

d) motor part

e) blender attachment (removable)

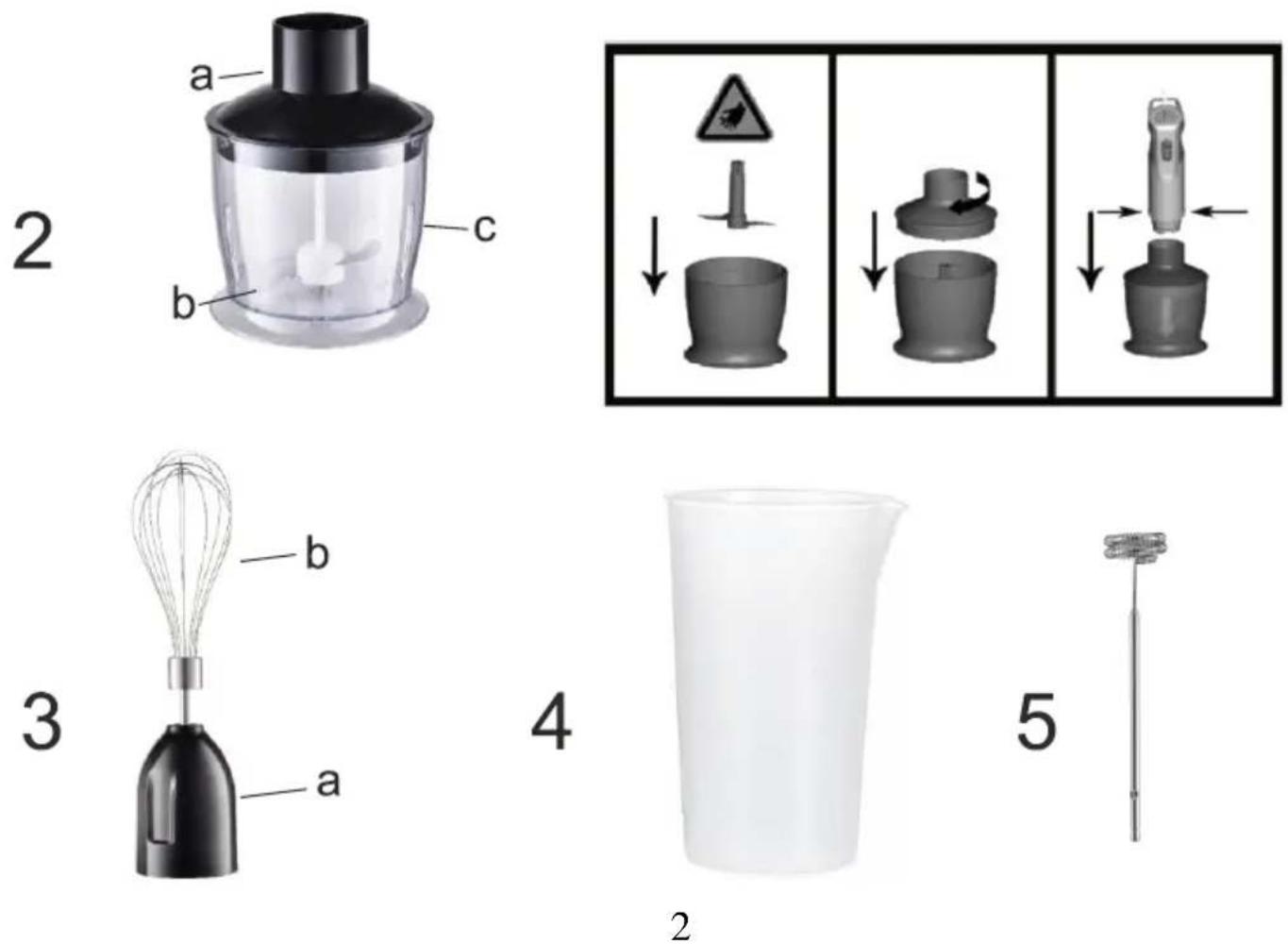

2. SHREDDER

a) lid

b) chopping blade

c) shredder container

3. WHISKING ATTACHMENT

a) gearbox

(b) whisk

1. COVER

2. MILK FROTHER

USE OF THE MACHINE

The hand blender is ideal for preparing dips, sauces, soups, mayonnaise and baby food, as well as blending and mixing smoothies.

1. Attach the blending attachment (1e) to the motor part(1d). Twist until the cap locks into place.
2. Place the blending tip in the cup (4). Then press the gear button (1a) and set the speed using the infinitely variable speed control (1c) or press the TURBO gear button(1b).
   When blending, always hold the blender with one hand and the cup(4) with the other hand.
3. Unplug the appliance from the power outlet after use. Unscrew the blender cap (1e) from the motor part (1d).

USING THE CHOPPER, WHISK ATTACHMENT AND MILK FROTHER

Shredder: the shredder is perfect for shredding food such as meat, cheese, onions, herbs, etc...

Always place the shredder container (2c) on a flat, dry surface. Place the chopping blade (2b) on the center pin of the shredder container (2c).

1. Place the food in the chopper container (2c).

2. Cover the chopper container (2c) with the lid (2a). Press and twist until it locks into place.

3. Attach the motor part (1d) to the shredder lid (2a). Twist until it locks into place.

4. Press the gear button (1a) and set the speed using the infinitely variable speed control (1c) or press the TURBO gear button(1b).

While chopping, hold the blender with one hand and the container with the other.

1. Unplug the appliance from the power outlet after use. Disconnect the motor part (1c) from the lid (2a). Open the lid (2a) and carefully remove the chopping blade (2b).

Whisk: Use the whisk only for whipping cream, whipping egg whites and mixing sponge cakes and finished desserts.

1. Attach the whisk (3b) to the gearbox (3a). Twist until it locks into place.

2. Attach the motor part (1d) to the assembled whisk.

3. Press the gear button (1a) and set the speed using the infinitely variable speed control (1c) or press the TURBO gear button (1b).

While blending, hold the blender with one hand and the container (4) with the other.

1. After use, release the speed button and unscrew the whisk from the motor part (1d). Unplug the appliance from the electrical outlet.

Milk frother: The milk frother is used to froth milk.

1. Insert the frothing cap (5) into the gear (3a). Gently press down on the frother tip.

2. Pull lightly to check that it is properly secured in the gearbox (3a).

To remove the milk frothing cap (5) from the gearbox (3a), pull firmly on the tip, inserting it between two fingers.

CLEANING AND MAINTENANCE

Never put the motor part (1d) in water and keep it away from moisture. Always turn off the device and unplug it from the power outlet before cleaning.

1. Wipe the outside of the motor part (1d) with a lightly dampened cloth only and polish with a soft, dry cloth.

2. Wash removable accessories in soapy water, such as blender tip, whisk, chopper blade, frothing tip.

Do not use scouring pads for plastics. Rinse them with clean water and dry them.

1. Do not clean with a rough cloth or steel wool, as this will damage the finish of the appliance.

TECHNICAL SPECIFICATIONS

Rated power: 1500W

Maximum power: 1800W

For the sake of the environment. Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description. If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment. The marking on the product indicates that the device should not be disposed of in the container with municipal waste. Waste electrical equipment, is waste that contains substances harmful to humans, animals and the environment. These substances can lead to contamination of the soil, water or air, and through this they can get into the human body and lead to numerous health ailments, such as: vision, hearing, speech disorders, they can also lead to kidney, liver and heart damage, and cause skin diseases. Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the complained of soils, and products made from them may risk the above-mentioned health effects. Do not dispose of the device in the municipal waste container!!!

Service If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt.
