USER MANUAL Beyond Base BESAFE

Line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

USER MANUAL

Fits with:

BeSafe Go Beyond (Lite)

BeSafe Beyond

BeSafe Beyond 360

UN regulation no. R129

Navigation page

3 13 23 33 43 55 65 75 85 97 107

117 127 137 147 157 167 179 189 199 209 219

229 239 249 259 269 279 289 299 309 319 329

Thank you for choosing the BeSafe Beyond Base

We're so excited to accompany you and your little one on your travels and keep them safe!

In this manual we'll explain to you all there is to know about your base.

It is important that you read this user manual BEFORE installing your seat. Incorrect installation could endanger your child.

Vital information

Installation & usage

• The child seat MUST NOT be installed in a front seat WITH AN ACTIVATED FRONTAL AIRBAG.
• The car list provided for this product can serve as a guideline for which positions in your vehicle the seat can fit.

Prohibition sign showing a chair and child inside a circle, indicating no smoking or alcohol use.

But you must always check your vehicle manual if child seats of this type are allowed to be installed. The vehicle manual is the leading guideline and must always be followed.

• When using in Spain: Article 117 of the General Regulation of Traffic in Spain prohibits driving with children of stature height equal to or less than 135 centimeters located in the front seats of the vehicle, unless the vehicle does not have rear seats, all rear seats are already occupied by children below 135 cm or if it is not possible the install the child seat in the rear seat.
• This base can only be installed in a car equipped with ISOfix anchorage points approved according to UN/ECE Regulation No.14 or other equivalent standards.
• This base can be used in combination with BeSafe Go Beyond for stature height 40 - 87 cm, and BeSafe Beyond for stature height 61 - 125 cm.
• The floor support must always be used. Make sure that the floor support is fully pushed down until it touches the floor of the vehicle in front of the base and that the base is positioned horizontal in the vehicle with the spirit level in the green area. The indicators of the floor support should always show green.

Handling & maintenance

• Replace the product if it has been in a collision where the speed was 10 km/h and above or if there is a suspicion that the seat has been damaged for whatever reason. Although it may look undamaged, if you were to have another accident, the seat may not be able to protect your child to the level to which it was designed.
• Prevent the product from becoming trapped or weighed down by luggage, seats and/or slamming doors.
• Make sure luggage or other objects are properly secured. Unsecured luggage may cause severe injuries to children and adults in case of accidents.
• DO NOT attempt to dismantle, modify or add any part to the product. Warranty will be void if non-original parts or accessories are used.
• Do not use any aggressive cleaning products; these may harm the construction material of the product.
• BeSafe advises that child seats should not be bought or sold second-hand.
• DO NOT use the product for longer than 15 years. Due to ageing, the quality of the material may change.
• DO NOT use at home. It has not been designed for home use and can only be used in a vehicle.
• When the product is mounted in the car check all the areas where the child seat might touch the interior. We recommend using a (BeSafe) protection cover in these places to avoid cuts, marks or discolouration to the interior of the vehicle, especially in vehicles with leather or wooden interiors.
• If in doubt, consult either the car seat manufacturer or the retailer.

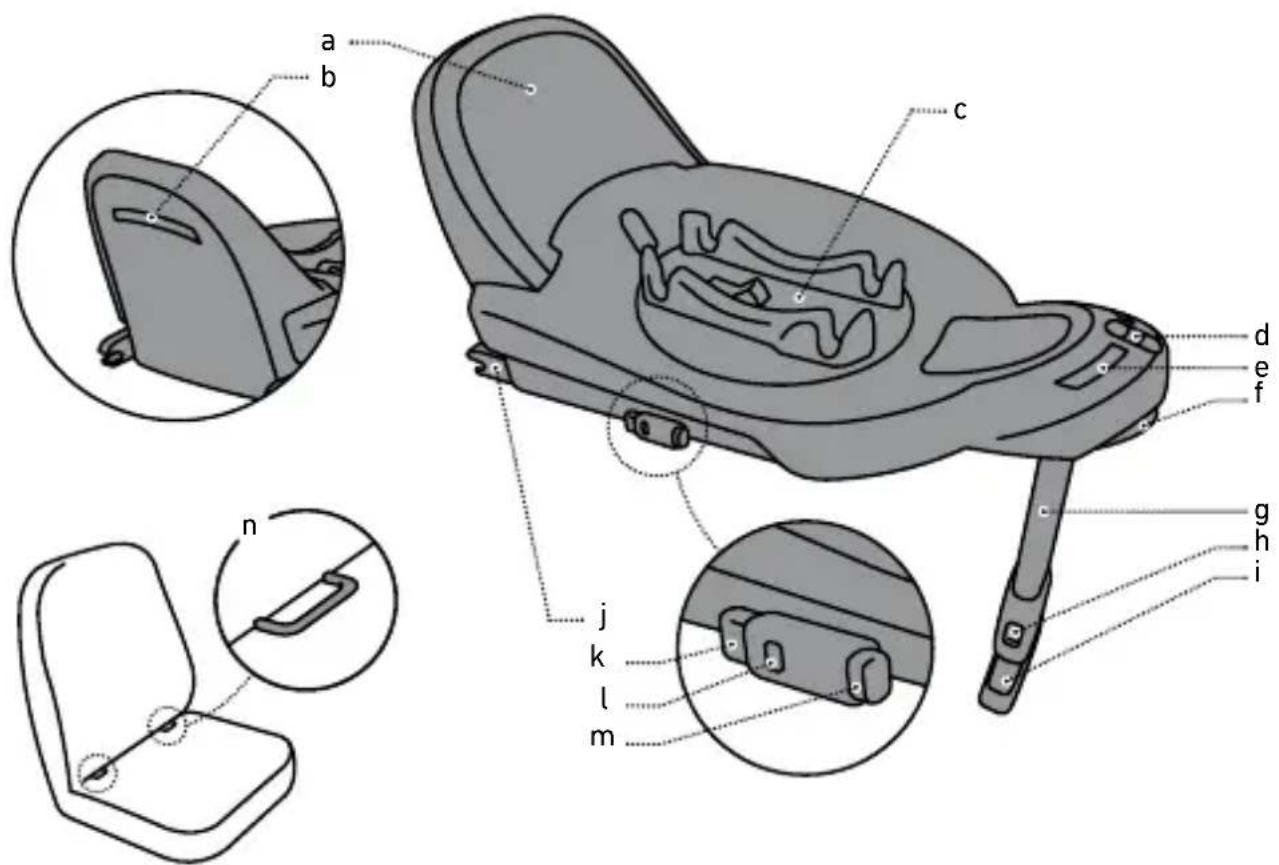

Components

a Front brace
b Front brace handle
c Rotation disc
d Spirit level
e Seat connection indicator
f Seat release handle
g Floor support
h Floor support button
i Floor support indicator
j ISOfix arm (2x)
k ISOfix release button (2x)
l ISOfix indicator (2x)
m ISOfix adjustment button (2x)
n ISOfix car anchorage (2x)

a b c d e f g h i n j k l m

Preparing the base for installation

1. Outside the car: lift the base and let the floor support drop down.

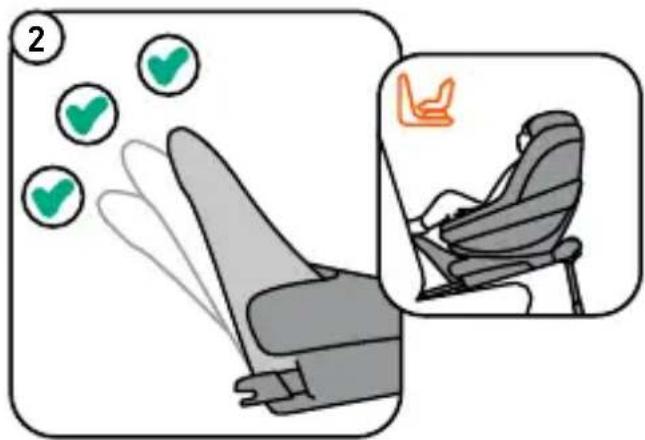

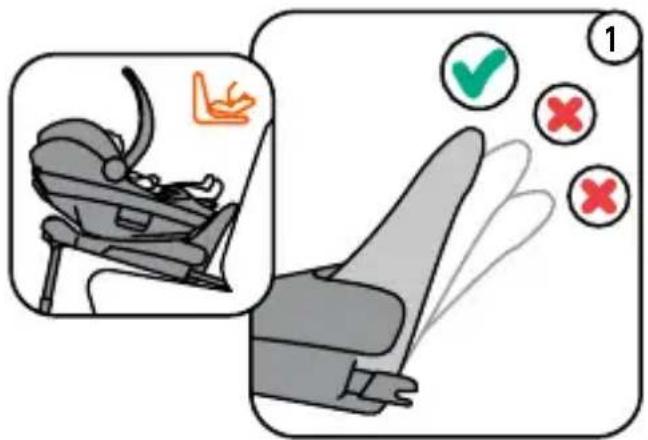

2. When using a Go Beyond infant seat on the base: Put the front brace into most upright position. (1)

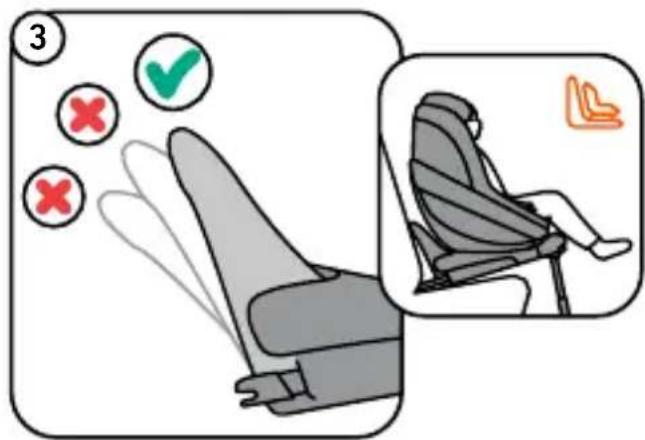

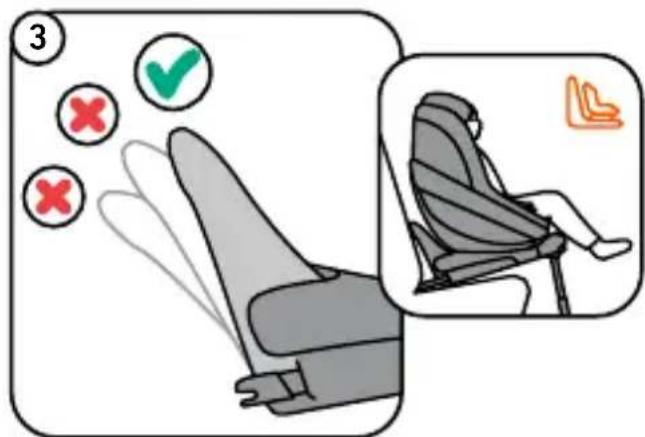

3. When using with a Beyond toddler seat (purely rear facing seat) on the base: Decide with how much leg space you want to install the base by adjusting the position of the front brace. (2)

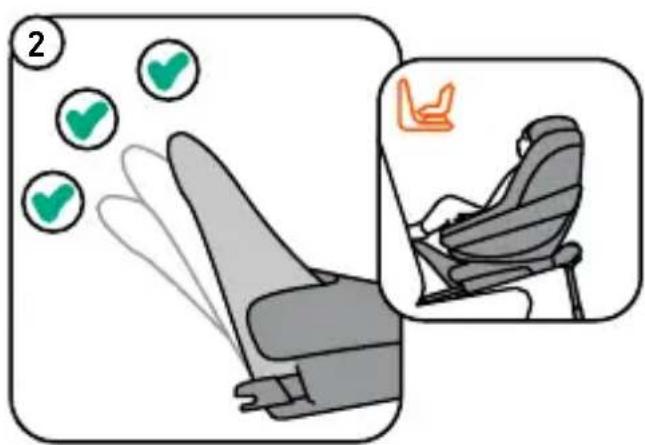

4. When using with a Beyond 360 toddler seat (rear and forward facing seat) on the base: For rear facing usage, decide with how much leg space you want to install the base by adjusting the position of the front brace. For forward facing use, adjust the front brace to always be in the most upright/compact position. (2, 3)
5. To adjust the front brace, pull the front brace handle up and rotate the front brace up or down and let it click into place. (4)

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Illustration showing a hand with checkmarks and a car seat, alongside a magnified view of the seat with a chair.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Preparing the vehicle for installation on the back seat

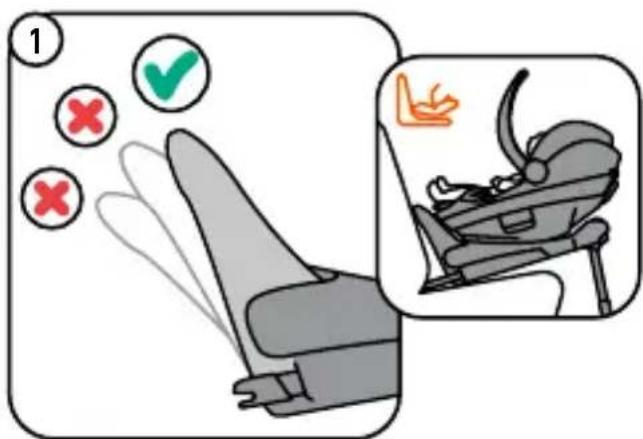

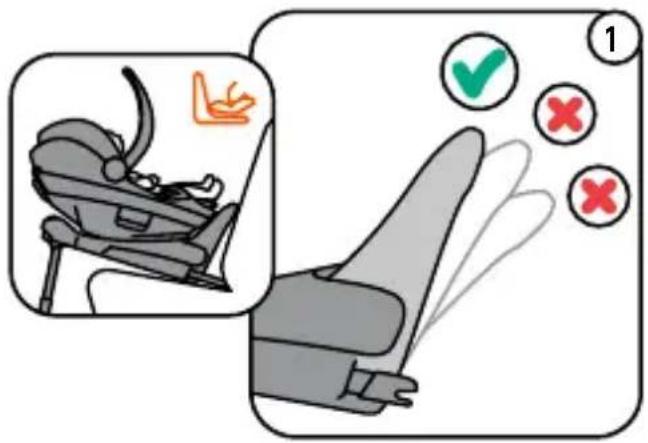

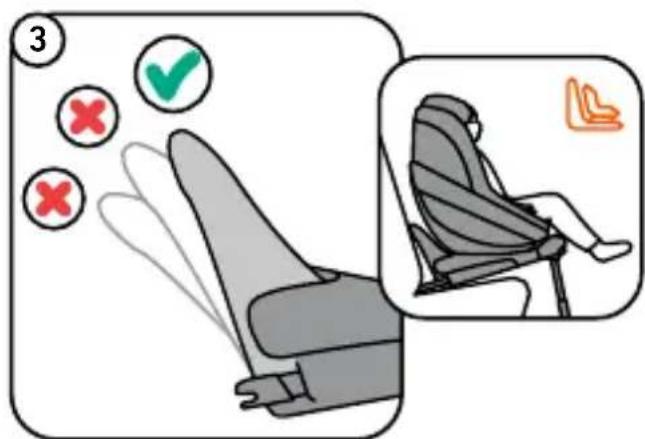

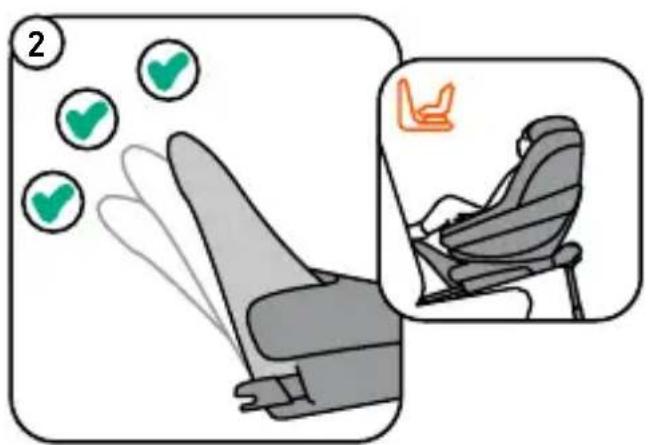

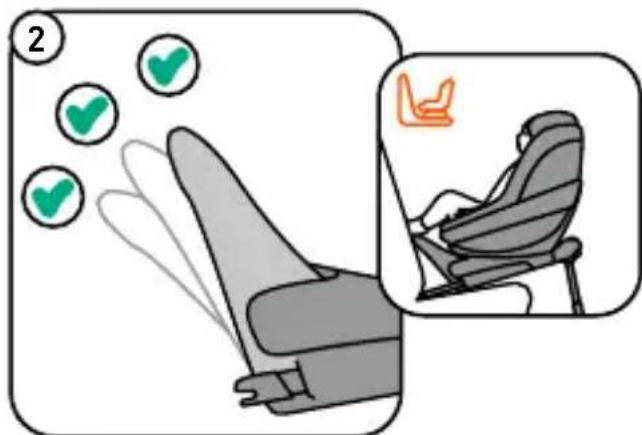

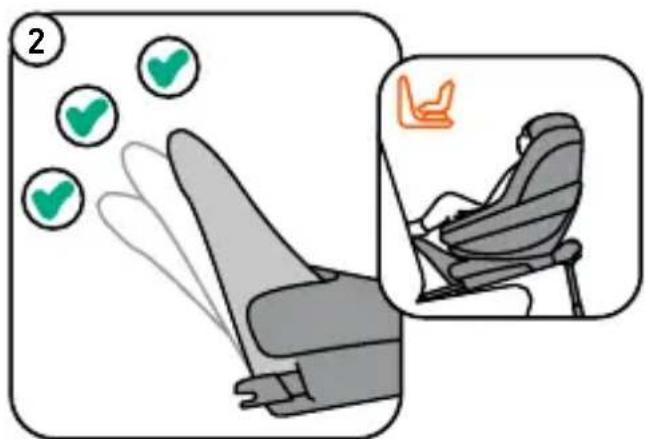

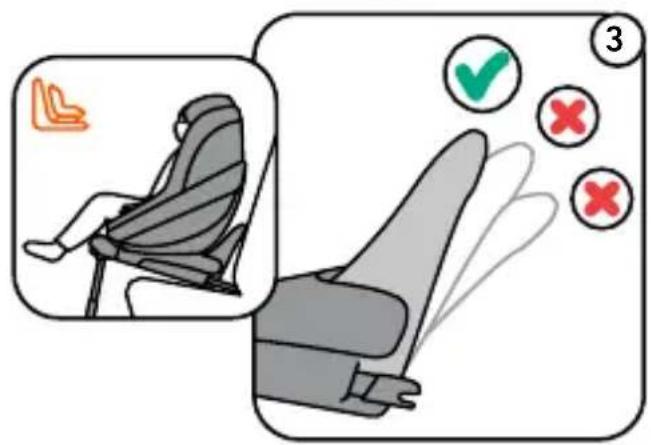

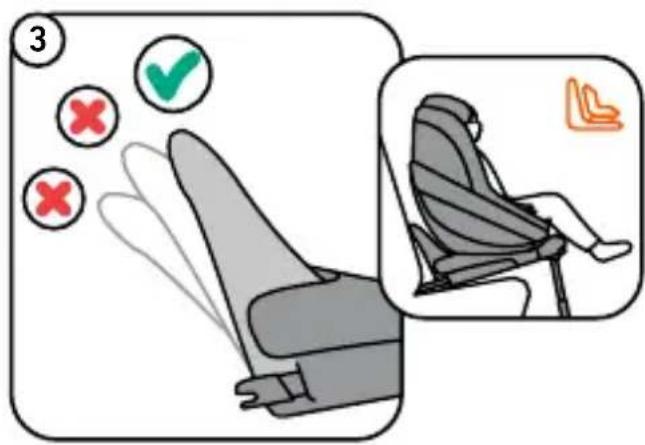

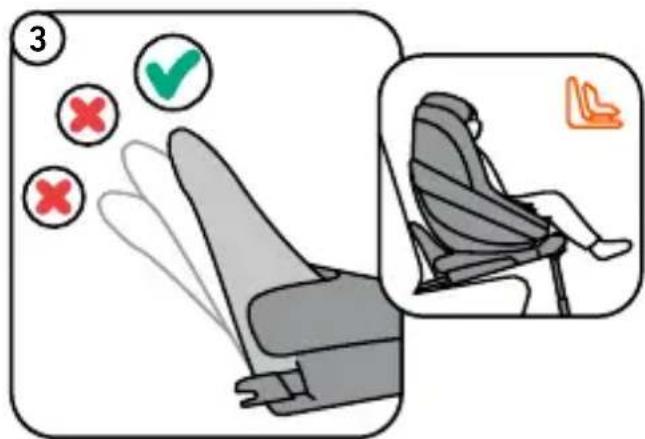

1. Bring the backrest of the back seat into upright position (if applicable to your car).
2. To give yourself space for the installation, move the front seat forward as far as possible and put it into upright position if needed.
3. Position the vehicle on a horizontal surface when installing the seat.

Preparing the vehicle for installation on the passenger seat

1. Adjust the backrest of the front seat into an upright position.
2. ALWAYS deactivate the front airbag. If this is not possible in your vehicle, you cannot install this seat on the front seat.
3. Move the front seat and/or adjust the front brace position, so that the dashboard is close to touchpoint with the back of the child seat. Make sure that the child seat can still rotate freely. If this is not possible, then you should move the front seat as far back as possible, so that you have a preferable minimum distance of 25 cm between child seat and dashboard.

Installing the base into the vehicle

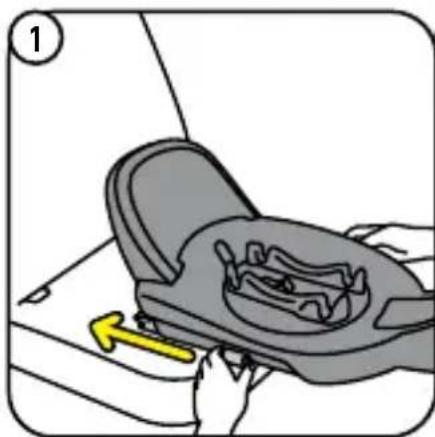

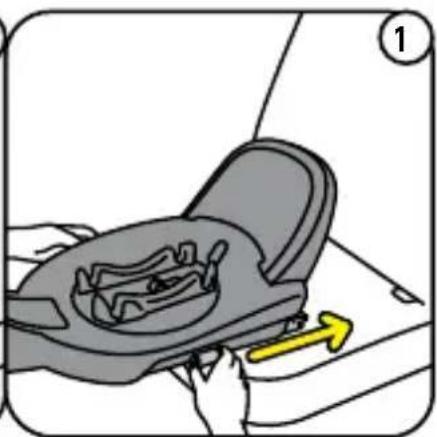

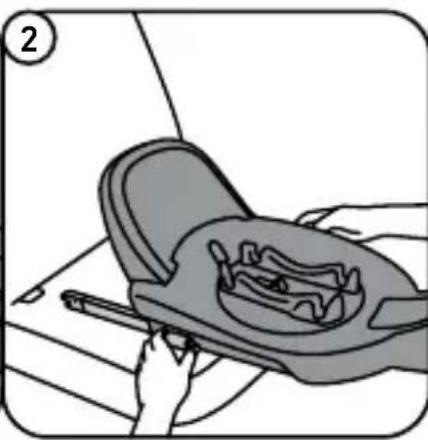

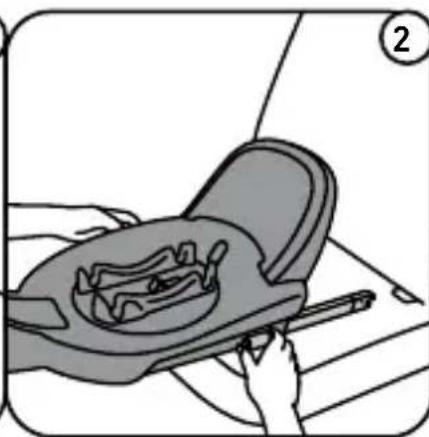

1. Extend the ISOfix arms, you can do one side at a time separately. Push and hold the ISOfix adjustment button and slide the ISOfix arm all the way outwards into the most extended position. (1, 2)
2. Repeat on the other side.

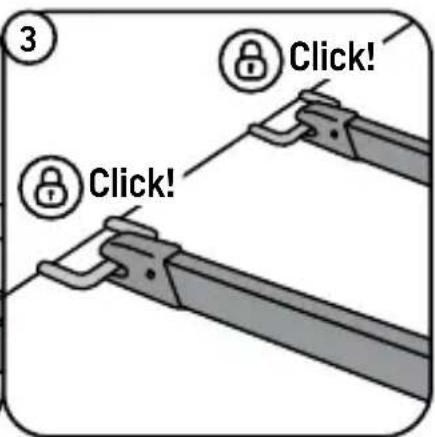

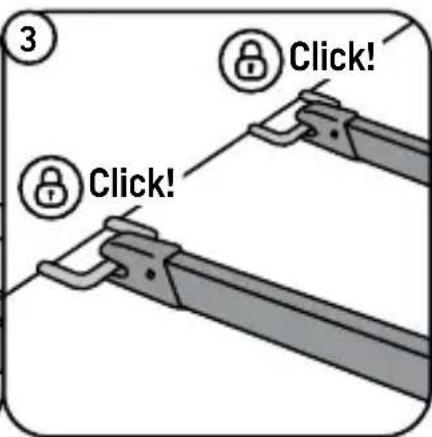

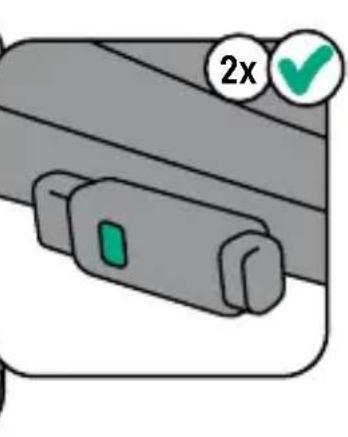

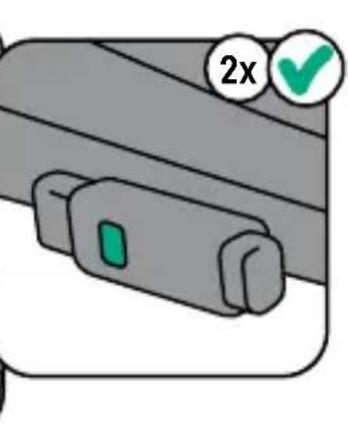

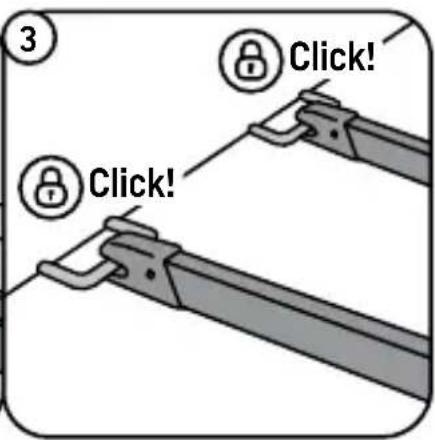

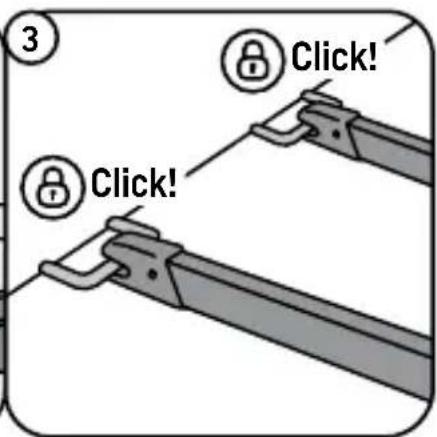

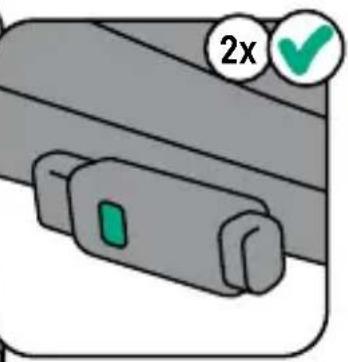

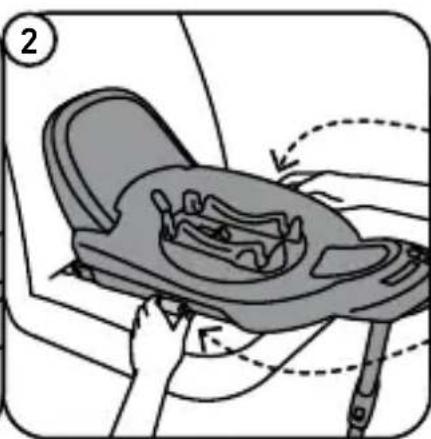

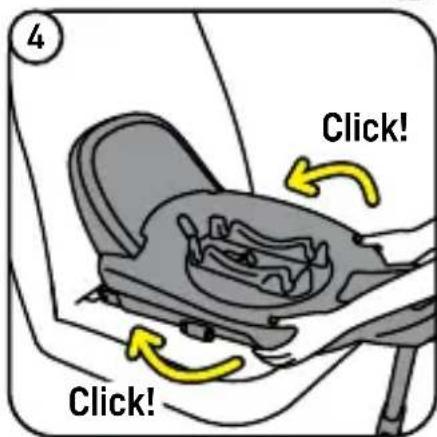

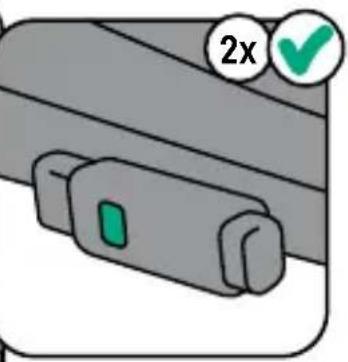

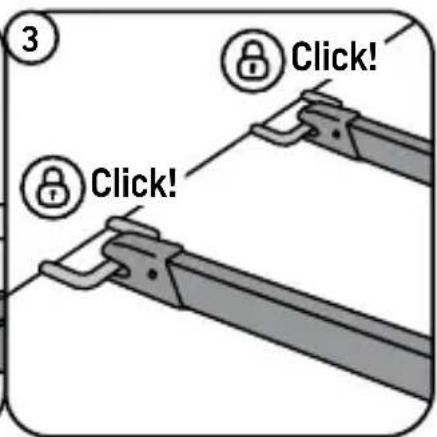

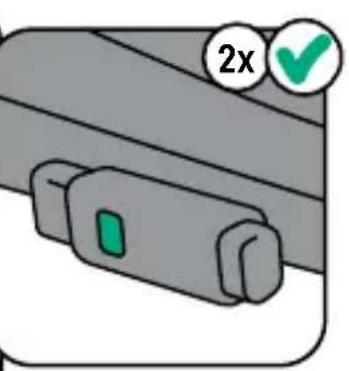

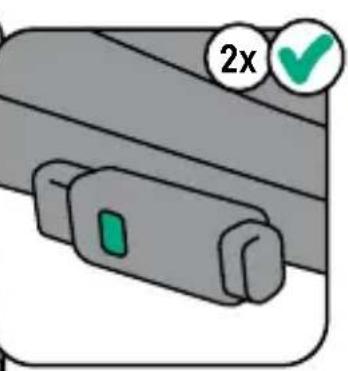

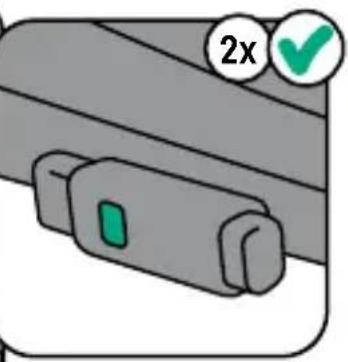

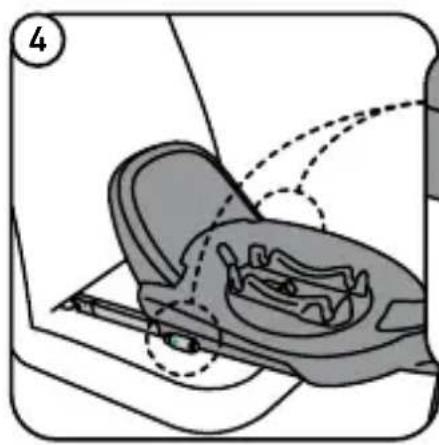

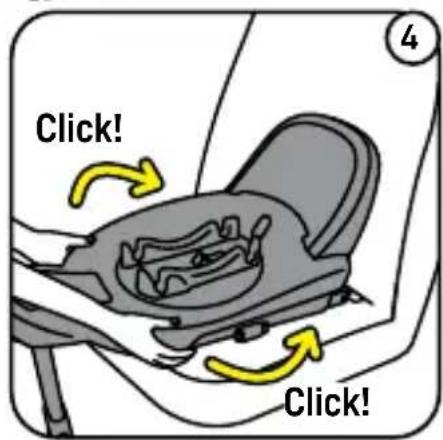

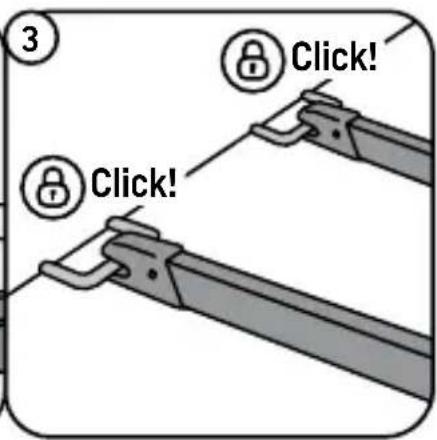

3. Position the base on the vehicle seat. Click the ISOfix connectors onto the ISOfix anchorages on the vehicle seat. Make sure that both ISOfix indicators are green. (3, 4)

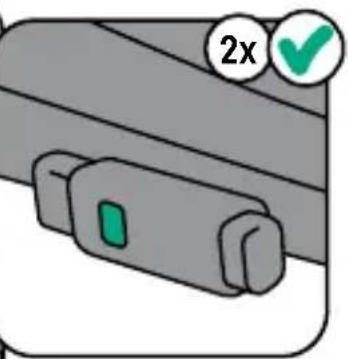

4. Good to know: to make installation easier, the ISOfix arms do not retract until they are connected with the vehicle's ISOfix anchorages. That way you can also reach ISOfix anchorages deep between vehicle seat cushions.

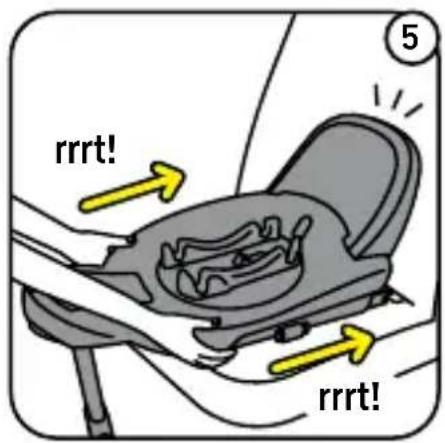

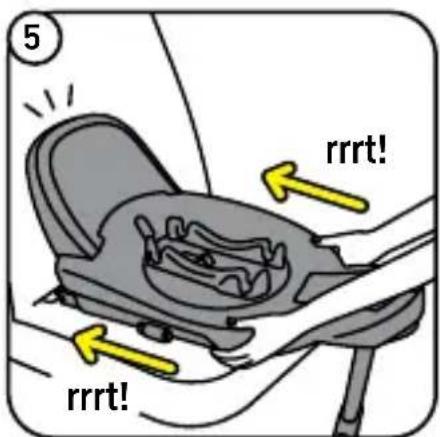

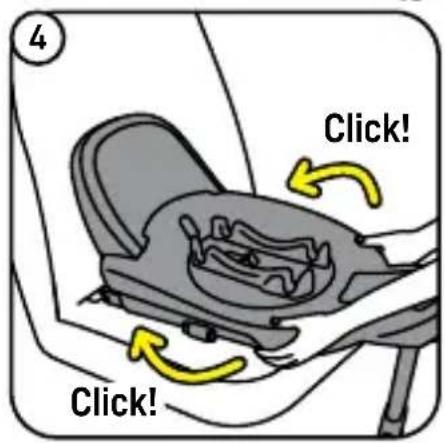

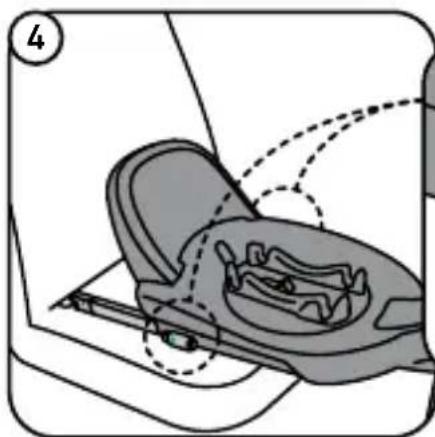

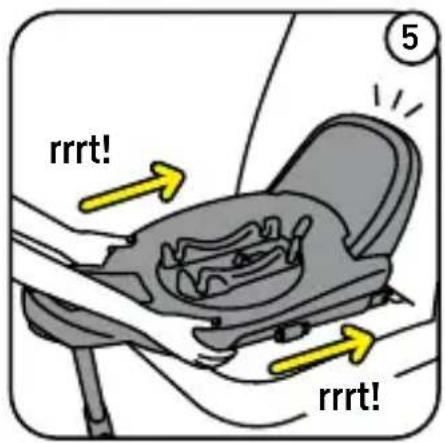

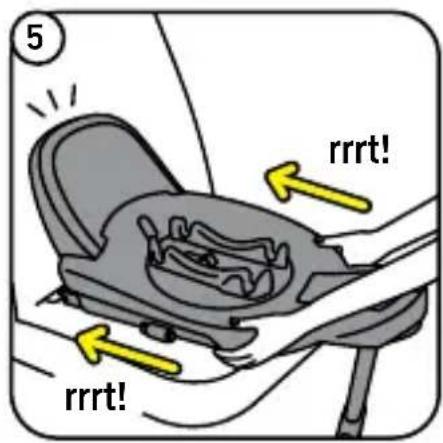

5. Push the seat towards the backrest of the vehicle seat until it touches the backrest. (5)

Diagram of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a car seat component (no text or symbols visible)

3 Click! Click!

Mechanical component diagram showing a clamping mechanism with no visible text or symbols

2x

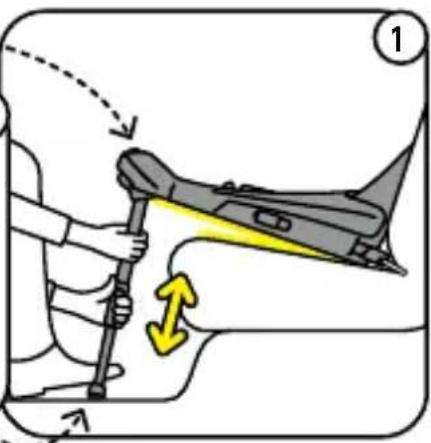

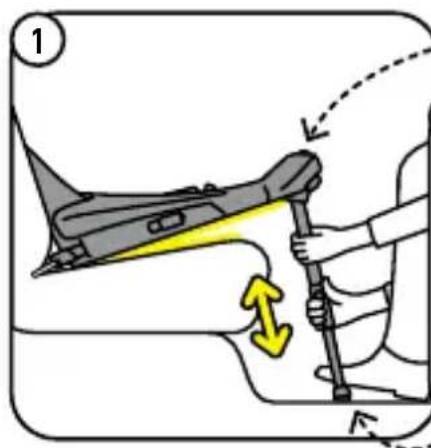

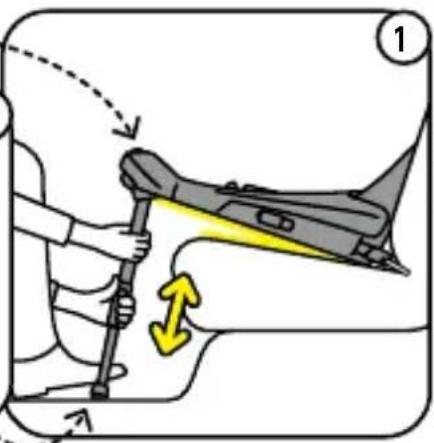

1. Adjust the floor support, so it is in contact with the floor of the vehicle. (1)

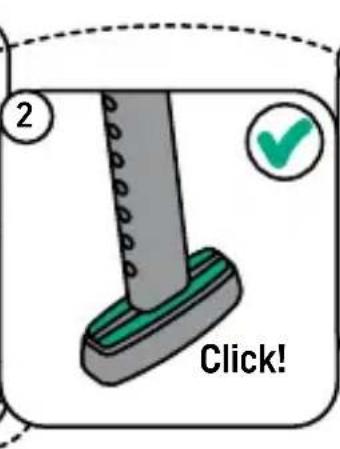

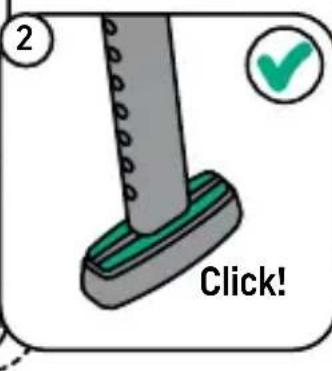

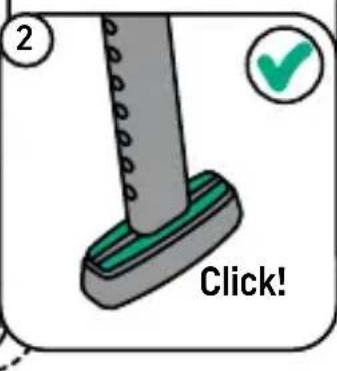

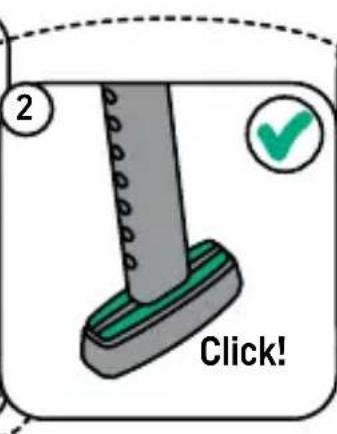

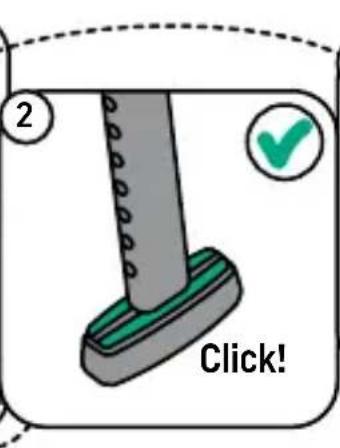

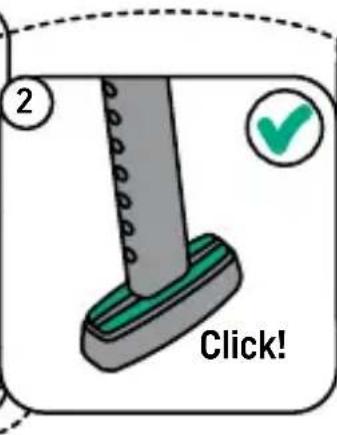

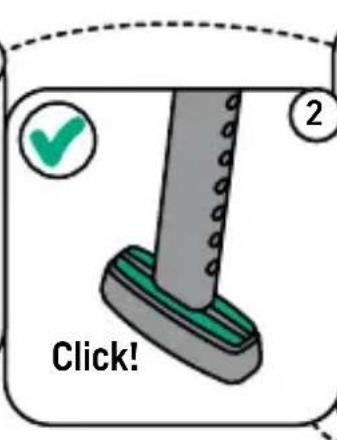

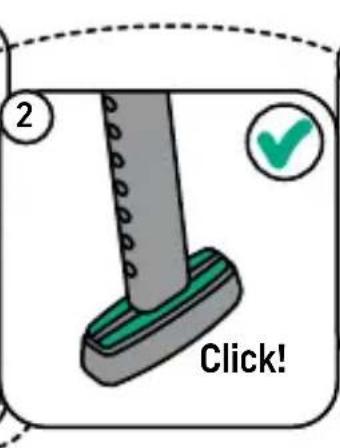

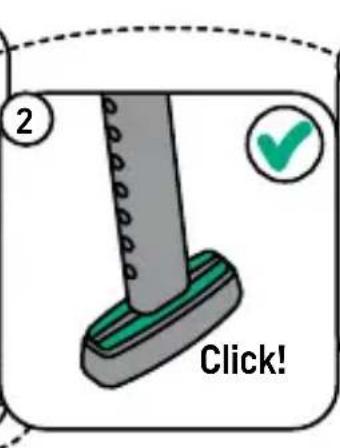

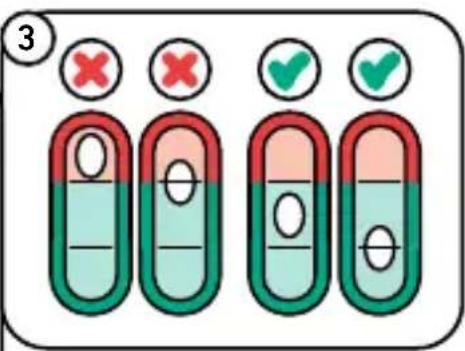

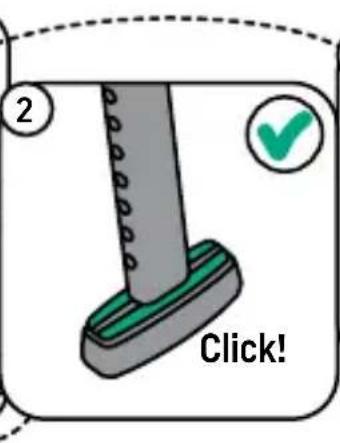

2. The floor support indicator shows green when the floor support is in contact with the floor. You also hear a click-sound. (2)

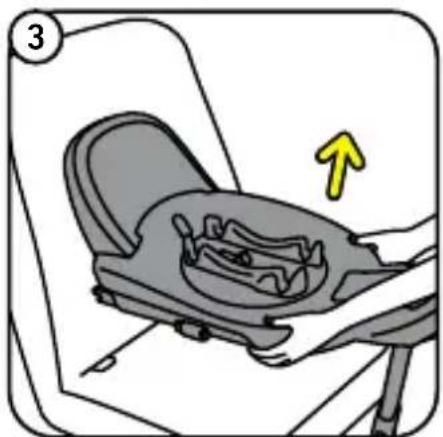

3. Lift the base at the front side (near the spirit level) and extend the floor support till the spirit level is in the green area, indicating a horizontal or upright enough position. (1, 3)

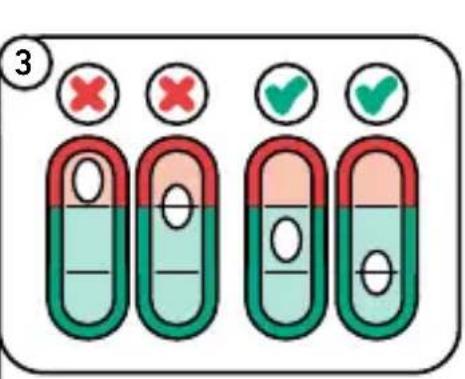

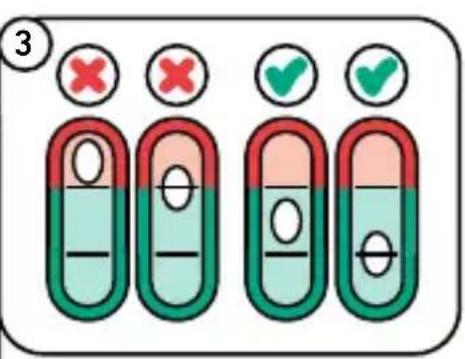

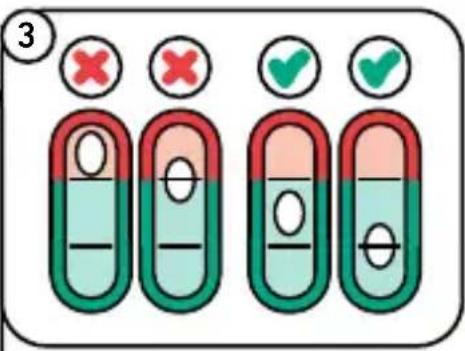

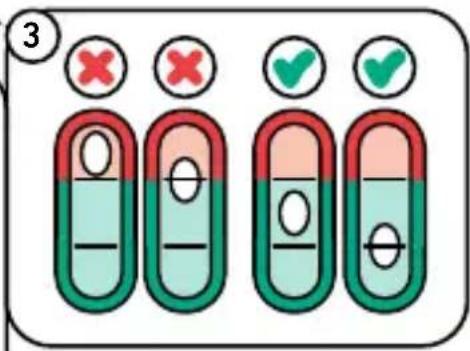

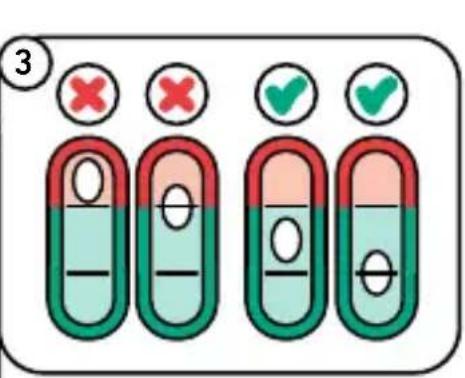

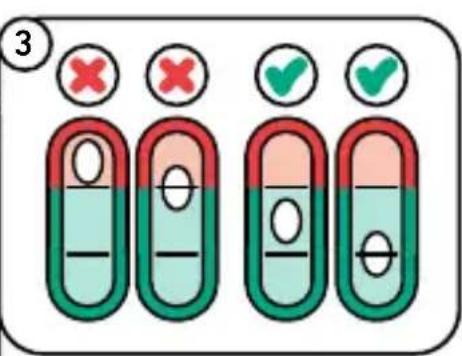

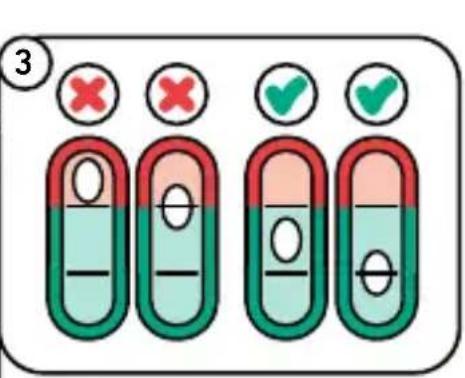

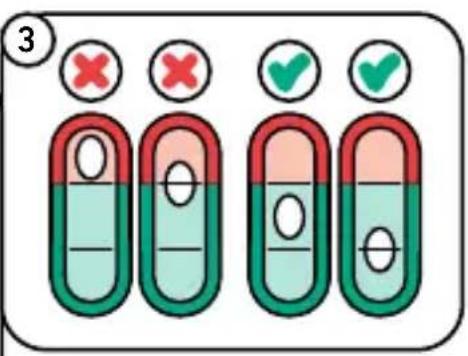

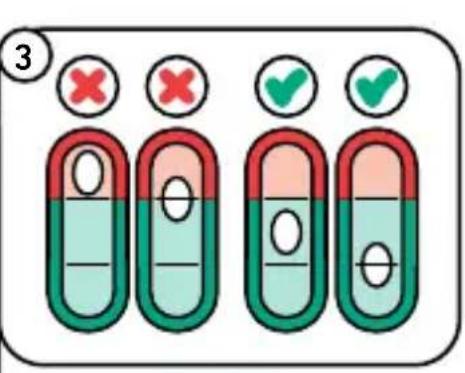

4. For a horizontal position we recommend the spirit level bubble to be in the middle between the lines. (3)
5. Tip: place one foot onto the bottom end of the floor support while lifting the base to make adjusting the length at this step easier. (1)
6. If it is easier in your car, you can also do step 5 to 10 in reverse order, meaning: first lift the base into horizontal position, then push it against the backrest.
7. If you feel like the base has too much side movement, you can push it towards the backrest side to side, so that you hear one or two more click-sounds per side. Make sure the base is straight and not crooked to one side when finished. (4)

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

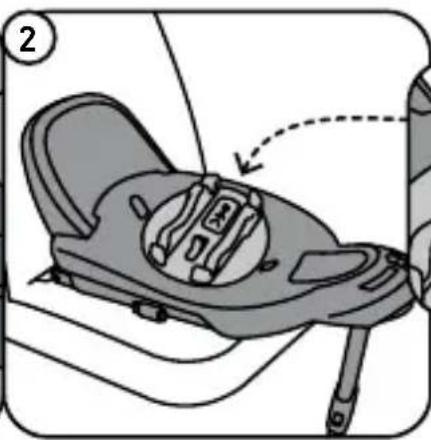

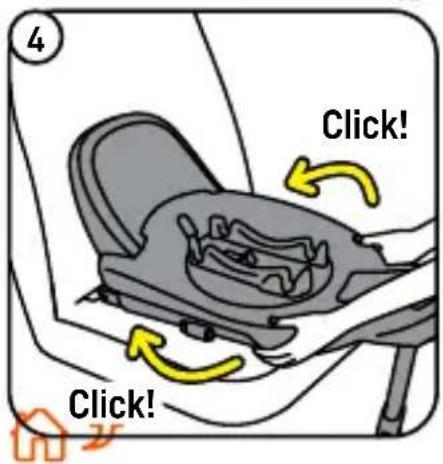

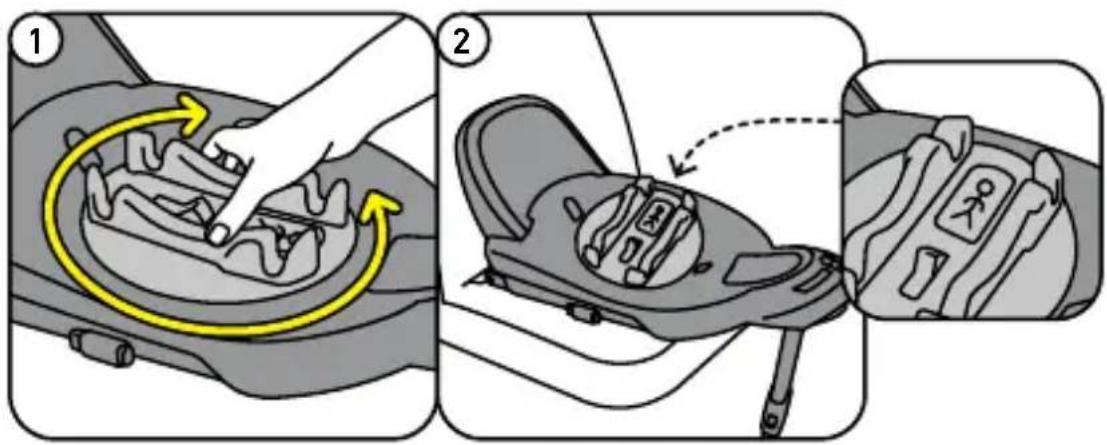

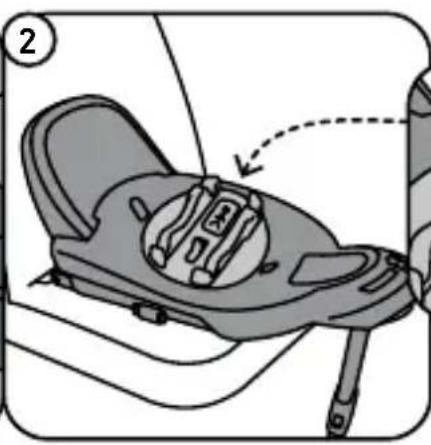

1. If you want to install the seat rotated towards you onto the base, you can turn the rotation disc, so that the child on the sticker is facing towards you. (1, 2)

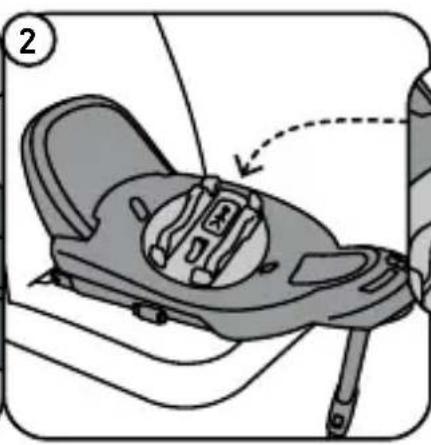

2. The disc can be rotated in both directions away from the rear facing position, but cannot be fully rotated to the front when using the base with a Go Beyond infant or Beyond toddler seat. When using the base with a Beyond 360 toddler seat, the disc cannot be rotated to the front when the headrest is in the 4 lowest positions, intended for a stature height till 88 cm.

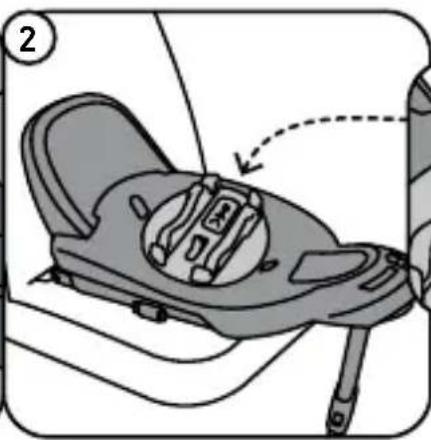

3. For the installation of the seat onto the base and how to take it off the base, please see the seat's user manual.

Diagram illustrating car seatbelt usage steps with labeled arrows and a person icon

Removal of the base from the vehicle

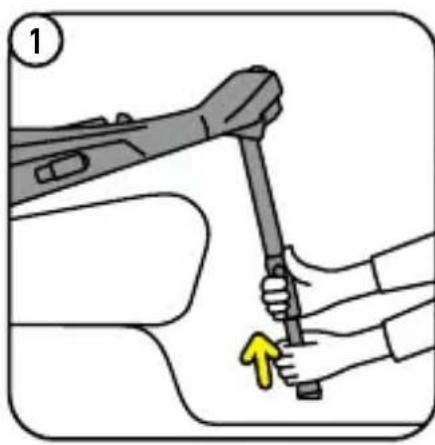

1. To release tension from the system, adjust the floor support into its shortest position while pressing the floor support button. (1)

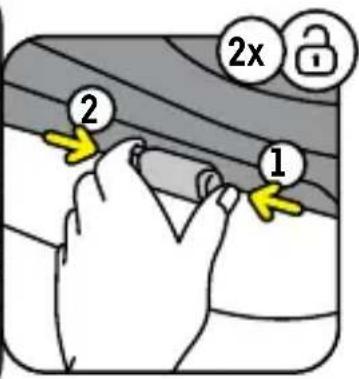

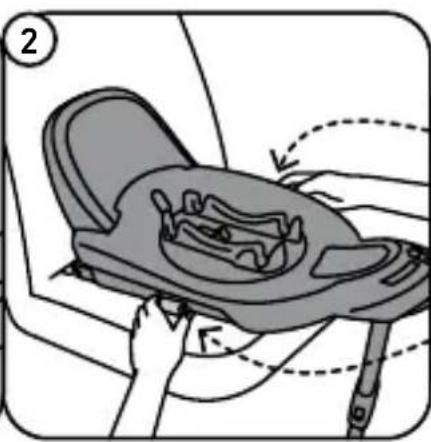

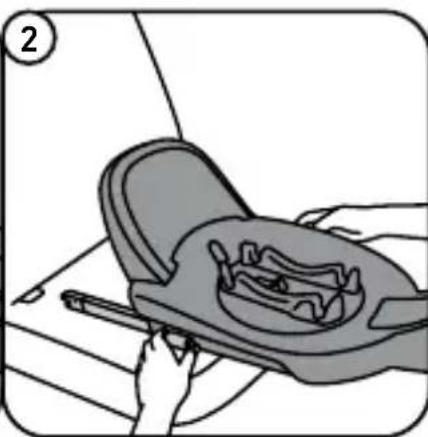

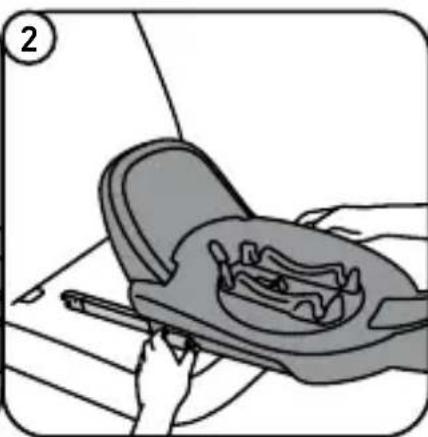

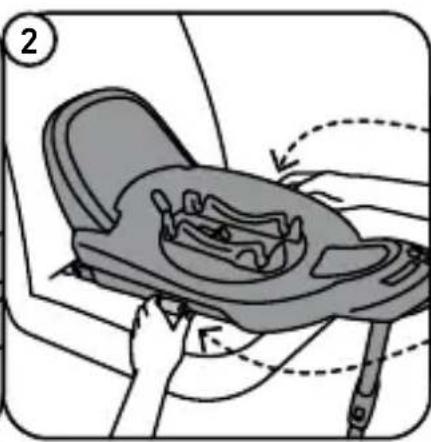

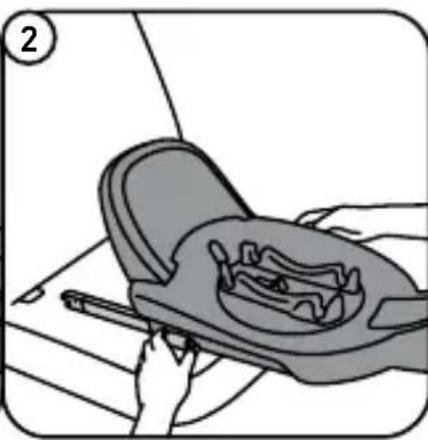

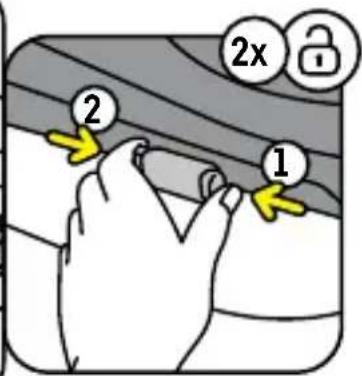

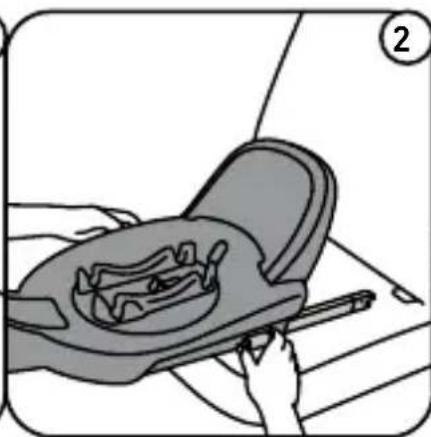

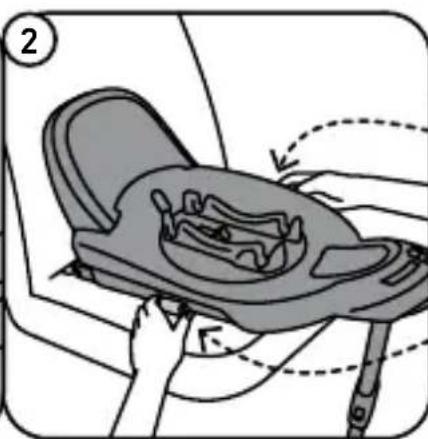

2. Disconnect the ISOfix arms from the vehicle - you can do so one side at a time. Press both the ISOfix adjustment button and ISOfix release button at the same time, then slide the ISOfix arm inwards into the base. (2)
3. Repeat on the other side.

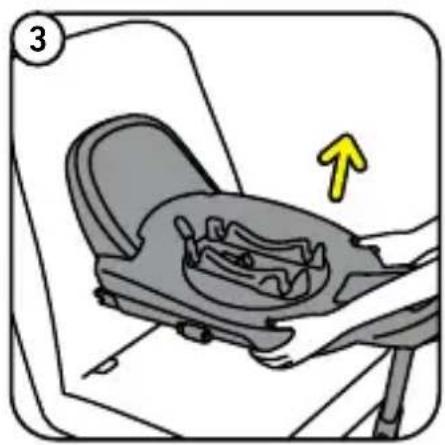

4. Take the base out of the vehicle. (3)

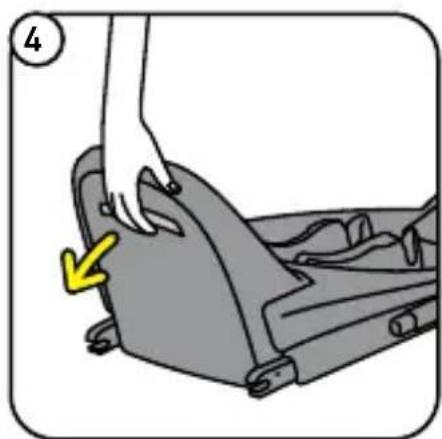

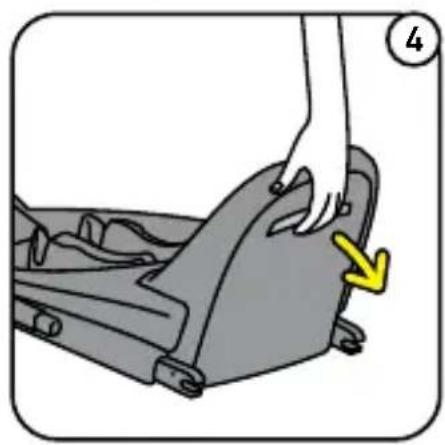

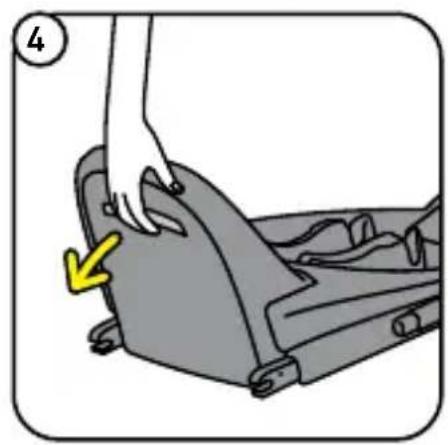

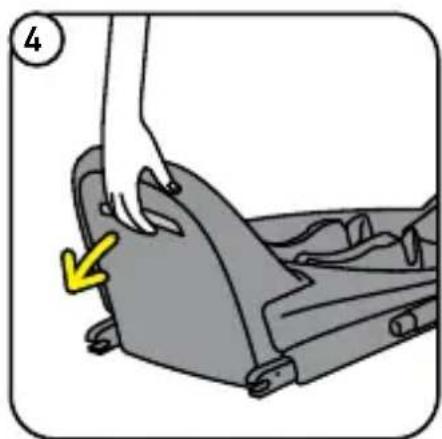

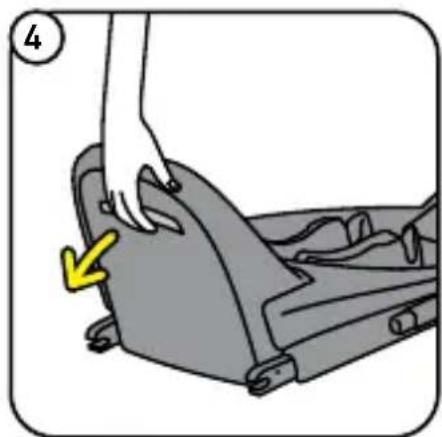

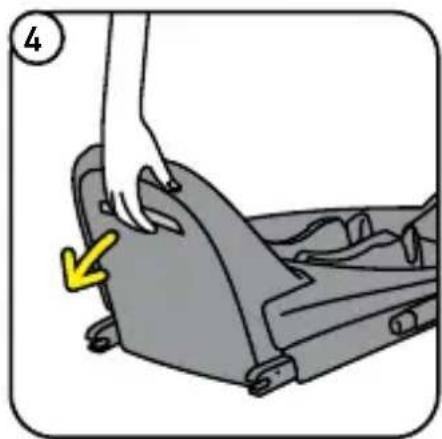

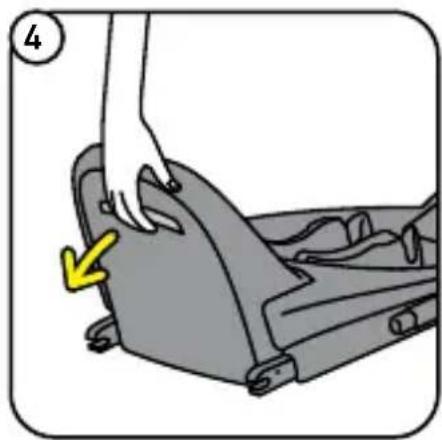

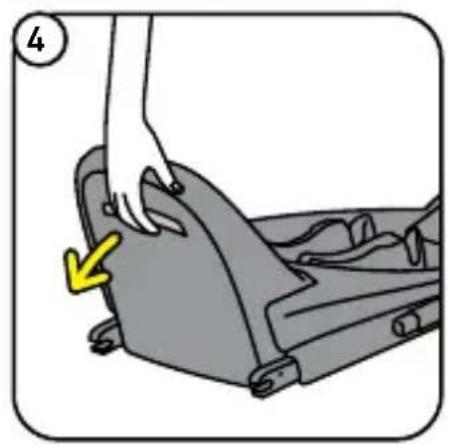

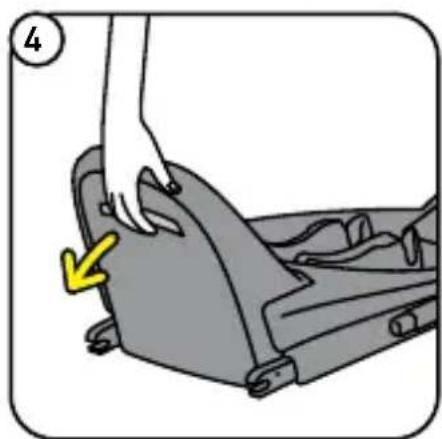

5. If you want to store the base in its original packaging, put the front brace into most extended position by lifting the front brace handle and rotating the front brace all the way down.

Illustration of hands using a tool to adjust a vehicle's seat (no text or symbols present)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a car seatbelt device with an arrow indicating direction (no text or symbols)

! Warning: potential misuse

• The child seat MUST NOT be installed in a front passenger seat WITH AN ACTIVATED AIRBAG.
• The floor support must always be used. Make sure that the floor support is fully pushed down and that the seat is positioned horizontal with the spirit level in the green area.
• Never drive with a child in the seat if the seat is rotated to the side.

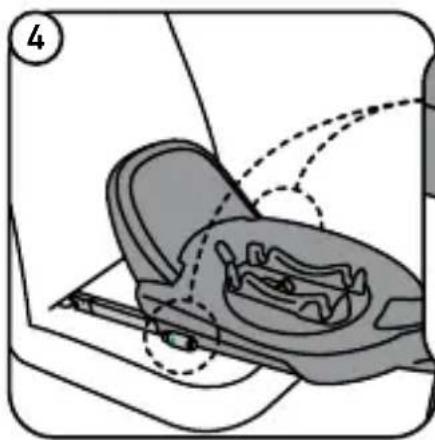

• Make sure all indicators are green before you drive.

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Guarantee

• Should this product prove faulty within 24 months of purchase due to materials or manufacturing fault, except covers and harness straps, please return it to the original place of purchase.
• The guarantee is only valid when you use your seat appropriately and with care. Please contact your retailer, they will decide if the seat will be returned to the manufacturer for repair. Replacement or return cannot be claimed. The guarantee is not extended through repair.
• The guarantee expires: when there is no receipt, when defects are caused by incorrect and improper use, when defects are caused by abuse, misuse or negligence.

Disassembly & disposal of the product

• This product can be dissassembled in different materials for waste handling; please visit www.besafe.com for detailed instructions.
• Please hand in the product at a designated collection point for handling non-general household waste.

Disposal of the packaging

- The packaging of this product contains several components like cardboard, please separate these materials and hand them in the designated collection points in your area.

Takk for at du valgte BeSafe Beyond Base

Prohibition sign showing a chair seat and child sitting, indicating no formal or occupational absence of the vehicle.

Diagram illustrating car safety rules with hand and seat, showing checkmarks and incorrect actions

Illustration showing a hand with green checkmarks and a car seat, alongside a magnified view of the seat with an orange chair.

Diagram illustrating seatbelt usage with checkmarks and incorrect indicators, alongside a side-view of a person seated in a chair.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a small object inside a car seat, with no visible text or symbols

3 Click! Click!

Mechanical component diagram showing a gear assembly with dashed lines indicating motion or alignment (no text or symbols)

Close-up of a mechanical component with a green checkmark and 2x multiplier label (no readable text or symbols beyond basic markings)

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Diagram illustrating car seatbelt usage steps with labeled arrows and a person icon

Illustration of hands using a hammer to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

! Advarsel: Potensiell feilbruk

- Det er FORBUDT å montere barnestolen/autostolen i forseter MED AKTIV AIRBAG

Prohibition sign showing a car seat and child silhouette against a red circle, indicating no use or absence of use.

Garanti

Prohibition sign showing a car seat and child silhouette crossed out, indicating no use or absence of use.

Diagram illustrating car seat safety options with checkmarks and crosses, alongside a magnified view of the seat.

Diagram showing car seat safety options with checkmarks and a magnified view of the seat.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of a person's seatbelt.

Illustration of a hand pressing down on a gray mechanical seat component, with a yellow arrow indicating the motion direction (no text or symbols present)

Diagram of a car seatbelt mechanism with a yellow directional arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object inside a car seat, with no visible text or symbols.

3 Click! Click!

Mechanical component diagram showing a cam and lever assembly (no text or symbols)

Close-up of a mechanical component with a green checkmark and 2x multiplier indicator (no text or symbols on the main subject)

Diagram illustrating a flight safety operation with labeled components and directional arrows indicating motion or movement.

2 Click!

Diagram showing four capsule-shaped objects with colored liquid and checkmarks, each marked with a red 'X' and green checkmark.

4 Click! Click!

Illustration of a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of a hand using a hammer to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 2 1

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Garanti

Prohibition sign showing a person sitting on a chair facing another person, with no text or symbols present.

Käyttö & huolto

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Diagram showing car seat safety options with checkmarks and a magnified view of the seat chair.

Diagram showing car seat safety options with checkmarks and red/green checkmarks, alongside a close-up of the seat.

Illustration of a person pressing down on a gray exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Diagram of a car seatbelt mechanism with a yellow directional arrow indicating motion (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

3 Click! Click!

Mechanical component diagram showing a clamping mechanism with no visible text or symbols

2x

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion or force.

2 Click!

③ × × × ✓ ✓

4 Click! Click!

Illustration of a hand turning a car interior with yellow arrows indicating rotational motion (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

Jalustan irrottaminen autosta

Illustration of a hand using a hammer to lift a car (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Takuu

Prohibition sign showing a person sitting on a chair facing the wheel, with no text beyond the prohibition symbol.

Bedienung & Wartung

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Diagram showing car seat seating with checkmarks and a magnified view of the seat, labeled with number 2.

Diagram illustrating seatbelt usage with checkmarks and incorrect indicators, alongside a photo of a person seated in a chair.

Illustration of a person pressing down on a gray exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Diagram of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a car interior component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear and cam mechanism (no text or labels)

2x

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion or force.

2 Click!

③ × × × ✓ ✓

4 Click! Click!

Diagram illustrating car seatbelt usage steps with labeled instructions and directional arrows

Illustration of a hand using a tool to lift a vehicle (no text or symbols present)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 2 1

Illustration of a car seatbelt device with an arrow indicating direction (no text or symbols)

Prohibition sign showing a chair seat and child on the wheel, indicating no use or absence of use.

Garantie

Prohibition sign showing a person sitting on a chair and another person lying down, both crossed out by a red circle.

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified inset showing the same seat.

Diagram showing car seat seating with checkmarks and a magnified view of the seat, labeled with number 2.

Diagram illustrating seatbelt usage with checkmark, red X, green checkmark, and orange lighing options for seating or safety instructions.

Illustration of a person pressing down on a gray exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Diagram of a car seatbelt mechanism with a yellow directional arrow indicating movement (no text or symbols present)

Illustration of a hand holding a tool interacting with a car interior component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a clamping device with internal components and dashed lines indicating motion (no text or symbols)

2x

Diagram showing a person using a handheld device to interact with a vehicle, with directional arrows indicating motion or force.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Diagram illustrating car seatbelt usage steps with numbered instructions and directional arrows indicating movement.

Illustration of hands using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a car seatbelt with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Garantie

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of use.

Diagram illustrating car seat safety options with checkmarks and crosses, alongside a magnified view of the seat.

Diagram showing car seat safety with checkmarks and a magnified view of the seat, labeled with number 2.

Diagram showing seatbelt safety options with checkmarks and red/green checkmarks, alongside a close-up of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Diagram of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a car interior panel (no text or symbols visible)

3 Click! Click!

Mechanical component diagram showing a gear assembly with dashed lines indicating motion or alignment (no text or symbols)

2x

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Illustration of a hand turning a car interior with yellow arrows indicating rotational motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of a hand using a hammer to lift a car (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a car seatbelt device with a yellow arrow indicating direction (no text or symbols)

Prohibition sign showing a chair seat and car, indicating no use or absence of use

Prohibition sign showing a person sitting in a chair facing another person, both crossed out by a red circle

Diagram illustrating car seat safety options with checkmarks and crosses, alongside a magnified view of the seat.

Illustration showing a hand holding a car seat with checkmarks and a side-view of the seat, including a small inset image of the seat.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Diagram of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a small object inside a car seat, with no visible text or symbols.

3 Click! Click!

Mechanical diagram showing a car seat assembly with dashed lines indicating motion or movement (no text or symbols)

2x

Diagram showing a person using a handheld device to interact with a vehicle, with directional arrows indicating motion or force.

2 Click!

③ × × × ✓ ✓

4 Click! Click!

Illustration of a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a dashed arrow indicating motion or force (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of hands using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Garantía

Prohibition sign showing a person sitting in a chair facing another person, both crossed out by a red circle.

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Diagram showing car seat seating with checkmarks and a magnified view of the seat seat highlighted with a chair.

Diagram illustrating seatbelt usage with checkmark, red X, green checkmark, and orange lighing options for seating selection.

Illustration of a person pressing down on a stationary exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Diagram of a car seatbelt mechanism with a yellow directional arrow indicating movement (no text or symbols present)

Illustration of a hand holding a tool interacting with a car interior panel (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a clamping device with internal components and motion lines (no text or symbols)

2x

Diagram showing a person using a handheld device to interact with a vehicle, with directional arrows indicating motion or force.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Illustration of a hand turning a car wheel with yellow motion arrows indicating rotational motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of hands using a hammer to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 2 1

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a chair seat and child on the wheel, indicating no use or absence of use.

Prohibition sign showing a red circle with a no-dominant symbol and a seated person inside the chair.

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified inset showing the same seat.

Diagram showing car seat seating with checkmarks and a magnified view of the seat, labeled with number 2.

Diagram illustrating seatbelt usage with checkmarks and red/green checkmarks, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear-like component inserted into a housing (no text or symbols)

Close-up of a mechanical component with a green checkmark and 2x multiplier indicator (no text or symbols on the main subject)

Diagram illustrating a flight safety operation with labeled components and directional arrows indicating motion or movement.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Diagram illustrating car seatbelt usage steps with labeled arrows and a warning symbol

Illustration of a hand using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child with no accompanying text

Garantia

Prohibition sign showing a person sitting on a chair facing the wheel, with no text beyond the red circle.

Diagram illustrating car seat safety options with checkmarks and crosses, alongside a magnified view of the seat.

Diagram showing car seat positioning with checkmarks and a magnified view of the seat, labeled with number 2.

Diagram showing seatbelt safety options with checkmarks and red/green checkmarks, alongside a close-up of the seatbelt seat.

Illustration of a person pressing down on a stationary exercise chair (no text or symbols)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

3 Click! Click!

Mechanical component diagram showing a gear assembly with dashed lines indicating motion or alignment (no text or symbols)

Close-up of a mechanical component with a green checkmark and 2x multiplier indicator (no text or symbols on the main subject)

Illustration of a person using a handheld device to interact with a jet engine, showing motion arrows (no text or symbols)

2 Click!

③ × × × ✓ ✓

4 Click! Click!

Diagram illustrating car seatbelt usage steps with labeled arrows and a person icon

Illustration of a hand using a hammer to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seatbelt with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child pictogram, indicating no use or absence of use.

Kullanım&Bakım

Diagram illustrating car seat safety options with checkmarks and crosses, alongside a magnified view of the seat.

Diagram showing car seatbelt usage with checkmarks and a magnified view of the seatbelt seat.

Diagram illustrating seatbelt safety options with checkmarks and red/green checkmarks, alongside a zoomed-in view of the seat.

Illustration of a person pressing down on a gray exercise seat (no text or symbols)

Diagram of a car seatbelt mechanism with a yellow directional arrow indicating movement (no text or symbols present)

Illustration of a hand holding a tool interacting with a car interior panel (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a clamping device with internal components and dashed lines indicating motion (no text or symbols)

2x

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Diagram showing a hand pressing down on a car interior with yellow arrows indicating motion or flow (no text or symbols)

Diagram of a car seatbelt with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of a hand using a tool to lift a vehicle's head, with a yellow arrow indicating the motion (no text or symbols present)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Garanti

Prohibition sign showing a person sitting in a chair facing another person, with no text or symbols beyond the red circle.

Diagram illustrating car seat safety options with checkmarks and crosses, alongside a magnified view of the seat.

Diagram showing car seatbelt and seatbelt with checkmarks, alongside a magnified view of the seatbelt seat.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a zoomed-in view of the seat.

Illustration of a hand pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear-like component inserted into a housing (no text or symbols visible)

Close-up of a mechanical component with a green checkmark and 2x multiplier indicator (no text or symbols on the main subject)

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

Diagram showing four capsule-shaped objects with colored liquid and checkmarks, each marked with a red 'X' and green checkmark.

4 Click! Click!

Diagram showing a hand pressing down a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of hands using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a car seatbelt device with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child pictogram, indicating no use or absence of use.

Garancia

Prohibition sign showing a car seat and child with no text or symbols

Diagram illustrating car seat safety rules with checkmarks and incorrect actions, alongside a magnified view of the seat.

Diagram showing car seat positioning with checkmarks and a magnified view of the seat chair.

Diagram illustrating seatbelt usage with checkmarks and red/green checkmarks, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Diagram of a car seatbelt mechanism with a yellow directional arrow indicating movement (no text or symbols present)

Illustration of a hand using a tool to adjust or install a car seat component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear and cam mechanism (no text or labels)

2x

Diagram showing a person using a handheld device to interact with a vehicle, with directional arrows indicating motion and speed.

2 Click!

③ × × × ✓ ✓

4 Click! Click!

Illustration of a hand pressing down on a mechanical component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of a hand using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Záruka

Prohibition sign showing a person sitting on a chair and using a circle to symbolize no use or absence of exercise.

Diagram illustrating car seat safety rules with checkmarks and incorrect symbols, alongside a magnified view of the seat.

Illustration showing car seat safety with checkmarks and a magnified view of the seat seat.

Diagram showing seatbelt and seatbelt seat with checkmarks, red X marks, and a suit symbol, alongside a magnified view of the seat.

Illustration of a person pressing down on a gray exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Diagram of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

3 Click! Click!

Mechanical component diagram showing a clamping mechanism with dashed trajectory lines (no text or symbols)

Illustration of a mechanical component with a green button and a 2x multiplier indicator (no text or symbols on the main subject)

① ② Click! ③ ✓ ✓ ✓ ✓

4 Click! Click!

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Demontarea bazei

Illustration of a hand using a tool to lift a vehicle's seat, with a yellow arrow indicating the motion (no text or symbols present)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 2 1

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Prohibition sign showing a person sitting on a chair facing the wheel, with no text beyond the red circle.

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Illustration showing a hand car seat with checkmarks and a separate inset showing a person seated in a chair with a seatbelt icon.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Diagram of a car seatbelt mechanism with a yellow directional arrow indicating movement (no text or symbols present)

Illustration of a hand holding a tool interacting with a car seat (no text or symbols visible)

3 Click! Click!

Mechanical component diagram showing a gear assembly with dashed lines indicating motion or movement (no text or symbols)

2x

Diagram showing a person using a handheld device to interact with a vehicle, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Diagram illustrating car seatbelt usage steps with numbered instructions and directional arrows indicating movement.

Illustration of hands using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a car seatbelt device with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Gwarancja

Prohibition sign showing a person sitting in a chair facing another person, both crossed out by a red circle

Diagram illustrating car seatbelt usage with checkmarks and incorrect indicators, alongside a magnified view of the seatbelt.

Diagram showing car seat seating with checkmarks and a magnified view of the seat chair.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of a person seated in a chair.

Illustration of a person pressing down on a gray exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Diagram of a car seatbelt mechanism with a yellow directional arrow indicating movement (no text or symbols present)

Illustration of a hand using a tool to adjust or install a car seat component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear-like component inserted into a housing (no text or symbols)

2x

Illustration of a person using a handheld device to interact with a vehicle, showing motion arrows and angle markers (no text or symbols)

2 Click!

Diagram showing four capsule-shaped objects with checkmarks and red/green X marks, likely indicating selection or confirmation steps.

4 Click! Click!

Illustration of a hand turning a car wheel with yellow motion arrows indicating rotational flow (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of a hand using a tool to lift a vehicle's seat, with a yellow arrow indicating the motion (no text or symbols present)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a car seatbelt device with an arrow indicating direction (no text or symbols)

Prohibition sign showing a person sitting in a chair facing another person, with no text or symbols beyond the red circle.

Prohibition sign showing a chair and car with no accompanying text or symbols

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Diagram showing car seat positioning with checkmarks and a magnified view of the seat, labeled with number 2.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a photo of a person seated in a chair.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a car seat (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear-like component inserted into a housing (no text or symbols)

Close-up of a mechanical component with a green checkmark and 2x multiplier indicator (no text or symbols on the component itself)

Diagram illustrating aircraft fuel efficiency with labeled components and directional arrows indicating speed or airflow

2 Click!

Diagram showing four capsule-shaped objects with colored sections and checkmarks indicating approval or rejection status.

4 Click! Click!

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of hands using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 2 1

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Garantija

Prohibition sign showing a person sitting on a chair facing another person, with no text or symbols beyond the red circle.

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Illustration showing a hand car seat with checkmarks and a separate inset of a person using a seatbelt, labeled with number 2.

Diagram illustrating seatbelt rule options with checkmark, red X, green checkmark, and orange lighing symbols

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Diagram of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a car seat component (no text or symbols visible)

3 Click! Click!

Mechanical diagram showing a car seat assembly with dashed lines indicating motion or movement (no text or symbols)

2x

Diagram illustrating aircraft fuel injection process with labeled components and directional arrows

2 Click!

Diagram showing four capsule-shaped objects with colored liquid and checkmarks, each marked with a red 'X' or green checkmark.

4 Click! Click!

Illustration of a hand turning a car interior with yellow arrows indicating rotational motion (no text or symbols)

Diagram of a car seatbelt mechanism with a dashed arrow indicating motion (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of a hand using a hammer to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

! Opozorilo: morebitna nepravilna uporaba

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Garancija

Prohibition sign showing a chair seat and child silhouette without any text or symbols

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Diagram showing car seat seating with checkmarks and a magnified view of the seat seat highlighted with an orange chair.

Diagram illustrating seatbelt usage with checkmarks and red/green checkmarks, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat, with a yellow arrow indicating the motion direction (no text or symbols)

Diagram of a car seatbelt mechanism with a yellow directional arrow indicating movement (no text or symbols present)

Illustration of a hand using a tool to adjust or install a car seat component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear and cam mechanism (no text or labels)

2x

Diagram illustrating a medical procedure with instructions for using a needle to interact with a device, and a checklist of test tubes checked.

4 Click! Click!

Illustration of a hand pressing down on a mechanical component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of hands using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 2 1

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a chair and car with no accompanying text or symbols

Garantii

Prohibition sign showing a chair seat and child silhouette without any text or symbols

Rukovanje i održavanje

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Illustration showing a hand with checkmarks and a car seat, alongside a magnified view of the seat with a chair.

Diagram showing seatbelt safety options with checkmarks and red/green checkmarks, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear-like component inserted into a housing (no text or symbols visible)

Close-up of a mechanical component with a green checkmark and a 2x multiplier indicator (no text or symbols on the main subject)

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt mechanism with a dashed arrow indicating motion (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

Vađenje baze iz automobila

1. Kako biste otpustili pritisak, namjestite potpornu nogu u najkraći položaj dok pritišćete tipku. (1)
2. Odvojite ISOfix konektore od vozila - možete to činiti jednu po jednu stranu. Istovremeno pritisnite gumb za podešavanje ISOfixa i gumb za otpuštanje ISOfixa, zatim gurnite ISOfix konektor prema unutra u bazu. (2)
3. Ponovite na drugoj strani.
4. Izvadite bazu iz vozila. (3)
5. Ako bazu želite pohraniti u originalnom pakiranju, postavite prednji oslonac u najispruženiji položaj podizanjem ručke prednjeg oslonca i okretanjem prednjeg oslonca do kraja.

Illustration of hands using a tool to adjust a vehicle's seat (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a car seatbelt with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Jamstvo

Prohibition sign showing a chair and person in seat with no text or symbols

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Diagram showing car seat seating with checkmarks and a magnified view of the seat seat highlighted with an orange chair.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of the seatbelt seat.

Illustration of a person using a seatbelt device to adjust the seat (no text or symbols visible)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a car seat (no text or symbols visible)

3 Click! Click!

Mechanical component diagram showing a gear assembly with dashed lines indicating motion or alignment (no text or symbols)

Close-up of a mechanical component with a green checkmark and 2x multiplier indicator (no text or symbols on the main subject)

Diagram illustrating aircraft fuel injection mechanism with labeled components and directional arrows

2 Click!

③ × × ✓ ✓

4 Click! Click!

Illustration of a hand pressing down on a mechanical component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt mechanism with a dashed arrow indicating motion (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of a hand using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a car seatbelt device with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Garantija

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Illustration showing car seat safety with checkmarks and a magnified view of the seat.

Diagram illustrating seatbelt usage with checkmarks and red/green checkmarks, alongside a side-view of a person seated in a chair.

Illustration of a person pressing down on a stationary exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Diagram of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a car interior component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear-like component with dashed alignment lines (no text or symbols)

Illustration of a mechanical component with a green button and a 2x multiplier indicator (no text or symbols on the main subject)

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × × ✓ ✓

4 Click! Click!

Diagram showing a hand pressing down a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of a hand using a tool to lift a vehicle (no text or symbols present)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seatbelt with a yellow arrow indicating direction (no text or symbols)

Prohibition sign showing a person sitting in a chair facing another person, with no text or symbols beyond the red circle.

Гаранция

Prohibition sign showing a car seat and child silhouette without any text or symbols

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Illustration showing car seat seating with checkmarks and a magnified view of the seat seat.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a car seat (no text or symbols visible)

3 Click! Click!

Mechanical component diagram showing a gear assembly with dashed lines indicating motion or alignment (no text or symbols)

Close-up of a mechanical component with a green checkmark and a 2x multiplier indicator (no text or symbols on the component itself)

Diagram illustrating aircraft fuel efficiency with labeled components and directional arrows indicating speed or airflow

2 Click!

Diagram showing four capsule-shaped objects with colored liquid and checkmarks, each marked with a red 'X' and green checkmark.

4 Click! Click!

Illustration of a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of hands using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Záruka

Prohibition sign showing a person sitting on a chair facing another person, both crossed out by a red circle.

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified inset showing the same seat.

Diagram showing car seat safety with checkmarks and a magnified view of the seat, labeled with number 2.

Diagram illustrating seatbelt usage with checkmarks and red/green checkmarks, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise chair seat, with a yellow arrow indicating the motion direction (no text or symbols present)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

3 Click! Click!

Diagram of a car seat assembly with dashed lines indicating internal components (no text or labels)

Close-up of a mechanical component with a green checkmark and a 2x multiplier indicator (no text or symbols on the component itself)

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Diagram showing a hand pressing down on a car engine component with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt with a hand pointing to the seat area, showing no text or symbols.

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of hands using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

! Aðvörun: Möguleg mistök

- EKKI MÁ setja stólinn í framsæti MED VIRKUM ÖRYGGISPÚDA.

Prohibition sign showing a car seat and child pictogram, indicating no use or absence of use.

Prohibition sign showing a car seat and child silhouette crossed out, indicating no use or absence of use.

관리 및 유지보수

Diagram illustrating car seat safety options with checkmarks and red/green circles, alongside a magnified view of the seat.

Diagram showing car seat safety with checkmarks and a magnified view of the seat seat.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of a seatbelt seat.

Illustration of a person pressing down on a gray ergonomic seat (no text or symbols)

뒷좌석 장착 준비

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a component with internal structure and dashed lines indicating motion (no text or symbols)

2x

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Illustration of a hand turning a car interior with yellow arrows indicating rotational motion (no text or symbols)

Diagram of a car seatbelt device with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

차량에서 베�이스 제거하기

Illustration of hands using a tool to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

!경고:사용중 주의사항

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

품질 보증

Diagram illustrating car seat safety options with checkmarks and crosses, alongside a magnified view of the seat.

Illustration showing a hand with checkmarks and green checkmarks indicating selection, alongside a small inset image of a person in a seatbelt.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a photo of a person seated in a chair.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

後部座席に設置する準備

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a car seat (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear-like component inserted into a housing (no text or symbols visible)

Close-up of a mechanical component with a green checkmark and 2x multiplier indicator (no text or symbols on the main subject)

Diagram showing a person using a flashlight to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Diagram illustrating car seatbelt usage steps with numbered instructions and labeled parts

車からベースを取り外す

Illustration of hands using a hammer to lift a vehicle (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 2 1

Illustration of a car seatbelt with an arrow indicating direction (no text or symbols)

!警告: 誤用の可能性

Prohibition sign showing a red circle with a diagonal line and a pictogram of a person sitting on the seat.

处理和维修

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Illustration showing a hand with green checkmarks and a car seat, alongside an inset showing a seat with a chair and a small orange icon.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of a person in a seatbelt.

Illustration of a person pressing down on a gray exercise seat, with a yellow arrow indicating the motion direction (no text or symbols present)

在汽车后排座位进行安装的事前准备

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

3 Click! Click!

Mechanical component diagram showing a gear assembly with dashed lines indicating motion or alignment (no text or symbols)

2x

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion or force.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Illustration of a hand turning a car interior with yellow arrows indicating rotational motion (no text or symbols)

Diagram of a car seatbelt buckle with a dashed arrow indicating motion (no text or symbols)

Simple line drawing of a person inside a vehicle (no text or symbols)

从汽车上移除基座

Illustration of a hand using a hammer to lift a car (no text or symbols)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 2 1

Illustration of a car seatbelt device with an arrow indicating direction (no text or symbols)

!警告: 可能被滥用

Prohibition sign showing no smoking or alcohol consumption with a red circle and pictogram of a person sitting in a chair.

担保

Prohibition sign showing a person sitting on a chair facing the sun, with no text beyond the prohibition symbol.

Diagram illustrating car seat safety options with checkmarks and red/green checkmarks, alongside a magnified view of the seat.

Diagram showing car seat seating with checkmarks and a magnified view of the seat, labeled with number 2.

Diagram illustrating seatbelt safety options with checkmarks and red/green checkmarks, alongside a side-view of the seatbelt seat.

Illustration of a hand pressing down on a stationary exercise chair (no text or symbols)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a component with internal structure and dashed lines indicating motion (no text or symbols)

Close-up of a mechanical component with a green checkmark and 2x multiplier indicator (no text or symbols on the main subject)

Diagram showing a person using a handheld device to interact with a jet engine, with directional arrows indicating motion and speed.

2 Click!

③ × × ✓ ✓

4 Click! Click!

Illustration of a hand pressing down on a car interior with yellow arrows indicating motion (no text or symbols)

Diagram of a car seatbelt mechanism with a dashed arrow indicating motion (no text or symbols present)

Simple line drawing of a person inside a vehicle (no text or symbols)

Illustration of a hand using a tool to lift a car's seat, with a yellow arrow indicating the motion (no text or symbols present)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a car seatbelt device with an arrow indicating direction (no text or symbols)

Prohibition sign showing a chair and person inside a circle, indicating no use or absence of exercise.

Гарантія

Prohibition sign showing a red circle with a no-dominant symbol and a seated person inside, indicating no use or absence of a child.

• Kada se koristi u Španiji: Član 117 Opšte saobraćajne regulative u Španiji zabranjuje vožnju dece visine visine rasta jednake ili manje od 135 centimetara koja se nalaze na prednjim sedištima vozila, osim ako vozilo nema zadnja sedišta, sva zadnja sedišta su već zauzeta decom ispod 135 cm ili ako to nije moguće postavite dečje sedište na prednje sedište.
• Ova baza se može instalirati samo u automobil opremljen ISOfix tačkama za pričvršćivanje odobrenim prema UN/ECE Uredbi br. 14 ili drugim ekvivalentnim standardima.
• Ova baza se može koristiti u kombinaciji sa BeSafe Go Beyond za visinu rasta 40 - 87 cm i BeSafe Beyond za visinu rasta 61 - 125 cm.
• Potporna noga mora se uvek koristiti. Uverite se da je potporna noga utisnuta do kraja u pod vozila ispred samog postolja i da je baza u ravni sa libelom u zelenoj površini. Indikatori potporne noge moraju uvek biti zelene boje.

Rukovanje i održavanje

• Zamenite proizvod ako je bio u sudaru gde je brzina bila 10 km/h i više ili ako postoji sumnja da je sedište oštećeno iz bilo kog razloga. Iako može izgledati neoštećeno, ako doživite još jednu nesreću, auto sedište možda neće moći da zaštiti vaše dete do nivoa za koji je dizainirano.
• Sprečite da se proizvod zaglavi ili optereti prtljagom, sedištima i/ili zalupljenim vratima.
• Vodite računa da prtljag ili drugi predmeti budu primereno pričvršćeni. Nepričvršćeni prtljag može u slučaju nezgode da nanese ozbiljne povrede deci ili odraslim osobama.
• NE pokušavajte da rastavite, modifikujete ili dodate bilo koji deo proizvodu. Garancija će biti nevažeća ako se koriste neoriginalni delovi ili pribor.
• Nemojte koristiti agresivna sredstva za čišćenje; oni mogu oštetiti konstrukcijski materijal proizvoda.
• BeSafe savetuje da ne kupujete ili prodajete polovna auto sedišta.
• NE koristite proizvod duže od 15 godina. Zbog starenja može doći do promena u kvalitetu materijala.
• Autosedište NIJE namenjeno za korišćenje kod kuće, nego isključivo u automobilu.
• Kada je proizvod montiran u automobilu, proverite sva mesta gde bi auto sedište moglo da dodiruje unutrašnjost. Preporučujemo upotrebu (BeSafe) zaštite za sedište automobila na ovim mestima kako biste izbegli posekotine, tragove ili promene boje na unutrašnjosti vozila, posebno u vozilima sa kožom ili drvenim enterijerom.
• U slučaju bilo kakvih nedoumica kontaktirajte proizvođača ili prodavca auto sedišta.

Sastavni delovi

a Prednji oslonac
b Ručka prednjeg oslonca
c Rotacioni disk
d Libela
e Indikator povezivanja sedišta
f Ručka za otpuštanje sedišta
g Potporna noga
h Dugme na potpornoj nozi
i Indikator potporne noge
j ISOfix konektor (2k)
k ISOfix dugme za otpuštanje (2k)
l ISOfix indikatori (2k)
m ISOfix dugme za podešavanje
n ISOfix sidrene točke u vozilu (2k)

a b c d e f g h i n j k l m

Diagram illustrating car seat safety options with checkmarks and crosses, alongside a magnified view of the seat.

Diagram showing car seat seating with checkmarks and a magnified view of the seat chair, labeled with number 2.

Diagram illustrating seatbelt rule options with checkmarks and crosses, alongside a side-view of the seatbelt seat.

Illustration of a person pressing down on a gray exercise seat with a yellow arrow indicating the motion (no text or symbols)

Illustration of a car seatbelt with a yellow directional arrow indicating movement (no text or symbols)

Illustration of a hand holding a small object with a textured interior, possibly a device or device component (no text or symbols visible)

3 Click! Click!

Mechanical assembly diagram showing a gear-like component inserted into a housing (no text or symbols visible)

Close-up of a mechanical component with a green checkmark and 2x multiplier indicator (no text or symbols on the main subject)

Diagram illustrating a flight safety instruction with labeled components and directional arrows indicating movement or change.

2 Click!

③ × × ✓ ✓

4 Click! Click!

1. Ako želite da postavite auto sedište na bazu okrenuto prema vama, možete da okrenete rotacioni disk, tako da dete na nalepnici bude okrenuto prema vama. (1, 2)

2. Disk se može rotirati u oba smera od položaja okrenutog suprotno od pravca kretanja, ali se ne može potpuno rotirati prema napred kada se koristi baza sa Go Beyond sedištem za bebe ili Beyond sedištem za manju decu. Kada koristite bazu sa Beyond 360 sedištem za manju decu, disk se ne može rotirati napred kada je naslon za glavu u 4 najniža položaja, predviđen za visinu rasta do 88 cm.

3. Za postavljanje auto sedišta na bazu i kako ga skinuti s baze, pogledajte korisnički priručnik auto sedišta.

Diagram illustrating car seatbelt usage steps with numbered instructions and directional arrows indicating movement.

Vađenje baze iz automobila

1. Da biste oslobodili pritisak, podesite potpornu nogu u najkraći položaj dok pritiskate dugme za potpornu nogu. (1)
2. Odvojite ISOfix konektore od vozila - to možete učiniti jednu po jednu stranu. Pritisnite istovremeno dugme za podešavanje ISOfix-a i dugme za otpuštanje ISOfix-a, a zatim gurnite ISOfix konektor prema unutra u bazu. (2)
3. Ponovite na drugoj strani.
4. Izvadite bazu iz vozila. (3)
5. Ako želite da bazu čuvate u originalnom pakovanju, stavite prednji oslonac u najizvučeniji položaj tako što ćete podići ručku prednjeg oslonca i rotirati prednji oslonac do kraja.

Illustration of a hand using a tool to lift a vehicle (no text or symbols present)

Illustration of a car seatbelt with hand positioning and motion arrows indicating movement (no text or symbols)

2x 1 2

Illustration of a baby car seat with an arrow indicating direction (no text or symbols)

Prohibition sign showing a car seat and child on the wheel, indicating no use or absence of use.

Garancija

• Ako se ovaj proizvod pokaže manjkavim unutar 24 meseca od datuma kupovine zbog greške u materijalu ili proizvodnji, čime nisu obuhvaćene presvlake i bezbednosni pojasevi, vratite ga na mesto gde ste ga kupili.
• Garancija je važeća samo ako sedište koristite primereno i pažljivo. Prvo kontaktirate dobavljača, a on će odlučiti hoće li sedište da bude vraćeno proizvođaču radi popravke. Zamena ili povraćaj novca nisu mogući. Garancija se ne produžava nakon popravke.
• Garancija prestaje da važi: ako nemate račun, ako su kvarovi nastali pogrešnim ili neprimerenim korišćenjem, ako su kvarovi nastali namernim krivim korišćenjem, pogrešnim korišćenjem ili nemarom.

Rastavljanje i odlaganje proizvoda

• Ovaj proizvod se može rastaviti na različite materijale za rukovanje otpadom; posetite www.besafe.com za detaljna uputstva.
• Predajte proizvod na određenom sabirnom mestu za rukovanje otpadom koji nije iz domaćinstva.

Odlaganje ambalaže

- Pakovanje ovog proizvoda sadrži nekoliko komponenti kao što je karton, molimo vas da odvojite ove materijale i predate ih na određenim mestima za prikupljanje u vašem području.

Prohibition sign showing a chair seat and child silhouette crossed out, indicating no use or absence of use.

אַרְשָׁה

.הַרְשׁ

• אַרְאָה

• הַרְׁה

Illustration showing a car seat with a highlighted seat and a checkmark indicating selection of items.

Illustration showing a car seat with checkmark and cross symbols, alongside a hand gesture with checkmark and cross icons.

Illustration of a hand pressing down on a mechanical component with a yellow arrow indicating the motion direction (no text or symbols)

Diagram illustrating seatbelt usage with icons for check, disapproval, and rejection, alongside a magnified view of the seatbelt.

Click! Click! 3

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a car interior component being adjusted with a yellow arrow (no text or symbols)

Diagram showing four capsule-shaped cells with checkmarks and crosses, labeled with circled numbers ③

Click!

Diagram illustrating a car interior with a hand holding a tool, showing motion direction and highlighted vehicle parts.

Click! Click!

13

Diagram illustrating car gear shift process with labeled steps 1 and 2 showing tool positioning and motion arrows

בַרְשׁוֹם הַרְשׁוֹם

Prohibition sign showing a red circle with a no-dominant circle and a pictogram of a person sitting on the seat.

الثنيت والاستخدام

Illustration showing a car seat with a highlighted seat and a hand holding a green checkmark, accompanied by numbered callouts.

Diagram illustrating car seatbelt usage with checkmark and cross symbols, showing hand positioning and safety instructions.

Illustration of a hand pressing down on a mechanical component with a yellow arrow indicating the motion direction (no text or symbols)

Diagram illustrating seatbelt usage with icons for seating, hand, and confirmation/crisis options

Click! Click! 3

Illustration of a hand holding a tool interacting with a mechanical component (no text or symbols visible)

Diagram of a car seatbelt with a hand inserting a yellow arrow (no text or symbols)

Diagram showing four capsule-shaped objects with checkmarks and crosses indicating approval or rejection status, labeled with circled numbers ③.

Click!

Illustration of a person using a handheld device to interact with a jet engine, showing motion arrows (no text or symbols)

Click! Click!

Diagram illustrating car gear shift process with labeled steps 1 and 2 showing tool positioning and motion arrows

Prohibition sign showing a person sitting on a chair and giving a thumbs-up, enclosed in a red circle.

تملة!

Prohibition sign showing a chair seat and child silhouette without any text or symbols

ياتى!

نصب و استفاده

جلو است، نصب گرد.

• فمال

• انصب

Illustration showing a car seat with a seatbelt icon and a hand holding a green checkmark, with numbered callouts.

Diagram illustrating car seatbelt usage with checkmark and cross icons, showing selection of items like '✓' and '×'

Illustration of a hand pressing down on a mechanical component with a yellow arrow indicating the motion direction (no text or symbols)

Diagram illustrating seatbelt usage with checkmark and cross symbols, showing left side of seatbelt and right side of seatbelt with checkmark and cross icons.

Click! Click! 3

Illustration of a hand holding a tool interacting with a car interior panel (no text or symbols visible)

Illustration of a car seatbelt with a yellow arrow indicating direction (no text or symbols)

Diagram illustrating car seatbelt cleaning steps, showing step 1 with hand turning and circular motion around the seatbelt.

Prohibition sign showing a red circle with a no-dominant symbol and a seated person inside the chair.

!ست

f facebook.com/BeSafe

@besafeinternational
