Product Type	Automatic pressure booster
Brand	AL-KO
Model	HW 1300
Power Supply	230 V ~ 50 Hz
Thermal Protection	Yes, automatic shutdown in case of overheating, restart after 15-20 min
Pressure Tank	Yes, with membrane, input pressure 1.5 bar
Start Pressure	Approx. 2.0 bar
Stop Pressure	Adjustable via pressure switch
Housing Material	Stainless steel
Applications	Garden irrigation, domestic supply, pressure boosting
Pumped Liquids	Clear water, rainwater (max 35°C)
Prohibited Uses	Drinking water, salt water, corrosive substances, flammable liquids
Max Suction Height	Up to 4 m (with 1" hose)
Maintenance	Clean with clear water, drain before frost protection
Electrical Safety	Residual current circuit breaker 10A/30mA, cable HO7RN-F 3x1.5mm²
Supplied Accessories	Pressure switch, manometer, cable with Schuko plug
Optional Accessories	Filter, AL-KO suction kit
Warranty	According to the law of the country of purchase

Frequently Asked Questions - HW 1300 AL-KO

How to install the HW 1300 pump?

Place the pump on a flat, stable and horizontal surface, protected from rain. Mount the suction hose in an upward position and the delivery hose. Fill the pump with water before first start. Plug into a socket with residual current circuit breaker 10A/30mA.

How to fill the pump before first use?

Open the filling cap (2), pour water up to the rim of the pump body (12), then screw the cap back on. Never run the pump dry.

What to do if the pump does not start?

Check the power supply and circuit breaker. If the motor does not turn, the thermal switch may have tripped: wait 15-20 minutes for it to cool down. If the problem persists, contact AL-KO customer service.

How to adjust the pressure switch?

Disconnect the pump, remove the pressure switch cover. Use a screwdriver to adjust screws A (start pressure) and B (stop pressure). Increase or decrease the pressure. Close the cover and reconnect.

How to protect the pump from frost?

Completely drain the pump, tank and hoses. Unscrew the drain plugs (9) to remove water. Store the pump in a frost-free place.

What liquids can I pump with this pump?

The pump is designed for clear water and rainwater (max temperature 35°C). Do not use for drinking water, salt water, corrosive, flammable or abrasive liquids.

Can I use the pump for drinking water?

No, the pump is not suitable for drinking water. It is intended for irrigation and non-potable domestic supply.

What to do if the pump heats up and stops?

The thermal protection has cut off the motor. Let the pump cool down for 15-20 minutes. Check that the water temperature does not exceed 35°C and that the pump is not running dry. If the problem persists, contact customer service.

How to clean the pump?

Disconnect the pump. Wash it with clear water, especially after pumping chlorinated water. To unblock, remove the suction hose and let water flow through the pump body via the delivery hose.

Where can I find spare parts?

Spare parts and accessories (filter, suction kit) are available at AL-KO specialist dealers or via after-sales service. Use only original parts.

USER MANUAL HW 1300 AL-KO

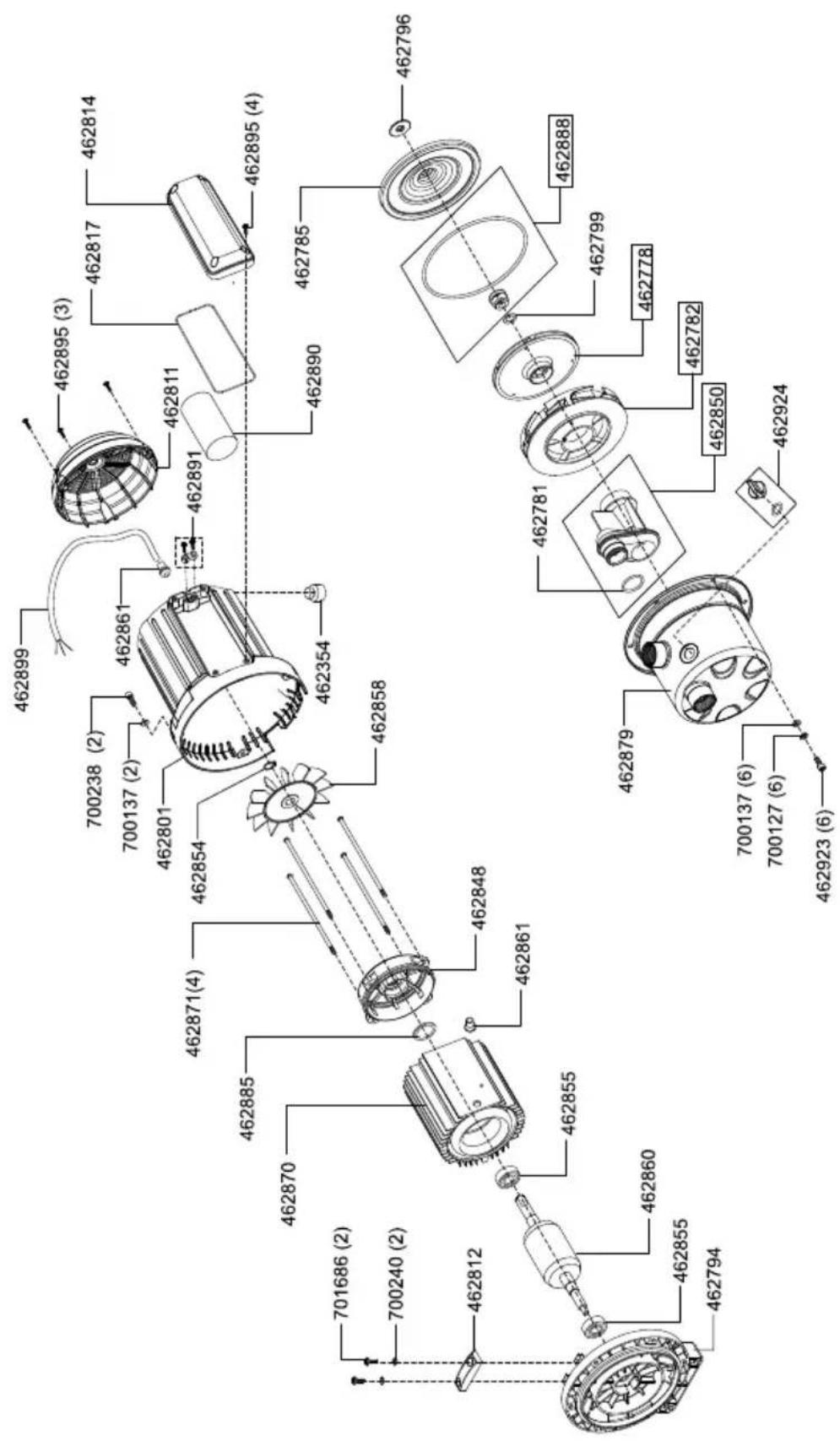

Technical line drawing of a mechanical pump or motor assembly (no text or symbols visible)

D	CZ
GB	SK
NL	H
F	DK
E	S
I	FIN
SLO	RUS
HR	UA
PL

INFORMATION | MANUALS | SERVICE

HW 1300 INOX

Betriebsanleitung

Inhaltsverzeichnis

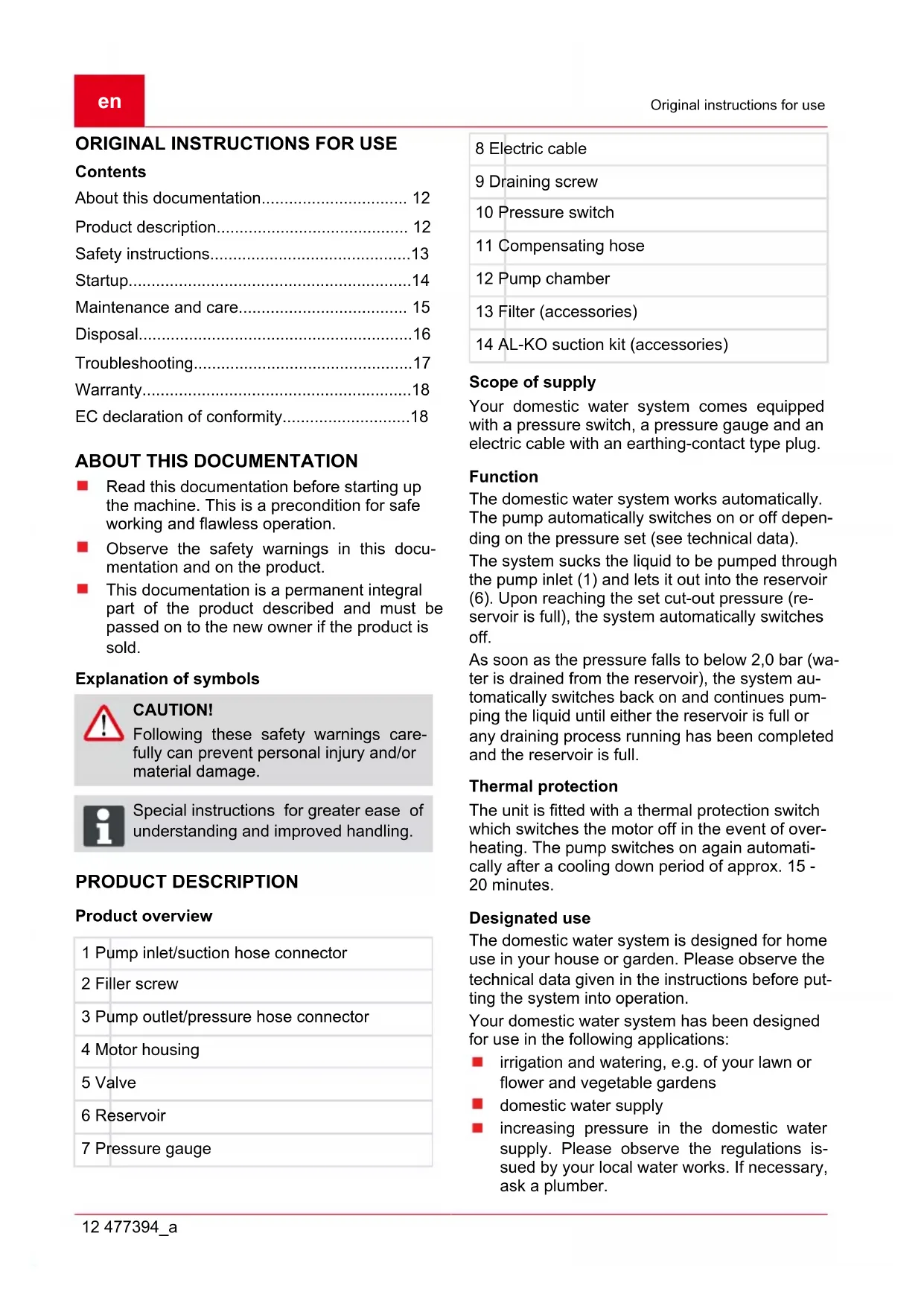

EN Instructions for use....12

Wolfgang Hergeth; Managing Director

Safety instructions....13

Startup....14

Maintenance and care.... 15

Disposal....16

Troubleshooting....17

Warranty....18

EC declaration of conformity....18

ABOUT THIS DOCUMENTATION

Read this documentation before starting up the machine. This is a precondition for safe working and flawless operation.
- Observe the safety warnings in this documentation and on the product.
This documentation is a permanent integral part of the product described and must be passed on to the new owner if the product is sold.

Explanation of symbols

CAUTION!

Following these safety warnings carefully can prevent personal injury and/or material damage.

Special instructions for greater ease of understanding and improved handling.

PRODUCT DESCRIPTION

Product overview

1 Pump inlet/suction hose connector
2 Filler screw
3 Pump outlet/pressure hose connector
4 Motor housing
5 Valve
6 Reservoir
7 Pressure gauge

8 Electric cable

9 Draining screw

10 Pressure switch

11 Compensating hose

12 Pump chamber

13 Filter (accessories)

14 AL-KO suction kit (accessories)

Scope of supply

Your domestic water system comes equipped with a pressure switch, a pressure gauge and an electric cable with an earthing-contact type plug.

Function

The domestic water system works automatically. The pump automatically switches on or off depending on the pressure set (see technical data).

The system sucks the liquid to be pumped through the pump inlet (1) and lets it out into the reservoir (6). Upon reaching the set cut-out pressure (reservoir is full), the system automatically switches off.

As soon as the pressure falls to below 2,0 bar (water is drained from the reservoir), the system automatically switches back on and continues pumping the liquid until either the reservoir is full or any draining process running has been completed and the reservoir is full.

Thermal protection

The unit is fitted with a thermal protection switch which switches the motor off in the event of overheating. The pump switches on again automatically after a cooling down period of approx. 15 - 20 minutes.

Designated use

The domestic water system is designed for home use in your house or garden. Please observe the technical data given in the instructions before putting the system into operation.

Your domestic water system has been designed for use in the following applications:

• irrigation and watering, e.g. of your lawn or flower and vegetable gardens
  domestic water supply
  ■ increasing pressure in the domestic water supply. Please observe the regulations issued by your local water works. If necessary, ask a plumber.

Product description

The system is designed to pump only the following liquids:

clear water

rain water

Possible misuse

Your domestic water system is not intended for permanent operation. The pump may not be used to pump the following liquids:

drinking water

salt water

beverages or liquid foods

corrosives or chemicals

acids or combustible, explosive or gasfor- ming liquids

liquids with a temperature above 35 °C

sandy water or water containing abrasives

SAFETY INSTRUCTIONS

CAUTION!

The domestic water system may only be connected to an electrical device which is compliant with DIN/VDE 0100, Parts 737, 738 and 702 (swimming pools). Make sure that fuse protection in the form of a 10 A automatic cut-out and a fault current guard circuit with a nominal fault current of 10/30 mA is installed.

CAUTION!

The supply voltage and current specified on the type plate must be identical with the voltage and current of your electrical system.

CAUTION!

If you need to connect your domestic water system to an extension cord, make sure that the cable is 3 x 1.5 mm2, which it corresponds to type H07RN-F and is compliant with DIN 57282/57245. The connector must be splash-proof. Cable drums must be completely unwound.

CAUTION!

Do not attempt to make any changes or modifications to the device by yourself. You may endanger your life or invalidate the warranty.

CAUTION!

Do not operate the system if it is damaged. Necessary repairs must be carried out in a qualified AL-KO service centre.

CAUTION!

Never use the electric cable to lift, carry or attach the system to another object. Do not pull on the cable when unplugging the system.

CAUTION!

Make sure that the system is unplugged before beginning any maintenance, repair or cleaning work. In the event of a malfunction, immediately unplug the system. Make sure that the plug does not get wet.

CAUTION!

The domestic water system may not be used for any other than its designated use. Before putting the system into operation, make sure that

the pump, reservoir, the electric cable and the plug are not worn or damaged.

CAUTION!

Risk of injury due to hot water!

The water in the pump can heat up significantly, during longer periods of operation (>10 min) against closed outlet side.

This hazard can occur due to:

■ side under compression closed
■ water shortage in the suction line
improper installation
- faulty pressure switch

In this case:

■ isolate the pump from the mains
■ allow the pump and water to cool down
- check water level on inlet side
check lines for tightness
check installation
check pressure switch
■ only restart pump after rectifying the cause of the fault

Children, or other people who are not familiar with the operating instructions, are not allowed to use the machine

STARTUP

CAUTION!

When attaching the suction and pressure hoses, make sure that they do not exert a tension on the device. We recommend the use of flexible hoses at the pump inlet (1) and outlet (3). If you have any questions, ask your retailer.

CAUTION!

When operating the system (automatic operation), take appropriate measures to ensure that damage due to flooding cannot occur if the system should malfunction. This can be ensured, for instance, by installing an alarm system or a reserve pump.

Before putting your domestic water system into operation, check the inlet pressure at the diaphragm which can be read out from the valve (5) on the reservoir. Make sure that the pressure is approx. 1.5 bar and correct if required (see Checking the Inlet Pressure).

Place the device onto a hard, flat surface so that it cannot tip over and so that it will not be near the flow of water.
■ Make sure that the device is protected from rain and any direct exposure to water.

Attaching the suction hose

CAUTION!

Choose a hose which is long enough so that the device will not suck in air and run dry. The hose should be at least 30cm under the surface of the liquid to be pumped while the pump is in operation.

If the liquid to be pumped is deeper than 4 m, you should use a suction hose which is larger than 1" in diameter for the best performance. We recommend our AL-KO suction set (14), which consists of a suction hose, strainer and non-return valve. The suction set is available at your local retailer's.

If the suction hose is laid so that it is higher than the device, bubbles will be come trapped in the line and the pump will suck air.

1. Attach the suction hose. Make sure to screw it in tightly, but take care not to damage the threads.
2. When laying the suction hose, make sure that it is lower than the system.

Attaching the pressure hose

1. Attach the pressure hose. Make sure to screw it in tightly, but take care not to damage the threads.

Filling the pump

CAUTION!

Before putting your domestic water system into operation, you must fill the pump chamber with water until it overflows to achieve full suction power. Do not operate the pump while it is dry because this will cause serious damage to the pump.

1. Remove the filler screw (2).
2. Pour water into the opening until the chamber of the pump (12) is full.
3. Replace the filler screw (2) and tighten it.

Switching on the system

1. Open the pressure line (open valve, sprayer, tap, etc.).
2. Plug the electric cable into the socket. The pump will automatically begin to run.
3. As soon as the flow of water is cleared of air bubbles trapped in the line, close the pressure line. When the pressure has fallen and the reservoir is full, the pump will automatically switch off. Your domestic water system is now ready for operation.

Switching off the Pump

1. To switch off the pump, just pull the plug of the electric cable from the socket.

MAINTENANCE AND CARE

CAUTION!

Before beginning any maintenance or cleaning work, make sure that the pump has been unplugged and take precautions to ensure that it cannot be switched on during work!

Cleaning the pump

If you have used your pump to pump chlorine water (pool water) or liquids which leave a residue, flush your pump out with clear water after use.
- Clean the suction slots located in the suction body with clear water as required.

Clearing blockages

If your domestic water system should become blocked so that it does not suction or pump out liquid, remove the obstruction as follows:

1. Remove the suction hose from the pump inlet (1).
2. Attach the pressure hose to the water tap and spray water into the pump chamber until the blockage is flushed out.
3. Check to see that the obstruction has been cleared entirely by switching on the pump for a short time. Do not let the pump suck air.
4. If the pump runs trouble-free, put it into operation as described in the instructions.

Frost protection

Your domestic water system is susceptible to low temperatures. Make sure to empty the device of residual liquid (hoses, pump and reservoir) and store it so that it is protected from frost.

1. Empty the suction and pressure hoses.
2. Remove the draining screw (9) drain all water from the pump chamber. The water contained in the reservoir will be pressed out by the air bellows.
3. Replace the draining screws and store the device so that it is protected from frost.

Setting the pressure switch

Please observe the max. permissible pumping height and pressure; see technical data.

The cut-in and cut-out pressures at which the system starts and stops operating have been set in the factory (see technical data). However, if desired, you can adjust the setting as desired at the pressure switch (10), also see Figure C.

1. Unplug the electric cable from the socket.
2. Remove the protective cover from the pressure switch.
3. Use a screwdriver to set the desired pressure:

A= Cut-in pressure

B= Cut-out pressure

Increase pressure = + Decrease pressure = -

1. Close the pressure switch by replacing the cover.
2. Put the system into operation and check the changed pressures.

Checking the inlet pressure

1. Unplug the electric cable from the socket.
2. Open the pressure line and drain the water off until the pump is completely empty.

3. Check the inlet pressure at the diaphragm (5).

4. The pressure should be approx. 1.5 bar. Correct the pressure if needed.

5. Put the domestic water system into operation as set out in the instructions.

DISPOSAL

Do not dispose of worn-out machines or spent batteries (including rechargeable batteries) in domestic waste!

The packaging, device and accessories are made from recyclable materials, and must be disposed of accordingly.

TROUBLESHOOTING

CAUTION!

Before you attempt to remedy any malfunction of your domestic water system, pull the plug to prevent injury or death due to electrocution!

Fault Cause Solution
Motor does not run.	Thermal switch has switched off.	Wait until the thermal switch has automatically switched the pump on again. Check the temperature of the liquid. Have the pump checked.
	No power. Have the power supply checked by a qualified electrician.
System runs but does not pump out liquid.	Suction hose is not immersed in the liquid to be pumped.	Make sure that the suction hose is at least 30 cm beneath the surface.
	Suction hose is blocked. DANGER! Risk of injury due to hot water! Clear blockage in suction hose.
	Pressure line is blocked. DANGER! Risk of injury due to hot water! Clear blockage in pressure line.
	Suction height is too great. Lower suction height.
	Pump sucks air Check all connection hoses and filter cover for tightness.
	Pump is dry. Fill the pump with water.
System is only pumping out li- quid very slowly or weakly.	Suction hose is blocked. Clear the blockage.
	Suction height is too great. Lower suction height.
	Pressure hose diameter is too small.	Attach a pressure hose with a larger diameter.
	Pumping height is too great. Lower pumping height.
Pump does not run reliably. Air pressure in reservoir is too low.		Check the air pressure in the reservoir at the valve (5) and correct to about 1.5 bar if necessary.
Pump fails to switch off automa- tically	Water shortage inlet side, Pump sucks in air	Unplug the pump, allow to cool down if necessary

If you are unable to remedy a malfunction, please call the AL-KO service centre nearest you.

WARRANTY

We will address claims for any defects in materials and workmanship during the statutory period of limitation by means of repairs or replacements of our choice. The period of limitation is governed by the laws of the country in which the machine was purchased.

Our warranty applies only if:

The machine has been properly handled
The operating instructions have been adhered to
■ Original replacement parts have been used

The warranty is no longer in effect if:

■ Efforts have been made to repair the machine
■ Technical modifications have been made to the machine
The machine has not been used for its intended purpose

The warranty does not cover:

■ Damage to paint work through normal use
Parts subject to wear as indicated in the replacement parts list with a box [xxx xxx (x)]
Internal combustion engines – separate warranty conditions of the respective engine manufacturer apply

The warranty period begins with the purchase by the first buyer. The warranty period begins on the date that appears on the original purchase receipt. In the event of a warranty claim, please your contact supplier or the nearest authorised customer service centre with this warranty declaration and the purchase receipt in hand. This warranty does not affect the legal warranty claims by the purchaser against the seller.

EC DECLARATION OF CONFORMITY

We hereby declare that this product, in the form in which it is marketed, meets the requirements of the harmonised EU guidelines, EU safety standards, and the product-specific standards.

Product Model Manufacturer

Domestic water system	HW 1300 INOX AL-KO Geräte GmbH
Serial number	Ichenhauser Str. 14
G3043045	D-89359 Kötz

Executive Officer EU directives Harmonised standards

Hr. Andreas Hedrich	2006/95/EG	EN 60335-1; VDE 0700-1:2007-02
Ichenhauser Str. 14	2004/108/EG	EN 60335-2-41; VDE 0700-41:2004-12
D-89359 Kötz	2000/14/EG (13)	EN 60335-2-41/A2; VDE 0700-41/A2:2009-02
		EN 55014-1; VDE 0875-14-1:2007-06
Kötz, 26.09.2014	Sound power level	EN 55014-1/A1; VDE 0875-14-1/A1:2008-12
	EN ISO 3744	EN 55014-2; VDE 0875-14-2:2009-06
	measured / guaranteed	EN 61000-3-2; VDE 0838-2:2006-10
	HW 1300 INOX 82/83	EN 61000-3-2/A1; VDE 0838-2/A1:2007-05
	dB(A)	EN 61000-3-2/A7; VDE0838-2/A7:2007-06
Wolfgang Hergeth; Managing Director		EN 61000-3-2/A4; VDE 0838-2/A4:2007-06
		EN 61000-3-3; VDE 0838-3:2009-06

ORIGINELE HANDLEIDING

Inhoudsopgave

Wolfgang Hergeth; Managing Director

Geluidsniveau

EN ISO 3744

DÉCLARATION DE CONFORMITÉ CE

Wolfgang Hergeth; Managing Director

Wolfgang Hergeth; Managing Director

Poziom mocy dźwięku

Wolfgang Hergeth; Managing Director

Wolfgang Hergeth; Managing Director

Hlučnost'

EN ISO 3744

nameraná / zaručená

HW 1300 INOX 82/83

dB(A)

EN 60335-1; VDE 0700-1:2007-02

EN 60335-2-41; VDE 0700-41:2004-12

EN 60335-2-41/A2; VDE 0700-41/A2:2009-02

EN 55014-1; VDE 0875-14-1:2007-06

EN 55014-1/A1; VDE 0875-14-1/A1:2008-12

EN 55014-2; VDE 0875-14-2:2009-06

EN 61000-3-2; VDE 0838-2:2006-10

EN 61000-3-2/A1; VDE 0838-2/A1:2007-05

EN 61000-3-2/A7; VDE0838-2/A7:2007-06

EN 61000-3-2/A4; VDE 0838-2/A4:2007-06

EN 61000-3-3; VDE 0838-3:2009-06

Wolfgang Hergeth; Managing Director

Zajnyomásszint

EN ISO 3744

EN 55014-2; VDE 0875-14-2:2009-06

mért / garantált

EN 61000-3-2; VDE 0838-2:2006-10

HW 1300 INOX 82/83

EN 61000-3-2/A1; VDE 0838-2/A1:2007-05

dB(A)

EN 61000-3-2/A7; VDE0838-2/A7:2007-06

EN 61000-3-2/A4; VDE 0838-2/A4:2007-06

EN 61000-3-3; VDE 0838-3:2009-06

ORIGINAL BRUGSANVISNING

Indholdsfortegnelse

Om denne dokumentation....84

Produktbeskrivelse.... 84

Wolfgang Hergeth; Managing Director

Lydeffektniveau

EN ISO 3744

målt / garanteret

HW 1300 INOX 82/83

dB(A)

ORIGINAL-BRUKSANVISNING

Wolfgang Hergeth; Managing Director

Ljudeffektnivå

EN ISO 3744

Wolfgang Hergeth; Managing Director

Äänitehotaso

EN ISO 3744 mitattu / taattu HW 1300 INOX 82/83 dB(A)

Wolfgang Hergeth; Managing Director

Wolfgang Hergeth; Managing Director

2006/95/EG 2004/108/EG 2000/14/EG (13)

Рівень звуку

EN ISO 3744

виміряний /

гарантований

HW 1300 INOX 82/83

dB(A)

EN 60335-1; VDE 0700-1:2007-02 EN 60335-2-41; VDE 0700-41:2004-12 EN 60335-2-41/A2; VDE 0700-41/ A2:2009-02 EN 55014-1; VDE 0875-14-1:2007-06 EN 55014-1/A1; VDE 0875-14-1/ A1:2008-12 EN 55014-2; VDE 0875-14-2:2009-06 EN 61000-3-2; VDE 0838-2:2006-10 EN 61000-3-2/A1; VDE 0838-2/ A1:2007-05 EN 61000-3-2/A7; VDE 0838-2/ A7:2007-06 EN 61000-3-2/A4; VDE 0838-2/ A4:2007-06 EN 61000-3-3; VDE 0838-3:2009-06

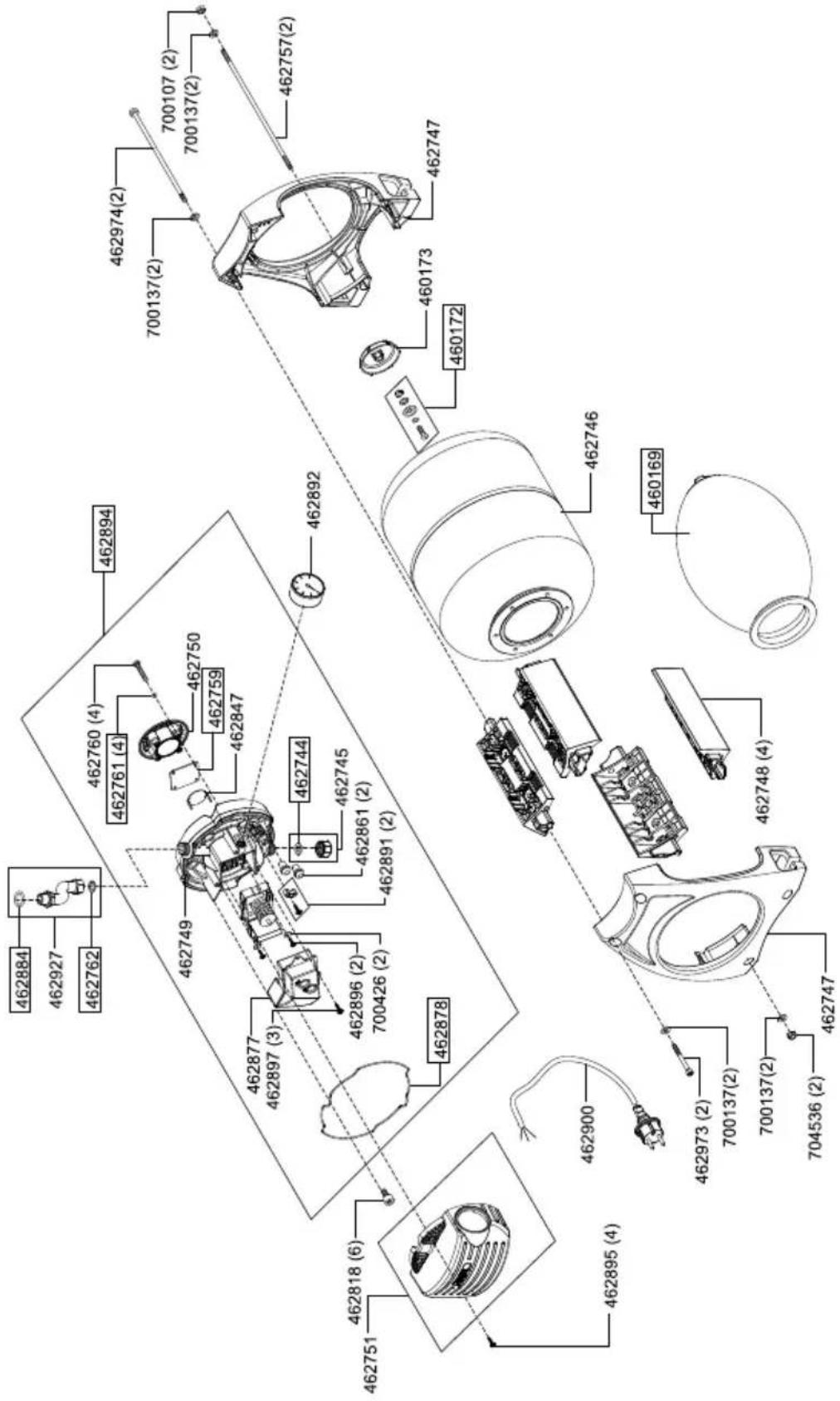

ETK HW 1300 INOX

Art.-Nr. 113249

Country	Company	Telephone	Fax
A	AL-KO KOBER Ges.m.b.H.	(+43)3578/2515-100	(+43)3578/2515-31
AUS	AL-KO INTERNATIONAL Pty. Ltd.	(+61)3/9767-3700	(+61)3/9767-3799
B/L	Eurogarden NV	(+32)16/805427	(+32)16/805425
BG	Valerii S&M Group SJ	([phone]	([phone]
CH	AL-KO KOBER AG	(+41)56/418-31 53	(+41)56/4183160
CZ	AL-KO KOBER Spol. S.R.O.	(+420)382/210381	(+420)382/212782
D	AL-KO GERÄTE GmbH	(+49)8221/203-0	(+49)8221/97-8199
DK	AL-KO GINGE A/S	([phone]	([phone]
EST/LT/LV	SIA AL-KO KOBER	(+371)67/627-326	((+371)67/807-018
F	AL-KO S.A.S.	(+33)3/8576-3500	(+33)3/8576-3581
GB	Rochford Garden Machinery Ltd.	(+44)1963/828050	(+44)1963/828052
H	AL-KO KFT	(+36)29/5370-50	(+36)29/5370-51
HR	Brun.ko.-prom d.o.o.	([phone]	([phone]
I	AL-KO KOBER GmbH / SRL	(+39)039/9329-311	(+39)039/9329-390
IN	AGRO-COMMERCIAL	([phone]	([phone]
IQ	Avro Gulistan Com	([phone]
IRL	Cyril Johnston & Co. Ltd.	([phone]	([phone]
LY	ASHOFAN FOR AGRICULT. ACC.	([phone]	([phone]
MA	BADRA Sarl	([phone]	([phone]
MK	Techno Geneks	([phone]	([phone]
N	AL-KO GINGE A/S	(+47)64/86-2550	(+47)64/86-2554
NL	O.DE LEEUW GROENTECHNIEK	(+31)38/444 6160	(+31)38/444 6358
PL	AL-KO KOBER Sp. z.o.o.	(+48)61/816-1925	(+48)61/816-1980
RO	SC PECEF TEHNICA SRL	([phone]	([phone]
RUS	OOO AL-KO KOBER	(+7)499/16708-42	(+7)499/96600-00
RUS	ZAO AL-KO St. Petersburg GmbH	(+7)812/446-1084	(+7)812/446-1084
S	GINGE Svenska AB	(+46)31/57-3580	(+46)31/57-5620
SK	AL-KO KOBER Slovakia Spol. S.R.O.	(+421)2/4564-8267	(+421)2/4564-8117
SLO	Darko Opara s.p.	([phone]	([phone]
SRB	Agromarket d.o.o.	([phone]	([phone]
TR	ZIMAS A.S.	([phone]	([phone]
UA	TOV AL-KO KOBER	(+380)44/392-07-08	(+380)44/392-07-09
