WARNING: Beware of thrown objects.

WARNING: Keep bystanders away.

Keep hands, feet or loose clothes out of the the openings while the product is running. Rotating fan. Keep hands, feet, long hair or loose clothes out of the openings while the product is running. Wear eye and ear protection.

WARNING: Disconnect battery before mainten-

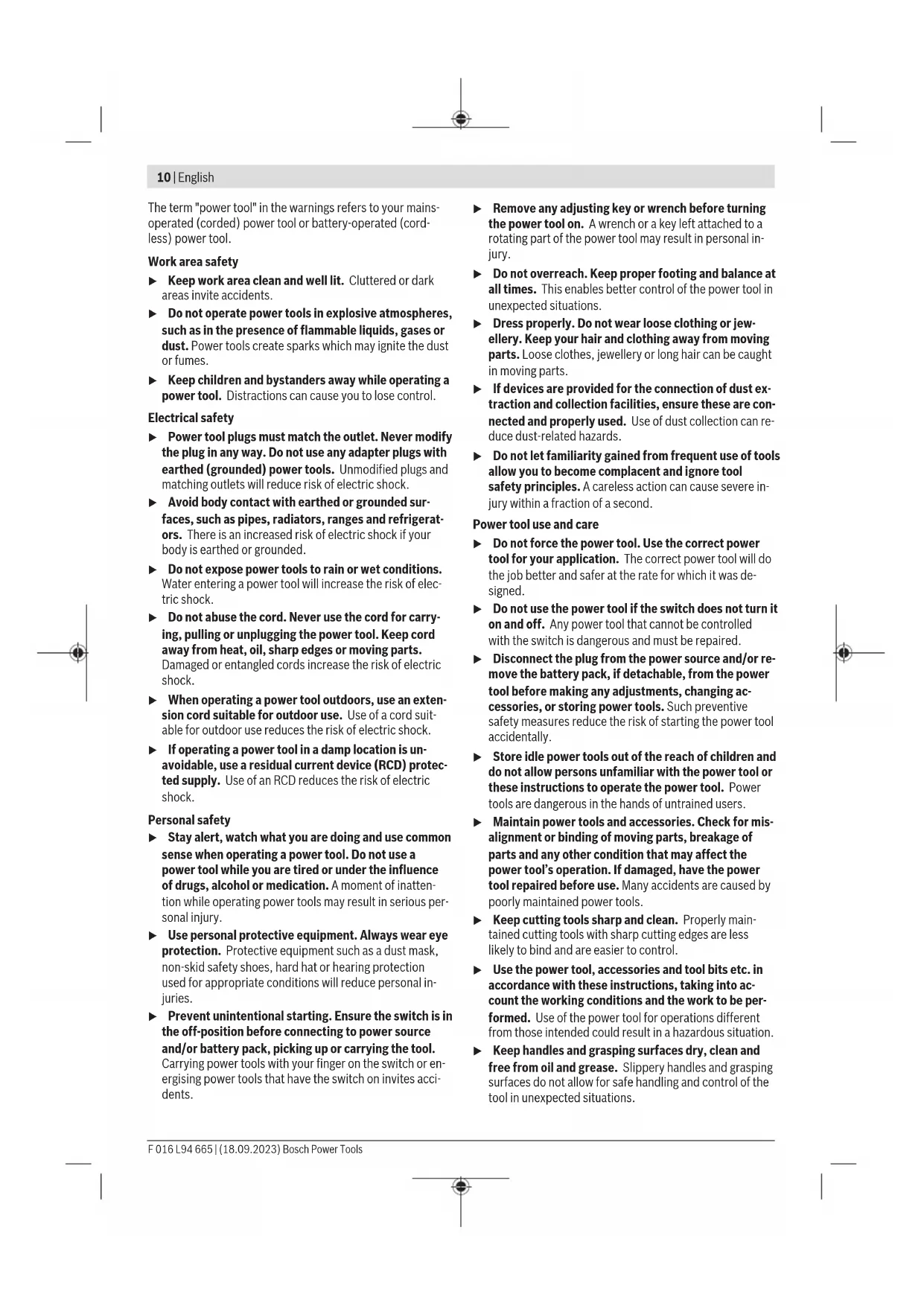

ance. General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. Bosch Power Tools F 016 L94 665 | (18.09.2023)10 | English The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. F 016 L94 665 | (18.09.2023) Bosch Power ToolsEnglish | 11 Battery tool use and care u Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. u Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. u When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Garden Blower safety warnings u Do not use the machine in bad weather conditions, es- pecially when there is a risk of lightning. This de- creases the risk of being struck by lightning. u Wear eye protection and ear protection. Adequate protective equipment will reduce the risk of personal in- jury. u While operating the machine, always wear non-slip and protective footwear. Do not operate the machine when barefoot or wearing open sandals. This reduces the risk of injury to the feet. u Do not wear loose fitting clothing or articles such as scarves, strings, chains, ties, etc., that could get drawn into the air inlets. Tie back or cover long hair to make sure it does not get drawn into the air inlets. If any of these items are drawn into the air inlets, it can in- crease the risk of personal injury. u Keep bystanders away while operating the machine. Thrown debris can increase the risk of personal injury. u Never point the blower nozzle in the direction of people or pets or in the direction of windows. Use ex- tra caution when blowing debris near solid objects, such as trees, automobiles and walls that can cause debris to ricochet. Thrown objects can damage property and increase the risk of personal injury. u Do not use the machine to blow anything that is burn- ing or smoking, such as cigarettes, matches or hot ashes. These ignition sources may increase the risk of fire. u Do not touch the fan while still in motion. Turn off the machine, wait until the fan stops and unplug the ma- chine, before removing any part that may give access to the fan. This reduces the risk of injury from moving parts. u When clearing jammed material or servicing the ma- chine, make sure the power switch is off. Unexpected actuation of the machine while clearing jammed material or servicing may increase the risk of personal injury. Additional Safety Warnings u Do not blow or use the product near hot, flammable or ex- plosive material. Do not blow snow or objects that could become a projectile. Do not use the blower as a propul- sion for vehicles (e.g. skateboard). u The machine continues to blow for a few seconds after being switched off. Allow the motor to stop rotating be- fore switching on again. Do not rapidly switch off and on. u This product is not intended for use by persons (in- cluding children) with reduced physical, sensory or mental capabilities, or lack of experience and know- ledge, unless they have been given supervision or in- struction concerning use of the appliance by a person responsible for their safety. Children should be super- vised to ensure that they do not play with the product. u Keep all cooling air inlets clear of debris. u Do not modify the product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration. u Always start the product at a low speed level, espe- cially in cold temperatures. u Do not use the product in closed rooms where dust can be inhaled. u Do not place other objects on the product. u Do not over inflate when using inflation nozzle. Recommendations for Optimal Handling of the Battery Pack u Do not open the battery. There is a risk of short-circuit- ing. Bosch Power Tools F 016 L94 665 | (18.09.2023)12 | English Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explo- sion. u In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. u Only use the battery with products from the manufac- turer. This is the only way in which you can protect the battery against dangerous overload. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat. u Do not short-circuit the battery. There is a risk of explo- sion. u Occasionally clean the venting slots of the battery using a soft, clean and dry brush. Product Description and Specifications Read all safety warnings and all instruc- tions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the ending of this operat- ing manual. Intended Use The product is intended for blowing leaves, garden waste such as grass, twigs and pine needles. Use the inflation nozzle for inflatables with medium-large openings only.

Product Features (see figureA) The numbering of the product features refers to the illustra- tion of the product on the graphics pages. (1) Controller for airflow speed (2) Air intake (3) Attachment point for tube (4) Tube extension (5) Tube (6) Inflation nozzle (7) Battery (8) Battery unlocking button (9) Charger

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Cordless leaf blower UniversalLeafBlower 18V-130 Article number 3 600 HA0 600 Rated voltage

V 18 Airflow speed, max.

/h 130 Weight according to EPTA-Procedure 01:2014

– without battery kg 1.3 – with battery kg 1.6 kg (2.5 Ah) Serial number see type plate on product Recommended ambient temperature during char- ging °C 0 … +35 Permitted ambient temperature during operation

Depends on battery in use

Limited performance at temperatures <0°C If using 1.5 Ah battery at temperatures <5⁰C the blower should be run at low speed for a few minutes before increasing speed. F 016 L94 665 | (18.09.2023) Bosch Power ToolsEnglish | 13 Noise/Vibration Information 3 600 HA0 600 Noise emission values determined according to IEC 62841-4-6:2022 / EN 50636-2-100:2014 Typically the A-weighted noise levels of the product are: – Sound pressure level dB(A)

(triax vector sum) and uncertainty K determined according to IEC 62841-4-6:2022 / EN 50636-2-100:2014 – Vibration emission value a

= 1.5 The declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one machine with another. That the declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary as- sessment of exposure. That the vibration and noise emissions during actual use of the machine can differ from the declared total value depend- ing on the ways in which the machine is used; and of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual condi- tions of use (taking account of all parts of the operating cycle such as the times when the machine is switched off and when it is running idle in addition to the trigger time). Mounting and Operation u Caution: Switch garden tool off and remove battery from machine before adjusting or cleaning. u The battery has a double locking system to provide for additional security. Press the release button once to dis- connect the battery from the power supply of the device, but use the second locking mechanism for transporting the machine in the garden without activating the ma- chine. The numbering of the product features refers to the illustra- tion of the product on the graphics pages. Action Figure Page Delivery scope

Action Figure Page Fitting the nozzle

Inserting/charging the battery

Adjusting the airflow velocity/ switching it on/off

Working Advice inflation nozzle

Symbols The following symbols are important for reading and under- standing the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner. Symbol Meaning Movement direction Starting Starting Stopping CLICK! Audible noise Accessories Troubleshooting The following chart lists problem symptoms, possible causes and corrective action, if your machine does not operate properly. If these do not identify and correct the problem, contact your service agent.

Warning: Switch off the machine prior to any troubleshooting.

Warning: In the event of an accident or tool breakage, stop the machine immediately and remove the battery.

Problem Possible Cause Corrective Measure Machine fails to oper- ate Battery discharged Recharge battery Battery not fully connected Insert the battery correctly (see figureC) Bosch Power Tools F 016 L94 665 | (18.09.2023)14 | English Problem Possible Cause Corrective Measure Battery too hot/cold Allow to cool/warm. Always start the product at a low speed Machine defective Contact Service Agent. Machine functions in- termittently On/Off switch defective Contact Service Agent. Controller for airflow speed damaged Contact Service Agent. Excessive vibrations/ noise Machine defective Contact Service Agent. Run time per battery charge too low Battery has not been used for long period or only for short terms Charge battery completely Defective battery Replace battery Machine does not blow Tube obstructed Clear tube Reduced airflow Air intake obstructed Clear air intake Battery is too cold Always start the product at a low speed Tube cannot be moun- ted on the machine Incorrect assembly Mount the tube correctly (see figureB) Maintenance and Service Maintenance, Cleaning and Storage u Have your product serviced only by a qualified spe- cialist using only original replacement parts. This will ensure that the safety of the product is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Maintenance, Cleaning and Storage Before storing, clean the product with a cloth before stor- age. When cleaning and assembling the blower tube please en- sure the motor is stopped and the battery pack is disconnec- ted. Never use solvents. Never spray the product with water. Never immerse the product in water. After-Sales Service and Application Service Our after-sales service responds to your questions concern- ing maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com The Bosch product use advice team will be happy to help you with any questions about our products and their accessor- ies. In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: [phone] E-Mail: [e-mail] You can find further service addresses at: www.bosch-pt.com/serviceaddresses Transport The recommended lithium-ion batteries are subject to legis- lation on the transport of dangerous goods. The user can transport the batteries by road without further require- ments. When shipping by third parties (e.g.: by air transport or for- warding agency), special requirements on packaging and la- belling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is re- quired. Dispatch battery packs only when the housing is undam- aged. Tape or mask off open contacts and pack up the bat- tery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more de- tailed national regulations. Disposal The product, batteries, accessories and pack- aging should be sorted for environmental- friendly recycling. Do not dispose of the product and batteries/re- chargeable batteries into household waste! Only for EU countries: According to European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must F 016 L94 665 | (18.09.2023) Bosch Power ToolsFrançais | 15 be collected separately and disposed must be collected sep- arately and be disposed of in an environmentally friendly manner. According to European Directive 2006/66/EG re- chargeable batteries that are defect or no longer usable must be collected separately and disposed of in an environment- ally friendly manner. If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances. Rechargeable batteries/batteries: Li-Ion: Please refer to the notice in section Transport (see "Trans- port", page14). Only for United Kingdom: According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer us- able must be collected separately and disposed of in an en- vironmentally friendly manner. Français Consignes de sécurité Explication des symboles se trouvant sur l’outil de jardin Indications générales sur d’éventuels dangers. Lire soigneusement ces instructions d’utilisa- tion. Ne pas utiliser par temps de pluie.
