USER MANUAL WR 25SE HiKOKI

0000Book_WR22SE.indb 1 2019/03/05 16:33:352 English c) Prevent unintentional starting. Ensure the switch is in the o-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carryingpowertoolswithyourngerontheswitch or energising power tools that have the switch on invitesaccidents. d) Remove any adjusting key or wrench before turning the power tool on. Awrenchorakeyleftattachedtoarotatingpartof thepowertoolmayresultinpersonalinjury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpectedsituations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Looseclothes,jewelleryorlonghaircanbecaughtin movingparts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A carelessaction can cause severe injurywithin a fractionofasecond.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. Thecorrectpowertoolwilldothejobbetterandsafer attherateforwhichitwasdesigned. b) Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled with the switchisdangerousandmustberepaired. c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Suchpreventivesafetymeasuresreducetheriskof startingthepowertoolaccidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Powertoolsaredangerousinthehandsofuntrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aect the power toolʼs operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained powertools. f) Keep cutting tools sharp and clean. Properlymaintainedcuttingtoolswithsharpcutting edgesarelesslikelytobindandareeasiertocontrol. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use ofthe power tool for operations dierent from thoseintendedcouldresultinahazardoussituation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease.

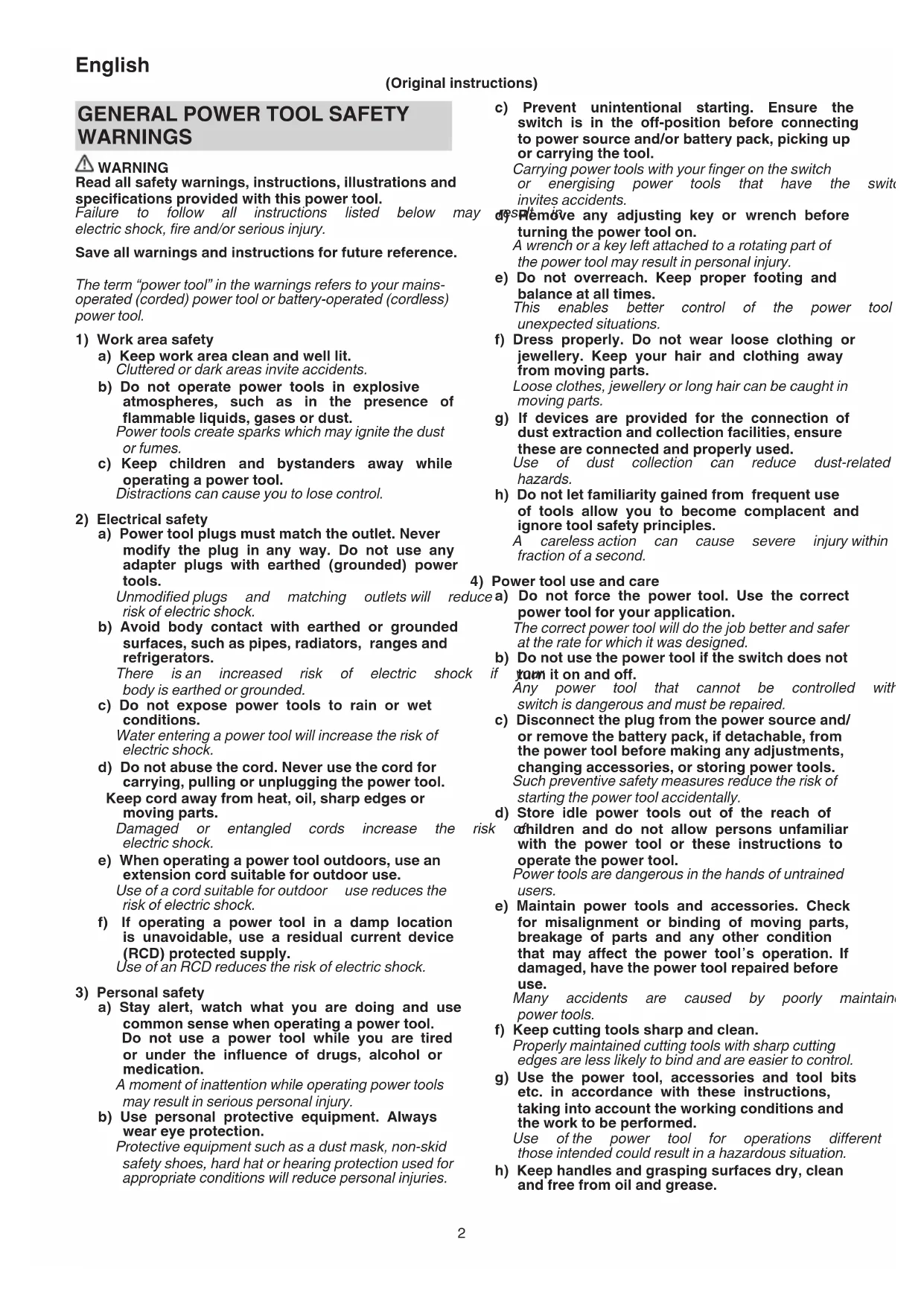

GENERAL POWER TOOL SAFETY

WARNINGS WARNING Read all safety warnings, instructions, illustrations and specications provided with this power tool. Failure to follow all instructions listed below may result in electricshock,reand/orseriousinjury. Save all warnings and instructions for future reference. Theterm“powertool”inthewarningsreferstoyourmains- operated(corded)powertoolorbattery-operated(cordless) powertool.

a) Keep work area clean and well lit. Clutteredordarkareasinviteaccidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Powertoolscreatesparkswhichmayignitethedust orfumes. c) Keep children and bystanders away while operating a power tool. Distractionscancauseyoutolosecontrol.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodiedplugs and matching outletswill reduce riskofelectricshock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There isan increased risk of electric shock if your bodyisearthedorgrounded. c) Do not expose power tools to rain or wet conditions. Waterenteringapowertoolwillincreasetheriskof electricshock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electricshock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Useofacordsuitableforoutdoor usereducesthe riskofelectricshock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. UseofanRCDreducestheriskofelectricshock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. Amomentofinattentionwhileoperatingpowertools mayresultinseriouspersonalinjury. b) Use personal protective equipment. Always wear eye protection. Protectiveequipmentsuchasadustmask,non-skid safetyshoes,hardhatorhearingprotectionusedfor appropriateconditionswillreducepersonalinjuries. (Original instructions) 0000Book_WR22SE.indb 2 2019/03/05 16:33:353 English Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

a) Have your power tool serviced by a qualied repair person using only identical replacement parts. Thiswillensurethatthesafetyofthepower toolis maintained. PRECAUTION Keep children and inrm persons away. When not in use, tools should be stored out of reach of children and inrm persons.

IMPACT WRENCH SAFETY

WARNINGS ○ Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

ADDITIONAL SAFETY WARNINGS

1. When using the tool at a hight, make sure that there is

Switch the reversing switch only after the motor has stoped when it is necessary to change the direction of the rotation.

6. Assemble the socket securely to the impact wrench with

the socket pin and ring.

7. Conrmwhetherthesockethasanycracksinit.

8. Always hold the handle and side handle of the impact

wrench rmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation. SYMBOLS WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use. WR22SE / WR25SE : Impact Wrench To reduce the risk of injury, user must read instruction manual. OnlyforEUcountries Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/EU onwasteelectricalandelectronicequipmentand its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. SwitchingON SwitchingOFF Clockwise rotation Counterclockwise rotation Disconnect mains plug from electrical outlet Class II tool STANDARD ACCESSORIES In addition to the main unit (1 unit), the package contains the accessories listed in the below. ○ Case ...........................................................................1 Standard accessories are subject to change without notice. APPLICATIONS ○ Tighteningandloosingvariouskindsofboltandnut. SPECIFICATIONS Model WR22SE WR25SE Voltage (by areas)* (110V, 120V, 230V, 240V) Power input* 800 W 900 W Noloadspeed/Impact rate 1400 / 2000 min

• Be sure to check the nameplate on product as it is subject to change by areas.

Tightening the bolt without extension cord at rated voltage. *** Weight: According to EPTA-Procedure 01/2014 NOTE Due to HiKOKI’s continuing program of research and development, the specications herein are subject to change without prior notice.

MOUNTING AND OPERATION

CAUTION Topreventaccidents,makesuretoturntheswitch o and disconnect the plug from the receptacle. Action Figure Page Mounting the socket (1) 1

Mounting the side handle 2

Changing the rotation direction 3

Selecting accessories* ―

The switch (2) in this machine functions as a motor switch and rotational direction selector switch. When the switch is set to R indicated on the handle cover, the motor rotates clockwise to tighten the bolt. When the switch is set to L, the motor rotates counterclockwise to loosen the bolt. When the switch is released, the motor stops.

To protect the tool, the protection function will be activated, automatically shutting down the unit in the event of any problems. (Table 1) Table 1 Cause of Shutdown Automatic shutdown initiated by excessive load (*1) Automaticshutdowninitiatedduetothetool’sinternal temperatureexceedingthespeciedtemperaturelevel(*2) *1 Excessive load protection function For excessive load conditions, the tool will shutdown to prevent damage. Discontinue the heavy load task, unplug the power supply cord from the electrical outlet and plug it back in to reset. *2 Increased temperature protection function Automatic shutdown is activated to prevent damage from high temperatures. The tool’s internal temperature will increase for tasks involving the use of large currents of electricity, or when used in high temperature environments. Please allow the tool to rest for 10 to 15 minutes before continuing a task.

MAINTENANCE AND INSPECTION

1. Inspecting the socket

Awornordeformed hex orasquare-holed socket will notgiveanadequatetightnesstothettingbetweenthe nutoranvil,consequentlyresultinginlossoftightening torque.Payattentiontowearofsocketholesperiodically, and replace with a new one if needed.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Replacing supply cord

If the replacement of the supply cord is necessary, this has to be done by the manufacturer of this agent in order to avoid a safety hazard. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. GUARANTEE We guarantee HiKOKI Power Tools in accordance with statutory/country specic regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, toaHiKOKIAuthorizedServiceCenter. IMPORTANT Correct connection of the plug The wires of the main lead are coloured in accordance with the following code: Blue:—Neutral Brown: — Live As the colours of the wires in the main lead of this tool may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: The wire coloured blue must be connected to the terminal marked with the letter N or coloured black. The wire coloured brown must be connected to the terminal marked with the letter L or coloured red. Neither core must be connected to the earth terminal. NOTE: This requirement is provided according to BRITISH STANDARD2769:1984. Therefore, the letter code and colour code may not be applicable to other markets except The United Kingdom. Information concerning airborne noise and vibration The measured values were determined according to EN62841anddeclaredinaccordancewithISO4871. Measured A-weighted sound power level: 106 dB (A) (WR22SE) 108 dB (A) (WR25SE) Measured A-weighted sound pressure level: 95 dB (A) (WR22SE) 97 dB (A) (WR25SE) Uncertainty K: 3 dB (A). Wear hearing protection. Vibration total values (triax vector sum) determined accordingtoEN62841. Impact tightening of fasteners of the maximum capacitiy of the tool: Vibration emission value

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. It may also be used in a preliminary assessment of exposure. WARNING ○ Thevibration emission during actual use of the power toolcandierfromthedeclaredtotalvaluedependingin the ways in which the tool is used.

EC DECLARATION OF CONFORMITY
