USER MANUAL PHGA 1000 A1 PARKSIDE

PDF ONLINE www.lidl-service.com

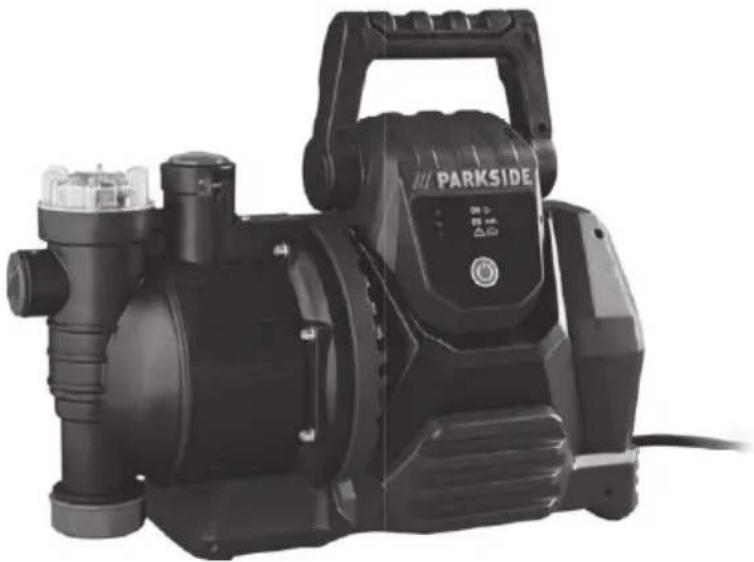

Black Parkside industrial power pump device with visible control panel and side-mounted ports (no text or symbols on the pump body)

House & Garden Water Pump

Translation of the original instructions

NL BE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

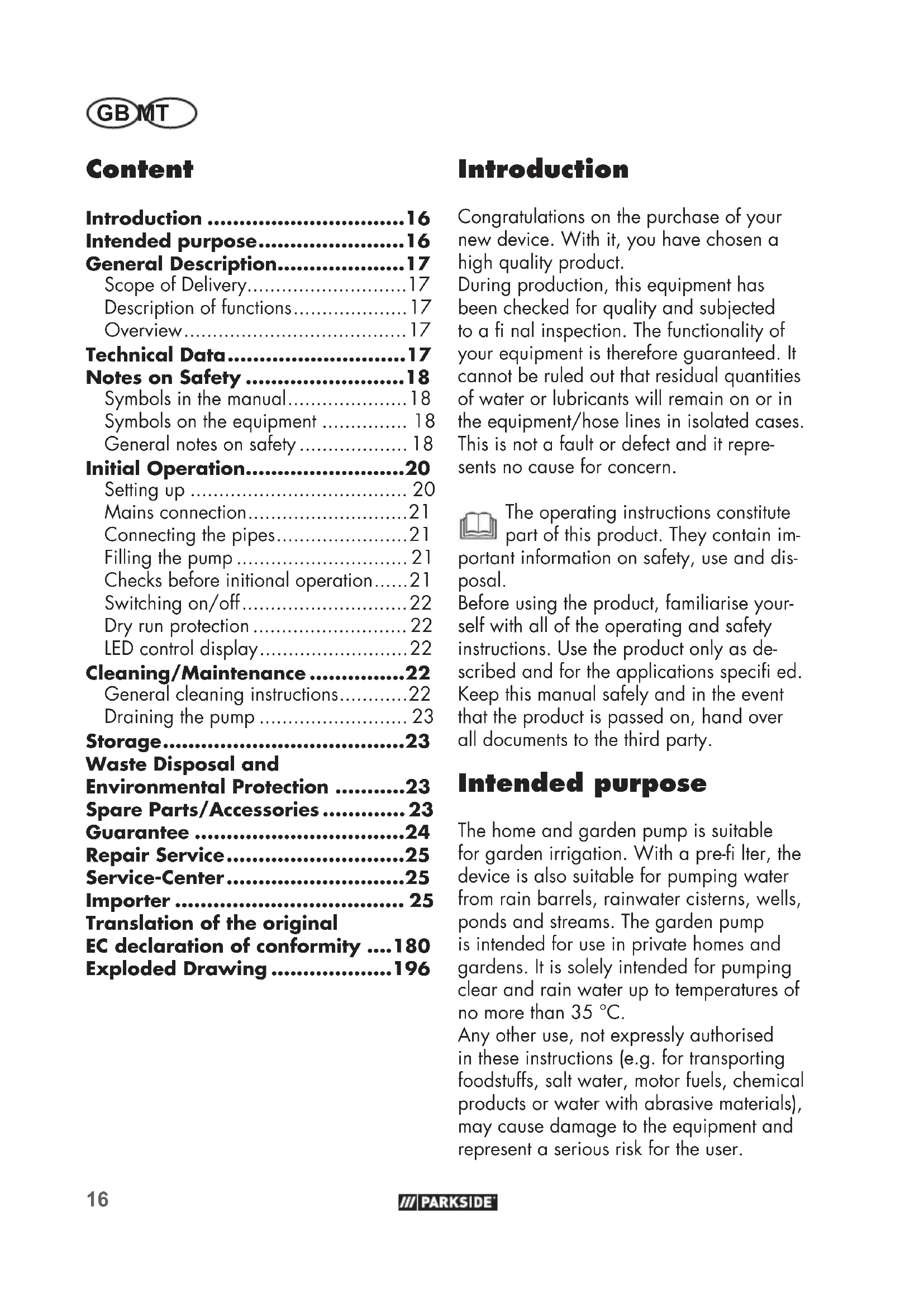

GB / MT Translation of the original instructions Page

Service-Center....15

Importeur ....15

Original-EG-

Intended purpose......16

General Description......17

Scope of Delivery....17

Description of functions....17

Overview....17

Technical Data....17

Notes on Safety 18

Symbols in the manual....18

Symbols on the equipment 18

General notes on safety 18

Initial Operation....20

Setting up 20

Mains connection....21

Connecting the pipes....21

Filling the pump 21

Checks before initial operation.....21

Switching on/off....22

Dry run protection 22

LED control display....22

Cleaning/Maintenance ......22

General cleaning instructions......22

Draining the pump 23

Storage....23

Waste Disposal and

Environmental Protection ......23

Spare Parts/Accessories 23

Guarantee 24

Repair Service....25

Service-Center 25

Importer 25

Translation of the original

EC declaration of conformity ....180

Exploded Drawing ......196

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain im-nt information on safety, use and dis-

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The home and garden pump is suitable for garden irrigation. With a pre-fi lter, the device is also suitable for pumping water from rain barrels, rainwater cisterns, wells, ponds and streams. The garden pump is intended for use in private homes and gardens. It is solely intended for pumping clear and rain water up to temperatures of no more than 35 °C.

Any other use, not expressly authorised in these instructions (e.g. for transporting foodstuffs, salt water, motor fuels, chemical products or water with abrasive materials), may cause damage to the equipment and represent a serious risk for the user.

The pump is not designed for continuous operation, for which we do not assume any guarantee. Continuous operation reduces the durability and shortens the guarantee period. This equipment is not suitable for commercial use.

Commercial use will invalidate the guarantee.

The operator or user is responsible for accidents or damage to other people or their property.

The manufacturer shall not be liable for damages caused by use other than for which the equipment is intended or by incorrect operation.

General Description

The illustration of the principal functioning parts can be found

on the front and back foldout pages.

Scope of Delivery

Carefully unpack the appliance and check that it is complete:

• Home and garden pump
• Pre-fi Iter (pre-assembled)
• 2 Key
• Instruction Manual

Description of functions

The home and garden pump supplies a defined volume of clear water after connecting the suction pipe and pressure pipe and filling with water.

Overview

1 Carrying handle
2 Control panel
3 Green LED

4 Yellow LED
5 Red LED
6 Power button
7 Power cord
8 Drain screw
9 Water inlet
10 Water fi ller opening
11 Water outlet
12 Pre-fi Iter
13 Key
14 Key for drain screw

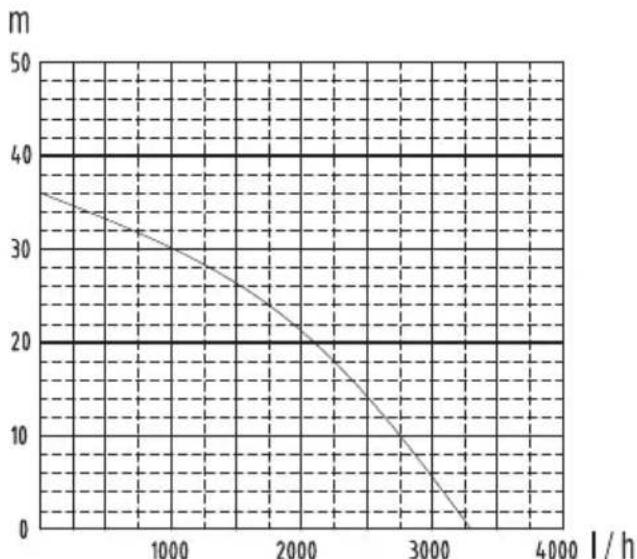

Technical Data

Home and garden

pump......PHGA 1000 A1

Mains connection.....230 V\~, 50 Hz

Power consumption 1000 W

Suction lift 8 m

Max. discharge rate....3300 l/h

Max. discharge head (Hmax) ..... 36 m

Max. water temperature (Tmax) ..... 35 °C

Hose connection ......G1" (33.3 mm)

Safety class ....I

Degree of protection....IPX4

Sound pressure level

(L_pA) 64.1 dB; K_pA = 2.66 dB

Sound power level ( L_WA )

measured......76.6 dB; K_WA=2.66 dB

guaranteed 79 dB

GBMT

Tighter hoses can reduce the output.

Notes on Safety

This section describes the basic safety rules when working with the home and garden pump.

Symbols in the manual

Warning symbols with information on damage and injury prevention

Hazard symbol with information on the prevention of personal injury caused by electric shock

Instruction symbols with information on preventing damage

Pull out the mains plug.

The device is not suitable to be connected to a drinking water supply system.

Help symbols with information on improving tool handling

Symbols on the equipment

Caution! Not suitable for water with a high sand content!

Familiarise yourself with all operating elements before starting work, especially functions and modes of action. Ask a specialist if necessary. Read and comply with the operating instructions for the device!

Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.

Warning : Protect the pump from running dry. Risk of overheating!

Information of the acoustic power level L_WA in dB

Water inlet Water outlet

Electric appliances should not be disposed of in the domestic garbage.

General notes on safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are older than 8 years and are supervised.

• If the power cord of this device is damaged, it must be replaced by the manufacturer or the latter's customer service or by a similarly qualified person in order to avoid hazards.
• The device must not be used at altitudes over 2000 m.
  • Always disconnect the device from the power supply before assembling, disassembling or cleaning it.

Working with the equipment:

Caution: to avoid accidents and injuries:

• People who are unfamiliar with the operating instructions are not permitted to use the equipment. Local regulations or bylaws may determine the minimum age for using the device.
• Should there be people in the water, do not operate the equipment.
  • Take appropriate measures to keep children away from the equipment whilst it is running.
• Do not use the equipment in the vicinity of fl ammable liquids or gases. Non-observance will re-

sult in a risk of fire or explosion.

• Do not use for water containing abrasive particles such as sand. The dispensing of aggressive, abrasive (grinding effect), corrosive, combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted. Liquid temperature not to exceed 35 °C.
• Store the equipment in a dry place and out of reach of children.

Caution! To avoid damage to the equipment and any possible person injury resulting from this:

• Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electrical protection measures are in place.
• Do not carry or fi x the equipment by the cable or pressure line.
• Protect the equipment from frost and from running dry.
• Use only original accessories and do not carry out conversion work on the equipment.
• Please read the notes in the operating instructions on the topic of "Cleaning/Maintenance"

GBMT

and "Storage". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

- The pump must be disconnected from the power supply before maintenance work (such as replacing fi Iters) is carried out by the operator.

Electrical safety:

Caution: to avoid accidents and injuries from electric shocks:

• After erection, the mains plug must be freely accessible when the equipment is in operation.
• Before operating your new pump, have a specialist check:
• The earthing, the protective multiple earthing; the residual current circuit breaking must be compliant with the safety regulations of the energy supply company and function without fault,
• The protection of the electrical plug connections from the wet.
• If there is a risk of fl ooding, fi x the plug connections in an area that is safe from fl ooding.

- Ensure that the mains voltage matches the specifications on the rating plate.

- The electrical installation shall be according to national wiring rules.

- Connect the equipment only to a socket with a residual current protection device (residual current circuit breaker) with a rated current of not more than 30 mA; minimum fuse 10 amperes.

- Before each use, check the equipment, cable and plug for damage. Defective cables are not to be repaired, but rather replaced by new ones. Have any damage to your equipment repaired by a specialist.

- Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.

- Do not carry or fi x the equipment by the cable.

- Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage.

- Before any work on the equipment, during work breaks and in the case of non-use, remove the plug from the socket.

- The cross-section of mains connection lines must be no smaller than rubber hose lines with the designation H07RN8-F3G1. The power cable wire cross section must be at least 2.5 mm ^2

Initial Operation

Setting up

- Place the unit on a firm, horizontal, non-fl ooding surface.

• Always put up the garden pump at a point higher than the water surface you wish to pump water from.

Where this is impossible, install a low pressure-resistant shut-off implement between the appliance and the suction hose (available from specialist retailers).

Mains connection

The home and garden pump you have purchased comes fitted with an earthed plug. The home and garden pump is intended for connection to a 230 V\~ / 50 Hz earthed socket outlet.

Connecting the pipes

- Use a pipe with a backflow stop on the suction side and fit a pre-fi liter.

• Do not use connection systems with quick couplings on the suction side.

• Do not use the suction hose as a pressure pipe.

• Remove the cover caps from the device.

• If not pre-assembled, insert the pre-fi lter (12) into the water fi ller opening (10).
• Fit a suction hose (not included) to the nozzle of the water inlet (9). Screw together until airtight.
• Fit a pressure pipe to the nozzle from the water outlet (11) on the device. Screw together until airtight.

The function of the pump cannot be guaranteed if there is air in the suction pipe.

Filling the pump (Fig. A)

The pump must be filled with water each time before operation.

Caution: Avoid dry running of the pump! Danger of overheating!

Never touch an overheated pump! There is a risk of burns!

When switching on the pump, make sure that the pump and the suction hose are completely filled with water to prevent the garden pump from running dry. Dry running damages the device.

Caution: No water may be poured in via the water outlet (11).

1. Open the water fi ller opening (10) using the key (13).
2. Fill up with water up to the filling point.
3. Close the water filler opening (10) again.

Checks before initial operation

- Check that the electrical connection is 230 V\~ / 50 Hz.

• Check the proper status of the electrical plug socket and make sure that the plug socket is sufficiently fused (at least 10 A).
• Make sure that moisture or water never come in contact with the mains connection. There is a risk of electrocution.
• Control the suction hose. The end of the suction hose must be placed in water.
• Control the suction hose. The end of the suction hose must be in outlet position.

GBMT

The device is not suitable to be connected to a drinking water supply system.

Switching on/off

1. Switching on: Connect the power cord (7) to the power supply. After 2 seconds, the pump starts in automatic mode.

2. Switching off: Press the Power button (6). The pump switches to standby.

In automatic mode, the pump will switch off if the water flow stops for more than 10 seconds. As soon as the water pressure has dropped sufficiently, the pump will switch on again.

Dry run protection

The pump is fitted with a sensor that prevents the pump from running dry.

1. If the pump runs for 30 seconds without water flow and water pressure, the dry run protection will start.
2. After a 10 second pause, the pump will start again.
3. The pump switches off automatically after the third operation.

If the pump builds up suffi cient water pressure during these three processes, the device will switch to automatic mode.

LED control display

Green LED (3) lights up

Yellow LED (4) lights up

The device is switched on

The pump is operating

Red LED (5) lights up continuously

Dry run protection active

Red LED (5) fl ashes

The device switches off

Cleaning/Maintenance

Clean and maintain your equipment regularly. This will guarantee its performance and long durability.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.

Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.

Never direct the water jet against the appliance, nor clean the appliance under flowing water. This could give rise to the danger of electric shock and damage the appliance!

General cleaning instructions

- Keep the motor fi ns and motor housing clean. To do so, use a damp cloth or a brush. Do not use any detergents or solvents.

- Remove any fl uff and fi brous particles that have accumulated in the pump housing by rinsing with water.

- In case the unit clogs up, remove the suction and pressure hoses. Flush water through the threaded hole on the pump in order to remove the foreign body.

Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Draining the pump (Fig. B)

If there is a risk of frost and before longer periods of non-use (e.g. winter storage), the device must be completely emptied.

1. Open the drain screw (8) with the enclosed key (14) and empty the water from the device.
2. Rinse the device with clear water.
3. Before restarting, the drain screw (8) must be tightened again with the key (14) to prevent the pump from drawing air.

Storage

• Keep the equipment clean, dry and out of the reach of children.
• Before longer storage periods (e.g. winter) drain the pump (see "Draining the pump"). Difficulties in start-up can arise due to precipitation and residues.

Waste Disposal and Environmental Protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Electric appliances should not be disposed of in the domestic garbage.

Directive 2012/19/EU on waste electrical and electronic equipment: Consumers are legally obliged to recycle electrical and electronic equipment in an environmentally sound manner at the end of its life. In this way, environmentally friendly and resource-saving recycling is ensured. Depending on the implementation in national law, you may have the following options:

• Return to a shop,
• Hand over to an offi cial collection point,
• Return to the manufacturer/distributor.
  This does not affect accessories enclosed with the old devices or tools without any electrical components.

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form. If you have any other questions, contact the "Service-Center" (see page 25).

Position instruction manual	Position exploded drawing	Description Order No.
13+12	20-24	Key	+	Pre-fi
8 28+29 Drain screw 91110111

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. suction hose kit, prefi lter or fan wheel) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item number (IAN 499359_2204) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the

service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone]

E-Mail: [e-mail]

IAN 499359_2204

MT Service Malta Tel.: [phone]

E-Mail: [e-mail]

IAN 499359_2204

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service Réparations ....38

Service-Center....38

Importateur 38

Service-Center......49

Importeur 49

Groene led (3) brandt

Rode led (5) brandt permanent

Rode led (5) knip-pert

Service-Center......60

Importer 60

Service-Center....70

Dovozce....70

Service-Center......80

Dovozca....80

Service-Center....90

Importør 90

Service-Center....101

Importador 101

Service-Center......112

Importatore ....112

Pooblaščeni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

Service-Center....144

Proizvođač......144

Prijevod originalne CE Izjave

o podudarnosti ....191

Service-Center....155

Importator 155

Traducerea Declaratiei Originale

de Conformitate CE ......192

Translation of the original EC declaration of conformity

We hereby confirm that the Home and garden vending machine model PHGA 1000 A1

Serial number 000001 - 025000

conforms with the following applicable relevant version of the EU guidelines:

2006/42/EC • 2014/30/EU • 2000/14/EC • 2011/65/EU* & (EU) 2015/863

In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:

EN 60335-1:2012/A15:2021 • EN 60335-2-41:2021/A11:2021

EN 55014-1:2017/A11:2020 • EN 55014-2:1997/A2:2008

EN IEC 55014-1:2021 • EN IEC 55014-2:2021

EN 61000-3-2:2014 • EN 61000-3-3:2013

EN IEC 61000-3-2:2019/A1:2021 • EN 61000-3-3:2013/A2:2021

EN 62233:2008 • EN IEC 63000:2018

We confirm the following in accordance with the 2000/14/EC emissions guideline:

Sound power level:

guaranteed: 79 dB

measured: 76,6 dB

Compliance evaluation process carried out in accordance

with Appendix V / 2000/14/EC

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Documentation Representative

PHGA 1000 A1

informativ · informative · informatif · informatief · pouczający · informační · informatívny · informativo · informatív · informativen · informativno · информативен · ενημερωτικό

20221021_rev02_mt

FR ©

GRIZZLY TOOLS GMBH & CO. KG

100% FSC www.fsc.org RECYCLED Aus Recycingmaterial FSC® C142184

100% FSC www.fsc.org RECYCLED Made from recycled material FSC® C142184
