Vuil waterdompelpomp
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE

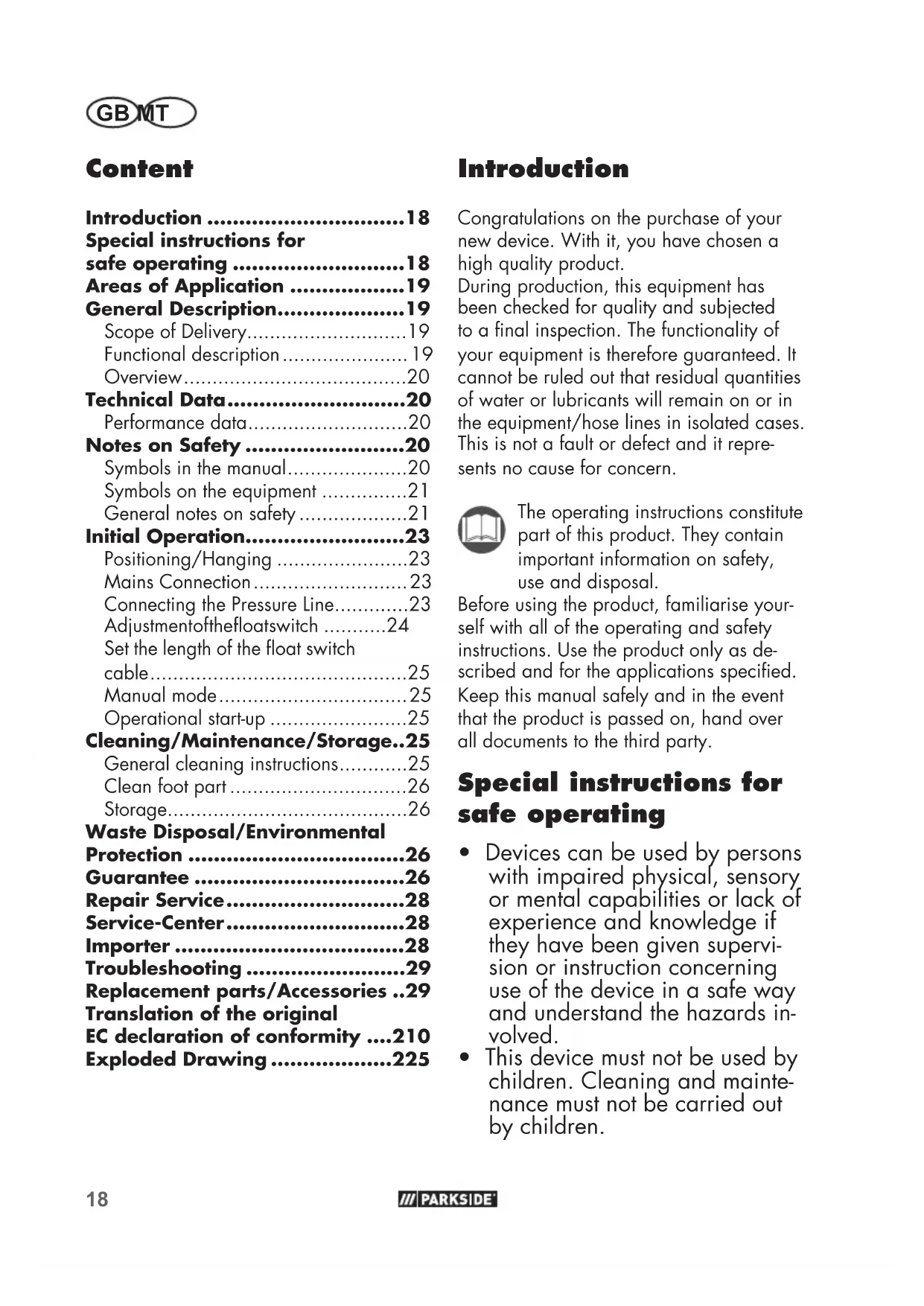

GB / MT Translation of the original instructions Page
Service-Center......16
Importeur ......16
Special instructions for
safe operating 18
Areas of Application ......19
General Description......19
Scope of Delivery....19
Functional description 19
Overview....20
Technical Data....20
Performance data....20
Notes on Safety 20
Symbols in the manual....20
Symbols on the equipment .....21
General notes on safety ......21
Initial Operation....23
Positioning/Hanging 23
Mains Connection....23
Connecting the Pressure Line......23
Adjustmentofthefloatswitch .....24
Set the length of the float switch cable....25
Manual mode....25
Operational start-up 25
Cleaning/Maintenance/Storage..25
General cleaning instructions......25
Clean foot part 26
Storage....26
Waste Disposal/Environmental
Protection 26
Guarantee 26
Repair Service....28
Service-Center......28
Importer 28
Troubleshooting 29
Replacement parts/Accessories ..29
Translation of the original
EC declaration of conformity ....210
Exploded Drawing ......225
Introduction
Congratulations on the purchase of your new device. With it, you have chosen a high quality product.
During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.
Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.
Special instructions for safe operating
- Devices can be used by persons with impaired physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
- This device must not be used by children. Cleaning and maintenance must not be carried out by children.
• Always disconnect the device from the power supply before assembling, disassembling or cleaning it.
- The equipment is not to be operated if there are people in the water. There is a risk of electric shock.
- Connect the equipment only to a socket with a RCD (Residual Current Device) with a rated current of not more than 30 mA; minimum fuse 6 amperes.
- Contamination of the liquid can occur when the lubricant leaks out.
- See further information in the section on "Maintenance and cleaning".
Areas of Application
The dirty water submersible pump is a drainage pump and designed for transporting water and sewage water (max. particle size 35 mm) up to a temperature of max. 35 °C.
It is suitable e.g. for pumping around and pumping out basins and containers, for pumping out flooded cellars, and for extracting water from wells and shafts. This equipment is not suitable for industrial use. Industrial use will invalidate the guarantee. Any other use, not expressly authorised in these instructions, may cause damage to the equipment and represent a serious risk for the user.
The pump is not designed for continuous operation, for which we do not assume any guarantee.
The operator or user is responsible for accidents or damage to other people or their property.
The manufacturer shall not be liable for damages caused by use other than for which the equipment is intended or by incorrect operation.
General Description

The diagram of the most important functional elements can be found on the foldout side.
Scope of Delivery
Carefully unpack the appliance and check that it is complete.
- Submersible sewage pump
- Quick-connect adapter
- Angle adapter
- Reducer
- 8 m nylon cord
- Instruction Manual
Dispose of the packaging material correctly.

You need a hose clamp and a saw when connecting the hose (see under "Connecting the line"). The tool is not included. The tool can be purchased from specialist dealers.
Functional description
The dirty water submersible pump has a stainless steel casing, a stable suction foot and a non-corrosive motor shaft. The pump is fitted with a float switch, which automatically switches the equipment on or off. The motor is protected from overload by a thermal safety switch. Please refer to the following descriptions for the function of the operating parts.

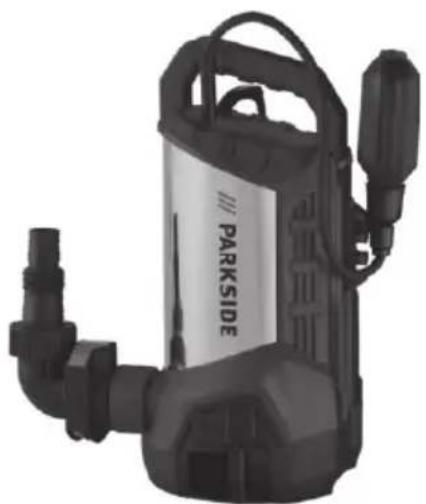

Overview

1 Handle
2 Power cord
3 Float switch cable
4 Float switch height grid
5 Holder, float switch height adjustment
6 Float switch
7 Pump foot
8 Pump outlet
9 Pump housing
10 Quick-connect adapter
11 Angle adapter with quick-connect connector
12 Reducer piece
13 Nylon traction rope
Technical Data
Dirt Water
Submersible Pump......PTPS 1100 B2
Rated voltage
(U) ....230 V\~ (Alternating current), 50 Hz Rated power input/
Power consumption (P) 1100 W
Max. discharge rate (Q max) .. 20000 l/h
Max. discharge head (H max) ..... 9 m
Max. depth of immersion .... 7 m
Max. water temperature (T max) ..... 35 °C
Hose connection....1", 1 ¼", (25 mm, 33 mm)
Tap connection with internal thread
on the angle adaptor...G 1 12 " (47,8 mm)
on the hose adaptor. .....G 1" (33,3 mm)
Max. foreign body size....35 mm
Switching point level:
ON......approx. 520 mm
OFF......approx. 230 mm
Minimum water level
while suctioningn 9 cm
Mains cable 10 m
Weight (incl. accessories)....5.5 kg
Safety class....I
Degree of protection.....IPX8
The maximum performance is measured with a straight, direct outlet flow. The angle piece and backflow valve may reduce performance.

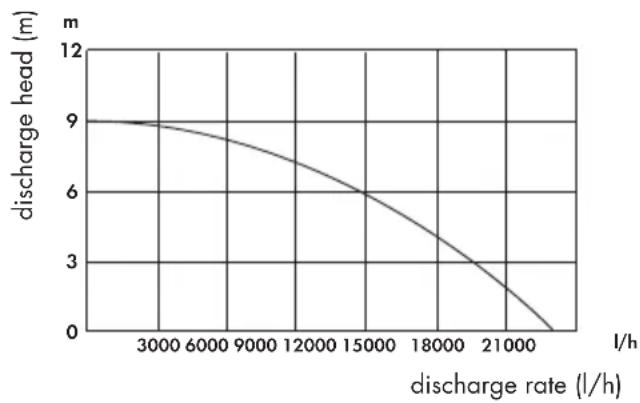

Performance data

line
| discharge rate (l/h) | discharge head (m) | | -------------------- | ------------------ | | 3000 | 9 | | 6000 | 8.5 | | 9000 | 7.5 | | 12000 | 6.5 | | 15000 | 6 | | 18000 | 4.5 | | 21000 | 3 | | 24000 | 1 |Notes on Safety
This section deals with the general safety regulations for working with the equipment.
Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols with information on preventing damage.

Pull out the mains plug.

Help symbols with information on improving tool handling.
Symbols on the equipment

Caution! Not suitable for water with a high sand content!

Caution! Avoid dry running of the pump! Danger of overheating!

Before beginning work, familiarise yourself thoroughly with all the operating elements, particularly with how they function and operate.
Ask a specialist if necessary. Read and follow the operating instructions provided for the device!

Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.

Caution! Hot surface! Risk of burn injury!

Greatest possible operating immersion depth.

Electric appliances should not be disposed of in the domestic garbage.
General notes on safety
Working with the equipment:

Caution: to avoid accidents and injuries:
• People who are unfamiliar with the operating instructions are not permitted to use the
equipment. Local regulations or bylaws may determine the minimum age for using the device.
- Wear sturdy footwear to protect against electric shock.
- Should there be people in the water, do not operate the equipment. Risk of electric shock!
• Take appropriate measures to keep children away from the equipment whilst it is running. There is a risk of injury! - Do not use the equipment in the vicinity of flammable liquids or gases. Non-observance will result in a risk of fire or explosion.
- Store the equipment in a dry place and out of reach of children.

Caution! To avoid damage to the equipment and any possible person injury resulting from this:
- The transportation of aggressive, abrasive (grinding effect, e.g. sandwater), corrosive, combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted. The temperature of the liquid being transported must not exceed 35 °C. Non-observance can lead to device damage and create a risk for the user.
- Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electri-
cal protection measures are in place.
- Monitor the equipment during operation (particularly in residential spaces, in order to detect automatic switching off or dry running of the pumps in time. Regularly check the function of the float switch (see chapter "Initial Operation"). Non-observance will invalidate all guarantee and liability claims.
- Please note that the pump is not suitable for continuous operation (e.g. for watercourses in garden ponds). Check the equipment regularly for correct functioning.
- Note that the lubricants used in the equipment may cause damage or contamination if they escape. Do not use the pump in garden ponds with fish stocks or valuable plants.
- Do not carry or fix the equipment by the cable or pressure line.
- Protect the equipment from frost and from running dry.
- Use only original accessories and do not carry out conversion work on the equipment.
- Please read the notes in the operating instructions on the topic of "Cleaning/Maintenance/Storage". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.
Electrical safety:
Caution: to avoid accidents and injuries from electric shocks:
• After erection, the mains plug must be freely accessible when the equipment is in operation.
- Before you put your new pump into operation, have it checked professionally if you are unsure about:
- The earthing, the protective multiple earthing; the residual current circuit breaking must be compliant with the safety regulations of the energy supply company and function without fault,
- The protection of the electrical plug connections from the wet.
- If there is a risk of flooding, fix the plug connections in an area that is safe from flooding.
- Ensure that the mains voltage matches the specifications on the rating plate.
- The electrical installation shall be according to national wiring rules.
- Before each use, check the equipment, cable and plug for damage. Defective cables are not to be repaired, but rather replaced by new ones. Have damage on your equipment repaired by an authorised specialist.
- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the
same or a similarly qualified person in order to prevent hazards.
- Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.
- Do not carry or fix the equipment by the cable.
- Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage.
- Disconnect the mains plug from the socket before all work on the equipment, in case of leaks in the water system, during work breaks, and when not in use.
- Extension cables must not have a cross-section that is smaller than those of rubber hoses with the designation H07RN8-F. The cord length must be at least 10 m. The wire cross section of the extension cable must be at least 2.5 mm ^2 .
- Perform the electrical installation in accordance with national regulations.
Initial Operation
Positioning/Hanging
- The dimensions of the pump shaft must be not less than 40 × 40 × 50 ~cm , in order that the float switch (A 6) can move freely.
- The device can be suspended from the handle (A 1) or placed on the bottom of the shaft.
The pump can be suspended and/or removed using the nylon cord (A 13) provided.
To ensure it is suspended securely, thread the nylon cord (D 13) through the handle (D 1)
as depicted in Figure D.
Never suspend the pump by the hose.

Ensure that the equipment is not hung up or held by the mains cable. There is a risk of electric shock from damaged mains cables.

Note that, over time, dirt and sand may collect on the bottom of the shaft, which could damage the pump.
We recommend standing the pump on a brick.
If the water level is too low, the silt in the shaft can quickly dry out and impede the pump when warming up.
Mains Connection
The pump you have purchases is already fitted with an earthed plug. The equipment is designed for connection to an earthed wall socket with a RCD (Residual Current Device) at 230 V\~50 Hz.

Connecting the Pressure Line
The pump is installed
- Either with a fixed pipeline
-
Or with a flexible hose line.
-
Screw the quick-connect adapter (10) onto the pump outlet (8).
-
Press the red release button on the quick-connect adapter (10) and slide
GBMT
the angle adapter with quick-connect connector (11) into the quick-connect adapter (10). Let go of the red release button again.
- Screw the reducer piece (12) onto the angle adapter with quick-connect connection (11)
- Fit the hose over the reducer (12) and secure it with a hose clamp. Or use a screw connection on the angle adapter with quick-connect connector (11), or on the reducer (12).
① Outlet with 1½ " female thread on the pump for connection of the angle adapter (11), of the quick-connect adapter (10), or for direct connection of a hose with 1½ " male thread;
② Outlet with G 1½"-external thread at the bracket adapter (11) for connection of the reducer (12) or a 1½"-screw connection;
3 Outlet on the reducer piece (12) for connecting a 1¼" hose as a clamping connection (fastening with hose clamp). Cut off the connection above each one;
4 Output with 1" male thread on the reducer piece (12) for connecting a 1" screw connection. Cut off the connection above each one;
5 Outlet with 1"-thread at the reducer (12) for connection of a 1"-hose as clamp connection (fixing with a hose clamp).

Note that the particle size may be max. 18 mm if the reducer ⑤ (Outlet with 1") is used, otherwise the reducer and hose can become blocked.
B Adjustment of the float switch
The float switch (6) is adjusted so that it can be started up immediately.
In the case of stationary installation, check regularly (no less then once every three months) that the float switch (6) is working.
The switch-on or switch-off point of the float switch (6) can be set in three notches:
Clamp the float switch cable (3) into one of the float switch height grids (4).
i Check the float switch (6).
- It must be positioned so that it can lift and lower freely. The switching point heights "On" and "Off" must be easy to reach. Check this by placing the pump into a vessel filled with water and lift the float switch (6) carefully by hand and then lower it again. In this case, you can see whether the pump switches on and off.
Danger of the pump running dry.
- Also make sure that the distance between the float switch (6) and the float switch height grid (4) is not too small. In the case of a separation distance which is too small, trouble-free functioning cannot be guaranteed.
- During the adjustment of the float switch (6), ensure that the float switch does not contact the floor before the pump switches off.

Set the length of the float switch cable
The float switch cable (3) is located in one of the float switch height grids (4).
Float switch cable (3) set too short
- Pull the float switch cable (3) at the float switch (6) to extend.
Float switch cable (3) set too long
- Pull back the float switch cable (3) and make sure that the float switch (6) can raise and lower freely.

Manual mode
In manual mode, the pump does not switch off automatically, as the float switch (6) is bypassed.
Position the float switch (6) with the holder (5) vertically upwards in one of the float switch height grids (4).

Monitor the pump constantly when in manual mode. Switch the pump off immediately (disconnect from the mains) if no more water is being pumped. There is a risk of damage if the pump runs dry.

Operational start-up
- Check that the pump is standing firmly on the bottom of the shaft or hung up safely.
- Place the pump on a brick and not on a shaft floor, if applicable. This prevents damage to the pump if the shaft floor is soiled.
-
Check whether the pressure line has been attached correctly and the unused pump outlet is fully closed.
-
Avoid that the pump runs dry. Regularly check the function of the float switch. In case of non-observance or if the pump runs dry, guarantee and liability claims are invalidated.
- Check that the electrical connection is 230 V\~50 Hz
- Check the proper status of the electrical plug socket and make sure that the plug socket is sufficiently fused (at least 6 A, RCD switch). Insert the pump plug into the plug socket and the pump is ready for operation.
• Make sure that moisture or water never come in contact with the mains connection. There is a risk of electrocution. - The minimum water level on initial start-up must be 90 mm.
Cleaning/Maintenance/Storage
Clean and maintain your equipment regularly. This will guarantee its performance and long durability.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.
This will prevent damage to the equipment and any resulting personal injury.

Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.
General cleaning instructions
- In case of transport for utilization in different locations, the pump must be cleaned with clear water after every use.
GBMT
- In case of stationary installation, the function of the float switch (C 6) is to be checked regularly (at the latest every three months).
- With a water jet, remove fluff and fibrous particles which are possibly present in the pump casing.
- Regularly remove sludge from the pit base and also clean the shaft walls.
- Clean precipitation from the float switch with clear water.
- In the case of a long period of non-use, the pump must be thoroughly cleaned after the last use and before the new use, since difficulties in start-up can arise due to precipitation and residues.
Clean foot part

Always remove the mains plug before working on the device.
Moving parts create the risk of electrocution or injury.
Dirt on the bottom of the pump can be washed down with clear water.
Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.
Storage
- Keep the equipment clean, dry and out of the reach of children.
- For storage, unscrew the reducer piece (A 12), the angle adapter with quick-connect connection (A 11) and the quick-connect adapter (A 10).
- Coil up the power cord (2) and hang it over the handle (1). See illustration E.
Waste Disposal/Environmental Protection
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Directive 2012/19/EU on waste electrical and electronic equipment: Used electrical devices must be collected separately for disposal and recycled in an environmentally sound manner.
Depending on implementation in national law, you may have the following options:
- Return to a shop,
- Hand over to an official collection point,
- Return to the manufacturer/distributor. This does not affect accessories enclosed with the old devices or tools without any electrical components.
Guarantee
Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.
If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. connector set) or to cover damage to breakable parts (e.g. switches).
This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
In the case of pumping water containing sand or aggressive liquids or other incorrect, non-design-appropriate use, as well as in case of non-observance of the operating manual, application of force in use or inappropriate or insufficient maintenance, no guarantee claim exists, since seals, impeller wheel, motor or other parts are damaged by this. Also, sewage water pumps are not suitable for the pumping of abrasive materials (sand, stone).
Note: submersible pumps are drainage pumps. This kind of pump is constructed with the purpose of transporting or removing a certain volume of water – depending on its output category – as quickly as possible. Submersible pumps are not intended as irrigation (for example, in garden irrigation systems) or as constant water-flow pumps (such as in artificial streams or ornamental fountains). Inappropriate use will invalidate the warranty.
In particular, the guarantee is likewise void in the case of employment of the sewage water pumps without base plate or (this applies for all pumps) in case of damages which are caused by supporting on or suspending from the mains cable. The pumps must not be run dry or exposed to frost.
Processing in Case of Guarantee
To ensure efficient handling of your query, please follow the directions below:
- Please have the receipt and identification number (IAN 373774_2204) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate.
- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.
We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.
Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: grizzly@lidl.co.uk
IAN 373774_2204
MT Service Malta
Tel.: 80062230
E-Mail: grizzly@lidl.com.mt
IAN 373774_2204
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
| Faults Causes Remedies | ||
| Pump does not start | Mains voltage is not applied C | Check mains voltage |
| Float switch (C 6) does not switch | Bring float switch into higher position | |
| Pumps has no discharge | Buckled pressure hose Repair point at which the line is bent | |
| Trapped air in the pump casing | Tip the pump underwater until the air escapes | |
| Pump does not switch off | Float switch (C 6) cannot drop | Set up pumps correctly on the pit base |
| Flow rate insufficient | Reduces pump performance, through severely contaminated water and additions in the water which produce a grinding effect | Clean pumps and replace wear parts |
| Pump switches off after a short period | Motor contactor disconnects the pumps because of water pollution that is too severe. | Pull out power plug and clean the pump as well as shaft |
| Water temperature too high, motor contactor breaks | Note maximum water temperature of 35 °C! | |
Replacement parts/Accessories
Spare parts and accessories can be obtained at www.grizzlytools.shop
If you have issues ordering, please use the contact form.
If you have any other questions, contact the "Service-Center" (see page 28).
Item
Description Product No.

10/11/12 Connector set 91110114

13 8 m nylon cord 79300311
Sommaire
Introduction ......30
Service Réparations ....43
Service-Center......43
Importeur 43
Dépannage 44
Pièces de rechange/ Accessoires ....44
Service-Center......56
Importeur ....56
Foutopsporing....57
Reserveonderdelen/accessoires..57
10 Quick-Connect-adapter
Service-Center......69
Importer 69
10 Adapter Quick-Connect
Service-Center......81
Dovozce....81
Service-Center....93
Dovozca....93
Zistovaniezávad .....94
10 Quick-Connect-adapter
(U) .....230 V\~ (Vekselstrøm), 50 Hz
Dimensioneret optagelse
(tilslutningseffekt) (P) 1100 W
Service-Center....118
Importador ......118
Service-Center....131
Importatore ....131
Pooblaščeni serviser:
Tel.: 080080917
E-Mail: grizzly@lidl.si
(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)
Garancijski list
Service-Center....168
Proizvođač......168
Prijevod originalne CE Izjave
o podudarnosti ....221
Service-Center....181
Importator 181
Traducerea Declaratiei
Originale de Conformitate CE ...222
![]() | Translation of the original EC declaration of conformity |
| We hereby confirm that the Dirty Water Submersible Pump model PTPS 1100 B2 Serial number 000001 - 123000 conforms with the following applicable relevant version of the EU guidelines: | |
| 2006/42/EC • 2014/30/EU • 2011/65/EU* & (EU)2015/863 | |
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: | |
| EN 60335-1:2012/A15:2021 • EN IEC 60335-2-41:2021/A11:2021 • EN 62233:2008 EN 55014-1:2017/A11:2020 • EN IEC 55014-1:2021 • EN 55014-2:1997/A2:2008 EN IEC 55014-2:2021 • EN 61000-3-2:2014 EN IEC 61000-3-2:2019/A1:2021 • EN 61000-3-3:2013 • EN 61000-3-3:2013/A2:2021 EN IEC 63000:2018 | |
| This declaration of conformity is issued under the sole responsibility of the manufacturer: | |
| CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany 30.10.2022 | Christian Frank Documentation Representative |
* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
- Before each use, check the equipment, cable and plug for damage. Defective cables are not to be repaired, but rather replaced by new ones. Have damage on your equipment repaired by an authorised specialist.
- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

Christian Frank Documentation Representative
