Product type	Heating cushion
Brand	Dometic
Model	CMP-H1
Dimensions	450 x 350 x 10.5 mm
Weight	0.35 kg
Power supply	5 V ⎓ (USB port) or 12 V ⎓ via included adapter
Max. power consumption	11 W (5 V) or 22 W (12 V)
Nominal current	2.3 A (5 V) or 1.8 A (12 V)
Fuse rating	5 A
Power cable length	900 mm
Adapter cable length	500 mm
Main functions	Temperature adjustment, automatic shut-off after 45 min, safety thermostat (55 °C)
Delivery contents	Heating cushion, USB-A to 12 V socket adapter, transport cover
Care and cleaning	Clean with soft brush or damp cloth; do not machine wash, do not tumble dry
Safety	Do not use while sleeping, do not use on insensitive skin, do not insert pins, automatic shut-off, safety thermostat
Spare parts and repairability	Replaceable fuse (5 A); adapter and cover available
General information	Camping use, manual available in several languages (96 pages)

Frequently Asked Questions - CMP-H1 DOMETIC

How to use the CMP-H1 heating cushion?

Connect the USB-A adapter to a power source (5 V or 12 V). Connect the cushion to the adapter. Press the power button to turn on. Set the temperature to the desired level (Low for continuous use, High for fast heating). Before use, test the temperature with the back of your hand. Do not use on bare skin or while sleeping.

What are the important safety instructions?

Do not use while sleeping. Do not insert pins. Do not use on a person insensitive to heat or with circulatory problems. Keep out of reach of children under 3 years. Do not use if the cable is damaged. Disconnect before cleaning. Do not immerse in water.

How to clean the heating cushion?

Let it cool completely. Clean with a soft brush or damp cloth. Do not machine wash, do not use harsh detergents, do not tumble dry. Make sure it is completely dry before reconnecting.

What is the operating time before automatic shut-off?

The heating cushion automatically turns off after about 45 minutes of continuous operation. You can turn it back on by pressing the power button.

What to do if the heating cushion does not turn on?

Check that the plug is properly inserted into the power source and that the adapter is correctly connected. Test the power source with another device. If the power button lights up but the cushion does not heat, check that the power supply provides enough current (2.3 A for 5 V, 1.8 A for 12 V).

Can I use the heating cushion while sleeping?

No, it is forbidden to use the device while sleeping due to the risk of burns. Use it only when you are awake and regularly check the condition of your skin.

Is the heating cushion suitable for children?

Children under 3 years must not use the device. Children aged 3 to 8 may use it under supervision with the temperature setting at minimum. Children over 8 may use it if supervised or have received safety instructions.

How to replace the fuse?

The fuse is located in the adapter. Open the compartment, remove the defective fuse and replace it with an identical 5 A fuse. Close carefully. Refer to the diagram in the manual (fig. 5, page 4).

What are the technical specifications (voltage, dimensions)?

Voltage: 5 V ⎓ (USB) or 12 V ⎓ (via adapter). Power consumption: 11 W (5 V) or 22 W (12 V). Dimensions: 450 x 350 x 10.5 mm. Weight: 0.35 kg. Fuse: 5 A.

Can the heating cushion be used on bare skin?

No, it must not be used directly on bare skin. Place it on clothing or a blanket. Regularly check the condition of the skin under the cushion to avoid burns.

USER MANUAL CMP-H1 DOMETIC

Line drawing of a smartphone with grid pattern and a partially visible screen (no text or symbols)

CMP-H1

EN Heating Pad Operating manual....5

© 2022 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

Line drawings of three electronic devices: a grid solar panel, a USB cable, and a rectangular battery pack (no text or symbols)

2 450 100 35010.5 200

3 1. 12V 2.

	EN DE FR ES PT IT NL		DA SV NO
rk	Red	Rot	Rouge	Rojo	Vermelho	Rosso	Rood	Rød	Röd	Rød
ye	Yellow	Gelb	Jaune	Amarillo	Amarelo	Giallo	Geel	Gul	Gul	Gul
gn	Green	Grün	Vert	Verde	Verde	Verde	Groen	Grøn	Grön	Grønn

	FI	RU	PL	SK CS H	U TR SL BG AR
rk	Punainen	Красный	Czerwony	Červená	Červená	Piros	Kirmizi	Rdeča	Червено
ye	Keltainen	Желтый	Żółty	Żltá	Żlutá	Sárga	Sari	Rumena	Жьлт
gn	Vihreä	Зепеный	Zielony	Zelená	Zelená	Zöld	Yesil	Zelena	Зепен


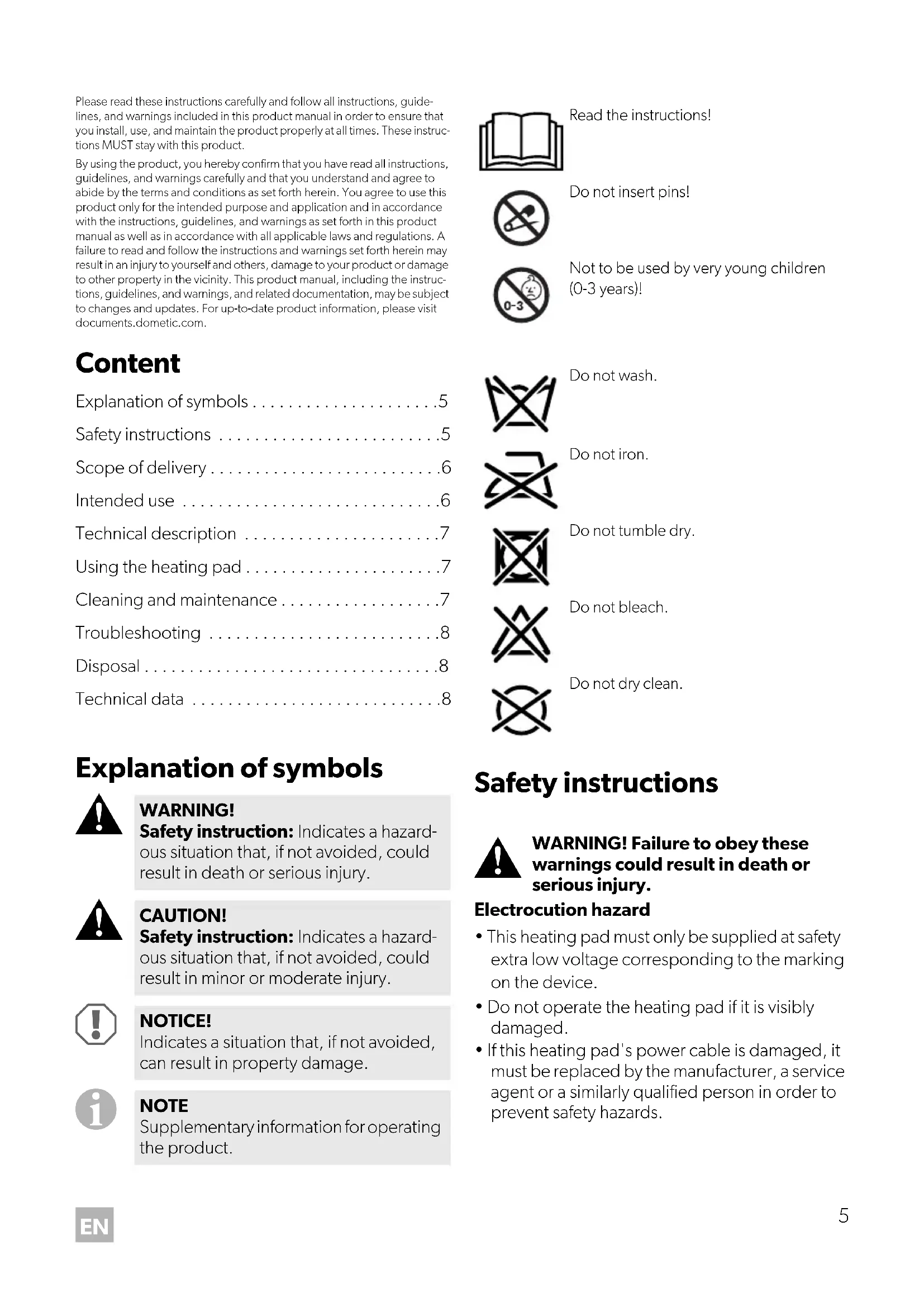

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com.

Content

Explanation of symbols....5

Safety instructions ....5

Scope of delivery....6

Intended use 6

Technical description .....7

Using the heating pad ....7

Cleaning and maintenance....7

Troubleshooting 8

Disposal....8

Technical data 8

Explanation of symbols

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

Read the instructions!

Do not insert pins!

Not to be used by very young children (0-3 years)!

Do not wash.

Do not iron.

Do not tumble dry.

Do not bleach.

Do not dry clean.

Safety instructions

WARNING! Failure to obey these warnings could result in death or serious injury.

Electrocution hazard

• This heating pad must only be supplied at safety extra low voltage corresponding to the marking on the device.
• Do not operate the heating pad if it is visibly damaged.

• If this heating pad's power cable is damaged, it must be replaced by the manufacturer, a service agent or a similarly qualified person in order to prevent safety hazards.

• This heating pad may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.

• Do not use the heating pad in wet conditions or submerge in any liquid. Store in a dry place.

Risk of asphyxiation

- The cable and control unit of the device can give rise to risks of entanglement, strangulation, tripping or treading if not correctly arranged. The user shall ensure that excess ties and power cables shall be arranged in a safe way.

CAUTION! Failure to obey these cau-tions could result in minor or moderate injury.

Electrocution hazard

• Before starting the heating pad, ensure that the power cable and the plug are dry.
• Disconnect the heating pad from the power supply
  – Before each cleaning and maintenance
• After every use

Risk of injury

• Do not use the device while sleeping.
• This device can be used by children older than 3 years and younger than 8 years under supervision and with the control always set to minimum temperature value.
• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
• Children under the age of 3 years are not to use this device due to their inability to react to overheating.
• This pad is not to be used by or on an invalid, sleeping or unconscious person, or a person with poor blood circulation unless carefully attended.
• The heating pad must not be used by persons insensitive to heat and other very vulnerable persons who are unable to react to overheating.
• Do not use the heating pad on areas of insensitive skin or directly on bare skin.
• Burns can occur regardless of control settings, check the skin under the heating pad frequently.
• Children should be supervised to ensure that they do not play with the device.

NOTICE! Damage hazard

• Check that the voltage specification on the data plate corresponds to that of the energy supply.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
• Do not use any blankets, cushions or other covers on the heating pad.
• Do not place heavy objects on the heating pad. Avoid sharp folds.
• Do not insert any sharp objects into the heating pad (e.g. safety pins or other metallic means).
• Never pull the plug out of the socket by the cable.
• Do not use the cable as a handle.
• Loop the cable loosely when storing, tight wrapping may damage the cable and internal parts.

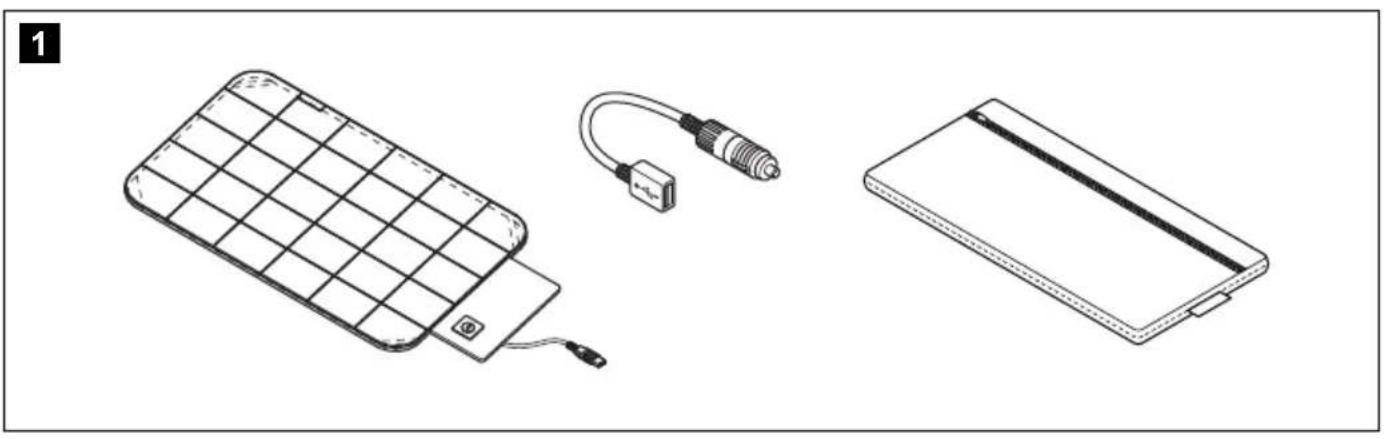

Scope of delivery

Component Quantity

Heating pad 1

Adapter (USB-A to 12 V plug) 1

Carry bag 1

Intended use

The heating pad is intended to warm your body or certain individual parts of the body.

The heating pad is not intended for

• Commercial or industrial use
• Medical use in hospitals, medical practices, etc. This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

- Incorrect assembly or connection, including excess voltage

• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

Technical description

The heating pad is equipped with an automatic shut-off function. This switches off the heat supply after approx. 45 min. of continuous operation.

The heating pad is fitted with a safety thermostat that regulates the heat and prevents overheating of the heating pad by automatically switching off the heating pad as soon as the maximum temperature of 55^ C is reached.

Using the heating pad

CAUTION! Risk of injury

• Before each use, test the temperature with the back of your hand.
• Prolonged use at the highest level may cause burns. Set the heating pad to the lowest setting (Low) for continuous use.
• If you feel any pain, switch off the device immediately.

NOTE

Ensure that the capacity of the mobile power supply (e.g. USB-Powerbank) matches the required capacity of the heating pad.

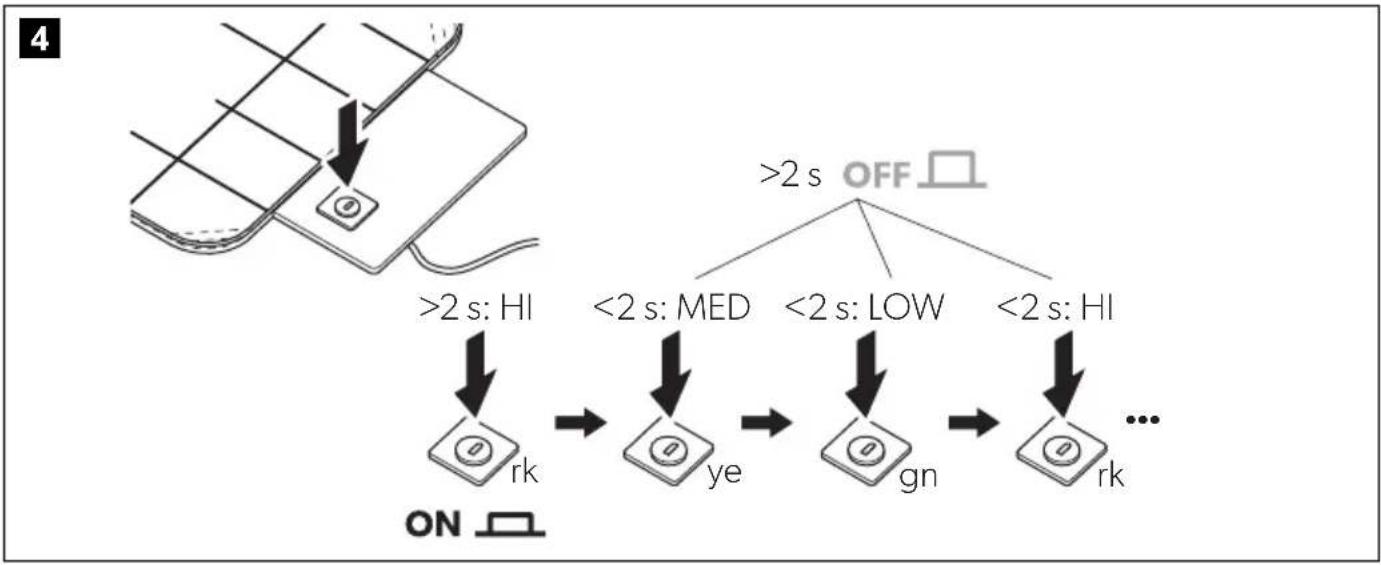

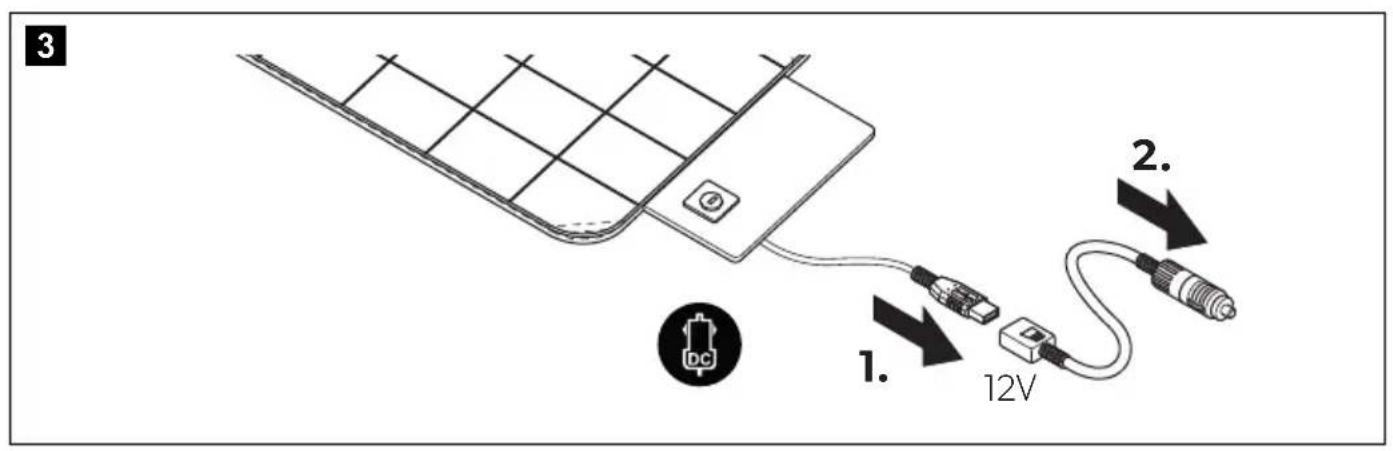

▶Proceed as shown to use the heating pad (fig. 3, page 3 to fig. 4, page 4).

Cleaning and maintenance

CAUTION! Electrocution hazard

• After cleaning, wait until the heating pad is completely dry before plugging in and connecting to the power supply. Do not use or store when damp!
- Cleaning and user maintenance may not be carried out by unsupervised children.

NOTICE! Damage hazard

• Allow the heating pad to cool down completely before cleaning, folding or storing.
• Do not wash the heating pad in the washing machine or under running water.
• Do not tumble dry.
• Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the product.

Examine the device frequently for signs of wear or damage. If there are such signs, if the device has been misused or does not work, return it to the supplier before switching it on again.
▶Clean the heating pad regularly and as soon as it becomes dirty with a dry soft brush or a damp cloth.

Replacing the fuse

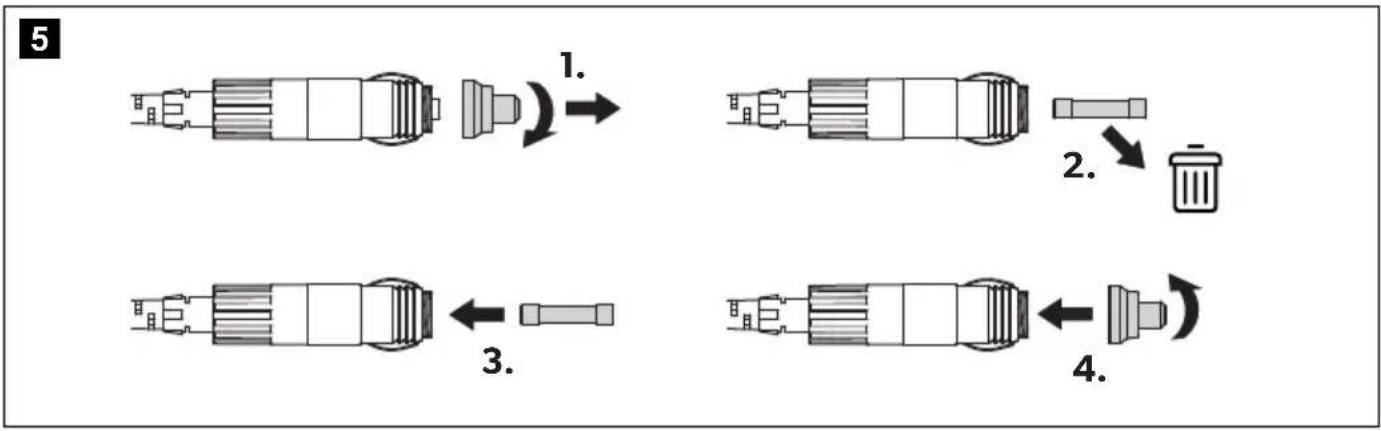

▶ To replace the fuse proceed as shown (fig. 5, page 4).

Troubleshooting

Problem	Possible reason	Solution
The heating pad does not work.The power button does not illuminate.	The heating pad does not receive any power.	▶ Check that the plug is fully inserted into the power source.▶ Check that the adapter is fully connected.▶ Plug in another device to check the correct operation of the power source.
The heating pad does not work.The power button illuminates.	The heating pad does not receive enough current.	Check that the voltage supply provides a sufficient current (see chapter “Technical data” on page 8).
The heating pad switches off.	The automatic shut-off function has responded.	Switch on the heating pad again.
	Risk of over-heating! The safety thermostat has responded.	Allow the heating pad to cool down completely before switching on again.

Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.
Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations.
The product can be disposed free of charge.

Technical data

	CMP-H1
Voltage:	5 V---	12 V---
Max. power con-sumption:	11 W 22 W
Rated current: 2.3 A 1.8 A
Fuse amp rating: 5 A
Connection cable length:	900 mm
Adapter cable length:	500 mm

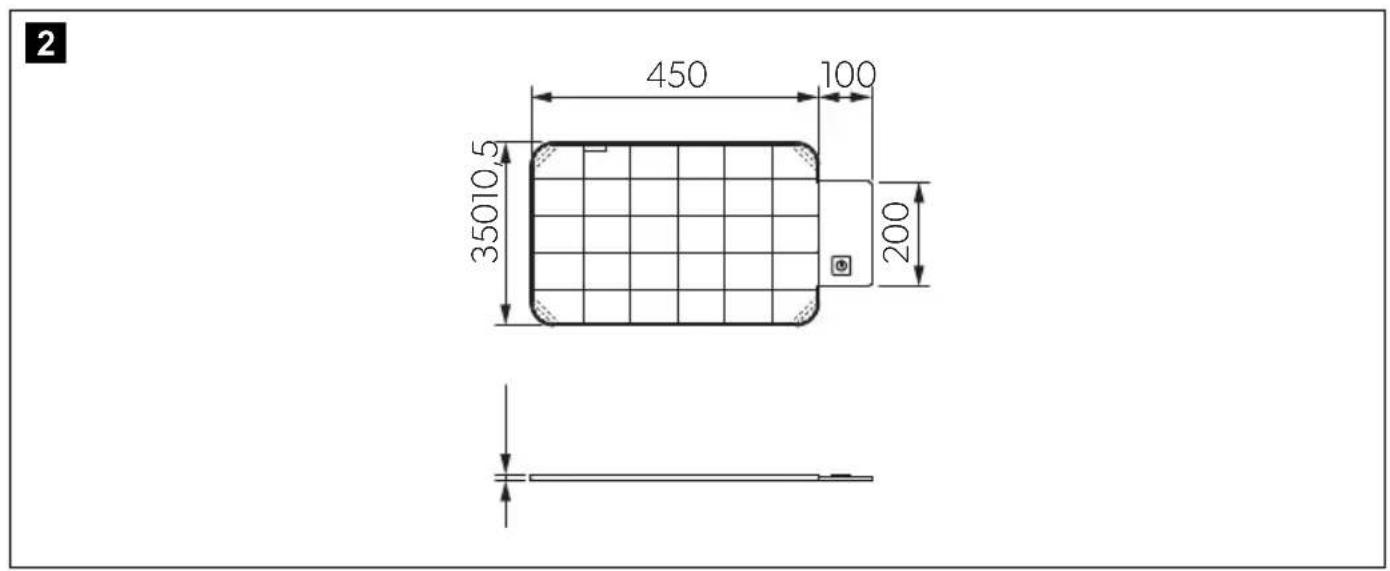

Dimensions:	450 x 350 x 10.5 mm (fig. 2, page 3)
Weight: 0.35 kg
Inspection/certification:

For the current EU declaration of conformity for your device please refer to the respective product page on dometic.com or contact the manufacturer directly (see dometic.com/dealer).
