Product type	Air fryer
Brand	Sharp
Model	AF-GS552A
Capacity	5.5 liters
Power	1600 W
Power supply	220-240 V, 50 Hz
Temperature range	80 °C to 200 °C
Automatic programs	8 (fries, beef, vegetables, chicken, bacon, fish, potatoes, pizza)
Special functions	Preheating, reheating, cooking from frozen, keep warm
Dimensions (W x H x D)	395 x 321 x 314 mm
Weight	6.8 kg
Control panel	Digital with LED display
Coating	Non-stick on basket and inner pot
Cable length	900 mm
Noise level	55 - 62 dB
Power consumption	1650 W max
Included accessories	Frying basket, inner pot (drip tray)
Maintenance and cleaning	Basket and pot dishwasher safe; do not immerse the body
Safety	Automatic shut-off, overheating protection, hot surfaces indicated
Spare parts and repairability	No user-serviceable parts; contact Sharp service

Frequently Asked Questions - AF-GS552A SHARP

Can I use oil in the Sharp AF-GS552A air fryer?

No, the Sharp AF-GS552A air fryer is designed to cook without oil. Never pour oil or any other liquid into the inner pot. You can add a very small amount of oil (e.g., 1/2 teaspoon) to food for a crispier result, but not into the appliance.

How do I clean the basket and inner pot?

Let the appliance cool down, then clean the basket and pot with a damp, soapy cloth. You can also wash them in the dishwasher. Avoid metal scouring pads that could damage the non-stick coating. For stubborn stains, soak in warm water for 10 minutes.

Why is white smoke coming out of my air fryer?

This can happen if you cook fatty foods (e.g., bacon) or if the inner pot has grease residue. White smoke is normal and does not harm the appliance. To avoid it, clean thoroughly after each use.

How much food can I put in the basket?

Do not fill the basket beyond 4/5 of its volume. Overfilling may affect cooking and safety. Follow the weights indicated in the cooking charts.

How do I preheat the air fryer?

Press PREHEAT/REHEAT once, set the temperature if necessary, then press START. The appliance beeps when the temperature is reached. Remove the pot, add the food, and restart.

Can I cook frozen foods directly?

Yes, press FROZEN before selecting the automatic program. This function is available for frozen fries, vegetables, and pizzas. For other frozen foods, use manual mode and adjust the time.

How do I manually adjust the temperature and time?

In manual mode, press START once, then use the TEMP and TIME buttons to set the temperature (80-200°C) and time (1-60 minutes). Then place the food and press START again.

What should I do if my air fryer does not start?

Check that the appliance is plugged in and the outlet is on. Make sure the inner pot is properly inserted. Set the time and temperature, then press START.

The fries are not crispy, why?

For crispy fries, use firm potatoes, rinse them to remove starch, dry them well, then add a little oil. Cut them into thin sticks and do not overload the basket. Cooking time can be increased.

Can I use accessories not provided?

It is not recommended to use accessories not recommended by Sharp, as this could pose a safety risk or damage the appliance.

USER MANUAL AF-GS552A SHARP

Line drawing of a Sharp air fryer with control panel and lid (no text or symbols on the device itself)

User manual

AF-GS552A

Air Fryer

EN BG CS DA DE EL ES ET FI FR HR HU IT LT LV NL NO PL PT RO SK SL SR SV UA

*Product images are for illustration purpose only. Actual product may vary.

Attention:

Your product is marked with this symbol.

It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dustbin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*.

In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

* Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product.

Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

CONTENTS

SAFETY INSTRUCTIONS .... 3

SPECIFICATIONS....6

AIR FRYER AND ACCESSORIES....7

CONTROL PANEL 8

BEFORE USING YOUR AIR FRYER 8

OPERATION INSTRUCTIONS....9

Automatic Cooking....9

Manual Cooking....10

Cook From Frozen 11

Pre-Heat....12

Reheat....13

Keep Warm....13

MAINTENANCE WHILE IN USE 14

CLEANING INSTRUCTIONS .... 14

STORAGE 14

TROUBLESHOOTING....15

SAFETYINSTRUCTIONS

When using an electrical appliance, basic safety precautions should always be followed, including the following:

• Children should be supervised to ensure that they DO NOT play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Clean the air fry basket and inner pot with damp, soapy cloth. Make sure only use mild, soapy water.

- DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock. Damage to the surface will also occur.

- Dry the unit and all the assemblies with a soft cloth before storage or use.

- If there are any stains on the basket or inner pot which are too difficult to clean, let them soak in warm water for about 10 minutes before cleaning.

- The frying basket and inner pot can be cleaned in a dishwasher.

- DO NOT overfi ll when cooking. Overfi lling may cause personal injury or property damage or affect the safe use of the appliance.

- DO NOT use oil or any other liquid in the inner pot.

- DO NOT use this appliance for deep-frying.

- Ensure that food is correctly prepared and cooked to avoid any danger to health.

- Prevent food contact with heating elements.

- ALWAYS ensure the appliance is properly assembled before use.

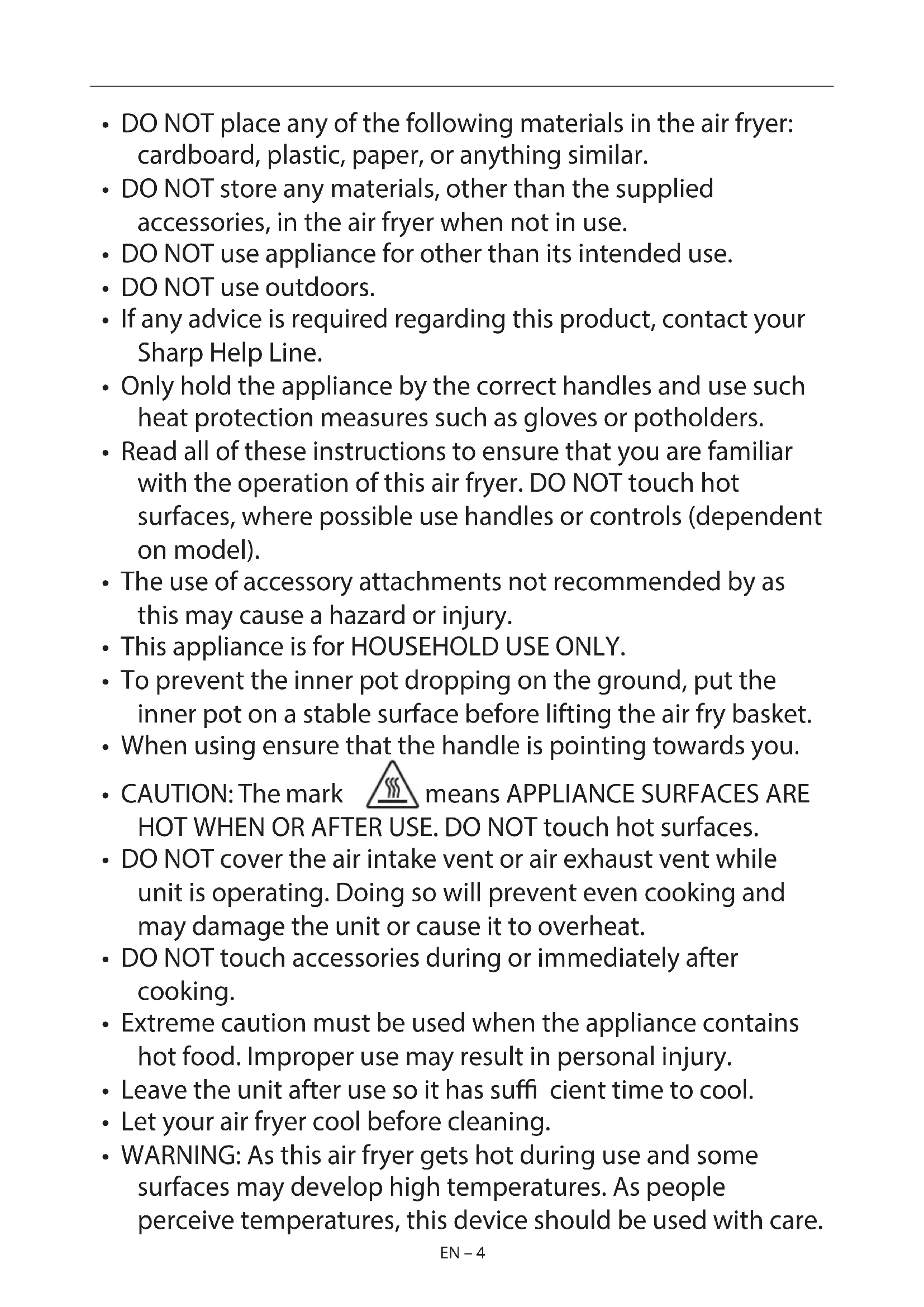

• DO NOT place any of the following materials in the air fryer: cardboard, plastic, paper, or anything similar.
• DO NOT store any materials, other than the supplied accessories, in the air fryer when not in use.
• DO NOT use appliance for other than its intended use.
  • DO NOT use outdoors.
• If any advice is required regarding this product, contact your Sharp Help Line.
• Only hold the appliance by the correct handles and use such heat protection measures such as gloves or potholders.
• Read all of these instructions to ensure that you are familiar with the operation of this air fryer. DO NOT touch hot surfaces, where possible use handles or controls (dependent on model).
• The use of accessory attachments not recommended by as this may cause a hazard or injury.
• This appliance is for HOUSEHOLD USE ONLY.
• To prevent the inner pot dropping on the ground, put the inner pot on a stable surface before lifting the air fry basket.
• When using ensure that the handle is pointing towards you.
• CAUTION: The mark ≈ means APPLIANCE SURFACES ARE HOT WHEN OR AFTER USE. DO NOT touch hot surfaces.
• DO NOT cover the air intake vent or air exhaust vent while unit is operating. Doing so will prevent even cooking and may damage the unit or cause it to overheat.
• DO NOT touch accessories during or immediately after cooking.
• Extreme caution must be used when the appliance contains hot food. Improper use may result in personal injury.
• Leave the unit after use so it has sufficient time to cool.
• Let your air fryer cool before cleaning.
• WARNING: As this air fryer gets hot during use and some surfaces may develop high temperatures. As people perceive temperatures, this device should be used with care.

- Wear protective insulated gloves when touching hot surfaces or hot air fry basket, inner pot, and food.

- When using this appliance, provide adequate space above and on all sides for air circulation. ALWAYS ensure that the inner pot is properly closed before operating.

- DO NOT allow the power cable to hang over edge of the work surface or touch hot surfaces.

- DO NOT operate appliance if the mains lead or plug is damaged in any way or after the appliance malfunctions or has been damaged in any other way.

- DO NOT replace or modify the mains cable or plug.

- DO NOT use an extension cord.

- Ensure that the mains socket/switch is accessible when the air fryer is in use.

- This air fryer is not intended to be operated by means of an external timer or separate remote-control system.

- Unplug from the mains supply when not in use, or before cleaning.

- When unplugging the power plug from the mains supply, always hold the plug, never pull the cord.

- When you have stopped using the air fryer, press the STOP/CANCEL button to return the standby mode, then unplug from the mains supply.

- To protect against electric shock, DO NOT immerse the air fryer into water or other liquids.

- DO NOT cover any part of the air fryer while it is operating, as this will cause it to overheat.

- DO NOT place the air fryer on any hot surfaces, near hot gas/electric burners or in a heated oven.

- When operating the air fryer, keep at least 100mm of space on all sides to allow for adequate air circulation.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE

30 cm 10 cm 10 cm 10 cm 85 cm

SPECIFICATIONS

Model name AF-GS552A
Air Fryer Power (W) 1600
Air Fryer Temperature Levels (Celsius) 80 °C to 200 °C
8 Automatic Programs Fries, Beef, Vegetables, Chicken, Bacon, Fish, Potato, Pizza
4 Functions Pre-Heat, Reheat, Cook from Frozen, Keep Warm
Capacity (litres) 5.5
Control Panel Digital
Frying Basket Coating Non stick
Frying Basket Size (W x H x D in mm) 221 x 110 x 228
Inner Pot Coating Non-stick
Inner Pot Size (W x H x D in mm)	248 x 128 x 253
Mains Lead Length (mm)	900
Noise Level (dB)	55 - 62
Power Consumption (W)	1650
Power Requirements	220-240V 50 Hz
Standby Power Consumption (W)	Non-stick
Size (W x H x D in mm)	313 x 318 x 395
Weight (kg)	6.8

This product complies with relevant Regulations and Standards for the UK and EU.
AS PART OF A POLICY OF CONTINUOUS IMPROVEMENT, WE RESERVE THE RIGHT TO ALTER DESIGN AND SPECIFICATIONS WITHOUT NOTICE.

AIR FRYER AND ACCESSORIES

Please familiarize yourself with the following Air Fryer functions and accessories prior to first use:

Inner pot: Place the frying basket onto the inner pot, and then put the inner pot into the air fryer.

Frying basket: Place the food in the frying basket and then put the frying basket into the inner pot to cook.

Open button (For frying basket): To take out the frying basket, press the open button and then lift the frying basket.

NOTE: To prevent the inner pot dropping on the ground, put the inner pot on a stable surface before lifting out the frying basket.

Air exhaust vent: There will be hot steam venting from the exhaust vent during use (this is normal), keep your hands and face away from the air exhaust vent when cooking to prevent scalding.

Button cover: This prevents the inner pot and frying basket from being mistakenly removed from the air fryer. Push up to reveal the open button.

Handle: This is used for moving the inner pot and frying basket in and out of the air fryer.

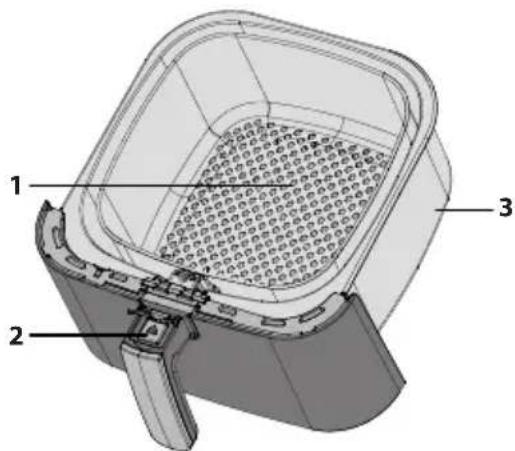

1. Air Frying Basket
2. Release Button
3. Inner Pot

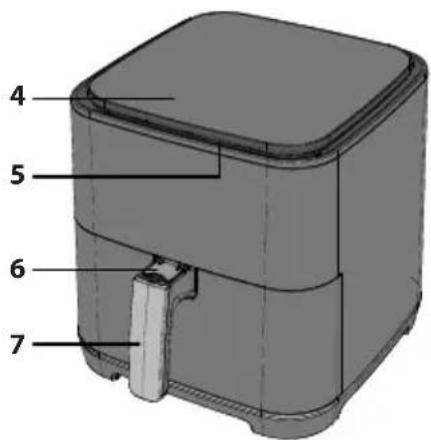

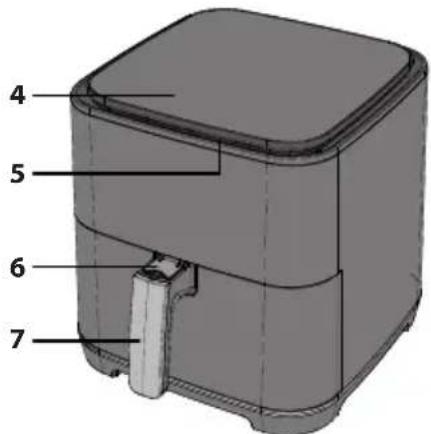

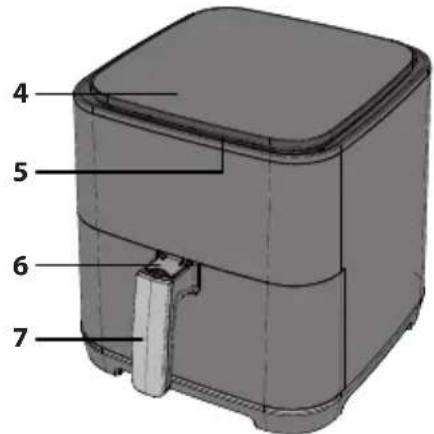

4. Control Panel
5. Air Intake
6. Release Button Cover
7. Frying Basket Handle

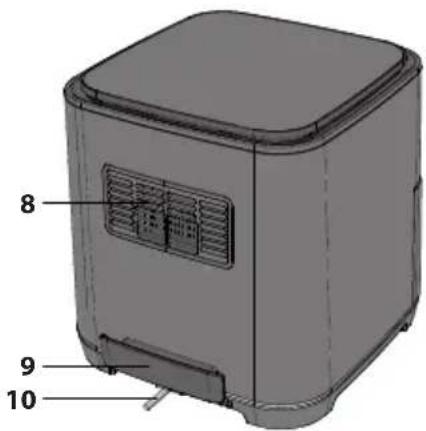

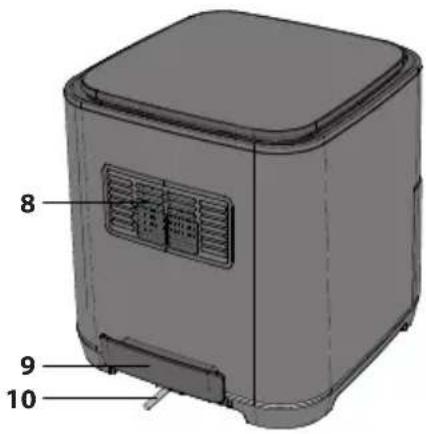

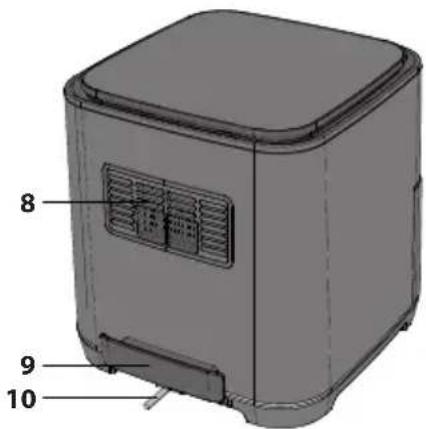

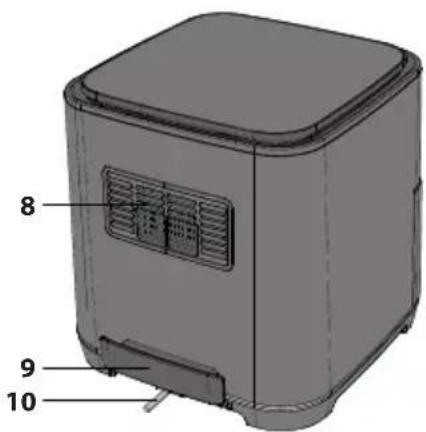

8. Air Exhaust Vent
9. Holding Handle
10. Mains Lead

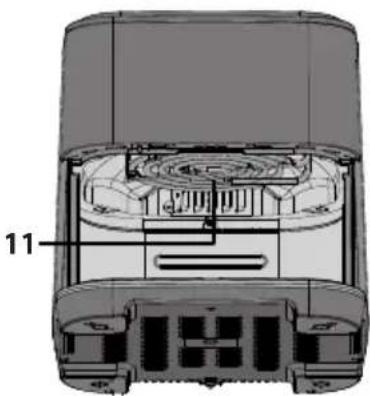

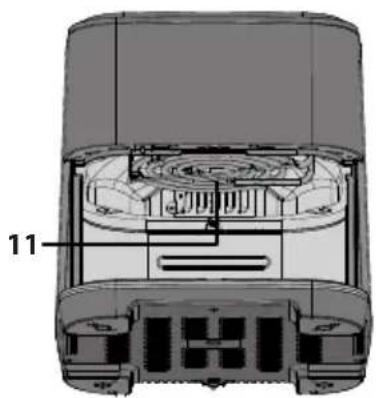

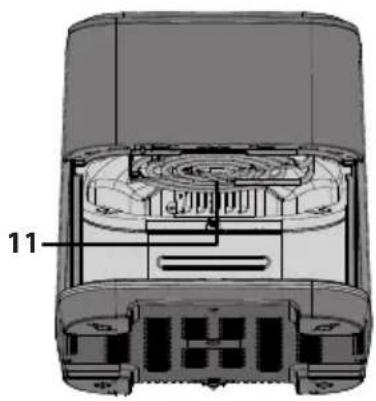

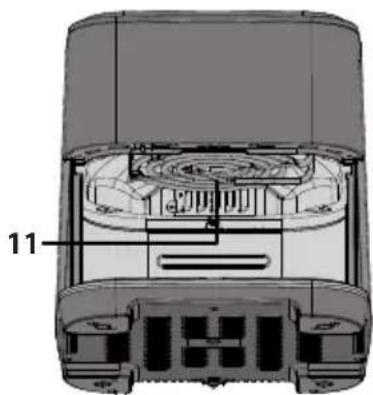

11. Heating Element

Technical diagram of a container with labeled parts, showing internal structure and numbered annotations.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

AIR FLOW DIRECTION

When cooking, the hot air from the element is moved around as shown in the picture below. This ensures that your food is cooked evenly at the set temperature and time period. Do not use any materials such as metal foil which may obstruct this air flow or over fill the frying basket.

Cross-sectional diagram of a device showing airflow or heat distribution around a central chamber (no text or symbols)

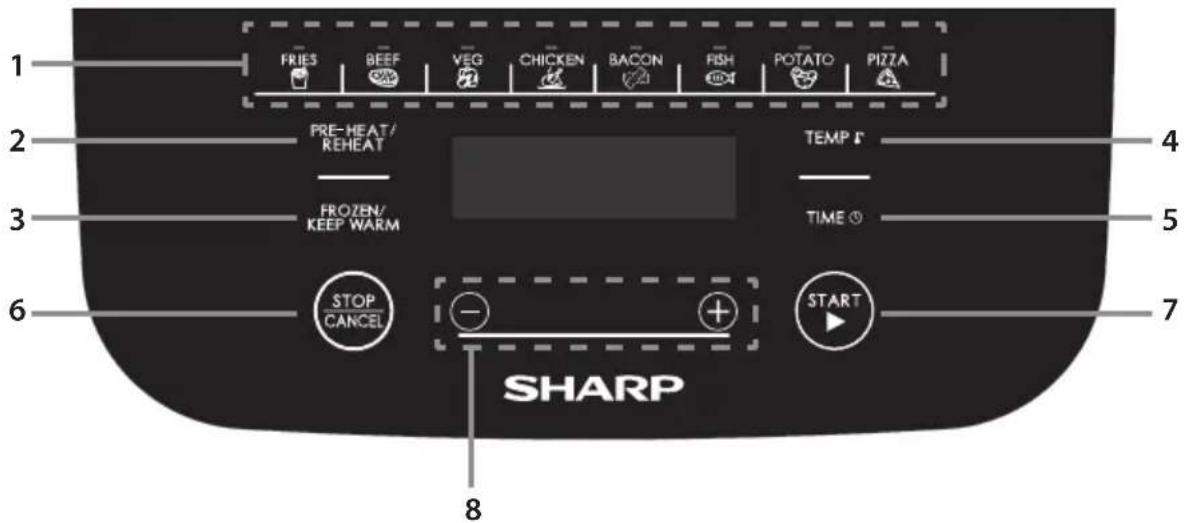

CONTROLPANEL

1. Auto Cook buttons – Automatic cooking programs, select from 8 options.
2. Pre-Heat/Reheat - For preheating the Air Fryer to the correct cooking temperature or reheating cold food.
3. Frozen/Keep Warm - Cook from frozen or keep you food warm.
4. Temperature – Use this button to control the temperature manually.
5. Time - Use to manually set the cooking time.
6. Stop/Cancel - Stop or pause a function.
7. Start - Start the operation of the Air Fryer.
8. Up/Down (for temperature and time) – Set the value of the temperature or time.

1 FRIES BEEF VEG CHICKEN BACON FISH POTATO PIZZA 2 PRE-HEAT/ REHEAT TEMP # 3 FROZEN/ KEEP WARM TIME ? 6 STOP CANCEL - + START 7 8 SHARP

BEFORE USING YOUR AIR FRYER

Before using your air fryer for the first time, it is recommended that after you have fully unpacked and removed any packaging that the inner pot and frying basket are cleaned in hot soapy water or in dishwasher. Then thoroughly dry all accessories and re-assemble in Air Fryer. Wipe the outer body and inner parts with damp cloth and dry before using.

Plug into the mains supply and you are ready to use your new Air Fryer.

It is advised to fully read these instructions before use.

OPERATION INSTRUCTIONS

Your Air Fryer has several modes of operation:

Automatic cooking – select one of the 8 pre-programmed cooking options.

Manual cooking – set the temperature and time manually.

Cook from Frozen – Cook from frozen (Vegetables, Pizza, and Fries only).

Pre-Heat – Make sure that your Air Fryer is at the correct temperature before cooking.

Reheat – Reheat previously cooked food.

Keep Warm – Keep your food warm.

Notes on cooking

• The amount of the food should not fill more than the 4/5 of total amount of the air fry basket.
• The cooking temperature and time can be adjusted during the cooking.
• To pause the cooking, press the "STOP/CANCEL" button once.
• To cancel the cooking, press the "STOP/CANCEL" button twice.
• Some food will need to be stirred/shaken during the cooking: Pull the inner pot out pf the unit, stir/shake as necessary and the return the inner pot to the Air Fryer; now press the "START" button to continue the cooking.
• Make sure that the food has cooked correctly. If the food is undercooked, then place back into the air fryer and the press the "PRE-HEAT/REHEAT" button twice to cooking for few minutes.
• To prevent the inner pot dropping on the ground, put the inner pot on a stable and heat proof surface before lifting out the basket.
• Only cook food in the frying basket.
  • DO NOT use for deep fat frying.

Automatic Cooking

For your ease and convenience there are 8 automatic cooking programs. These are easily accessed via the dedicated buttons on the control panel.

Food Weight		Initial Food Temperature	Cooking Time	Maximum Extra Time	Turn Over Minutes From End of Cooking	Cook From Frozen Time	Temperature	Comments
Fries 300g to 7	00g	-	18 23 5 26	180
Beef 150g to 5	00g 12 16 6		200					Upto 270g of beef steak can be cooked
Vegetable	100g to 400g 10
Chicken	800g to 1000g		30	39	5	-	190	Whole chicken or large pieces
Bacon	4 to 6 rashers		9	12	-	-	180	Evenly space the rashers of bacon in the frying basket
Fish	100g to 500g 12		-	200
Potato	250g each		40	52	5	-	200	Place up to 3 potatoes of 250g each into the frying basket
Pizza	100g to 400g 13		-	18 160

In the example below, beef is being cooked. It is not necessary to adjust the temperature or time unless you would like your food cooked more or less.

	This operation can be skipped.
Press BEEF once.	Press TEMP to enter the temperature adjustment.	Press -/+ to adjust the temperature.	Press TIME to enter the time adjustment.	Press -/+ to adjust the cooking time.	Press START to start the cooking.
	→		→→	→

1. Evenly place the food to be cooked in the frying basket.
2. Place the frying basket into the inner pot. Insert the inner pot into the air fryer.
3. Plug the air fryer into mains supply.
4. Select the desired food by pressing the auto cook button on the control panel. The default temperature and time will blink in the LED display.

a. If needed, press the "TEMP" button once, and then press "-" or "+" button to set the desired cooking temperature.
b. If needed, press the "TIME" button once, and then press "-" or "+" button to set the desired cooking time.

1. Press "START" button to start the cooking; the time counts down.
2. When the cooking is complete the air fryer will make a sound, and the unit returns to standby mode.
3. Press the open button and pull out the inner pot handle with care and take the food out of the air fry basket immediately or the heat remaining in the air fryer will continue to cook and dry out your food.

Note: If you are changing the cooking time for the auto cook foods it is only possible to increase the maximum by 30%. This is to avoid the potential of burning your food.

Manual Cooking

When cooking manually, first select the time, then the temperature.

	This operation can be skipped.
	Press TEMP to enter the temperature adjustment.	Press -/+ to adjust the temperature.	Press TIME to enter the time adjustment.	Press -/+ to adjust the cooking time.	Press START to start the cooking.
→	→	→	→	→

1. Plug your Air Fryer into the mains supply.
2. Press the "START" button once; the display will indicate the default time and temperature (15 minutes at 180°C).
3. To change the time, press the "TIME" button and then use the +/- buttons to change to your desired time (1 to 60 minutes).
4. Now press the "TEMP" button and then use the +/- buttons to change to your desired temperature (80 to 200°C).
5. Pull out the frying pan, place food into the frying basket and return the pan to the unit.
6. Press the "START" button to start the cooking process.

Some suggested cooking options are shown below.

Food Weight		Initial Food Temperature	Cooking Time	Cooking Temperature	Shake/Turn Over Comments
Frozen fries (thick) 300 to 700		Frozen	12 to 16 200 Yes
Frozen fries (thin) 300 to 700 12 to 20 200 Yes
DIY Fries (0.7cm x 7/8cm) 300 to 800	800	15 to 18 180Room temperature14 18015 18022 18015 18012 180	18 to 30 180 Yes	Add oil: 1/2 spoon
DIY Chips 300 to 800 18 to 22 180 Yes Add oil: 1/2 spoon
DIY Potato Pieces	300 to 750		12 to 18	180	Yes Add oil: 1/2 spoon
Hash Browns 250
Braised Cream Potato	500		18 to 22 180
Steak	100 to 500		8 to 12	180
Pork Chop	100 to 500 10 to
Hamburger	100 to 500		7 to 14	180
Sausage Roll	100 to 500 12 to
Drumstick	100 to 500 18 to
Chicken Breast	100 to 500 10 to
Fish 100 to 500	8 to
Prawn	100 to 500		5 to 10	180
Crab	100 to 500		8 to 12	180
Cake	100 to 400 15 to
Spring Rolls	100 to 400		8 to 10	200	Yes Instant Spring rolls
Frozen Chicken Nugget	100 to 500	Fro#o 108 to 10	6 to 10	200 Yes
Frozen Fish Strips 100 to 400			200
Frozen Cheese Snack 100 to 400			180
Yakitori	100 to 400	Room temperature45 200	8 to 10	200
Sweet Potato	100 to 500 30 to

Cook From Frozen

To cook from frozen, follow the instructions for automatic cooking, but press the "FROZEN" button first.

This operation can be skipped.
Press FROZEN/ KEEP WARM once.	Select food.	Press TEMP to enter the temperature adjustment.	Press -/+ to adjust the temperature.	Press TIME to enter the time adjustment.	Press -/+ to adjust the time.	Press START to start the cooking.

1. Evenly place the food to be cooked in the frying basket.
2. Place the frying basket into the inner pot. Insert the inner pot into the air fryer.
3. Plug the air fryer into mains supply.
4. Press the "FROZEN/KEEP WARM" button once.
5. Select the desired function by pressing the function button on the control panel. The default temperature and time will blink in the LED display.

a. If needed, press the "TEMP" button once, and then press "-" or "+" button to set the desired cooking temperature.
b. If needed, press the "TIME" button once, and then press "-" or "+" button to set the desired cooking time.

1. Press "START" button to start the cooking; the time counts down.

2. When the cooking is complete, the unit will make a sound, and return to the standby mode.

3. Press the open button and pull out the inner pot handle with care and take the food out.

Cooking from frozen is only possible for FRIES, VEGETABLES and PIZZA.

For cooking of other frozen foods, please refer to the manual cooking advice.

Pre-Heat

To ensure that your Air Fryer is at the correct temperature for cooking your food, there is a pre-heat function which can be used before auto cook, manual cook and cook from frozen functions. Just press the pre-heat button once before selecting any other function.

This operation can be skipped.
Press PRE-HEAT/REHEAT once.	Select food.	Press TEMP to enter the temperature adjustment.	Press -/+ to adjust the temperature.	Press TIME to enter the time adjustment.	Press -/+ to adjust the time.	Press START to start the Pre-heat.

1. Place the frying basket into the inner pot. Insert the inner pot into the air fryer.
2. Plug the air fryer into mains supply.
3. Press the PRE-HEAT/REHEAT button once.
4. Select the desired food by pressing the relevant auto cook button on the control panel. The default temperature and time will blink in the LED display.

a. If needed, press the "TEMP" button once, and then press "-" or "+" button to b set the desired cooking temperature.
b. If needed, press the "TIME" button once, and then press "-" or "+" button to set the desired cooking time.

1. Press the "START" button.
2. When the unit has reached the correct pre-heat temperature it will make a sound.
3. Take out the inner pot and evenly place the food to be cooked in the frying basket.
4. Return the inner pot/frying basket to the air fryer.
5. Press "START" button to start the cooking; the time counts down.
6. When the cooking is complete, the unit will make a sound, and returns to the standby mode.
7. Press the open button and pull out the inner pot handle with care and take the food out of the air fry basket immediately or the heat remaining in the air fryer will continue to cook and dry out your food.

Pre-heat can also be used when cooking from frozen using the auto menus; press "PRE-HEAT/REHEAT" > "FROZEN/KEEP WARM" > auto cook function > "START".

In addition, pre-heat can also be used when cooking manually; press "PRE-HEAT/REHEAT" > set temperature >" START".

1. Place the frying basket into the inner pot. Insert the inner pot into the air fryer.
2. Plug the air fryer into mains supply.
3. Press "PRE-HEAT/REHEAT"
4. Press the "TEMP" button once, and then press "-" or "+" button to set the desired cooking temperature.
5. Press the "START" button.
6. When the unit has reached the correct pre-heat temperature it will make a sound.
7. Take out the inner pot and evenly place the food to be cooked in the frying basket.
8. Return the inner pot/frying basket to the air fryer.
9. Set the time for your cooking by pressing the "TIME" button once, and then press "-" or "+" button to adjust the desired cooking time.
10. Press "START" button to start the cooking; the time counts down.
11. When the cooking is complete, the unit will make a sound, and returns to the standby mode.
12. Press the open button and pull out the inner pot handle with care and take the food out of the air fry basket immediately or the heat remaining in the air fryer will continue to cook and dry out your food.

Reheat

This function allows you to reheat food.

Press PRE-HEAT/REHEAT twice to choose REHEAT function.				Press START to start the reheat and the display start to count down.

1. Press the "PRE-HEAT/REHEAT" button twice.
2. Take out the inner pot and place the food to be reheated into the frying basket, ensure that it is spaced evenly in the frying basket.
3. Press the "START" button. The Air Fryer will reheat.
4. The Air Fryer will now reheat your food for 4 minutes at 180°C.

Keep Warm

Once you have cooked your food, it can be kept warm by using the KEEP WARM function.

This operation can be skipped.
Press FROZEN/KEEP WARM twice to choose KEEP WARM function.			Press TEMP to enter the temperature adjustment.	Press -/+ to adjust the temperature.	Press TIME to enter the time adjustment.	Press -/+ to adjust the cooking time.	Press START to start the cooking.
	→

1. Press the "FROZEN/KEEP WARM" button twice.
2. The default keep warm temperature is 80^ C with a time of 30 minutes. If required, this can be changed.

a. To change the time, press the "TIME" button and then use the +/- buttons to change to your desired time (1 to 60 minutes).
b. Now press the "TEMP" button and then use the +/- buttons to change to your desired temperature (80 to 200°C).

1. Take out the inner pot and place the food to be reheated into the frying basket, ensure that it is spaced evenly in the frying basket.

2. The Air Fryer will now keep your food warm.

MAINTENANCE WHILE IN USE

This appliance requires little maintenance when in use. Clean your Air Fryer after every use to prolong its useable lifetime.

This Air Fryer contains no user serviceable parts. Do not try to repair it yourself. In the unlikely event of failure, contact the SHARP Call Centre using the details at the start of this User Manual.

CLEANING INSTRUCTIONS

CAUTION: To protect against electrical shock, DO NOT IMMERSE THE AIR FRYER IN WATER OR ANY OTHER LIQUIDS.

Your air fryer should be cleaned regularly for best performance and long life. Regular cleaning will also reduce the risk of fire. To clean follow the instructions as below:

1. Remove mains plug from electrical outlet. Allow your Air Fryer to cool down.
2. Clean the air fry basket and inner pot with damp, soapy cloth. Make sure to only use mild, soapy water. If the stains in the basket or inner pot are too difficult to clean, let them soak in warm water for about 10 minutes.
3. Clean the heating elements will dry and soft cloth.
4. Wipe the outside of your air fryer with a soft, damp cloth, then dry.

CAUTION: DO NOT USE ABRASIVE CLEANERS OR ANY TYPE OF SCOURING MATERIAL on the surface of the frying basket and inner pot. Make sure to only use mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the coating on this unit.

Other than the recommended cleaning, no further user maintenance should be necessary.

Any other servicing should be performed by an authorized service representative.

STORAGE

Unplug unit, allow it to cool, and clean before storing. Store the air fryer in its box in a clean, dry place. Never store appliance while it is hot or still plugged in. Never wrap cord tightly around the Air Fryer. Do not put any stress on the cord where it enters the unit, as it could cause the cord to fray and break.

If storing the air fryer for long periods of time, make certain that the air fryer is clean and free of food particles. Store the air fryer in a dry location such as on a table or countertop or cupboard shelf.

TROUBLESHOOTING

If you are experiencing issues with your air fryer, follow the guidance below.

The Air Fryer does not work	The appliance is either not plugged in or switched on.	Make sure the mains plug is inserted in an electrical wall socket and is switched on.
	You have not set the time or tempertaure.	Set the time and temperature and then press "START".
	The inner pot is not properly locked into the unit Push	sh the inner pot into the Air Fryer so it "clicks".
The ingredients fried with the Air Fryer are not done.	There is too much food in the frying basket.	Put smaller batches of ingredients in the frying basket. Smaller batches are fried more evenly.
	The set temperature is too low.	Adjust the temperature to the required temperature setting.
	The cooking time is too short. Adjust the timer to the required preparation time.
Fried snacks are not crispy when they come out of the Air Fryer.	You used a type of snack meant to be prepared in a traditional deep fryer.	Use snacks made to be prepared in the oven, or lightly brush some oil onto the snacks for a crispier result.
It is diffi cult or not possible to slide the inner pot and frying basket into the appliance properly.	There is too much food in the frying basket. Do not over fill the frying basket.
	The frying basket in not placed properly into the inner pot	Push the frying basket down into the inner pot until you hear a slight click.
White smoke comes out of the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients in the Air Fryer, a large amount of oil will leak into the pan. This oil may white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result.
	The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in the inner pot; make sure you clean the frying basket and inner pot thoroughly after each use.
Fresh fries are fried unevenly in the Air Fryer.	You did not use the right type of potato.	Use fresh potatoes and make sure they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks thoroughly to remove starch from the outside of the sticks.
Fresh fries are not crispy when they come out of the Air Fryer.	The crispiness of the fries depends on the amount/ type of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potatoes into thinner sticks for a crispier result.
		Add slightly more oil for a crispier result.

Should you still have issues, please contact the SHARP Call Centre using the details at the start of this User Manual.

Внимание:

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Technical diagram of a device with labeled components, showing internal structure and parts numbered 1, 2, and 3.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

ПОСОКА НА ВЪЗДУШНИЯ ПОТОК

Cross-sectional diagram of a device showing airflow or heat distribution around a central chamber (no text or symbols)

ПАНЕЛ ЗА УПРАВЛЕНИЕ

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

SMĚR PROUDĚNÍ VZDUCHU

Cross-sectional diagram of a mechanical device showing airflow and internal structure (no text or symbols)

OVLÁDACÍPANEL

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

A. Oplysninger om bortskaff else for brugere (private husholdninger)

1. I EU

Technical diagram of a square container with labeled parts 1, 2, and 3

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

RETNING AF LUFTSTR∅MMEN

Cross-sectional diagram of a device showing airflow or heat distribution around a central chamber (no text or symbols)

BETJENINGSPANEL

1. Auto-tilberedningsknapper – Automatiske tilberedningsprogrammer. Vælg mellem 8 muligheder.
2. Pre-Heat/Reheat – (Forvarmning/genopvarmning) Bruges til at forvarme airfryeren til den indstillede tilberedningstemperatur eller til at genopvarme kold mad.
3. Frozen/Keep Warm – (Frosset/Hold varm) Tilbered fra frossen tilstand, eller hold maden varm.
4. Temperature – (Temperatur) Brug denne knap til at styre temperaturen manuelt.
5. Time – (Tid) Manuel indstilling af tilberedningstiden.
6. Stop/Cancel – Stop eller sæt en funktion på pause.
7. Start – Sæt airfryeren i gang.
8. Up/Down (op og ned) (for temperatur og tid) – Indstiller temperaturen eller tilberedningstiden.

1 FRIES BEEF VEG CHICKEN BACON FISH POTATO PIZZA 2 PRE-HEAT/ REHEAT TEMP 4 3 FROZEN/ KEEP WARM TIME 5 6 STOP CANCEL + START 8 SHARP

F∅R DU BRUGER DIN AIRFRYER

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

LUFTSTROM-RICHTUNG

Cross-sectional diagram of a device showing airflow patterns around a central component (no text or symbols)

BEDIENFELD

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

Cross-sectional diagram of a mechanical or electrical component with internal airflow patterns (no text or symbols)

ΠΙΝΑΚΑΣΕΛΕΓΧΟΥ

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Technical diagram of a container with labeled parts, showing internal structure and numbered annotations.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

Cross-sectional diagram of a device showing airflow or circulation patterns around a central fan (no text or symbols)

PANEL DE CONTROL

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

ÕHU LIIKUMISSUUND

Cross-sectional diagram of a mechanical device showing internal airflow patterns (no text or symbols)

JUHTPANEEL

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Technical diagram of a device with labeled components, showing internal structure and parts numbered 1, 2, and 3.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

ILMAVIRRAN SUUNTA

Cross-sectional diagram of a device showing airflow or vibration patterns around a central chamber (no text or symbols)

SÄÄTÖPANEELI

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Technical diagram of a square-shaped device with labeled components, showing internal structure and parts numbered 1, 2, and 3.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

DIRECTION DE CIRCULATION DE L'AIR

Cross-sectional diagram of a microwave oven with airflow arrows indicating internal circulation (no text or symbols)

PANNEAU DE COMMANDE

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

SMJER PROTOKA ZRAKA

Cross-sectional diagram of a portable air conditioner unit showing airflow and cooling zones (no text or symbols)

UPRAVLJAČKAPLOČA

1. Tipke za automatsko kuhanje – programi automatskog kuhanja, 8 opcija.
2. Pre-Heat/Reheat – za predgrijavanje friteze na vrući zrak na odgovarajuću temperaturu ili podgrijavanje hladne hrane.
3. Frozen/Keep Warm – Priprema zamrznute hrane ili održavanje hrane toplom.
4. Temperature – Ručno podešavanje temperature.
5. Time – Ručno podešavanje vremena pripreme hrane.
6. Stop/Cancel – Zaustavljanje ili pauziranje rada.
7. Start – Pokretanje friteze na vrući zrak.
8. Povećavanje/smanjivanje (za temperaturu i vrijeme) – Podešavanje temperature i vremena.

1 FRIES BEEF VEG CHICKEN BACON FISH POTATO PIZZA 2 PRE-HEAT/ REHEAT TEMP # 3 FROZEN/ KEEP WARM TIME ? 6 STOP CANCEL - + START 7 8 SHARP

PRIJE UPOTREBE FRITEZE NA VRUĆI ZRAK

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Technical diagram of a square container with labeled parts 1, 2, and 3, showing internal structure and mounting details.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

LÉGÁRAMLÁS IRÁNYA

Cross-sectional diagram of a mechanical device showing internal airflow patterns (no text or symbols)

KEZELÓPANEL

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

FRIGGITRICE AD ARIA E RELATIVI ACCESSORI....8

PANNELLO DI CONTROLLO 9

PRIMA DI USARE LA FRIGGITRICE AD ARIA....9

FRIGGITRICE AD ARIA E RELATIVI ACCESSORI

Technical diagram of a container with labeled parts, showing internal structure and numbered annotations.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

Cross-sectional diagram of a microwave oven with airflow arrows indicating internal circulation (no text or symbols)

PANNELLO DI CONTROLLO

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Technical diagram of a container with labeled parts, showing internal structure and numbered annotations.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

ORO SRAUTO KRYPTIS

Cross-sectional diagram of a device showing airflow around a central chamber with no visible text or symbols

VALDYMOSKYDELIS

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

PROBLÉMU NOVĚRŠANA....15

Technical diagram of a device interior with labeled components 1, 2, and 3

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

GAISA PLÜSMAS VIRZIENS

Cross-sectional diagram of a microwave oven with airflow arrows indicating internal circulation (no text or symbols)

VADĪBAS PANELIS

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

PROBLEEMOPLOSSING....16

VEILIGHEIDSMAATREGELEN

Technical diagram of a square-shaped device with labeled components 1, 2, and 3

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

LUCHTSTROOMRICHTING

Cross-sectional diagram of a device showing airflow patterns around a central chamber (no text or symbols)

BEDIENINGSPANEEEL

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

SPESIFIKASJONER....6

AIRFRYER OG TILBEH∅R 7

KONTROLLPANEL 8

F∅R DU TAR I BRUK AIRFRYEREN....8

BRUKSANVISNING 9

Automatisk tilberedning....9

Manuell tilberedning 10

Frossen mat 11

Forvarme 12

Oppvarming....13

Hold varm....13

VEDLIKEHOLD MENS DEN ER I BRUK 14

RENGJ∅RINGSANVISNINGER....14

OPPBEVARING 14

FEILS∅KING....15

SIKKERHETSINSTRUKSJONER

Technical diagram of a square-shaped device with labeled components, showing internal structure and parts numbered 1, 2, and 3.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

LUFTFLYTRETNING

Cross-sectional diagram of a mechanical device showing internal airflow patterns (no text or symbols)

KONTROLLPANEL

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Cross-sectional diagram of a mechanical device showing internal components and housing (no text or symbols)

Cross-sectional diagram of a mechanical device showing internal airflow patterns (no text or symbols)

PANELSTEROWANIA

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

Cross-sectional diagram of a microwave oven with airflow arrows indicating circulation (no text or labels)

PAINEL DE CONTROLO

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

INSTRUCTIUNI DE SIGURANTĂ....3

SPECIFICATII....7

FRITEUZĂ CU AER CALD ȘI ACCESORII....8

PANOUL DE COMANDĂ....9

ÎNAINTE DE A UTILIZA FRITEUZA CU AER CALD....9

INSTRUCTIONI PRIVIND FUNCTIONAREA....10

Technical diagram of a square-shaped device with labeled components, showing internal structure and parts numbered 1, 2, and 3.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

DIRECTIA FLUXULUI DE AER

Cross-sectional diagram of a microwave oven with airflow arrows indicating circulation (no text or symbols)

PANOUL DE COMANDĂ

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Technical diagram of a device with labeled components, showing internal structure and parts numbered 1, 2, and 3.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

SMER PRÚDENIA VZDUCHU

Cross-sectional diagram of a portable air conditioner unit showing airflow and cooling system (no text or labels)

OVLÁDACÍPANEL

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Technical diagram of a square-shaped device with labeled components, showing internal structure and parts numbered 1, 2, and 3.

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

USMERJANJE PRETOKA ZRAKA

Cross-sectional diagram of a microwave oven with airflow arrows indicating internal circulation (no text or symbols)

NADZORNAPLOŠČA

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

A. Informacije o uklanjanju od stranekorisnika (privatna domaćinstva)

1. U Evropskoj Uniji

BEZBEDNOSNA UPUTSTVA....3

SPECIFIKACIJE 6

PEKAČ NA VAZDUH I DODACI....7

KONTROLNA TABLA 8

PRE KORIŠĆENJA PEKAČA NA VAZDUH 8

UPUTSTVA ZA RUKOVANJE 9

Technical diagram of a square container with labeled parts 1, 2, and 3

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

SMER PROTOKA VAZDUHA

Cross-sectional diagram of a mechanical device showing airflow and internal structure (no text or symbols)

KONTROLNATABLA

1. Dugmad za automatsko kuvanje – Programi za automatsko kuvanje, izaberite od 8 opcija.
2. Pred-grejanje/Podgrevanje – Za pred-grejanje pekača na vazduh na pravilnu temperaturu kuvanja ili podgrevanje hladne hrane.
3. Zamrznuta/Držite je toplom – Kuvajte od zamrznute ili držite hranu toplom.
4. Temperatura – Koristite ovo dugme da kontrolišete temperaturu manuelno.
5. Vreme – Koristite da manuelno podesite vreme kuvanja.
6. Zaustavite/Otkažite – Zaustavite ili pauzirajte funkciju.
7. Pokretanje – Pokrenite rukovanje pekačem na vazduh.
8. Gore/dole (za temperaturu i vreme) – Podesite vrednost temperature ili vremena.

1 FRIES BEEF VEG CHICKEN BACON FISH POTATO PIZZA 2 PRE-HEAT/ REHEAT TEMP 4 3 FROZEN/ KEEP WARM TIME 5 6 STOP CANCEL + START 8 SHARP

PRE KORIŠĆENJA PEKAČA NA VAZDUH

Pre korišćenja vašeg pekača na vazduh po prvi put, preporučuje se da nakon što skroz otpakujete i uklonite pakovanje da unutrašnja posuda i korpa za pečenje budu očišćeni u vrućoj vodi sa sapunom ili u mašini za pranje. Zatim skroz osušite sve dodatke i ponovo montirajte pekač na vazduh. Obrišite spoljno telo i unutrašnje delove mokrom krpom i osušite pre korišćenja.

Uključite u glavni dovod i spremni ste da koristite svoj nov pekač na vazduh.

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

INNAN DU ANVÄNDER DIN AIR FRYER....8

DRIFTINSTRUKTIONER 9

Automatisk tillagning 9

Manuell tillagning....10

Technical diagram of a square container with labeled parts 1, 2, and 3

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

LUFTFLÖDESRIKTNING

Cross-sectional diagram of a device showing airflow around a central component (no text or symbols)

KONTROLLPANEL

www.sharpconsumer.com/contact/

www.sharpconsumer.com/support/

www.sharpconsumer.com/documents-of-conformity/

Technical diagram of a square-shaped device with labeled components 1, 2, and 3

8 9 10

4 5 6 7

Cross-sectional diagram of a device showing internal components and labeled parts (no readable text or symbols)

СХЕМА РУХУ ПОВІТРЯ

Cross-sectional diagram of a mechanical device showing airflow and heat distribution (no text or symbols)

ПАНЕЛЬ КЕРУВАННЯ

Sharp Consumer Electronics Poland sp. z o.o.

Ostaszewo 57B, 87-148 Lysomice, Poland

SHARP CORPORATION

1 Takumi-cho, Sakai-ku

Sakai City, Osaka

590-8522, Japan

SDA/MAN/0282 V3

www.sharpconsumer.eu

SHARP
