• 2 Explanation of symbols p. 3
• 3 Safety instructions p. 4
• 4 Intended use p. 5
• 5 Explanations of symbols on the appliance p. 5
• 6 Technical limits and conditions p. 5

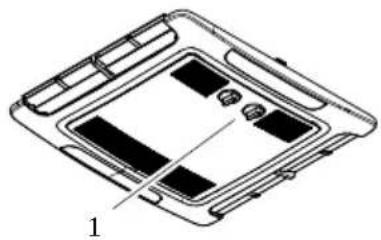

• 7 Technical description p. 6
• 8 Before initial use p. 11
• 9 Operation p. 11
• 10 Cleaning the roof air conditioner p. 17
• 11 Maintenance p. 18
• 12 Troubleshooting p. 22
• 13 Disposal p. 24
• 14 Warranty p. 24
• 15 Technical data 1 Important notes Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product. By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com. 2 Explanation of symbols A signal word will identify safety messages and property damage messages, and also will indicate the degree or level of hazard seriousness. DANGER! Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING! Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product. 3ENDometic FJX 3 Safety instructions WARNING! Failure to obey these warnings could result in death or serious injury. Electrical appliances are not toys. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under supervision or have been given instruction. Children should be supervised to ensure that they do not play with the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are under supervision or have been given instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning shall not be performed by children without supervision. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification. Maintenance shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other qualified personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. Repair of the appliance may only be carried out by qualified personnel who are familiar with the risks involved and the relevant regulations. Inadequate repairs may cause serious hazards. For repair service, contact the service center in your country (see dometic.com/dealer). Always disconnect the power supply when working on the appliance. The appliance shall be stored in a room without continuously operating ignition sources such as open flames, an operating gas appliance or an operating electric heater. Do not pierce or burn the appliance. Be aware that refrigerants may not contain an odor. Do not use the appliance near flammable fluids or in closed rooms. Ensure that no combustible objects are stored or installed near the air outlet. A distance of at least 50cm must be kept. Keep the ventilation openings clear of obstruction. Do not damage the refrigerant circuit. Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used. The roof air conditioner shall be installed in a vehicle with a floor area larger than 4m² . CAUTION! Failure to obey these cautions could result in minor or moderate injury. Do not reach into air outlets or insert any foreign objects in the appliance. Do not undo the upper cover of the appliance in the event of a fire. Use approved extinguishing agents. Do not use water to extinguish fires. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified personnel in order to avoid a hazard. In the case that the appliance contains an ionizer, consult your physician if you have a medical condition. The ionizer can produce ozone (O3) in small quantities. If you suffer from lung disease, asthma, heart disease, respiratory disease, respiratory problems, or have an ozone sensitivity, consult your physician to determine whether the use of this device is safe for you. 4Dometic FJXEN NOTICE! Damage hazard Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored so as to prevent mechanical damage from occurring. Do not make any alterations or conversions to the appliance. Never drive through automatic car washes when the appliance is mounted. If faults occur in the refrigerant circuit, the appliance must be checked and repaired by the manufacturer, its service agent or similarly qualified personnel in order to avoid a hazard. 4 Intended use The roof air conditioner is only designed for installation on the roof of a caravan or recreational vehicle to provide cooling and heating. The roof air conditioner is not suitable for trains, houses, and apartments. The roof air conditioner is not suitable for installation in construction machines, agricultural machines, or similar equipment. This product is only suitable for the intended purpose and application in accordance with these instructions. This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operation or maintenance will result in unsatisfactory performance and a possible failure. The manufacturer accepts no liability for any injury or damage to the product resulting from: p. 25

• Incorrect installation, assembly or connection, including excess voltage

• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. 5 Explanations of symbols on the appliance Warning! Low burning velocity material. Read operating manual. Read service manual. 6 Technical limits and conditions The roof air conditioner is intended for vehicles with the following roof thicknesses:

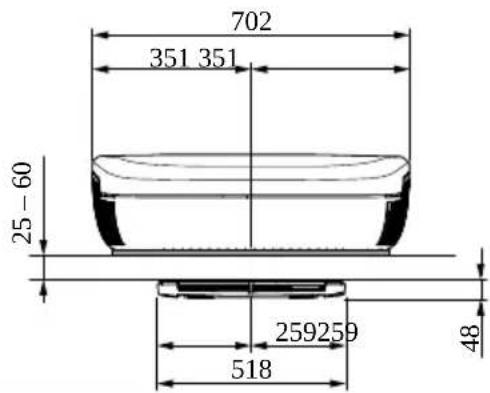

• 25mm… 60mm for a roof cutout of 400mm× 400mm

• 32mm… 60mm for a roof cutout of 360mm× 360mm The roof top air conditioner will operate at ambient temperatures between –

2°C… 52°C. The roof air conditioner is designed to be installed within ± 10° of the horizontal plane. 5ENDometic FJX 7 Technical description The roof air conditioner supplies the vehicle's interior with cool or warm air which is without dust and dirt and can be dehumidified. The FJX4233M does not have a heating function. The roof air conditioner can lower the temperature within the vehicle to a certain level that depends on the type of vehicle, the ambient temperature and the cooling capacity of the roof air conditioner. Below an outer temperature of 16°C the roof air conditioner does not cool anymore. The roof air conditioner is operated with the following operating elements:

• Remote control (only some models, see List of models on page6)

Mechanical models Fixed-speed and inverter models

The models are differentiated between mechanical, fixed-speed, and inverter models. The following table shows which function applies to a specific model: Feature is available Feature is upgradable FJX7333IHP FJX7337IHPFJX4233M FJX4233EEH FJX4333EEH FJX4333EFJX7433IHP FJX7457IHPMechanical Fixed-speed InverterAutomaticCoolingHeatingVentilationDehumificationAir purifierADB lightExternal lightTimerSleepSo start 6Dometic FJXEN

Control panel of mechanical models

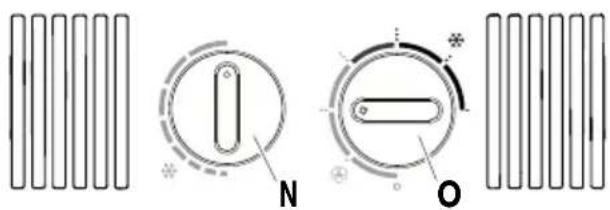

Knob Description Selects the temperature. Turn clockwise for higher cooling. Switches the roof air conditioner on or off and selects the intensity of the air circulation in the Ventilation ( ) mode or the cooling intensity in the Cooling ( ) mode. Control panel of fixed-speed and inverter models

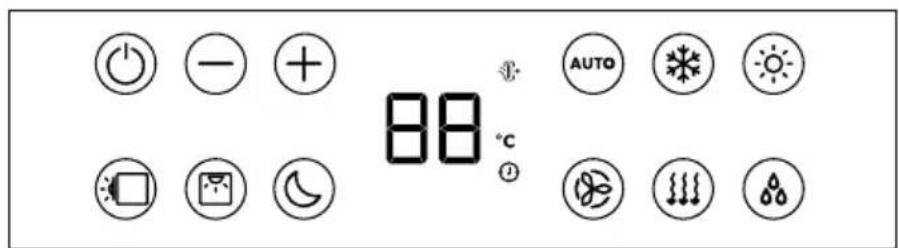

Symbol Description Switches the roof air conditioner on or to standby mode. Increases the currently displayed value. Reduces the currently displayed value. Pairs with bluetooth/WLAN when both buttons are pressed simultaneously. Switches the ambient lights in the roof top unit on or off. Switches the ambient lights in the air distribution box on or off. Activates the sleep function (only for models with sleep function). Displays the set temperature and indicates fan level when fan is adjusted. Indicates the Air Purifier mode is active. 7ENDometic FJX Symbol Description Indicates the temperature is displayed in degrees Celsius. Indicates the timer is set. AUTO Enables/disables the automatic mode (only for models with automatic mode). Enables/disables the cooling mode (only for models with cooling mode). Enables/disables the heating mode (only for models with heating mode). Adjusts the fan speed between Low, Med, High, Turbo or Auto (shown as 1, 2, 3, 4 or AA on the air distribution box display for a short time when changed). Enables/disables ventilation mode (only for models with ventilation mode). Circulates air without heating or cooling. Enables/disables dehumidification mode (only for models with dehumidification mode).

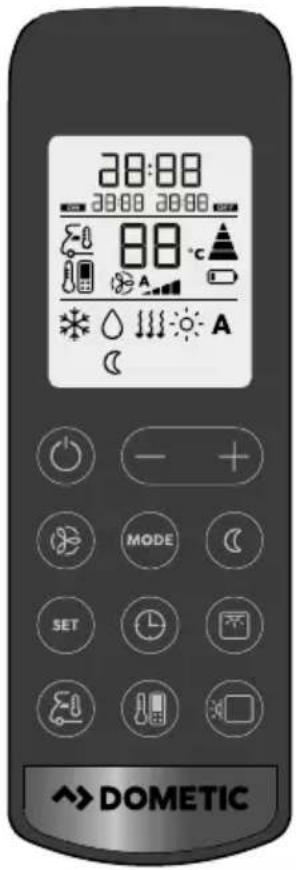

The remote control is only available for some models, see List of models on page6.

• Selected room temperature (target value) in °C

• Symbols for active additional functions

• Battery status Switches the roof air conditioner on or to stand-by mode. Increases the currently displayed value. Reduces the currently displayed value. Selects the fan speed (Selecting the fan speed manually on page13). Selects the air conditioning mode (only for models with automatic mode). The corresponding symbol is dis- played. Activates the sleep function (only for models with sleep mode). The symbol is displayed. Confirms and saves settings. Sets the timer and the clock. Switches the ambient lights in the air distribution box on or off. Press once to display the current interior temperature. The symbol is displayed. Press twice to display the set temperature. Activates the I feel function. The symbol is displayed. Every 10min the I feel function adjusts the target temperature to the actual temperature measured by the re- mote control. Switches the ambient lights in the roof top unit on or off. Displays that the remote control's batteries are empty. Replace the batteries (Replacing the remote control bat- teries on page16). Displays that the remote control is transmitting values to the roof air conditioner. 9ENDometic FJX

7.4 Air conditioning modes

Air conditioning modes of mechanical models The roof air conditioner has the following air conditioning modes: Air conditioning mode Displayed symbol Description Cooling You specify the temperature and fan settings, and the roof air conditioner cools the interior to this temperature. Ventilation You specify the fan settings, and the roof air conditioner circulates air without heat- ing or cooling. Air conditioning modes of fixed-speed and inverter models Air conditioning mode Displayed symbol Description Automatic You specify the temperature, and the roof air conditioner brings the interior to this temperature by heating or cooling and by controlling the necessary fan speed. Cooling You specify the temperature and fan settings, and the roof air conditioner cools the interior to this temperature. Heating You specify the temperature and fan settings, and the roof air conditioner heats the interior to this temperature. The fan will only start after 2min (on Low speed) and then after around 5min will go to the set fan speed (after the evaporator reaches temperature). Only available for models with heating mode. Ventilation You specify the fan settings, and the roof air conditioner circulates air without heat- ing or cooling. Dehumidifying The roof air conditioner removes moisture from the air without heating or cooling the interior thus decreasing the relative air humidity. Air purifier The roof air conditioner ionizes the air, thus collecting dust and particles including to viruses and bacteria out of the air. Only available for models with air purification mode.

7.5 Additional functions

These additional functions are not available for mechanical models. Additional func- tion Display message Description The roof air conditioner is switched on at the specified time. The roof air conditioner is switched off at the specified time. Timer The roof air conditioner is switched on and off at the specified times. 10Dometic FJXEN Additional func- tion Display message Description Sleep The sleep function reduces the fan speed and the compressor speed to reduce the noise levels for comfortable sleeping. I Feel The remote control measures the room temperature and transmits this measurement to the roof air conditioner every 10min . The roof air condi- tioner adapts the target value to this measurement. So start Only for models with so start mode. The peak current that the compressor start produces is reduced by the so start function. If a generator is used as power supply, the generator will not be overloaded. 8 Before initial use Inspection before starting up Before switching on the roof air conditioner, observe the following: Check whether the supply voltage and frequency correspond to the values specified in Technical data on page25. Ensure that both the air intake openings and the air nozzles are free. All ventilation grilles must always be kept free to ensure that the roof air conditioner is able to operate at maximum capacity. Prepare the remote control Only for models with remote control Insert the batteries (Replacing the remote control batteries on page16). Set the time Only for models with timer mode. Set the current time (Setting the current time on page14). 9 Operation

9.1 Tips for enhanced performance

To optimize the performance of the roof air conditioner, observe the following tips:

• Improve the heat insulation of your vehicle by sealing gaps and hanging reflective blinds or curtains on your windows.

• Select an appropriate temperature and fan speed.

• Align the air nozzles sensibly.

• Ensure that the air nozzles and air intake openings are not covered by cloths, paper, or other objects. Only for mechanical models

• If the vehicle has been under direct sunlight for a long time, operate the roof air conditioner in the Ventilation ( ) mode with the windows open for a while before switching to the Cooling ( ) mode.

• Avoid opening doors and windows for as long as possible in the Cooling ( ) mode.

9.2 Basic notes on operation

The mechanical models have three operating modes: 11ENDometic FJX Operating mode Description Off The roof air conditioner is switched off. Cooling The roof air conditioner cools the interior. Ventilation The roof air conditioner circulates air without cooling. The fixed-speed and inverter models have two operating modes: Operating mode Description Standby The roof air conditioner is ready for operation and can be switched on with the remote control. The ambient lights are available. The remote control is also in standby, but you can switch the remote control on independently from the roof air conditioner. On The roof air conditioner is conditioning the air in the interior.

9.3 Mechanical models

The given information in this chapter applies only to the FJX4233M roof air conditioners.

9.3.1 Switching the roof air conditioner on and off

The roof air conditioner has two air conditioning modes:

• Ventilation ( ) mode

• Cooling ( ) mode NOTE Before you switch from Ventilation mode to Cooling mode or vice versa, wait for at least 30s . Otherwise the switching current may blow the fuse. Each mode has three settings:

• …: High To switch on, turn the knob to the Ventilation ( ) mode position or the the Cooling ( ) mode position and choose the desired setting. The roof air conditioner is switched on and operates with the values that were set before switching off. To switch off, turn the knob to position 0.

9.3.2 Setting the temperature

Turn the knob into the desired position. Turning the knob clockwise means a cooler temperature. The temperature is set on the roof air conditioner.

9.4 Fixed-speed and inverter models

The given information in this chapter applies to fixed-speed and inverter models.

9.4.1 Using the remote control

Consider the following hints when using the remote control:

• Point the remote control at the IR receiver of the control panel.

• The corresponding settings and values are directly transmitted to the roof air conditioner when you press a button. 12Dometic FJXEN

• The roof air conditioner confirms the receipt of data with a beep sound.

• Values increase or decrease faster when you press and hold the + or – button.

• In the standby mode, the remote control display is inactive too. You can switch the remote control on to standby independently from the roof air conditioner. To switch only the remote control to or from standby, press the button while not pointing to the control panel's IR receiver.

9.4.2 Switching the roof air conditioner on and to standby

• When the roof air conditioner is switched on, it resumes operation with the previously set values.

• The roof air conditioner can be switched off only by cutting the power supply. Press the button on the remote control or the button on the control panel to switch the roof air conditioner between on and standby modes.

9.4.3 Selecting the air conditioning mode

Select the desired air conditioning mode using the MODE button (see Air conditioning modes on page10). The roof air conditioner confirms the receipt of the values with a beep sound. The roof air conditioner is switched to the selected air conditioning mode.

9.4.4 Selecting the fan speed manually

In all modes, except for the Automatic ( ) and Dehumidifying ( ) modes, the fan speed can be selected manually. Display message Description Low fan level Medium fan level High fan level. Turbo fan level. Automatic mode (the fan speed is adjusted based on the ambient temperature). Press the button of the remote control or the button of the control panel to select the desired fan speed. The roof air conditioner confirms the receipt of the values with a beep sound. The new fan speed is set.

9.4.5 Setting the temperature

In the Automatic ( ), Cooling ( ), Heating ( ), and Dehumidifying ( ) modes, you can specify a temperature between 16°C and 31°C. Use the + or – button on the remote control to set the desired temperature. The roof air conditioner confirms the receipt of the values with a high note. The temperature is set on the roof air conditioner. 13ENDometic FJX

9.4.6 Setting the current time

The remote control needs the current time in order to program the timer. The time is shown on the remote control display.

1. Press and hold the button in order to get into the mode for setting the time.

The time flashes on the remote control display.

2. Use the + or – button to set the current time. Press and hold the + or – button longer than 2s to increase or

decrease the time quicker.

3. Press the SET button to confirm the time.

9.4.7 Setting the timer

The timer function allows you to set a specific time period for air conditioning. You can specify the switch-on time, the switch-to-standby time, or both values. The timer function is set via remote control. NOTE The remote control will return to its initial mode if no button is pressed on the remote control for 15s during timer setup. Setting the switch-on timer

1. Select the desired air conditioning mode and set all required values (e.g., temperature).

2. If necessary, switch the roof air conditioner to standby.

The switch-on timer can only be set when the roof air conditioner is in standby mode.

3. Press the button once.

The symbol flashes on the remote control display.

4. Use the + or – button to set the time when the roof air conditioner shall be switched on.

5. Press the button.

The switch-on timer is set. The roof air conditioner will be switched on with the selected settings at the specified time. Setting the switch-to-standby timer

1. If necessary, switch the roof air conditioner on.

The switch-to-standby timer can only be set when the roof air conditioner is switched on.

2. Press the button twice.

The symbol flashes on the remote control display.

3. Use the + or – button to set the time when the roof air conditioner shall be switched to standby.

4. Press the button.

The switch-to-standby timer is set. The roof air conditioner will be switched to standby at the specified time. Setting the switch-on timer and the switch-to-standby timer

1. Select the desired air conditioning mode and all required values (for example the temperature).

2. Press the button three times.

The symbol is shown on the remote control display. The ON symbol flashes.

3. Use the + or – button to set the time when the roof air conditioner shall be switched on.

4. Press the button.

The OFF symbol flashes. 14Dometic FJXEN

5. Use the + or – button to set the time when the roof air conditioner shall be switched to standby.

6. Press the button.

The switch-on and switch-to-standby timers are set. The roof air conditioner will be operating for the specified time period. Cancelling the timer To cancel preset timer, press the button once. The symbols disappear. Preset values are discarded.

9.4.8 Setting the sleep function

The sleep function is only available in Cooling ( ) or Heating ( ) modes. The sleep function limits the fan speed to a lower level to reduce the noise levels for easier sleeping. Only for inverter models: The sleep function additionally limits the compressor speed. To activate the sleep function proceed as follows: a) Set the required temperature (Setting the temperature on page13). b) Press the button on the remote control or the button on the control panel. The symbol appears in the remote control display. The sleep function is activated. To deactivate the sleep function, press the or the button on the remote control or the button on the control panel. The symbol disappears in the remote control display. The sleep function is deactivated.

9.4.9 Activating the I feel function

When this function is active, the remote control measures the room temperature and transmits this measurement to the roof air conditioner every 10 minutes. The roof air conditioner adapts the target value to this measurement. The I feel function is only active when the temperature range is between +18 °C and +29 °C. The remote control should not be kept in a part of the room that is considerably warmer or colder than the average room temperature. For example, don`t leave the remote control in the sun or in front of the roof air conditioner. When the temperature rises above +29 °C or falls below +18 °C, the I feel function is deactivated. The symbol flashes three times in the display and then turns off.

1. Press the button.

The I feel function is activated. The symbol appears in the display.

2. Position the remote control so that it points at the IR receiver on the control panel. Otherwise, the values cannot

be transmitted to the roof air conditioner.

9.4.10 Operating the ambient lights

WARNING! Risk of injury By law it is forbidden to use the external lights when driving the vehicle. The button on the remote control is active even if the remote control is switched off. Only for models with ADB light: To switch the internal lights on or off, press the button on the remote control or on the control panel. The symbol flashes once in the display of the remote control when the internal lights are switched on. 15ENDometic FJX To dim the internal lights, proceed as follows: a) Press the button on the remote control or on the control panel for 3s . b) When pressing the button on the remote control, press the button to dim the internal light between 50% and 100% . c) When pressing the button on the control panel, the internal light's brightness cycles between 50% and 100% . Release the button when the the desired brightness is reached. Only for inverter models: To switch the external lights on or off, press the button on the control panel.

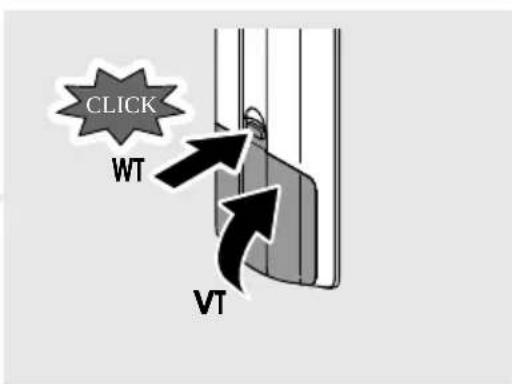

9.4.11 Replacing the remote control batteries

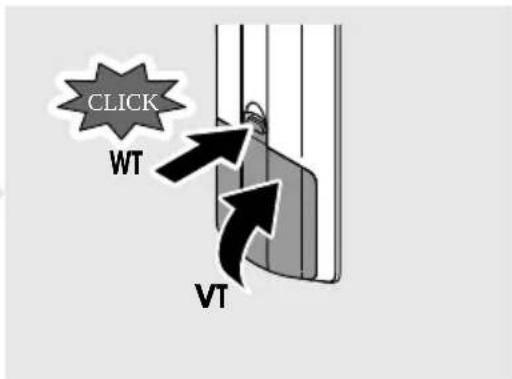

NOTE The remote control display may still be bright even if the batteries are running low. Replace the batteries when the remote control indicates low batteries. Replace the batteries as shown.

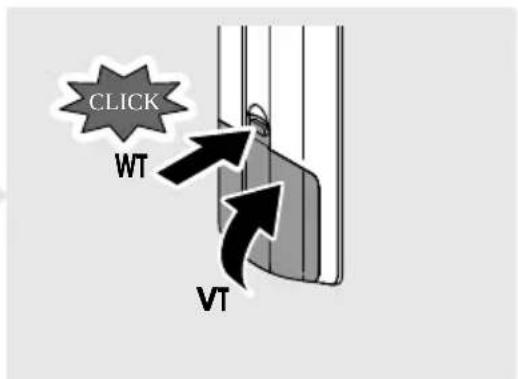

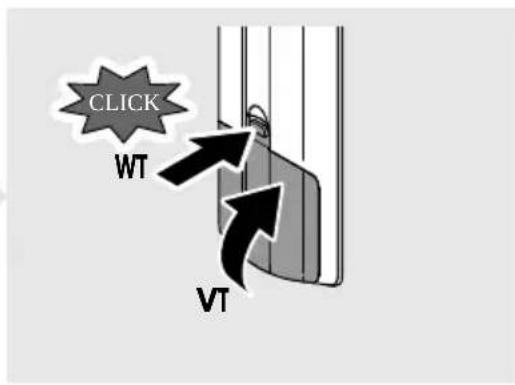

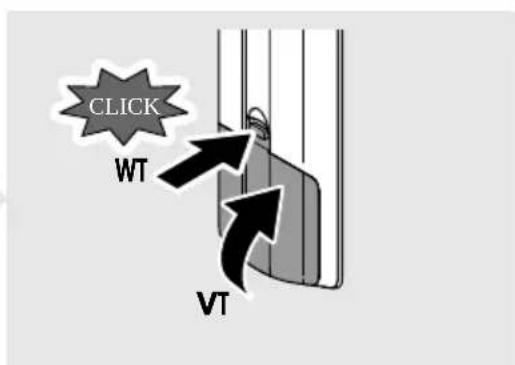

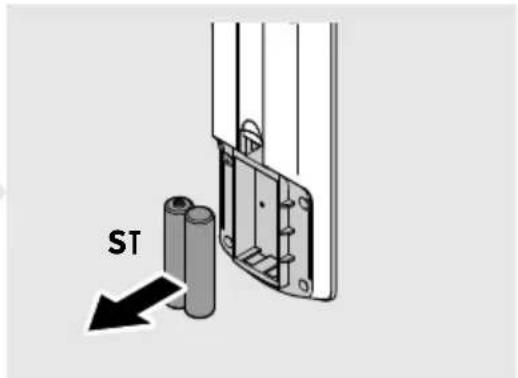

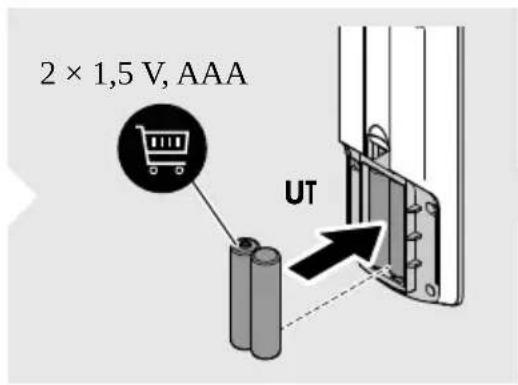

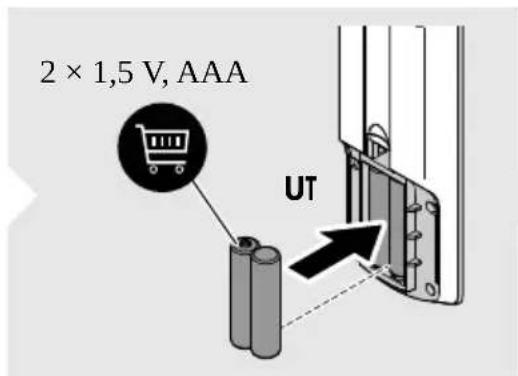

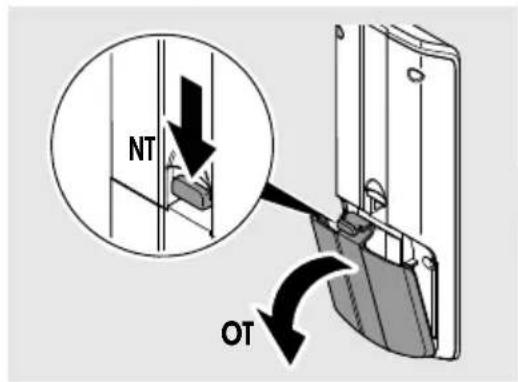

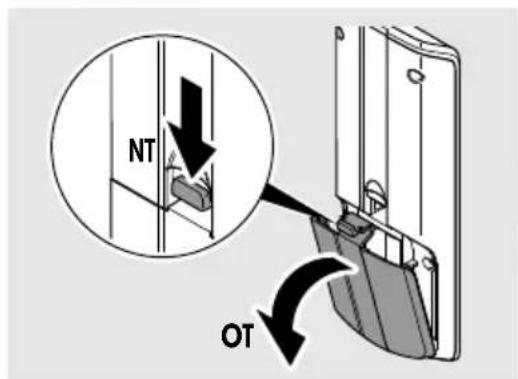

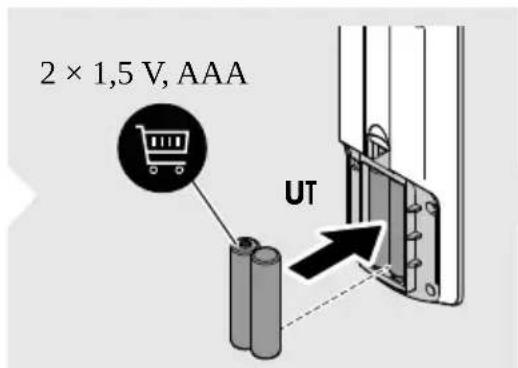

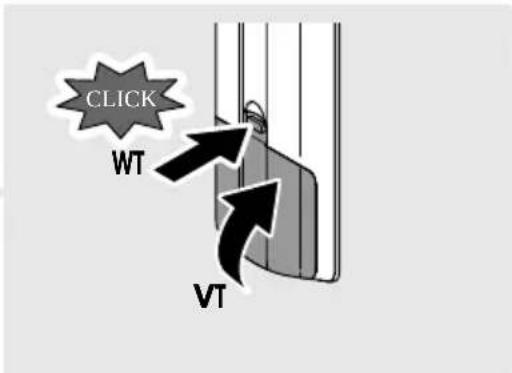

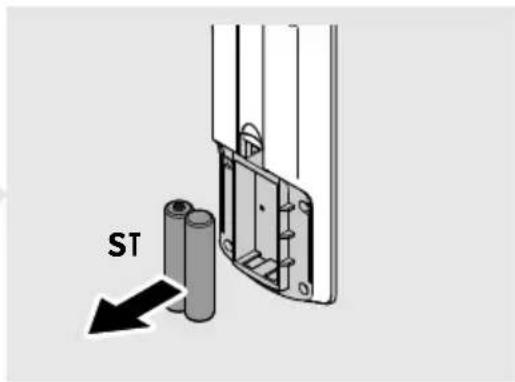

2 × 1,5 V, AAA CLICK The display shows all symbols for 5s . Protect the environment! Do not dispose of any batteries with general household waste. Return defective or used batteries to your retailer or dispose of them at collection points. 16Dometic FJXEN

9.5 Regulating air supply within the vehicle

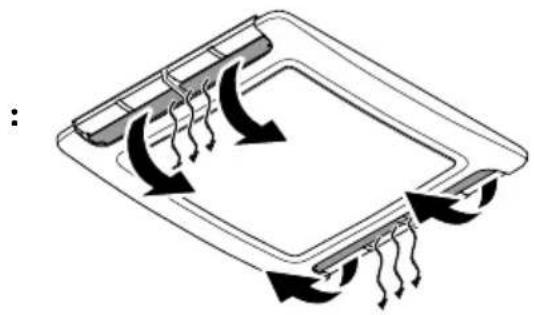

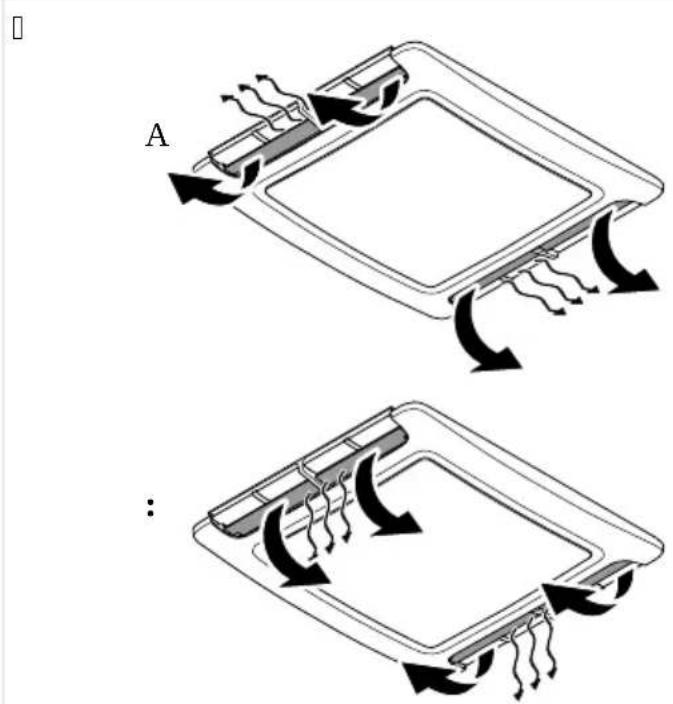

The air flow can be adjusted along the ceiling or towards the floor. Turn the slats in the air nozzles independently in the required directions.

10 Cleaning the roof air conditioner NOTICE! Damage hazard Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. Do not clean the roof air conditioner with a high-pressure cleaner. Exposure to water can damage the roof air conditioner. Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the roof air conditioner. Do not use petrol, diesel, or solvents. 1. Regularly remove leaves and other dirt from the air intake and the ventilation grilles of the roof air conditioner. Do not damage the ventilation grilles in the process. 17ENDometic FJX

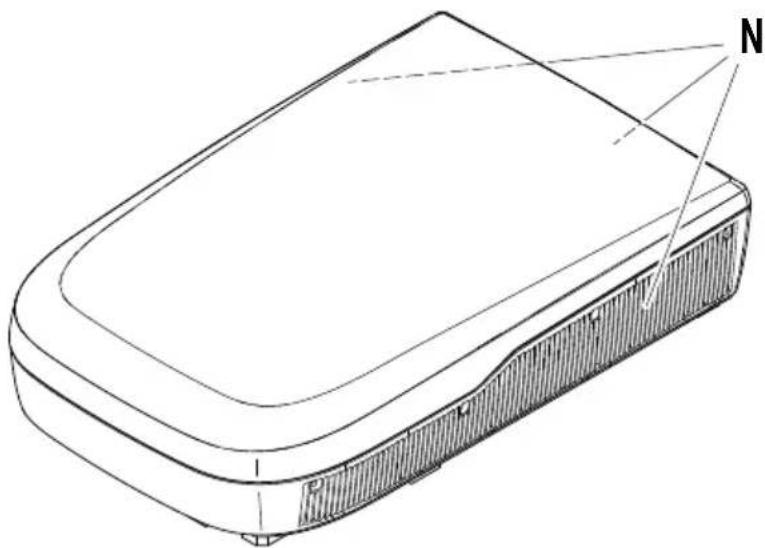

2. Occasionally clean the housings of the roof top unit and the air distribution box with a damp cloth. Use only

water with a gentle cleaning agent.

3. Only for models with remote control: Occasionally clean the remote control with a slightly damp cloth.

Clean the display with a cleaning cloth for glasses.

4. Only for models with air distribution box: Occasionally clean the air distribution box display with a mild

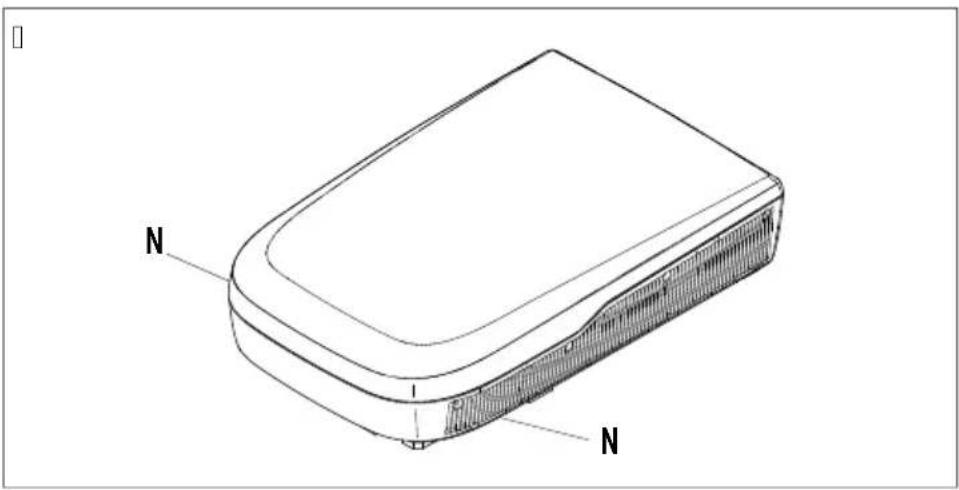

solution of warm soapy water. The display screen is acrylic and can be damaged by some common household chemicals such as chemical cleaners, window cleaners, alcohol, certain tensides, organic solvents, and soeners. 11 Maintenance WARNING! Risk of injury Any other maintenance work in addition to the described subjects here may only be carried out by qualified personnel who are familiar with the risks involved when handling refrigerant and air conditioning systems as well as the relevant regulations. 18Dometic FJXEN Interval Inspection/maintenance Regularly Check whether the condensation water drainage channels (1) at the sides of the roof air condi- tioner are clear and the condensation water is able to escape.

19ENDometic FJX Interval Inspection/maintenance Regularly (only for mechanical models) Clean the filter of the air distribution box.

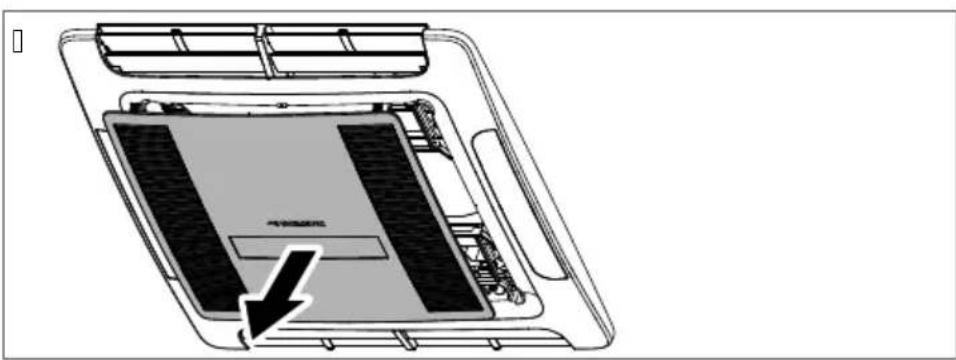

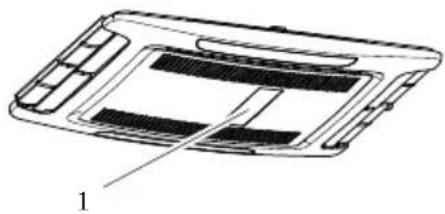

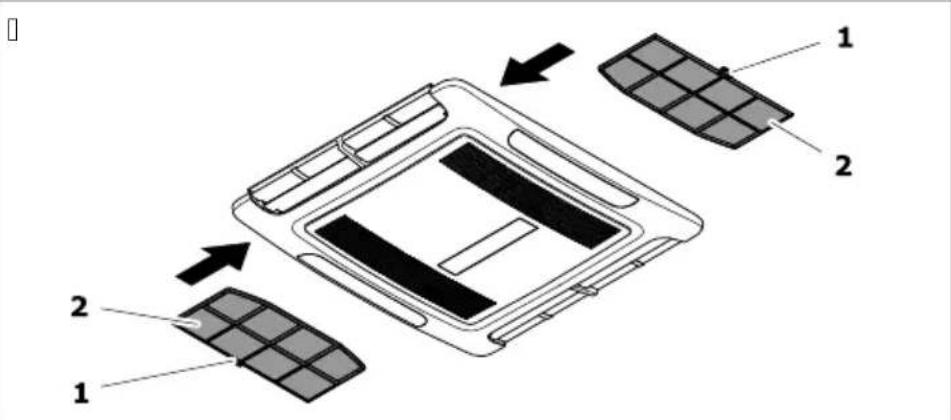

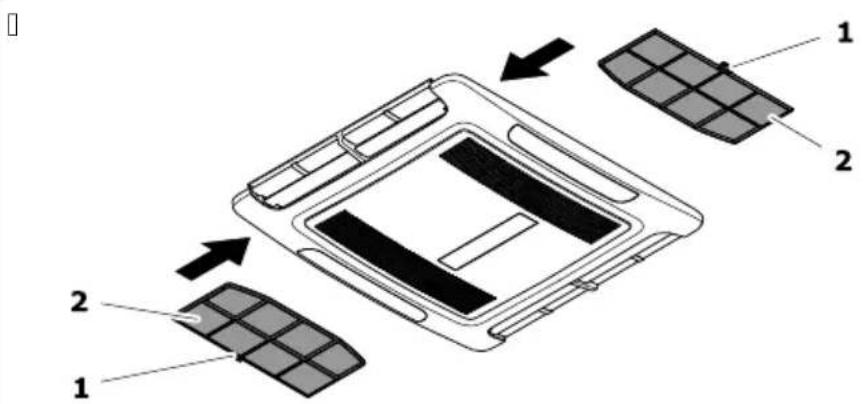

2. Clean the filters with a detergent solution and let them dry.

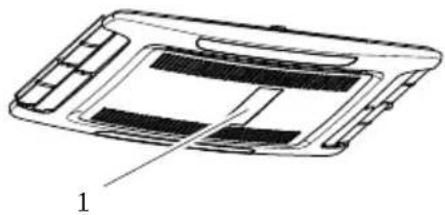

20Dometic FJXEN Interval Inspection/maintenance Regularly (only for fixed-speed and in- verter models) Clean the filter of the air distribution box.

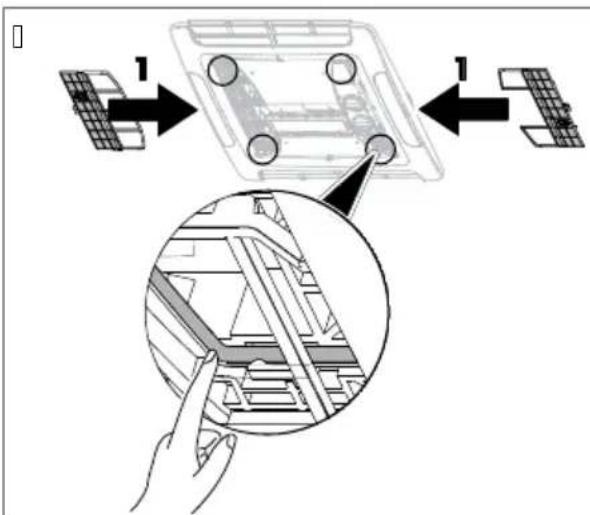

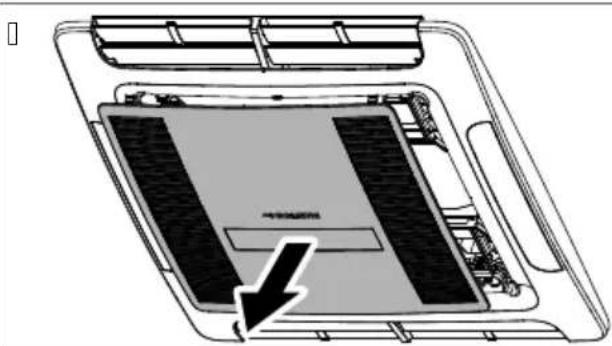

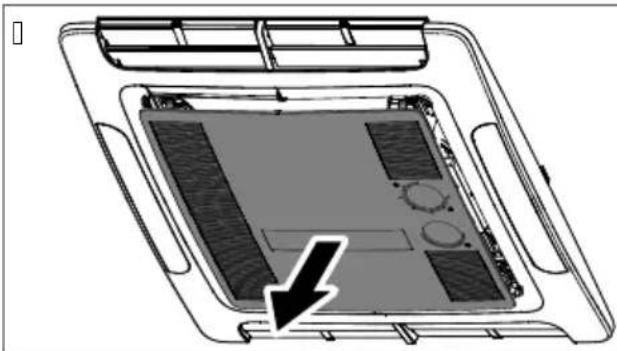

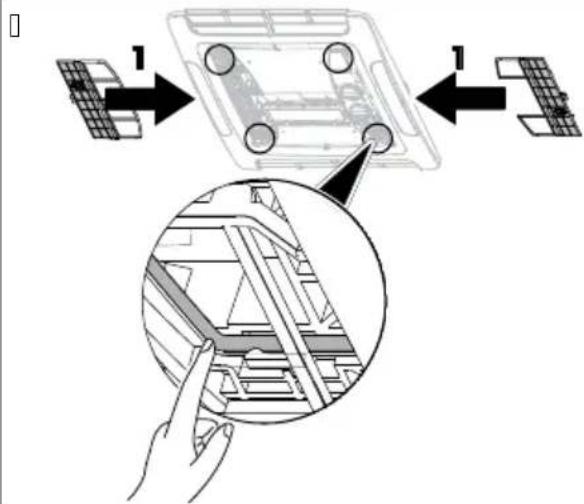

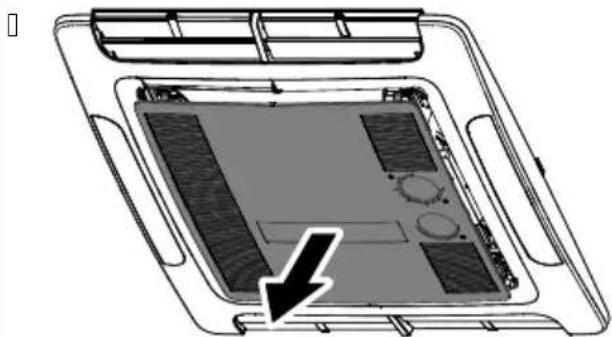

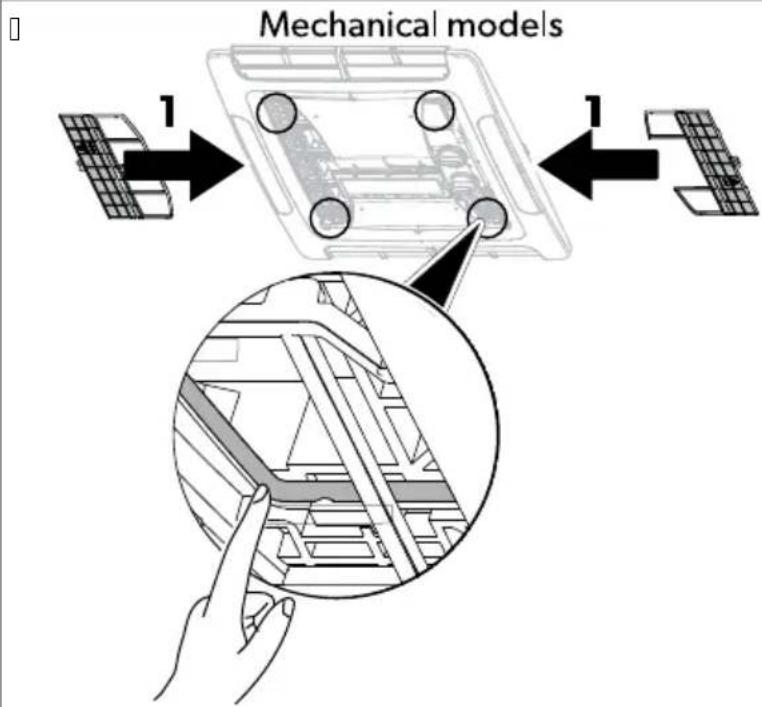

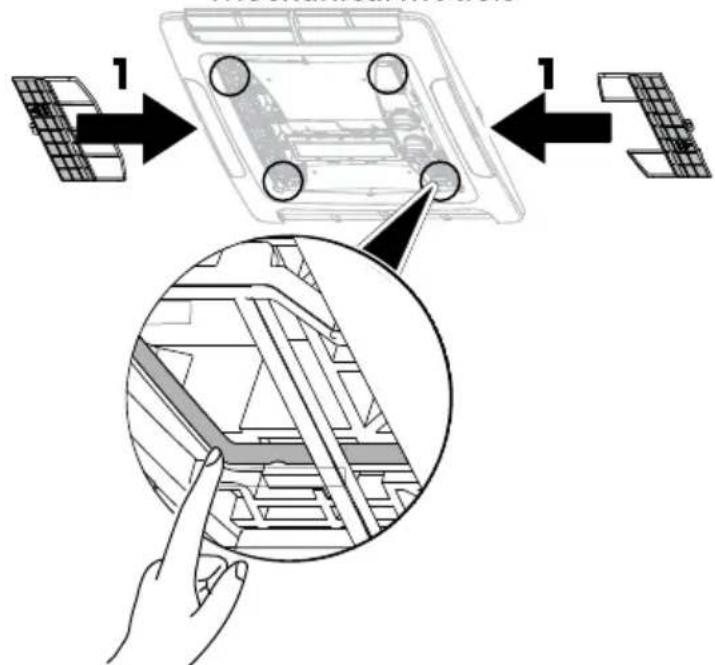

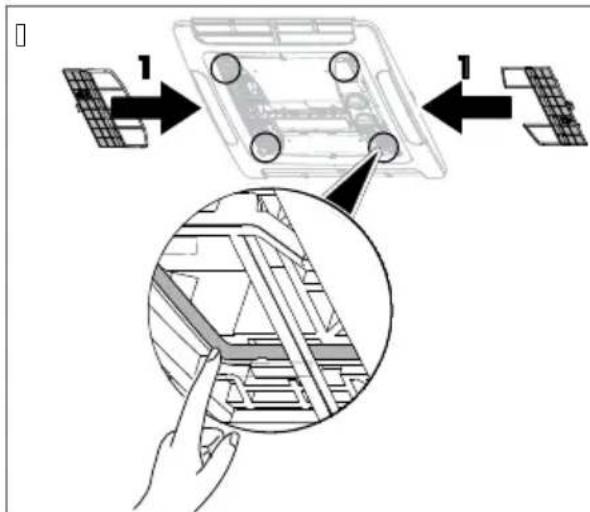

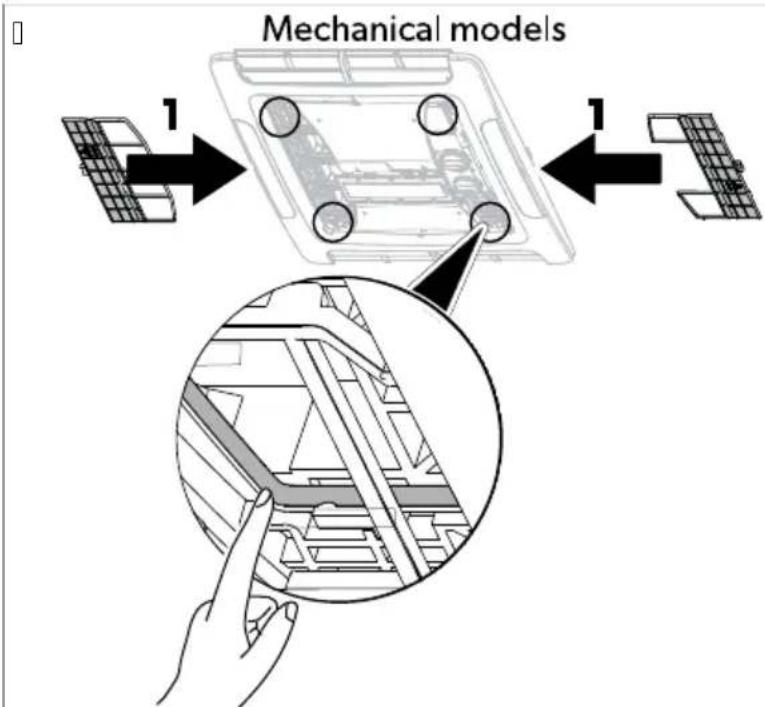

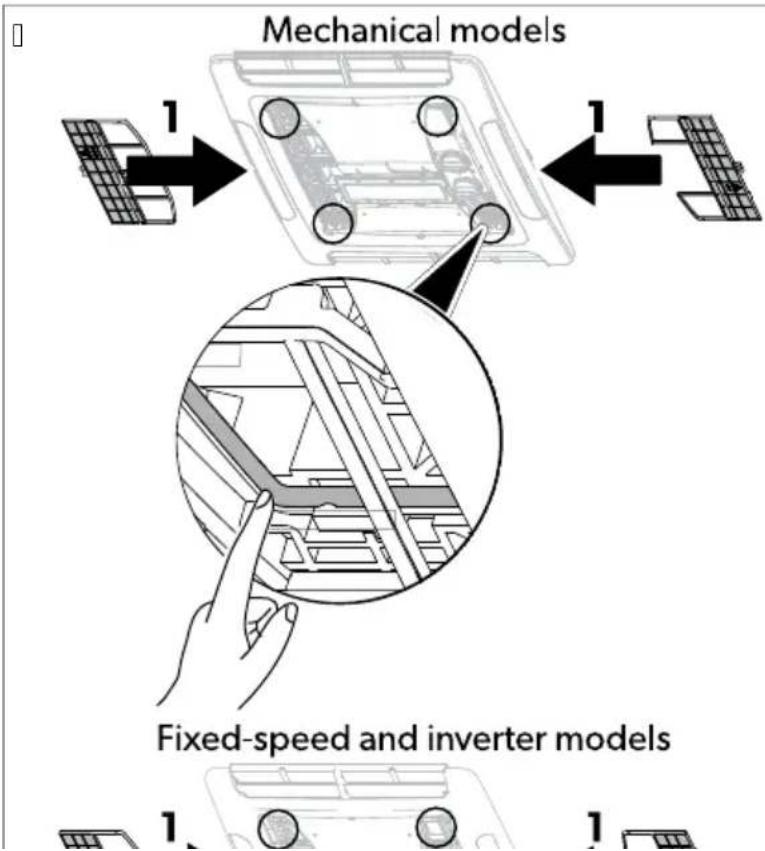

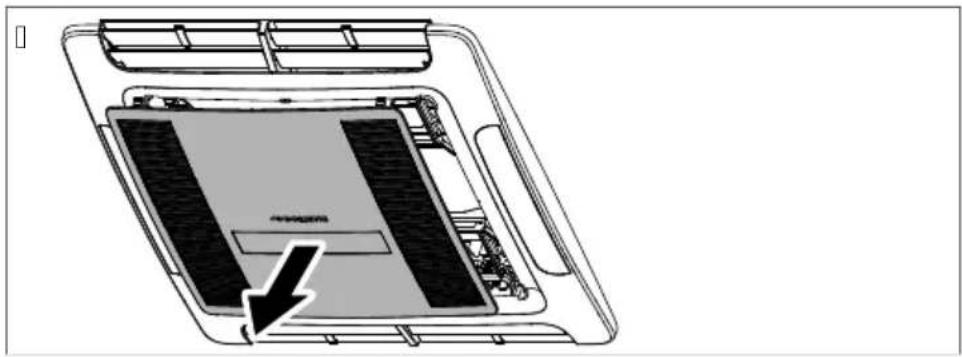

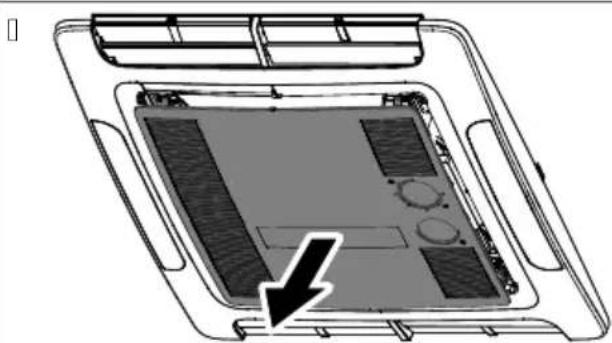

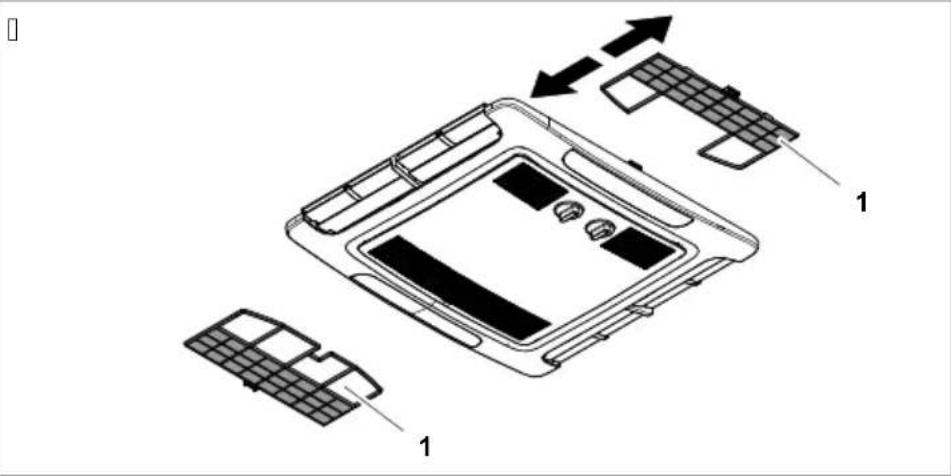

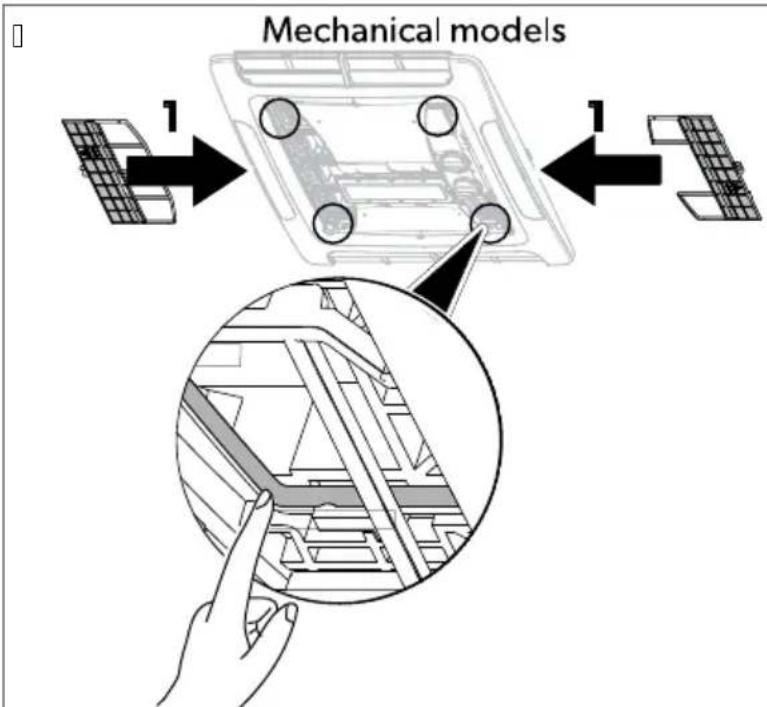

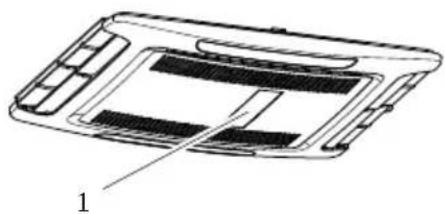

Insert a flat screwdriver into the handle (1 in Fig. on page21) to pull the filters (2 in Fig. on page21) slightly out.

2. Remove the filters by hand.

3. Clean the filters with a detergent solution and let them dry.

21ENDometic FJX Interval Inspection/maintenance Once per year • Have the heat exchanger of the roof air conditioner serviced by specialist company.

• Check the seals between the roof air conditioner and the vehicle roof for cracks and other damage.

• Check whether the fastening bolts are tightened to the correct torque (2.5Nm ± 0.3Nm) and adjust if necessary. 12 Troubleshooting Problem Possible cause Suggested remedy The roof air conditioner is not set to cooling. Set the roof air conditioner to cooling. The ambient temperature is above 52°C. The roof air conditioner is only de- signed for ambient temperatures of up to 52°C. The temperature set is higher than the room temperature. Select a lower temperature. The ambient temperature is below 16°C. The roof air conditioner is designed for cooling only at ambient temperatures above 16°C. One of the temperature sensors is de- fective. Contact an authorized service agent or Dometic. The evaporator fan is damaged. Contact an authorized service agent or Dometic. Not cooling well The condenser fan is damaged. Contact an authorized service agent or Dometic. The roof air conditioner is not set to heating. Set the roof air conditioner to heating. The ambient temperature is below

2°C. The roof air conditioner is designed for ambient temperatures above –

2°C. The temperature set is lower than the room temperature. Select a higher temperature. One of the temperature sensors is de- fective. Contact an authorized service agent or Dometic. Only for models with heating mode: Not heating well The evaporator fan is damaged. Contact an authorized service agent or Dometic. The air intake openings are blocked or obstructed. Remove any leaves and other dirt from the ventilation grilles of the roof air conditioner. Low Air output The fan is defective. Contact an authorized service agent or Dometic. The condensation water drainage openings are clogged up. Clean the water drainage openings from condensation water. Water enters the vehicle. The seals are damaged. Contact an authorized service agent or Dometic. 22Dometic FJXEN Problem Possible cause Suggested remedy No power supply connected. Check the power supply. The voltage is too low (< 200V ). The power supply at the camping site is not sufficient. The voltage converter is defective. Contact an authorized service agent or Dometic. One of the temperature sensors is de- fective. Contact an authorized service agent or Dometic. The roof air conditioner does not switch on. The electrical fuse of the power supply is too low. The power supply at the camping site is overloaded. Check the pow- er supply at the camping site. If applicable, unwind the power ca- ble drum. Reduce the active electrical con- sumers in the vehicle. The electrical protection at the camping site is not sufficient. Check the electrical protection at the camping site. One of the temperature sensors is de- fective. Contact an authorized service agent or Dometic. The roof air conditioner does not switch off. The electrical fuse of the power supply is too low. Contact an authorized service agent or Dometic. Only for fixed-speed and inverter models: The roof air conditioner con- stantly switches itself off. The icing sensor has tripped. The outer temperature is too low or all air nozzles are closed. The display shows: P0 Over temperature or over current on IPM module Contact an authorized service agent or Dometic. The display shows: P1 Under voltage protection Check with the campsite management if the voltage at the campsite is suffi- cient. The display shows: P2 Unit AC over-current protection Contact an authorized service agent or Dometic. The display shows: P3 Overvoltage protection Check with the campsite management if the voltage at the campsite is suffi- cient. The display shows: P4 Discharge tube overheat protection Contact an authorized service agent or Dometic. The display shows: P5 Evaporator coil protection (cooling mode) Contact an authorized service agent or Dometic. The display shows: P6 Condenser coil protection (cooling mode) Contact an authorized service agent or Dometic. The display shows: P7 Evaporator coil protection (heating mode) Contact an authorized service agent or Dometic. The display shows: P9 Compressor drive abnormal or com- pressor does not start Contact an authorized service agent or Dometic. 23ENDometic FJX Problem Possible cause Suggested remedy The display shows: E0 Communication failure Contact an authorized service agent or Dometic. The display shows: E1 Room temperature sensor fault Contact an authorized service agent or Dometic. The display shows: E2 Evaporator coil temperature sensor fault Contact an authorized service agent or Dometic. The display shows: E3 Condenser coil temperature sensor fault Contact an authorized service agent or Dometic. The display shows: E7 Outdoor temperature sensor failure Contact an authorized service agent or Dometic. The display shows: E8 Discharge tube temperature sensor failure Contact an authorized service agent or Dometic. The display shows: E9 Compressor drive or IPM module fault Check with the campsite management if the voltage at the campsite is suffi- cient. Contact an authorized service agent or Dometic. The display shows: EA Current sensor fault Contact an authorized service agent or Dometic. The display shows: EE Outdoor EEPROM fault Contact an authorized service agent or Dometic. The display shows: EL LIN-BUS/CI-BUS communication fail- ure Contact an authorized service agent or Dometic. 13 Disposal Place the packaging material in the appropriate recycling waste bins, wherever possible. Consult a local recycling center or specialist dealer for details about how to dispose of the product in accordance with the applicable disposal regulations. Protect the environment! Do not dispose of any batteries with general household waste. Return defective or used batteries to your retailer or dispose of them at collection points. 14 Warranty The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see dometic.com/dealer) or your retailer. For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault Note that self-repair or nonprofessional repair can have safety consequences and might void the warranty. 24Dometic FJXEN 15 Technical data

FreshJet FJX7457IHP This product contains fluorinated greenhouse gases. The cooling unit is hermetically sealed. Hereby, Dometic (Zhuhai) Technology Co., Ltd. declares that the radio equipment type FJX4233M, FJX4233EEH, FJX4333EEH, FJX4333E, FJX7333IHP, FJX7433IHP, FJX7337IHP, FJX7457IHP is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: documents.dometic.com FreshJet FJX4233M Cooling capacity based on ISO

equivalent 0.793t Global warming potential (GWP)

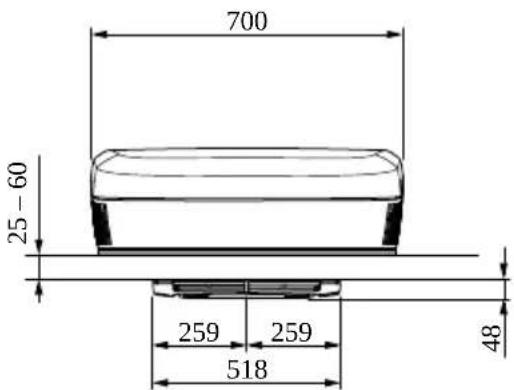

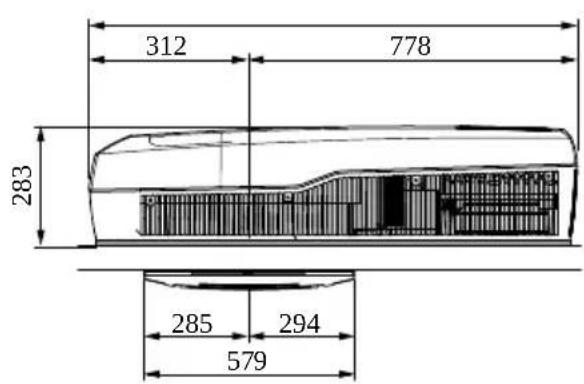

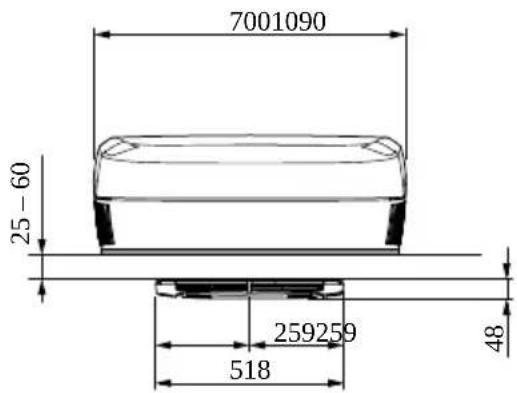

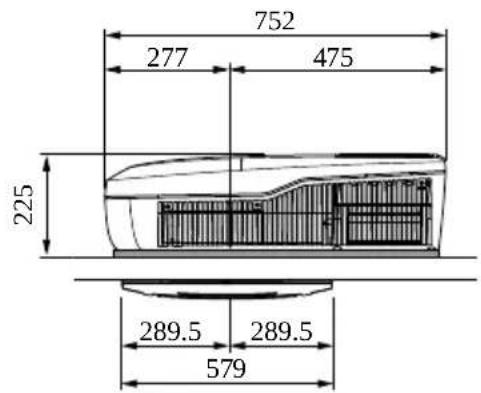

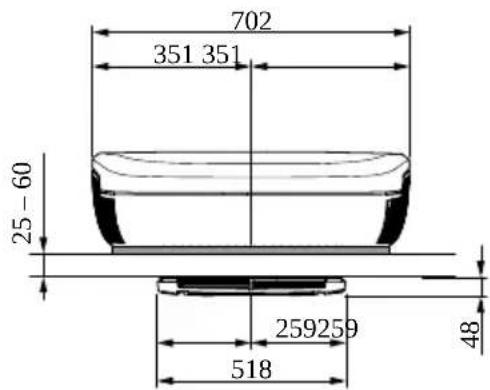

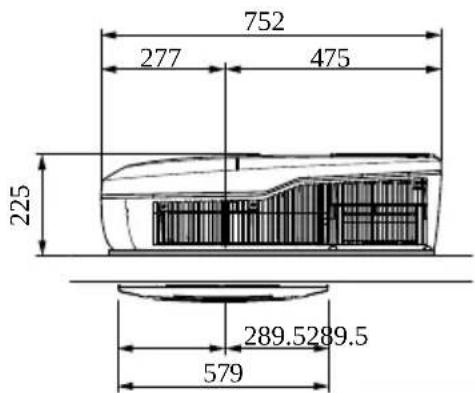

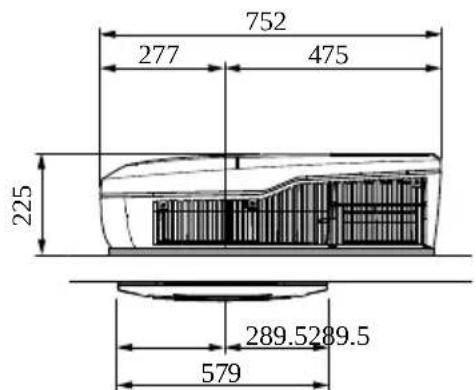

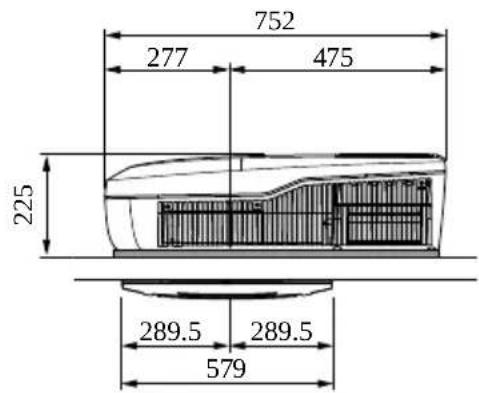

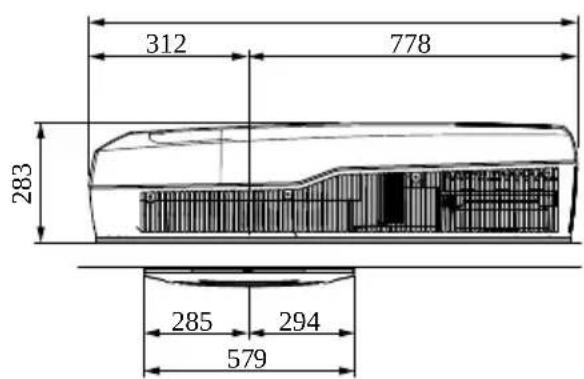

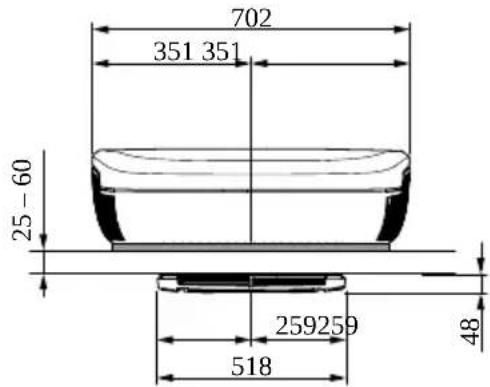

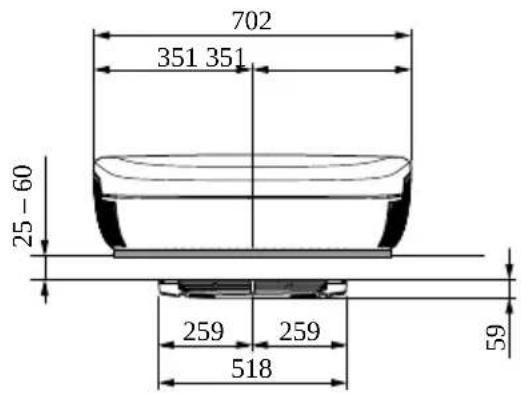

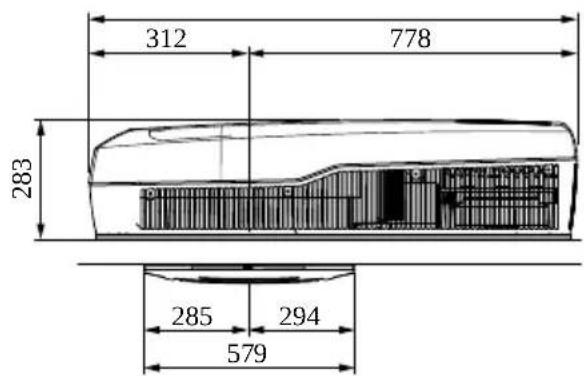

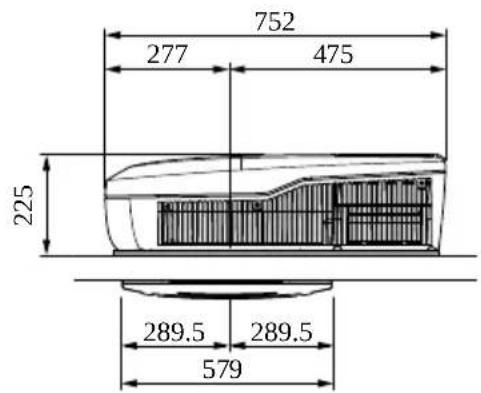

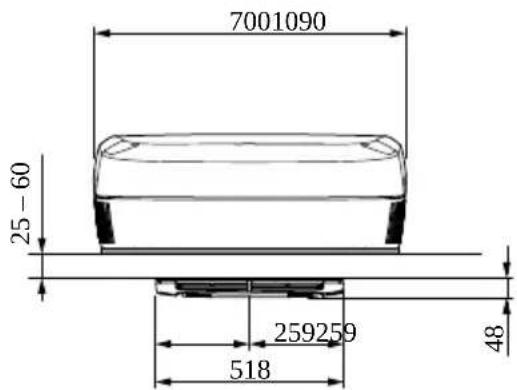

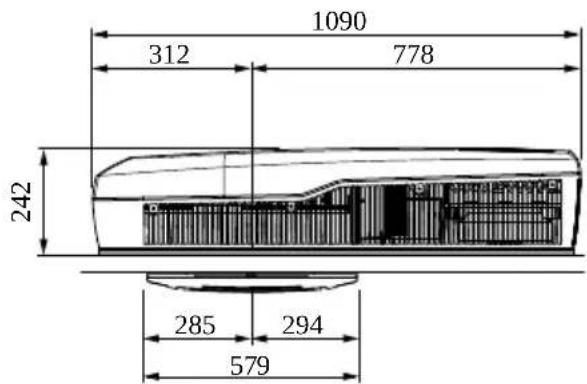

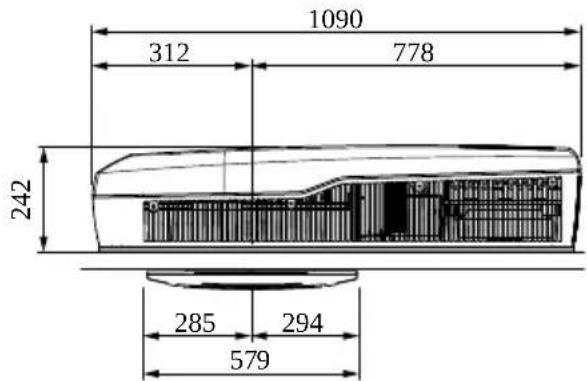

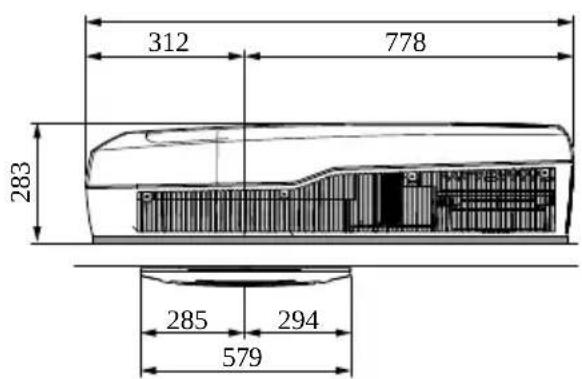

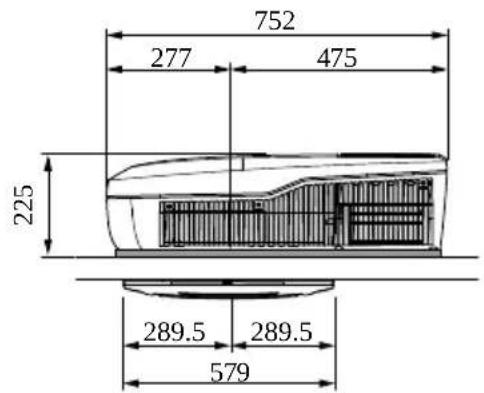

Protection class (roof top unit) IPX4 Noise level (highest fan setting) < 70dB(A) Frequency 2.4GHz Maximum radio frequency power 19.14dBm Suggested max. vehicle length (with insulated walls) ≤ 5m Dimensions L x W x H Fig. on page25 Weight < 30kg 26Dometic FJXEN FreshJet FJX4233M Inspection/certification FreshJet FJX4233EEH FreshJet FJX4333EEH FreshJet FJX4333E Cooling capacity based on ISO

1700W 2200W 2200W Heating capacity based on ISO
