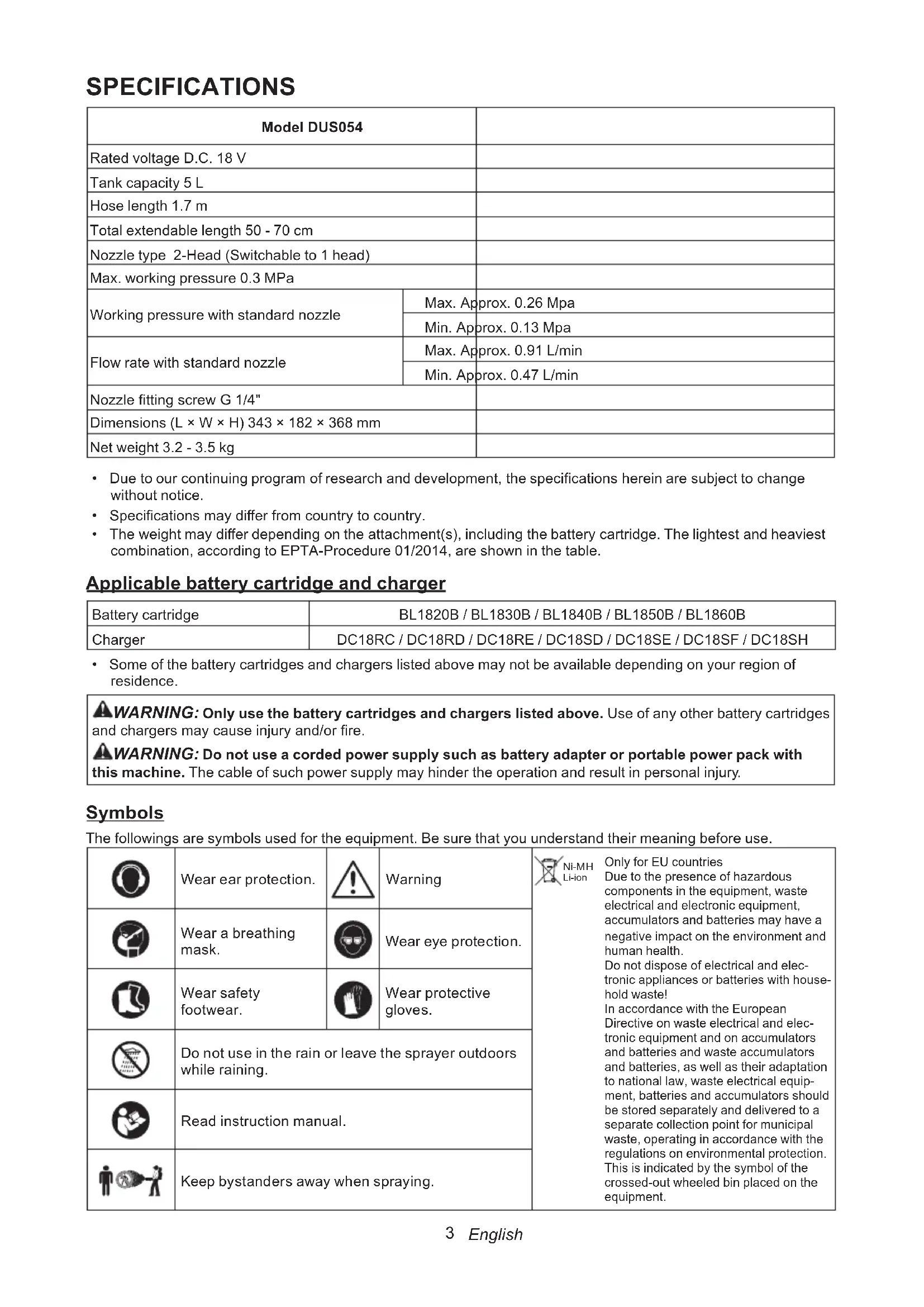

USER MANUAL DUS054 MAKITA

• Due to our continuing program of research and development, the specications herein are subject to change without notice.

• Specications may di󰀨er from country to country.

• The weight may di󰀨er depending on the attachment(s), including the battery cartridge. The lightest and heaviest combination, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Battery cartridge BL1820B / BL1830B / BL1840B / BL1850B / BL1860B Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

and chargers may cause injury and/or re.

WARNING: Do not use a corded power supply such as battery adapter or portable power pack with

this machine. The cable of such power supply may hinder the operation and result in personal injury. Symbols The followings are symbols used for the equipment. Be sure that you understand their meaning before use. Wear ear protection. Warning Ni-M

Li-ion Only for EU countries Due to the presence of hazardous components in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health. Do not dispose of electrical and elec- tronic appliances or batteries with house- hold waste! In accordance with the European Directive on waste electrical and elec- tronic equipment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste electrical equip- ment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accordance with the regulations on environmental protection. This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment. Wear a breathing mask. Wear eye protection. Wear safety footwear. Wear protective gloves. Do not use in the rain or leave the sprayer outdoors while raining. Read instruction manual. Keep bystanders away when spraying.4 English Intended use This machine is intended for spraying. Noise The typical A-weighted noise level determined accord-ing to EN62841-1:Sound pressure level (L ): 70 dB (A) or less Uncertainty (K): 3 dB (A)NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.WARNING: Wear ear protection.WARNING: The noise emission during actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration The vibration total value (tri-axial vector sum) deter-mined according to EN62841-1: Work mode: operation without load Vibration emission (a ) : 2.5 m/s or less Uncertainty (K) : 1.5 m/s NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another.NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.WARNING: The vibration emission during actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). EC Declaration of Conformity For European countries onlyThe EC declaration of conformity is included as Annex A to this instruction manual. WARNING This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capa-bilities or lack of expe- rience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instruc- tions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.Work area safety1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.2. Do not operate power tools in explosive atmo-spheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.3. Keep children and bystanders away while oper-ating a power tool. Distractions can cause you to lose control.5 English Electrical safety

1. Power tool plugs must match the outlet. Never

modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.

2. Avoid body contact with earthed or grounded

surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

3. Do not expose power tools to rain or wet condi-

tions. Water entering a power tool will increase the risk of electric shock.

4. Do not abuse the cord. Never use the cord for

carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

5. When operating a power tool outdoors, use an

extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

6. If operating a power tool in a damp location

is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

7. Power tools can produce electromagnetic elds

(EMF) that are not harmful to the user. However, users of pacemakers and other similar medical devices should contact the maker of their device and/or doctor for advice before operating this power tool. Personal safety

1. Stay alert, watch what you are doing and use

common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

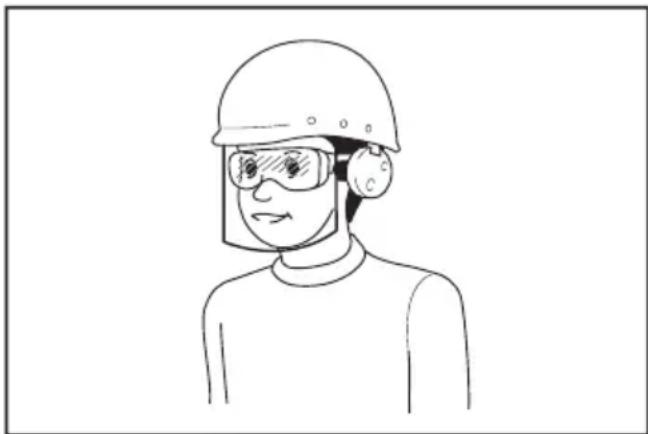

2. Use personal protective equipment. Always

wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

3. Prevent unintentional starting. Ensure the

switch is in the o󰀨-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents.

4. Remove any adjusting key or wrench before

turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

5. Do not overreach. Keep proper footing and bal-

ance at all times. This enables better control of the power tool in unexpected situations.

6. Dress properly. Do not wear loose clothing or

jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

7. If devices are provided for the connection of

dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

8. Do not let familiarity gained from frequent use

of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

9. Always wear protective goggles to protect

your eyes from injury when using power tools. The goggles must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 in Australia/New Zealand. In Australia/New Zealand, it is legally required to wear a face shield to protect your face, too. It is an employer’s responsibility to enforce the use of appropriate safety protective equip- ments by the tool operators and by other per- sons in the immediate working area. Power tool use and care

1. Do not force the power tool. Use the correct

power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

2. Do not use the power tool if the switch does not

turn it on and o󰀨. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

3. Disconnect the plug from the power source and/

or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

4. Store idle power tools out of the reach of chil-

dren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.6 English

5. Maintain power tools and accessories. Check for

misalignment or binding of moving parts, break- age of parts and any other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

6. Keep cutting tools sharp and clean. Properly

maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

7. Use the power tool, accessories and tool bits

etc. in accordance with these instructions, tak- ing into account the working conditions and the work to be performed. Use of the power tool for operations di󰀨erent from those intended could result in a hazardous situation.

8. Keep handles and grasping surfaces dry, clean

and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

9. When using the tool, do not wear cloth work

gloves which may be entangled. The entangle- ment of cloth work gloves in the moving parts may result in personal injury. Battery tool use and care

1. Recharge only with the charger specied by the

manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

2. Use power tools only with specically desig-

nated battery packs. Use of any other battery packs may create a risk of injury and re.

3. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

4. Under abusive conditions, liquid may be ejected

from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

5. Do not use a battery pack or tool that is dam-

aged or modied. Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury.

6. Do not expose a battery pack or tool to re or

excessive temperature. Exposure to re or tem- perature above 130 °C may cause explosion.

7. Follow all charging instructions and do not

charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re. Service

1. Have your power tool serviced by a qualied

repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

2. Never service damaged battery packs. Service

of battery packs should only be performed by the manufacturer or authorized service providers.

3. Follow instruction for lubricating and changing

accessories. Cordless Garden Sprayer Safety Warnings

WARNING: Risk of re or explosion. Do not

spray ammable liquids such as gasoline. Look for this symbol reference on the container.

WARNING: Some spray created from products

used with the sprayer contains chemicals known to cause cancer, birth defect of other reproductive harm. Some examples of these chemicals are:

• compounds in fertilize

• compounds in insecticides, herbicides, and pesticides;

• arsenic and chromium from chemically treated lumber. Follow directions on containers of all such products. To reduce your exposure to these chemicals, wear approved safety equipment such as face masks that are specially designed to filter out sprays, gloves, and other appropriate protective equipment. ■ Before using any pesticide or other spray mate- rials in this sprayer, read the label on its original container thoroughly and follow its directions. Some spray materials are dangerous and should not be used in this sprayer, as they can damage the sprayer and cause serious bodily injury or property damage. ■ Electric shock hazard. Never spray toward electri- cal outlets. ■ Do not use commercial grade chemicals or chemicals for commercial or industrial pur- poses. Use only consumer grade water-based lawn and garden chemicals. ■ Do not pour hot or boiling liquids into the tank. These can weaken or damage the hose or tank. ■ Spray area must be well ventilated. ■ Avoid spraying on windy days. Spray can be accidentally blown onto plants or objects that should not be sprayed. ■ Store the sprayer in a secure, well-ventilated indoor space with the uid tank empty. ■ Do not use caustic (alkali) self-heating or cor- rosive (acid) liquids in this sprayer. These can corrode metal parts or weaken the tank and hose.7 English ■ Know the contents of the chemical being sprayed. Read all Material Safety Data Sheets (MSDS) and container labels provided with the chemical. Follow the chemical manufacturer s safety instructions. ■ Do not leave residue or spray material in the tank after using the sprayer. Clean after each use. ■ Do not smoke while using the sprayer, or spray where spark or ame is present. ■ Risk of injection. Do not discharge directly against skin. ■ To reduce the risk of electric shock, do not put the sprayer into water or other liquid. Do not place or store the sprayer where it can fall or be pulled into a tub or sink. ■ Maintain this product. Thoroughly inspect both the inside and outside of the sprayer and exam- ine the components before each use. Check for cracked and deteriorated hoses, leaks, clogged nozzles, and missing or damaged parts. If dam- aged, have the product repaired before use. Many accidents are caused by poorly maintained products. ■ Disconnect the battery from the unit before draining, cleaning, or storing the sprayer. Such preventive safety measures reduce the risk of acci- dental starting. ■ Always wear eye protection with side shields or goggles marked to comply with ANSI Z87.1. Failure to do so could result in uids entering your eyes resulting in possible serious injury. ■ Protect your lungs. Wear a face or dust mask when using the sprayer. Following this rule will reduce the risk of serious personal injury. ■ Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery tool or when changing accessories. Remove battery pack when tool is not in use. Following this rule will reduce the risk of electric shock, re, or serious personal injury. ■ Do not place battery tools or their batteries near re or heat. This will reduce the risk of explosion and possibly injury. ■ Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has been dropped or received a sharp blow. A damaged battery is subject to explosion. Properly dispose of a dropped or damaged battery immediately. ■ Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open ame. An exploded battery can propel debris and chemicals. If exposed, ush with water immediately. ■ Do not charge battery tool in a damp or wet location. Following this rule will reduce the risk of electric shock.

For best results, your battery tool should be charged in a location where the temperature is more than 10 °C (50 °F) but less than 40 °C (104 °F). To reduce the risk of serious personal injury, do not store outside or in vehicles. ■ Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water. If liquid gets into your eyes, ush them with clean water for at least 10 min- utes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury. ■ Do not use battery-operated appliance in rain. ■ Do not use battery-operated appliance in rain. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns. ■ Do not dispose of the battery(ies) in a re. The cell may explode. Check with local codes for possi- ble special disposal instructions. ■ Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. ■ Avoid Dangerous Environment - Don’t use appli- ances in damp or wet locations. ■ Use Right Appliance - Do not use appliance for any job except that for which it is intended. ■ Don’ t Force Appliance - It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed. ■ Store Idle Appliances Indoors - When not in use, appliances should be stored indoors in dry, and high or locked-up place - out of reach of children. ■ Maintain Appliance With Care - Keep clean for best performance and to reduce the risk of injury. Follow instructions for changing accessories. Inspect appliance cord, and if damaged, have it repaired by an authorized service facility. Keep handles dry, clean, and free from oil and grease. ■ Check Damaged Parts - Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may a󰀨ect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual. ■ Don’t topple a lled-up tank to avoid leak in case tank cover is not tightened.8 English Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper the battery car-

tridge. It may result in a re, excessive heat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, over- heating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if it

is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re, excessive heat, or explosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. For commercial transports e.g. by third parties, for- warding agents, special requirement on packaging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tape or mask o󰀨 open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to dis- posal of battery.

12. Use the batteries only with the products speci-

ed by Makita. Installing the batteries to non-com- pliant products may result in a re, excessive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low tem- perature burns. Pay attention to the handling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge. It may result in poor performance or breakdown of the tool or battery cartridge.

17. Unless the tool supports the use near high-volt-

age electrical power lines, do not use the battery cartridge near high-voltage electrical power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing res, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery ser- vice life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove it

from the tool or the charger.

5. Charge the battery cartridge if you do not use it

for a long period (more than six months).9 English

CORDLESS GARDEN SPRAYER USE AND CARE

1. The cordless garden sprayer can work by Makita lithium-ion battery cartridge. Use of any other batteries may

create a risk of re. Recharge batteries only with the specied charger. A charger that may be suitable for one type of battery may create a risk of re when used with another battery.

2. When inserting or removing the battery, always place the cordless garden sprayer on a at and stable surface.

3. Do not use any batteries, attachments or accessories not recommended by the manufacturer of this appliance.

The use of batteries, attachments or accessories not recommended can result in serious personal injury.10 English ASSEMBLY CAUTION: Always be sure that the machine is switched o󰀨 and the battery cartridge is removed before carrying out any work on the machine. CAUTION: Make sure that the all parts are securely assembled so that the liquid does not leak when operating the machine. Assembly of the spray wand

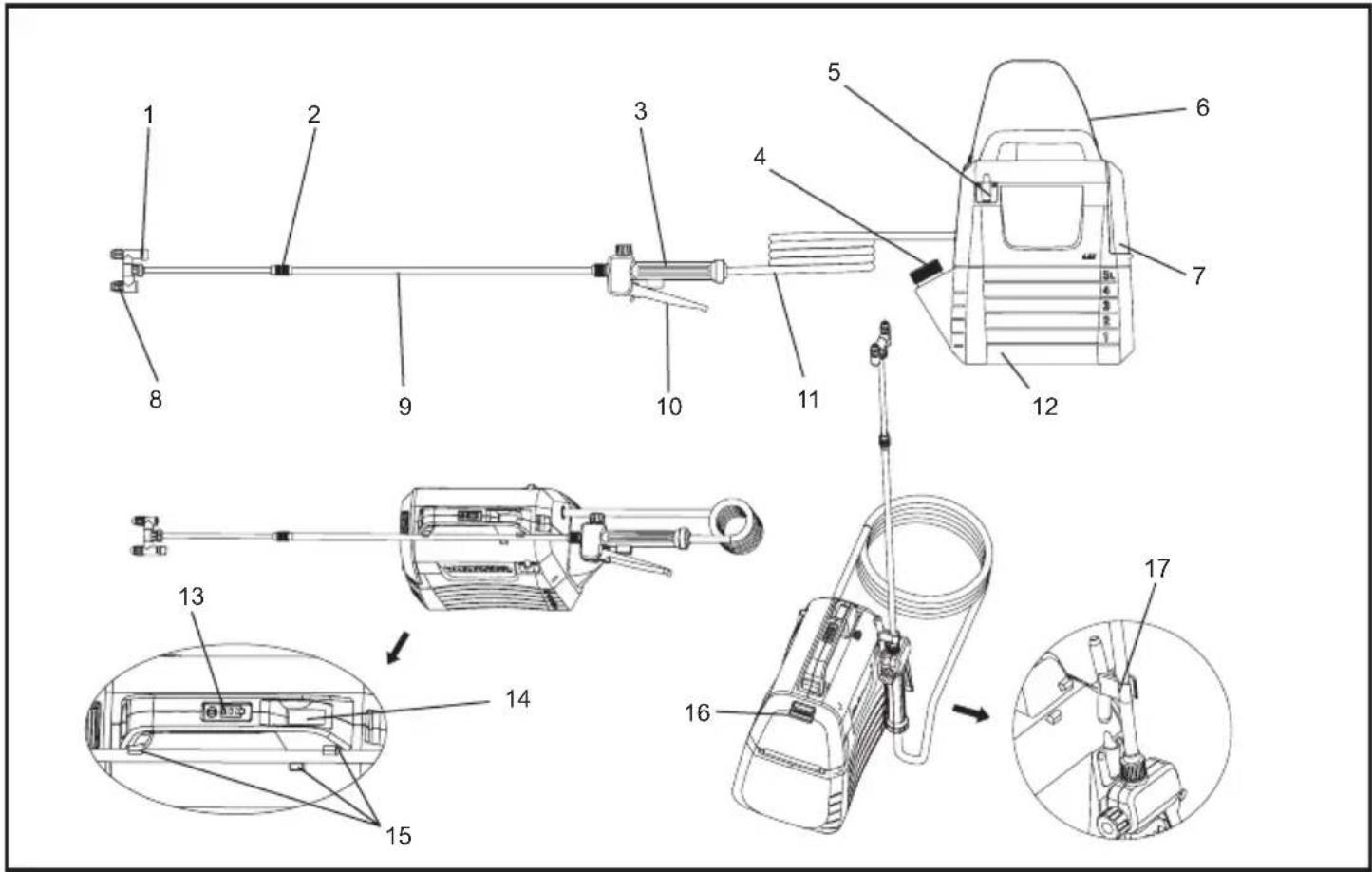

1. Remove the cap from the handle.

2. Make sure the O-ring is in place, then thread the spray wand onto the handle and tighten it securely. Refer to

3. Loosen the extension nut and pull out the spray wand to the desire length.

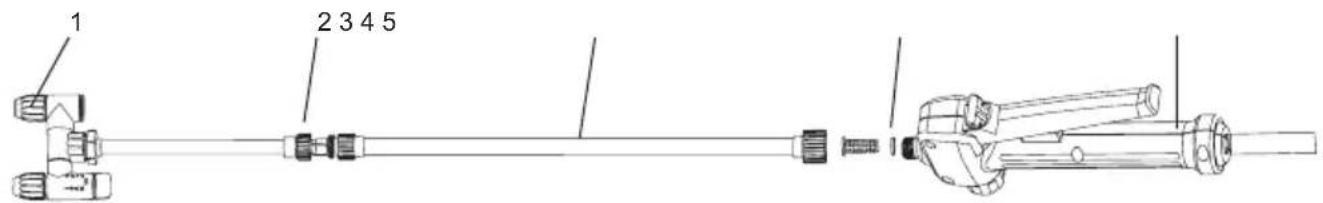

1 Adjustable spray head 2 Extension nut 3 Spray wand 4 O-ring 5 Handle Figure 1 Shoulder strap Attach the shoulder strap to the hangers of the machine as shown in the gure. Refer to Figure 2.

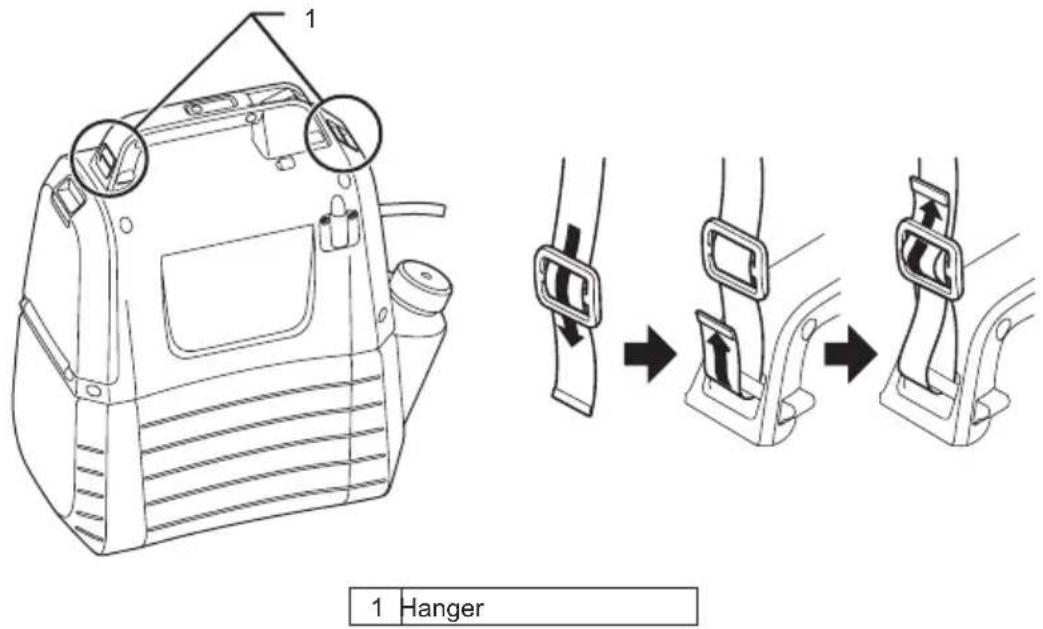

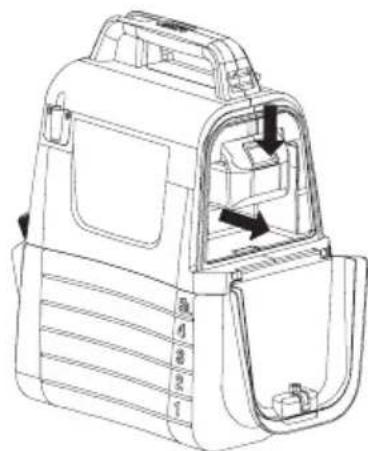

1 Hanger Figure 211 English FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the machine is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the machine. Installing or removing the battery cartridge CAUTION:

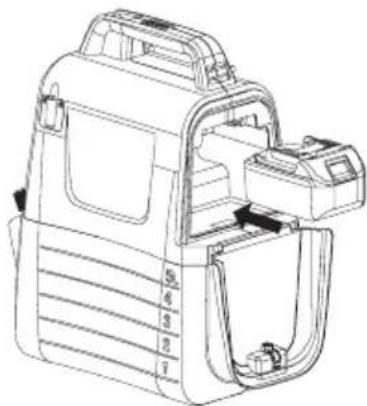

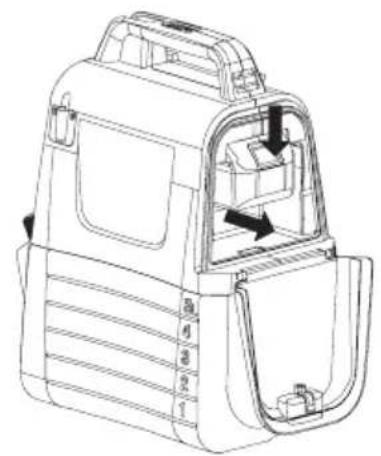

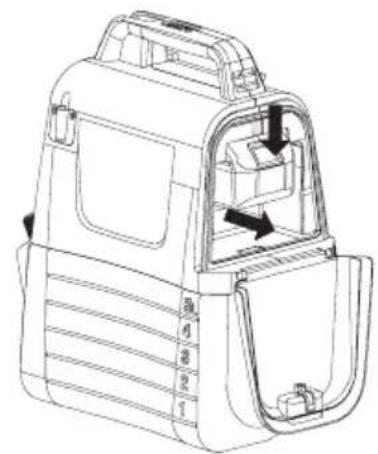

• Always switch o󰀨 the machine before installing or removing of the battery cartridge.

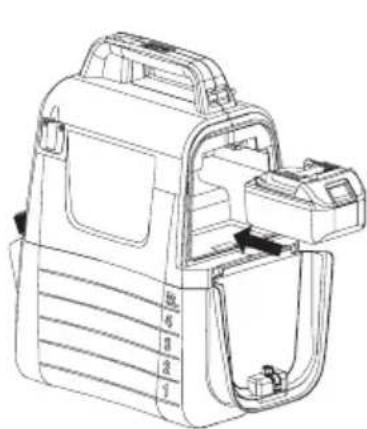

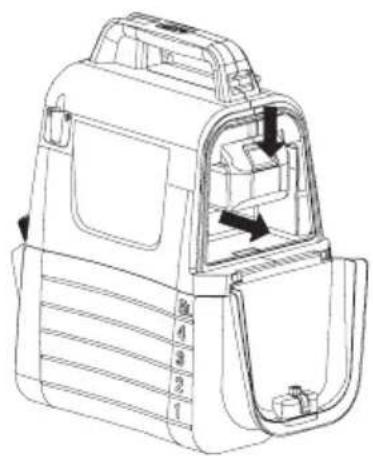

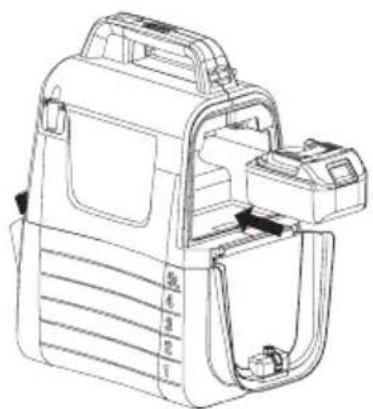

• Hold the machine and the battery cartridge rmly when installing or removing battery cartridge. Failure to hold the machine and the battery cartridge rmly may cause them to slip o󰀨 your hands and result in damage to the machine and battery cartridge and a personal injury.

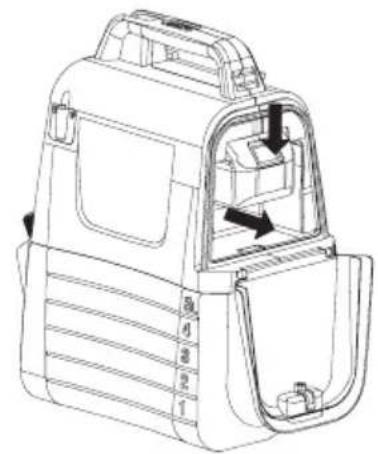

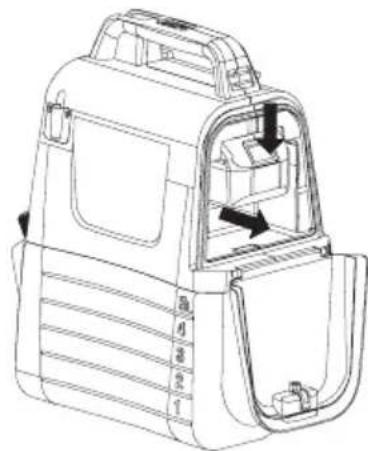

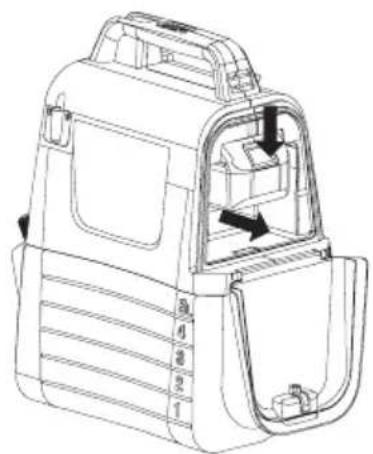

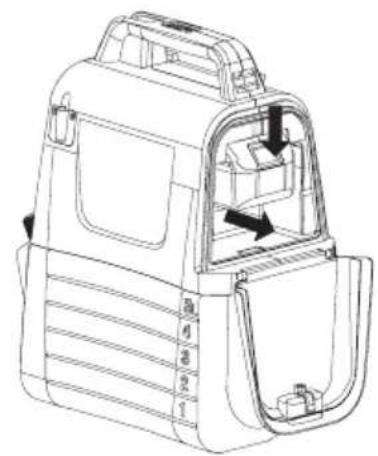

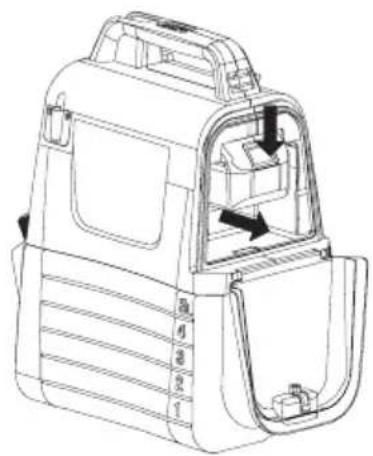

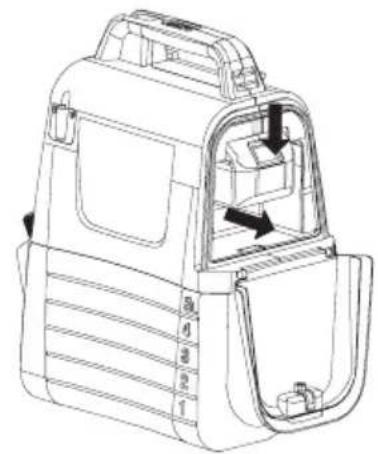

• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly. To install the battery cartridge, pull down the locking lever, and then open the battery cover. Align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. Refer to Figure 3. To remove the battery cartridge, slide it from the machine while pressing the button. Refer to Figure 4. Figure 3 Figure 412 English Indicating the residual battery capacity Press the check button on the machine to indicate residual battery capacity. The indicator lamps light up for few seconds. Refer to Figure 5. Indicator lamps Residual battery capacity Lighted

• Depending on the conditions of use and the ambient temperature, the indication may di󰀨er slightly from the actual capacity.

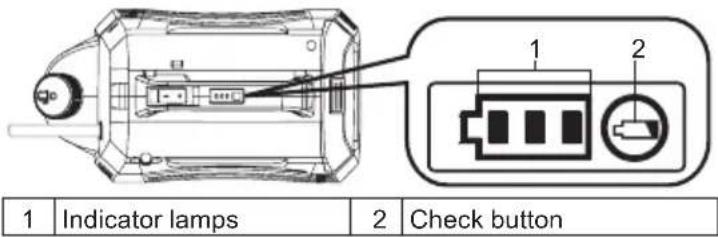

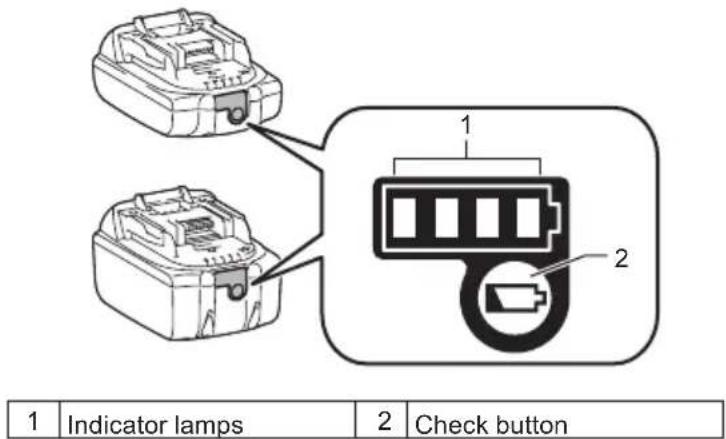

Check button Figure 5 Machine / battery protection system The machine is equipped with the protection system. This system automatically cuts o󰀨 power to the motor to extend machine and battery life. The machine will automatically stop during operation if the machine or battery is placed under one of the following conditions. - Overload protection : When the machine is operated in a manner that causes it to draw an abnormally high current, the machine automatically stops without any indication. In this situation, turn the machine o󰀨 and stop the applica- tion that caused the machine to become overloaded. Then turn the machine on to restart. - Overdischarge protection : When the battery capacity becomes low, the machine stops automatically. If the machine does not operate even when the switches are operated, remove the battery cartridge from the machine and charge it. Indicating the remaining battery capacity Only for battery cartridges with the indicator

Check button Figure 613 English Press the check button on the battery cartridge to indicate the remaining battery capacity. The indicator lamps light up for a few seconds. Indicator lamps Remaining capacity Lighted O󰀨 75 % to 100 % 50 % to 75 % 25 % to 50 % 0 % to 25 % NOTE: Depending on the conditions of use and the ambient temperature, the indication may di󰀨er slightly from the actual capacity. NOTE: The rst (far left) indicator lamp will blink when the battery protection system works.14 English Mixture WARNING! Always follow the chemical manufacturer’s instructions printed on their product labeling for use, cleaning, and storage. Clean thoroughly after each use, following the instructions in the Maintenance and cleaning section of this manual. Chemicals should be stored out of the reach of children. Failure to do so may result in serious personal injury. WARNING! THE PRODUCT IS DESIGNED FOR SPRAYING CONSUMER-GRADE HOME AND GARDEN CHEMICALS SUCH AS WEED KILLERS, FUNGICIDES, INSECTICIDES, AND FERTILIZERS. CAUTION: Be sure that no previously used chemical has been left in tank. If so, chemical reaction may occur generating harmful gas. NOTICE: Do not over ll the tank. Doing so may damage the machine. NOTICE: Liquids to be sprayed must be as thin as water. Thicker liquids will not spray properly.15 English

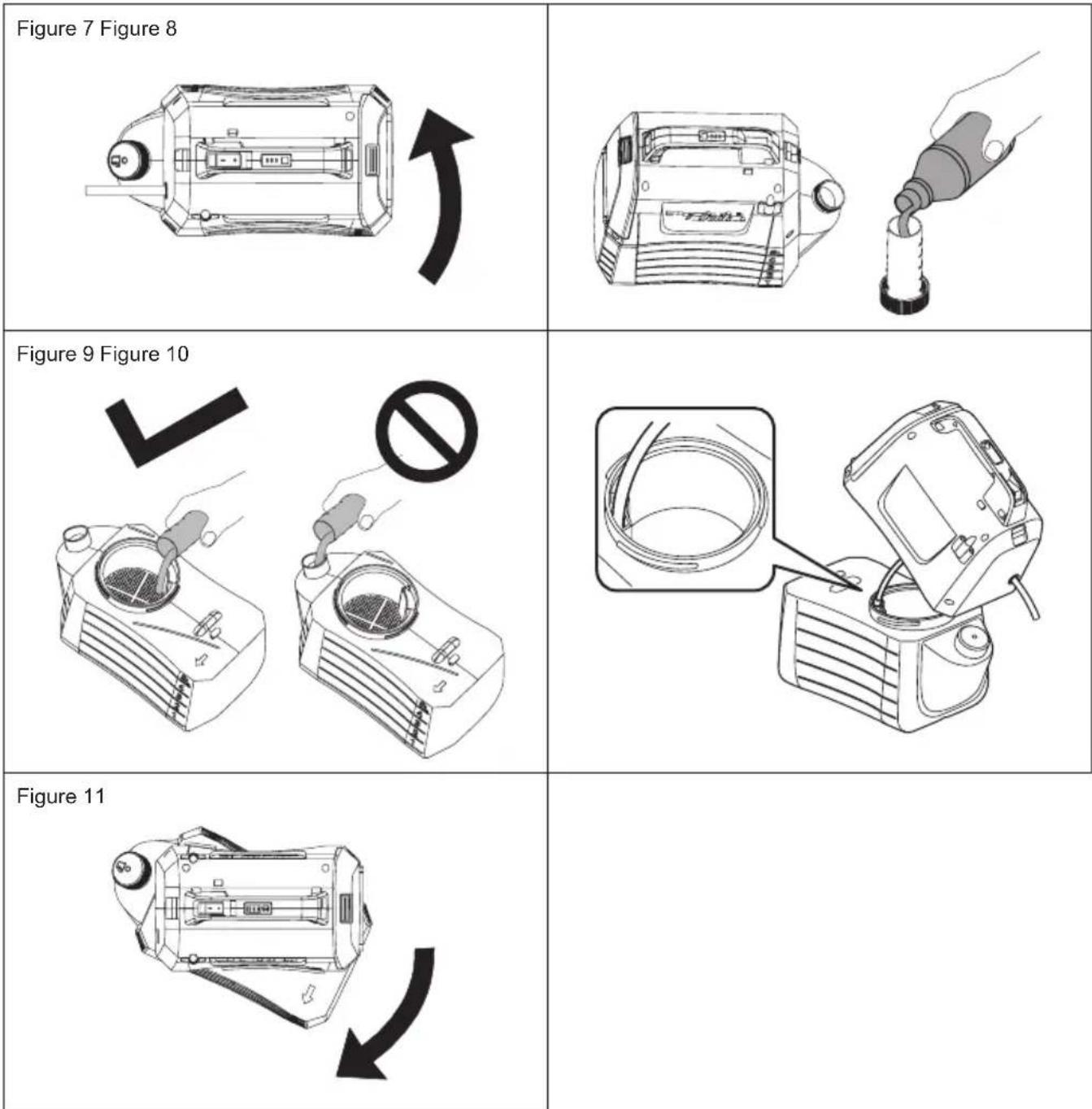

1. Remove the battery prior to adding chemical liquid to the tank.

2. Hold the tank rmly and rotate it anti-clockwise so as to separate the motor housing from the tank. Refer to Figure 7.

3. Unscrew and remove the measuring cup.

4. Measure the recommended liquid. The cup can be used to measure up to 50 ml (2 oz) of liquid. Refer to Figure 8.

5. Carefully pour the liquid into the tank with measuring cup through the lling opening of the tank. You can also

dissolve chemical liquid in water completely in a separate container and then pour it into the tank. Make sure you always pour chemical liquid into the tank through the lling opening of the tank rather than small opening which is for measuring cup storage. Make sure that the tank lling strainer is in place. Refer to Figure 9.

6. Rinse the measuring cup with clean water.

7. Ret the cup, making sure it is tightened securely.

8. Insert the hose into the depressed part of the tank lling strainer. Refer to Figure 10.

9. Reattach the motor housing to the tank and rotate it clockwise to “Click”. Refer to Figure 11.

*Container is not included. Figure 7 Figure 8 Figure 9 Figure 10 Figure 1116 English WARNING! Risk of re or explosion. Spray area must be well-ventilated and away from sparks or ames. OPERATION CAUTION: When operating the machine, be sure to put the shoulder belt on your shoulder rmly. Turning the machine on/o󰀨

1. Before operating the machine, put on safety goggles and other safety gear.

2. Press the On/o󰀨 switch to start the machine.

3. Press and hold the lever down to start spraying. Refer to Figure 12.

4. Release the lever to stop spraying.

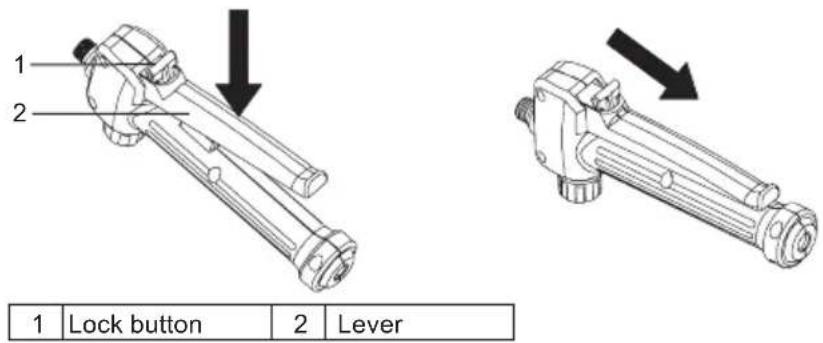

Lock-on The lock-on feature is convenient for continuous spray or when covering a large area.

1. To lock-on, press the lever down and pull the lock button backwards, then release the lever. Refer to Figure 13.

2. To release the lock-on, press the lever and push the lock button forward.

Note: Make sure the lever is not in locked position before inserting the battery pack into the machine.

Lever Figure 12 Figure 13 Adjustment to one-head type

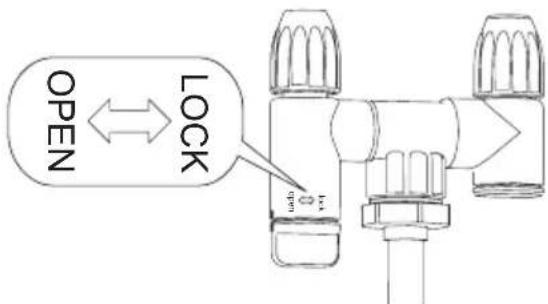

1. Turn the cock to the “lock” side to use the machine as one head type. Refer to Figure 14.

23(1 /2&. ORFN RSHQ Figure 14 Adjusting spray You can mist or jet the liquid using the adjustable spray head.

1. Remove the battery pack from the machine.

2. To mist the liquid, tighten the adjustable spray head.

3. To jet the liquid, loosen the adjustable spray head.

Tighten Loosen17 English Caution

• Do not touch nozzle lever by mistake when resting nozzle on nozzle stand to avoid erroneous spraying.

• Do not leave leftover chemical inside tank for a long period of time. This would damage parts and shorten life of product.

Spraying WARNING! Never set the unit on the ground during use. Avoid the machine and battery from getting wet at all times. Do not spray near or directly at the unit.

1. Aim the sprayer nozzle directly at the plants or objects you wish to spray.

2. Never point the spray end of the wand at yourself or others.

Be aware of splash back, stand far enough from the object being sprayed to prevent the spray splashing back onto you

4. Never spray in the direction of people or animals; always spray downwind.

5. Avoid spraying on windy days. Spray can be accidentally blown onto plants or objects that should not be sprayed.

MAINTENANCE AND CLEANING

CAUTION: Always be sure that the machine is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. MAINTENANCE WARNING! To avoid serious personal injury, always remove the battery pack from the machine when cleaning or performing any maintenance. WARNING! Always wear eye protection with side shields or goggles marked to comply with ANSI Z87.1. Failure to do so could result in uids entering your eyes resulting in possible serious injury. WARNING! When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING! Do not at any time let brake uids, gasoline, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic which may result in serious personal injury. NOTICE: Periodically inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please contact customer service or a qualied service center for assistance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. GENERAL MAINTENANCE: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean clothes to remove dirt, dust, oil, grease, etc.

WARNING! Always store and dispose of chemicals properly. Disposal of contaminated rinse water should be performed according to local ordinances and by laws.18 English

If there is any liquid left in the tank after spraying, the tank should be drained before cleaning.

• Remove the battery pack.

• Remove the motor housing from the tank.

• Drain the contents through the ll area. NOTE: Drain the liquid back into the original container. Do not store chemical liquid in the tank.

• Fill the tank about one-third full with clean water. A small amount of mild household detergent may be added. NOTE: Never use ammable chemicals or abrasive cleaning agents to clean the tank.

• Wipe the outside of the tank with a clean, dry cloth.

• Reattach the motor housing to the tank.

• Reinstall the battery pack. Spray until the tank has been emptied. Make sure to direct the spray toward an area that will not be damaged by the spray solution.

• Rell and repeat the procedure with clean water. It may be necessary to rinse the tank more than once, then drain again as instructed above.

• Allow all parts to completely dry before reinstalling parts and storing the unit.

If the nozzle becomes plugged, use the steps below to clear.

• Remove the battery pack.

• Unscrew and remove the nozzle cap form adjustable spray head of the spray wand.

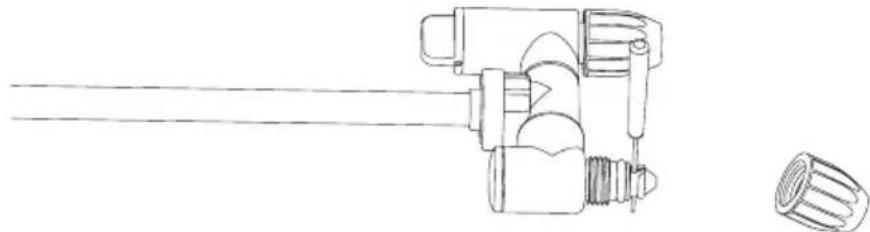

Push a small wire through the exposed holes to clear any debris. Then ush with clean water. Refer to Figure 15

• Wipe the adjustable spray head with a clean dry cloth, and reattach the nozzle cap to the adjustable spray head.

If the sprayer cannot draw the uid from tank or it cannot spray out liquid at the rst use or after long-term storage. Follow the procedures below to clean the pump:

1. Switch o󰀨 the machine and remove the battery.

2. Remove the spray wand from handle.

3. Drain any remaining liquid or store leftover liquid to another container to make sure the tank is empty.

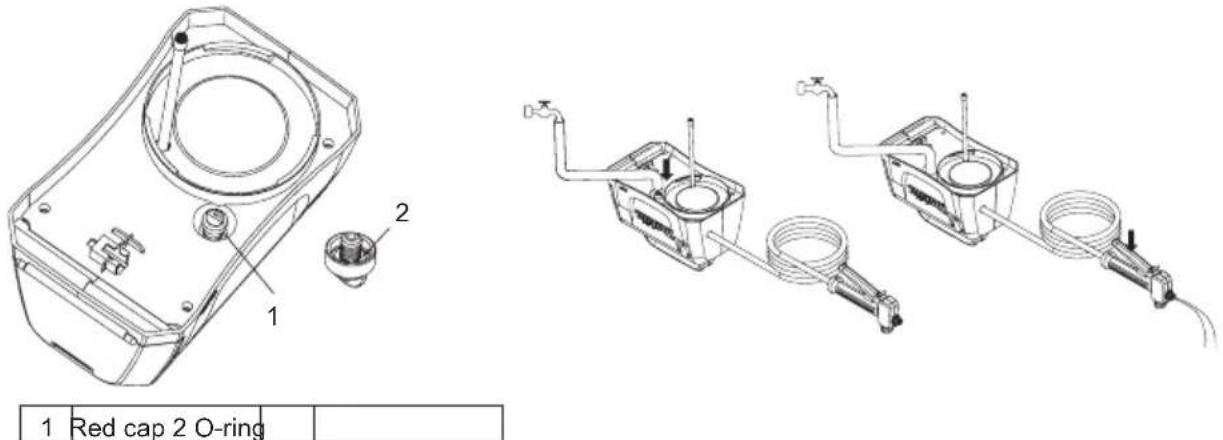

4. Separate the motor housing from the tank and turn it upside down. Refer to Figure 16.

5. Unscrew the red cap to open water inlet hole, and then connect the hole to the water tap. Make sure the O-ring is

placed inside the red cap.

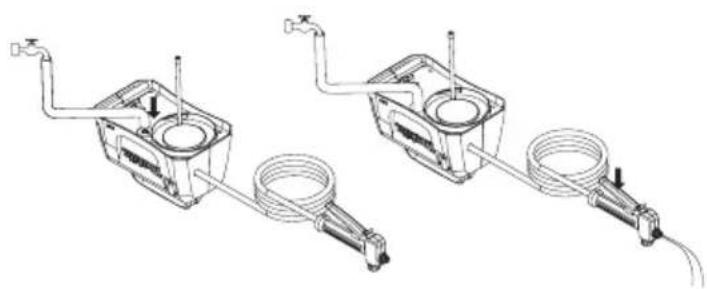

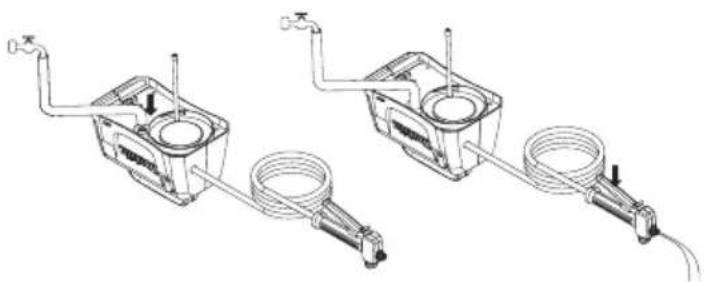

6. Open the water tap slowly and press down the lever at the same time to allow water ush away any debris

adhered to the pump. Refer to Figure 17.

7. Disconnect the water tap and re-tighten the red cap. Make sure that the O-ring inside the cap is in place.

Figure 16 Figure 17 1 Red cap 2 O-ring19 English OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita product specied in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attach- ment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Makita genuine battery and charger. NOTE:

• Some items in the list may be included in the product package as standard accessories. They may di󰀨er from country to country.20 Portuguese

:EN62841-1A (A) 70 dB :(L ) (A) 3 dB :(K
