40 Plus - Measuring equipment Testboy - Free user manual and instructions

Product type	Voltage tester
Brand	Testboy
Model	40 Plus
Voltage range	6 – 400 V AC/DC
Overvoltage category	CAT III 400 V
Control standard	EN 61010-1:2010
Frequency range	0 – 500 Hz
Duty cycle	30 s (on) / 240 s (off)
Protection rating	IP 65
Operating temperature	-15 °C to 45 °C
Power supply	Batteries (2x AAA 1.5 V)
Display	LED
LED indicators	6 voltage levels and polarity (+/-)
Main functions	AC/DC voltage test, polarity test, phase detection, non-contact voltage detection
Maintenance	Clean with a damp cloth; store in a dry and clean place
Safety	Follow the five safety rules; do not use if display is faulty
Warranty	Not specified, but exclusion in case of non-compliance with instructions
Included accessories	Not specified
Country of origin	Germany (brand Testboy GmbH)

Frequently Asked Questions - 40 Plus Testboy

How to test a DC voltage with the Testboy 40 Plus?

Place the test probes on the DC voltage source. The lower LEDs (6V + -) light up according to the present voltage. The upper LEDs indicate the polarity (+ or -).

How to test an AC voltage?

Place the test probes on the AC voltage source. The two upper LEDs (6V + -) light up simultaneously, as do the lower LEDs according to the voltage. The simultaneous illumination of the upper LEDs means AC voltage.

What to do if the LED display does not work?

First test the device on a known voltage source (e.g., 230 V). If one or more LEDs do not light up, do not use the device and have it checked by qualified personnel.

Can I use the device near electromagnetic fields?

Avoid using the device near electric welding equipment or induction heating devices to avoid interference.

How to clean the tester?

Clean the device with a damp cloth. Always store it in a dry and clean place.

What is the meaning of the LEDs that light up?

The lower LEDs indicate the voltage level (6 V to 400 V). The upper LEDs indicate the polarity for DC voltage or the presence of AC voltage when they light up simultaneously.

How to locate a phase?

Hold one test probe against the protective conductor and touch the other conductor with the other probe. When detecting the phase, the Testboy 40 Plus indicates AC voltage. The RCD is not triggered.

What safety instructions must be followed?

Follow the five safety rules: disconnection, protection against reconnection, verification of absence of voltage, grounding, and covering nearby live parts. Only touch the handles of the device.

Is the device waterproof?

Yes, the Testboy 40 Plus has an IP 65 protection rating, making it dust-tight and resistant to water jets.

How to replace the batteries?

Open the battery compartment (not detailed in the manual). Remove the used batteries and insert new AAA 1.5 V batteries. If not used for a long time, remove the batteries to avoid damage.

USER MANUAL 40 Plus Testboy

Operating instructions

Testboy® 40 Plus

Mode d'emploi

Testboy® 40 Plus

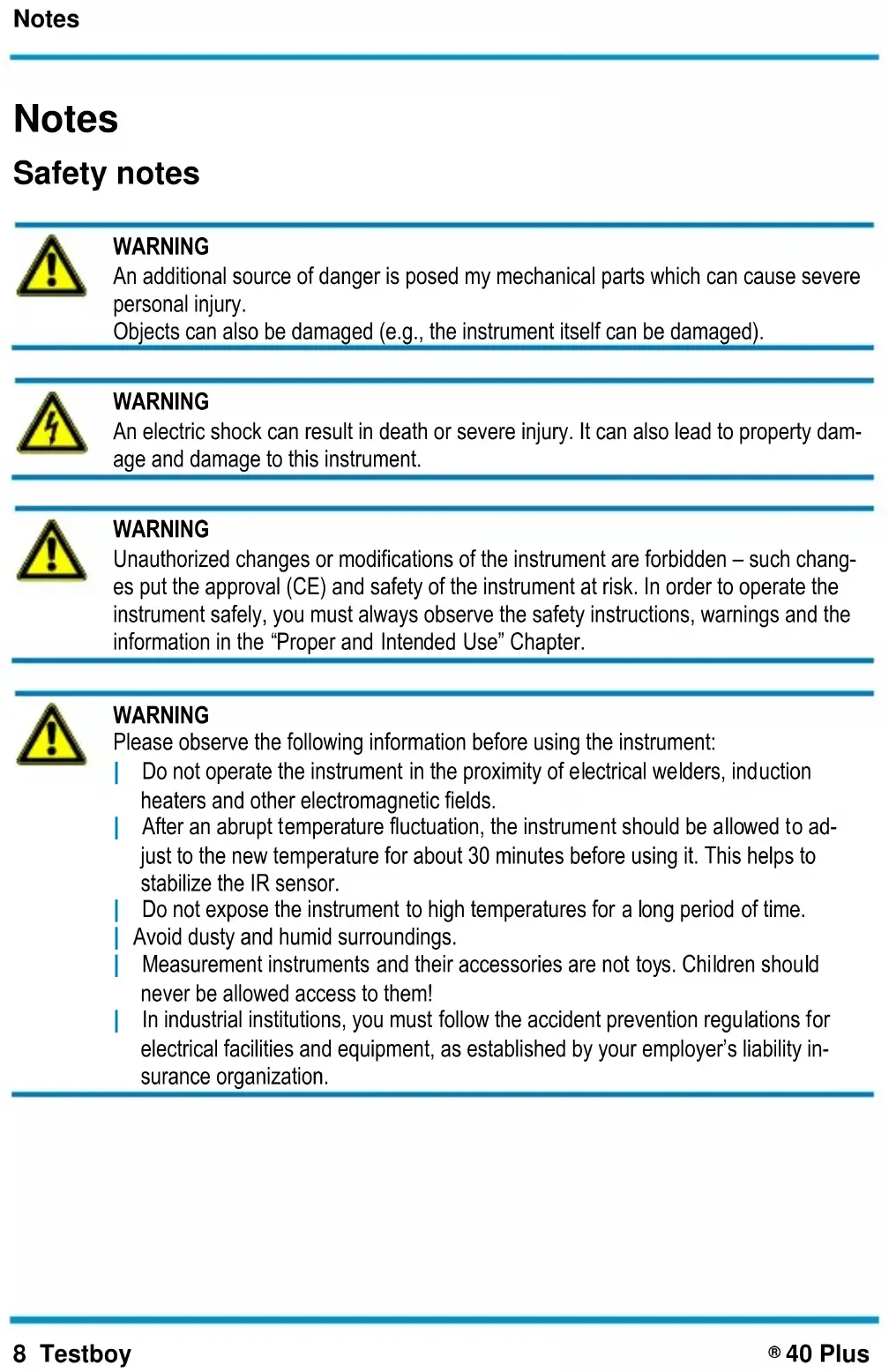

An additional source of danger is posed my mechanical parts which can cause severe personal injury.

Objects can also be damaged (e.g., the instrument itself can be damaged).

WARNING

An electric shock can result in death or severe injury. It can also lead to property damage and damage to this instrument.

WARNING

Unauthorized changes or modifications of the instrument are forbidden – such changes put the approval (CE) and safety of the instrument at risk. In order to operate the instrument safely, you must always observe the safety instructions, warnings and the information in the "Proper and Intended Use" Chapter.

WARNING

Please observe the following information before using the instrument:

Do not operate the instrument in the proximity of electrical welders, induction heaters and other electromagnetic fields.

After an abrupt temperature fluctuation, the instrument should be allowed to adjust to the new temperature for about 30 minutes before using it. This helps to stabilize the IR sensor.

Do not expose the instrument to high temperatures for a long period of time.

Avoid dusty and humid surroundings.

Measurement instruments and their accessories are not toys. Children should never be allowed access to them!

In industrial institutions, you must follow the accident prevention regulations for electrical facilities and equipment, as established by your employer's liability insurance organization.

Please observe the following five safety rules:

1. Disconnect.
2. Ensure that the instrument cannot be turned back on again.
3. Ensure isolation from the main supply voltage (check that there is no voltage on both poles).
4. Earth and short-circuit.
5. Cover neighbouring parts that are under live electrical load.

Proper and intended use

This instrument is intended for use in applications described in the operation manual only. Any other usage is considered improper and non-approved us-age and can result in accidents or the destruction of the instrument. Any misuse will result in the expiry of all guarantee and warranty claims on the part of the operator against the manufacturer.

Remove the batteries during longer periods of inactivity in order to avoid damaging the instrument.

We assume no liability for damages to property or personal injury caused by improper handling or failure to observe safety instructions. Any warranty claim expires in such cases. An exclamation mark in a triangle indicates safety notices in the operating instructions. Read the instructions completely before beginning the initial commissioning. This instrument is CE approved and thus fulfils the required guidelines.

All rights reserved to alter specifications without prior notice.

© 2014 Testboy GmbH, Germany.

Disclaimer and exclusion of liability

The warranty claim expires in cases of damages caused by failure to observe the instruction! We assume no liability for any resulting damage!

Testboy is not responsible for damage resulting from:

failure to observe the instructions,
changes in the product that have not been approved by Testboy,
the use of replacement parts that have not been approved or manufactured by Testboy,

the use of alcohol, drugs or medication.

Correctness of the operating instructions

These operating instructions have been created with due care and attention. No claim is made nor guarantee given that the data, illustrations and drawings are complete or correct. All rights are reserved in regards to changes, print failures and errors.

Disposal

For Testboy customers: Purchasing our product gives you the opportunity to return the instrument to collection points for waste electrical equipment at the end of its lifespan.

The WEEE directive regulates the return and recycling of electrical appliances. Manufacturers of electrical appliances are obliged to take back and recycle all electrical appliances free of charge. Electrical devices may then no longer be disposed of through conventional waste disposal channels. Electrical appliances must be recycled and disposed of separately. All equipment subject to this directive is marked with this logo.

Certificate of quality

All aspects of the activities carried out by Testboy GmbH relating to quality during the manufacturing process are monitored permanently within the framework of a Quality Management System. Furthermore, Testboy GmbH confirms that the testing equipment and instruments used during the calibration process are subject to a permanent inspection process.

Declaration of Conformity

The product conforms to the present directives. For more detailed information, go to www.testboy.de

Operation

Thank you very much for choosing the Testboy 40 Plus, a voltage testing device with LED display. It can be used to perform DC and AC voltage tests from 6 to 400V and polarity tests. The IP 65 protection class of the Testboy 40 Plus means that it can be used under harsh conditions. You have selected a device that is designed to offer you a high degree of safety. In order to ensure that the unit is operated correctly and safely, read these operating instructions thoroughly BEFORE operating the device.

Check the function of the voltage testing device immediately prior to its use (VDE regulation 0105, Part 1), by connecting it to a known voltage source (e.g. a 230V power socket). If the indicator shows that one or more functions are not working correctly, do not use the device any further, but have it examined by a qualified service technician. You can contact our works service department. Always hold the device by its handles. Avoid touching the probe tips. The voltage indications on the Testboy are only rated values. Trouble-free operation can only be guaranteed at temperatures of between -15^ and +45^ . Keep the device clean and dry at all times. The casing may be cleaned by wiping with a damp cloth.

Testing DC voltage

When placing the test probes on an DC voltage within the rated voltage range, one of the lower (6V + -) LEDs and the LED arranged underneath them illuminate according to the voltage applied.

The upper LED indicators show the voltage, whereby the reference pole is connected to the large hand element.

Testing AC voltages

When placing the test probes on an AC voltage within the rated voltage range, both of the upper (6V + -) LEDs and the LED located underneath them illuminate according to the voltage applied. Simultaneous lighting up of the upper LEDs indicates the presence of an AC voltage.

Phase search:

Hold a test probe against the protective conductor and check the other conductor with the other test probe. The Testboy 40 Plus indicates the AC voltage for the phase in question. FI/RCD is not triggered.

Technical data

Voltage range	6 – 400 V AC/DC
Overvoltage category	CAT III 400 V
Testing standard	EN 61010-1:2010
Frequency range	0...500 Hz
Duty	max. 30 s on \ 240 s off
Degree of protection	IP 65
Operating temperature	-15 °C to 45 °C

Remarques

Ecn np6op He 6ydt NcnoB3oBaTbCra dNITeHbHOe Bpemr, H3 Hero CneDyeT N3Bnueb 6atape Bo n36exKaHne NOBpeXdHnna np6opa.

I3ROTOBnTeJIb He HecET OTBeTCTBeHHocTb 3a MaTePnaJIbHbI yUepe6 IIN BpeD 3dOpOBbIO JIODei, BO3NkaIOUcNI BCNEdCTBne HEnpaBnJIbHOro ObaueHnca np6opom IIN Heco6JIoDeHnra IpaBnI TexHnKn 6e3OanachocTn. B TaKnx Cnyaax NCKIOuAOTcR BcAKNe IpeTeH3nn NO rapaHTn. B NaCTOaJe INcTOJyKcnn PO IcNoJIb3OBAHnIO Yka3AHnI NO TexHnke 6e3OanachocTn COpOBQJaOTcR CmMBOJOM «BOckNIuaTeJIbHbI 3NaK B TpeYroJIbHnKe». IpeE HaayAm paboTbI c np6bpom IONHOCTbIO npouHTaIte INcTpyKcUIO. DaHHOMy np6bpOy npncBOeH 3HaK CE, To eCTb OH OTBeaET Tpe6OBaHNrM COOTBeTCTByIOUx DInpeKTNB.

CoxpaHareTc npaBO Ha n3MeHeHne cNeuФkaCnB 6e3 npedBaPntbHOro yBeDOMHeHn. © 2014 Testboy GmbH, TepMaHnIa

IcklioueHne OTBETCTBeHHOCTN

Pn NOBpeKdEHNx, BO3HkaIOx BCJeDCTBHe HecO6IIODeHn IHCtpyKuIN no
NCNoJIb3OBaHnIO rapaHTn aHHyInpyeTc! N3rOToBnteJb He HecET OTBeTCTBeHHocTb
3a CBra3aHHbIC 3TNIM KOCBeHHbI yuep6!

Kompania Testboy He HeceT OTBeTCTBHeHOctb 3a yuep6, Bo3HnKaIOuI BcJeDCTBVE:

HecobnOeHnI HNCTpyKuIN NO 3KcPnyaTaun,
n3MeHen n3deJInr, He pa3peSeHHbIX qnpMoT Testboy, nnn

PpIMHeHn3aNaChbIX Yacte, He opunHaNbHbIX nHn He pa3peuHhbIX qHpMoN Testboy pa60TbI NOB BO3DeiCTBnEM aIKOROJI, HApKOTnueckNX CpeCTB NII MEdNKaMeHTOB.

Copejxahne Hnctpykun no nCnoJb30BaHNO

Hactoa Hctpkua no nCnoB3ObaHnO coCTaBHeHa C ocob TuaTeNbHOCTbIO. Pnp 3tOM u3ROTOBHTb He Hecet OTBETCTBeHHOCTh 3a npaBnBHOCTb I NOJHOTy daHHbIX, pncyHKOB u cepTeke. DonyckaTcra N3MeHeHna, OeayTKN HeTOUHOCTN.

Ytunn3aun

Ybaxaembl nokynatelnb 3dennr Testboy! Ctab obnadatelem haawero n3deinra, Bbl nonynnn BO3MOXHOCTb cdaTb ero no OKOHuaHmCpoka cnjx6bl Ha cneuaJbHbI pyHKT c6opa OTCnyKINBweJ 3NeKTPOTEXHNI.

Директува WEEE PerуларуET Bo3Bpatи yTuInI3aцИо эЛeКтчecKOrO obopydOBAHЯ. ПюиЗВодпели эЛeКтчecKOrO obopydOBAHЯ obязныбесплathо 3a6upatьи yTuInI3npoBaTb Bce эЛeKtpruYeCKne np6obpyi. эЛeKtponp6obby 6oIbSe HeIb3a yTuInI3npoBaTb NO obbyHbIM kaHaJAM yTuINI3aцИN OTXODOB. эЛeKtponp6obpyI DoIxHbI nepepa6aTbIBaTbcr N yTuINI3npoBaTbCЯ OTdeIbHo. BcE obopydOBAHme, nonaIauIeepoiNoДанHyD INPeKtNBy,nomeueHO 3TIm IOROTINOM.

Ceptnoikat kayecTba

Bce pa60tbl npoueccb Bnytpn KOMnaHn Testboy GmbH, BnnaUoIne Ha kaueCTBO npOdyKuIN, NOCTOHHo KOHTPOIpyOTcB pAMkax CnCTeMbI ynpaBNeHn KaueCTBOM. Kpome TOrO, KOMnaHn Testboy GmbH noDTBePxxJaet, YTO np6Opbl N ycTPOiCTBa, npImHeMbIe dNra KaJIb6PoBKn, CAMn NoCTOHHo PNOBepAOTcKa KcpeDcTBa KOHTPOJn.

Декларачи O COOTBeTCTBnN

I3dJIeNE COOTBETCTByeT DeIcTBYIOUIM DnpeKtNBam. BoJee nOdpOBHyIO INΦopMaUIO MOxHO NaHTNa caTe www.testboy.de

Исpenьзоване рибopa

Germany [e-mail]
