USER MANUAL DMS107 D-LINK

ENGLISH PRODUCT SETUP SWITCH SET-UP Step 1 Plug the power adapter into a free wall socket, then plug the other end of the power adapter cable into the power port of the switch. The power LED will light up, conrming that the device is powered up successfully. Step 2 Use a LAN cable to connect your network device to one of the 7 ports on the switch. Step 3 Check the Link/Act lights(LEDs) on the switch to verify a proper connection. RouterInternetStatus LEDPowerLAN LAN LAN LAN LAN4 ENGLISH TROUBLESHOOTING

SETUP AND CONFIGURATION PROBLEMS

1. WHAT TO DO IF THE POWER LED IS NOT LIT UP?

Check if the power adapter is properly connected to a wall socket and the back of the switch.

2. WHAT TO DO IF A CONNECTED DEVICE IS NOT DETECTED?

First check if the Port LED is ashing. If the Port LED is not illuminated, try connecting the device using a di󰀨erent LAN cable. TECHNICAL SUPPORT Location Color Status Description LED Per 1000 BASE-T Port(Port 1-5)GreenSolid 1000M ConnectionBlinking Data transmission/ActivityAmberSolid 10/100M ConnectionBlinking Data transmission/ActivityO󰀨 Light o󰀨 No linkLED Per 2.5G BASE-T Port(Port 6-7) Blue Solid 2.5G ConnectionBlinking Data transmission/ActivityGreenSolid 1000M ConnectionBlinking Data transmission/ActivityAmberSolid 10/100M ConnectionBlinking Data transmission/ActivityO󰀨 Light o󰀨 No link

PORT LED CONNECTION SPEED

Link/Act LED INDICATORS5 DEUTSCH

CONFIGURATION DU PRODUIT

CONFIGURATION DU PRODUIT

LED KONTROLKY Link/Act

OPSÆTNING AF PRODUKT

OPSÆTNING AF PRODUKT

PORTA LED INDICADORES LED Link/Act

INDICATOARE LED Link/Act Internet

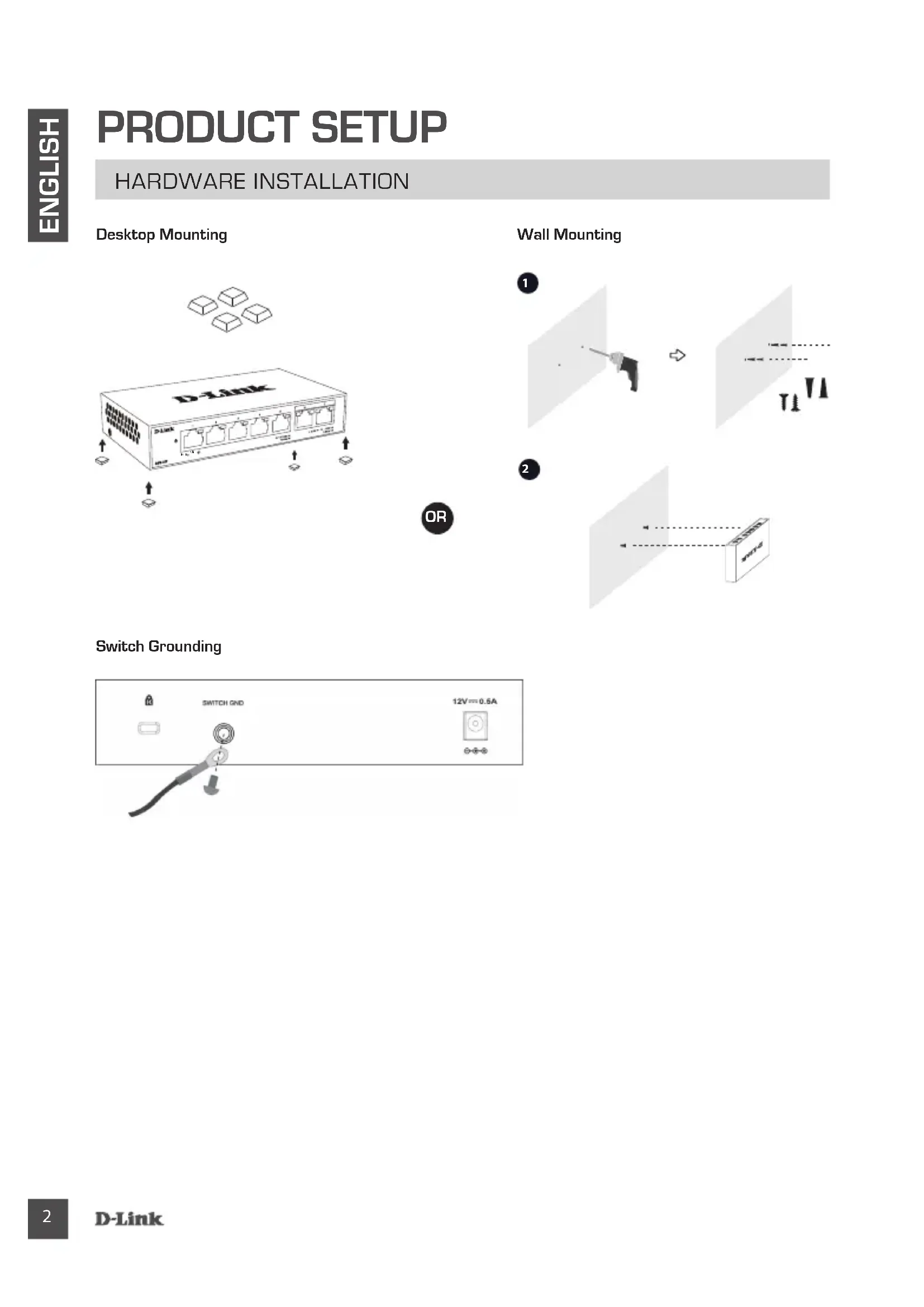

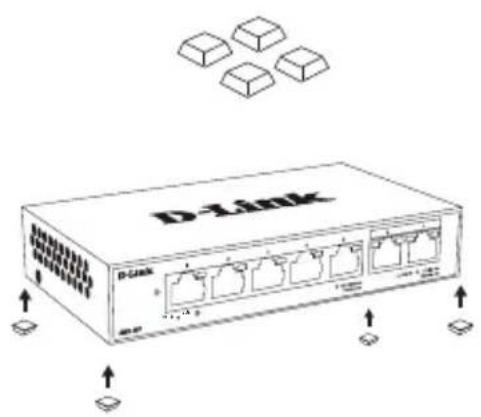

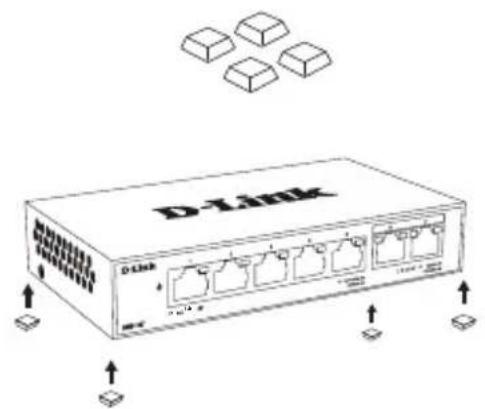

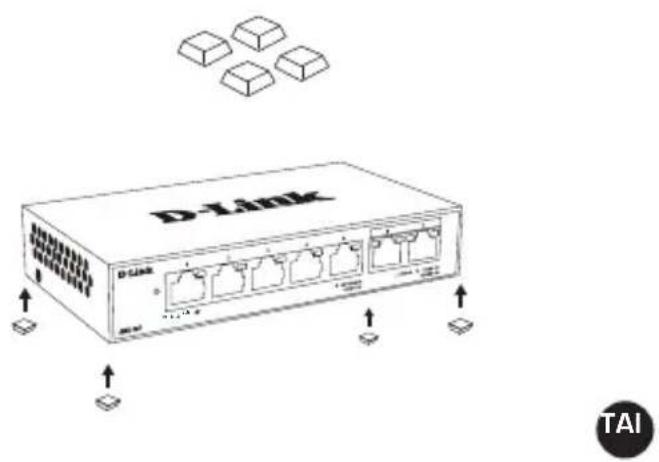

服務資訊83 BAHASA INDONESIA SETUP PRODUK INSTALASI HARDWARE Desktop Mounting Switch Grounding Wall Mounting

TECHNICAL SUPPORT この度は弊社製品をお買い上げいただき、誠にありがとうございます。 製品に同梱されている保証書の購入元にお問い合わせください。91 CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. FCC statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help Innovation, Science and Economic Development Canada (ISED) Statement This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Japan Voluntary Control Council for Interference Statement この装置は、クラス B 情報技術装置です。この装置は、家庭環境で使用することを目的としています が、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こすことがあり

取扱説明書に従って正しい取り扱いをして下さい。 VCCI-B Japan Voluntary Control Council for Interference Statement This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. Appendix-Regulatory Statements92 SAFETY INSTRUCTIONS The following general safety guidelines are provided to help ensure your own personal safety and protect your product from potential damage. Remember to consult the product user instructions for more details.

• Static electricity can be harmful to electronic components. Discharge static electricity from your body (i.e. touching grounded bare metal) before touching the product.

• Do not attempt to service the product and never disassemble the product. For some products with a user replaceable battery, please read and follow the instructions in the user manual.

• Do not spill food or liquid on your product and never push any objects into the openings of your product.

• Do not use this product near water, areas with high humidity, or condensation unless the product is specifically rated for outdoor application.

• Keep the product away from radiators and other heat sources.

DISPOSING AND RECYCLING YOUR PRODUCT

ENGLISH EN This symbol on the product or packaging means that according to local laws and regulations this product should be not be disposed of in the household waste but sent for recycling. Please take it to a collection point designated by your local authorities once it has reached the end of its life, some will accept products for free. By recycling the product and its packaging in this manner you help to conserve the environment and protect human health. D-Link and the environment At D-Link, we understand and are committed to reducing any impact our operations and products may have on the environment. To minimise this impact D-Link designs and builds its products to be as environmentally friendly as possible, by using recyclable, low toxic materials in both products and packaging. D-Link recommends that you always switch off or unplug your D-Link products when they are not in use. By doing so you will help to save energy and reduce CO2 emissions. To learn more about our environmentally responsible products and packaging please visit www.dlinkgreen.com
