USER MANUAL GBH 18V28 CF Professional BOSCH

äußeren Abmessung größer als 25cm sind, im Einzel- handelsgeschäft oder in unmittelbarer Nähe hierzu un- entgeltlich zurückzunehmen; die Rücknahme darf nicht an den Kauf eines Elektro- oder Elektronikgerätes ge- knüpft werden und ist auf drei Altgeräte pro Geräteart beschränkt. Der Vertreiber hat beim Abschluss des Kaufvertrags für das neue Elektro- oder Elektronikgerät den Endnutzer über die Möglichkeit zur unentgeltlichen Rückgabe bzw. Abholung des Altgeräts zu informieren und den Endnutzer nach seiner Absicht zu befragen, ob bei der Auslieferung des neuen Ge- räts ein Altgerät zurückgegeben wird. Dies gilt auch bei Vertrieb unter Verwendung von Fernkom- munikationsmitteln, wenn die Lager- und Versandflächen für Elektro- und Elektronikgeräte mindestens 400m² betragen oder die gesamten Lager- und Versandflächen mindestens 800m² betragen, wobei die unentgeltliche Abholung auf Elektro- und Elektronikgeräte der Kategorien 1 (Wärmeüber- träger), 2 (Bildschirmgeräte) und 4 (Großgeräte mit mindes- tens einer äußeren Abmessung über 50cm) beschränkt ist. Für alle übrigen Elektro- und Elektronikgeräte muss der Ver- treiber geeignete Rückgabemöglichkeiten in zumutbarer Ent- fernung zum jeweiligen Endnutzer gewährleisten; das gilt auch für Altgeräte, die in keiner äußeren Abmessung größer als 25cm sind, die der Endnutzer zurückgeben will, ohne ein neues Gerät zu kaufen. Akkus/Batterien: Li-Ion: Bitte beachten Sie die Hinweise im Abschnitt Transport (sie- he „Transport“, Seite18). English Safety instructions General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- Bosch Power Tools 1 609 92A 96F | (20.12.2023)20 | English tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Battery tool use and care u Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of bat- tery pack may create a risk of fire when used with another battery pack. u Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. u When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addi- tionally seek medical help. Liquid ejected from the bat- tery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excess- ive temperature. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. u Never service damaged battery packs. Service of bat- tery packs should only be performed by the manufacturer or authorized service providers. Hammer Safety Warnings Safety instructions for all operations u Wear ear protectors. Exposure to noise can cause hear- ing loss. 1 609 92A 96F | (20.12.2023) Bosch Power ToolsEnglish | 21 u Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. u Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting ac- cessory or fasteners may contact hidden wiring . Cut- ting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. Safety instructions when using long drill bits with rotary hammers u Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contact- ing the workpiece, resulting in personal injury. u Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend, causing breakage or loss of control, resulting in personal injury. Additional safety information u Use suitable detectors to determine if there are hid- den supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to ex- plosion. Breaking water pipes causes property damage. u Always wait until the power tool has come to a com- plete stop before placing it down. The application tool can jam and cause you to lose control of the power tool. u Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. u In case of damage and improper use of the battery, va- pours may be emitted. The battery can set alight or ex- plode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system. u Do not open the battery. There is a risk of short-circuit- ing. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat. u Only use the battery in the manufacturer's products. This is the only way in which you can protect the battery against dangerous overload. Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting. u Do not touch any application tools or adjacent housing components shortly after operation. These can become very hot during operation and cause burns. u The application tool may jam during drilling. Make sure you have a stable footing and hold the power tool firmly with both hands. Otherwise you could lose con- trol of the power tool. u Take care when carrying out demolition work using the chisel. Falling fragments of the demolition material could injure you or any bystanders. u Hold the power tool firmly with both hands and make sure you have a stable footing. The power tool can be more securely guided with both hands. u Caution! When using the power tool with Bluetooth®, a fault may occur in other devices and systems, aero- planes and medical devices (e.g. pacemakers, hearing aids). Also, damage to people and animals in the im- mediate vicinity cannot be completely excluded. Do not use the power tool with Bluetooth® in the vicinity of medical devices, petrol stations, chemical plants, areas with a potentially explosive atmosphere or in blasting areas. Do not use the power tool with Bluetooth® in aircraft. Avoid using the product near your body for extended periods. The Bluetooth® word mark and logos are registered trade- marks owned by Bluetooth SIG, Inc. and any use of such marks by Robert Bosch Power Tools GmbH is under li- cense. Product Description and Specifications Read all the safety and general instructions. Failure to observe the safety and general in- structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended Use The power tool is intended for hammer drilling in concrete, brick and stone, as well as for light chiselling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. Power tools with electronic control and right/left rotation are also suitable for screwdriving. With the Bluetooth

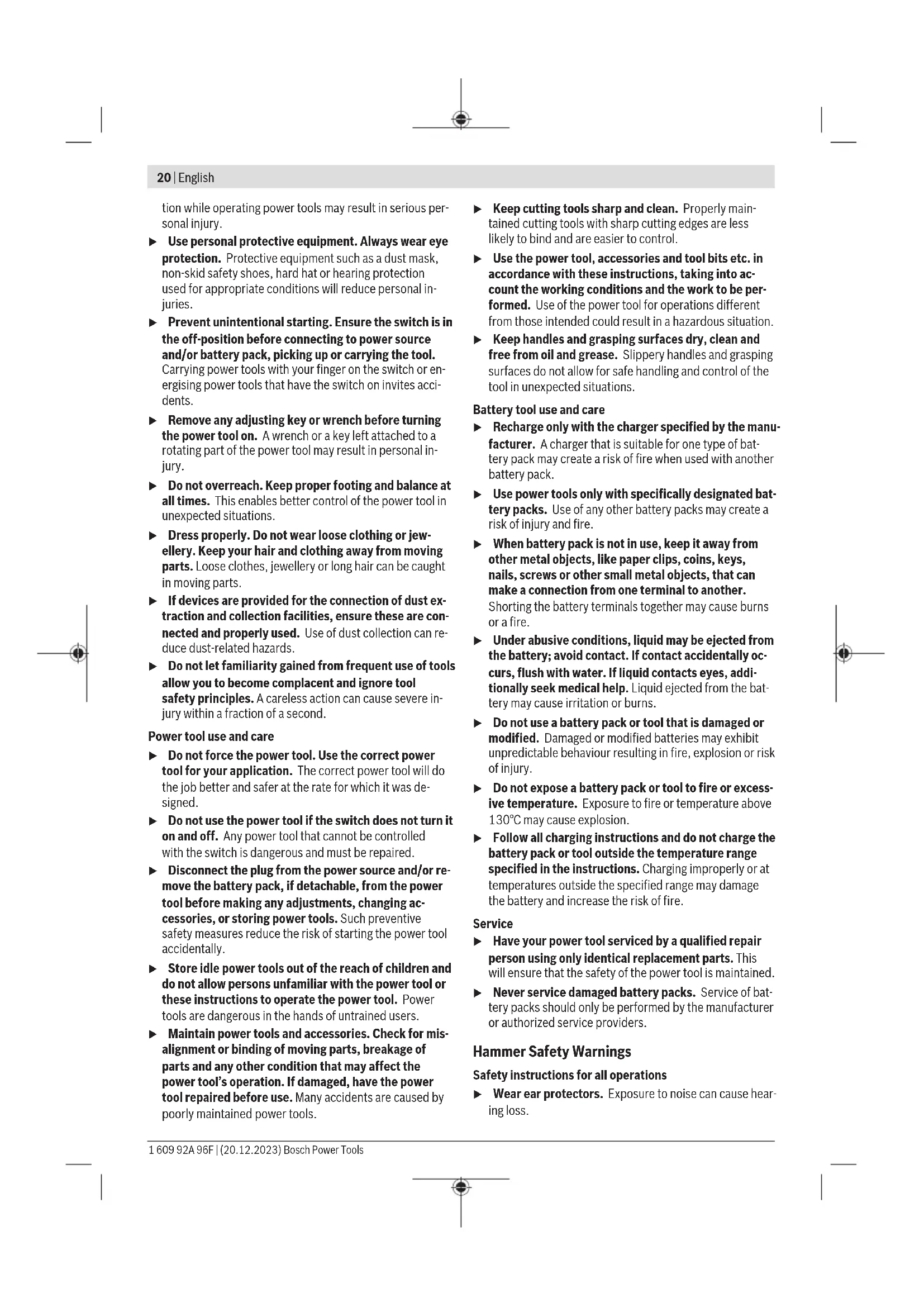

Low Energy Module GCY42 inserted, power tool data and settings can be transferred between the power tool and a mobile device by means of Bluetooth

wire- less technology. Product Features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) Keyless quick-change chuck (GBH18V-28CF) (2) SDS plus quick-change chuck (GBH18V-28CF) (3) SDS plus tool holder (4) Dust protection cap (5) Locking sleeve (6) Locking ring for quick-change chuck (GBH18V-28CF) (7) Vibration damping (8) User Interface Bosch Power Tools 1 609 92A 96F | (20.12.2023)22 | English (9) Rechargeable battery release button

(10) Rotational direction switch (11) Handle (insulated gripping surface) (12) On/off switch (13) Utility hook (14) Rechargeable battery

(31) Keyed chuck (GBH18V-28C)

(32) SDS plus shank for drill chuck (GBH18V-28C)

(39) Attachment area for the fall protection system on the power tool (40) Fall protection system

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Accessories shown or described are not included in the de- livery, nor are they part of the Bosch range of accessories. Technical Data Cordless rotary hammer GBH18V-28C GBH18V-28CF Article number 3611J200.. 3611J210.. Speed control ● ● Stop rotation ● ● Clockwise/anticlockwise rotation ● ● Quick-change chuck – ● Rated voltage V= 18 18 Impact rate

0–4220 0–4220 Impact energy per stroke according to EPTA- Procedure05:2016 J 3.3 3.3 No-load speed

0–950 0–950 Tool holder SDSplus SDSplus Spindle collar diameter mm 50 50 Max. drilling diameter: – Concrete mm 28 28 – Masonry (with hollow core bit) mm 82 82 – Steel mm 13 13 – Wood mm 30 30 Weight without battery kg 3.3 3.4 Weight

kg 3.7–4.7 3.8–4.8 Length mm 349 378 Height mm 225 225 1 609 92A 96F | (20.12.2023) Bosch Power ToolsEnglish | 23 Cordless rotary hammer GBH18V-28C GBH18V-28CF Width mm 92 92 Recommended ambient temperature during charging °C 0to+35 0to+35 Permitted ambient temperature during opera- tion

Measured at 20–25°C with rechargeable battery ProCORE18V 4.0Ah. B) Depends on battery in use C) Limited performance at temperatures <0°C Values can vary depending upon the product and are subject to application and environmental conditions. For further information www.bosch-professional.com/wac. Noise/Vibration Information

GBH18V-28C GBH18V-28CF

Noise emission values determined according to ENIEC62841-2-6. Typically, the A-weighted noise level of the power tool is: Sound pressure level dB(A)

(triax vector sum) and uncertainty K determined according to ENIEC62841-2-6: Hammer drilling into concrete:

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ac- cessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly in- crease the vibration and noise emissions over the total work- ing period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and accessories, keeping their hands warm, and organising workflows correctly. Dust emission information withGDE18V-16 Dust emission values determined according toEN50632-2-6: Respirable dust:<0.5mg/m

The indicated dust emission value was determined under the following operating conditions: Operating mode: Hammer drilling Application tool: SDS plus drill bit, diameter 10 mm Bosch Power Tools 1 609 92A 96F | (20.12.2023)24 | English Note: If the power tool is used in another operating mode, with other application tools or is poorly maintained, the dust emission value may differ. This may significantly increase dust emissions over the total working period. If necessary, establish additional safety measures to protect the operator from the effects of dust emissions, for example: Wear a P2 filter class breathing mask. The regulations on the material being machined that apply in the country of use must be observed. Rechargeable battery Bosch sells some cordless power tools without a re- chargeable battery. You can tell whether a rechargeable bat- tery is included with the power tool by looking at the pack- aging. Charging the battery u Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool. Note: Lithium-ion rechargeable batteries are supplied par- tially charged according to international transport regula- tions. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time. Inserting the Battery Push the charged battery into the battery holder until it clicks into place. Removing the Battery To remove the rechargeable battery, press the battery re- lease button and pull the battery out. Do not use force to do this. The rechargeablebattery has two locking levels to prevent the battery from falling out if the battery releasebutton is pressed unintentionally. The rechargeable battery is held in place by a spring when fitted in the power tool. Battery charge indicator Note: Not all battery types have a battery charge indicator. The green LEDs on the battery charge indicator indicate the state of charge of the battery. For safety reasons, it is only possible to check the state of charge when the power tool is not in operation. Press the button for the battery charge indicator or to show the state of charge. This is also possible when the bat- tery is removed. If no LED lights up after pressing the button for the battery charge indicator, then the battery is defective and must be replaced. The state of charge of the battery is also displayed on the user interface (see "Status indications", page27). Battery model GBA 18V... LED Capacity 3× continuous green light 60–100% 2× continuous green light 30–60% 1× continuous green light 5–30% 1× flashing green light 0–5% Battery model ProCORE18V... LED Capacity 5 × continuous green light 80–100% 4 × continuous green light 60–80% 3 × continuous green light 40–60% 2 × continuous green light 20–40% 1 × continuous green light 5–20% 1 × flashing green light 0–5% Recommendations for Optimal Handling of the Battery Protect the battery against moisture and water. Only store the battery within a temperature range of −20 to 50°C. Do not leave the battery in your car in the summer, for example. Occasionally clean the ventilation slots on the battery using a soft brush that is clean and dry. A significantly reduced operating time after charging indic- ates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal. Assembly u Remove the battery from the power tool before carry- ing out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be re- moved for transport and storage. There is risk of injury from unintentionally pressing the on/off switch. Inserting the Bluetooth® Low Energy Module GCY42 (Accessory) Read the corresponding operating instructions for informa- tion about the Bluetooth® Low Energy ModuleGCY42. Auxiliary handle u Do not operate your power tool without the auxiliary handle(20). u Make sure that the auxiliary handle is always tightened. Otherwise you could lose control of the power tool when working. 1 609 92A 96F | (20.12.2023) Bosch Power ToolsEnglish | 25 Swivelling the auxiliary handle (see figure A) You can swivel the auxiliary handle (20) to any angle for a safe work posture that minimises fatigue. – Turn the lower gripping end of the auxiliary handle (20) anticlockwise and swivel the auxiliary handle (20) into the required position. Then turn the lower gripping end of the auxiliary handle (20) clockwise to retighten it. Make sure that the retaining strap of the auxiliary handle slots into the corresponding groove of the housing. Selecting drill chucks and tools Hammer drilling and chiselling require SDS-plus application tools that are inserted into the SDS-plus drill chuck. For drilling without impact in wood, metal, ceramic and plastic as well as for screwdriving, tools without SDS‑plus are used (e.g. cylindrical shank drill bits). For these tools, a keyless chuck or a keyed chuck are required. Changing the drill chuck Inserting/removing the keyed chuck

You must use a suitable drill chuck (keyed or keyless chuck, accessories) to work with tools that do not have SDS-plus (e.g. cylindrical shank drill bits). Fitting the keyed chuck (see figure B) – Screw the SDS-plus shank (32) into a keyed chuck (31). Secure the keyed chuck (31) using the securing screw (30). Note that the securing screw has a left-hand thread. Inserting the keyed chuck (seefigureB) – Clean and lightly grease the insertion end of the shank. – Insert the keyed chuck with the adapter shank into the tool holder with a turning motion until it automatically locks. – Check that it is locked by pulling the keyed chuck. Removing the keyed chuck – Push the locking sleeve (5) back and remove the keyed chuck (31). Removing/inserting the quick-change chuck

Removing the Quick-Change Chuck (seefigureC) – Pull back on the quick-change chuck locking ring(6), hold it in this position and pull the SDS plus quick-change chuck(2) or the keyless quick-change chuck(1) out from the front. – Once the quick-change chuck is removed, protect it from dirt. Inserting the quick-change chuck (seefigureD) u Use only model-specific original equipment and pay attention to the number of identification grooves (34). Only quick-change chucks with two or three identification grooves are permitted. If an unsuitable quick-change chuck is used, the application tool can fall out during operation. – Before insertion, clean the quick-change chuck and lightly grease the shank. – Wrap your whole hand around the SDS-plus quick-change chuck (2) or the keyless quick-change chuck (1). Use a turning motion to push the quick-change chuck into the drill chuck holder (33) until you hear it click into place. – The quick-change chuck is automatically locked. Check that it is locked by pulling on the quick-change chuck. Changing the Tool The dust protection cap (4) largely prevents the penetration of drilling dust into the tool holder during operation. When inserting the tool, make sure that the dust protection cap (4) does not become damaged. u Replace a damaged dust protection cap immediately. It is recommended that you have use an after-sales service for this. Changing the tool (SDS plus) Inserting SDS plus application tools (seefigureE) The SDS plus drill chuck enables you to change the applica- tion tool easily and conveniently without needing to use ad- ditional tools. – GBH18V-28CF: Insert the SDS plus quick-change chuck(2). – Clean and lightly grease the shank of the application tool. – Insert the application tool into the tool holder while turn- ing it until it locks automatically. – Check that it is locked by pulling on the tool. As a requirement of the system, the SDS-plus application tool can move freely. This causes a certain radial run-out at no-load, which has no effect on the accuracy of the drill hole, as the drill bit centres itself upon drilling. Removing SDS-plus application tools (seefigureF) – Push the locking sleeve (5) back and remove the applica- tion tool. Changing the keyed chuck

Inserting the application tool (seefigureG) Note: Application tools that do not have SDS plus must not be used for hammer drilling or chiselling. Tools without SDS plus and their drill chucks are damaged by hammer drilling or chiselling. – Insert a keyed chuck(31). – Open the keyed chuck(31) by turning it until the tool can be inserted. Insert the tool. – Insert the chuck key(35) into the corresponding holes of the keyed chuck(31) and clamp the tool evenly. – Turn the impact/mode selector switch(17) to the "drilling" position. Removing the application tool (seefigureH) – Use the chuck key(35) to turn the sleeve of the keyed chuck(31) anticlockwise until the application tool can be removed. Bosch Power Tools 1 609 92A 96F | (20.12.2023)26 | English Changing the keyless quick-change chuck

Inserting the application tool (seefigureI) Note: Application tools that do not have SDS plus must not be used for hammer drilling or chiselling. Tools without SDS plus and their drill chucks are damaged by hammer drilling or chiselling. – Insert the keyless quick-change chuck(1). – Hold the retaining ring(37) of the keyless quick-change chuck firmly in place. Open the tool holder by turning the front sleeve(36) until the tool can be inserted. Hold the retaining ring(37) in place and firmly tighten the front sleeve(36) by turning it in the direction of the arrow until you hear it click into place. – Check that it is seated securely by pulling on the tool. Note: If the tool holder was unscrewed all the way, a scrap- ing sound may be heard while retightening the tool holder and it may not fully tighten. In this case, turn the front sleeve anti-clockwise by one turn. This will allow the tool holder to be fully tightened. – Turn the impact/mode selector switch (17) to the "drilling" position. Removing the application tool (seefigureJ) – Hold the retaining ring(37) of the keyless quick-change chuck firmly in place. Open the tool holder by turning the front sleeve(36) in the direction of the arrow until the tool can be removed. Dust/Chip Extraction The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reac- tions and/or cause respiratory illnesses in the user or in people in the near vicinity. Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials contain- ing asbestos may only be machined by specialists. – Use a dust extraction system that is suitable for the ma- terial wherever possible. – Provide good ventilation at the workplace. – It is advisable to wear a P2 filter class breathing mask. The regulations on the material being machined that apply in the country of use must be observed. u Avoid dust accumulation at the workplace. Dust can easily ignite. Dust extraction with GDE18V-16 (accessory) (seefigureK) The GDE18V-16 dust extraction attachment (accessory) is required for extracting concrete dust and stone dust. This dust extraction system is not suitable for dust from wood, metal and plastic or for dust which is harmful to one’s health (e.g. asbestos). Operation Start-up u Ensure that the cover (15) of the Bluetooth

Low Energy Module GCY42 is closed during operation. This will pre- vent dust from getting in. Setting the Operating Mode The operating mode of the power tool is selected using the impact/mode selector switch(17). – To change the operating mode, press the release button(16) and turn the impact/mode selector switch(17) until it clicks into the required position. Note: Only change the operating mode when the power tool is switched off. Otherwise, the power tool may become dam- aged. Position for hammer drilling into concrete or stone Position for drilling without impact in wood, metal, ceramic and plastic and for screwdriv- ing Vario-Lock position for adjusting the chisel po- sition The impact/mode selector switch(17) will not engage in this position. Position for chiselling Setting the Rotational Direction The rotational direction switch (10) is used to change the ro- tational direction of the power tool. However, this is not pos- sible while the on/off switch (12) is being pressed. u Only operate the rotational direction switch(10) when the power tool is not in use. Always set the rotational direction to clockwise rotation for hammer drilling, drilling and chiselling. – Clockwise: To drill and to drive in screws, press the rota- tional direction switch(10) all the way to the left. – Anticlockwise: To loosen and unscrew screws and nuts, press the rotational direction switch(10) all the way to the right. Note: If the rotational direction switch is in the middle posi- tion, the on/off switch is blocked. Switching On/Off – To switch on the power tool, press the on/off switch (12). The worklight (18) lights up when the on/off switch (12) is lightly or fully pressed, allowing the work area to be illumin- ated in poor lighting conditions. 1 609 92A 96F | (20.12.2023) Bosch Power ToolsEnglish | 27 When switching on the power tool for the first time, the start may be slightly delayed as the power tool's electronic system has to configure itself first. For low temperatures, the power tool reaches the full ham- mer/impact capacity only after a certain time. – To switch off the power tool, release the on/off switch (12). Adjusting the Speed/Impact Rate You can adjust the speed/impact rate of the power tool when it is on by pressing in the on/off switch(12) to varying ex- tents. Applying light pressure to the on/off switch(12) results in a low rotational speed/impact rate. Applying increasing pres- sure to the switch increases the speed/impact rate. You can also control the speed on the user interface and/or via a smartphone app: . Changing the chiselling position (Vario-Lock) You can lock the chisel in 40 different positions, so you can select the optimum working position for each task. – Insert the chisel into the tool holder. – Turn the impact/mode selector switch (17) to the "Vario- Lock" position. – Turn the application tool to the required chisel position. – Turn the impact/mode selector switch (17) to the "chis- elling" position. With this, the tool holder is locked. – Set the rotational direction for chiselling to clockwise. User interface (seefigureL) The user interface(8) is used to select the working mode and to indicate the status of the power tool. Status indications Battery charge indicator (user interface)(22) Meaning/cause Solution Green (2 to 5 bars) Battery charged – Yellow (1 bar) Battery almost empty Replace or charge battery soon Red (1 bar) Battery empty Replace or charge battery Power tool status indicator(29) Meaning/cause Solution Green Status OK – Yellow Critical temperature has been reached or re- chargeable battery is almost empty Allow the power tool to cool down, or replace or charge the battery Red Power tool has overheated or rechargeable battery is empty Allow the power tool to cool down, or replace or charge the battery Red Motor is jammed, battery too weak Charge the battery or use the recommended battery type General error – Turn the power tool off and on again, or re- move the battery and reinsert it If the error persists: – Send the power tool to the after-sales ser- vice Flashing red Rapid shut-off is triggered Turn the power tool off and on again Flashing blue Power tool is connected to a mobile device via Bluetooth

settings are being transferred

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

1 600 A00 1FV 1 600 A00 1FX Bosch Power Tools 1 609 92A 96F | (20.12.2023)394 | Licenses Licenses Copyright © 2009–2013 ARM LIMITED All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: – Redistributions of source code must retain the above copyright noti- ce, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the do- cumentation and/or other materials provided with the distribution. – Neither the name of ARM nor the names of its contributors may be used to endorse or promote products derived from this software wi- thout specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS AND CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright © 2014 STMicroelectronics Under STMicroelectronics’ intellectual property rights, the redistribution, reproduction and use in source and binary forms of the software or any part thereof, with or without modification, are permitted provided that the following conditions are met:

1. Redistribution of source code (modified or not) must retain any

copyright notice, this list of conditions and the disclaimer set forth below as items 10 and 11.

2. Redistributions in binary form, except as embedded into

microcontroller or microprocessor device manufactured by or for STMicroelectronics or a software update for such device, must reproduce any copyright notice provided with the binary code, this list of conditions, and the disclaimer set forth below as items 10 and 11, in documentation and/or other materials provided with the distribution.

3. Neither the name of STMicroelectronics nor the names of other

contributors to this software may be used to endorse or promote products derived from this software or part thereof without specific written permission.

4. This software or any part thereof, including modifications and/or

derivative works of this software, must be used and execute solely and exclusively on or in combination with a microcontroller or microprocessor device manufactured by or for STMicroelectronics.

5. No use, reproduction or redistribution of this software partially or

totally may be done in any manner that would subject this software to any Open Source Terms. “Open Source Terms” shall mean any open source license which requires as part of distribution of software that the source code of such software is distributed therewith or otherwise made available, or open source license that substantially complies with the Open Source definition specified at www.opensource.org and any other comparable open source license such as for example GNU General Public License (GPL), Eclipse Public License (EPL), Apache Software License, BSD license or MIT license.

6. STMicroelectronics has no obligation to provide any maintenance,

support or updates for the software.

7. The software is and will remain the exclusive property of

STMicroelectronics and its licensors. The recipient will not take any action that jeopardizes STMicroelectronics and its licensors' proprietary rights or acquire any rights in the software, except the limited rights specified hereunder.

8. The recipient shall comply with all applicable laws and regulations

affecting the use of the software or any part thereof including any applicable export control law or regulation.

9. Redistribution and use of this software or any part thereof other than

as permitted under this license is void and will automatically terminate your rights under this license.

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity. "You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License. "Source" form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files. "Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types. "Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright 1 609 92A 96F | (20.12.2023) Bosch Power ToolsLicenses | 395 notice that is included in or attached to the work (an example is provided in the Appendix below). "Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof. "Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contribution." "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.

2. Grant of Copyright License. Subject to the terms and conditions of

this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.

3. Grant of Patent License. Subject to the terms and conditions of this

License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.

4. Redistribution. You may reproduce and distribute copies of the

Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions: – You must give any other recipients of the Work or Derivative Works a copy of this License; and – You must cause any modified files to carry prominent notices stating that You changed the files; and – You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and – If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a reada- ble copy of the attribution notices contained within such NOTICE fi- le, excluding those notices that do not pertain to any part of the Deri- vative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Sour- ce form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not mo- dify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional at- tribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduc- tion, and distribution of the Work otherwise complies with the condi- tions stated in this License.

5. Submission of Contributions. Unless You explicitly state otherwise,

any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions.

6. Trademarks. This License does not grant permission to use the trade

names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.

7. Disclaimer of Warranty. Unless required by applicable law or

agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License.

8. Limitation of Liability. In no event and under no legal theory,

whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.

9. Accepting Warranty or Additional Liability. While redistributing

the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

END OF TERMS AND CONDITIONS

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Technical file at: * Cordless rotary hammer with dust extraction attachment Article number

EN IEC 62841-2-6:2020+A11:2020

GDE 18V-16 3 611 J20 000 3 611 J21 000 1 600 A00 51N We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations lis- ted below and are in conformity with the following standards. Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom The Supply of Machinery (Safety) Regulations 2008 The Electromagnetic Compatibility Regulations 2016 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 EN 62841-1:2015+A11:2022

EN IEC 62841-2-6:2020+A11:2020

EN IEC 63000:2018 Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom Vonjy Rajakoba Managing Director - Bosch UK Martin Sibley Head of Sales Operations and Aftersales Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Place of issue: Uxbridge Date of issue: 10/11/2023 Bosch Power Tools 1 609 92A 96F | (20.12.2023)
