USER MANUAL GSH 14 C Professional BOSCH

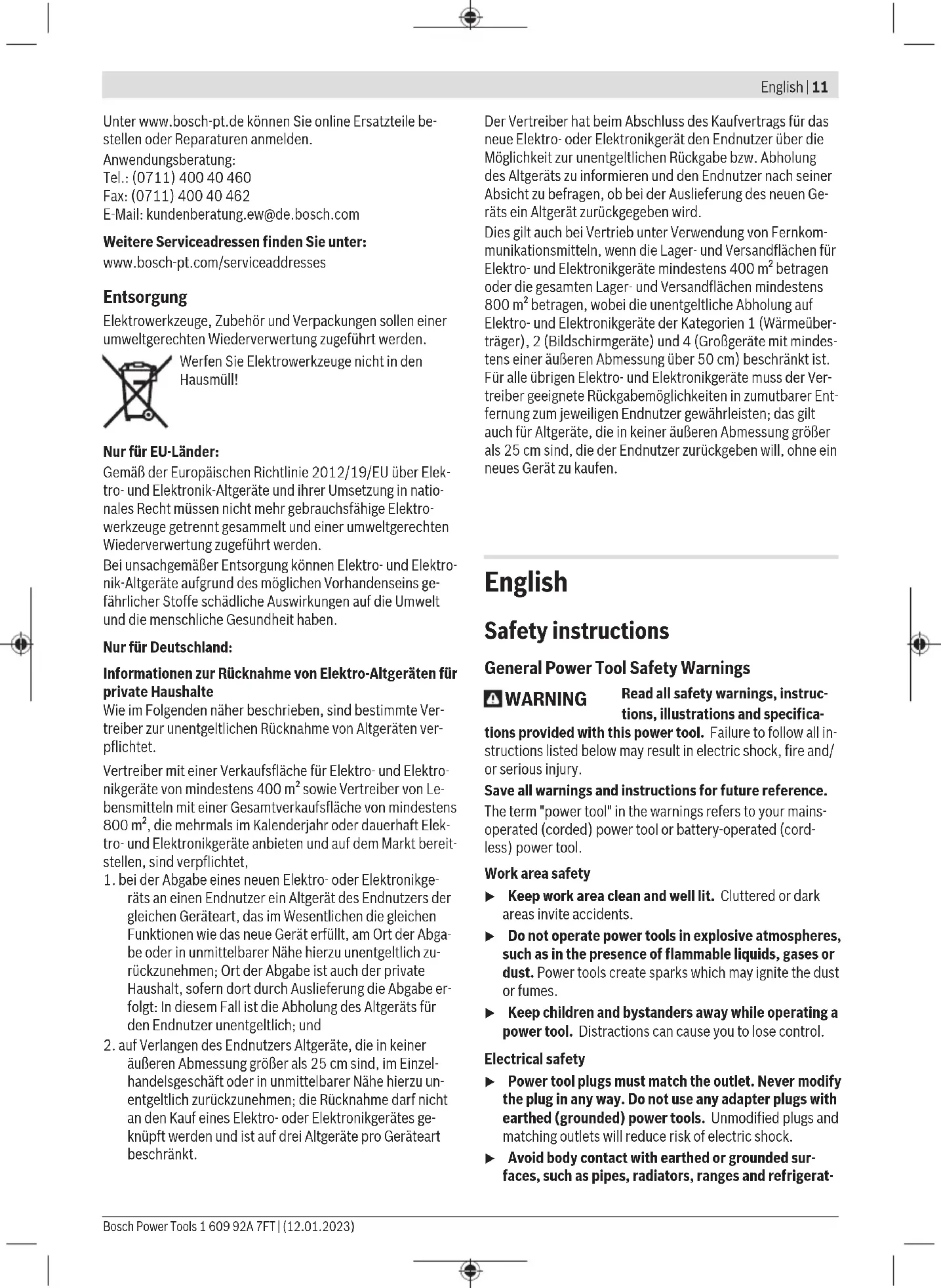

äußeren Abmessung größer als 25cm sind, im Einzel- handelsgeschäft oder in unmittelbarer Nähe hierzu un- entgeltlich zurückzunehmen; die Rücknahme darf nicht an den Kauf eines Elektro- oder Elektronikgerätes ge- knüpft werden und ist auf drei Altgeräte pro Geräteart beschränkt. Der Vertreiber hat beim Abschluss des Kaufvertrags für das neue Elektro- oder Elektronikgerät den Endnutzer über die Möglichkeit zur unentgeltlichen Rückgabe bzw. Abholung des Altgeräts zu informieren und den Endnutzer nach seiner Absicht zu befragen, ob bei der Auslieferung des neuen Ge- räts ein Altgerät zurückgegeben wird. Dies gilt auch bei Vertrieb unter Verwendung von Fernkom- munikationsmitteln, wenn die Lager- und Versandflächen für Elektro- und Elektronikgeräte mindestens 400m² betragen oder die gesamten Lager- und Versandflächen mindestens 800m² betragen, wobei die unentgeltliche Abholung auf Elektro- und Elektronikgeräte der Kategorien 1 (Wärmeüber- träger), 2 (Bildschirmgeräte) und 4 (Großgeräte mit mindes- tens einer äußeren Abmessung über 50cm) beschränkt ist. Für alle übrigen Elektro- und Elektronikgeräte muss der Ver- treiber geeignete Rückgabemöglichkeiten in zumutbarer Ent- fernung zum jeweiligen Endnutzer gewährleisten; das gilt auch für Altgeräte, die in keiner äußeren Abmessung größer als 25cm sind, die der Endnutzer zurückgeben will, ohne ein neues Gerät zu kaufen. English Safety instructions General Power Tool Safety Warnings WARNING Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this power tool. Failure to follow all in- structions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains- operated (corded) power tool or battery-operated (cord- less) power tool. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite accidents. u Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety u Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. u Avoid body contact with earthed or grounded sur- faces, such as pipes, radiators, ranges and refrigerat- Bosch Power Tools 1 609 92A 7FT | (12.01.2023)12 | English ors. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of elec- tric shock. u Do not abuse the cord. Never use the cord for carry- ing, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. u When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suit- able for outdoor use reduces the risk of electric shock. u If operating a power tool in a damp location is un- avoidable, use a residual current device (RCD) protec- ted supply. Use of an RCD reduces the risk of electric shock. Personal safety u Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inatten- tion while operating power tools may result in serious per- sonal injury. u Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal in- juries. u Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. u Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal in- jury. u Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. u Dress properly. Do not wear loose clothing or jew- ellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. u If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. u Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe in- jury within a fraction of a second. Power tool use and care u Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. u Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or re- move the battery pack, if detachable, from the power tool before making any adjustments, changing ac- cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. u Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. u Maintain power tools and accessories. Check for mis- alignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. u Keep cutting tools sharp and clean. Properly main- tained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac- count the working conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. u Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. Service u Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Hammer Safety Warnings Safety instructions for all operations u Wear ear protectors. Exposure to noise can cause hear- ing loss. u Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. u Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting ac- cessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make ex- posed metal parts of the power tool "live" and could give the operator an electric shock. 1 609 92A 7FT | (12.01.2023) Bosch Power ToolsEnglish | 13 Additional Safety Instructions u Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility com- pany for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property dam- age or may cause an electric shock. u Always wait until the power tool has come to a com- plete stop before placing it down. The application tool can jam and cause you to lose control of the power tool. u Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand. u Do not touch any application tools or adjacent housing components shortly after operation. These can become very hot during operation and cause burns. u Take care when carrying out demolition work using the chisel. Falling fragments of the demolition material could injure you or any bystanders. Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an au- thorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere. u Hold the power tool firmly with both hands and make sure you have a stable footing. The power tool can be more securely guided with both hands. The Bluetooth® word mark and logos are registered trade- marks owned by Bluetooth SIG, Inc. and any use of such marks by Robert Bosch Power Tools GmbH is under li- cense. Symbols The following symbols may be important for the operation of your power tool. Please take note of these symbols and their meaning. Correctly interpreting the symbols will help you to operate the power tool more effectively and safely. Symbols and their meaning Tool data logging is enabled in this tool. Wireless connectivity tool with built-in Bluetooth

technology Product Description and Specifications Read all the safety and general instructions. Failure to observe the safety and general in- structions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this oper- ating manual. Intended use The machine is intended for heavy chiselling and demolition work as well as for driving in and compacting with the appro- priate accessories. With the built-in Bluetooth® Low Energy Module, power tool data and settings are transferred between the power tool and a mobile device by means of Bluetooth® wireless techno- logy. Product Features The numbering of the product features refers to the diagram of the power tool on the graphics page. (1) Handle (insulated gripping surface) (2) On/off switch (3) User Interface (4) Auxiliary handle (insulated gripping surface) (5) Knurled nut for auxiliary handle (6) Dust protection cap (7) Tool shank (8) Locking sleeve (9) Power tool status indicator (user interface) (10) Button to select the working mode (user interface) (11) Working modes indicator (user interface) (12) Maintenance indicator (user interface) Technical Data Demolition hammer GSH 14 C Article number 3611C440.. Rated power input W 1750 Impact rate min

Impact energy per stroke according to EPTA-Proced- ure05:2016 J 28 Tool holder mm 22 Lubrication Grease lubrication Weight according to EPTA- Procedure01:2014 kg 14.6 Protection class / II Data transfer Bosch Power Tools 1 609 92A 7FT | (12.01.2023)14 | English Demolition hammer GSH 14 C Bluetooth® Bluetooth® 4.2 (Low Energy)

Frequency range used MHz 2400–2483.5 Output power mW <1 A) The mobile devices must be compatible with Bluetooth

Low En- ergy devices (version 4.2) and support the Generic Access Pro- file (GAP). B) The signal range may vary greatly depending on external condi- tions, including the receiving device used. The Bluetooth® range may be significantly weaker inside closed rooms and through metallic barriers (e.g. walls, shelving units, cases, etc.). The specifications apply to a rated voltage [U] of 220 V. These spe- cifications may vary at different voltages and in country-specific mod- els. Noise/Vibration Information Noise emission values determined according to ENIEC62841-2-6. Typically, the A-weighted noise level of the power tool is: Sound pressure level 93dB(A); sound power level 101dB(A). Uncertainty K=3dB. Wear hearing protection Vibration total values a

(triax vector sum) and uncertainty K determined according to ENIEC62841-2-6: Chiselling: a

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to com- pare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value repres- ent the main applications of the power tool. However, if the power tool is used for other applications, with different ap- plication tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the oper- ator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly. Assembly u Pull the plug out of the socket before carrying out any work on the power tool. Auxiliary handle u Do not operate your power tool without the auxiliary handle (4). You can swivel the auxiliary handle (4) to any angle for a safe work posture that minimises fatigue. – Loosen the knurled nut (5), rotate the auxiliary handle (4) around the axis of the tool to the required position and retighten the knurled nut (5). The auxiliary handle (4) can be refitted in a different posi- tion. – To do this, completely unscrew the knurled nut (5) and then pull the hexagon bolt upwards and out. – Pull off the auxiliary handle (4) to the side and rotate the remaining clamping element by 180°. – Fit the auxiliary handle (4) by following the steps in re- verse order. Changing the Tool The hex tool holder enables you to change the application tool easily and conveniently without the use of additional tools. The dust protection cap (6) largely prevents the penetration of drilling dust into the tool holder during operation. When inserting the tool, make sure that the dust protection cap (6) does not become damaged. u Replace a damaged dust protection cap immediately. It is recommended that you have use an after-sales service for this. Inserting the application tool (seefigureA) – Clean and lightly grease the shank of the application tool. – Push the locking sleeve (8) back and insert the applica- tion tool by turning it into the tool holder. Release the locking sleeve (8) to lock the application tool. – Check the latching by pulling the tool. Removing the application tool (seefigureB) – Push the locking sleeve (8) back and remove the applica- tion tool. Dust/Chip Extraction Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dust, such as oak or beech dust, is considered carci- nogenic, especially in connection with wood-treatment ad- ditives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the ma- terials to be worked. 1 609 92A 7FT | (12.01.2023) Bosch Power ToolsEnglish | 15 Operation Starting Operation u Pay attention to the mains voltage! The voltage of the power source must match the voltage specified on the rating plate of the power tool. Power tools marked with 230V can also be operated with 220V. u Products that are only sold in AUS and NZ: Use a resid- ual current device (RCD) with a nominal residual current of 30 mA or less. Switching On and Off – To start the power tool, push the on/off switch (2) into position "I". – To switch off the power tool, push the on/off switch (2) into position "0". At low temperatures, the power tool will take a certain amount of time to reach its full impact performance. You can shorten this warm-up time by tapping the power tool's inser- ted application tool on the ground once. User Interface (seefigureC) The user interface(3) is used to select the working mode and to indicate the status of the power tool. Status indications Power tool status indicator (user interface) (9) Meaning Solution – Power tool switched off – Green Power tool switched on and ready to use – Yellow Warning message Read the message on the smartphone Red Error message Read the message on the smartphone Flashing blue Power tool is connected to a mobile device via Bluetooth

settings are being transferred

Pulsing red The Rest reminder function is activated (via app) and is indicating that you are due a break. Terminating the Rest reminder function: – Switch off the power tool and leave it switched off for at least 10 minutes

– Pull the mains plug from the plug socket – Reset the Rest reminder function via the app The Rest reminder settings can be configured in the app. Maintenance indicator (user interface)(12) Meaning/cause Solution Lit up orange – in combination with the power tool status indicator (user interface) (9) being lit Regular power tool maintenance is due soon. Send the power tool to the after-sales service Flashing orange – in combination with the power tool status indicator (user interface) (9) being lit Regular power tool maintenance is now due. Switch off the power tool immediately and send it to the after-sales service Selecting the working mode – Press the button for selecting the High-power and Low- power working modes until the working mode you require lights up. – The High altitude mode is activated/deactivated in the app. Bosch Power Tools 1 609 92A 7FT | (12.01.2023)16 | English Working mode(11) indic- ator Functions Both indicators light up In the High-power working mode, the power tool works with maximum performance. Bottom indicator lights up In the Low-power working mode, the power tool works with approx.80% of its maximum performance. Top indicator flashes 3 x when pressing the working mode button(10) The High altitude working mode is activated (activation via app), the High-power mode will be deactivated automatically. Working Advice u The power tool with built-in Bluetooth

Low Energy Module GCY301‑42 is equipped with a radio inter- face. When working, hold the power tool by the handle (1) with both hands. The handle(1) can move upwards and down- wards around its axis. This has a damping effect against vi- brations. For the highest possible impact damping, work only with moderate pressure. Sharpening Chisels Only sharp chiselling tools will produce good results, there- fore sharpen your chiselling tools in good time before use. This will ensure a long service life for the tools and good work results. Resharpening Grind chiselling tools against sanding discs, e.g. aluminium oxide, under a steady stream of water. Take care that no an- nealing colouration appears on the cutting edges; this im- pairs the hardness of the chiselling tools.

To forge a chisel, heat it to between 850 and 1050 °C (pale red to yellow). To harden a chisel, heat it to approx. 900 °C and quench in oil. Then, leave it in an oven for approx. one hour at 320 °C (annealing colour: pale blue). Connectivity functions System Requirements for Using the App System Requirements Mobile device (tablet, smartphone) Android6.0 (and newer) iOS11 (and newer) Installing and Setting up the App You will need to install the device-specific app before you can use the connectivity functions. – Download the app from the corresponding app store (Apple App Store, Google Play Store). Note: You will need to have a user account with the relev- ant app store to do this. App name Android iOS – Bosch Toolbox – Bosch BeConnected – Then select the MyTools or Connectivity sub-item in the app. – The display of your mobile device shows you all of the subsequent steps required to connect the power tool to the mobile device. Data transfer via Bluetooth® The built-in Bluetooth

Low Energy Module sends a signal at regular intervals. Depending on ambient conditions, multiple transmission intervals may be required before the power tool is detected. If the power tool is not detected, check the following: – Is the distance to the mobile device too great? Reduce the distance between the mobile device and the power tool. – Switch Bluetooth® off and on again on your mobile device. Check whether the power tool has now been detected. Functions in Conjunction with the Power Tool In conjunction with the Bluetooth

22 mm 1 609 92A 7FT | (12.01.2023) Bosch Power Tools| 205 Licenses Copyright © 2004 - 2020, Texas Instruments Incorporated All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: – Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. – Neither the name of Texas Instruments Incorporated nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER ORCONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMI- TED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER- RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright © 2009-2019 Arm Limited. All rights reserved. Licensed under Apache 2.0 Copyright © 2018 STMicroelectronics. All rights reserved. Licensed under Apache 2.0 Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under com- mon control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity. "You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License. "Source" form shall mean the preferred form for making modifications, including but not limited to software source code, do- cumentation source, and configuration files. "Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types. "Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below). "Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof. "Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additi- ons to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copy- right owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representati- ves, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but exclu- Bosch Power Tools 1 609 92A 7FT | (12.01.2023)206 | ding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contri- bution." "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work. 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Ob- ject form. 3. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent licen- se to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to tho- se patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed. 3. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a per- petual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to ma- ke, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed..

4. Redistribution.You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or

without modifications, and in Source or Object form, provided that You meet the following conditions: – You must give any other recipients of the Work or Derivative Works a copy of this License; and – You must cause any modified files to carry prominent notices stating that You changed the files; and – You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attri- bution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and – If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must inclu- de a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a dis- play generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NO- TICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices wi- thin Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provi- ded Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License. 5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or con- ditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions. 6. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file. 7. Disclaimer of Warranty.Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABI- LITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License. 8. Limitation of Liability.In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character ari- sing as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of 1 609 92A 7FT | (12.01.2023) Bosch Power Tools| 207 goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages. 9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibili- ty, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additio- nal liability.

END OF TERMS AND CONDITIONS

Copyright © 2019 STMicroelectronics All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LI- MITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER- RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright © 2009-2020 Arm Limited. All rights reserved. Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under com- mon control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity. "You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License. "Source" form shall mean the preferred form for making modifications, including but not limited to software source code, do- cumentation source, and configuration files. "Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types. "Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below). "Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof. "Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additi- ons to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copy- right owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this Bosch Power Tools 1 609 92A 7FT | (12.01.2023)208 | definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representati- ves, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but exclu- ding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contri- bution." "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work. 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Ob- ject form. 3. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a per- petual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to ma- ke, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed. 4. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions: – You must give any other recipients of the Work or Derivative Works a copy of this License; and – You must cause any modified files to carry prominent notices stating that You changed the files; and – You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attri- bution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and – If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must inclu- de a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a dis- play generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NO- TICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices wi- thin Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provi- ded Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License. 5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or con- ditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions. 6. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file. 7. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABI- LITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License. 8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwi- se, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contribu- tor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages. 9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent 1 609 92A 7FT | (12.01.2023) Bosch Power Tools| 209 with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibili- ty, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additio- nal liability.

END OF TERMS AND CONDITIONS

Copyright © 2016 STMicroelectronics Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following con- ditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclai- mer in the documentation and/or other materials provided with the distribution. Neither the name of STMicroelectronics nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LI- MITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER- RUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (IN- CLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright © 2011 2011 Petteri Aimonen (jpa at nanopb.mail.kapsi.fi) This software is provided 'as-is', without any express or implied warranty. In no event will the authors be held liable for any da- mages arising from the use of this software. Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and re- distribute it freely, subject to the following restrictions: The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software. This notice may not be removed or altered from any source distribution. Bosch Power Tools 1 609 92A 7FT | (12.01.2023)210 | 1 609 92A 7FT | (12.01.2023) Bosch Power ToolsI

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards. Demolition Hammer Article number

EN IEC 62841-2-6:2020+A11:2020
