Product type	LED spot luminaire
Brand	Livarno Lux
Model	14158402L / 14158405L / 14158406L
Supply voltage	230–240 V~, 50 Hz
Rated power	3 W max.
Protection class	I
Protection rating	IP20
Bulb type	LED GU10, 1 x 3 W max
Socket	GU10
Beam angle	38°
Use	Indoor use only
Package contents	1 LED spot, 2 screws, 2 wall plugs, 2 protective sleeves, 1 GU10 bulb, 1 suction cup, 1 spacer ring, 1 manual
Maintenance	Clean with a dry, lint-free cloth
Safety	Installation by qualified electrician; disconnect power before intervention
Warranty	36 months
After-sales service	Toll-free number 00800/27456637, IAN 373013_2204

Frequently Asked Questions - 14158402L Livarno Lux

How to install the luminaire?

Electrical installation must be carried out by a qualified electrician. Before installation, turn off the fuse or circuit breaker and verify that there is no voltage. Attach the mounting bracket to the wall, connect the wires using a terminal block, then screw the luminaire onto the bracket. Insert the bulb and restore power.

How to change the bulb?

First, disconnect the power by removing the fuse or switching off the circuit breaker. Allow the bulb to cool down. Use the suction cup to turn the bulb half a turn counterclockwise. Replace it with a new GU10 bulb of 3 W max, then turn it clockwise. Restore power.

Which bulb to use?

Use only a GU10 LED bulb with a maximum power of 3 W. The rated power is 3 W max. Do not use other types of bulbs.

Can I use a dimmer?

No, this luminaire is not suitable for external dimmers or electronic switches. Use it only with a standard switch.

How to adjust the spot?

Only adjust the orientation when the bulb is off and cool. Gently turn or tilt the spot to the desired position.

How to clean the luminaire?

Disconnect the power before cleaning. Use only a dry, lint-free cloth. Never use water, solvents, or chemicals.

What to do in case of malfunction?

First check that the bulb is properly inserted and that the circuit breaker is on. If the problem persists, contact the after-sales service at 00800/27456637, mentioning IAN 373013_2204.

Where to find spare parts?

Spare parts (GU10 bulb, suction cup, spacer ring) are available from the after-sales service. Contact the toll-free number 00800/27456637 with reference IAN 373013_2204.

What is the lifespan of the bulb?

The manual does not specify an exact lifespan. The LED bulb typically has a long lifespan, but it is considered a consumable part. Replace it if it fails.

Is the luminaire suitable for outdoor use?

No, this luminaire is exclusively designed for indoor use. It has a protection rating of IP20, which means it is not protected against moisture or water spray.

USER MANUAL 14158402L Livarno Lux

Black-and-white photo of a bedroom with three spotlights and a bed, no visible text or symbols

Assembly, operating and safety instructions

PL

REFLEKTOR SPOT LED

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Assembly, operating and safety instructions Page 13

Technical diagram illustrating the assembly of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Intended use......Page 15

Scope of delivery.... Page 15

Parts description......Page 15

Technical data....Page 15

Safety......Page 15

Safety notices....Page 15

Preparation......Page 16

Required tools and material.... Page 16

Prior to installation......Page 17

Start-up Page 17

Installing the lamp....Page 17

Directing the spotlight......Page 17

Changing the light bulb....Page 17

Maintenance and cleaning......Page 18

Warranty and service....Page 18

Warranty......Page 18

Service address...... Page 18

Declaration of conformity....Page 18

Manufacturer....Page 19

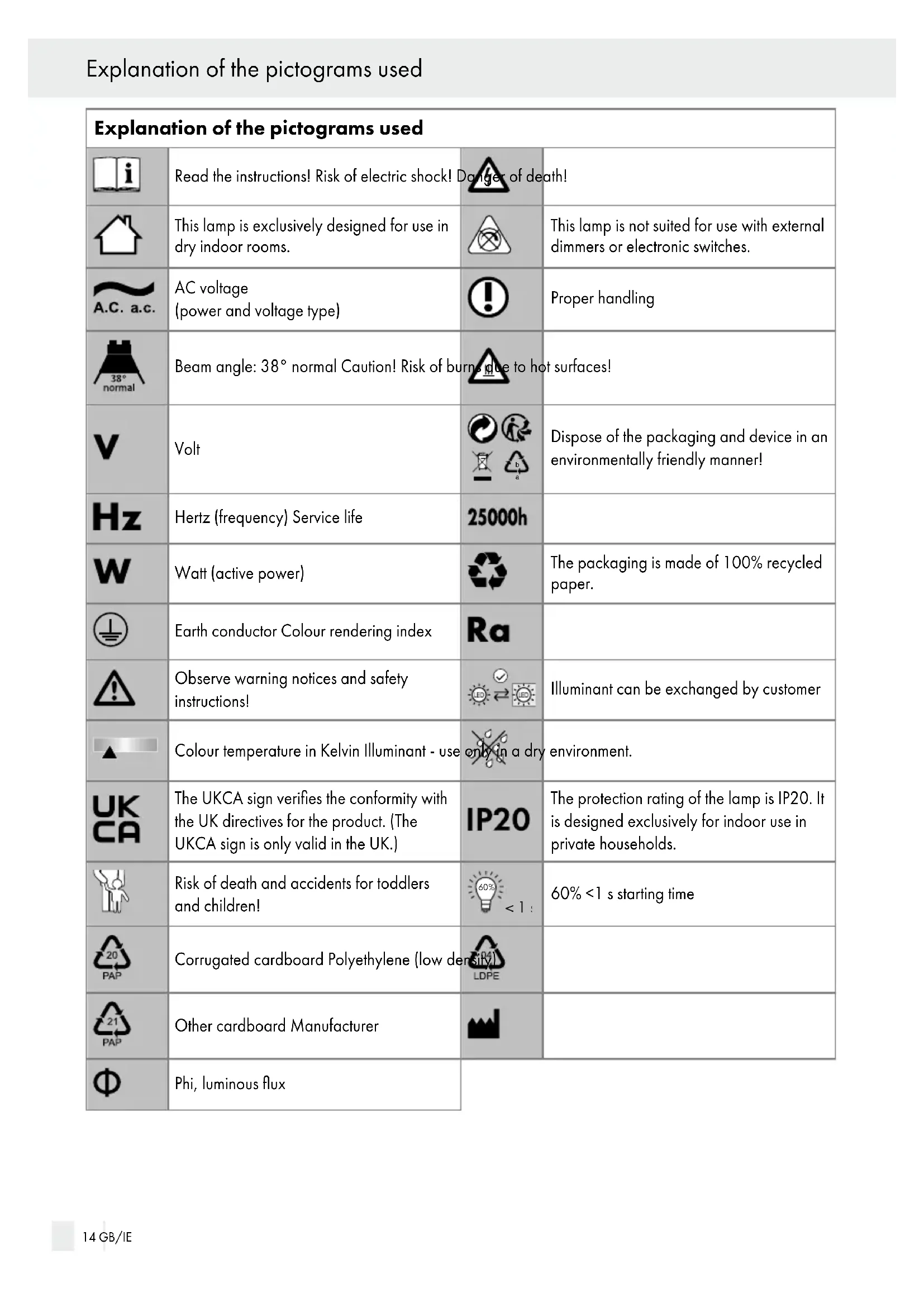

Explanation of the pictograms used
	Read the instructions! Risk of electric shock! D of death!
	This lamp is exclusively designed for use in dry indoor rooms.		This lamp is not suited for use with external dimmers or electronic switches.
A.C. a.c.	AC voltage(power and voltage type)		Proper handling
normal	Beam angle: 38° normal Caution! Risk of bur to hot surfaces!
	Volt		Dispose of the packaging and device in an environmentally friendly manner!
	Hertz (frequency) Service life	25000h
	Watt (active power)		The packaging is made of 100% recycled paper.
	Earth conductor Colour rendering index
	Observe warning notices and safety instructions!		Illuminant can be exchanged by customer
	Colour temperature in Kelvin Illuminant - use	a dry environment.
	The UKCA sign verifies the conformity with the UK directives for the product. (The UKCA sign is only valid in the UK.)		The protection rating of the lamp is IP20. It is designed exclusively for indoor use in private households.
	Risk of death and accidents for toddlers and children!	<1>	60% <1 s starting time
PAP	Corrugated cardboard Polyethylene (low der	LDPE
	Other cardboard Manufacturer	[hwwy]
[6DBG]	Phi, luminous flux

LED Spotlight

- Introduction

Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the complete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.

- Intended use

This light is only suitable for indoor use. The light can be fastened to any normally inflammable surface. This product is intended for private household use only. This product is intended for normal operation.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED spotlight, model 14158402L / 14158405L / 14158406L

2 screws

2 wall plugs

2 protective tubes

1 illuminant (GU10)

1 suction cup

1 spacer ring

1 installation and user manual

- Parts description

1 (External) power cable
2 Wall plugs
3 Fixing screws (canopy)
4 Screws (mounting bracket)
5 Canopy
6 Spotlight

7 Illuminant
8 Suction cup
9 Spacer ring
10 Protective tube
11 Screw terminal
12 Mounting bracket

- Technical data

Lamp:

Model no.: 14158402L / 14158405L / 14158406L

Operating voltage: 230–240 V\~, 50 Hz

Rated power: max. 3 W

Protection class: I

IP rating: IP20

Illuminant:

Rated power: LED GU10, 1 x max. 3 W

Fixture: GU10

This product contains illuminants of energy efficiency category "G".

•Safety

Safety notices

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

WARNING! RISK OF FATAL INJURY AND ACCI- DENT HAZARD FOR

TODDLERS AND SMALL CHILDREN!

Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device

Safety / Preparation

and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

■ Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
■Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.

WARNING!

A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.

■ Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
■Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (see "Technical data").
■ Ensure that the light does not come into contact with water or other liquids under any circumstances.
■Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
■ Do not install the light on a wet or conductive substrate!

Prevent fire and injury hazards

RISK OF INJURY!

Check the light for damage immediately after unpacking.

■ Do not mount the light with defective lamps and / or lamp lenses. In this case contact the service centre for a replacement.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Make sure that the light fixture is turned off and cooled down before you touch it to prevent burns. Bulbs generate a lot of heat at the front of the light fixture.

■Allow the light to cool down completely.
Immediately replace defective illuminants with new ones. Before changing the illuminant, always remove the fuse first or switch off the circuit breaker.
■ Do not leave the lamp or the packaging material lying around. Plastic foils, bags, parts, etc. can become dangerous toys in the hands of children.
■ Lamp - use only in a dry environment.

■ This light is not suitable for external

dimmers or electronic switches.

Safe working

Only use the type of illuminant stated in the "Technical data" section.
■Mount the light so that it is protected from moisture and dirt.
Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.
■Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having difficulty concentrating or do not feel well.

●Preparation

- Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil/marker
• 2-pole voltage tester
• Screwdriver
• Power drill
• Drill bit (ø 6 mm)
• Side cutter
• Ladder
• Hammer

- Prior to installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.

□Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it. Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.

Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

□Use the 2-pole voltage tester to verify the de-energised status.

- Start-up

•Installing the lamp

□Undo the fixing screws 3 visible on the side of the canopy 5 and remove the mounting bracket 12 on the back.

☐ Mark the drill holes using the long holes provided in the mounting bracket 12 for the screws.

□Now drill the attachment holes (diameter approx. 6 mm, depth approx. 40 mm). Make sure that you do not damage the power cable.

☐ Insert the wall plugs 2 into the drill holes. Use a hammer, if necessary.

□Attach the mounting bracket 12 using the provided screws 4.

□Pull the protective tubes 10 over the wires L and N of the (external) power cable 1.

□Now connect the connecting cable of the lamp with the screw terminal 11 to the (external) power cable 1.

Note: Make sure that you correctly connect each individual wire of the (external) power cable: live wire, black or brown = symbol L, neutral wire, blue = symbol N, earth conductor, green-yellow = symbol

□Now use the screws 3 to fasten the lamp to the mounting bracket 12.

□Carefully place the spacer ring 9 on the lamp. Make sure that it is correctly positioned.

☐ Attach the suction cup 8 to the glass of the illuminant 7.

□Carefully plug the illuminant 7 into the fixture.

☐Insert the GU10 illuminant ☐7 by carefully twisting it half a turn clockwise. Make sure that it is positioned correctly.

☐ Replace the fuse or switch on the circuit breaker (I position) in the fuse box.

Your lamp is now ready to use.

- Directing the spotlight

☐ Only change the alignment of the spotlight 6 when the lamp is switched off.

□Allow the lamp to completely cool down.

□Turn or tilt the spotlight 6 to the desired position.

- Changing the light bulb

WARNING! RISK OF ELECTRIC SHOCK!

To change the illuminant, disconnect the lamp from the power supply first. For this purpose, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.

■ Only use the type of illuminant stated in the "Technical data" section.

□Allow the lamp to completely cool down.

□Remove the defective illuminant 7 by attaching the suction cup 8 to the illuminant 7 and carefully twisting it half a turn counter-clockwise.

□Carefully take the spacer ring 9 off the defective illuminant 7 and place it on the new illuminant 7.

☐ Insert the new illuminant 7 by attaching the suction cup 8 to the new illuminant 7 and carefully twisting it half a turn clockwise. Make sure that it is positioned correctly.

☐Replace the fuse or switch on the circuit breaker (I position) in the fuse box again.

●Maintenance and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety, never clean the light with water or other liquids, or immerse it in water.

CAUTION! DANGER OF BURNS DUE TO HOT SURFACES!

Allow the light to cool completely.

• Do not use solvents, benzene or similar substances. They could damage the light.
  □Only use a dry, lint-free cloth for cleaning.
  ☐ Replace the fuse or switch on the circuit breaker (I setting) inside the fuse box.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging are recyclable and subject to extended producer responsi-

bility. Please dispose of them separately according to the symbols on the packaging for better waste management. The Triman logo applies exclusively in France.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Warranty and service

• Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event that a defect arises during the warranty period, please send the device to the listed service centre address, quoting the following model number: 14158402L/14158405L/14158406L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

• Service address

Free service number:

Tel.: 00800 / 27456637

IAN 373013\_2204

Please have your receipt and the article number (e.g. IAN 373013_2204) ready as your proof of purchase when enquiring about your product.

- Declaration of conformity

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

•Manufacturer
