Product type	LED light strip
Brand	Livarno Lux
Model	14125106LE
Length	3 m
Width	Approximately 10 mm
Number of LEDs	90 to 96 (depending on version)
Power	Max. 6 W
Supply voltage	230-240 V~, 50 Hz (via mains adapter)
Protection class	II
Protection rating	IP20
Light color	White (not specified)
Use	Indoor, dry rooms
Main functions	Decorative lighting, shortenable, connectable, adhesive mounting
Package contents	1 LED strip, 1 mains adapter, 2 connectors, 4 end caps, 2 cable clips, 1 adhesive tape, 1 instruction manual
Maintenance	Clean with a dry, lint-free cloth
Safety	Disconnect before maintenance; do not use if damaged; do not bend excessively
Spare parts / Repairability	LEDs not replaceable; connectors and end caps available; no user repair
Warranty	36 months

Frequently Asked Questions - 14125106LE Livarno Lux

How to install the Livarno Lux LED strip?

Make sure the mounting surface is clean, dry, and free of grease. Remove the protective film on the back of the strip and press it firmly. Plug the mains adapter into a nearby socket. Important: disconnect before any handling.

Can I cut the strip to the desired length?

Yes, you can shorten the strip at the points marked with a black line between the poles. Use scissors and close the end with the supplied end cap.

How to connect multiple strips together?

Use the included connectors. Insert the strip ends into the connector, observing polarity (+ to +, - to -), then place the end caps. Ensure the mains adapter can support the total power.

What to do if the strip does not light up?

Check that the mains adapter is properly plugged in and the socket works. Check the connections at the ends. If the strip is damaged, it must be replaced. Contact after-sales service.

Is this strip compatible with a dimmer?

No, the LEDs are not suitable for dimmers or electronic switches. Use only the mains switch.

How to clean the LED strip?

Disconnect the mains adapter. Clean the strip with a dry, lint-free cloth. Do not use solvents, benzine, or abrasive products.

What is the protection class?

The protection class is II (double insulation) and the protection rating is IP20, which means it is protected against solid objects larger than 12 mm but not against water. Indoor use only.

Can I use this strip outdoors?

No, this strip is exclusively designed for indoor use in dry, enclosed spaces. Using it outdoors poses risks of electric shock and fire.

Are the LEDs replaceable?

No, the LEDs are not replaceable. At the end of its life, the entire strip must be replaced. No internal parts are user-serviceable.

What is the lifespan of the LEDs?

The lifespan is not specified in the manual, but high-quality LEDs typically last several thousand hours. Use under normal conditions (room temperature, good ventilation) extends their life.

USER MANUAL 14125106LE Livarno Lux

PDF ONLINE www.lidl-service.com

LED-LICHTBAND, 3 M / 3M LED STRIP LIGHT / RUBAN LUMINEUX LED, 3 M

DE AT CH

LED-LICHTBAND, 3 M

Assembly, operating and safety instructions

NL BE

LED-LICHTBAND, 3 M

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Assembly, operating and safety instructions Page 11

A 1500mm 14137100L 2 4 3000mm 8mm 500mm 125mm

B 3M 3M 3M 3M 3M ↓ 125mm


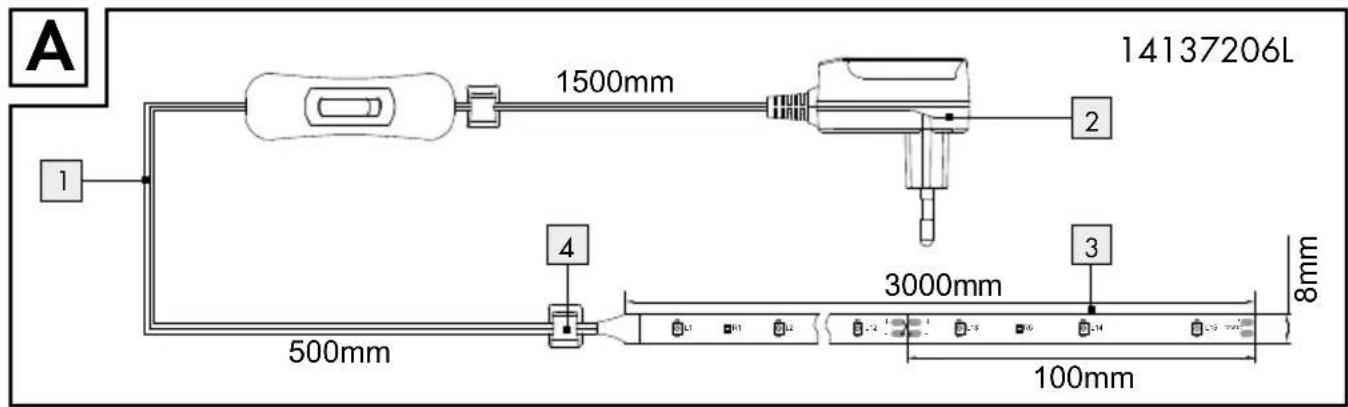

A 1500mm 14137206L 2 4 3000mm 8mm 500mm 100mm

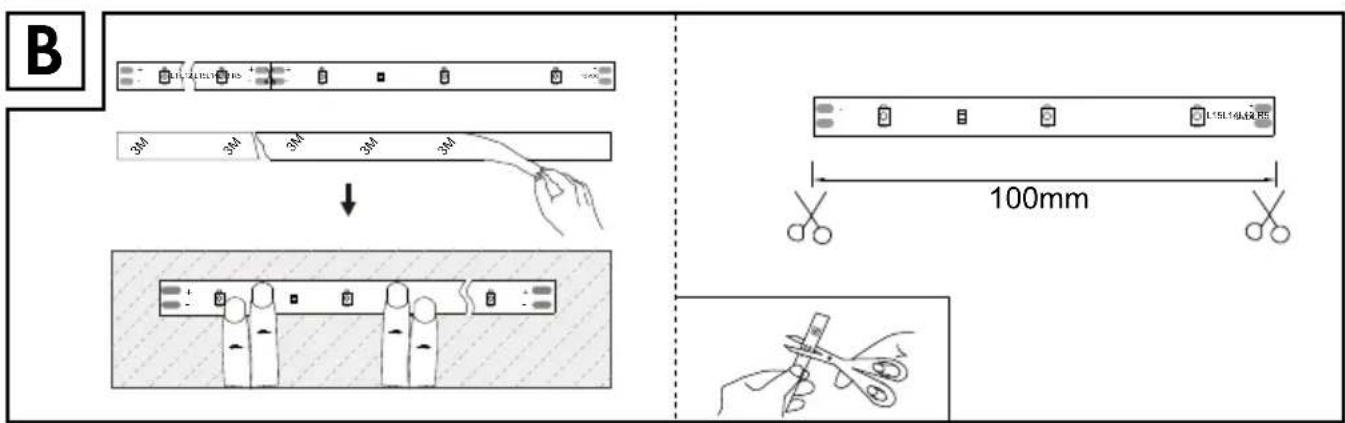

B 3M 3M 3M 3M 3M ↓ 100mm

Intended use....Page 12

Scope of delivery....Page 13

Parts description Page 13

Technical data......Page 13

Safety Page 13

Safety instructions......Page 13

Initial use Page 14

Trimming/ connecting the LED tape......Page 14

Installing the LED strip....Page 15

Maintenance and cleaning......Page 15

Disposal Page 15

Warranty and service......Page 15

Warranty Page 15

Service address......Page 16

Declaration of conformity....Page 16

Manufacturer......Page 16

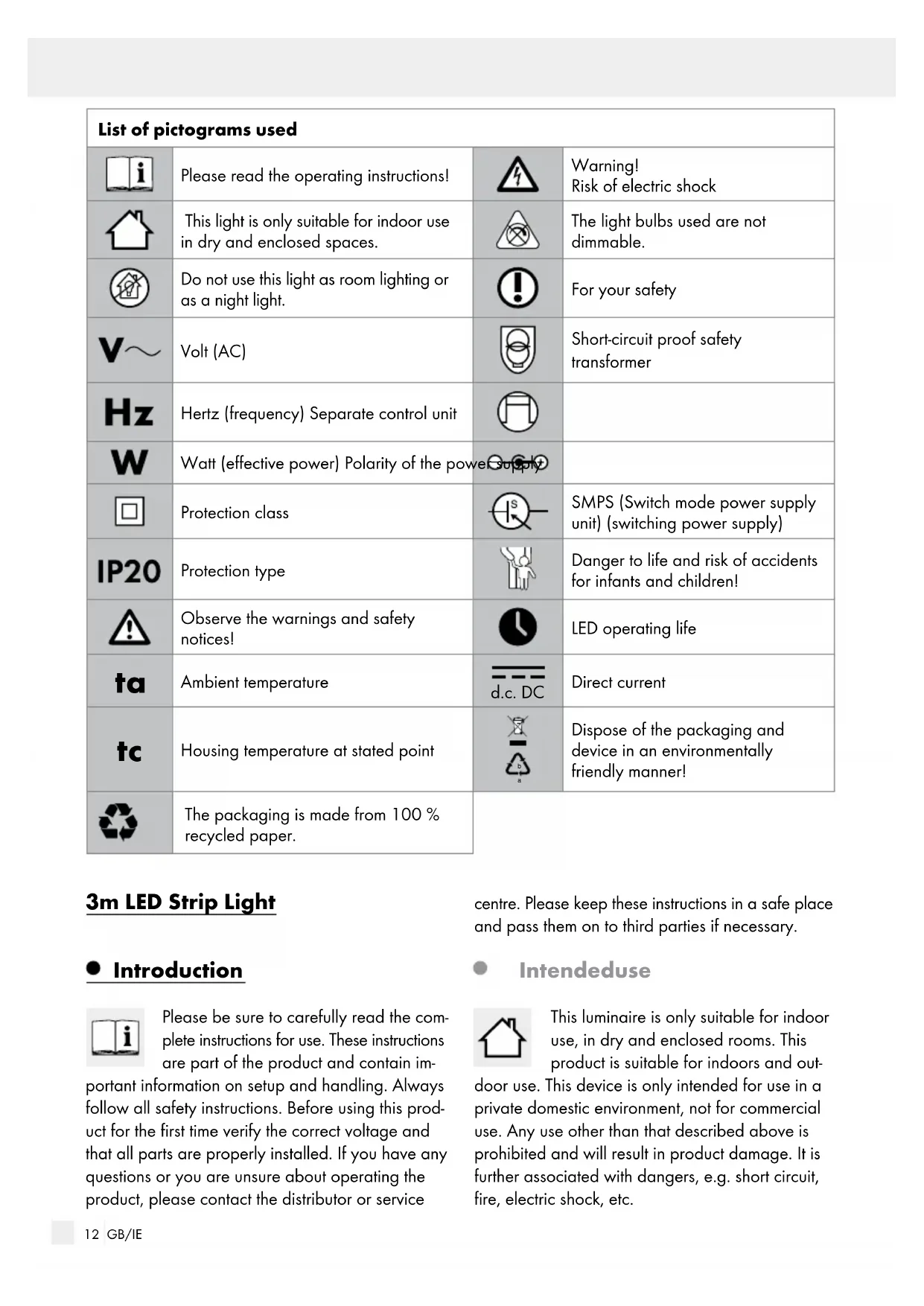

List of pictograms used
	Please read the operating instructions!		Warning!Risk of electric shock
	This light is only suitable for indoor use in dry and enclosed spaces.		The light bulbs used are not dimmable.
	Do not use this light as room lighting or as a night light.		For your safety
	Volt (AC)		Short-circuit proof safety transformer
	Hertz (frequency) Separate control unit
	Watt (effective power) Polarity of the power
	Protection class		SMPS (Switch mode power supply unit) (switching power supply)
	Protection type		Danger to life and risk of accidents for infants and children!
	Observe the warnings and safety notices!		LED operating life
	Ambient temperature		Direct current
	Housing temperature at stated point		Dispose of the packaging and device in an environmentally friendly manner!
	The packaging is made from 100 % recycled paper.

3m LED Strip Light

- Introduction

Please be sure to carefully read the complete instructions for use. These instructions are part of the product and contain im-

important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, please contact the distributor or service

centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This luminaire is only suitable for indoor use, in dry and enclosed rooms. This product is suitable for indoors and out-

door use. This device is only intended for use in a private domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc.

Only for 14137100L:

This is a specialist product, as the chromaticity coordinates lie outside the ranges stated in brackets.

Chromaticity coordinates: (x<0.270 or x>0.530);

(y<-2.172x^2 or y>-2.3172x^2+2.3653x-0.1595)

Only for 14137100L:

This product is a decorative light. Do not use this as room lighting or as a night light.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED Strip Light
2 connectors
4 end caps
2 cable holder
1 adhesive strip
1 set of instructions for use

Partsdescription

1 Mains cable
2 Mains adapter
3 LED strip
4 Cable holder
5 Plug connection
6 End cap
7 Adhesive strip

Technicaldata

Item No.: 14137100L and 14137206L

LED Strip:

Operating voltage: 230-240V \~ 50Hz

14137100L: max. 6 W, 96 LED,

max. length 3 m

14137206L: max. 6 W, 90 LED,

max. length 3 m

Protection class: II /

Protection type: IP20

LED non-replaceable

Safety

Safety instructions

Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions!

DANG ROUNING!

LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

- Check the LED strip for damage before every use. Never use the LED strip if any damage is detected.

WARNING!

A damaged mains cable poses a risk of fatal injury from electrical shock. In the case of damage, repairs or other problems, please contact the service centre or a qualified electrician.

The supply cable of this appliance cannot be replaced. If the cable is damaged, the appliance must be disposed of. The appliance contains no parts which may be serviced by the consumer.

■ Make sure before use that the available supply voltage corresponds to the required operating voltage of the item (see "Technical data").
■ Never allow the live power leads and contacts to come into contact with water or other liquids.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
- Do not install the lamp on damp or conductive surfaces.
This LED strip must not be connected electronically with other LED strips.
The light source in this light cannot be replaced. If the light source has reached the end of its operating life, the entire light must be replaced.
- Avoid excessive bending of the LED strip.
- Protect the product from sharp edges, mechanical loads and hot surfaces.
- Do not secure with sharp staples or nails.
■ Always unplug the mains plug from the socket before assembly, disassembly or cleaning.
- Never catch hold of the mains plug or the LED strip with wet hands.
- Only use the individual parts supplied, otherwise all warranty claims will become invalid.
- Never connect the LED strip to the power supply while it is in the packaging. Lay out the item completely before you connect it to the power supply.
- Do not open or cut open/slit open the light strip.
- Do not use the LED strip if it is covered with objects or is inlaid in a surface.

Prevent fire and injury hazards

This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced.
If the LEDs cease to function at the end of their operational life, the entire item must be replaced.
■ The installed LEDs are not suitable

for dimmers or electronic switches.

Do not look into the LED from a close distance during operation.

Do not look at the LED with an optical instrument (e.g. magnifier).

Safe working

Do not leave the LED strip or packaging material lying unattended. The packaging material presents a suffocation hazard and there is a risk of loss of life from strangulation.
- Install the light so that it is protected from dirt and excessive heating.
■ Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED strip if you are having difficulty concentrating or do not feel well.
Before use, familiarise yourself with all the instructions and diagrams in these instructions, as well as with the LED strip itself.
To completely disconnect the LED strip from the power supply, the mains adapter must be removed from the mains socket.

- Initial use

☐ Remove all packaging materials before first use.
☐ Never connect the LED strip to the mains power supply whilst in the packaging.

• Trimming / connecting the LED tape

The LED tape may be trimmed to size or connected.

WARNING! DANGER TO LIFE BY ELEC-C SHOCK!

Disconnect the lights from the power supply before performing any work on the LED strip 3. Unplug the mains adapter 2 from the socket to do so.

☐ Choose the desired LED strip length.

Note: Ensure that you cut the LED strip at the right place. The cutting point lies exactly between the plus and minus pole and is marked with a black line (see Fig. B).

☐ Shorten the LED strip 3 using a pair of scissors.

☐ Then press both ends of the LED strip 3 onto the displacement contact of the plug connection 5 (see Fig. C).

Ensure the correct polarity (+ to + / - to -) here.

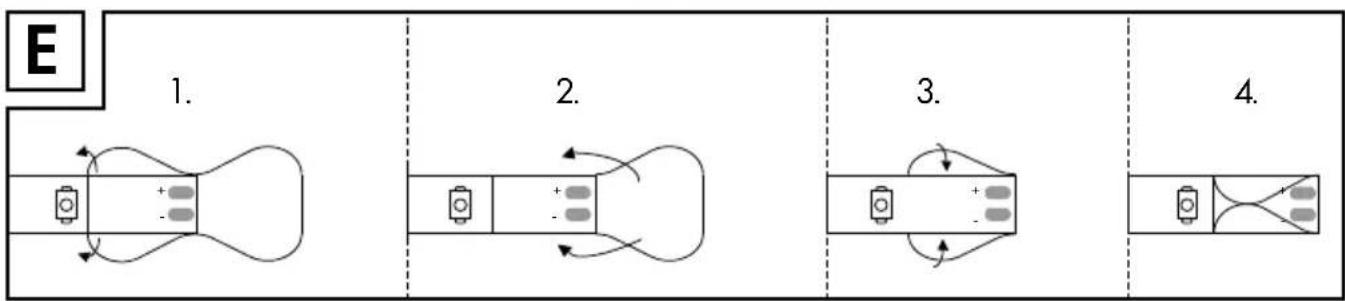

☐ Then press one end cap 6 at a time onto the ends of the plug connection 5 (see Fig. C).
☐ Check the correct positioning.
☐ Be sure to cover the open end of the LED tape 3 with the adhesive strip 7 if you do not wish to connect the end after trimming the tape (see Fig. E).

- Installing the LED strip

Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired.

Note: Ensure that a plug socket is located in close proximity to the installation area.

☐ Choose a suitable installation area (window etc.).
☐ Remove the protective foil from the reverse side of the LED strip 3.

Note: Be sure to start removing the protective

film at the supply cable end. When removing the protective film, be careful not to remove the adhesive film.

☐ Stick the LED strip 3 with the adhesive strip onto the installation area and press it on firmly.
☐ Remove the protective foil from the reverse side of the cable hold 4.
☐ Stick the cable hold 4 onto the desired position.
☐ Squeeze the mains cable 1 into the cable hold 4.
☐ Insert the mains adapter 2 into the plug socket.

Your light is now ready to use.

● Maintenance and cleaning

WARNING! DANGER TO LIFE BY ELEC-TRIC SHOCK!

Disconnect the lights from the power supply before performing any work on the LED strip 3.

Unplug the mains adapter 2 from the socket to do so.

• Do not use solvents, benzene or similar substances. They could damage the light.
  ☐ Use a dry, lint-free cloth to clean the LED strip 3.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14137100L/14137206L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Serviceaddress

Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase.

- Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer
