IAN 102738 - Lighting Livarno Lux - Free user manual and instructions

Brand	Livarno Lux
Model	IAN 102738
Product type	Indoor LED luminaire (under-cabinet)
Number of spots	3 adjustable spots
Number of LEDs per spot	4 LEDs (model 102738-14-01) or 3 LEDs (model 102738-14-02)
Maximum power per LED	0.06 W (non-replaceable)
Power supply	6 batteries 1.5 V, type AAA
Spot tilt angle	Approximately 45°
Functions	On/Off, adjustable brightness (3 levels: high, low, off)
Mounting	Mounting plate fixed with screws or adhesive pads
Usage	Indoor, dry and enclosed rooms
Package contents	1 lamp, 1 mounting plate, 6 batteries, 2 screws, 2 adhesive pads, instruction manual
Cleaning	Dry lint-free cloth; for stubborn stains, damp cloth with mild dish soap
Safety	Do not use if damaged; LEDs non-replaceable; batteries non-rechargeable; keep out of reach of children
Warranty	3 years from date of purchase

Frequently Asked Questions - IAN 102738 Livarno Lux

How to turn the lamp on and off?

Use the On/Off button 3. Press once: high brightness; press again: low brightness; third time: off.

How to change the batteries?

Remove the mounting plate 7. Open the covers 4 of the battery compartments by pressing the handle. Replace the 6 AAA batteries, observing polarity. Close the covers until they click.

Can I use rechargeable batteries?

No, the manual advises against recharging single-use batteries. Use only non-rechargeable AAA batteries.

How to mount the lamp under a cabinet?

Attach the mounting plate 7 using screws 6 or adhesive pads 8 to a flat surface. Then, place the lamp onto the plate by sliding the eyelets into the locking device.

Are the spots adjustable?

Yes, the 3 adjustable spots 2 can be tilted approximately 45° to direct light.

What to do if the lamp does not turn on?

Check that the batteries are inserted correctly (polarity) and that the insulating strips have been removed. If the problem persists, replace the batteries with new ones.

Can I replace the LEDs?

No, the LEDs are not replaceable. If an LED is defective, the lamp must be replaced.

How to clean the lamp?

Use a dry, lint-free cloth. For stubborn stains, use a well-wrung cloth with mild dish soap. Avoid abrasive products.

Can the lamp be used outdoors?

No, it is exclusively designed for indoor use in dry, enclosed rooms.

How to dispose of the lamp and used batteries?

Do not dispose of the device or batteries in household waste. Deposit the batteries in a municipal recycling container and take the lamp to a collection point for electrical appliances.

USER MANUAL IAN 102738 Livarno Lux

www.lidl-service.com

ED UNDER-CABINET LIGHT

GB IE

LED UNDER-CABINET LIGHT

Assembly and safety advice

FI

KAAPIN ALLE ASENNETTAVA LED-VALAISIN

General Safety Information......Page 7

Battery safety information ...... Page 9

Use

Installation......Page 11

Before use......Page 12

Start-up ...... Page 12

Switching swivel

spots on/off......Page 12

Replacing batteries.....Page 13

Cleaning and Care ...... Page 14

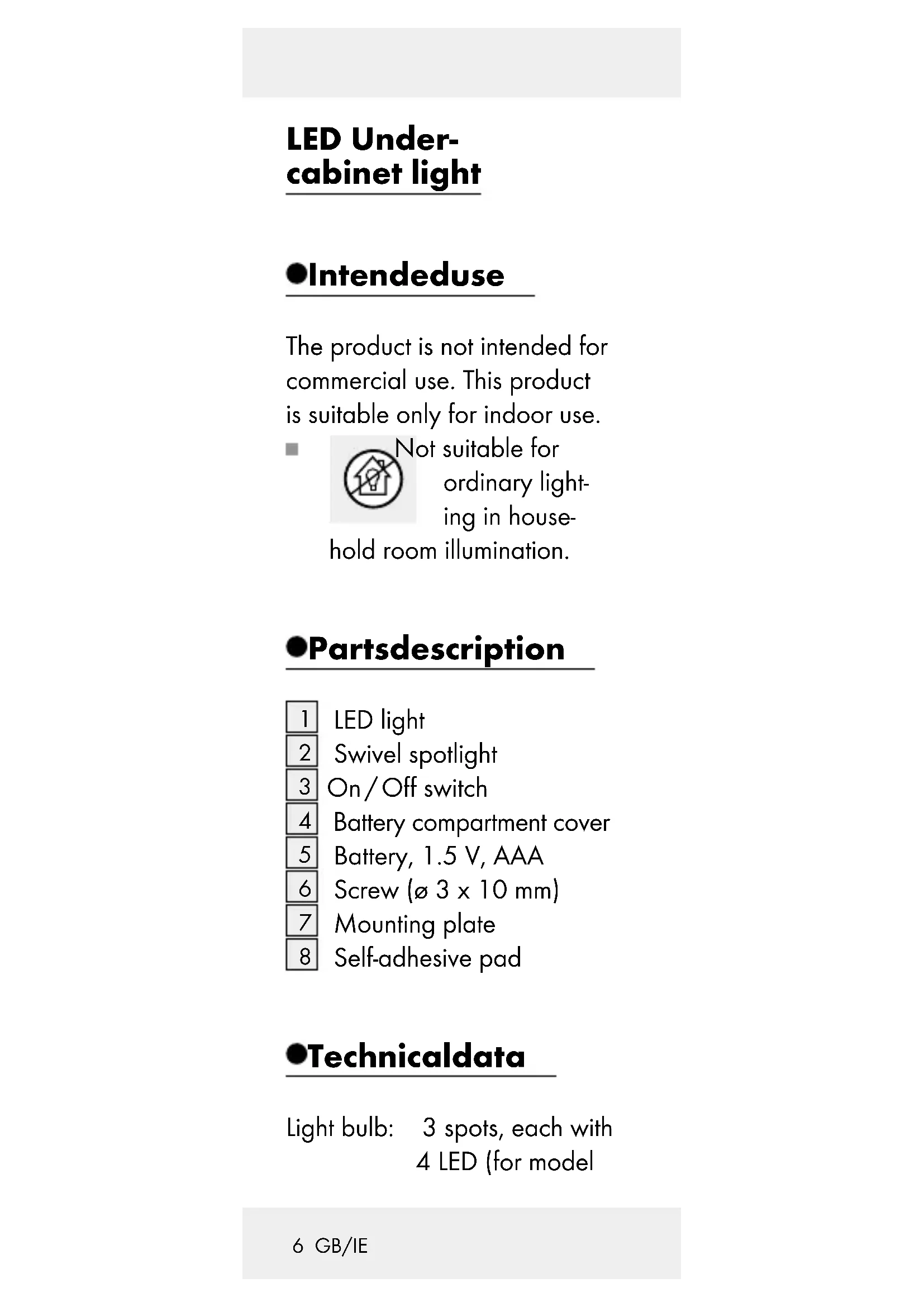

LED Under- cabinet light

- Intendeduse

The product is not intended for commercial use. This product is suitable only for indoor use.

Not suitable for ordinary lighting in household room illumination.

Partsdescription

1 LED light
2 Swivel spotlight
3 On/Off switch
4 Battery compartment cover
5 Battery, 1.5 V, AAA
6 Screw (ø 3 x 10 mm)
7 Mounting plate
8 Self-adhesive pad

●Technicaldata

Light bulb: 3 spots, each with 4 LED (for model

102738-14-01)

and each with 3

LED (for model

102738-14-02),

max. 0.06 W each

(LEDs not replace-

able)

Batteries: 6 x 1.5 V ---,

type AAA

- Contents

1 Lamp

1 Mounting plate
6Batteries
2 Screws ( 3 x 10 mm)
2 Self-adhesive pads
1 Instructions for use

General

Safety

Information

PLEASE READ THE INSTRUC-

TIONS PRIOR TO USE! PLEASE

KEEP THE INSTRUCTIONS

FOR USE IN A SAFE PLACE!

- Check the product for damage before use. Never use a damaged product.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

■ Never use the light if any defects have been identified.

■ LED cannot be replaced.

This light is solely suitable for use in dry, closed

indoor spaces.

●Batterysafety information

WARNING!

RISK OF

FATAL INJU-

RIES! Batteries are not intended for children. Do not leave batteries lying around. They may otherwise be swallowed by children or pets. If accidentally swallowed seek immediate medical attention.

EXPLOSION

HAZARD!

Never recharge non-rechargeable batteries, short-circuit and/or open batteries.

EXPLOSION

HAZARD!

Never throw

batteries into fire or water. The batteries may otherwise explode.

Keep batteries away from children; do not throw into fire, short-circuit or take them apart.

Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with clean water and seek immediate medical attention.
If necessary, clean the batteries and device contacts before inserting batteries.
When inserting the battery ensure the correct polarity! This is indicated in the battery compartment.
■ Only use the same type of batteries.
■ Remove batteries from the device after extended periods of non-use.
■ Promptly remove drained batteries from the product. There is an increased risk of leaks!
- Avoid extreme conditions and temperatures which may impact batteries, e.g. on radiators. Otherwise there is an increased risk of leaking.

Failure to follow safety instructions may drain batteries beyond their end voltage. This will then pose a risk of leaking.
If the batteries have leaked inside the product, please remove them immediately to prevent product damage!
Batteries do not belong in household refuse!
The law requires every consumer to properly dispose of batteries.

Use

Installation

☐ Secure the mounting plate 7 to a level wooden surface using the screws 6 or adhesive pads 8 included. Refer to figures C or D, respectively.

Place the eyes on the bottom part of the LED light 1 onto the mounting plate and latch in the LED light,

sliding it sideways as illustrated in Figure E.

Beforeuse

The batteries 5 are factory installed.

☐ Pull the two insulating strips out of the two battery compartments to activate.

Start-up

For both model 102738-14-01 and 102738-14-02, the swivel spotlights 2 can be tilted approx. 45^ in any direction (see Fig. A or B).

• Switchingswivel spots on / off

The LED light 1 is controlled using the On / Off switch 3. This button has three settings:

Press on/off switch once: high light output.

Press on/off switch

again: low light output.

Press the on / off switch

again: turns the light off.

• Replacing batteries

☐ Slide the mounting plate 7 and remove from the bracket. There are two battery compartments at the rear centre of the LED light (see Fig. F).

☐ Press the handle on the battery compartment slightly toward the compartment and lift the battery compartment cover 4 to open the battery compartment.

☐ Insert batteries in the compartment as indicated.

☐ Replace the battery cover to close the battery compartment.

□ Apply light pressure until the handle locks in again.

- Cleaning and Care

☐ Use a dry, soft and lint-free cloth for cleaning and care. Use a slightly dampened cloth and a mild detergent to remove stubborn dirt.

●Disposal

The packaging is made from eco-friendly materials.

Dispose of packaging through municipal recycling containers.

Contact your municipality for information on how to dispose of the worn-out product.

To protect the environment, please do not dispose of the

Worn-out product in your household waste, but dispose of properly.

Contact your municipality for information regarding collection

facilities and their opening hours.

Defective or used batteries must be recycled in accordance with Directive 2006/66/CE. Return batteries and / or the device to the recycling facilities offered.

Environmental damage due to improper bat- tery disposal!

Never dispose of batteries in your household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your municipal collection site.

Warranty

The device has been manufactured to strict quality

guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover

product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
