USER MANUAL One 2 Axkid

JP12 Thank you for choosing AXKID ONE 2 Read this instruction manual before installing AXKID ONE 2 car seat in your vehicle. For more information and installation videos visit www.axkid.com. AXKID ONE 2 car seat is a rear-facing car seat approved for children with a height between 61-125 cm or with a maximum weight of 23 kg. AXKID ONE+ 2 car seat is a rear-facing car seat approved for children with a height between 40-125 cm or with a maximum weight of 23 kg. This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle user’s manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer (www.axkid.com) or the retailer. Important information To maximize your child’s safety, it is important that you keep following in mind:

• Always follow the instructions in this manual. An incorrect installation may seriously aect the safety for your child. If in doubt, contact your retailer who can demonstrate a correct installation.

• Should you have an accident, no matter how small, your car seat should always be replaced. It may have damage that isnonvisualandcouldseriouslyaectthesafetyofyourchild.Forthisreason,Axkiddoesnotrecommendpurchasing secondhand car seats.

• If AXKID ONE 2 car seat has been exposed to direct sunlight, make sure the car seat is not too hot before installing your child.

• Never leave your child unattended in the vehicle.

• Ensure that any luggage or loose objects are secured in your vehicle as they may cause injuries to passengers in the event of an accident.

• Ensure that AXKID ONE 2 car seat is installed in a way where no parts become trapped by movable seats, car doors, etc.

• AXKID ONE 2 car seat may only be installed rear-facing.

• Alwaysmakesurethattheharnessisadjustedtocorrectlytyourchild’sbody.Theharnessisadjustedbymovingthe head support.

• Make sure that the child’s back is pushed against the car seat when restraining your child with the harness.

• Alwaysmakesurethattheharnessisrmlytightenedagainstyourchildandthatthebuckleiscompletelylocked,you should not be able to pinch the straps.

• Make sure there is no twist in the harness.

• Alwaysmakesurethesupport-legisinitscorrectpositionandhavecontactwiththevehicleoor.Checkthattheindicator on top of the support-leg is green and that you don’t hear any beeping sound from the support-leg foot.

• Do not attempt to disassemble nor modify any part of AXKID ONE 2 car seat. The warranty and the safety performance ofAXKIDONE2carseatcouldbeaectedifdoingso.

• Never use AXKID ONE 2 car seat without the seat textile cover. The seat textile cover is a safety feature and may only be replaced with an Axkid original seat textile cover.

• Readthevehiclehandbooktondwhichseatingpositionsissuitableforthisseat.

• Axkid recommends to always use a seat protection to protect your vehicle seat from scratches and dirt.

• If any doubts, contact the retailer where the car seat was purchased or contact [e-mail]13 Table of content Parts Allowed and disallowed positioning of AXKID ONE 2 car seat Installing AXKID ONE 2 car seat in the vehicle Restraining your child in AXKID ONE 2 car seat Seat adjustments Adjusting AXKID ONE 2 car seat Removing AXKID ONE 2 car seat from the vehicle Care and maintenance Warranty

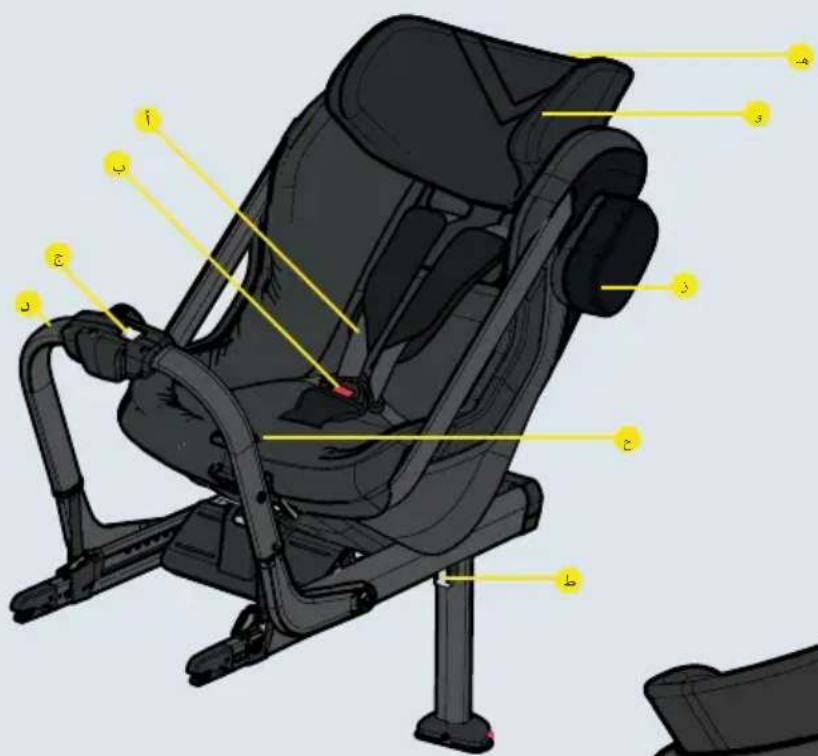

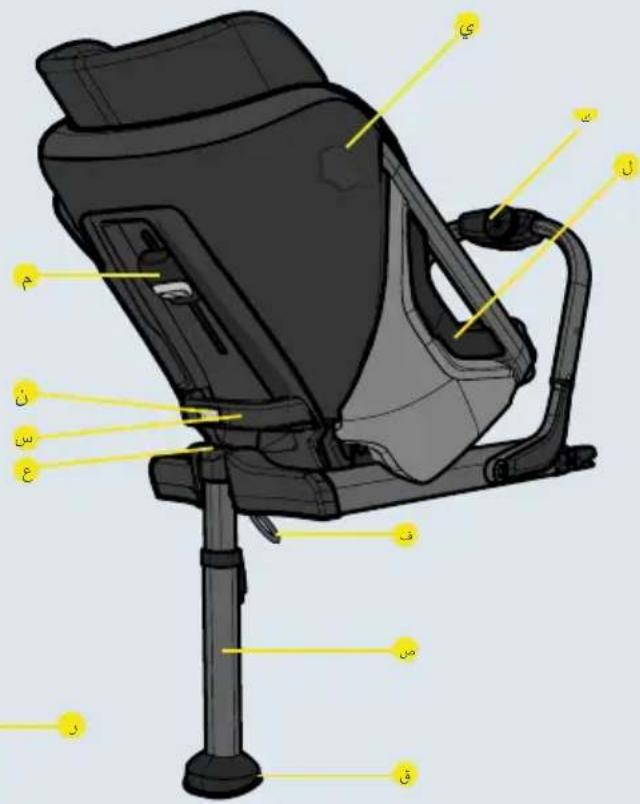

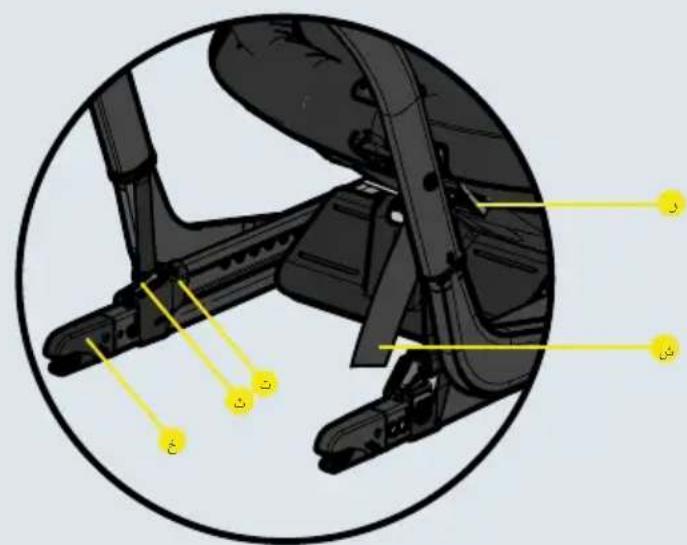

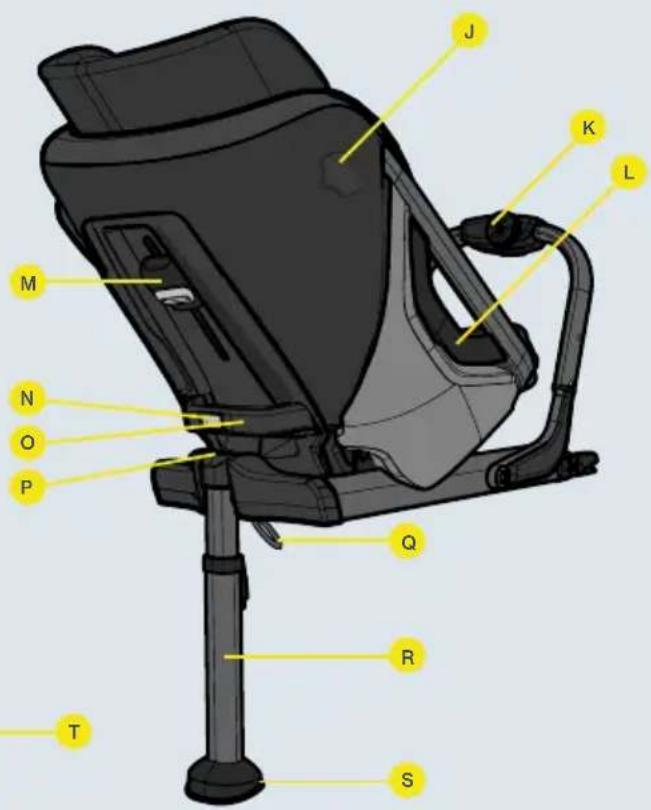

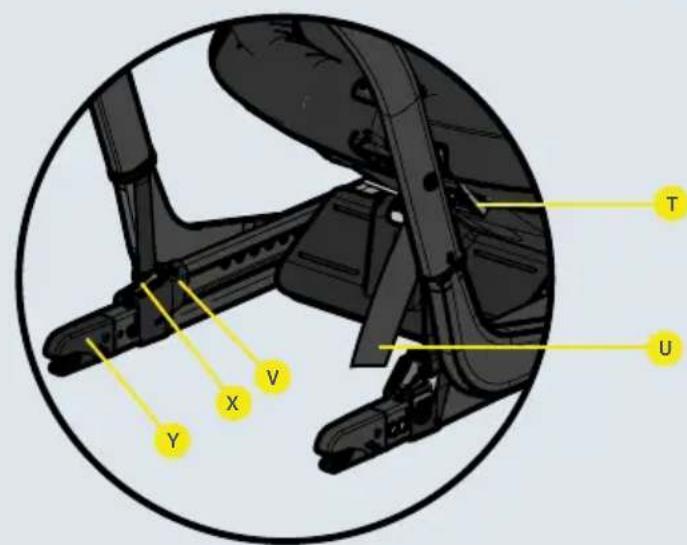

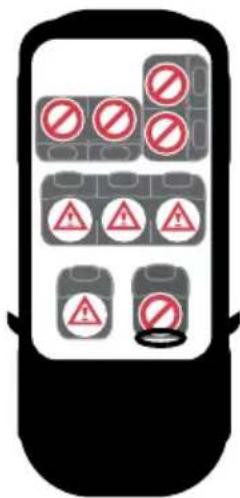

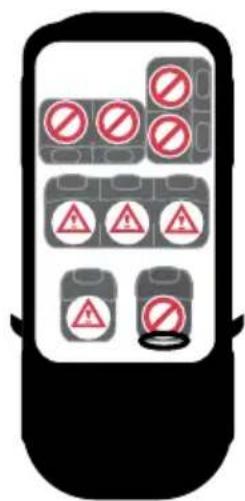

Parts15 Shoulder straps (A) Buckle release button (B) Front brace release button (C) Front brace (D) Headrest (E) Eye level indicator (F) ASIP pad (G) Recline position knob (H) Support-leg button (I) ASIP connector (J) Front brace knob (K) Side cover (L) Headrest adjustment buttons (M) Legroom adjustment button (N) Back handle (O) Support-leg position indicator (P) Support-leg release strap (Q) Support-leg (R) Sound indicator (S) Harness release button (T) Harness tension strap (U) ISOFIX locking indicators (V) ISOFIX buttons (X) ISOFIX connectors (Y) EN16 Allowed and disallowed positioning of AXKID ONE 2 car seat AXKID ONE 2 car seat can only be installed rear-facing using ISOFIX. It is approved for use in all i-Size approved seatingpositionsbutmayalsotinothernoni-Size-approvedISOFIXseatingpositions.Checkyourvehicleinstruction manualtondsuitableseatingpositionsandcheckthevehiclelistonwww.axkid.com Front passenger seat with ISOFIX (no active airbag) YES/NO* Front passenger seat with ISOFIX (active airbag) NO Rear passenger seat with ISOFIX YES Side and rear facing seats with ISOFIX NO Seats without ISOFIX NO IMPORTANT:IfyouwishtoinstallyourAXKIDONE2carseatinalocationwhereafrontalairbagistted,theairbagmust be disconnected according to your vehicle manufacturer instruction. Note that some vehicles require an authorized service center to disconnect the airbag. *TheGeneralRegulationofTracinSpain,initsarticle117,establishestheprohibitionofdrivingwithchildrenofstature equal to or less than 135 centimeters located in the front seats of the vehicle, without exceptions. Never install a child restraint in a passenger seatwhereanactiveairbagistted.17 Installing AXKID ONE 2 car seat in the vehicle Before installing AXKID ONE 2 car seat in your vehicle, minimize its size by releasing the legroom adjustment button (N) and slide the seat towards the front brace (D). Fold down the support-leg (R) until a click can be heard and the support-leg position indicator (P) turns green. Release the front brace release button (C) and fold the front brace (D) towards the seat. Keep holding the front brace (D) with one hand and grab the back handle (O) with the other hand and lift the AXKID ONE2carseatintoyourvehiclewiththefrontbrace(D)rstandthenturnittoarear-facingposition. Push the ISOFIX connectors (Y) into the ISOFIX connection points in the vehicle until you hear a click and both ISOFIX locking indicators (V) turn green. Let go of the front brace (D) which will start tensioning itself against the vehicle seat. When it stops, turn the front brace knob (K) clockwise until you feel and hear a click, the front brace (D) should now bermlypressedagainstthevehicleseat.Thefrontbraceknob(K)hasabuilt-intorquelimiterandthe click indicates that the front brace (D) is tightened correctly and cannot be tightened any more. Push the support-leg button (I) and pull the support-leg (R) downwards until it is in contact with the vehicleoor.Letgoofthesupport-legbutton(I)andliftthecarseatupwardstofurtherextendthesupport-leg(R)untilyouhearaclick.Thesupport-leg(R)shouldnowbelockedandrmlypressedagainstthevehicleoor.Note:TheAXKIDONE2carseatisequippedwithabeepingsoundindicator(S)thatwillkeepbeepinguntilthesupport-leg(R)isrmlypressedagainsttheoor,indicatingacorrect installation. Push the ASIP pad (G) into the slots on the ASIP connector (J) and slide downwards, the ASIP pad (G) will click into place. If there is a plastic cover on the ASIP connector (J), remove it and place it on theASIPconnector(J)ontheoppositesideoftheseatbeforettingtheASIPpad(G).MakesuretheASIP pad (G) is attached on the side of AXKID ONE 2 car seat that is closest to the vehicle door.

ENRestraining your child in AXKID ONE 2 car seat Before restraining your child in the AXKID ONE 2 car seat, make sure you have the correct insert installed in the seat. AXKIDONE2isdesignedtogrowwithyourchildandtoensureacomfortableandsafetforallchildren. Axkid recommends using the relevant insert until it is too tight for your child, but to a minimum length according to table below (note that the age is just an indication): Age Height Infant 0-6 month (AXKID ONE+ 2 only) 0 – 60 cm Toddler 0-3 years 61 – 105 cm Child 3-7 years 106 – 125 cm Loosen the harness by pressing the harness release button (T) and pull out both shoulder straps (A) at the same time. Avoid pulling only one strap at the time since it may cause the shoulder straps (A) to become uneven. Unlock the buckle by pressing the buckle release button (B) and place the straps outside of the seat. Place your child in the seat and place the shoulder straps (A) over your child’s shoulder. Lock the harnessbyrstpositioningthepartsofthebucklethatisattachedtotheshoulderstraps(A)together and then push them into the buckle until you hear a click. Adjust the headrest (E) until the eye level indicators (F) is in line with your child’s eyes by pushing both headrest adjustment buttons (M) and slide it upwards or downwards. Note: the eye level indicators (F) shall not be used when using the infant insert (AXKID ONE+ 2 only). When using AXKID ONE+ 2 for infants, always make sure that the headrest is in the lowest position. Check that the shoulder straps (A) is going through the seat straight from your child’s shoulders or maximum 1 cm above. You might need to adjust the headrest (E) again, even if it makes the eye level indicator get out of line with your child’s eyes. Now pull on the shoulder straps (A) to tighten the harness over your child’s hips. While keeping tension in the shoulder straps (A), pull the harness tensionstrap(U)untiltheharnessistightenedenough,youshouldnotbeabletotmorethanone ngerbetweentheshoulderstraps(A)andyourchild’sshoulders. 18EN Seat adjustments After the AXKID ONE 2 car seat has been installed in your vehicle you can easily adjust both the legroom and the recline position for your child. This can also be done while your child is restrained in the car seat. Toensureagoodtinallcarsandgivethebestprotectionforyourchild,Axkidstronglyrecommendsthatyouusethe guided positions marked on the side of the car seat. As your child grows it is important to adjust the recline to a more upright position to give the best possible protection for your child’s neck in the case of an accident. The size indication is based on your child’s length. Make sure both arrows points at the correct zone. Age Adjustment Infant 0-6 month (AXKID ONE+ 2 only) Maximum recline Minimum legroom 0-60 61-105 106-125 cm0-60 cm 61-105 cm0-60 cm Toddler 0-3 years All recline positions Several legroom positions 0-60 61-105106-125

• The legroom is adjusted by releasing the legroom adjustment button (N) and sliding the seat forward or backwards. To avoid AXKID ONE 2 from accidently sliding forward, grab the back handle (O) and gently pull it backwards before releasing the legroom adjustment button (N).

• The recline position of the car seat can be adjusted by turning the recline position knob (H).

Removing AXKID ONE 2 car seat from your vehicle

• Push the support-leg button (I) and collapse the support-leg (R) to its shortest position.

• Slide the front brace release button (C) and fold the front brace (D) towards the seat to release the tension against the vehicle seat.

• Disconnect the ISOFIX connectors (Y) by pushing down on the ISOFIX buttons (X) and then slide them backwards, away from the vehicle seat.

• Keep holding the front brace (D) with one hand and grab the back handle (O) with the other hand and lift AXKID ONE 2 car seat out of your vehicle.

• Fold up the support-leg (R) by pulling the support-leg release strap (Q) and folding the support-leg (R) upwards. Care and maintenance

• The seat textile cover can be machine washed at 30º C on a gentle cycle. Do not put the cover in a dryer as this can damagethecoverandthepaddingmayseparatefromthefabric.Visitwww.axkid.comtondvideosexplaininghow to remove and attach the cover.

• To remove the textile cover from the seat, pull outwards on the side cover (L) and de-attach the Velcro. Open the zippers at the backrest and gently remove the cover from the seat. Make note how it is attached around the seat to make it easier to put back. When reinstalling the side cover (L), insert it under the aluminum frame and simply push back into the snap attachment. To remove the headrest cover, open the zippers on the bottom of the headrest and gently remove the cover.

• If the seat cover needs replacing, ensure only original products from Axkid are used. If other products are used, AXKID ONE 2 car seat’s safety system may be compromised and could lead to severe injury in case of an accident.

• Any plastic parts of AXKID ONE 2 car seat can be cleaned with mild detergent and water. Do not use aggressive chemicals containing solvents or similar, as this can cause damage to the plastic and compromise the safety of the car seat.

• All materials used in AXKID ONE 2 car seat are recyclable and should be recycled as per your local legislation. Ask your local recycling center for advice when recycling this product.

• The sound indicator (S) contains a replaceable CR1632 battery. Please remove and recycle the battery according to your local legislation when the AXKID ONE 2 car seat should no longer be used. Unscrew the two screws at the bottom of the support-leg (R) and remove the cover to gain access to the battery.

• DonotmakeanymodicationsoralterationstoAXKIDONE2carseatotherthanthosedescribedinthisinstruction manual.

• Any repairs must be carried out by the manufacturer or agent.21 Warranty AXKID ONE 2 car seat is covered by a 24-month warranty from date of purchase. Ensure you save your receipt and bring it to your place of purchase if you have any warranty issues. The warranty does not cover:

• Normal wear and tear

• Damage due to incorrect use, neglect or accident

• If repairs have been carried out by a third party

• All materials used have a very high UV-resistance rating. However, UV-light is very aggressive and will ultimately lead to fading of the seat cover. This is not covered by our warranty as it is considered normal wear and tear.

• Handle the seat with care. Note that the backside mesh fabric scratches easily and damages other than factory faulty mesh, will not be covered by the warranty.
