Product type	Rear-facing car seat
Brand	Axkid
Model	Envirokid
Approval	i-Size (ECE R129)
Use	Children from 61 to 105 cm and up to 18 kg
Installation	Mandatory with Axkid Envirobase (ISOFIX)
Mounting direction	Rear-facing only
Restraint system	Adjustable 5-point harness
Side protection	Removable ASIP (Axkid Side Impact Protection) on door side
Headrest	Height adjustable with manual locking system
Recline	3 adjustable positions
Support leg	Present on the base, floor contact with green and audible indicator
Materials	Plastic, textile, polystyrene, metal — recyclable
Cover care	Machine wash at 30°C, delicate cycle, do not tumble dry
Cleaning plastic parts	Mild detergent and water, no solvents
Warranty	24 months from date of purchase
Precautions	Do not install on seat with active frontal airbag; replace after any accident

Frequently Asked Questions - Envirokid Axkid

What is the size and weight range for the Axkid Envirokid?

The Axkid Envirokid is designed for children measuring between 61 and 105 cm and weighing up to 18 kg.

Can I install the Envirokid in the front with an active airbag?

No, never install the Envirokid on a seat with an active frontal airbag. Disable the airbag according to the vehicle instructions if necessary.

What accessories are needed to install the Envirokid?

The Envirokid seat must be installed exclusively with the Axkid Envirobase (ISOFIX base). Do not use other bases or seat belts.

How to correctly install the ASIP side protection?

Align the arrows of the ASIP cushion with those of the ASIP connector on the seat. Push the cushion upward until it clicks into place. To remove, push downward.

How to adjust the headrest height and lock it?

Pull the harness tightening strap: the headrest rises automatically. To lock it, move the locking lever (A) to the right after hearing a click.

How to adjust the seat recline?

Pull the recline adjustment lever (I) and push or pull the seat into one of the 3 fixed positions. Release the lever to lock.

What to do if the harness is twisted or mispositioned?

Make sure the harness straps are centered and not twisted before tightening. Pull the adjustment strap (G) to tension evenly.

How to maintain the seat cover?

The cover is machine washable at 30°C on a delicate cycle. Do not use a tumble dryer. Clean plastic parts with a mild detergent.

What are the permitted positions to install the Envirokid?

Only on seats with i-Size compatible ISOFIX, rear-facing. Not on side or rear seats without ISOFIX, nor in front if active airbag.

What to do in case of an accident with the seat?

The seat must be systematically replaced after any accident, even minor, as internal damage may compromise safety.

USER MANUAL Envirokid Axkid

Silhouette of a car with two side seats (no text or symbols)

AIRBAG

ISOFIX

Illustration of a car seat with a checkmark indicating selection (no text or symbols present)

Illustration of a car seat with a black seat and open lid, no text or symbols present

Illustration of hands adjusting a seatbelt buckle with a red arrow indicating the grip (no text or symbols present)

Illustration of a baby wearing a car seatbelt and belt, sitting in a black seat (no text or symbols)

Illustration of a person's seatbelt being adjusted for down, showing the belt being inserted (no text or symbols present)

Diagram of a car seatbelt with a directional arrow indicating rotation (no text or symbols)

HQ/Sverige/Norge

Axkid AB

www.axkid.com

[e-mail]

Tel:[phone]

Czech Republic

Domecek pro deti

www.domecekprodeti.cz

[e-mail]

([phone]

Deutschland

Axkid GmbH

www.axkid.com

[e-mail]

Tel: +(49) 60-99 84 89 05

Eesti

GreenHansa OÜ

www.beebipood.ee

[e-mail]

([phone]

España/Portugal

Independent Marketing

www.infobebe.es

[e-mail]

([phone]

France

Axkid AB

www.axkid.com

[e-mail]

Tel[phone]

Greece Ελλάδα

Serbia Србија

LETO shop

www.letoshop.gr

[e-mail]

([phone]

Island

Leiftur

www.leiftur.is

[e-mail]

([phone]

Latvia

Muki

www.muki.lv

[e-mail]

([phone]

Lietuva

Kotryna Group

www.kotrynagroup.com

[e-mail]

([phone]

Malaysia

SafenSound

www.safensound.com.my

[e-mail]

([phone]

New Zealand

Clicksafe

www.clicksafe.co.nz/axkid

[e-mail]

Tel:[phone]

Polsce

Junior Andrzej Kwapinski

Horbaczewskiego 4-6

54-130 Wroclaw Dh Astra Sklep

Poland Tel: +(48) 713 549 723

România

SC Baby Car seats

www.axkid.ro

[e-mail]

([phone]

South Africa

Quality Imports SA & #Carseatfullstop

www.qualityimportssa.co.za

[e-mail]

([phone]

Suomi

Lastentarvike

www.lastentarvike.fi

[e-mail]

([phone]

UK/Ireland

Axkid Ltd

www.axkid.com

[e-mail]

Tel:[phone]

EN 8-13

DE 14-19

FR 20-25

NO 26-31

PL 32-37

SE 38-43

TH 44-49

Thank you for choosing AXKID ENVIROKID

Read this instruction manual before installing AXKID ENVIROKID car seat in your vehicle. For more information and installation videos visit www.axkid.com.

AXKID ENVIROKID is a rear-facing car seat approved for children with a height between 61-105cm with a maximum weight of 18 kg.

This is an i-Size Enhanced Child Restraint Module System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle user's manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer (www.axkid.com) or the retailer.

Important information

To maximize your child's safety, it is important that you keep the following in mind:

• Always follow the instructions in this manual. An incorrect installation may seriously affect the safety for your child. If in doubt, contact your retailer who can demonstrate a correct installation.
- Keep this instruction manual for future reference. If manual is lost, you can find it online at www.axkid.com
- Do not use AXKID ENVIROKID and AXKID ENVIROBASE in a seating position where an active frontal airbag is fitted. If you still wish to install the AXKID ENVIROKID car seat in this location the airbag must be switched off according to the vehicle manufacturers instructions.
• Should you have an accident, no matter how small, your car seat should always be replaced. It may have damage that is non visual and could seriously affect the safety of your child. For this reason, Axkid does not recommend purchasing second hand car seats.
• If the AXKID ENVIROKID has been exposed to direct sunlight, make sure that the car seat is not too hot before installing your child.
- Never leave your child unattended in the vehicle.
- Ensure that any luggage or loose objects are secured in your vehicle as they may cause injuries to passengers in the event of an accident.
- Ensure that AXKID ENVIROKID is installed in a way where no parts become trapped by movable seats, car doors, etc.
- AXKID ENVIROKID may only be installed rear-facing.
- This car seat may ONLY be installed together with the AXKID ENVIROBASE.
- Make sure that the child's back is pushed against the car seat when restraining you child with the harness.
• Always make sure that the harness is firmly tightened against your child and that the buckle is completely locked. You should not be able to pinch the straps.
- Make sure there is no twist in the harness.
• Always make sure the support leg is in its correct position and have contact with the vehicle floor. Check that the indicator on top of the support leg is green and that you don't hear any beeping sound from the support leg foot.
- Do not attempt to disassemble nor modify any part of AXKID ENVIROKID. The warranty and the safety performance of the AXKID ENVIROKID could be affected if doing so.
- Never use AXKID ENVIROKID without the seat textile cover. The textile cover is a safety feature and may only be replaced with an original seat textile cover.
- Read the vehicle manual to find which seating positions are suitable for AXKID ENVIROBASE and AXKID ENVIROKID.
- Axkid recommends to always use a seat protection to protect your vehicle seat from scratches and dirt.
• If in any doubts, contact the retailer where the base and compatible car seat was purchased or contact [e-mail].

Table of content

Parts 10

Installation in the car 11

Buckle your child in the seat 11

Allowed and disallowed positions of the AXKID ENVIROKID 12

Adjusting the seat 12

Care and maintenance 13

Warranty 13

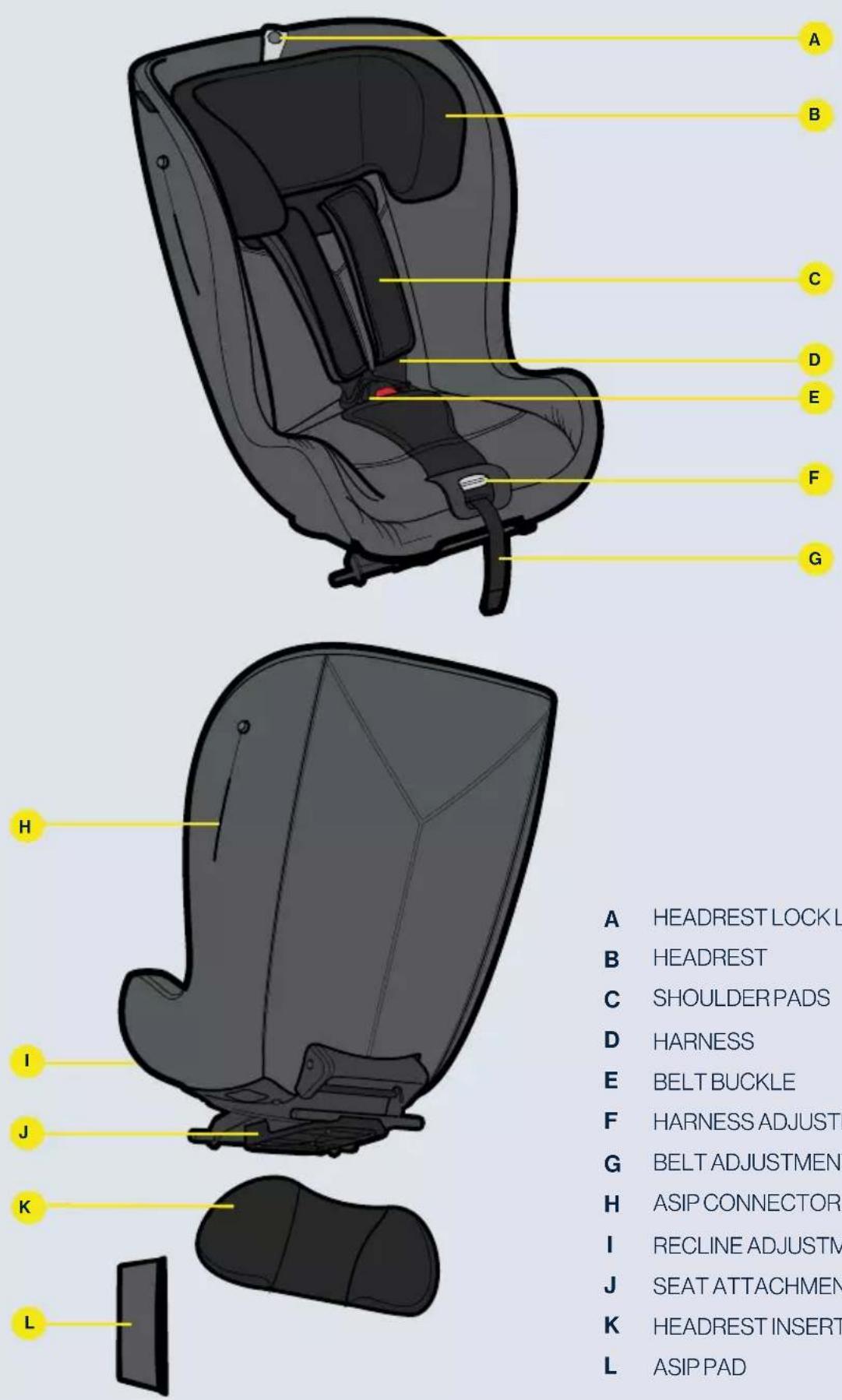

Parts

A HEADREST LOCK LEVER
B HEADREST
C SHOULDERPADS
D HARNESS
E BELT BUCKLE
F HARNESS ADJUSTMENT BUTTON
G BELT ADJUSTMENT STRAP
H ASIP CONNECTOR
I RECLINE ADJUSTMENT PLATE
J SEAT ATTACHMENT PLATE
K HEADREST INSERT
L ASIP PAD

Installation in the car

Base installation

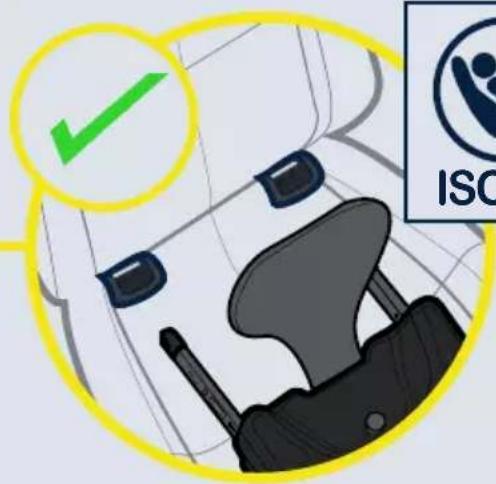

The AXKID ENVIROKID can ONLY be installed together with the AXKID ENVIROBASE. For installation of the base see AXKID ENVIROBASE's instruction manual.

Installing the AXKID ENVIROKID on the base

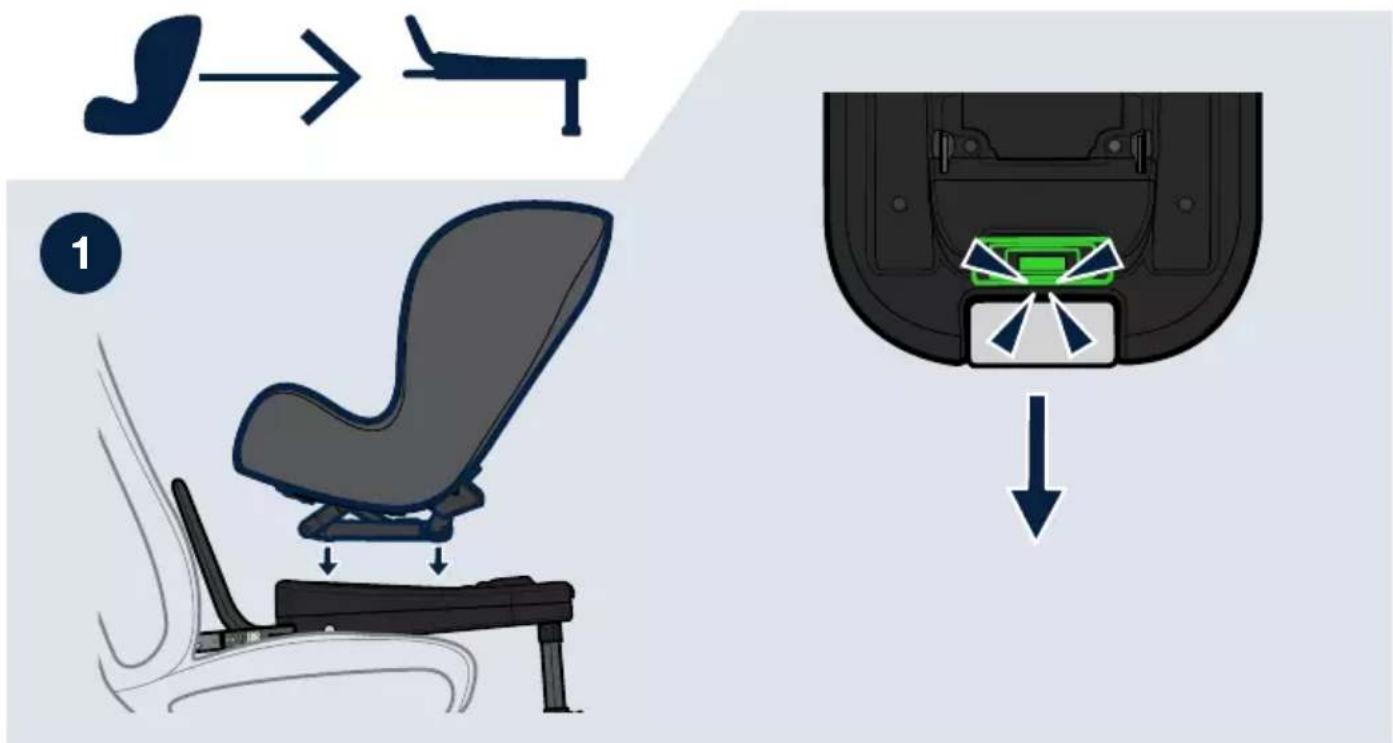

1 Pull the seat release handle until it locks into its extended position. Place the car seat in position on top of the AXKID ENVIROBASE and push the car seat down into the AXKID ENVIROBASE until the seat release handle clicks into locked position and the seat attachment indicator shows green. The base attachment hooks should now have attached to the car seat in both front and rear.

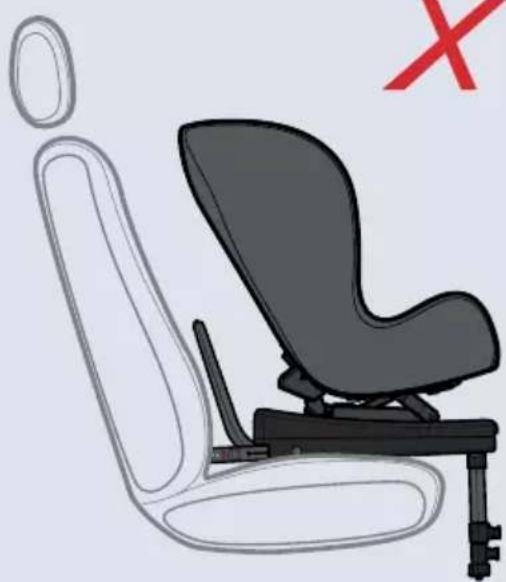

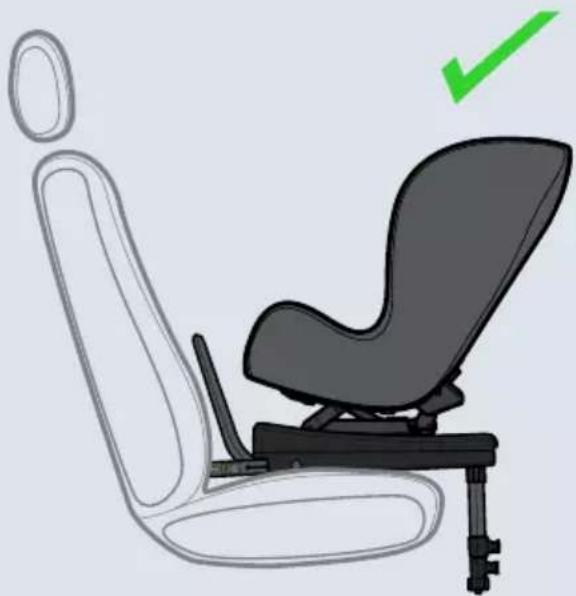

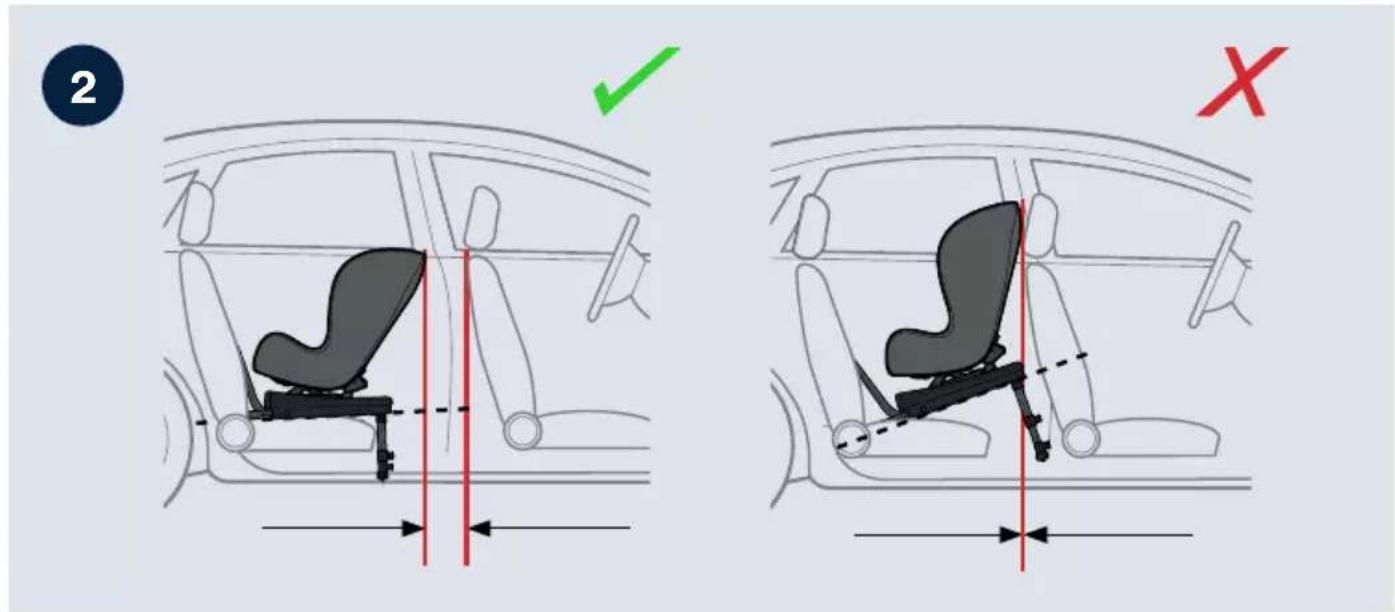

2 Ensure that the AXKID ENVIROKID is not in contact with any adjacent vehicle seat and that the support leg is firmly clamped to the floor and that the support leg installation buzzer has stopped buzzing.

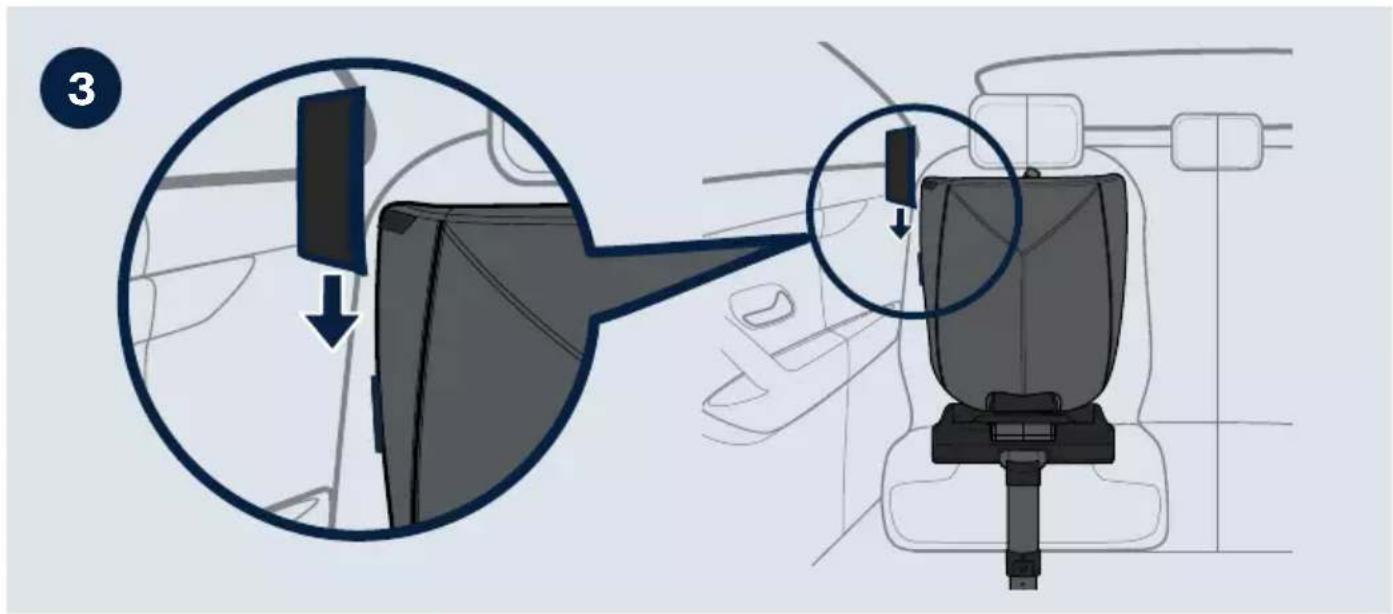

3 AXKID ENVIROKID is equipped with a side impact protection system, ASIP (Axkid Side Impact Protection). To install the ASIP, locate the side impact pad connector (H) on the child seat nearest to the car door. Ensure the two triangular arrows on the side impact pad (L) point in the same direction as the triangular arrow on the side impact pad connector (H). Place the upper of the two oval openings on the bottom of the side impact pad (L) over the side impact pad connector (H). Push the side impact pad (L) against the side of the car seat and slide it upwards onto the side impact pad connector (H). You will feel a slight click as the side impact pad locks in place. To remove: push the side impact pad downwards and remove.

IMPORTANT:

The AXKID ENVIROKID can ONLY be installed together with the AXKID ENVIROBASE. Do not use any other base or vehicle seat belt mounting. It could lead to the car seat not being properly fastened which can lead to serious injuries.

Restraining your child in AXKID ENVIROKID

Base installation

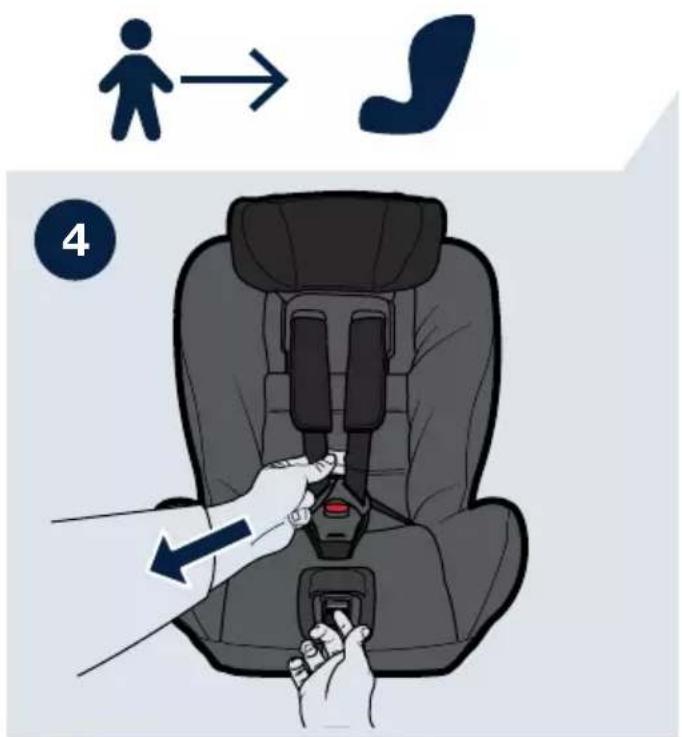

4 Press the harness adjustment button (F) and pull out on both shoulder straps at the same time (not the shoulder pads) to completely loosen the harness (D).

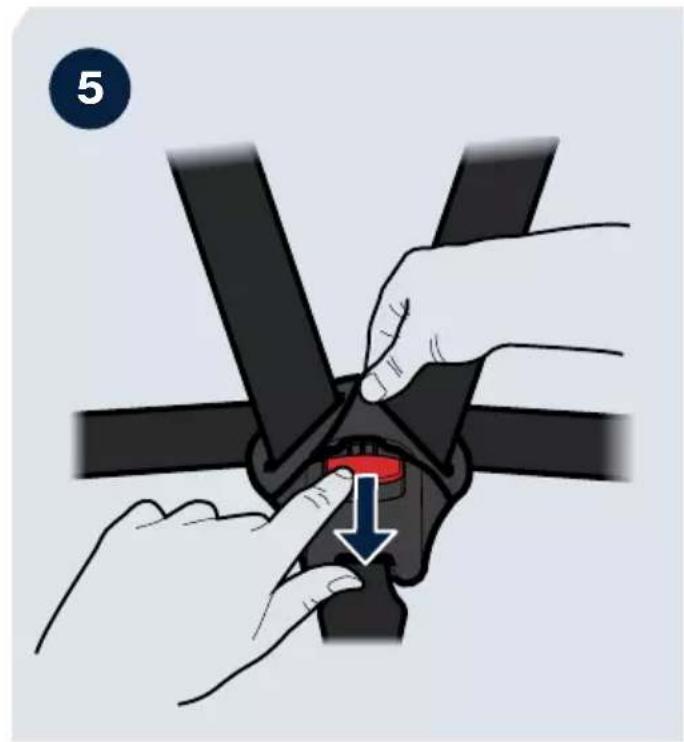

5 Press the red harness release button on the belt buckle (E) and release the harness.

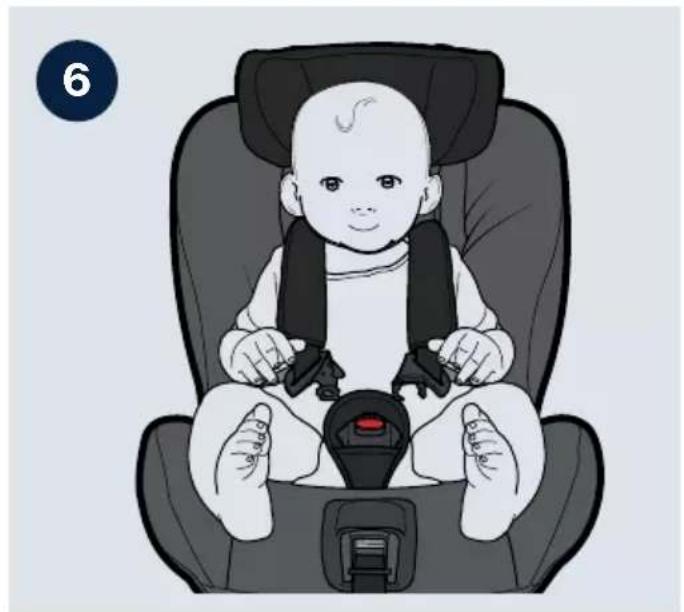

6 Place your child in the car seat. Put your child's arms in between the shoulder straps so that the straps are hanging over the chest and stomach.

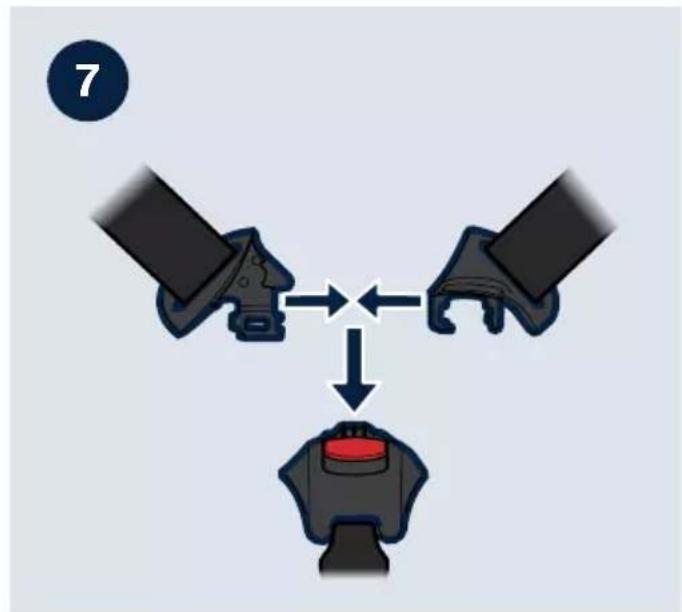

7 Pull the shoulder straps together and insert the harness tongues connected into the crotch buckle.

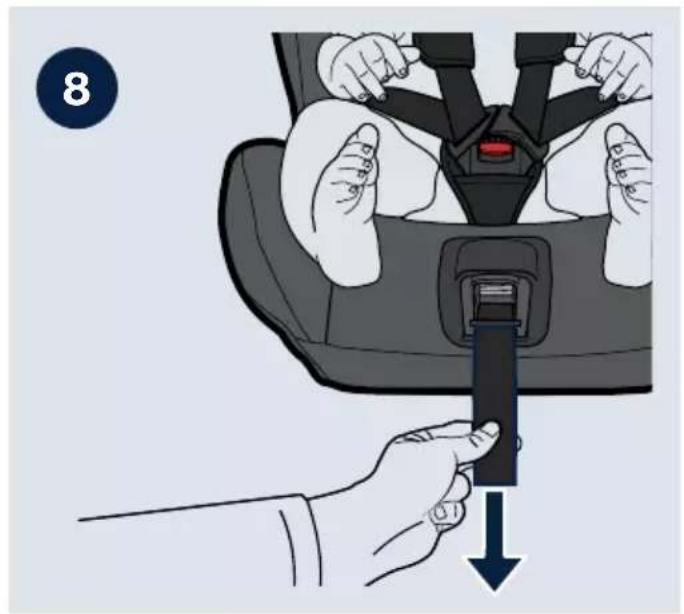

8 Pull the belt adjustment strap (G). It's important that you always pull the harness straight and central when you tighten the adjustment strap. This will tighten the harness and the headrest (B) will automatically slide down to the appropriate height.

Head Support Brake on Headrest

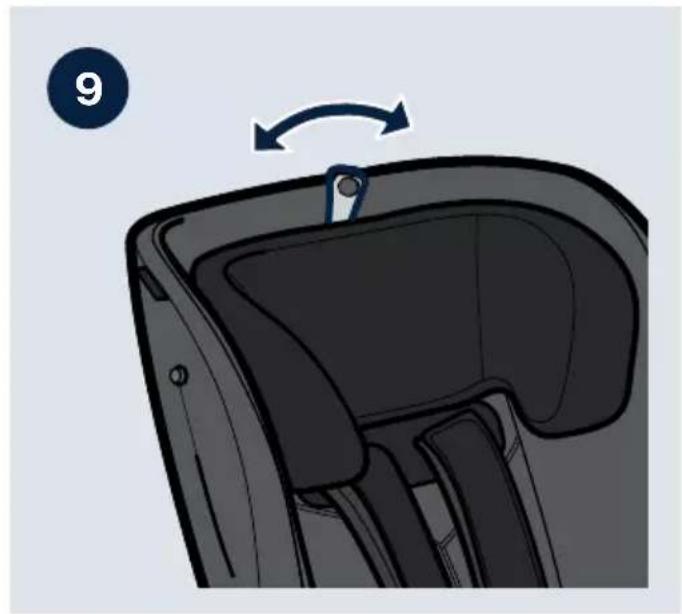

9 The headrest on your AXKID ENVIROKID is equipped with a head support brake. This can be used if you want to keep the headrest in a fixed position. To activate the head support brake, pull the harness adjustment strap until the headrest is at the desired height, you will hear a faint "click" sound from the headrest as it locks into position. Check that the headrest cannot be pulled down any further and activate the headrest brake by moving the Headrest lock lever (A) across to the right.

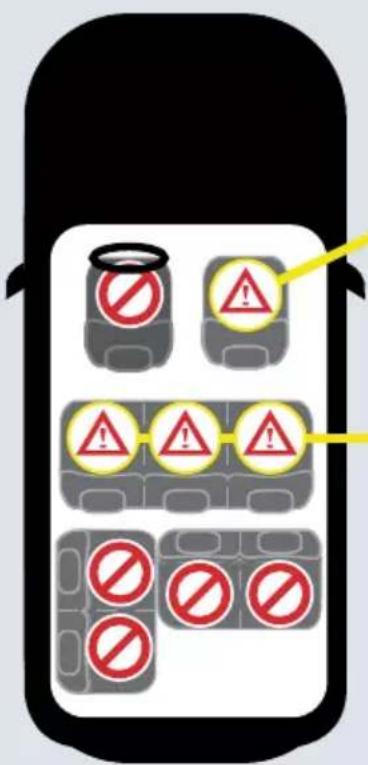

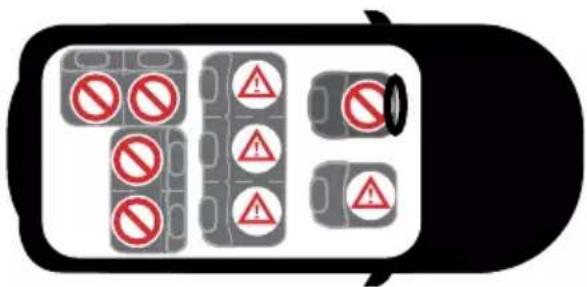

Allowed and disallowed positioning of the AXKID ENVIROKID

The AXKID ENVIROKID can only be used together with the AXKID ENVIROBASE which can only be installed rear-facing using ISOFIX. It is approved for use in all i-Size approved seating positions but may also fit in other non-i-Size approved ISOFIX seating positions. Check your vehicle instruction manual to find suitable seating positions or check the vehicle list on www.axkid.com.

Front passenger seat with ISOFIX (no active airbag) YES/NO*

Front passenger seat with ISOFIX (active airbag) NO
Rear passenger seat with ISOFIX YES
Side and rear facing seats with ISOFIX NO
Seats without ISOFIX NO

IMPORTANT: If you wish to install your Axkid car seat in a location where a frontal airbag is fitted, the airbag must be disconnected according to your vehicle manufacturer instruction. Note that some vehicles require an authorized service center to disconnect the airbag.

* The General Regulation of Traffic in Spain, in its article 117, establishes the prohibition of driving with children of stature equal to or less than 135 centimetres located in the front seats of the vehicle, without exceptions.

Never install a child restraint in a passenger seat where an active airbag is fitted.

Adjusting the seat

The seat angle can be adjusted in three different positions. This can be done both before the child is seated or with the child in the seat.

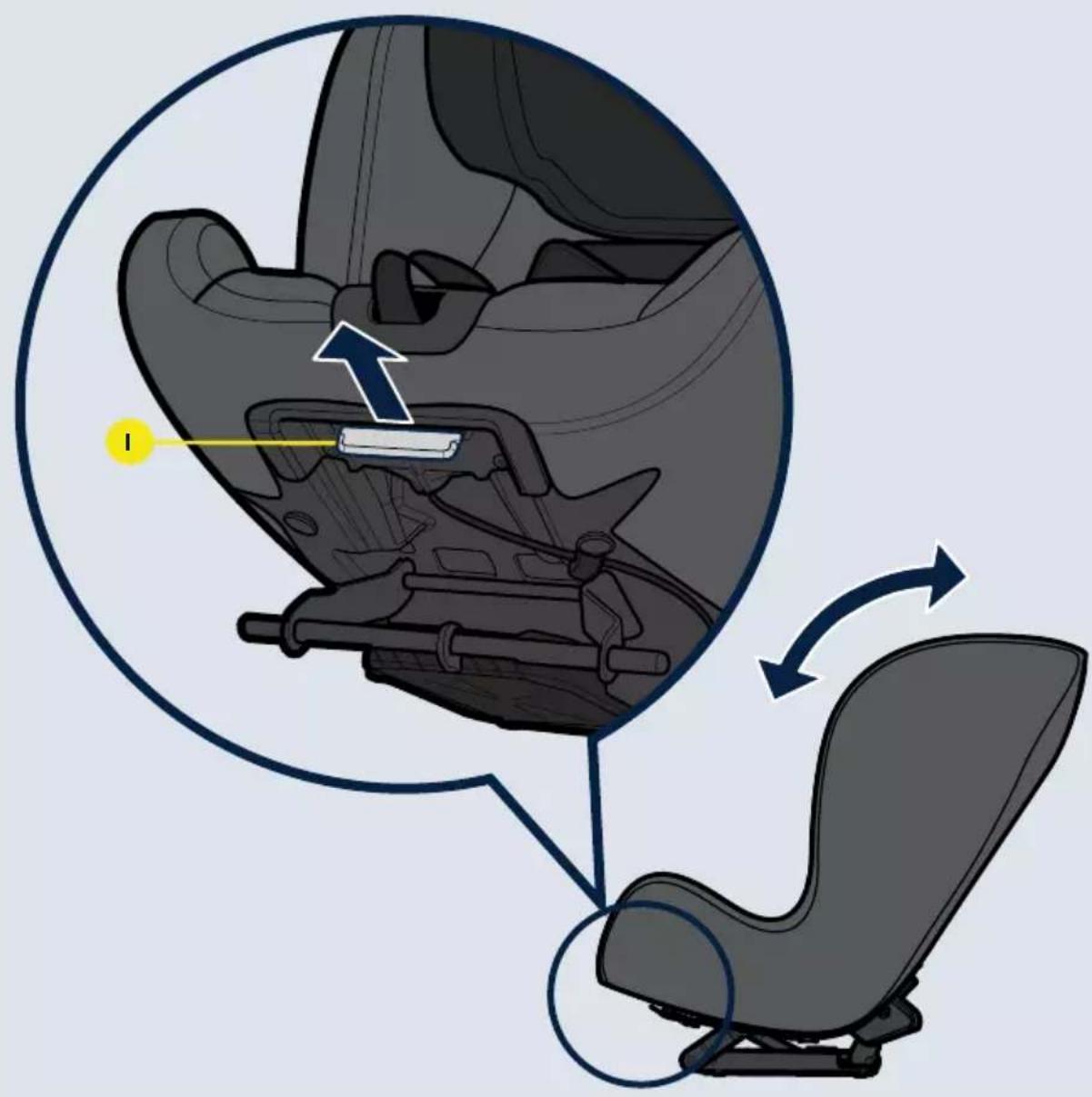

To adjust the seat angle:

- Pull the recline adjustment lever (l) and push or pull the seat to intended seat position.

- Release the Recline adjustment lever (I) and the seat will then lock in one of the three fixed positions.

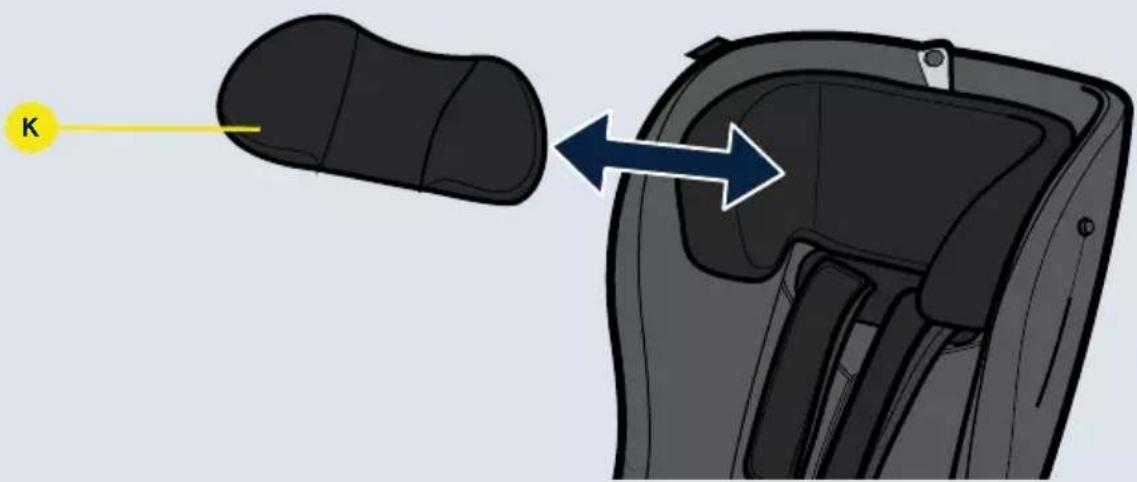

If needed, add the headrest insert (K). We recommend using the insert if your child is younger than approximately 18 months to ensure an appropriate fit.

Care and maintenance

• The seat cover can be removed and washed in a washing machine at 30^ on the "Gentle Cycle" program. Do not put the cover in a dryer as this can damage the cover and the padding may separate from the fabric. Visit www.axkid.com to find videos explaining how to remove and attach the cover.
• Any plastic parts of AXKID ENVIROKID can be cleaned with mild detergent and water. Do not use aggressive chemicals containing solvents etc, as this can cause damage to the plastic and compromise the safety of the car seat.
• All materials used in the AXKID ENVIROKID are recyclable and should be recycled as per your local legislation. Ask your local recycling center for advice when recycling this product.
• Do not make any modifications or alterations to the AXKID ENVIROKID other than those described in this instruction manual. Follow the instructions in this manual carefully. Any repairs must be carried out by the manufacturer or agent.
• If the seat cover needs replacing, ensure only original products from Axkid are used. If other products are used, the AXKID ENVIROKID's safety system may be compromised and could lead to severe injury in case of an accident.

Recycling your car seat

Axkid strongly recommends recycling of old car seats. Before leaving the seat at your local recycling station cut off the harness straps from the seat, remove the textile cover, remove as many Styrofoam parts as possible, separate metal and plastic parts if possible. The main part of the seat should be marked unsafe or expired (use a marker) to deter anyone from using it again. Please check your local municipal guidelines for recycling instructions for the different materials.

Warranty

The AXKID ENVIROKID is covered by a 24-month warranty from date of purchase. Ensure you save your receipt and bring it to your place of purchase if you have any warranty issues.

The warranty does not cover:

• Normal wear and tear
• Damage due to incorrect use, neglect or accident
  • If repairs have been carried out by a third party
• All materials used have a very high UV-resistance rating. However, UV-light is very aggressive and will ultimately lead to fading of the seat cover. This is not covered by our warranty as it is considered normal wear and tear.
