Product type	Portable nibbler (shears)
Brand	Fein
Model	BLK 1.3 TE
Power supply	Mains (corded)
Power input	350 W
Power output	210 W
No-load stroke rate	1000-1800 min⁻¹
Max. steel thickness (400 N/mm²)	1.3 mm
Max. steel thickness (600 N/mm²)	0.8 mm
Max. steel thickness (800 N/mm²)	0.6 mm
Max. aluminum thickness (250 N/mm²)	2.0 mm
Die insertion diameter	19.0 mm
Min. inner radius for curvilinear cuts	25.0 mm
Weight (EPTA)	1.75 kg
Sound pressure level	88.5 dB(A)
Sound power level	99.5 dB(A)
Uncertainty K	3 dB
Vibration emission (ah)	7.6 m/s²
Vibration uncertainty	1.5 m/s²
Double insulation	Yes
Maintenance	Blow dry compressed air into the vents; lubricate contact surfaces with degreaser
Punch resharpening	Not resharpenable (BLK1.3TE)

Frequently Asked Questions - BLK 1.3 TE Fein

How to replace the punch and die?

Unplug the tool. Remove the old punch and die. Insert the new ones following the assembly instructions. Tighten firmly. Refer to the manual for part numbers.

What is the maximum cutting thickness for steel?

For steel up to 400 N/mm², the maximum thickness is 1.3 mm. For steel up to 600 N/mm², it is 0.8 mm, and for 800 N/mm², 0.6 mm.

Can I resharpen the punch?

No, for the BLK 1.3 TE model, neither the punch nor the die can be resharpened. Replace them when worn.

How to lubricate during cutting?

Apply cutting paste or cutting oil for steel, and kerosene for aluminum. Lubricate along the cutting line to extend tool life.

What to do if cutting speed decreases?

A decrease in cutting speed indicates wear of the punch and die. Check them and replace if necessary. Also ensure the feed rate is not too high.

Can I cut welded sheets?

No, never cut sheets at the weld location nor overlapping sheets whose total thickness exceeds the maximum allowable thickness.

What type of hearing protection is recommended?

Wear appropriate hearing protection, as the sound power level reaches 99.5 dB(A). Prolonged exposure can damage hearing.

How to clean the ventilation vents?

Unplug the tool. Use dry, oil-free compressed air to blow out the ventilation vents regularly. Do not use metal tools to avoid damaging the insulation.

Is the warranty valid in France?

Yes, the product warranty is valid according to the legal regulations in France. FEIN additionally offers a manufacturer's warranty according to the terms of the warranty declaration.

How to dispose of the tool at end of life?

Do not dispose of the tool with household waste. Take it to an environmentally friendly recycling center. Packaging and accessories should also be recycled.

USER MANUAL BLK 1.3 TE Fein

BLK1.3TE ( )

BLK1.3CSE (^**) 7232...

BLK1.6E [ ] 7232...

BLK1.GLE (^**)

BLK2.0E (^**)

BLK3.5 (^**)

BLK5.0 (^**) 7232...

7 232 ...

7 232 ...

7 232 ...

7 232 ...

Translation of the Original Instructions.

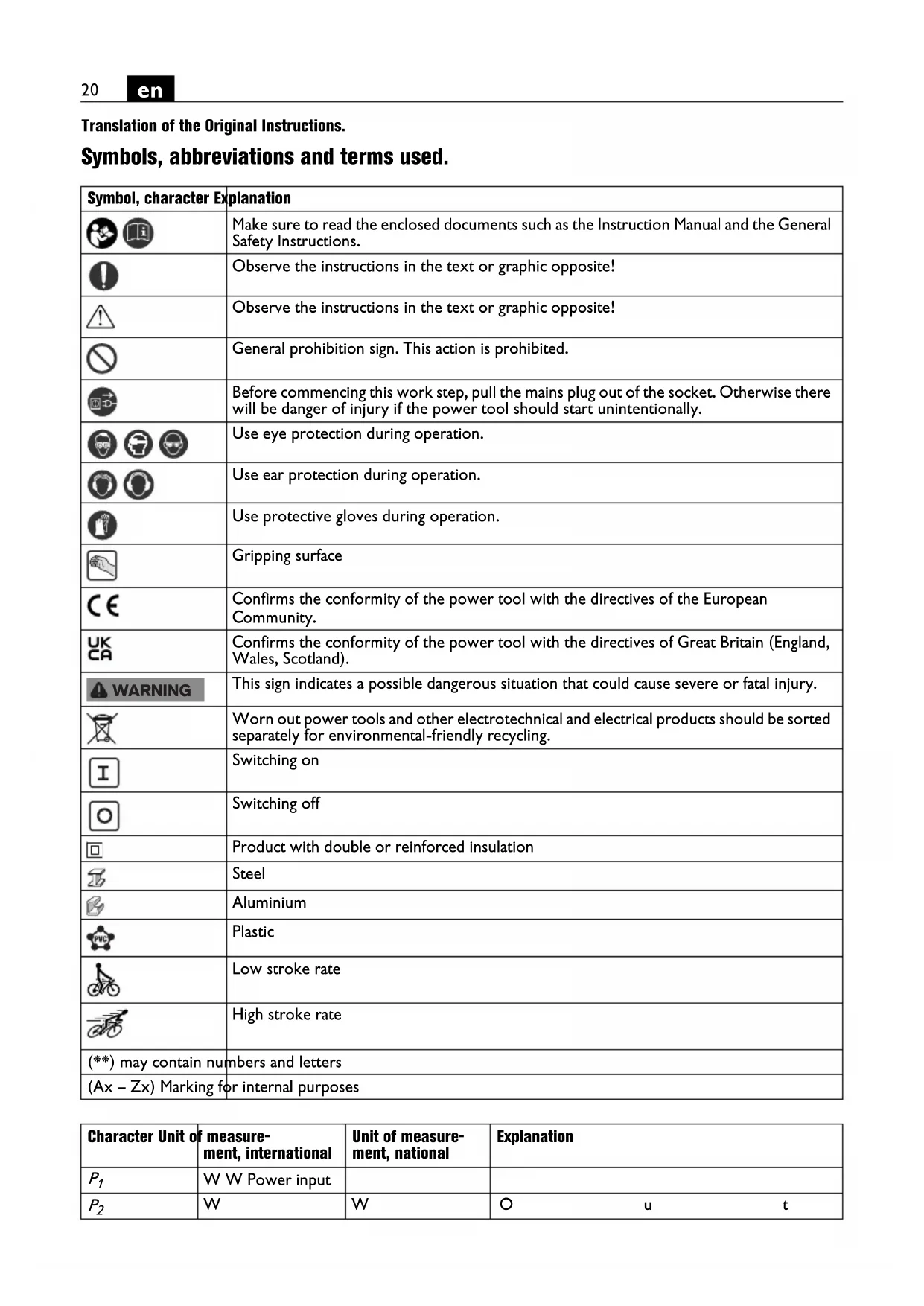

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Observe the instructions in the text or graphic opposite!
	Observe the instructions in the text or graphic opposite!
	General prohibition sign. This action is prohibited.
	Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally.
	Use eye protection during operation.
	Use ear protection during operation.
	Use protective gloves during operation.
	Gripping surface
€	Confirms the conformity of the power tool with the directives of the European Community.
UKCA	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
WARNING	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
I	Switching on
	Switching off
	Product with double or reinforced insulation
	Steel
	Aluminium
	Plastic
	Low stroke rate
	High stroke rate
(**) may contain numbers and letters
(Ax - Zx) Marking for internal purposes

Character Unit of measurement, international		Unit of measurement, national	Explanation
P1	W W Power input
P2	W	W	○ u t
Character	Unit of measurement, international	Unit of measurement, national	Explanation
n0	/min, min-1, rpm, r/min	rpm Stroke rate at no-load
ns	m/min m/min Cutting speed
UV	V	R	a t e
fHz Hz Frequency
M...	mm mm Size of metric thread
Ø mm mm Diameter of a round part
Fe 400	mm mm Max. work-piece thickness for steel with up to 400 N/mm²
Fe 600	mm mm Max. work-piece thickness for steel with up to 600 N/mm²
Fe 800	mm mm Max. work-piece thickness for steel with up to 800 N/mm²
AI 250	mm mm Max. work-piece thickness for aluminium with up 250 N/mm²
	mm mm Diameter of pilot-drill for inside cut-outs
	mm mm Min. inside curve radius
	kg kg Weight according to EPTA-Procedure 01
LpA	dB	dB	Sound pressure level
LwA	dB	dB	Sound power level
LpCpeak	dB	dB	Peak sound pressure level
K...			Uncertainty
a	m/s²	m/s²	Vibrational emission value according to EN 62841 (vector sum of three directions)
ah	m/s²	m/s²	Vibrational emission value
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s²	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s²	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number 341 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

Hand-guided nibbler for cutting sheet metal, cut-outs and tight curves in weather-protected environments without water supply using the application tools and accessories recommended by FEIN.

BLK3.5/BLK5.0 (^**) : This power tool is also suitable for use with AC generators with sufficient power output that correspond to the Standard ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10% . When in doubt, please refer to the generator instruction/specification guide.

Special safety instructions.

Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Before putting into operation, check the mains connection and the mains plug for damage.

Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30mA or less.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Operating Instructions.

Guide the power tool toward the work piece only when switched on.

While cutting, hold the power tool as upright as possible to the work-piece surface.

Guide the power tool uniformly and with light feed in the cutting direction. Excessive feed reduces the tool life of the application tools.

Do not cut steel sheets where welded. Do not cut layered sheets exceeding the max. work-piece thickness.

To increase the tool life of punch and die, it is recommended to apply a lubricating agent alongside the intended cutting line:

• For cuts in steel sheet: Cutting paste or cutting oil,
• For cuts in aluminium: Petroleum.

For inside cuts, a pilot hole is required; see "Technical Data" for diameters.

Do not switch the power tool off until after having removed it from the cutting path.

The symptom for worn punches and dies are a clearly increased feed force at lower working progress.

BLK1.3TE (^) / BLK1.3CSE ( ^ ) / BLK1.6E ( ^ ) / BLK1.6LE ( ^ ) : Punch and die cannot be reground.

BLK2.0E (^**) / BLK3.5 (^ ) / BLK5.0 (^ ) : The punch - not the die - can be reground as long as the length of the reground punch does not fall below the minimum die length.

Die Minimum punch length
BLK2.0E (**)
3 13 09 040 00 2 45 mm
BLK3.5 (**)
3 13 09 093 00 3 51.5 mm
3 13 09 094 00 1 51.5 mm
BLK5.0 (**)
3 13 09 109 00 2 58.8 mm
3 13 09 107 00 0 56.6 mm
3 13 09 108 00 8 54.5 mm

BLK2.0E (^**) / BLK3.5 (^ ) : For template cuts, the template is traced via the lower cylindrical part of the punch guide. The clearance between template and the actual cutting edge is 2.5mm

The template should be at least 2mm thick; the total thickness of template and work piece may not exceed 5.5mm .

BLK1.6E (^**) : For cutting deep-channel trapezoidal sheet metal, the optionally available profile set 160 can be mounted. (see page 14)

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power

tool. The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side.

Lightly grease the sliding surfaces between die holder and punch.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

When the machine's power supply cord is damaged, it must be replaced by the manufacturer or their representative.

If required, you can change the following parts yourself: Application tools

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at: C. & E. Fein GmbH, D-73529 Schwabisch Gmund

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.

Miljøvern, deponering.
