| Product type | Portable screwdriver |
| Brand | Fein |
| Model | SCT 5 40 X |
| Application | Screwing and unscrewing screws for dry construction |
| Power supply | Mains (power cable) |
| Tool holder | Hexagon socket |
| Rotation direction | Reversible |
| Adjustable torque | Yes (on models SCT5-40UX and SCT5-40UM) |
| Depth stop | Integrated |
| Screw magazine | Available (on models SCT5-40M and SCT5-40UM) |
| Double insulation | Yes |
| Electrical protection | Residual current circuit breaker 30 mA recommended |
| Maintenance | Clean ventilation slots with dry oil-free compressed air |
| User-replaceable parts | Work tools, depth stop, wrist strap, magazine |
| After-sales service | FEIN, spare parts at www.fein.com |
| Warranty | According to the legal regulations of the country |
| Use with generator | Yes, according to ISO 8528 class G2 |
Frequently Asked Questions - SCT 5 40 X Fein
User questions about SCT 5 40 X Fein
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Screwdriver in PDF format for free! Find your manual SCT 5 40 X - Fein and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SCT 5 40 X by Fein.
USER MANUAL SCT 5 40 X Fein
| SCT5-40X (**) | SCT5-40UX (**) | SCT5-40M (**) | SCT5-40UM (**) | SCT6-25X (**) | |
| 7 213 ... 7 213 ... 7 213 ... 7 213 ... | |||||
| P_1 | W 450 450 450 450 450 | ||||
| P_2 | W 250 250 250 250 250 | ||||
| n_0 | /min, min-1, rpm, r/min | 0 - 4000 0 - 4000 0 - 4000 0 - 4000 0 - 2500 | |||
| n_1 | /min, min-1, rpm, r/min | 0 - 2700 0 - 2700 0 - 2700 0 - 2700 0 - 2000 | |||
| M... | Nm 12 12 12 12 16 | ||||
| kg 1,3 1,3 1,6 1,6 1,3 | |||||
| 1/4" 1/4" 1/4" 1/4" 1/4" | |||||
| Ω_mm | mm | 3-5 | 3-5 | 3-5 | 3-6 |
| L_pA | dB 81 81 81 81 | 81 | |||
| K_pA | dB | 3 | 3 | 3 | 3 |
| L_wA | dB 92 92 92 92 | 92 | |||
| K_wA | dB | 3 | 3 | 3 | 3 |
| L_pCpeak | dB 98 98 98 98 | 98 | |||
| K_pCpeak | dB | 3 | 3 | 3 | 3 |
| a_h | m/s2 | 0,8 0,8 0,8 0,8 0,8 | |||
| K_a | m/s2 | 1,5 1,5 1,5 1,5 1,5 | |||


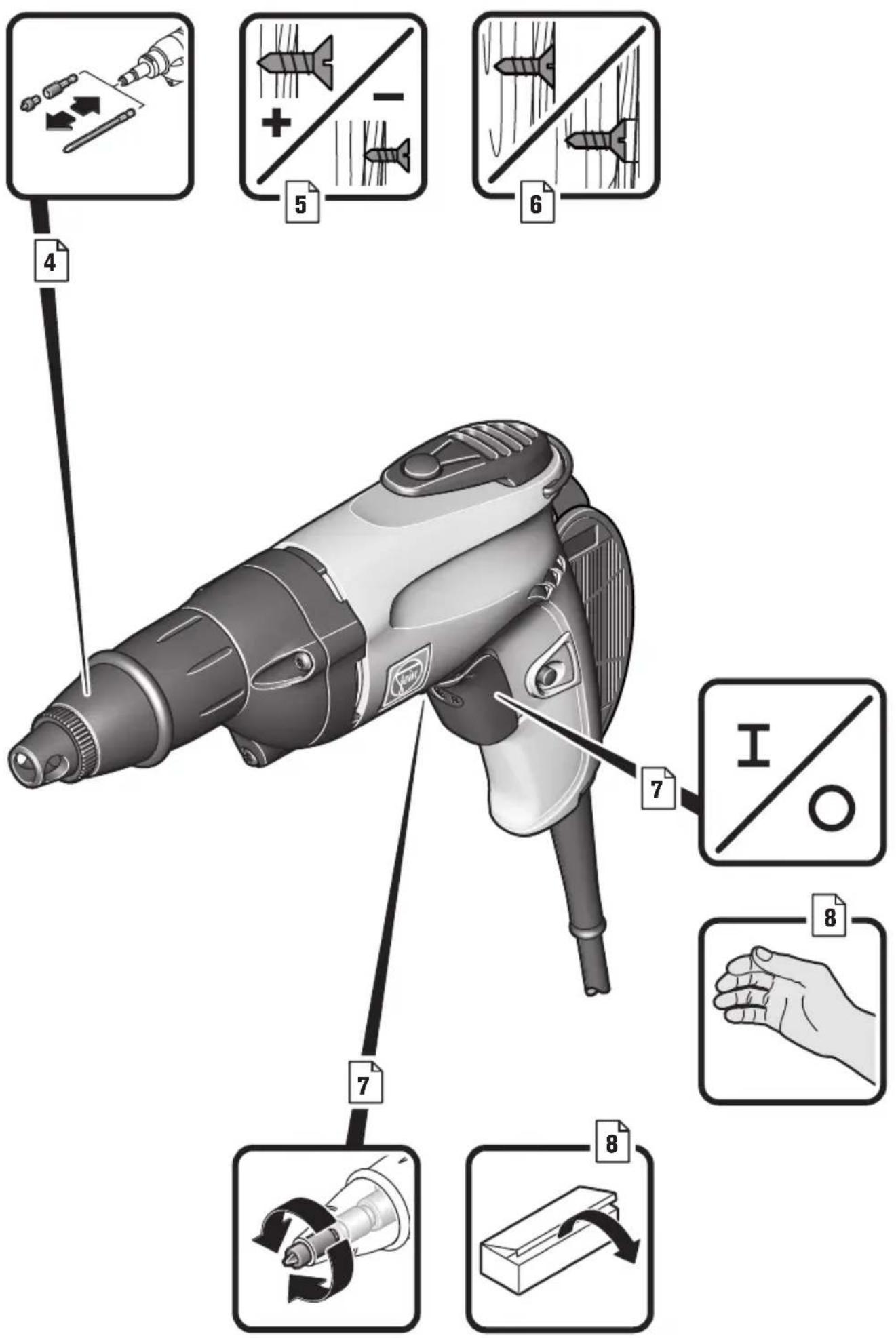

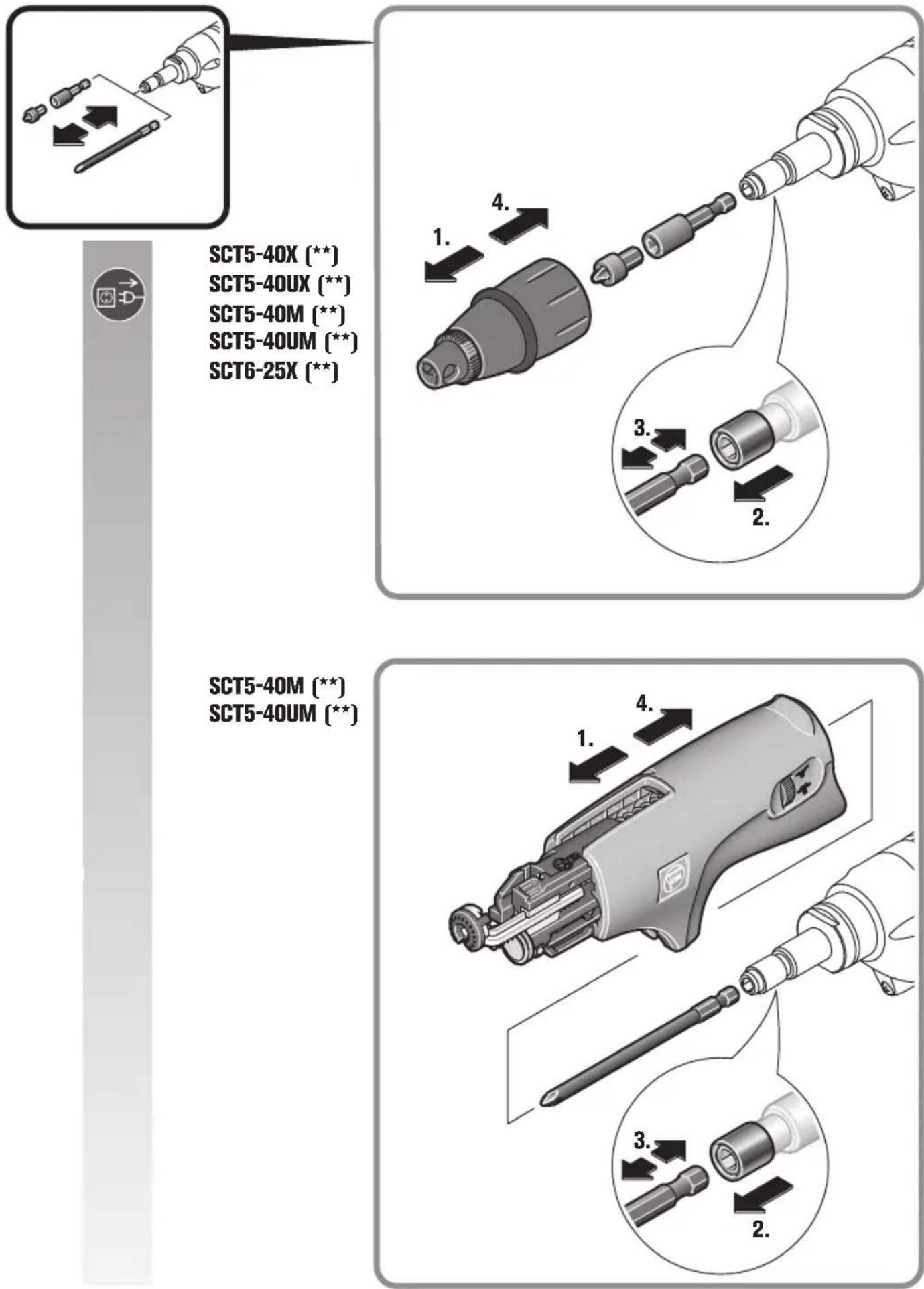

Diagram illustrating the step-by-step installation of a handheld device with labeled parts including tool, assembly, and cleaning steps.

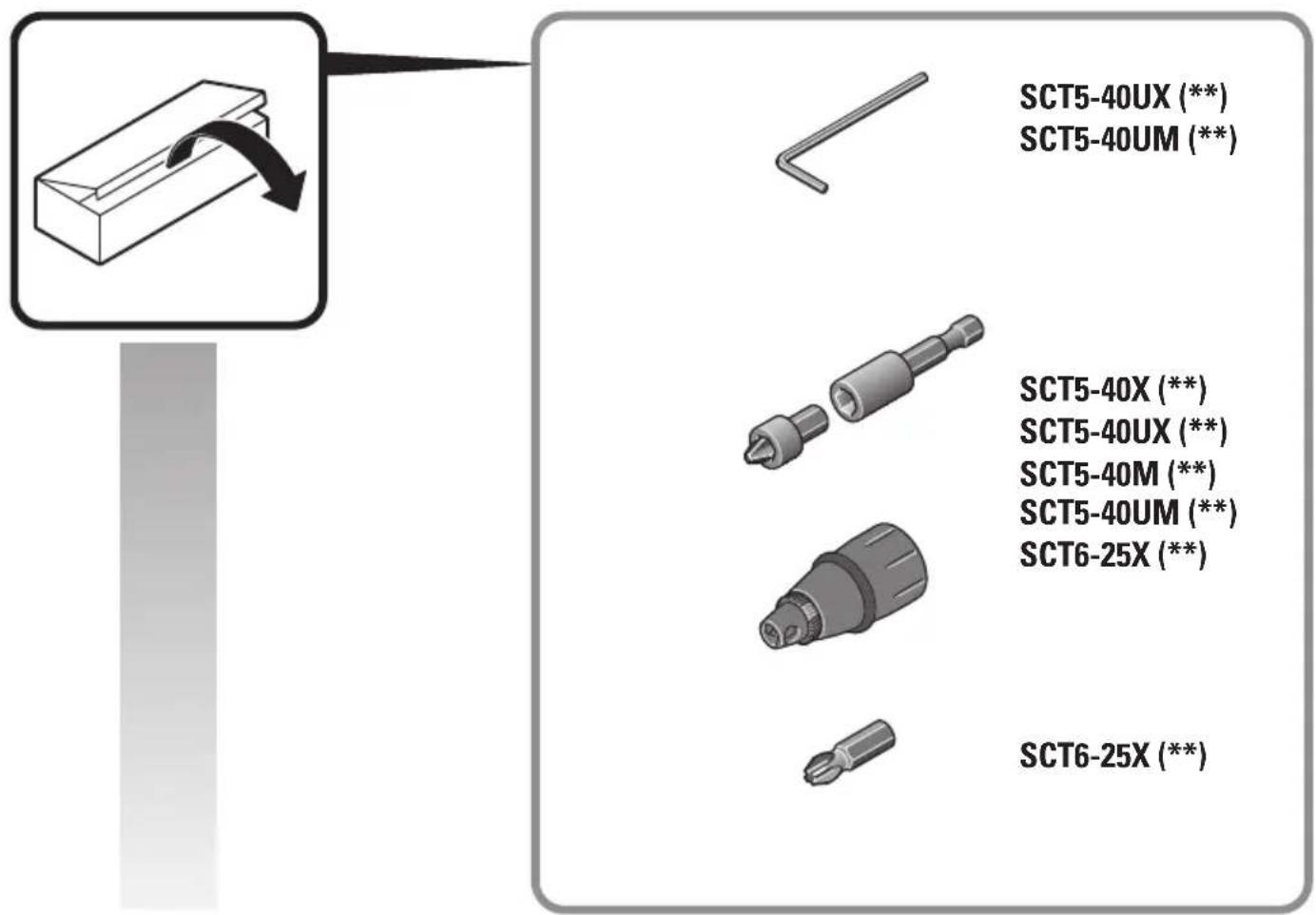

SCT5-40X (**)
SCT5-40UX (**)
SCT5-40M (**)
SCT5-40UM (**)
SCT6-25X (**)
SCT5-40M (**)
SCT5-40UM (**)


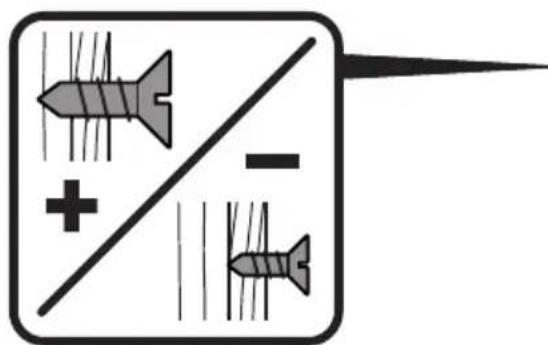

Diagram showing a divided square with plus and minus signs, flanked by fish icons, indicating a division or comparison scenario.
SCT5-40UX (**)
SCT5-40UM (**)


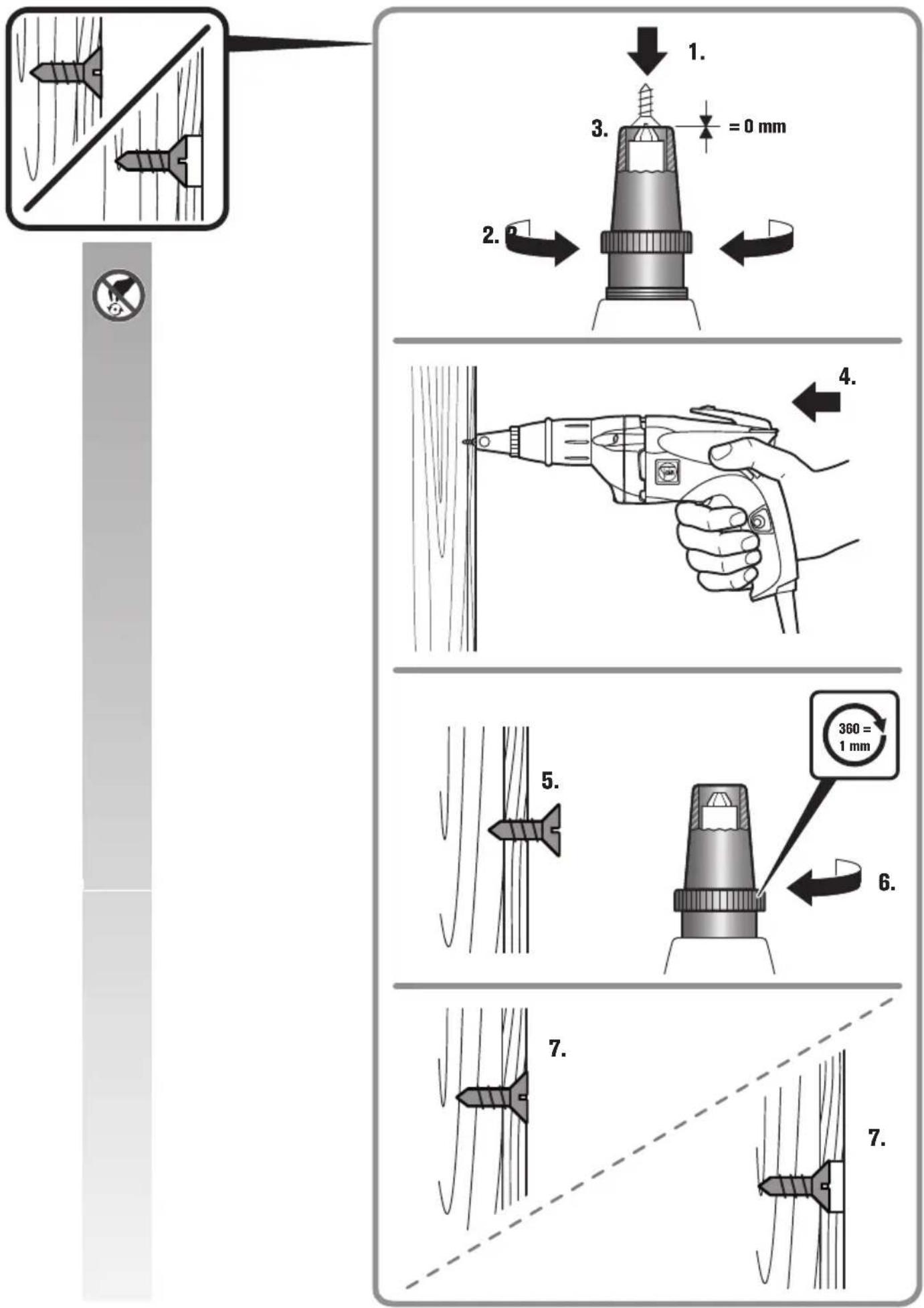

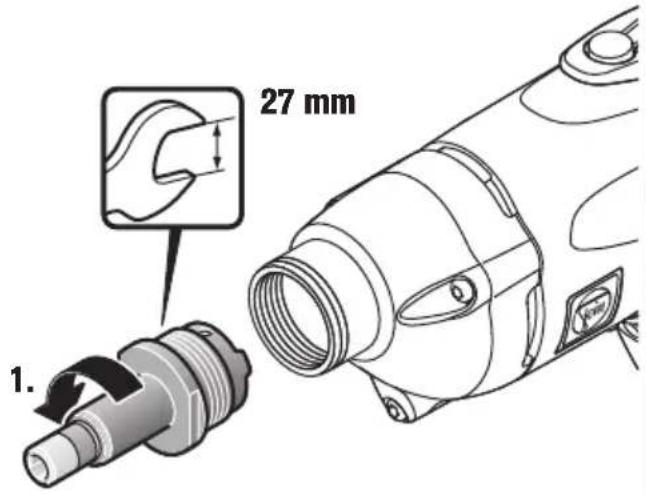

27 mm 1.


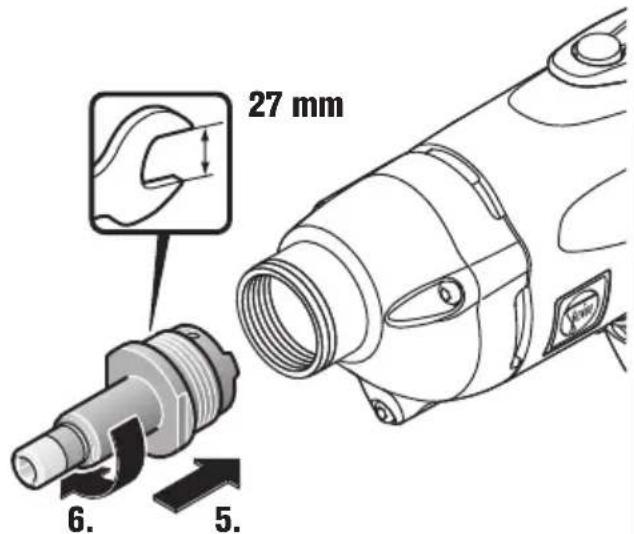

27 mm 6. 5.10-12 Nm


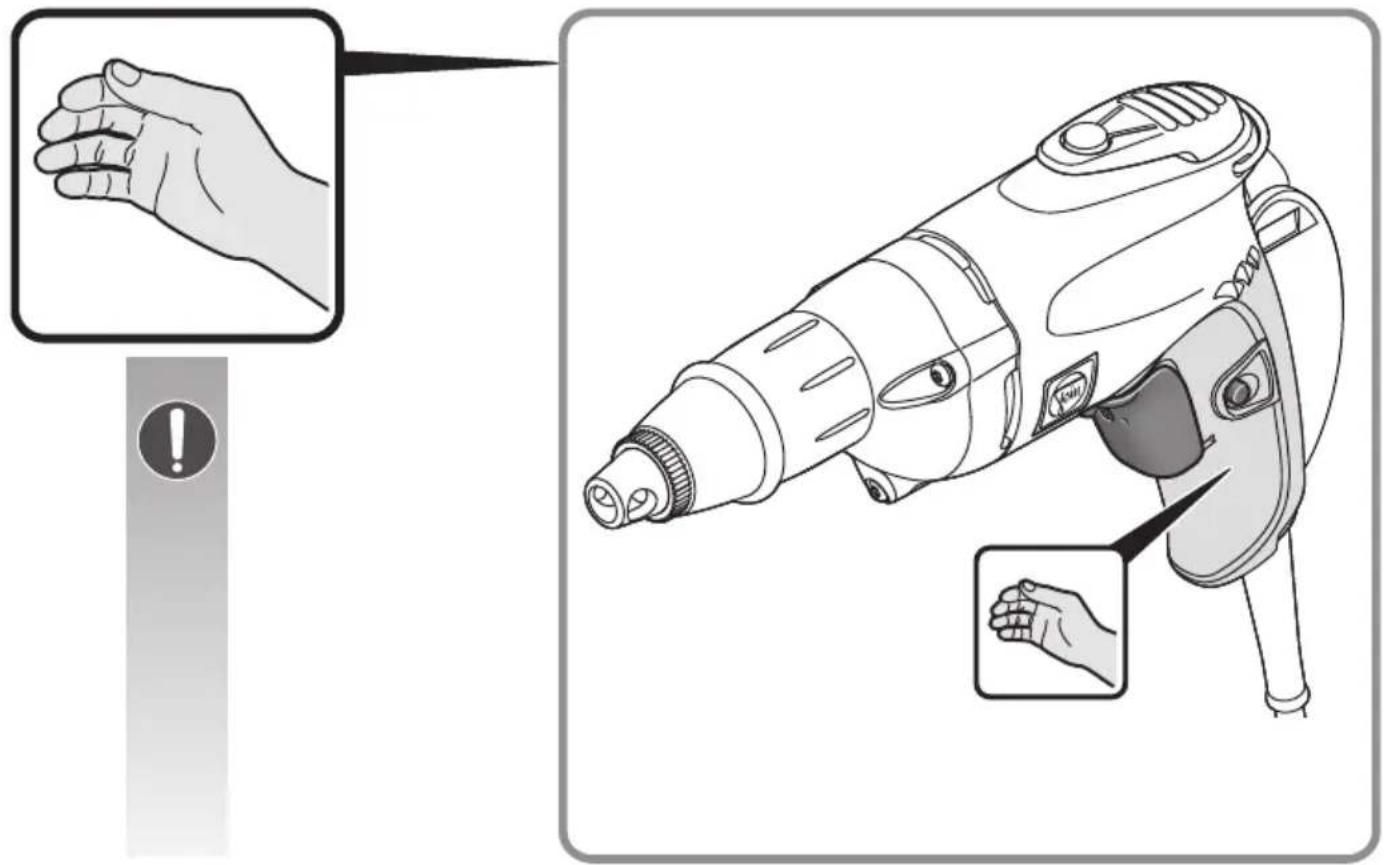

Diagram illustrating a hand operating a handheld device with warning labels and a magnified view of the device's interior.


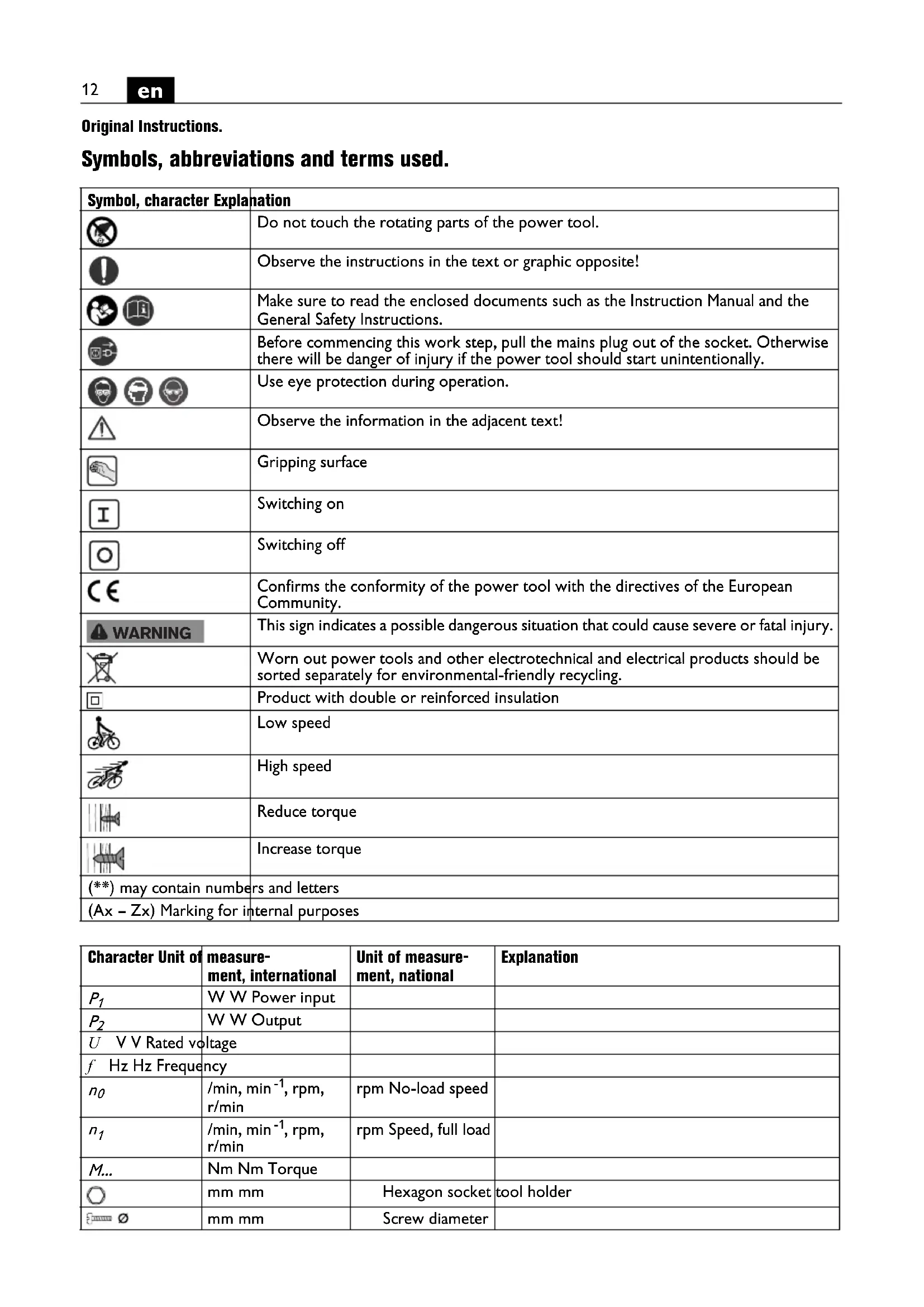

Symbols, abbreviations and terms used.
| Symbol, character Explanation | |
 | Do not touch the rotating parts of the power tool. |
 | Observe the instructions in the text or graphic opposite! |
 | Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. |
| [76WS] | Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally. |
 | Use eye protection during operation. |
 | Observe the information in the adjacent text! |
| [8GZY] | Gripping surface |
 | Switching on |
 | Switching off |
 | Confirms the conformity of the power tool with the directives of the European Community. |
| [Z6SZ]WARNING | This sign indicates a possible dangerous situation that could cause severe or fatal injury. |
 | Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling. |
 | Product with double or reinforced insulation |
 | Low speed |
| [K4AS] | High speed |
 | Reduce torque |
 | Increase torque |
 may contain numbers and letters | |
 - Zx) Marking for internal purposes | |
| Character Unit of measurement, international | Unit of measurement, national | Explanation | |
| P_1 | W W Power input | ||
| P_2 | W W Output | ||
| U V V Rated voltage | |||
| f Hz Hz Frequency | |||
| n_0 | /min, min ^-1 , rpm, r/min | rpm No-load speed | |
| n_1 | /min, min ^-1 , rpm, r/min | rpm Speed, full load | |
| M... | Nm Nm Torque | ||
| ○ | mm mm | Hexagon socket | tool holder |
| ∅ | mm mm | Screw diameter | |
| Character Unit of | measurement, international | Unit of measurement, national | Explanation |
| kg kg Weight according to EPTA-Procedure 01 | |||
| L_pA | dB dB Sound pressure level | ||
| L_wA | dB dB Sound power level | ||
| L_pCpeak | dB dB Peak sound pressure level | ||
| K... | Uncertainty | ||
| a | m/s2 | m/s2 | Vibrational emission value according to EN 62841 (vector sum of three directions) |
| a_h | m/s2 | m/s2 | Vibrational emission value (screwdriving) |
| m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2 | m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2 | Basic and derived units of measurement from the international system of units SI. | |
For your safety.
WARNING
Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General
Safety Instructions" (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.
Please also observe the relevant national industrial safety regulations.
Intended use of the power tool:
hand-guided screwdriver for screwing in and unscrewing screws, especially for drywall screws, in weather-protected environments using the application tools and accessories recommended by FEIN.
This power tool is also suitable for use with AC generators with sufficient power output that correspond to the Standard ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10 %. When in doubt, please refer to the generator instruction/specification guide.
Observe the operating instructions and the national regulations for the installation and operation of the AC generator.
Special safety instructions.
Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live"' and could give the operator an electric shock.
Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e.g. with a metal detector.
Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.
Hold the power tool firmly. High reaction torque can briefly occur.
Do not work materials containing magnesium. Danger of fire.
Do not work CFP (carbon-fiber-reinforced polymer) and materials containing asbestos. These materials are considered carcinogenic.
Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.
Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.
Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.
Before putting into operation, check the mains connection and the mains plug for damage.
Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less.
Hand/arm vibrations
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

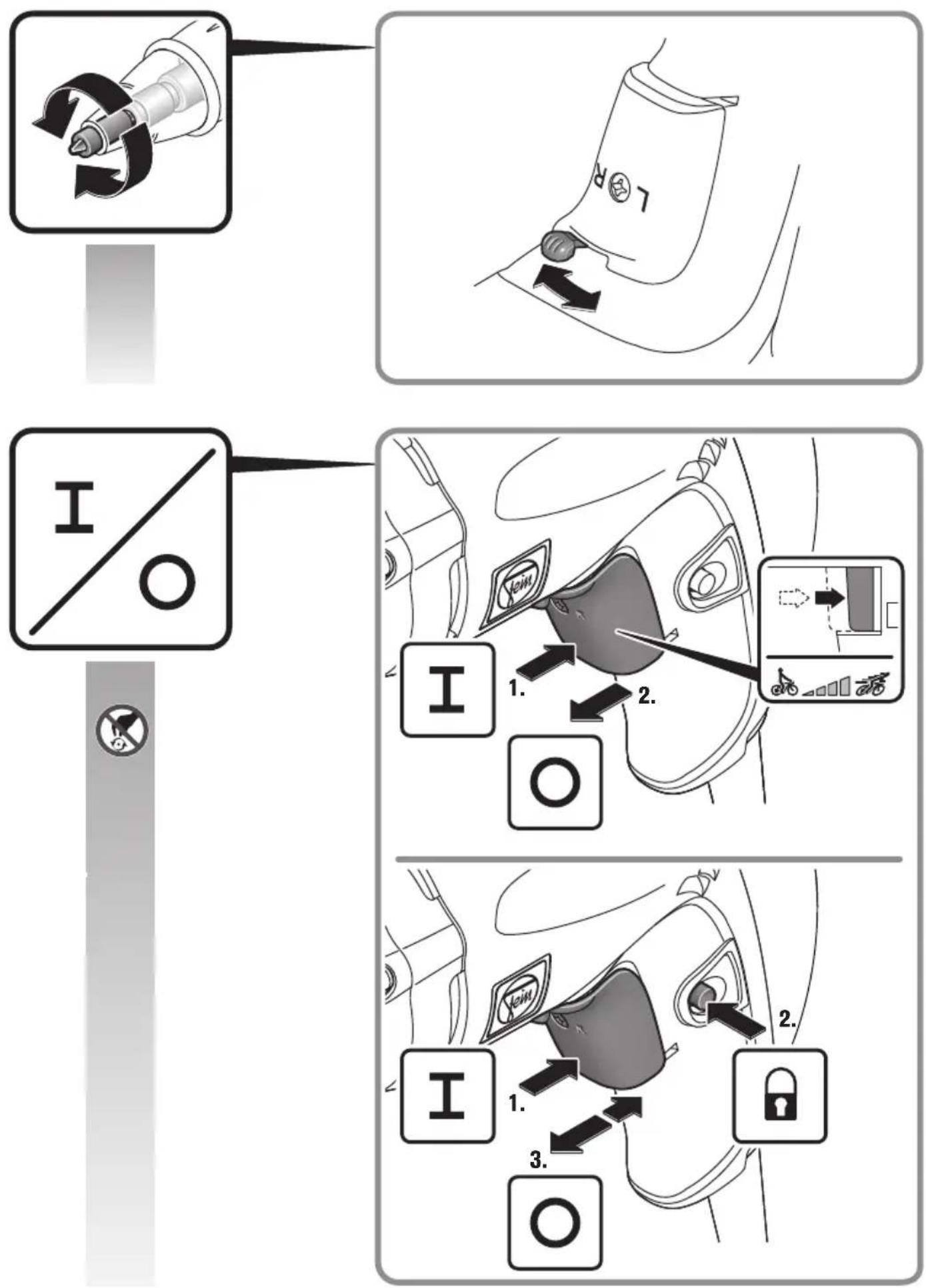

Operating Instructions.
Adjust the rotation selector switch only when the machine is at a complete stop.
SCT5-40X ( ^ )/SCT5-40M ( ^ )/SCT6-25 ( ^** ): The screwdriving applications are to be carried out with mounted depth stop.
SCT5-40M (**)/SCT5-40UM (**): The collated cartridge may only be operated in "clockwise-rotation direction" position.

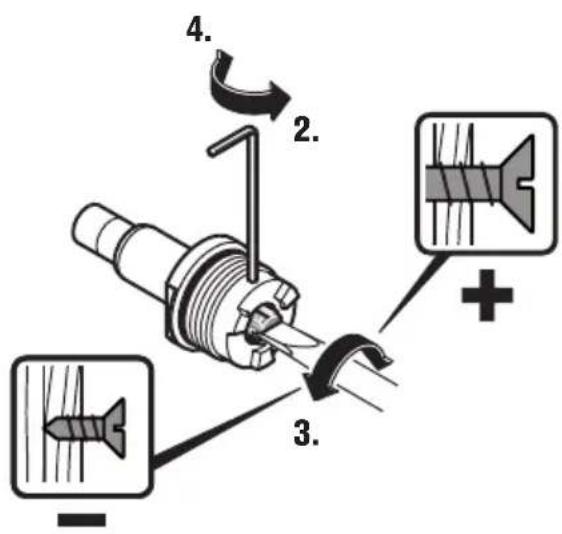

Setting the torque (SCT5-40UX ( ^** )/SCT5-40UM ( ^** )) (see page 5)
The factory setting is for the small to mid-size screw range.
The tightening torque also depends on the force with which the power tool is pressed against the screw.
Repair and customer service.
When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power
tool. The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side.
If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the FEIN customer service centre.
Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.
The current spares parts list for this power tool can be found on our website at www.fein.com.
If required, you can change the following parts yourself: Application tools, depth stop, hand strap, magazine
Warranty and liability.
The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.
The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.
Declaration of conformity.
FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.
Technical documents at: C. & E. Fein GmbH, D-73529 Schwäbisch Gmünd
Environmental protection, disposal.
Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.
