EN Operator's manual 2-10

Transportation, storage and disposal....8

Technical data....8

EC Declaration of Conformity.... 10

Introduction

Product description

We have a policy of continuous product development and therefore reserve the right to modify the design and appearance of the products without prior notice.

Note: This manual cover both gasoline operated and battery operated power units.

Intended use

WARNING: This attachment may only be used together with the intended product, see the accessory chapter in the Operator's Manual of the product.

The attachment is only designed for sweeping lawns, pathways, asphalt roads and the like.

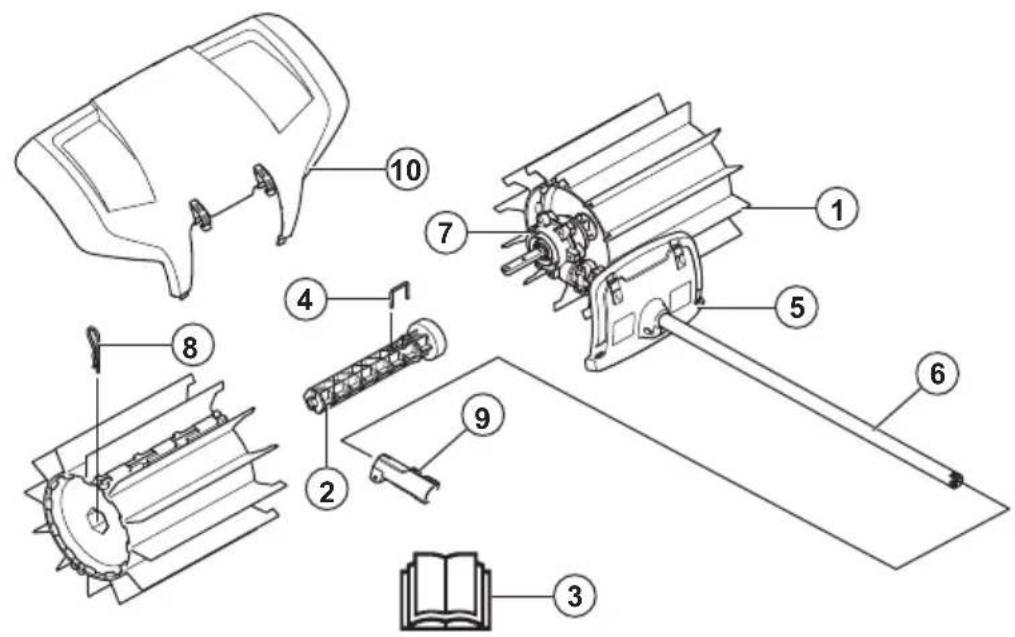

Attachment overview

Exploded view diagram of a mechanical device with numbered parts for identification

1. Brush drum
2. Drum axle
3. Operator's manual
4. Locking pin
5. Guard (Protection on shaft)
6. Shaft
7. Gear housing
8. Split pin
9. Shaft coupling (Included with the product)
10. Splash guard

Symbols on the attachment and on the power unit

Careless or incorrect use of this attachment can result in serious or fatal injury to the operator or others.

Read the operator's manual carefully and make sure you understand the instructions before you use the attachment.

Use approved hearing protection. Use approved eye protection. Use a breathing mask when there is a risk of dust.

This attachment is in accordance with applicable EC directives.

Rotating parts. Keep hands and feet clear. The arrow indicates the direction of rotation.

Always wear approved protective gloves.

Wear sturdy, non-slip boots.

Watch out for thrown objects and ricochets.

The operator must ensure that no people or animals come closer than 15 meters. When several operators are working at the same site a safety distance of at least 15 meters must be in effect. The attachment can forcibly throw objects that can bounce back. This can result in serious eye injuries if the recommended safety equipment is not used.

Keep a minimum of 15 m / 50 ft distance to persons and animals during operation of the product.

Keep all parts of your body away from the hot surfaces.

Noise emission to the environment according to the European Community's Directive. The attachment's emission is specified in the Technical data chapter and on the label.

Note: Other symbols/decals on the attachment refer to special certification requirements for certain markets.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the operator's manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product and/or the attachment, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the safety instructions that follow before you use the attachment.

• Please read the operator's manual carefully and make sure you understand the instructions before using the attachment.
  • These instructions supplement the instructions that were included with the product. For other procedures, please refer to the operating instructions for the product.
• Under no circumstances may the design of the attachment be modified without the permission of the manufacturer. Do not use an attachment that appears to have been modified by others and always use original accessories. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others.

Safety instructions for operation

WARNING: Read the warning instructions that follow before you use the product.

• The stop switch automatically returns to the start position. Make sure to prevent unintentional starting when assembling, checking and/or performing maintenance. If you have a gasoline operated product, disconnect the spark plug cap from the spark plug. If you have a battery operated product, remove the battery.
• Watch out for thrown objects. Always wear eye protection. Never bend over the brush drum. Stones, rubbish, etc. can be thrown up into the eyes causing blindness or serious injury.
• The gear can get hot during use and may remain so for a while afterwards. You could get burnt if you touch it.
• The brush drums can rotate when the sweeper is started. Hold the product securely when starting.
• Although the brush drums do not have the same force as lawn mower blades, for example, you should avoid working with materials that can cause personal injury or damage to property if thrown out.
• Do not use the product unless you are able to call for help in the event of an accident.
• Only use the product for the purpose it was intended for.
• Never use the product if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your coordination.
• Never use the product in extreme weather conditions such as severe cold, very hot and/or humid climates.
• Never use a product that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the Maintenance heading.
• Never allow children to use the product.
• Never allow anyone else to use the product without first ensuring that they have read and understood the contents of the operator's manual.
• Keep unauthorised persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 15 m while you work. Stop the product immediately if anyone approaches.
• If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop.
• Avoid all usage which you consider to be beyond your capability.

• Listen out for warning signals or shouts when you are wearing hearing protection. Always remove your hearing protection as soon as the engine/motor stops.

• Observe your surroundings and make sure that there is no risk of people or animals coming in contact with or affect your control of the product.

• Do not use the product in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and often brings added risks, such as icy ground.
• Make sure you can move and stand safely. Examine the area around you for possible obstacles (roots, rocks, branches, ditches, etc.) in case you have to move suddenly. Be very careful when you work on sloping ground.

- The engine/motor must be switched off before you move the product. If you have a gasoline operated product, disconnect the spark plug cap from the spark plug. If you have a battery operated product, remove the battery.

- Do not put the product down with the engine/motor running, unless you have it in clear sight.

• Always use both hands to hold the product. Hold the product at the side of your body.

- Make sure that your hands and feet do not come near the brush when the engine/motor is running.

- When the product is switched off, keep your hands and feet away from the brush until it has stopped completely.

- If heavy vibration occurs, stop the product. If you have a gasoline operated product, disconnect the HT lead from the spark plug. If you have a battery operated product, remove the battery. Examine if the product is damaged. Repair any damage.

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

• Always use approved personal protective equipment when you use the product. Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.

- Use a protective helmet where there is a risk of falling objects.

Line drawing of a helmet and gear assembly (no text or symbols)

- Use approved hearing protection that provides adequate noise reduction. Long-term exposure to noise can result in permanent hearing impairment.

Line drawing of a mechanical component or device (no text or symbols)

- Use approved eye protection. If you use a visor, you must also use approved protective goggles. Approved protective goggles must comply with the ANSI Z87.1 standard in the USAs or EN 166 in EU countries.

Line drawing of a mechanical component or device with no visible text or symbols

- Use gloves when necessary, for example when you attach, examine or clean the cutting equipment.

Line drawing of two human gloves showing different grip positions (no text or symbols)

- Use protective boots with steel toes and non-slip soles.

Line drawing of a pair of boots with visible branding and sole features (no text or symbols)

- Use clothing made of a strong fabric. Always use heavy, long pants and long sleeves. Do not use loose clothing that can catch on twigs and branches. Do not wear jewelry, short pants, sandals or go with

bare feet. Put your hair up safely above shoulder level.

- Keep first aid equipment close at hand.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

In this section the product's safety features, its purpose and how checks and maintenance should be carried out to ensure that it operates correctly. See instructions under the heading Attachment overview on page 2 to find where these parts are located on your product.

The life span of the product can be reduced and the risk of accidents can increase if product maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer.

WARNING: Never use a product with defective safety components. The product's safety equipment must be inspected and maintained as described in this section. If your product fails any of these checks, contact your service agent to get it repaired.

CAUTION: All servicing and repair work on the machine requires special training. This is especially true of the machine's safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you do maintenance.

WARNING: Always stop the product before you do maintenance on the attachment. Be careful, the attachment can continue to move after the throttle/power trigger is released. Make sure that the attachment has stopped fully. If you have a gasoline operated product, disconnect the HT leads

from the spark plug. If you have a battery operated product, remove the battery.

• Check the entire product before starting. Replace damaged parts.
• Check that all guards and covers are complete and fastened securely. Check all nuts and screws.
• If you have a gasoline operated product, make sure that there are no fuel leaks.

• Make sure that the brush drums are not damaged and show no signs of cracking or other damage.

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

Assembly

To assemble the attachment

Technical diagram of an electric motor assembly with labeled components A through F

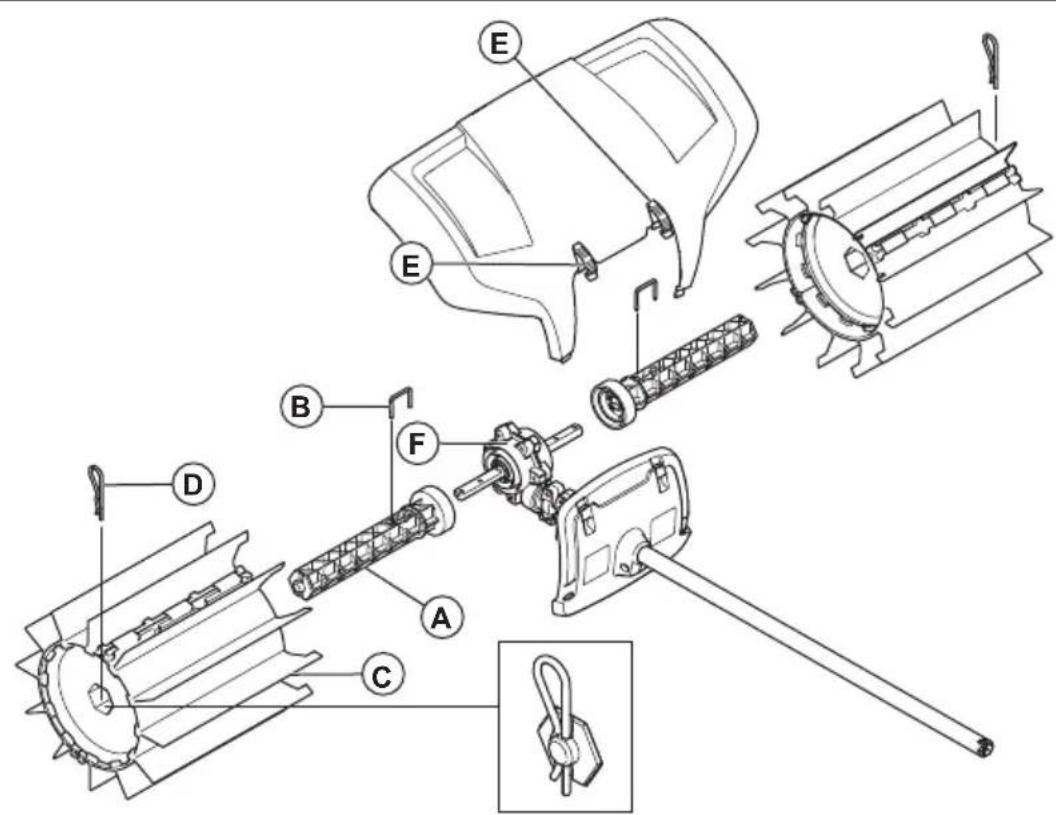

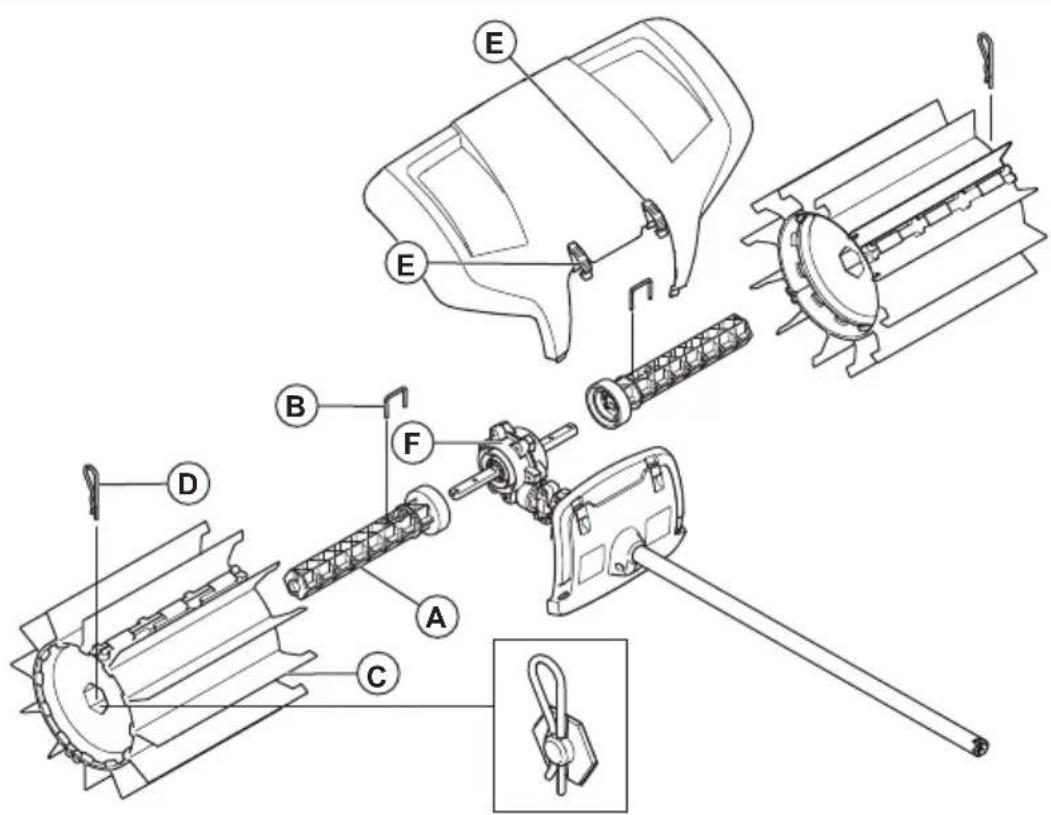

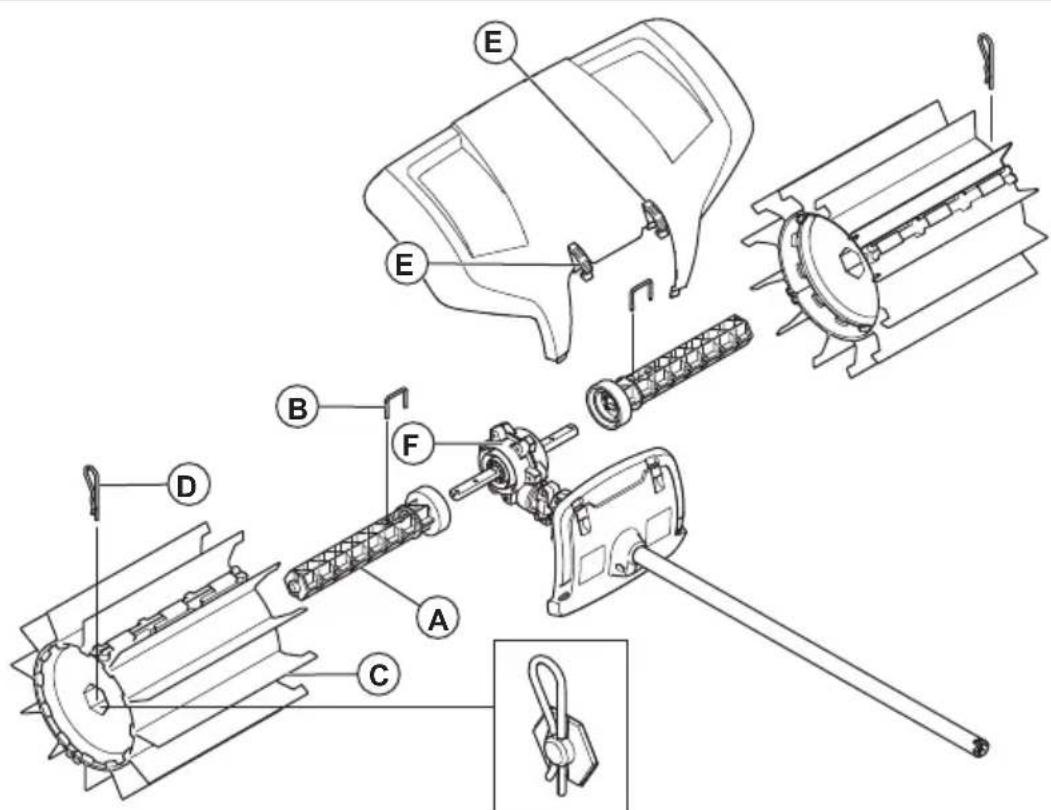

1. Press one of the drum axles (A) onto one of the two outgoing drive shafts from the gear housing (F). Rotate the drum axle if necessary so that the pin hole comes over the corresponding hole in the drive shaft.
2. Fasten the roller shaft with locking pin (B).
3. Thread one of the brush drums (C) onto the fitted axle. The end with the extended rubber lamellas is assembled closest to the gear housing. Press in the brush drum.

4. Fasten the roller on the shaft with a cotter pin (D). Press in the end slightly when assembling.

5. Repeat these steps to assemble the axle and roller on the opposite side. The drums are identical but must be assembled with the extended rubber lamellas towards the gear housing.

6. Mount the splash guard with the snap-on fasteners (E).

Note: For assembling accessories on basic product, refer to manual for basic product.

Operation

To start the product with a cold engine

If you have a gasoline operated product, obey these instructions to start the product with a cold engine.

1. Run the basic product warm and then shut down the product.
2. Mount the attachment as per the assembly instructions.
3. When adjusting the carburetor, make sure that the brush drums are held against the ground and that no one else is in the vicinity.
4. Make sure the brush drums are idling.
5. Make sure that the handle and safety features are in good working order. Never use a product that lacks a part or has been modified outside its specifications.

To use the attachment

The sweeper works best when the rubber lamellas can glide or 'stroke' the working surface. New or replaced brush drums tend to fasten or drag on hard surfaces and shall therefore be 'run in' thoroughly before use. This can be done easily by operating the product at full throttle/speed for 3-5 minutes in loose gravel or similar grinding material. After being run in, the sweeper will be able to move large amounts of material from snow or puddles to heavier objects such as gravel or wood chips. In time, you will learn how the sweeper works but you must observe safety precautions from the very beginning.

1. Run the sweeper at full (or nearly full) throttle/speed with the rubber lamellas resting on the surface.

Note: It is both tiresome and unnecessary to lift up or hold the rubber lamellas above the surface while working.

1. When clearing narrow surfaces such as paths, the product can be used so that it throws materials straight in front of you. If you want to work on wider surfaces, you may need to work at an angle so that strands form on one side. Strands comprising light materials can be collected into one row or pile for later removal while hard or more bulky materials may need collecting in several strands.

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

1. In order to get into corners, remove the splash guard and loosen the accessory coupling and rotate the accessory half a turn.

Person in protective suit using a manual power saw to clean or brush (no text or symbols visible)

WARNING: Rubbish will then be thrown back towards the user. Use a lower speed when reversing the product and remember that it is easy to trip over materials that are thrown out.

1. Keep a small working angle to the surface. Too large a working angle means the sweeper tends to move towards you and you risk losing control of the product.

Safety warning symbol showing a person using a tool to stop a large circle labeled 'no liability' over a tire.

Maintenance

Introduction

Below you will find some general maintenance instructions. If you need further information please contact your service workshop.

To perform maintenance on the attachment

CAUTION: Working on the sweeper is often done in dusty conditions. If you have a gasoline operated product it is extremely important to take care of air filter maintenance regularly, often daily. The air filter must be oiled to work satisfactorily. Refer to the operator's manual of the power unit for maintenance instructions.

WARNING: The gear housing gets hot when the machine has been in use. To avoid

burning yourself do not touch the gear housing.

1. Make sure that the brush drums do not rotate when the throttle/power trigger is released.

Technical line drawing of a mechanical assembly with cylindrical components and mounting brackets (no text or symbols)

1. Check that the brush drums are not damaged or cracked. Replace the brush drums if necessary.
2. Hang up the brush when in storage for long periods.

Transportation, storage and disposal

Transport and storage

If transporting the attachment on another vehicle always use approved securing devices and make sure that the attachment is securely held.

Ensure the attachment is cleaned and that a complete service is carried out before long-term storage.

Technical data

Technical data for gasoline operated products

Sweeper
Brush drum width, mm 590
Weight
Weight, kg 6.5
Noise emissions ^1
Sound power level, measured dB (A) 105
Sound power level, guaranteed LWA dB (A) 109
Sound levels2
Equivalent sound pressure level at the operator's ear, measured according to EN ISO 22868 , dB (A):	97
Vibrations3
Equivalent vibration levels (ahv,eq) at handles, measured according to , m/s2
Front/rear handles 4.4/5.1

Technical data for battery operated products

325iLK + Sweeper attachment SR600-2
Brush drum width, mm 590
Weight
Weight, kg 2.3+6.5
Noise emissions4
Sound power level measured, dB (A) 93
Sound levels5
Equivalent sound pressure level at the operator's ear, measured according to ISO 22868, dB (A):	82
Vibrations6
Vibration levels at handles, measured according to EN 62841-1, m/s2
Front/rear handles 3.2/3.1

EC Declaration of Conformity

EC Declaration of Conformity - for gasoline operated products

Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declares that the sweeper, Husqvarna SR600-2, attachment with serial numbers dating from 2019 and onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL'S DIRECTIVE:

• of May 17, 2006 "relating to machinery" 2006/42/EC
- of June 8, 2011 "restriction of use of certain hazardous substances in electrical and electronic equipment" 2011/65/EU
- of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

The following standards have been applied for Gasoline products:

SS-EN ISO 12100:2010, EN 50581:2012

Notified body, has carried out EC type examination in accordance with the machinery directive's (2006/42/EC) article 12, point 3b. The certificate for EC type examination in accordance with annex IV, have the number: SEC/15/2413 - Husqvarna SR600-2

Huskvarna, 2019-06-24

Peu Gusleptan

Per Gustafsson, Development Manager (Authorized representative for Husqvarna AB and responsible for technical documentation)

EC Declaration of Conformity - for battery operated products

Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declares that the sweeper, Husqvarna SR600-2 attachment with power unit Husqvarna 325iLK with serial numbers dating from 2019 and onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL'S DIRECTIVE:

• of May 17, 2006 "relating to machinery" 2006/42/EC
- of June 8, 2011 "restriction of use of certain hazardous substances in electrical and electronic equipment" 2011/65/EU

The following standards have been applied for Battery products:

EN 62841-1:2015, EN 50581:2012

RISE SMP Svenska Maskinprovning AB, Box 7035, SE-750 07 Uppsala, Sweden has performed voluntary type examination on behalf of Husqvarna AB. The certificate is numbered: SEC/15/2413 - Husqvarna SR600-2

Huskvarna, 2019-06-24

Pei Guslepten

Per Gustafsson, Development Manager (Authorized representative for Husqvarna AB and responsible for technical documentation)

Съдържание

Въведение.... 11

Безопасност....12

Монтаж....16

Операция.... 16

Поддръжка....17

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a manual lawn power tool with a curved arrow indicating rotation (no text or symbols)

Line drawing of a helmet with a visor and a pointed cap (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of two gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with grooves and central shaft (no text or symbols)

Монтаж

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power saw (no text or symbols)

Safety warning symbol with pictogram of worker holding a device, indicating no hazard or violation

Поддръжка

Въведение

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

Technical diagram of an electric motor assembly with numbered components for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and gear assembly (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a pair of boots with visible branding and sole details (no text or symbols)

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power saw (no text or symbols)

Safety warning symbol showing a person using a tool to stop a wheel, with no text present.

Údržba

Úvod

Technical diagram of an electric motor assembly with numbered components for identification

Illustration of a person using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and gear assembly (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of two human gloves with bandages and segmented palm (no text or symbols)

Line drawing of a boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Montering

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual lawn power tool (no text or symbols)

Illustration showing a person using a tool to stop a large 'no' symbol, with a gear-like extension below.

Vedligeholdelse

Indledning

Technical line drawing of a mechanical component with grooves and central shaft (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a manual lawn power tool, with no text or symbols present.

Line drawing of a helmet with visor and clasp (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of glasses and binoculars (no text or symbols)

Line drawing of two gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and shoulder clips (no text or symbols)

FIRST AID KIT

Technical line drawing of a mechanical assembly with cylindrical components and mounting flanges (no text or symbols)

Montage

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Person in protective suit using a manual power saw to clean or brush (no text or symbols visible)

Safety warning symbol with pictogram of workers using a no-smoking tool, next to a gear mechanism

Wartung

Einleitung

Technical line drawing of a mechanical component with grooves and central shaft (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet with visor and shield (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of glasses and footbells (no text or symbols)

Line drawing of two gloves with bandages and shaded areas, no text or symbols present

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

FIRST AID KIT

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person using a plow with a downward arrow indicating rotation (no text or symbols)

Person in protective suit using a manual power saw to clean or brush (no text or symbols visible)

Safety warning symbol with crossed-out ring and gear, indicating no protection or hazard

Συντήρηση

Εισαγωγή

Technical line drawing of a mechanical component with ribbed structure (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet with a visor and helmet (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of two human gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with grooves and central shaft (no text or symbols)

Montaje

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power saw (no text or symbols)

Illustration showing a person holding a large 'no' symbol over a machine, indicating no violations or prohibition.

Mantenimiento

Introducción

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet with a visor and seatbelt (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of two human hands with bandages, no text or symbols present

- Kandke terasest varbakatete ja libisemist takistavate taldadega kaitsesaapaid.

Line drawing of a pair of boots with visible branding and sole details (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Kokkupanek

Lisatarviku paigaldamine

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual lawn saw (no text or symbols)

Safety warning symbol with crossed-out circle and construction equipment, indicating no protection or hazard

Hooldamine

Sissejuhatus

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and gear assembly (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a mechanical component or assembly (no text or symbols)

Line drawing of two human gloves with bandages and segmented bands (no text or symbols)

Line drawing of a pair of boots with visible branding and sole details (no text or symbols)

Technical line drawing of a mechanical assembly with cylindrical components and flanged ends (no text or symbols)

Asentaminen

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Person in protective gear using a manual sweep tool with a circular arrow indicating motion (no text or symbols)

Safety warning symbol showing a person using a tool to stop a power strip, with no text present.

Huolto

Johdanto

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Attention : projections et ricochets.

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet with a visor and a cap (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with ribbed structure (no text or symbols)

Montage

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person in protective gear using a plow with a moving tool, no text or symbols present

Person in protective suit using a manual power tool to clean or brush (no text or symbols visible)

Safety warning symbol showing a person holding a tool with a prohibition sign, next to a gear mechanism.

Entretien

Introduction

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet with a visor and helmet (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of two human gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with grooves and central shaft (no text or symbols)

Összeszerelés

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person using a lawn power presser to clean or manage equipment (no text or symbols visible)

Illustration of a person in protective gear using a manual lawn saw (no text or symbols)

Illustration showing a person in protective gear holding a large 'no' symbol over a pile of debris, indicating no waste or pollution.

Karbantartás

Bevezető

Technical line drawing of a mechanical assembly with cylindrical components and mounting brackets (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and seat assembly (no text or symbols)

Line drawing of a foot and ankle joint (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a rubber boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with ribbed structure and central hub (no text or symbols)

Surinkimas

Priedo montavimas

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power saw (no text or symbols)

Safety warning symbol with a person holding a large 'no' sign over a gear, indicating no hazard or failure.

Illustration of a person in protective gear using a plow or tiller machine with a downward arrow indicating rotation (no text or symbols)

Techninė priežiūra

lvadas

Technical line drawing of a mechanical assembly with cylindrical components and mounting brackets (no text or symbols)

Technical diagram of an electric motor assembly with numbered components for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and binoculars (no text or symbols)

Line drawing of a mechanical component or tool (no text or symbols)

Line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of two gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible branding and sole details (no text or symbols)

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Montāža

lerīces montāža

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power tool to clean or remove equipment (no text or symbols)

Safety warning symbol showing a person in protective gear holding a large 'no' sign over a gear, implying no protection or hazard.

Apkope

levads

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet with a visor and helmet (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a pair of gloves with bandages and straps (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

Montage

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person using a lawn power lledge tool with a curved arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power shaver (no text or symbols)

Safety warning symbol showing a person using a power tool to avoid equipment, with a large 'no protection' circle.

Onderhoud

Inleiding

Technical line drawing of a mechanical assembly with cylindrical components and flanges (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a manual lawn power tool, with no text or symbols present.

Line drawing of a helmet and a triangular cap (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of two gloves showing different grip designs (no text or symbols)

Line drawing of a pair of boots with textured soles (no text or symbols)

Technical line drawing of a mechanical component with ribbed structure (no text or symbols)

Montering

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power saw to clean or brush (no text or symbols)

Safety warning symbol showing a person using a tool to stop a wheel, with no text present.

Vedlikehold

Innledning

Technical line drawing of a mechanical component with internal gears and shafts (no text or symbols)

Technical diagram of a mechanical assembly with numbered components for identification

Illustration of a person in protective gear using a plow with a curved arrow indicating rotation (no text or symbols)

Line drawing of a helmet with a visor and a triangular cap (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of two types of gloves showing different grip positions (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical assembly with concentric grooves and central shaft (no text or symbols)

Montaż

Montaż osprzętu

Technical diagram of an electric motor assembly with labeled components including stator, rotor, and battery

Illustration of a person in protective gear using a plow with a curved arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power tool to clean or brush (no text or symbols)

Safety warning symbol with pictogram of worker holding a large 'no' sign over a gear, indicating no hazard or failure.

Przegład

Wstęp

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with numbered components for identification

Illustration of a person using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet with a visor and a triangular cap (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of two gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Montagem

Montar o acessório

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person in protective gear using a manual lawn pusher with a downward arrow indicating rotation (no text or symbols)

Person in protective gear using a manual power saw to clean or brush (no text or symbols visible)

Illustration showing a person holding a large 'no' symbol over a pile of debris, indicating no object or material.

Manutenção

Introdução

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

Technical diagram of an electric motor assembly with numbered components for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and cap (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of two gloves showing different grip positions (no text or symbols)

Line drawing of a pair of boots with visible side laces and buckles (no text or symbols)

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Asamblarea

Asamblarea accesoriiului

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person in protective gear using a manual lawn pusher with a downward arrow indicating rotation (no text or symbols)

Person in protective suit using a manual power saw to clean or brush (no text or symbols visible)

Safety warning symbol showing a person in protective gear holding a large circle labeled 'No Seeding' with a tool below.

Întreținerea

Introducere

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

Technical diagram of an electric motor assembly with numbered components for identification

Illustration of a person in protective gear using a plow with a circular arrow indicating rotation (no text or symbols)

Line drawing of a helmet and gear assembly (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of two gloves showing different grip designs (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and sole patches (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Сборка

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Person in protective suit using a manual power saw to clean or brush (no text or symbols visible)

Safety warning symbol showing a person using a no-smoking tool to avoid accidents, with gear and waves below.

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and helmet with a pair of glasses (no text or symbols)

Line drawing of a foot and ankle joint (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of two human gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible branding and sole details (no text or symbols)

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

Montáž

Montáž nadstavca

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power tool to clean or brush (no text or symbols)

Safety warning symbol showing a person holding a device with a 'no' sign, surrounded by a broken tool.

Údržba

Úvod

Technical line drawing of a mechanical component with grooves and central shaft (no text or symbols)

Technical diagram of a mechanical assembly with numbered components for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and safety goggles (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of two human gloves with bandages and segmented palm (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with multiple grooves and central shaft (no text or symbols)

Montaža

Montaža priključka

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person in protective gear using a manual lawn pusher (no text or symbols)

Illustration of a person in protective gear using a manual power tool (no text or symbols)

Safety warning symbol with pictogram of worker using a power pole, indicating no power hazard

Vzdrževanje

Uvod

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and gear assembly (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a pair of gloves with banding and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and sole buckle (no text or symbols)

Technical line drawing of a mechanical component with ribbed structure (no text or symbols)

Montering

Montera tillbehöret

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power saw (no text or symbols)

Safety warning symbol with pictogram of worker holding a no-smoking sign over a gear, indicating no hazard or failure.

Underhåll

Introduktion

Technical line drawing of a mechanical assembly with cylindrical components and mounting brackets (no text or symbols)

Exploded view diagram of an electric motor assembly with numbered parts for identification

Illustration of a person using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and gear assembly (no text or symbols)

Line drawing of a mechanical component or device (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of two human gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with grooves and central shaft (no text or symbols)

Montaj

Technical diagram of a mechanical assembly with labeled parts A through F, showing exploded and assembled views.

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power shaver (no text or symbols)

Illustration showing a person in protective gear holding a large 'no' symbol over a gear, indicating no protection or resistance.

Bakım

Giriş

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)

Exploded view diagram of a mechanical assembly with numbered parts for identification

Illustration of a person in protective gear using a plow with a moving cart, no text or symbols present

Line drawing of a helmet and seat assembly (no text or symbols)

Line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of a mechanical component or bracket (no text or symbols)

Line drawing of two gloves with bandages and shaded areas (no text or symbols)

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Technical line drawing of a mechanical component with grooves and central shaft (no text or symbols)

Montaggio

Technical diagram of an electric motor assembly with labeled components A through F

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual lawn power tool (no text or symbols)

Illustration showing a person in protective gear holding a large 'no' symbol, with a broken tool below.

Manutenzione

Introduzione

Technical line drawing of a mechanical component with ribbed structure (no text or symbols)

Exploded view diagram of a mechanical device with numbered parts for identification

Illustration of a person in protective gear using a plow with a downward arrow indicating rotation (no text or symbols)

Line drawing of a helmet and gear assembly (no text or symbols)

Line drawing of a mechanical component or tool (no text or symbols)

Line drawing of a mechanical component or device with no visible text or symbols

Line drawing of a pair of boots with visible branding and sole details (no text or symbols)

Technical line drawing of a mechanical component with grooves and central hub (no text or symbols)

安装

安装附件

Technical diagram of an electric motor assembly with labeled components including motor, stator, rotor, and power plug

Illustration of a person in protective gear using a manual lawn power tool with a downward arrow indicating rotation (no text or symbols)

Illustration of a person in protective gear using a manual power tool to clean or brush (no text or symbols)

Illustration showing a person using a tool to stop a circular symbol labeled 'no violation', with a small mechanical component below.

维护

简介

Technical line drawing of a mechanical assembly with cylindrical components and mounting holes (no text or symbols)
