| Product type | Interdental brush (portable dental flosser) |
| Model | EW-DJ11 |
| Brand | Panasonic |
| Power | 2 LR6 (AA) alkaline batteries not included |
| Reservoir capacity | 150 ml |
| Battery life | Approximately 20 minutes (with Panasonic LR6 batteries, level 2, 20 °C) |
| Pressure levels | 2 (Normal and Soft) |
| Dimensions (with nozzle) | 30.9 cm (H) x 5.2 cm (W) x 5.7 cm (D) |
| Dimensions (without nozzle) | 23.4 cm (H) x 5.2 cm (W) x 5.7 cm (D) |
| Noise level | 72 dB(A) |
| Maximum water temperature | 40 °C |
| Included nozzle | Standard nozzle (consumable) |
| Accessories | Storage pouch |
| Usage | Household only |
| Safety | Do not direct at eyes, nose, ears; do not use with mouthwash or chemicals |
| Maintenance | Clean after each use; dishwasher safe for reservoir and lower cover |
| Nozzle replacement | Every 6 months for hygiene reasons |
| Filter cleaning | Soft brush if clogged |
| Batteries | Remove if not used for long periods; do not mix types |
| Warranty | Contact an authorized service center |
Frequently Asked Questions - EWDJ11 PANASONIC
User questions about EWDJ11 PANASONIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Interdental brush in PDF format for free! Find your manual EWDJ11 - PANASONIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EWDJ11 by PANASONIC.
USER MANUAL EWDJ11 PANASONIC
Operating Instructions (Household use) Portable Oral Irrigator Model No. EW-DJ11
English. 5 Norsk 151
Deutsch 21 Suomi. 167
Francais. 39 Polski 183
Italiano 55 Cesky 199
Espanol. 71 Slovensky. 215
Nederlands. 87 Magyar. 231
Portugués.....103 Româna 247
Svenska. 119 Türkçe. 263
Dansk. 135
1
2
A
B
C
D
1
4
2
5
3
2
3
Panasonic
Operating Instructions (Household use) Portable Oral Irrigator Model No. EW-DJ11
Contents
Safety precautions 7
Intended use 10
Parts identification 10
Installing the alkaline batteries 11
Filling the tank with water. 11
How to use 12
After use 14
Troubleshooting 16
Specifications 18
Thank you for purchasing this Panasonic product. Before operating this unit, please read these instructions completely and save them for future use.

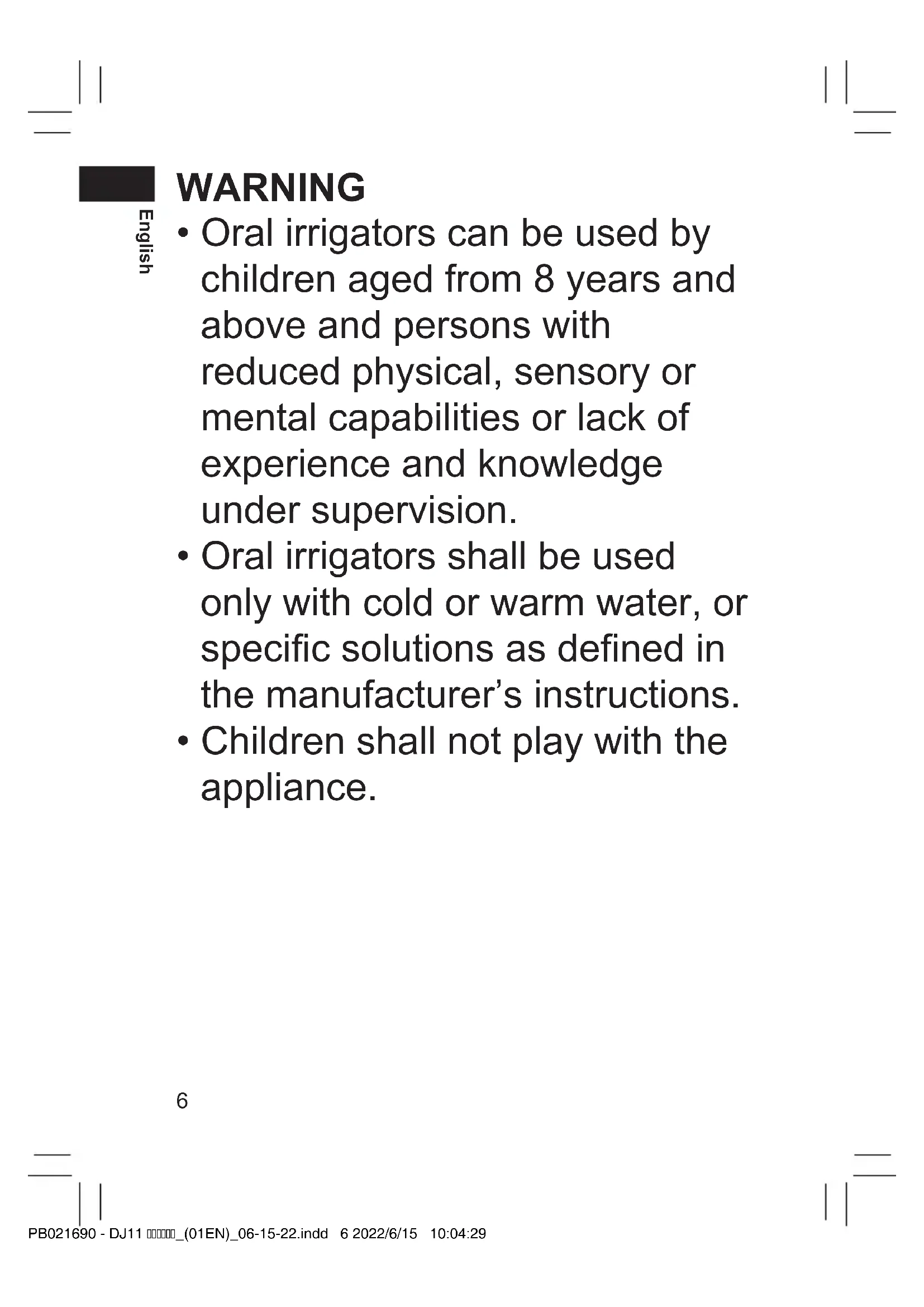

WARNING
-
Oral irrigators can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge under supervision.
-
Oral irrigators shall be used only with cold or warm water, or specific solutions as defined in the manufacturer's instructions.
- Children shall not play with the appliance.
Safety precautions
To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.
Explanation of symbols
The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.
WARNING
Denotes a potential hazard that could result in serious injury or death.
CAUTION
Denotes a hazard that could result in minor injury or property damage.
The following symbols are used to classify and describe the type of instructions to be observed.
This symbol is used to alert users to a specific operating procedure that must not be performed.
This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.
WARNING
Do not store within the reach of children or infants. Do not let them use it.
- Doing so may cause an accident or injury.
Immediately stop using if there is an abnormality or malfunction.
- Failure to do so may cause injury or fire.
CAUTION
Do not modify, disassemble or repair.
- Doing so may cause an accident or injury.
- Contact an authorized service centre for repair.
- People who are unable to operate should not use this appliance.
- People with weak oral senses should not use this appliance.
- Doing so may cause injury or damage to teeth and gums.
Never use for a purpose other than oral cleaning.
- Doing so may cause an accident or injury when the stream of water is pointed toward the eyes, nose, ears, tongue, or throat.
Do not fill the tank with water warmer than 40^ .
- Doing so may cause burns.
Do not share the nozzle with your family or other people.
- Doing so may result in infection or inflammation.
Do not drop the product or subject it to shock.
- Doing so may cause injury.
CAUTION
The batteries' supply terminals are not to be short-circuited.
- Doing so may cause burns or injury.
People who may have periodontal disease, have teeth being treated, or concerned about
symptoms in their mouth should consult a dentist before use.
- Failure to do so may cause injury or damage to teeth and gums.
After use, clean the main body, the tank and the nozzle and dry them.
-
Failure to do so may cause damage to your health due to propagation of mold and bacteria.
-
Always follow the cautions printed on the alkaline batteries.
- Check the polarity of the alkaline batteries (+ and -) and install them correctly.
- Do not mix new and old alkaline batteries or different types of alkaline batteries.
- Remove the alkaline batteries immediately and dispose of them safely when they are discharged.
- Remove the alkaline batteries when not using the appliance for an extended period of time.
- Please use the alkaline batteries by the recommended use-by date.
- Non-rechargeable batteries are not to be recharged.
- Failure to do so may cause injury or surrounding contamination due to heat generation, bursting, or leakage of the alkaline batteries.
Intended use
- Do not fill the tank with anything other than tap water or lukewarm water (e.g. salt, mouth rinse or chemicals etc.).
- Doing so may cause a malfunction.
- Do not dry the main unit with a dryer or fan heater.
- Doing so may cause malfunction or deformation of the parts.
After use, store the appliance in a place with low humidity. - Putting it in a bathroom or the like may cause a malfunction.

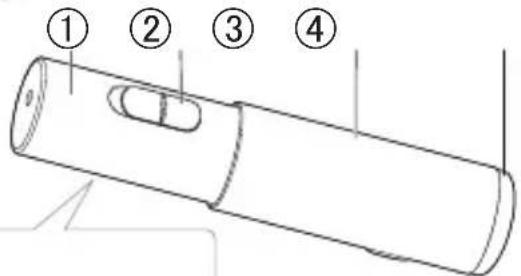

Parts identification (See page 2)
Regular nozzle
- The nozzle is a consumable.
B Main unit
(1) Main body
② Switch [0/1/2]
(3)Tank
(4)Bottom cover
Back of the main unit
⑤ Battery cover
- Alkaline battery is not supplied. Please buy it separately.
(6) Water suction hose
Accessory
Pouch
There may be moisture inside the main unit (tank and water suction hose etc.) left from the distilled water used for product testing.
Installing the alkaline batteries
- Keep your hands and the main body dry.
-
Make sure that the switch is set to "0".
-
Pull the main body and remove it from the tank.
-
Install the alkaline batteries.
1 Remove the battery cover. (Fig. 1)
Insert the batteries. (Fig. 2)
Align the battery cover with the battery compartment, and attach the battery cover by sliding it into place. (Make sure that the battery cover and the battery compartment are firmly installed and there is no gap.) (Fig. 3)
- Install the tank.
Note
- Use only LR6 (AA Alkaline battery), otherwise the power or number of uses may vary.
Filling the tank with water

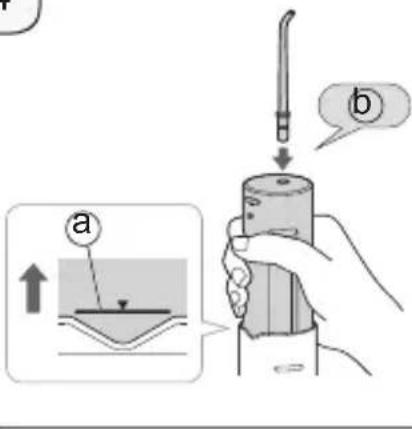

- Pull out the main body until you see the "mark. (Fig. 4)
Pull-out mark
- Install the nozzle while holding the main body. (Fig. 4)
Press in the nozzle firmly until a "click" is heard.
-

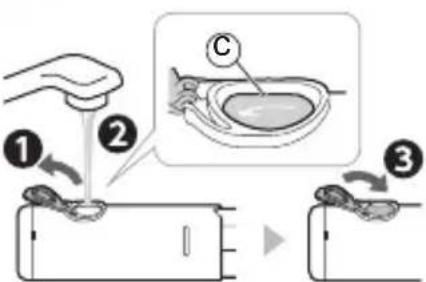

Add water. (Fig. 5)
-
Always use fresh tap water or lukewarm water.
- If you feel the water is cold, use lukewarm water with a temperature of up to 40^ .
Full-water position
How to use
It is recommended to clean inside your mouth with the water jet after brushing your teeth.
- The appliance may not operate in an ambient temperature approximately 5^ or lower.
- It can also be used in a bath.
Point 1/ Keep your face over the basin.
\Point 2/ Hold the main unit upright.
If the main unit is tilted too much, the water does not come out from the nozzle.
- Place the nozzle in your mouth, and close your mouth gently.

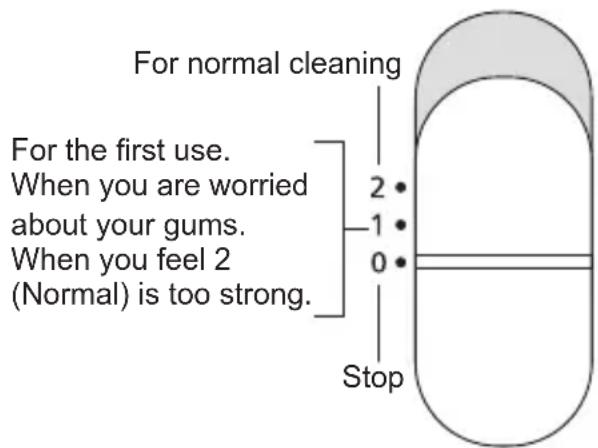

- Turn on the switch. (Select a water pressure level.)
- Do not press the tip of the nozzle hard against the teeth or gums.
-
Do not operate when the tank is empty except to drain the water from the appliance.
-
Doing so could result in malfunction.
-
When you have finished using this application, turn off the switch (while keeping the nozzle in your mouth).
Points of care
Change the way you use and move the appliance depending on the purpose and the area you want to clean.
Interdental cleaning
- Direct the water jet onto the space between the teeth.
- Direct water jet onto the front and rear of the teeth.
Periodontal pocket cleaning
- Direct the water jet onto the space between the teeth and gums.
- Slowly shift the water jet along the gums.
- Clean the front and rear sides of the teeth as well as behind the molars.
About tooth tartar
It is hard to remove tooth tartar or dental calculus attached to the tooth surface just by a water jet, so a toothbrush is required to brush the teeth.
It is recommended to clean inside your mouth with the water jet after brushing your teeth.
About bleeding gums
Initially bleeding may occur even with healthy gums. This is caused because the gums are not used to such stimulation. The bleeding will normally stop within 1 or 2 weeks of use. There may be a problem with the gums (periodontal disease, etc.) if the bleeding continues for over 2 weeks. In such cases, stop using the appliance and consult a dentist.
After use
Please clean the appliance after each use.

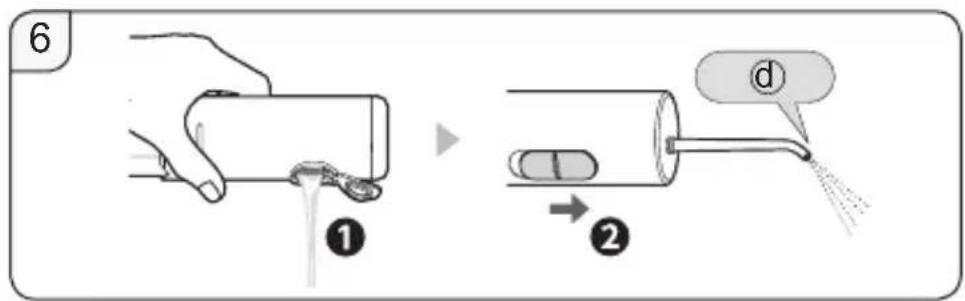

1. Drain the water. (Fig. 6)
1 Dispose of the water after each use.
Turn on the switch.
Drainage exit
- Turn the switch off when no more water comes out.

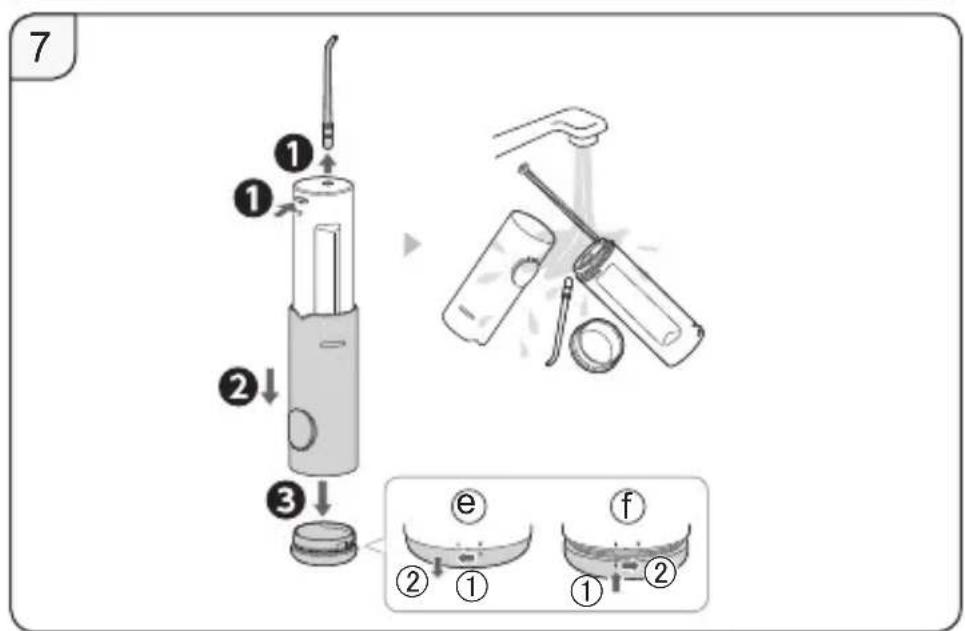

2. Wash with water. (Fig. 7)
0 Remove the nozzle while pressing the button.
Remove the tank (by pulling it strongly).
3 Remove the bottom cover.
e How to remove
f
- The tank and the bottom cover can be washed in a dish washer.

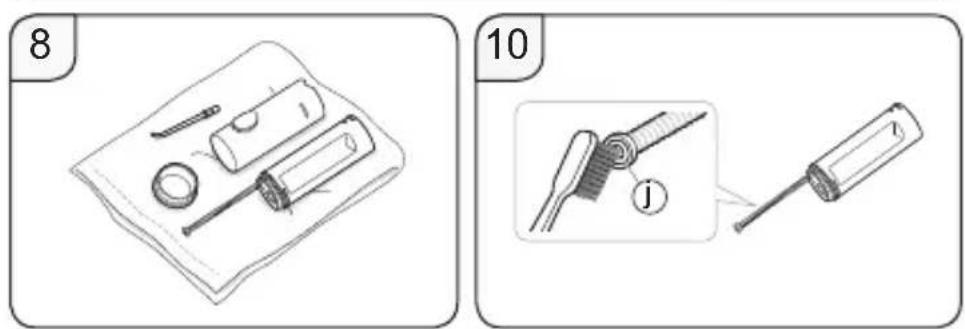

3. Dry it. (Fig. 8)

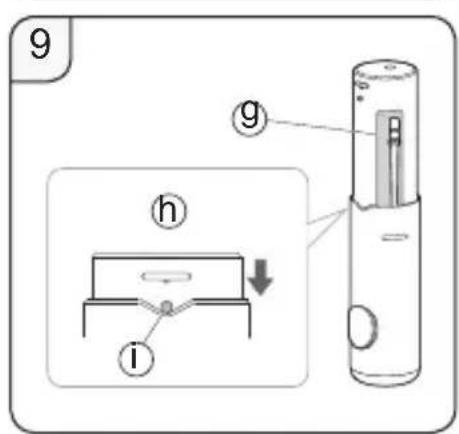

4. Install the tank back, and store the appliance. (Fig. 9)
Attach the bottom cover.
Store the nozzle.
Do not get your finger pinched in the nozzle storage compartment
Push it into the tank while rotating the main body.
① Storage position
Notes
- Do not use thinner, benzine, alcohol or other chemicals to clean the appliance.
- Doing so may result in malfunction, cracking or discoloring of the parts.
- Do not wash the main body or the nozzle with lukewarm water above 50^ .
- Use neutral kitchen detergent and rinse well with water to ensure no detergent remains after cleaning.
14
If the filter is clogged
Rub the filter (the tip of the water suction hose) gently with a soft brush.
① Filter (Fig. 10)
Changing the nozzle (Sold separately)
Replacement
The replacement cycle is about 6 months due to hygiene reasons.
- Please replace the nozzle if the tip of the nozzle gets deformed, even within 6 months.
| New nozzle | Deformed nozzle |
| Part number Replacement Nozzle for EW-DJ11 | ||
| WEW0987 Regular nozzle | ||
Troubleshooting
Problem Probable cause and action
The filter is clogged.
Remove the dirt from the filter.
(See Page 15.)
The water jet is poor.
The nozzle is clogged. The outlet of nozzle is squashed
Replace the nozzle.
(See Page 15.)
No water comes out.
The main unit is tilted too much.
Please use it upright.
It may take some time to suck up the water.
Put water into the nozzle port (K), install the nozzle, and turn on the switch.
Problem Probable cause and action
Water leaks from the bottom cover.
The rubber ring of the bottom cover is not installed properly.
Please install it with the convex part (m) facing outward.
The appliance does not operate.
Batteries are not inserted correctly.
Insert the batteries correctly. (See Page 11.)
Batteries are dead.
Replace with new batteries.
The battery fluid leaks out.
Contact an authorized service centre for repair.
The tank cap (n) comes off.
It may come off when opened.
Align it with the axis and push it in.
If the problems still cannot be solved, contact the store where you purchased the appliance or a service centre authorized by Panasonic for repair.
Specifications
| Power supply Alkaline Battery | |
| Battery | Two LR6 (AA Alkaline Battery) (sold separately) |
| Operating time | Approx. 20 minutes (When two Panasonic LR6 (AA Alkaline Battery) are used, the water pressure level is set to 2, and the room temperature is 20 °C) |
| Tank volume | Approx. 150 mL (For approx. 35 seconds of operation when the water pressure level is set to 2) |
| Dimensions | Approx. 30.9 cm (or 23.4 cm without nozzle) (H) x 5.2 cm (W) x 5.7 cm (D) In storage: Approx. 15.4 cm (H) x 5.2 cm (W) x 5.7 cm (D) |
| Airborne Acoustical Noise | 72 (dB (A) re 1 pW) |
This product is intended for household use only.
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging,
and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local authority.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Importer:
Panasonic Marketing Europe GmbH
Authorized Representative in EU:
Panasonic Testing Centre
Winsberging 15, 22525 Hamburg, Germany
Manufactured by:
Panasonic Corporation
1006, Oaza Kadoma, Kadoma City, Osaka, Japan
Panasonic
Betriebsanleitung
Panasonic Testing Centre
Winsberging 15, 22525 Hamburg, Deutschland
Hergestellt von:
Panasonic Corporation
1006, Oaza Kadoma, Kadoma City, Osaka, Japan
Panasonic
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Allemagne
Fabrique par:
Panasonic Corporation
1006, Oaza Kadoma, ville de Kadoma, Osaka, Japon
Panasonic
Istruzioni d'uso
Panasonic Testing Centre
Panasonic Testing Centre
Instalar as pilhas alcalinas
Panasonic Testing Centre
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Tyskland
Tillverkad av:
Panasonic Corporation
1006, Oaza Kadoma, Kadoma, Osaka, Japan
Panasonic
Brugsanvisning
(Husholdningsbrug) Bærbar mundskyller
Modelnummer EW-DJ11
Indhold
Identification of dele 141
Installation af alkaliske batterier 142
Panasonic Testing Centre
Winsberging 15, 22525 Hamburg, Tyskland
Fremstillet af:
Panasonic Corporation
1006, Oaza Kadoma, Kadoma, Osaka, Japan
Panasonic
Drenering utstrømning
Panasonic Testing Centre
Winsberging 15, 22525 Hamburg, Tyskland
Produsert av:
Panasonic Corporation
1006, Oaza Kadoma, Kadoma, Osaka, Japan
Panasonic
Käytöohjeet
Panasonic Testing Centre
Winsbergring 15, 22525 Hampuri, Saksa
Valmistaja:
Panasonic Corporation
1006, Oaza Kadoma, Kadoma-kaupunki, Osaka, Japan
Panasonic
Instrukcja obstugi
Panasonic Testing Centre
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Nemecko
Vyrobil:
Panasonic Corporation
1006, Oaza Kadoma, Kadoma City, Osaka, Japonsko
Panasonic
Návod na obsluhu
Panasonic Testing Centre
Winsberging 15, 22525 Hamburg, Nemecko
Vyrobca:
Panasonic Corporation
1006, Oaza Kadoma, Kadoma City, Osaka, Japonsko
Panasonic
Használatiutasítás
Panasonic Testing Centre
1006, Oaza Kadoma, Kadoma City, Osaka, Japan
Panasonic
Instructiuni de utilizes (Pentru uz casnic) Irigator oral portabil Nr.Model EW-DJ11
Cuprins
Măsuri de siguranta 249
1. ScurgettiAPA.(Fig.6)
Panasonic Testing Centre
Winsberging 15, 22525 Hamburg, Germania
Fabricat de:
Panasonic Corporation
1006, Oaza Kadoma, Kadoma City, Osaka, Japonia
Panasonic
Kullanim Talimatlari
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Almanya
33, Wanbao North Street, Wanbao Industry Zone, Zhongcun, Panyu District, Guangzhou City, Guangdong Province, China
YETKILI TEMSILCI
Ithalatci Firma:
Tesan Iletisim A.Ş.
Cobançesme Mah. Bilge 1 Sok. No:17
34196 Yenibosna- Istanbul
Tel: 0212 454 60 70 Faks: 0212 454 60 20
www.tesan.com.tr
ÜRUNUN KULLANIM ÖMRÜ 7 YILDIR
MEMO
Panasonic Corporation
https://www.panasonic.com
© Panasonic Corporation 2022
EN, DE, FR, IT, SP, NL, PT, SV, DA
NB, FI, PL, CS, SK, HU, RO, TR
Printed in China
EW9700DJ111503 Y0622-0
