USER MANUAL EHNA9J PANASONIC

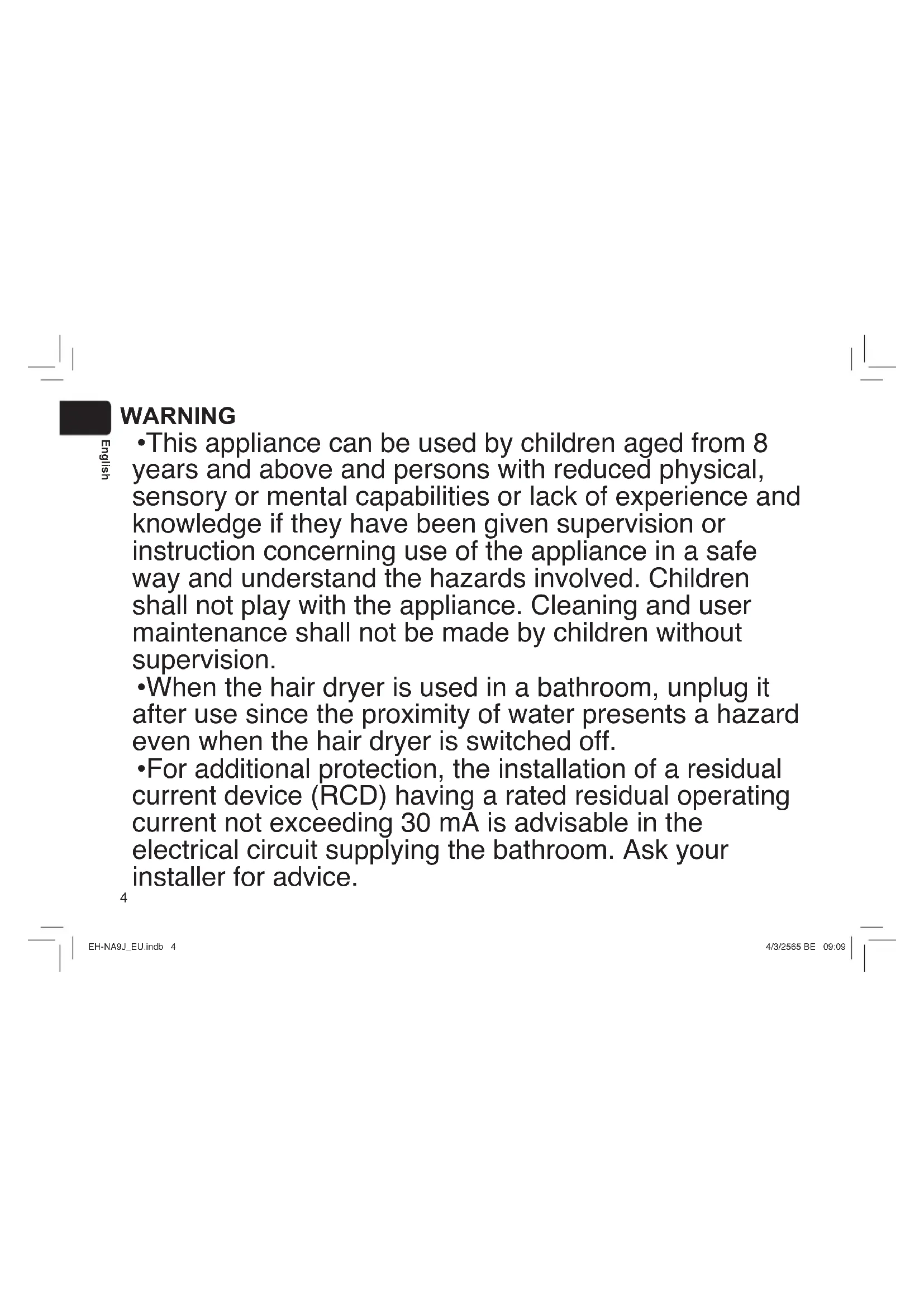

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• When the hair dryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hair dryer is switched off.

• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice. EH-NA9J_EU.indb 4EH-NA9J_EU.indb 4 4/3/2565 BE 09:094/3/2565 BE 09:095 English

• This symbol with prohibition sign in red on the appliance means “Do not use this appliance near water”. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualifi ed persons in order to avoid a hazard. EH-NA9J_EU.indb 5EH-NA9J_EU.indb 5 4/3/2565 BE 09:094/3/2565 BE 09:096 English nanoe™ is a trademark of Panasonic Corporation. A nanoe™ is a nano-sized ion particle coated with water particles. Safety precautions To reduce the risk of injury, loss of life, electric shock, fi re, and damage to property, always observe the following safety precautions. Explanation of symbols The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed. WARNING Denotes a potential hazard that could result in serious injury or death. CAUTION Denotes a hazard that could result in minor injury or property damage. The following symbols are used to classify and describe the type of instructions to be observed. This symbol is used to alert users to a specifi c operating procedure that must not be performed. This symbol is used to alert users to a specifi c operating procedure that must be followed in order to operate the unit safely. Some parts of the safety precaution illustrations differ from the actual product. WARNING ►Plug and Cord Do not use with the cord bundled. - Doing so may cause fi re or electric shock. Do not damage the cord or plug.

• Do not deface, modify, forcefully bend or pull the cord or plug. Also, do not place anything heavy on, twist or pinch the cord. - Doing so may cause electric shock, burn or fi re due to a short circuit. Do not use when the plug or cord is damaged or hot. - Doing so may cause burn, electric shock, or fi re due to a short circuit. Never use the appliance if the plug fi ts loosely in a household outlet. - Doing so may cause burn, electric shock, or fi re due to a short circuit. Do not connect or disconnect the plug to a household outlet with a wet hand. - Doing so may cause electric shock or injury. Do not wrap the cord tightly around the main body when storing.

Doing so may cause the wire in the cord to break with the load, and may cause electric shock, burn or fi re due to a short circuit. Do not store or use the cord in a twisted state. - Doing so may cause the wire in the cord to break with the load, leading to electric shock or fi re due to a short circuit. EH-NA9J_EU.indb 6EH-NA9J_EU.indb 6 4/3/2565 BE 09:094/3/2565 BE 09:097 English WARNING Disconnect the plug by holding onto it instead of pulling on the cord. - Failure to do so may cause the wire in the cord to break, and may cause burn, electric shock, or fi re due to a short circuit. Regularly clean the plug to prevent dust from accumulating. - Failure to do so may cause fi re due to insulation failure caused by humidity. Disconnect the plug and wipe with a dry cloth. Always turn off the power switch and disconnect the plug from the household outlet after use. - Failure to do so may cause fi re or burn. Use the household outlet alone: do not use with an extension cord. Fully insert the plug. Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the appliance. - Failure to do so may cause fi re or electric shock. ►In case of an abnormality or malfunction Immediately stop using and remove the plug if there is any abnormality or malfunction.

• Unit stops sporadically

• Interior becomes red-hot and smoke is emitted

• The appliance is damaged or deformed, or strange noise is emitted. - Immediately request inspection or repair at an authorized service center. ►Maintenance If you see sparks around the air outlet while using the hot air setting, stop use and remove the lint on the air outlet and air inlet. - Failure to do so may cause burn or fi re. ►This appliance Do not block or insert hair pins or other foreign objects into the air inlet, air outlet, nanoe™ outlet or mineral ion outlet. - Doing so may cause fi re, electric shock, or burn. EH-NA9J_EU.indb 7EH-NA9J_EU.indb 7 4/3/2565 BE 09:094/3/2565 BE 09:098 English WARNING Do not leave the product with the power switch on. - Doing so may cause fi re. Do not store the appliance in a bathroom or location with high humidity. Also, do not place in a location where water may spill (such as top of vanity). - Doing so may cause electric shock or fi re. Do not keep within the reach of infants or young children. Do not let them use the appliance. - Doing so may cause burn, electric shock, or injury. Do not use in proximity of fl ammable materials (such as alcohol, benzine, thinner, spray, hair care product, nail polish remover). - Doing so may cause an explosion or fi re. Do not immerse the appliance in water. Do not use this appliance near water. - Doing so may cause electric shock or fi re. Never modify, disassemble, or repair. - Doing so may cause ignition or injury due to abnormal operation. Contact an authorized service center for repair. Do not use the appliance with a wet hand. - Doing so may cause electric shock or fi re due to a short circuit. This appliance is not designed for commercial use, and is not intended for use without appropriate maintenance. - Doing so may cause burn or fi re due to a continuous load or overload. If you feel pain or abnormality on your skin or other part of your body, immediately stop using this product. - Failure to do so may cause problems with the skin or body. EH-NA9J_EU.indb 8EH-NA9J_EU.indb 8 4/3/2565 BE 09:094/3/2565 BE 09:099 English CAUTION ►To protect your hair Do not use with the air inlet damaged. - Your hair may get tangled in the air inlet, which could damage the hair. Be sure to keep a distance of over 3 cm between the air outlet and your hair. - Failure to do so may cause burns to the hair. 10cm 3cm Be sure to keep your hair at least 10 cm away from the air inlet. - Your hair may get tangled in the air inlet, which could damage the hair. ► Note the following precautions Do not drop or subject to shock. - Doing so may cause electric shock or ignition. Only use for drying or styling human hair or for skin. (Do not use on pets, or to dry clothing, shoes, etc.) - Doing so may cause fi re or burn. Do not use on children under 6 years old. - Doing so may cause burn. Do not touch the air outlet, styling nozzle and diffuser which will become very hot. - Doing so may cause burn. ►Notes

• This appliance is equipped with an automatic overheating protective device. If the appliance overheats, it will switch to cold air mode. Switch off the appliance and unplug it from the household outlet. Allow it to cool down for a few minutes before using it again. Check that no fl uff, hair etc. is in the air inlets and outlets before switching it on again.

• You may notice a characteristic odor when using this appliance. This is caused by the ozone it generates and is not harmful to the human body. EH-NA9J_EU.indb 9EH-NA9J_EU.indb 9 4/3/2565 BE 09:094/3/2565 BE 09:0910 English

►Quick-dry nozzle You can increase the drying rate by using the vertical strong and weak airfl ows to dry and loosen bundles of damp hair.

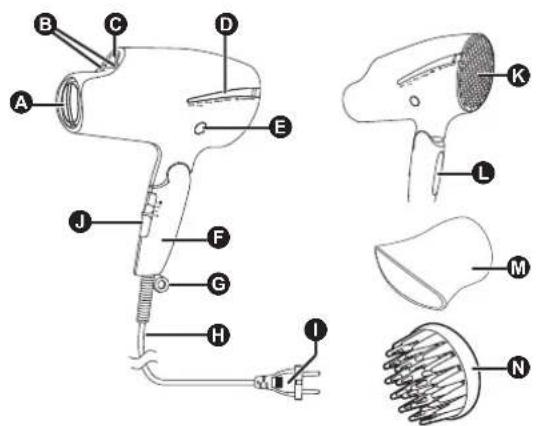

• The quick-dry nozzle cannot be removed. (Image) Soft airfl ow Quick-dry nozzle Strong airfl ow A Air outlet Quick-dry nozzle B Mineral ion outlet C nanoe™ outlet D Mode indicator E Mode switching button F Handle G Ring for hanging H Cord I Plug J Power switch : Turbo (Very strong airfl ow) : Dry (Strong airfl ow) : Set (Gentle airfl ow) : Off K Air inlet L Panel M Styling nozzle N Diffuser ►Styling nozzle For easy styling and blow drying of hair, attach the styling nozzle to the hair dryer.

• Styling nozzle helps to direct the airfl ow onto a specifi c area of the hair ►Diffuser For creating full-bodied hair with lots of volume and styling Parts identifi cation EH-NA9J_EU.indb 10EH-NA9J_EU.indb 10 4/3/2565 BE 09:094/3/2565 BE 09:0911 English Mode indicator and mode explanation Switch mode with mode switching button

• The appliance will enter hot air mode when the power switch is turned on. Hot air mode When the power switch is set to [ ] or

Press and hold the mode switching button for 1 second or more to switch Intelligent temperature control mode Scalp care mode [SCALP] Green

• Gentle hot air for scalp care blows. [HOT] Red

• Hot air blows. [HOT] Red blinking

The appliance detects the surrounding air temperature and blows air at a comfortable temperature for drying. Hot/Cold alternating mode Cold air mode For hot air [ ] Yellow [HOT] Red Automatic switching For cold air [ ] Yellow [COLD] Blue For power switch

• Cold air blows. For power switch

• The appliance detects the surrounding air temperature and switches between hot and cold air at appropriate intervals. [COLD] Blue [SKIN] Yellow

Weak cold air for skin care blows.

• In all modes, the nanoe™ lamp glows, and air including nanoe™ and mineral ion blows.

• When [HOT], [ ] (hot/cold alternating mode) hot air, [SCALP] is selected, cold air blows around the hot air, helping set your hair and making your hair shiny. EH-NA9J_EU.indb 11EH-NA9J_EU.indb 11 4/3/2565 BE 09:094/3/2565 BE 09:0912 English Panel effect Panel Just by grasping the panel along with the handle, more nanoe™ is attracted to your hair. ►Note

Results of nanoe™, mineral ions and hot/cold alternating mode (See page 13.) on hair vary according to the individual, and the following people may fi nd it hard to experience an effect. - People with curly hair - People with strong wavy hair - People with smooth hair that can be easily set - People who have had a straightening perm within 3 to 4 months - People with short hair Curly hair Wavy hair About nanoe™ and double mineral*

• “Double mineral” means mineral ions generated by two zinc electrodes. nanoe™ and double mineral effect Penetrates hair with moisture and tightens cuticle to keep your hair elastic and healthy. Your hair becomes stronger against damage from brushing. Mineral ion outlet What is nanoe™, mineral ion? (nanoe™, mineral ion generation method: high voltage discharge) nanoe™ nanoe™ is generated by collecting the available moisture in the air, so depending on the usage environment, nanoe™ may not be generated. In environments of low temperature and low humidity, moisture in the air becomes diffi cult to collect. When this occurs, negative ions are generated. nanoe™ are ions wrapped in water that are invisible to the human eye. Mineral ion Ions generated by a zinc electrode that cannot be seen by the eye. EH-NA9J_EU.indb 12EH-NA9J_EU.indb 12 4/3/2565 BE 09:094/3/2565 BE 09:0913 English

When the hair is about 90% dry, use the hot/ cold alternating mode to fi nish it well, making the hair shiny.

• Select [ ] with the mode switching button. In order to thoroughly apply hot and cold air, part your hair to the left and right to dry it.

1. Apply the hot/cold alternating mode

while running your fi ngers through your hair from the inside. (One side)

2. Apply the hot/cold alternating mode

while running your fi ngers through your hair from the top of your head to the tip of your hair. (One side)

3. Also perform step 1 and 2 on the

Set the power switch to [

Remove the plug from the household outlet.

• When drying is complete, fi nish with a brush or your fi ngers.

• After the hair dryer has cooled down suffi ciently, keep it in a place with low humidity. How to use the hair dryer Preparation

Use a towel to partially dry your hair.

Then brush or comb your fi ngers to remove tangles.

Plug into the household outlet. Dry your hair

with the power switch.

Direct warm air throughout your hair.

• Your hair will dry quickly if you direct the warm air towards the roots. EH-NA9J_EU.indb 13EH-NA9J_EU.indb 13 4/3/2565 BE 09:094/3/2565 BE 09:0914 English Scalp care mode Moisture remaining on the surface of scalp leads to discomfort, such as stickiness. Dry scalp gently with hot air at approx. 50 °C. (at 240 V)* *When the room temperature is 23 °C Do this after drying your hair by about 70% following procedure 2 on P.13

Select [SCALP] with the mode switching button.

Lift your hair by hand and dry your scalp.

• You may feel cold depending on the ambient temperature. In this case, move the appliance further away from your scalp on [HOT] and apply air.

Select [HOT] with the mode switching button and dry your hair overall. Skin care mode Delivers nano sized moisture ions to skin that is easy to dry out after bathing. Do this after drying your hair following procedure 3 on P.13

Select [ ] with the power switch.

Select [COLD] with the mode switching button.

Place the air outlet at a distance of about 20 cm from your chin and apply air for about 1 minute, moving the appliance to the left and right.

• Use with your eyes closed.

• Perform skin care using lotion or milky lotion, in the same way and timing as normal. EH-NA9J_EU.indb 14EH-NA9J_EU.indb 14 4/3/2565 BE 09:094/3/2565 BE 09:0915 English Intelligent temperature control mode At times when it is unpleasantly hot and humid, such as after bathing in summer, the hot air temperature is controlled automatically depending on the room temperature, to allow comfortable drying. <Image of room temperature and hot air> Room temperature (°C) *Air temperature approx. 90 °C

The description of the air temperature is based on IEC standard at 240 V. Do this when you wish to reduce the hot sensation of hot air following procedure 2 on P.13

Press and hold the mode switching button for 1 second or more when using HOT [ ] or [

• ([HOT] changes to blinking)

Dry your hair overall.

• Press and hold the mode switching button again for 1 second or more to return to normal hot air.

• The appliance will return to hot air mode once the power switch is turned off. To increase hair volume Lift the base of your hair and apply the hot air from the bottom to the top. For top For inner hair To decrease hair volume Run your hand through your hair in the same direction as the hair fl ow, and apply hot air from the top to bottom. To defi ne the curls and waves with a diffuser

1. Gently place the tip of your hair on the diffuser.

2. Lift your curls up and down from your scalp

whilst they are drying.

3. Repeat all sections.

4. Finally, adjust the overall fi nished look with your hands.

EH-NA9J_EU.indb 15EH-NA9J_EU.indb 15 4/3/2565 BE 09:094/3/2565 BE 09:0916 English To increase hair volume with a diffuser Attain volume by moving the diffuser in a circular motion over the scalp. Keep the diffuser held on specifi c areas of your head for a few seconds to attain volume as you wish. Repeat until your desired look is achieved. To adjust hair fl ow with a diffuser Comb the hair with a diffuser to dry the hair from the roots to the tips while pulling the ends of the hair. To set your hair

Dampen the area of your hair you want to set with water etc.

• Massage your hair so that water etc. penetrates to the inner side.

] with the power switch.

Select [HOT] with the mode switching button and apply hot air. To make your hair setting last longer Apply cold air to the area of your hair you want to set after applying hot air. ►Note

• Wave perms may temporarily become easy to stretch when you apply nanoe™ and mineral ion to your hair, but return to their original state when you apply water or styling agents. ►Notes

• Keep a distance of over 3 cm between the air outlet and your hair.

• Keep the appliance at least 10 cm away from your hair so that it is not sucked into to the air inlet.

• Be careful not to bump the air inlet such as on the corner of a desk. 10cm 3cm

• Styling and treatment agents etc. can be used. However, if you use sticky substances such as oil, gel or wax, the intended effect of nanoe™ and mineral ion may become diffi cult to achieve.

• Since nanoe™ and mineral ions are generated, you might encounter the following. - Water droplets may be blown out of the nanoe™ outlet during use. - You may hear a noise from the nanoe™ outlet or the mineral ion outlet. - You may notice a characteristic smell during use.

• Do not look into the air outlet while in use. EH-NA9J_EU.indb 16EH-NA9J_EU.indb 16 4/3/2565 BE 09:094/3/2565 BE 09:0917 English Maintenance of the hair dryer Always turn the power switch off and disconnect the plug from the household outlet. (Except when performing maintenance on the air outlet) Maintaining the air outlet Do this about once a month or over

1. Plug into the household outlet.

] or [ ] with the power switch.

3. Select [COLD] with the mode switching

4. While scraping dust and hair jammed in the mesh with a

cotton swab, blow them away with air. ►Notes

• When performing maintenance, do not block the air inlet with your hand.

Dust may fl y out when you use the appliance for the fi rst time after maintenance. Use the appliance after confi rming that dust no longer fl ies out. (Do not look into the air outlet.) Maintaining the air inlet Do this about once a month or over Wipe to clean lint, hair, or other matter from the air inlet with a tissue or toothbrush. ►Note

• Do not press or rub with your nails or sharp items. Doing so may cause the air inlet to break. If dust is attached to the inside, remove it with a vacuum cleaner. Maintaining the nanoe™ outlet and the mineral ion outlet At least once a month In order to maintain the generation amount of nanoe™ and mineral ion.

1. Prepare a commercially available

2. Gently insert the swab in the

nanoe™ outlet and the mineral ion outlet until it stops (about 1 cm), and then turn the cotton swab 2-3 times carefully. nanoe™ outlet Mineral ion outlet ►Note

It is easier to clean the nanoe™ outlet and the mineral ion outlet with a narrow cotton swab (for example, one intended for babies). Maintaining the main body Do this when dirty To clean the hair dryer (when it is dirty), soak a cloth in the soapy water and squeeze it out fi rmly, then wipe with the cloth. ►Notes

• Do not use substances such as alcohol, nail polish remover or detergent (hand soap). Doing so may result in malfunction or part cracks or discoloration.

• Do not leave the appliance with hairdressing products or cosmetics on it. Doing so will cause deterioration of the plastic, leading to discoloration and cracks. alcoholpolish remover EH-NA9J_EU.indb 17EH-NA9J_EU.indb 17 4/3/2565 BE 09:094/3/2565 BE 09:0918 English Troubleshooting Problem Possible cause Action Sparks can be seen inside the appliance when using [HOT]. (These sparks are caused by the thermostat switch which is the protective device, and are not dangerous.) Dust is attached to the air inlet or air outlet. Hair or something is blocking the air inlet. Remove the attached dust. (See page 17.) Hot air repeatedly turns into cold air. Do not block the air inlet. The hot air is abnormally hot. The power plug is abnormally hot. The power plug is not fi rmly inserted into the outlet. Use an outlet in which the power plug fi ts snugly. Sparks are generated inside the nanoe™ outlet. The needle-shaped part located at the back of the nanoe™ outlet is dirty. Perform maintenance on the nanoe™ outlet. (See page 17.) A noise (crackling) is heard inside the nanoe™ outlet. There is a peculiar smell. This is because nanoe™ and mineral ion produce a peculiar smell; there is no infl uence to your body. Water droplets fl y out from the nanoe™ outlet. Water droplets occasionally fl y out from the nanoe™outlet when generating nanoe™; this is not an abnormality.” The [HOT] lamp is blinking quickly (twice per second). Device abnormality. Please consult an authorized service center for repair. If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorised by Panasonic for repair. Specifi cations Product model EH-NA9J Power source 220 V
