USER MANUAL EH5571 PANASONIC

Illustration of a hair dryer with a bulb and handle, shown in profile view (no text or symbols)

Panasonic

Operating Instructions

Hair Dryer

Model No. EH5571/EH5572/EH5573

English 2 Norsk 23 Română 44

Deutsch 5 Svenska 26 Magyar 47

Français 8 Dansk 29 Türkçe 50

Italiano 11 Suomi 32 Русский 53

Before operating this hair dryer, please read these instructions completely and save this manual for future use.

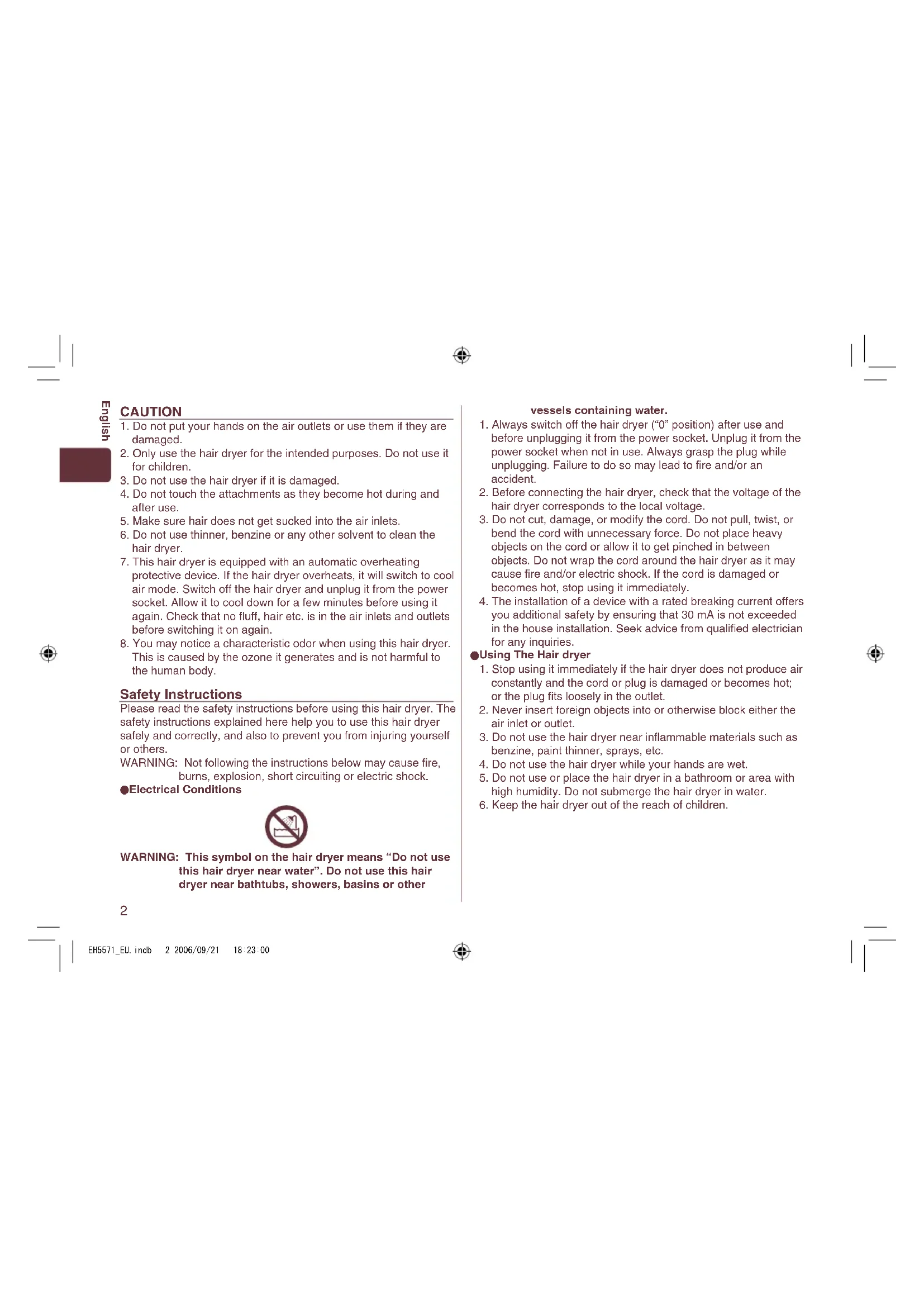

CAUTION

1. Do not put your hands on the air outlets or use them if they are damaged.
2. Only use the hair dryer for the intended purposes. Do not use it for children.
3. Do not use the hair dryer if it is damaged.
4. Do not touch the attachments as they become hot during and after use.
5. Make sure hair does not get sucked into the air inlets.
6. Do not use thinner, benzine or any other solvent to clean the hair dryer.
7. This hair dryer is equipped with an automatic overheating protective device. If the hair dryer overheats, it will switch to cool air mode. Switch off the hair dryer and unplug it from the power socket. Allow it to cool down for a few minutes before using it again. Check that no fluff, hair etc. is in the air inlets and outlets before switching it on again.
8. You may notice a characteristic odor when using this hair dryer. This is caused by the ozone it generates and is not harmful to the human body.

Safety Instructions

Please read the safety instructions before using this hair dryer. The safety instructions explained here help you to use this hair dryer safely and correctly, and also to prevent you from injuring yourself or others.

WARNING: Not following the instructions below may cause fire, burns, explosion, short circuiting or electric shock.

Electrical Conditions

WARNING: This symbol on the hair dryer means “Do not use this hair dryer near water”. Do not use this hair dryer near bathtubs, showers, basins or other

2

vessels containing water.

1. Always switch off the hair dryer ("0" position) after use and before unplugging it from the power socket. Unplug it from the power socket when not in use. Always grasp the plug while unplugging. Failure to do so may lead to fire and/or an accident.
2. Before connecting the hair dryer, check that the voltage of the hair dryer corresponds to the local voltage.
3. Do not cut, damage, or modify the cord. Do not pull, twist, or bend the cord with unnecessary force. Do not place heavy objects on the cord or allow it to get pinched in between objects. Do not wrap the cord around the hair dryer as it may cause fire and/or electric shock. If the cord is damaged or becomes hot, stop using it immediately.
4. The installation of a device with a rated breaking current offers you additional safety by ensuring that 30 mA is not exceeded in the house installation. Seek advice from qualified electrician for any inquiries.

●Using The Hair dryer

1. Stop using it immediately if the hair dryer does not produce air constantly and the cord or plug is damaged or becomes hot; or the plug fits loosely in the outlet.
2. Never insert foreign objects into or otherwise block either the air inlet or outlet.
3. Do not use the hair dryer near inflammable materials such as benzine, paint thinner, sprays, etc.
4. Do not use the hair dryer while your hands are wet.
5. Do not use or place the hair dryer in a bathroom or area with high humidity. Do not submerge the hair dryer in water.
6. Keep the hair dryer out of the reach of children.

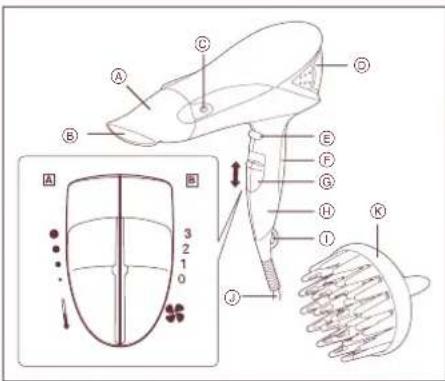

Parts Identification

ⒶNozzle

©Air outlet

© Negative ion outlet (One on either side)

©Air inlet (Removable)

© Cool-shot button (The air remains cool while the cool-shot button is held down.)

⑤lon charge panel

EH5572 EH5573

©Switch

⑧Handle

①Ring for hanging

①Cord

Diffuser EH5573

(For creating full-bodied hair with lots of volume)

How to use the hair dryer

A. Temperature Selector

• : Cool air

• Mild air

:Warm air

: Hot air

B. Main Switch

0: Off

1: Gentle airflow

2: Strong airflow

3: Very strong airflow

Diffuser:

Apply your brush to your scalp, and turn and move the diffuser around as if drawing large circles.

Diagram of a hairdryer with labeled parts and a magnified view showing internal structure and color variations.

Notes

1. Negative ions are produced when the main switch is set to position 1 to 3.
2. Negative ions are invisible to the naked eye.
3. Negative ions adhere to your hair easily if you grip the ion charge panel.

Panasonic Ionic Technology

The Panasonic Hair Dryer uses negative ions to reduce the heat damage when drying hair. Negative ions reduce the build-up of static electricity and help to keep your hair in excellent condition by allowing moisture to penetrate deep into hair and then locking it in. Notes - The effects of ions might not be felt by the following people. People with crimpy hair, strong curly hair, very smooth hair, short hair, or who have had a hair straightening perm in the last three or four months.

Repair and Maintenance of the Hair dryer

1. Do not attempt to repair, disassemble, or modify the hair dryer by yourself.
2. If the cord or plug is damaged, stop using it immediately and

contact an authorized Panasonic service center.

1. If air frequently becomes cold and sparks are sometimes seen when the hair dryer is blowing hot air, dust has accumulated at the air inlet and/or the air outlet or the air inlet is being blocked by your hair or your hands. (This phenomenon is the result of the hair dryer's thermal switch. The sparks do not pose a danger in and/or themselves.) Slide the main switch to the "off" position and remove any dust that has accumulated.
2. If sparks occur inside the negative ion outlets, the electrodes have become dirty resulting in abnormal discharge. If this happens, clean the inside of the negative ion outlets.

- Cleaning method

Clean only after turning off the power and removing the power cord from the power outlet.

Use a cotton swab to lightly rub (about 5 times) the center of the part that is inside of the negative ion outlets.

We recommend the thin cotton swabs made for use with babies. Although regular cotton swabs will work, they may be hard to insert into the outlets.

Specifications
Model No.: EH5571

Voltage	220 V 50-60 Hz	230 V 50-60 Hz	240 V 50-60 Hz
Output 1500 W 1650 W 1800 W
Dimensions	272 (W) × 102 (D) × 229 (H) mm(With Nozzle)
Accessory	Nozzle

Model No.: EH5572/EH5573

Voltage	220 V 50-60 Hz	230 V 50-60 Hz	240 V 50-60 Hz
Output 1700 W 1850 W 2000 W
Dimensions	272 (W) × 102 (D) × 229 (H) mm(With Nozzle)
Accessory	Nozzle EH5572 EH5573, Diffuser EH5573

Airborne Acoustical Noise

with nozzle: 83 (dB(A) re 1pW)

without nozzle: 84 (dB(A) re 1pW)

with diffuser: 87 (dB(A) re 1pW) EH5573

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis.

Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

VORSICHT

Technical diagram of a hairdryer with labeled parts and exploded view showing internal structure and component details.

Hinweise

Diagram of a hairdryer with labeled parts and a magnified view showing internal structure and color variations.

Français

Remarques

Panasonic Ionic Technology

Technical diagram of a hairdryer with labeled parts and a magnified view showing internal structure and measurement scale.

Note

Diagram of a hairdryer with labeled parts and a magnified view showing internal structure and color variations.

Notas

Technical diagram of a hair dryer with labeled parts and a magnified view showing internal structure and measurement scale.

Opmerkingen

Technical diagram of a hair dryer with labeled parts and exploded view, including a cross-sectional view and numbered parts.

Notas

Modelo No.: EH5572/EH5573

Floneladerpanel EH5572 EH5573

©Bryter

©Handtak

①Ring for oppheng

①Ledning

© Spreder EH5573

Diagram of a hairdryer with labeled parts and a magnified view showing internal structure with numbered parts.

●Merknader

Technical diagram of a hairdryer with labeled parts and exploded view, including head, jaw, and blade details.

●Anmärkningar

Diagram of a hairdryer with labeled parts and a magnified view showing internal structure and color variations.

●Noter

Diagram of a hairdryer with labeled parts and a magnified view showing internal structure and measurement scale.

Suomi

Tekniset tiedot
Mallinro: EH5571

Mallinro: EH5572/EH5573

Jännite	220 V 50-60 Hz	230 V 50-60 Hz	240 V 50-60 Hz
Teho 1700	W 1850 W 2000	W
Mitat	272 (L) × 102 (S) × 229 (K) mm(suuttimen kanssa)
Lisävarusteet	Suutin EH5572 EH5573, hajotin EH5573

Technical diagram of a hairdryer with labeled parts and exploded view, including head, jaw, and body parts.

Uwagi

Model nr: EH5572/EH5573

Diagram of a hairdryer with labeled parts and a magnified view showing internal structure and color variations.

Česky

●Poznámky

Technical diagram of a hair dryer with labeled parts and exploded view, including front, side, and top views.

●Poznámky

Technical diagram of a hairdryer with labeled parts and exploded view showing internal structure and component details.

Megjegyzések

Technical diagram of a hairdryer with labeled parts and cross-sectional view

Notlar

Model No.: EH5572/EH5573

Voltaj 220 V	50-60 Hz 230 V	50-60 Hz 240 V	50-60 Hz
Çıkış 1700 W	1850 W 2000 W
Boyutlar	272 (G) × 102 (D) × 229 (Y) mm(Ağız ile)
Aksesuar	Ağız EH5572 EH5573, dağıtıcı ucu EH5573

Technical diagram of a hairdryer with labeled parts and a magnified view showing internal structure and measurement scale.

Примечания

Technical diagram of a shoe with labeled parts and exploded view, including front, side, and top views.
