USER MANUAL EHNA67 PANASONIC

Operating Instructions

(Household use) Hair Dryer

Model No. EH-NA67

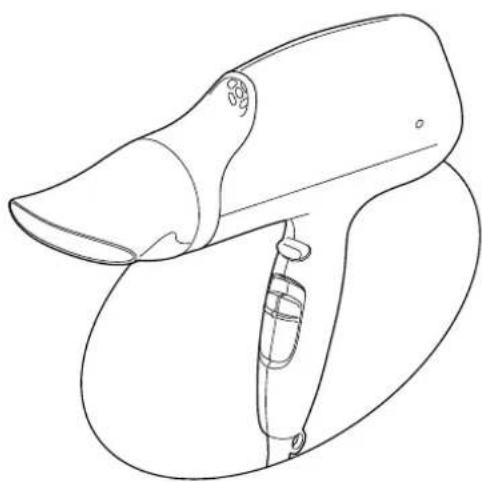

Line drawing of a hair dryer with handle and ventilation tube (no text or symbols)

• nanoe™

English	3	Dansk	87	Česky	171
Deutsch	17	Português	101	Slovensky	185
Français	31	Norsk	115	Magyar	199
Italiano	45	Svenska	129	Română	213
Nederlands	59	Suomi	143	Türkçe	227
Español	73	Polski	157

Panasonic®

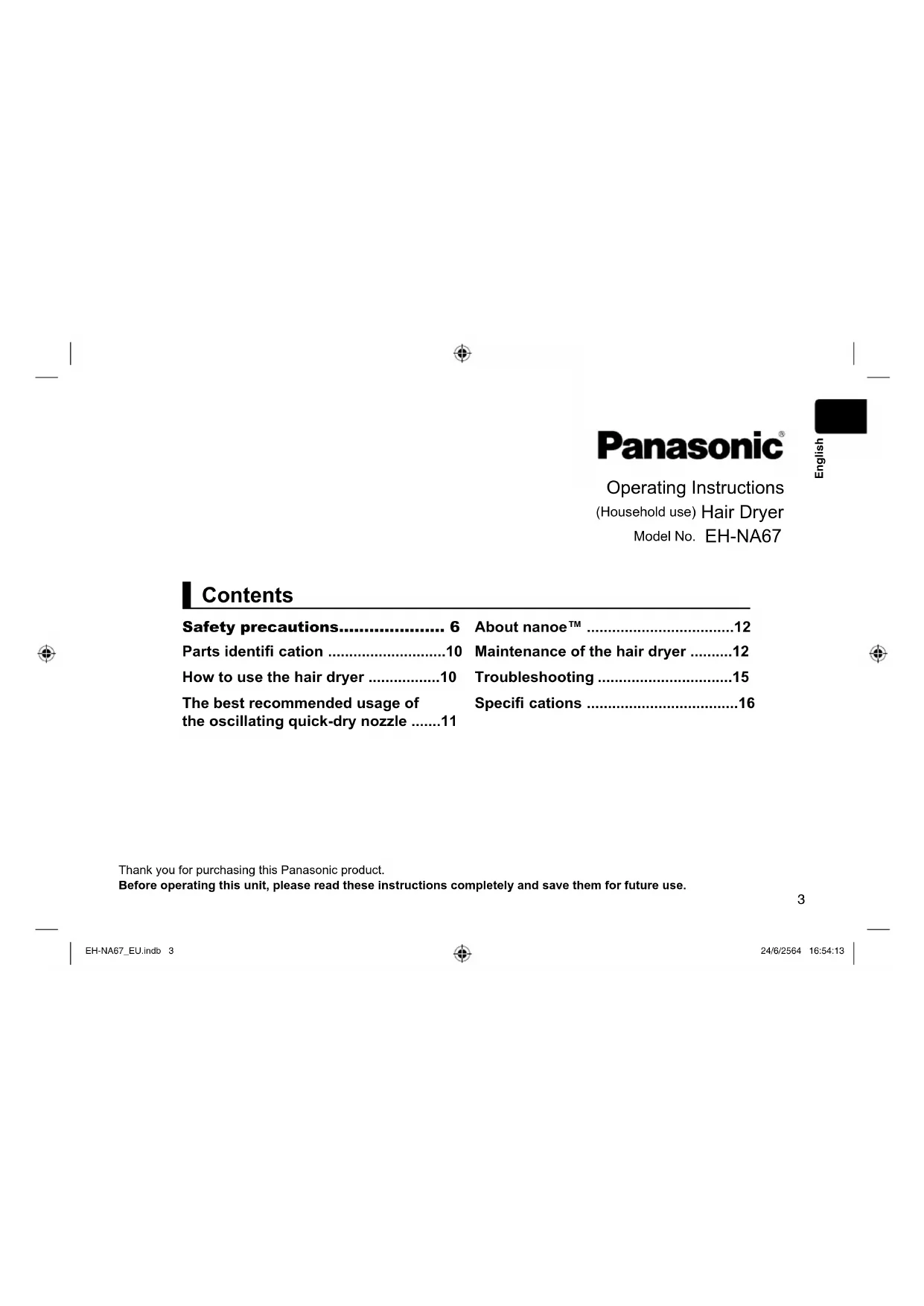

Operating Instructions

(Household use) Hair Dryer

Model No. EH-NA67

Contents

Safety precautions...... 6

Parts identifi cation ....10

How to use the hair dryer .....10

The best recommended usage of the oscillating quick-dry nozzle .....11

About nanoe ^TM ......12

Maintenance of the hair dryer .....12

Troubleshooting ....15

Specifications ......16

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

3

WARNING

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• When the hair dryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hair dryer is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.

• This symbol with prohibition sign in red on the appliance means “Do not use this appliance near water”. Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

English

nanoe™ is a trademark of Panasonic Corporation. A nanoe™ is a nano-sized ion particle coated with water particles.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

Some parts of the safety precaution illustrations differ from the actual product.

WARNING

▶ Plug and Cord

Do not use with the cord bundled.

- Doing so may cause fire or electric shock.

Do not damage the cord or plug.

- Do not deface, modify, forcefully bend or pull the cord or plug. Also, do not place anything heavy on, twist or pinch the cord.

- Doing so may cause electric shock, burn or fire due to a short circuit.

Do not use when the plug or cord is damaged or hot.

- Doing so may cause burn, electric shock, or fire due to a short circuit.

Never use the appliance if the plug fi ts loosely in a household outlet.

- Doing so may cause burn, electric shock, or fire due to a short circuit.

Do not connect or disconnect the plug to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not wrap the cord tightly around the main body when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause electric shock, burn or fire due to a short circuit.

Do not store or use the cord in a twisted state.

- Doing so may cause the wire in the cord to break with the load, leading to electric shock or fire due to a short circuit.

WARNING

Disconnect the plug by holding onto it instead of pulling on the cord.

- Failure to do so may cause the wire in the cord to break, and may cause burn, electric shock, or fire due to a short circuit.

Regularly clean the plug to prevent dust from accumulating.

- Failure to do so may cause fi re due to insulation failure caused by humidity. Disconnect the plug and wipe with a dry cloth.

Always turn off the power switch and disconnect the plug from the household outlet after use. - Failure to do so may cause fire or burn.

Insert the plug into the household outlet directly: Do not use with an extension cord.

Fully insert the plug. Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the appliance.

- Failure to do so may cause fire or electric shock.

▶ In case of an abnormality or malfunction Immediately stop using and remove the plug if there is any abnormality or malfunction.

- Failure to do so may cause fire, electric shock, or injury.

• Air is not emitted
- Unit stops sporadically
- Interior becomes red-hot and smoke is emitted
• The appliance is damaged or deformed, or strange noise is emitted.
- Immediately request inspection or repair at an authorized service center.

▶ Maintenance

If you see sparks around the air outlet while using the hot air setting, stop use and remove the lint on the air outlet and air inlet.

- Failure to do so may cause burn or fire.

▶ This appliance

Do not block or insert hair pins or other foreign objects into the air inlet, air outlet or nanoe™ outlet. - Doing so may cause fire, electric shock, or burn.

WARNING

Do not leave the area with the power switch left on. - Doing so may cause fire.

Do not store the appliance in a bathroom or location with high humidity. Also, do not place in a location where water may spill (such as top of vanity). - Doing so may cause electric shock or fire.

Do not keep within the reach of infants or young children.
Do not let them use the appliance.
- Doing so may cause burn, electric shock, or injury.

Do not use in proximity of fl ammable materials (such as alcohol, benzine, thinner, spray, hair care product, nail polish remover). - Doing so may cause an explosion or fire.

Do not immerse the appliance in water. Do not use this appliance near water. - Doing so may cause electric shock or fire.

Never modify, disassemble, or repair. - Doing so may cause ignition or injury due to abnormal operation. Contact an authorized service center for repair.

Do not use the appliance with a wet hand. - Doing so may cause electric shock or fire due to a short circuit.

This appliance is not designed for commercial use, and is not intended for use without appropriate maintenance.
- Doing so may cause burn or fire due to a continuous load or overload.

CAUTION

▶ To protect your hair

Do not use with the air inlet damaged.

- Your hair may get tangled in the air inlet, which could damage the hair.

Be sure to keep a distance of over 3 cm between the air outlet and your hair.

- Failure to do so may cause burns to the hair.

Be sure to keep your hair at least 10 cm away from the air inlet.

- Your hair may get tangled in the air inlet, which could damage the hair.

▶ Note the following precautions

Do not drop or subject to shock.

- Doing so may cause electric shock or ignition.

Only use for drying or styling human hair.

(Do not use on pets, or to dry clothing, shoes, etc.)

- Doing so may cause fi re or burn.

Do not use on children under 6 years old.

- Doing so may cause burn.

Do not touch the air outlet, concentrator nozzle,

oscillating quick-dry nozzle, and diffuser, which will become very hot.

- Doing so may cause burn.

Do not look into the air outlet while in use.

- The hair dryer blows air with dust, etc., possibly resulting in injury.

Never use the appliance with the fi lter removed.

- Your hair may get dangled in the air inlet, which could damage the hair.

Do not wash the filter in water.

- Doing so may cause fire or electric shock.

Notes

- This appliance is equipped with an automatic overheating protective device. If the appliance overheats, it will switch to cold air mode. Switch off the appliance and unplug it from the household outlet. Allow it to cool down for a few minutes before using it again. Check that no fluff, hair etc. is in the air inlets and outlets before switching it on again.

- You may notice a characteristic odor when using this appliance. This is caused by the ozone it generates and is not harmful to the human body.

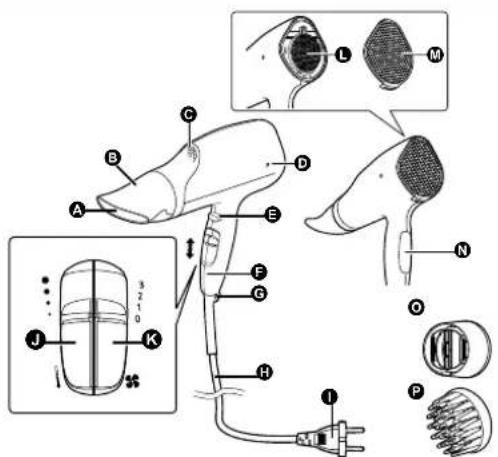

Parts identifi cation

Diagram of hair dryer components with labeled parts and exploded views showing hair distribution and color coding

A Air outlet
B Concentrator nozzle
© nanoe™ outlet
D nanoe™ lamp
E Cool-shot button
F Handle
© Ring for hanging
H Cord
Power plug
J Temperature selector ( | )

: Hot (Hot air)
●: Warm (Warm air)
● : Healthy (Mild air)
• : Cool (Cool air)

Power switch (5)

3: Turbo (Very strong airflow)
2: Dry (Strong airflow)
1: Set (Gentle airflow)
0: Off

Air inlet grille

M Filter

Make sure to attach the fi Iter to the air inlet when using the hair dryer.

N Panel
Oscillating quick-dry nozzle
P Diffuser

▶ Concentrator nozzle

Focuses and concentrates airflow for precise drying.

▶ Oscillating quick-dry nozzle

Delivers strong and soft airflows for fast drying. Automatically moves to prevent hot spots for more gentle drying.

Attach the oscillating quick-dry nozzle so this air outlet is vertical.

Line drawing of a hair dryer with no text or symbols

▶ Diffuser

For creating full-bodied hair with lots of volume and styling

How to use the hair dryer

Always check that the fi Iter is securely attached before using.

1 Select the temperature of the airflow with the temperature selector (①).
2 Select the intensity of the airflow with the power switch (K).

Notes

• The air remains cool while the cool-shot button is held down.
• nanoe™ is produced when the power switch (K) is set to position 1 to 3.

• nanoe™ is invisible to the naked eye.
  • If you are worried about hair damage, set the switch to
  "1: Set (Gentle airflow)" before use.

• Drops of water may blow out of the nanoe™ outlet (©) during use, but this is not a malfunction.

• A humming noise may come out of the nanoe™ outlet (©), but this is the sound of nanoe™ being discharged and is not a malfunction.
• The effects of nanoe™ might not be felt by the following people. People with crimpy hair, strong curly hair, very smooth hair, short hair, or who have had a hair straightening perm in the last three or four months.
• You may notice a characteristic odor when using this hair dryer. This is not harmful to the human body.

The best recommended usage of the oscillating quick-dry nozzle

• The oscillating quick-dry nozzle will work only if you pull out the nozzle (see arrow). You need to hold the base of the nozzle in your hand and pull out the upper part until it has clicked.

• When using the oscillating quick-dry nozzle in automatic swing mode, make sure to set the wind speed to "3".

• Please confirm that the power switch is set to the position "0" before using the oscillating quick-dry nozzle.

• Hold the both sides of the oscillating quick-dry nozzle with your hands, and pull it out gently with force until you hear a "click" sound, indicating that the automatic swing mode of the oscillating quick-dry nozzle has been turned on.

(Turn on the automatic swing mode)

Oscillating quick-dry nozzle

Pull it out gently

1. Choose the temperature of wind as required.
2. Set the power switch to "3".

- If you want to dry your hair quickly, it is recommended to choose the mode "3" + "Hot" or "Warm".

Line drawing of a medical device with internal tubing and airflow lines (no text or symbols)

English

1. Dry your hair, then turn off the automatic swing mode for the oscillating quick-dry nozzle before tidying your hair.

• Make sure that the power switch is set to the position "0".
- Hold both sides of the oscillating quick-dry nozzle with your hands, and slightly press it

(Turn off automatic swing mode)

Oscillating quick-dry nozzle

Lightly press inward

inward with force until you hear a "click" sound, indicating that the automatic swing mode of the oscillating quick-dry nozzle has been locked.

1. Set the wind speed to "1", then set the temperature of the wind to "Cool". Finally, set your hair according to your own particular preferences.

Notes

• Oscillating quick-dry nozzle may not function properly at low power mode "1".
  • Illustrations are translucent here for easier understanding.

About nanoe™

What is nanoe™?

(nanoe ^™ , generation method: high voltage discharge) nanoe ^™ is generated by collecting the available moisture in the air, so depending on the usage environment, nanoe ^™ may not be generated. In environments of low temperature and low humidity, moisture in the air becomes diffi cult to collect. When this occurs, negative ions are generated. nanoe ^™ are ions wrapped in water that are invisible to the human eye.

How nanoe™ works

Generally hair have properties which make it easy to become positively charged with electricity. These properties attract strongly negatively charged nanoe™ which penetrates the hair with moisture. Furthermore, they make the hair slightly acidic, tighten cuticles and keep your hair strong, elastic and healthy.

Panel effect

When nanoe ^™ continues to strike hair, hair becomes negatively charged. As a result, the nanoe ^™ and negatively charged hair repel each other, making it difficult for nanoe ^™ to reach hair.

With the nanoe™ Charge System, by just gripping the panel together with the handle, the negative charge accumulated on hair is released.

Because of this, nanoe™ continues to penetrate into hair, supplying moisture and thoroughly moistening down to the tips of hair.

Gripping the panel

Maintenance of the hair dryer

Always turn the power switch off and disconnect the plug from the household outlet. (Except when performing maintenance on the air outlet)

Maintaining the main body

Do this when dirty

To clean the hair dryer (when it is dirty), soak a cloth in the soapy water and squeeze it out firmly, then wipe with the cloth.

Notes

- Do not use substances such as alcohol, nail polish remover or detergent (hand soap).

Doing so may result in malfunction or part cracks or discoloration.

- Do not leave the appliance with hairdressing products or cosmetics on it.

Doing so will cause deterioration of the plastic, leading to discoloration and cracks.

Maintaining the nanoe™ outlet

- Use commercially available cotton swabs. (We recommend the thin cotton swabs made for use with babies.) - This maintenance allows the hair dryer to sustain the generated level of nanoe™ over a long period.

1. Dampen the end of the cotton swab with tap water.
2. A needle portion is located deep within the nanoe™ outlet. Using the swab, rub this portion gently about 5 times.

Gently rub the tip of the needle portion cotton swab nanoe™ outlet

Maintaining the air inlet

Clean the air inlet once a month or over.

• When dust etc. has built up, detach the filter from the hair dryer and remove the dust etc. using a toothbrush or vacuum cleaner.

• Use a commercially available toothbrush.

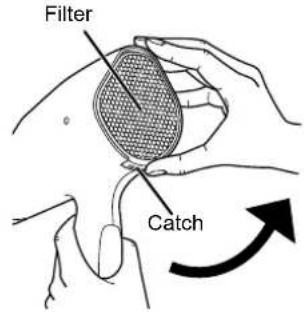

• Pull on the catch on the bottom side of the filter to detach.

Filter Catch

1. Remove any dust etc. adhered to the filter or air inlet grille.

Remove the dust etc. adhered to the outside of the filter using a vacuum cleaner. If this does not remove the dust, use the thick part of your fingers to push the dust etc. through the fi ne mesh on the internal side towards the metal mesh on the external side, and scrub away carefully with a toothbrush.
- Using the toothbrush, carefully scrub away any dust etc. from the internal side of the filter.
- Using a vacuum cleaner or toothbrush, carefully remove any dust etc. adhered to the air inlet.
Rubbing forcefully with your nails may tear the filter, so please use a toothbrush.

1. Attach the filter securely, starting with the upper side.

- Keep pressing until you hear a "click" from both upper and lower catches.

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

Maintaining the air outlet

- The hair dryer should be plugged into the household outlet only in case of maintenance for the air outlet.

- Use a commercially available toothbrush.

- Switch the temperature selector to "Cool" and blow away the dust etc. as you scrub with the toothbrush.

- During maintenance, do not block the air inlet with your hands etc.

- Be careful when using the hair dryer for the first time after maintenance, since it may blow out dust etc.

Line drawing of a hair dryer with motion lines indicating sound or vibration (no text or symbols)

Scrub to remove any dust, hair etc. blocking the mesh.

Troubleshooting

Problem Possible cause	Action
It switches frequently to cold air while using in “Hot” mode, or sparks can be seen within the body.(These sparks are caused by the thermostat switch, the protective device, and this is not dangerous.)	Lint has accumulated on the air inlet or air outlet.Hair or something is blocking the air inlet.	Remove accumulated lint.Do not block the air inlet.
The hot air is abnormally hot.
The power plug is abnormally hot.	The connection to the household outlet is loose.	Use a household outlet that fi ts securely.
Sparks are generated inside the nanoeTM outlet.	Abnormality caused by a dirty electrode (needle portion).	Perform maintenance of the nanoeTM outlet.
The nanoeTM outlet emits a noise (crackling noise).

English

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorised by Panasonic for repair.

Specifications

Product name Hair Dryer
Product model EH-NA67
Power source	220 V~50-60 Hz	230 V~50-60 Hz	240 V~50-60 Hz
Power consumption	1 700 W 1	850 W 2 000 W
Accessories	Concentrator nozzle,Oscillating quick-dry nozzle, Diffuser
Airborne Acoustical Noise	without nozzle: 78 (dB(A) re 1pW)

This product is intended for household use only.

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Panasonic®

Bedienungsanleitung

Diagram of hair dryer components with labeled parts and exploded views

Line drawing of a handheld hair dryer with no text or symbols

▶ Diffusor

Illustration of a hand holding a mesh object with an arrow pointing to it (no text or symbols present)

Line drawing of a hair dryer with motion lines indicating airflow (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views showing various parts like head, ear, and body parts.

Line drawing of a hair dryer with no text or symbols

▶ Diffuseur

Line drawing of a mechanical component with internal structure and motion lines (no text or symbols)

Illustration of a hand holding a mesh-like object with an arrow pointing to it (no text or symbols present)

Français

Line drawing of a hair dryer emitting sound waves (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views

Line drawing of a hair dryer with no text or symbols

Diagram of a medical device with internal components and airflow lines (no text or labels)

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

Italiano

Italiano

Line drawing of a hair dryer with motion lines indicating airflow (no text or symbols)

Diagram of hairdryer components with labeled parts and exploded views showing internal structure and color coding

A Luchtuitlaat

B Blaasmondstuk

© nanoe™-uitlaat

D nanoe™-lamp

E Cool-shot-knop

F Handgreep

© Ophangring

H Netsnoer

Stekker

Line drawing of a handheld hair dryer with no text or symbols

▶ Diffuser

Diagram of a medical device with internal components and airflow lines (no text or labels)

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

Line drawing of a hair dryer with motion lines indicating airflow (no text or symbols)

Line drawing of a hair dryer with no text or symbols

▶ Difusor

Line drawing of a mechanical component with internal structure and motion lines (no text or symbols)

Line drawing of a hair dryer emitting sound waves (no text or symbols)

Diagram of hairdryer components with labeled parts and exploded views showing internal structure and parts.

Line drawing of a handheld hair dryer with no text or symbols

▶ Diffuser

Line drawing of a mechanical component with internal structure and airflow lines (no text or symbols)

(Slå automatisk drejetilstand fra)

Om nanoe™

Hvad er nanoe™?

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

Line drawing of a hair dryer emitting sound waves (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views

Line drawing of a hair dryer with no text or symbols

▶ Difusor

Line drawing of a mechanical component with internal structure and motion lines (no text or symbols)

O que são as nanoe™?

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

111

Line drawing of a hair dryer emitting sound waves (no text or symbols)

Diagram of hairdryer components with labeled parts and exploded views showing internal structure and assembly.

A Luftutløp

B Konsentratordyse

© nanoe™-utløp

D nanoe™-lampe

E Kjøleluftknapp

F Håndtak

© Ring for opphenging

H Ledning

Strømplugg

J Temperaturvelger ( | )

© Dyse for hurtigtørking

P Diffusor

▶ Konsentratordyse

Line drawing of a handheld hair dryer with no text or symbols

▶ Diffusor

Diagram of a medical device with internal components and airflow lines (no text or labels)

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

125

Line drawing of a hair dryer emitting sound waves (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views showing internal structure and parts

Line drawing of a handheld hair dryer with no text or symbols

▶ Diffuser

Diagram of a medical device with internal components and airflow lines (no text or labels)

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

Line drawing of a hair dryer emitting sound waves (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views

Line drawing of a hair dryer with no text or symbols

▶ Diffuusori

Diagram of a medical device with internal components and airflow lines (no text or labels)

Suomi

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

Suomi

Line drawing of a hair dryer with motion lines indicating airflow (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views showing hair distribution and color variations

Line drawing of a hair dryer with no text or symbols

▶ Dyfuzor

Diagram of a biological structure with internal organs and flow lines (no text or labels)

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

Polski

Line drawing of a hair dryer with motion lines indicating airflow (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views showing various parts and parts.

Line drawing of a hair dryer with no text or symbols

Diagram of a biological structure with internal components and flow lines (no text or labels)

Illustration of a hand holding a mesh object with an arrow indicating direction (no text or symbols)

Line drawing of a hairdryer with motion lines indicating airflow (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views

Line drawing of a handheld hair dryer with no text or symbols

▶ Difuzér

Line drawing of a bird's head and neck with visible internal structure (no text or symbols)

Line drawing of a hair dryer emitting sound waves (no text or symbols)

Line drawing of a handheld hair dryer with no text or symbols

▶ Diffúzor

Line drawing of a mechanical component with internal structure and motion lines (no text or symbols)

Line drawing of a hair dryer with motion lines indicating airflow (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views showing various parts like head, ear, and body parts.

Line drawing of a handheld hair dryer with no text or symbols

▶ Difuzor

Line drawing of a medical device with internal components and airflow lines (no text or symbols)

Line drawing of a hair dryer with motion lines indicating airflow (no text or symbols)

Diagram of hair dryer components with labeled parts and exploded views showing hair distribution and color coding

Line drawing of a handheld hair dryer with no text or symbols

▶ Difüzör

Diagram of a medical device with internal components and airflow lines (no text or labels)

Illustration of a hand holding a mesh object with an arrow pointing to it (no text or symbols present)

Turkce

Line drawing of a hair dryer with motion lines indicating airflow (no text or symbols)

Navanakorn Industrial Estate, Zone 3 No.106 Moo.18

Khlong 1, Khlong Luang, Pathum Thani 12120, Thailand.

YETKILI TEMSILCI

İthalatçı Firma:

Tesan İletişim A.Ş.

© Panasonic Corporation 2021

EN, GE, FR, IT, DU, SP, DA, PT, NW, SW, FI, PL, CZ, SK, HU, RO, TK

Printed in Thailand

EH9210NA678252 E0521-10621
