USER MANUAL B 110 R Bp Pack Kärcher

• - - 30,6 (30) 30,6 (30) B 110 R 65 B 110 D 65 B 110 R 75 B 110 D 7518 English Contents General notes Read these original operating instructions and the enclosed safety instructions before using the device for the first time. Proceed ac- cordingly. Keep both books for future reference or for future owners. Function This scouring and vacuum machine is used for wet cleaning or polishing of level floors. The device can be adjusted to suit the re- spective cleaning task by setting the water volume and detergent volume appropriate- ly. The detergent dosage is adjusted by adding detergent to the tank or via a dosing device ("Dose" option). Brush irrigation is either speed-dependent or constant. The working width and the capacity of the fresh and waste water tanks (see chapter "Technical data") enable effective cleaning with a long working time. The device has a drive motor. Note The device can be equipped with various ac- cessories to suit the respective cleaning task. Request a copy of our catalogue or visit our In- ternet website at www.kaercher.com. Intended use This device is suitable for commercial and industrial use, e.g. in hotels, schools, hos- pitals, factories, shops, offices, and rental companies. Use the device only in accord- ance with the information in these operat- ing instructions. ● The device may only be used for clean- ing smooth surfaces that are insensitive to water and polishing. ● The device is designed for indoor use. ● The operational temperature range is between +5 °C and +40 °C. ● The device is not suitable for cleaning frozen floors (e.g. in cold stores). ● The device is suitable for a maximum water height of 1 cm. Do not drive into an area if there is a danger of exceeding the maximum water height. ● When using chargers or batteries, only the components approved in the operating in- structions may be used. A different combina- tion must be confirmed by the responsible charger and/or battery supplier. ● The device is not intended for cleaning public traffic routes. ● The device must not be used on pressure- sensitive floors. Take into account the per- missible load per unit area of the floor. The load per unit area caused by the device is specified in the technical data. ● The device is not suitable for use in po- tentially explosive environments. ● The device is approved for operation on surfaces with a maximum slope (see chapter "Technical Data"). Environmental protection The packing materials can be recycled. Please dispose of packaging in accord- ance with the environmental regulations. Electrical and electronic appliances contain valuable, recyclable materials and often components such as batter- ies, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environment. However, these compo- nents are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish. Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.com/REACH Accessories and spare parts Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely. Information on accessories and spare parts can be found at www.kaercher.com. Scope of delivery Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer. Safety instructions Before using the device for the first time, read and observe these operating instruc- tions and the accompanying brochure: Safety instructions for brush cleaning de- vices, No. 5.956-251.0. The device is approved for operation on surfaces with a specified limited slope (see chapter "Technical Data"). 몇 WARNING The device can tip over Risk of injury Only operate the device on surfaces that do not exceed the permitted slope (see chap- ter "Technical Data"). 몇 WARNING Risk of accident due to incorrect operation People can be injured. Operators must be properly trained on how to use this machine. The device may only be operated when the hood and all covers are closed. Safety devices 몇 CAUTION Missing or modified safety devices Safety devices are provided for your own protection. Never modify or bypass safety devices. Safety switch For immediate shutdown of all functions: Set the safety switch to "0". ● The device brakes hard when the safety switch is switched off. ● The safety switch acts directly on all de- vice functions Seat switch If the operator leaves the seat during work or while driving, the seat switch switches off the engine after a short delay. Symbols on the device ATTENTION Risk of damage Water will damage the suction turbine. Do not fill or splash water into this opening. 몇CAUTION Danger of burns Components marked with this no- tice become hot during operation. Do not touch components marked in this way. Let these components cool down before working on the device. DANGER Danger of accident On slopes, there is an increased risk of tipping over at high speed. Drive slowly downhill. Do not turn on a slope. When driving fast, avoid jerky steer- ing with a large steering angle. General notes p. 18

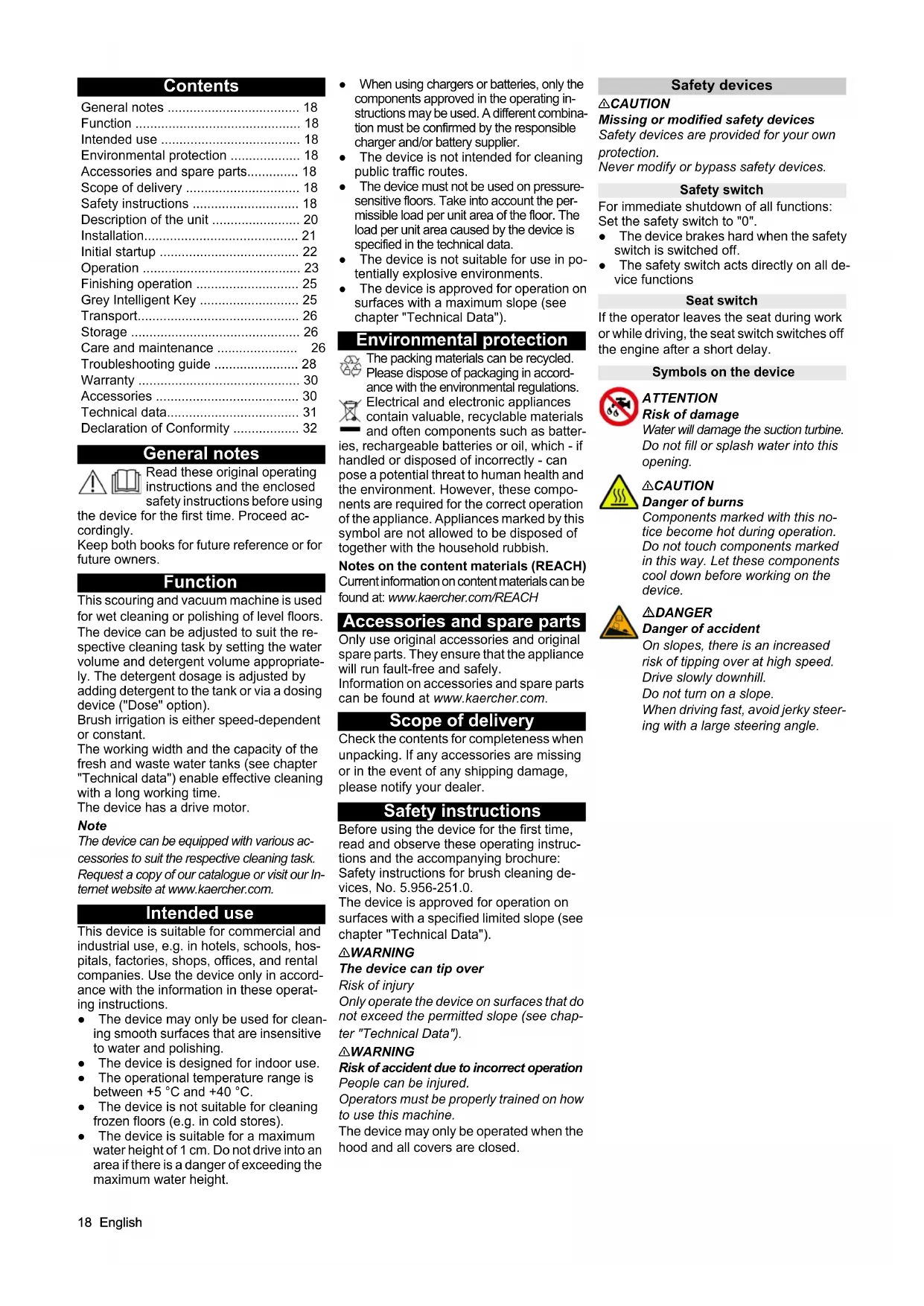

• Function p. 18
• Intended use p. 18
• Environmental protection p. 18
• Accessories and spare parts p. 18
• Scope of delivery p. 18
• Safety instructions p. 18

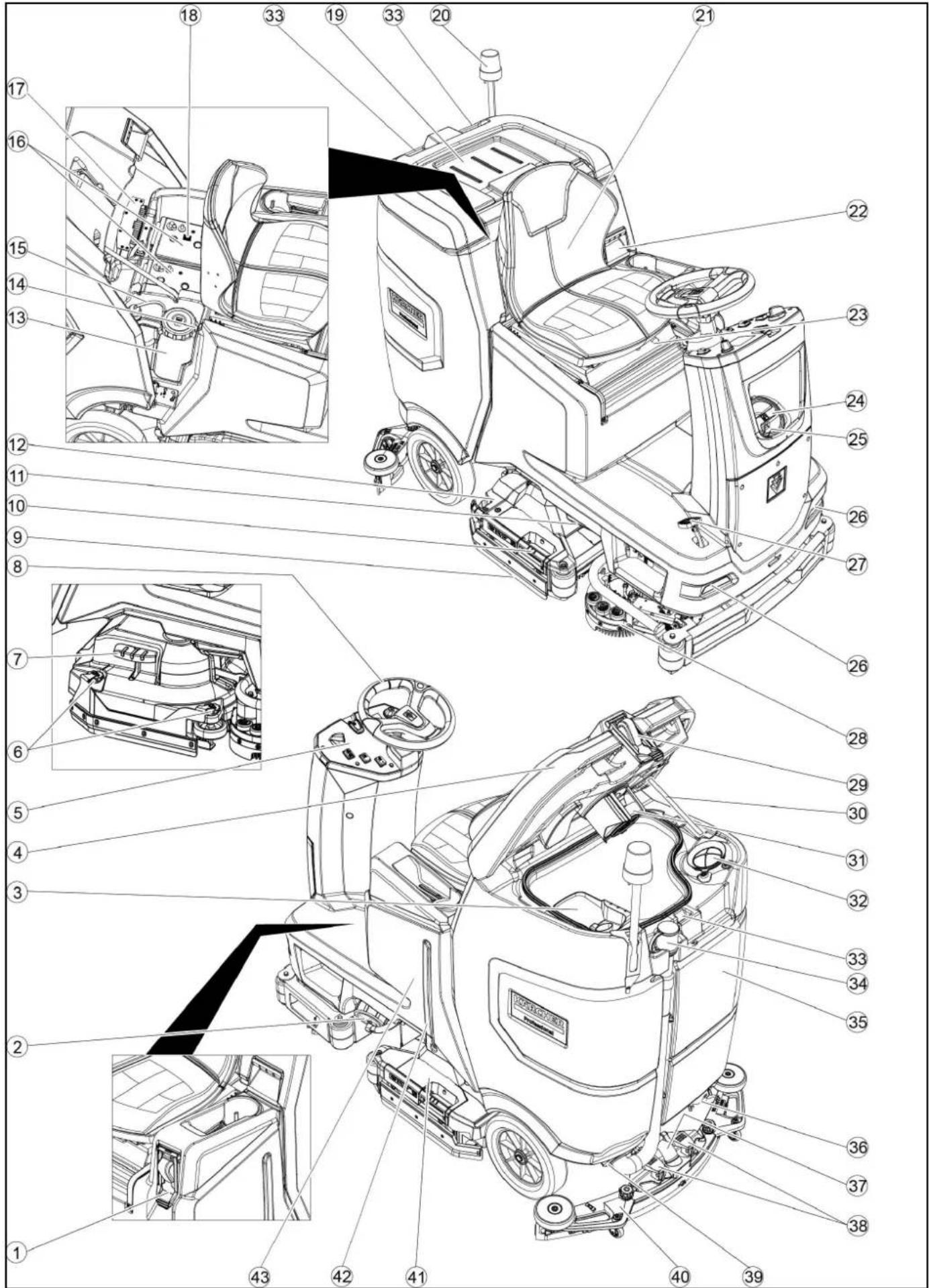

• Description of the unit p. 20
• Installation p. 21
• Initial startup p. 22
• Operation p. 23
• Finishing operation p. 25
• Grey Intelligent Key p. 25
• Transport p. 26
• Storage p. 26
• Care and maintenance p. 26
• Troubleshooting guide p. 28
• Warranty p. 30
• Accessories p. 30
• Technical data p. 31
• Declaration of Conformity English 19 Warning symbols Observe the following warnings when han- dling the batteries: Observe notes in the instruc- tions for the battery, on the bat- tery and in these operating instructions. Wear eye protection. Keep acids and batteries away from children. Risk of explosion Fire, sparks, open flames and smoking are prohibited. Risk of acid burns First aid. Warning Disposal Do not throw batteries in the bin.20 English Description of the unit Overview of the deviceEnglish 21 1 * Filling system 2 Fresh water tank cap with fresh water fil- ter 3 Coarse dirt filter 4 Waste water tank cap 5 Control panel 6 Squeegee blade adjustment wheel (D cleaning head only) 7 Brush replacement pedal (D cleaning head only) 8 Steering wheel 9 Squeegee blade 10 Brush replacement handle (R cleaning head only) 11 Sidelight 12 Coarse dirt container (only with R clean- ing head) 13 Detergent canister 14 Type plate 15 Detergent suction hose 16 Battery 17 * Internal charger 18 Battery connector (with external charg- er) Charger mains cable (with internal charger) 19 Storage area for "Homebase Box" cleaning set 20 * Warning light 21 Seat 22 Waste water tank latch 23 Seat adjustment lever 24 Fresh water tank filling hole 25 Hose holder 26 Daytime running light 27 Accelerator pedal 28 * Side scrubbing deck 29 * Water connection for dirty water tank rinsing system 30 Waste water tank lid support 31 Float 32 Fluff filter 33 Storage for suction bar 34 Waste water tank drain hose with dosing unit 35 Waste water tank 36 * Mop holder 37 Suction hose 38 Suction bar clamping lever 39 Waste water tank cap 40 Suction bar 41 Cleaning head 42 Fresh water filling level indicator 43 Fresh water tank p. 32

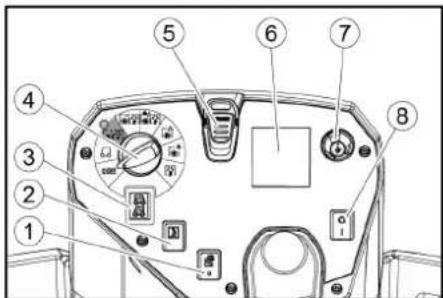

• optional Colour coding ● Control elements for the cleaning pro- cess are yellow. ● Control elements for maintenance and servicing are light grey. Control panel 1 * Side scrubbing deck switch 2 Horn 3 Travel direction switch 4 Program switch 5 Intelligent Key 6 Display 7 Info button 8 Safety switch Program switch 1 OFF Device is switched off. 2 TRANSPORT MODE Drive to the operating location. 3 ECO MODE Clean the floor wet (with a reduced amount of water and a reduced brush speed) and vacuum up waste water (with reduced suction power). 4 NORMAL MODE Clean the floor wet and vacuum up waste water. 5 HEAVY MODE Clean the floor wet (with increased brush contact pressure) and vacuum up waste water. 6 SCRUB MODE Precleaning without vacuuming Clean the floor wet and let the detergent act. 7 SUCTION MODE Vacuum up the dirty waste. 8 POLISH MODE Polish the floor at a high brush speed without applying liquid. Suction bar holder ● When driving through narrow spaces, the suction bar can be removed and hung in one of the openings on the lid of the waste water tank.

The suction bar can be hung in the recess on the waste water tank for storage. Symbols on the device

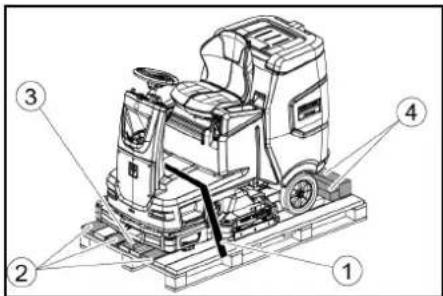

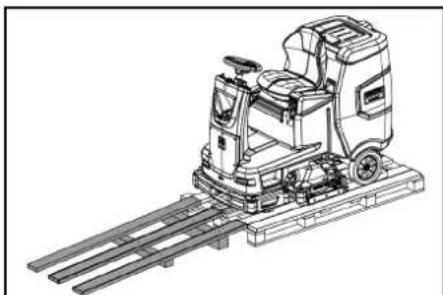

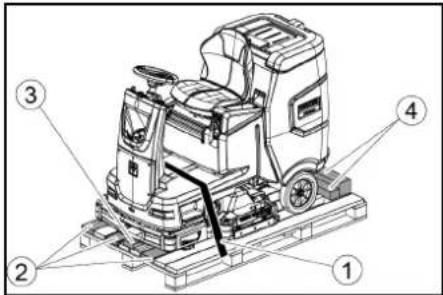

• optional Installation Unloading

1. Remove the packaging film.

3. Unscrew the block, squared timber and

boards. The components to be un- screwed are marked in grey in the figure.

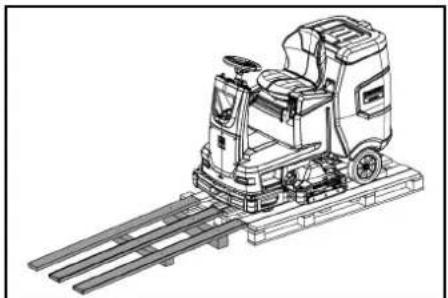

4. Place a ramp in front of the pallet with

the unscrewed boards and squared tim- ber and fasten with chipboard screws.

5. Install the batteries if the device was de-

livered without batteries (see chapter "Before inital startup/ batteries").

6. Drive the device forward and off the pal-

let (see chapter "Operation / Driving"). Fresh water tank drain opening Waste water tank drain opening Fresh water tank filling level (50%) Lashing point

• Mop holder Filling system water connection Waste water tank flushing system water connection Brush replacement22 English Installing he brushes

1. The installation of the brushes is described

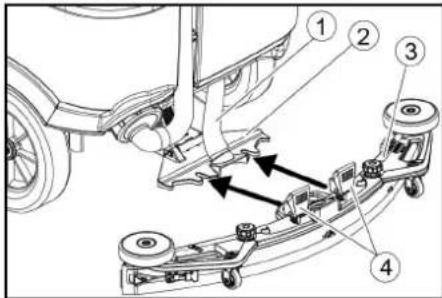

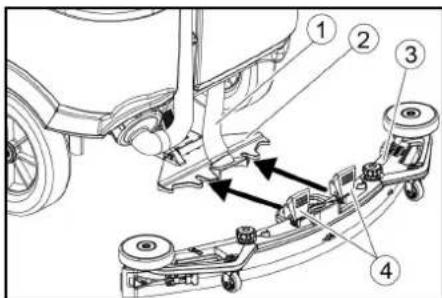

in the chapter "Maintenance work". Installing the suction bar

1. Pivot both clamping levers upwards.

1 Suction hose 2 Suction bar suspension 3 Suction bar 4 Clamping lever

3. Pivot both clamping levers downwards.

Batteries Recommended battery sets

• Minimum volume of the battery charging room ** Minimum airflow between battery charg- ing room and environment Installing and connecting batteries 몇 CAUTION Removing and installing the batteries Unstable machine position Ensure that the machine is positioned stably when removing and installing the batteries. ATTENTION Incorrect connection polarity Destruction of the control electronics Take care to ensure the correct polarity when connecting the batteries. ATTENTION Deep discharge Risk of damage Charge the batteries before starting the de- vice.

1. Drain the waste water.

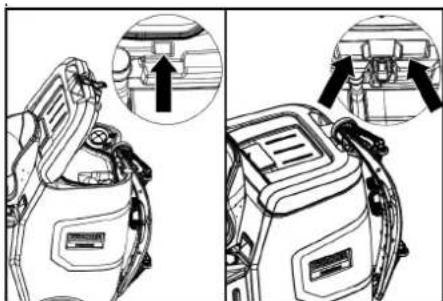

2. Unlock the waste water tank and pivot it up.

3. Place the battery in the device.

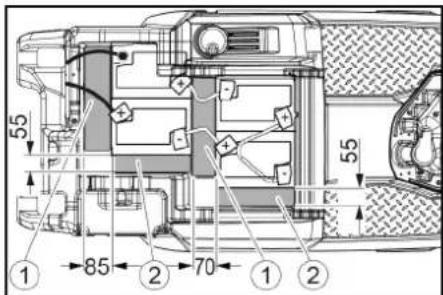

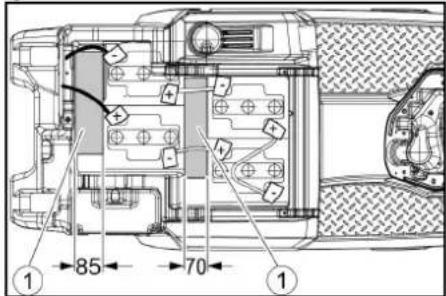

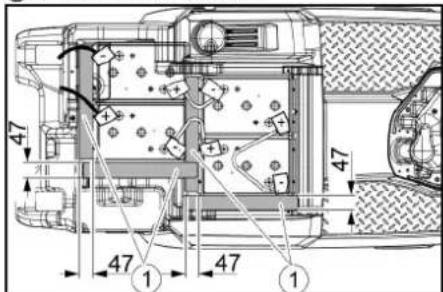

170 Ah, 4.039-352.7 1 Spacer 310x85x70 mm 2 Spacer 240x55x30 mm 180 Ah, 4.039-354.7 1 Spacer 310x85x70 mm 285 Ah, 4.039-353.7 1 Spacer 345x60x47

4. Insert the spacers at the locations

shown in the picture between the battery and the device.

5. Connect the battery terminals using the

connection cables provided.

6. Clamp the connecting cables on the (+)

and (-) battery terminals that are still free. Note For the 170 Ah 4.039-352.7 battery set, at- tach the connection cable to the negative pole with the insulated pole screw.

7. Connect the device-side battery connec-

tor to the battery-side battery connector.

8. Pivot the waste water tank forwards and

close it. Removing the battery 몇 CAUTION Removing and installing the batteries Unstable machine position Ensure that the machine is positioned stably when removing and installing the batteries.

1. Set the safety switch to "0".

2. Drain the waste water.

3. Unlock the waste water tank and pivot it up.

4. Pull out the battery plug.

5. Disconnect the cable from the minus ter-

minal at the battery.

6. Disconnect the remaining cables from

7. Remove the battery.

8. Dispose of the used batteries in accord-

ance with statutory provisions. Initial startup Charging the battery DANGER Inappropriate use of the charger Electric shock Adhere to the mains voltage and fuse val- ues specified on the device type plate. Only use the charger in dry rooms with suf- ficient ventilation. Flammable gases are generated when the battery is charged Risk of explosion Only charge the battery in a suitable room. The room must have a minimum volume depending on the battery type and an ade- quate air exchange rate with a minimum air flow (see "Recommended batteries"). ATTENTION Accumulation of dangerous gases under the tank during the charging process Risk of explosion Pivot the waste water tank upwards before charging low-maintenance batteries. The average charging time is approx. 10- 15 hours. The device cannot be used during the charging process. Note The device has deep discharge protection, i.e. the brush motor and turbine are switched off automatically when the permit- ted minimum capacity level is reached.

1. Drive the device directly to the charger

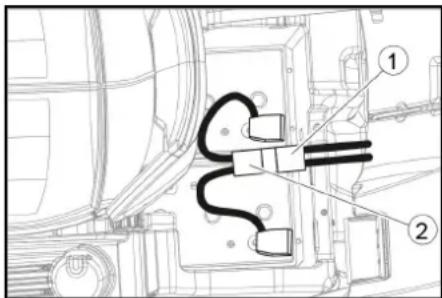

and do not drive on slopes. External charger ATTENTION Using an unsuitable charger Risk of damage Do not connect the charger to the device- side battery connector. Use only a charger suitable for the type of battery installed. Read the operating instructions of the charger manufacturer and observe the safety instructions in particular.

1. Unlock the waste water tank and pivot it up.

2. Pull out the device-side battery connector.

Battery Capacity Charger 4.039-352.7 170 Ah 6.654-436.0 4.039-354.7 180 Ah 6.654-434.0 4.039-353.7 285Ah 6.654-419.0English 23 1 Battery plug, device side 2 Battery plug, battery side

3. Connect the battery-side battery con-

nector to the charger.

4. Plug the mains plug of the charger into

5. Carry out the charging process in ac-

cordance with the operating instructions for the charger.

6. Connect the device-side battery connec-

tor to the battery-side battery connector.

7. Pivot the waste water tank forwards and

close it. Internal charger

1. Unlock the waste water tank and pivot it

2. Plug the mains plug of the internal

charger into the mains socket. The charging state of the battery is shown on the control panel display.

3. Unplug the charger mains plug from the

mains socket after charging.

4. Pivot the waste water tank forwards.

Low-maintenance batteries (wet batteries) DANGER Refilling discharged batteries with water Danger of acid burns from escaping acid, destruction of clothing Wear safety goggles, protective clothing and protective gloves when handling the battery acid. Observe the applicable regulations. Immediately rinse off any splashed acid from the skin or clothing using copious amounts of water. ATTENTION Using water with additives Defective batteries, loss of warranty eligibil- ity Top up the batteries using only distilled or desalinated water (EN 50272-T3). Do not use any foreign additives, so-called enhancing agents, because this will invali- date the warranty.

1. Add distilled water one hour before the

charging process comes to an end. Ob- serve the correct acid level according to the battery label. All cells must produce gas at the end of the charging process.

2. Clean up any spilled water. To do this,

proceed as described in the Care and maintenance chapter in the "Cleaning the batteries" section. Operation DANGER Falling objects Risk of injury Do not drive the device into areas where there is a possibility of the operating per- sonnel being hit by falling objects. ATTENTION Risks during operation Risk of injury In the event of danger, set the safety switch to "0". Pushing the device To push the device, the brake must be un- locked. DANGER Danger of accident When the brake is unlocked, the function of the brake is permanently out of operation. Be sure to remove the coins for unlocking immediately after the sliding process has ended.

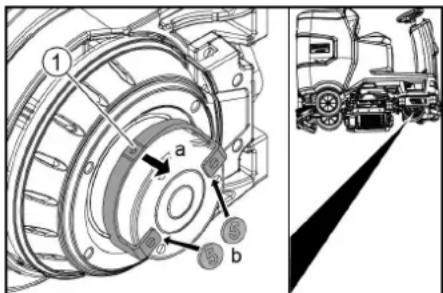

1. Swing the unlocking lever away from the

wheel and hold it there. 1 Unlocking lever

2. Insert a coin between the casing and the

lever at both ends of the lever.

3. Release the unlocking lever.

5. Remove both coins immediately after

pushing. Adjusting the seat Adjusting the height

1. Stand next to the device.

2. Raise the seat at the back.

3. Align the front seat bracket to the de-

sired height of the device.

4. Lower the seat at the back.

Adjusting the position

1. Operate the seat adjustment lever and

move the seat to the desired position.

2. Release the seat adjustment lever and

latch the seat into position. Switching the device on

1. Sit in the driver's seat.

2. Insert the Intelligent Key.

3. Set the safety switch to "1".

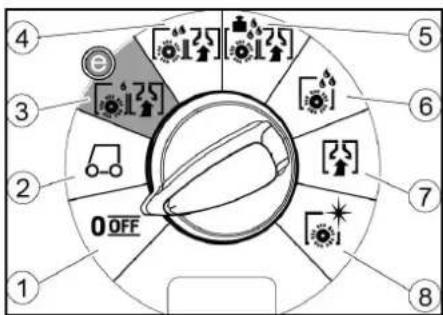

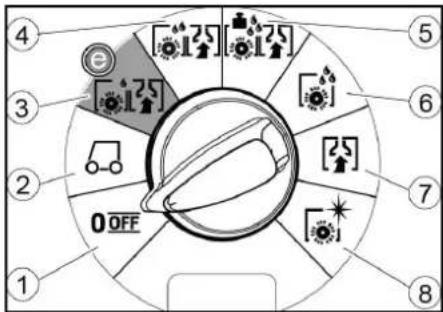

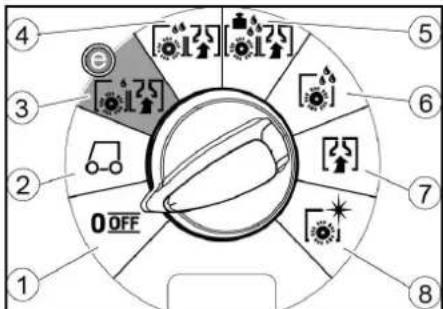

4. Turn the program switch to the desired

5. If one of the displays below appears on

the display, take your foot off the accel- erator pedal, set the safety switch to "0" and carry out the necessary mainte- nance work.

maintenance (see "Grey Intelligent Key / Reset maintenance counter"). Note If the counter is not reset, the maintenance display appears again each time the device is switched on. Switching on the light Daytime running light The daytime running light is in operation when the device is switched on. Sidelight The sidelight lights up as soon as the pro- gram switch is set to a cleaning program. Checking the parking brake DANGER Defective parking brake Danger of accident Before each operation, check the function of the parking brake on level ground.

1. Switch the device on.

2. Set the travel direction switch to "For-

3. Set the program selector switch to

4. Press the accelerator pedal lightly.

The brake must audibly unlock. The ap- pliance must roll easily on a plane sur- face.

5. Release the accelerator pedal.

The brake must be audibly engage. If this is not the case, take the device out of operation and call Customer Service. Driving DANGER Lack of braking Danger of accident Before using the device, it is essential to check the function of the parking brake. Never use the device if the parking brake does not work. DANGER Careless driving Danger of tipping over Only drive up and up gradients in the direc- tion of travel and across the direction of travel 10%. Do not turn up or down gradients. Drive slowly in corners and on wet ground. Only drive the device on stable ground. Display Activity maintenance squeegee Clean the suction bar. maintenance brush head Check the brushes for wear and clean them. maintenance squeegee blade Check the suction lips for wear and correct adjust- ment. maintenance turbine filter Clean the fluff filter. maintenance fresh water fil- ter Clean the fresh water filter.24 English Note The travel direction can be changed while driving. This means that very dull spots can be polished by moving back and forth sev- eral times.

1. Assume a seated position.

2. Insert the Intelligent Key.

3. Turn the safety switch to "1".

4. Set the program selector switch to

5. Set the direction of travel using the drive

direction button on the control panel.

6. Specify the travel speed by pressing the

The device stops. The driving motor is switched off in the event of an overload. A fault message appears on the display. If the controller overheats, the affected power unit is switched off.

8. Allow the device to cool down for at least

9. Set the program switch to “OFF”, wait

briefly and set to the desired program. Filling with fresh water Filling with fresh water via the filling system

1. Connect the water hose to the connec-

system interrupts the water supply when the fresh water tank is full.

4. Close the water inlet.

5. Remove the water hose.

Filling with fresh water

1. Open the fresh water tank cap.

2. Fill fresh water (max. 50 °C) to the lower

edge of the filling nozzle. Note: The fresh water hose can be clamped with the hose holder during fill- ing.

3. Close the fresh water tank lock.

Filling with detergent Notes on detergents 몇 WARNING Unsuitable detergents Health risk, damage to the device Use only recommended detergents. The operator carries all increased risks relating to operational safety and increased risk of accidents if using other detergents. Use only detergents free of chlorine, sol- vents, salt and hydrofluoric acid. Adhere to the safety instructions stated on the detergent packaging. Note Do not use heavily foaming detergent. Recommended detergents Filling detergent via the dosing device Only with DOSE variant: Detergent is added to the fresh water on the way to the cleaning head by a dosing device.

1. Unlock the waste water tank and pivot it up.

2. Fill the detergent canister with detergent.

3. Pivot the waste water tank forwards.

Note A maximum of 3% detergent can be added with the dosing device. If the dosage is higher, the detergent must be added to the fresh water tank. Filling the detergent into the fresh water tank

1. Fill the detergent into the fresh water tank.

Note: The lid for the filling hole of the fresh water tank can be used to measure the detergent. It has a measuring scale marked on the inner side. Adjusting parameters

1. Set the program switch to the desired

2. Turn the Info button until the desired pa-

rameter is displayed.

3. Press the Info button.

The adjusted value flashes.

4. Set the desired value by turning the Info

5. Confirm the changed setting by pressing the

Info button or wait until the set value is auto- matically accepted after 10 seconds. Yellow Intelligent Key The yellow Intelligent Key authorizes func- tions that are required for the cleaning task. The parameters for the various cleaning pro- grams are preset in the device. Individual pa- rameters can be changed depending on the authorization of the yellow Intelligent Key. The display texts for parameter setting are largely self-explanatory. "FACT" parameters (only available with R cleaning head): ● "Fine Clean": Low brush speed for re- moving grey film from fine stone. ● "Whisper Clean": Medium brush speed for maintenance cleaning with reduced noise level. ● "Power Clean": High brush speed for polishing, crystallizing and sweeping. Adjusting the suction bar Adjusting the inclination The inclination must be adjusted so that the suction lips of the suction bar make even contact with the floor over the entire length of the suction bar.

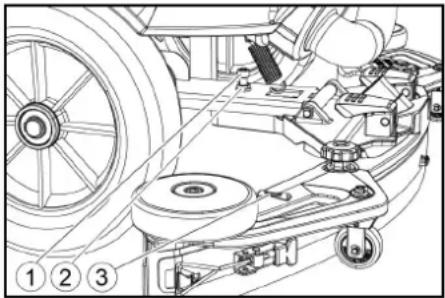

1. Park the device on a surface without a

2. Turn the program switch to the "Vacu-

3. Drive the device a small distance for-

6. Adjust the screw so that the spirit level

indicator is between the two lines.

vice forward again a short distance. Re- peat the adjustment process if necessary.

9. Turn the key-operated switch to "OFF".

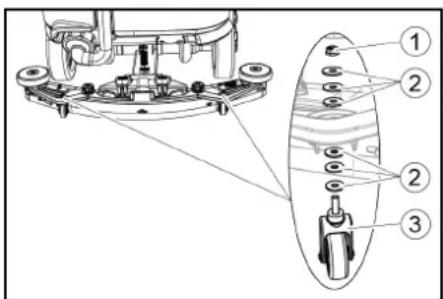

Adjusting the height The height adjustment affects the bending of the suction lips on contact with the floor. Note Standard setting: 3 washers above, 3 washers below the suction bar. Uneven floor: 5 washers above, 1 washer below the suction bar. Very smooth floor: 1 washer above, 5 washers below the suction bar.

1. Unscrew the nuts.

3 Spacer roller with holder Application Detergent Maintenance cleaning of all water-resistant floors RM 746 RM 756 RM 780 Maintenance cleaning of polished hard surfaces (e.g. granite) RM 755 es Maintenance cleaning, in- termediate cleaning and ba- sic cleaning of industrial floors RM 69 ASF Maintenance cleaning and basic cleaning of fine stone tiles RM 753 Maintenance cleaning of tiles in sanitary areas RM 751 Coating removal on all alka- line-resistant floors (e.g. PVC) RM 752 Coating removal on linole- um floors RM 754English 25

2. Place the desired number of washers

between the suction bar and the spacer roller.

3. Fit the remaining unused washers above

4. Screw on the nut and tighten.

5. Repeat the entire procedure at the sec-

ond spacer roller. Note Set both spacer rollers to the same height. Adjusting the squeegee blades The squeegee blades only need to be ad- justed on the D cleaning head.

1. Adjust the squeegee blades by turning

the setting wheel so that the squeegee blade touches the ground.

2. Turn the adjustment wheel an additional

1 rotation down. Cleaning

3. Set the safety switch to "1".

4. Set the travel direction switch to forward

5. Set the program switch to the desired

6. Determine the speed with the accelera-

7. Determine the travel direction with the

8. Drive over the surface to be cleaned.

Side scrubbing deck (option) The side scrubbing deck makes working close to the edge easier. Note The side scrubbing deck is not active in the polish and vacuum cleaning programmes.

1. Operate the side scrubbing deck switch.

The side scrubbing deck is activated.

2. To finish working with the side scrubbing

deck, set the side scrubbing deck switch to "0" . Finishing operation Finishing cleaning

1. Set the programme switch to Drive.

2. Continue moving a short distance.

The residual water is vacuumed up.

3. Turn the key-operated switch to "OFF".

4. Remove the Intelligent Key.

5. Charge the battery if necessary.

Draining the waste water 몇 WARNING Improper disposal of waste water Environmental pollution Observe the local waste water treatment regulations. Note When the waste water tank is full, the suc- tion flow is interrupted by a float to prevent the waste water tank from overflowing. In this case, drain the waste water.

1. Remove the waste water drain hose

from the support and open the drain hose cover.

2. Squeeze the end of the hose and lower

it over the disposal facility.

3. Adjust the strength of the waste water jet

by squeezing the end of the hose.

4. Rinse the waste water tank with clear

5. Close the drain hose cover.

6. Press the waste water hose into the sup-

port on the device. Waste water tank rinsing system (option)

1. Remove the waste water drain hose

from the support and open the drain hose cover.

2. Close the cover of the waste water tank.

3. Connect a water supply hose to the wa-

ter connection of the waste water tank flushing system.

4. Open the water inlet and rinse the waste

water tank for about 30 seconds.

5. Repeat the rinsing process 2 to 3 times

6. Close the water inlet.

7. Disconnect the water supply hose from

8. Close the waste water drain hose and

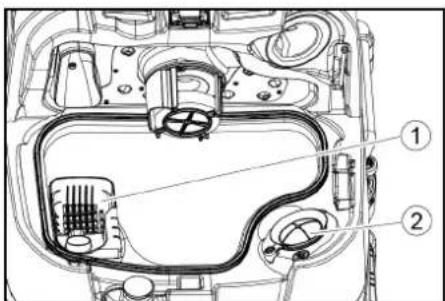

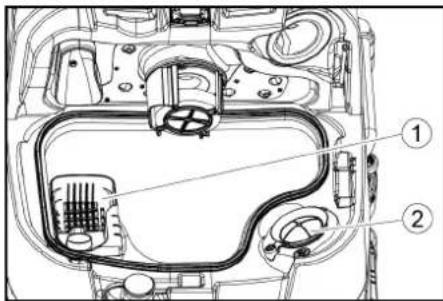

press it into the support. Empty the coarse dirt container

1. Lift the coarse dirt container and pull it out.

Draining fresh water

1. Open the fresh water tank cap.

2. Drain the fresh water.

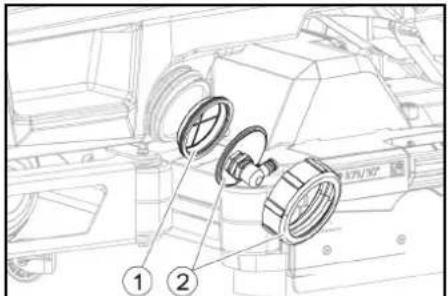

3. Clean the filter.

4. Fit the fresh water tank cap.

Shutting down the unit

1. Turn the key-operated switch to "OFF".

2. Remove the Intelligent Key.

3. Secure the device against rolling away.

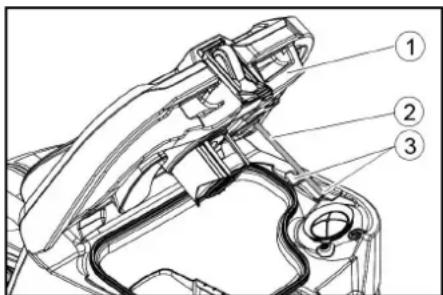

4. Open the lid of the waste water tank and

secure it with the support so that the waste water tank can dry out. To do this, swing the support down and position the lower end at the desired level when swinging down the cover. 1 Waste water tank cap 2 Support 3 level

5. Charge the battery if necessary.

Grey Intelligent Key The grey Intelligent Key grants the supervi- sory staff extended authorizations and set- ting options.

1. Insert the Intelligent Key.

2. Select the desired function by turning

the info button. Transport journey

1. Set the program selector switch to

The following functions can be executed from the TRANSPORT MODE menu: ● Set maximum speed ● Show operating hours counter ● Clearing the maintenance counter ● Show software versions ● Adjust the R or D cleaning head ● Switch speed-dependent water dosage on / off ● Setting after-running times ● Setting the language ● Key management ● Switch attachment kits on / off ● Activate factory setting Maximum speed The maximum speed can be limited in the "max speed" menu.

1. Turn the info button until "max speed" is

3. Turn the info button until the desired

maximum speed is displayed.

4. Press the Info button.

Note The working speed cannot exceed the maximum speed set. Resetting the maintenance counter If maintenance work shown in the display has been carried out, the corresponding maintenance counter must then be reset.

1. Turn the Info button until "maintenance

count." is displayed.

2. Press the Info button.

The counter readings are displayed.

3. Turn the info button until the counter to

be cleared is highlighted.

4. Press the Info button.

5. Select "yes" by turning the Info button.

6. Press the Info button.

The counter is cleared. Adjusting the cleaning head

1. Turn the Info button until "brush head" is

3. Turn the info button until the type of the

built-in cleaning head is highlighted. “Roll" = R cleaning head "Disc" = D cleaning head

4. Press the Info button.26 English

Speed-dependent water dosing If the speed-dependent water dosing is switched on, the brush irrigation changes proportionally with the speed. The water dosing is also influenced by the setting of the respective cleaning program (0 ... 100%). Set speed-dependent or constant water dosing:

1. Turn the Info button until “water dosage

mode” is shown on the display.

2. Press the Info button.

3. Turn the info button until the desired

1. Turn the info button until the "delay times"

menu item appears on the display.

2. Press the Info button.

3. Turn the info button until the desired as-

sembly is highlighted.

ter-running time is displayed.

6. Press the Info button.

Setting the language

1. Turn the info button until the "language"

menu item appears on the display.

2. Press the Info button.

3. Turn the info button until the desired lan-

guage is highlighted.

2. Turn the info button until the "key menu"

menu item appears on the display.

3. Press the Info button.

4. Remove the grey Intelligent Key and in-

sert the yellow Intelligent Key to be per- sonalized.

5. Select the menu item to be changed by

7. Select the setting of the menu item by

turning the info button.

8. Confirm the setting by pressing the

changed by turning the info button. 10.After all settings have been made, call up the "save" menu by turning the info button. 11.Press the Info button. The authorizations are saved. Switch attachment kits on / off

1. Turn the info button until the desired at-

tachment kit is shown on the display.

tion of the attachment kit is displayed.

4. Press the Info button.

Factory setting The factory settings for all cleaning param- eters are restored.

1. Turn the info button until the "factory set-

tings" menu item is displayed.

2. Press the Info button.

3. Turn the Info button until "yes" is high-

Adjusting parameters for cleaning programs All parameters for cleaning programs are retained until another setting is selected.

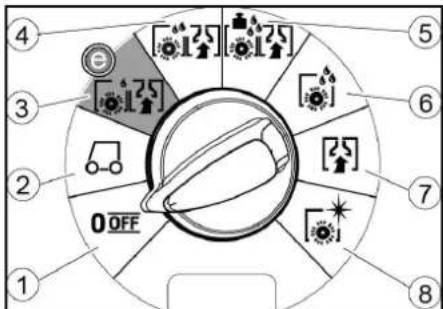

1. Set the program switch to the desired

The first adjustable parameter is dis- played.

3. Press the Info button

The adjusted value flashes.

4. Set the desired value by turning the Info

5. Confirm the changed setting by pressing

the Info button or wait until the set value is automatically accepted after 10 seconds.

turn the Info button until the "exit" menu item is displayed.

8. Press the Info button.

The menu is exited. Transport DANGER Driving on slopes Risk of injury Observe the maximum permissible gradi- ent when driving the device on slopes for loading and unloading purposes (see chap- ter "Technical data"). Drive slowly. 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during transportation.

1. With the D cleaning head installed, re-

move the disc brushes from the brush head.

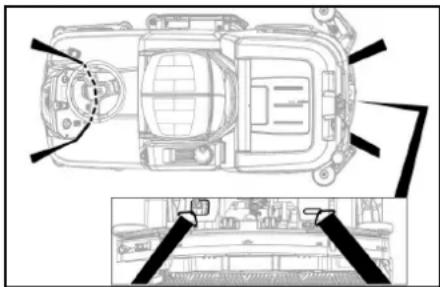

2. When transporting in vehicles, secure

the device against slipping and tipping over according to the applicable guide- lines. Storage 몇 CAUTION Failure to observe the weight Risk of injury and damage Be aware of the weight of the device during storage. ATTENTION Frost Destruction of the device through freezing water Drain all water from the device. Store the device in a frost-free location. ● This device may only be stored indoors. ● Fully charge the batteries before storing them for a long period. ● Fully charge the batteries at least every month during storage. Care and maintenance DANGER Inadvertently starting up device Risk of injury, electric shock Turn the program switch to the “OFF” position. Remove the Intelligent Key prior to all work on the device. Pull out the charger mains plug. Unplug the battery connector. Drain and dispose of the waste water and fresh water. Maintenance intervals Each time after use ATTENTION Improper cleaning Risk of damage. Do not spray the device with water. Do not use aggressive cleaning agents. A detailed description of the individual maintenance work is provided in the chap- ter "Maintenance Work". Drain the waste water. Rinse the waste water tank with clear water. Clean the coarse dirt filter. Only with R cleaning head: Remove the coarse dirt container and empty it. Clean the exterior of the device using a damp cloth, wetted with a mild washing lye. Check the suction lips, check for wear and replace if necessary. Clean the squeegee blades, check for wear and replace if necessary. Clean the brushes, check for wear and replace if necessary. Charge the battery. If the charging state of the battery is below 50%, charge the battery fully and without interruption. If the charging state of the battery is above 50%, only recharge the battery if the entire operating duration will be required when next used. Setting ON [ml/m

] OFF[l/min] 0% 0 0 10% 7.5 0.6 20% 15 1.1 30% 22.5 1.7 40% 30 2.3 50% 37.5 2.8 60% 45 3.4 70% 52.5 3.9 80% 60 4.5 90% 67.5 5.1 100% 75 5.7English 27 Weekly When used regularly, charge the battery fully and without interruption at least once a week. Monthly A detailed description of the individual maintenance work is provided in the chap- ter "Maintenance Work". If the device is temporarily shut down: Perform equalization charging of the battery. Check battery poles for oxidation, brush off if necessary. Make sure the connec- tion cables are firmly in place. Clean the seals between the waste wa- ter tank and the cover, check for leaks and replace if necessary. Drain the fresh water tank and flush out deposits. Clean the fresh water filter. Check the acid density of the cells if the batteries are not maintenance-free. Only with R cleaning head: Clean the brush tunnel. Only with R cleaning head: Clean the water distribution strip on the cleaning head. For longer periods of disuse, shut down the device when the battery is fully charged. Fully charge the battery at least once a month. Annually Have the prescribed inspection per- formed by Customer Service. Safety inspection/maintenance contract You can agree on regular safety inspec- tions or close a maintenance contract with your dealer. Please seek advice on this. Maintenance work Turn over or replace the worn suction lips The suction lips must be turned over or re- placed when worn out. The suction lips can be turned 3 times until all 4 edges are worn.

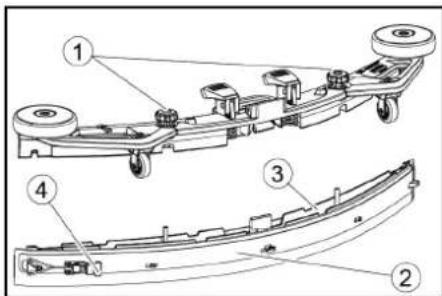

1 Star grip 2 Strap 3 Inner part of the suction bar 4 Tension lock

3. Pull out the inner part of the suction bar.

4. Open the tension lock.

5. Remove the strap.

6. Release the suction lips from the inner

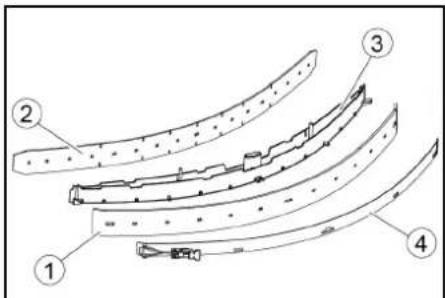

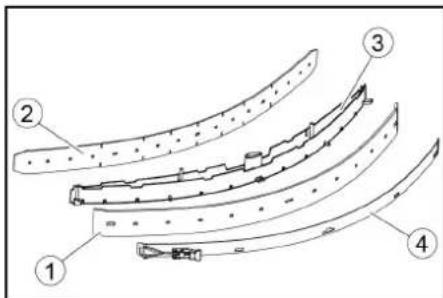

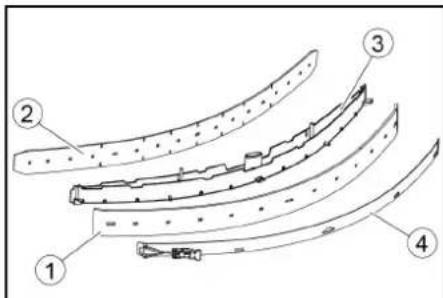

part. 1 Squeegee blade 2 Support lip 3 Inner part of the suction bar 4 Strap

7. Press the turned or new suction lips onto the

knobs of the inner part of the suction bar.

8. Attach the strap.

9. Push the inner part of the suction bar in-

to the upper part. 10.Screw in and tighten the star handles. Cleaning the coarse dirt filter

1. Open the waste water tank cover.

1 Coarse dirt filter 2 Fluff filter

2. Pull the coarse dirt filter upwards and off.

3. Rinse off the coarse dirt filter under run-

4. Reinsert the coarse dirt filter into the

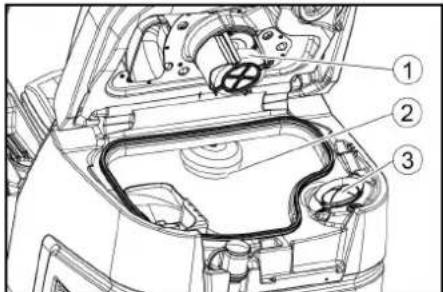

waste water tank. Cleaning the float and fluff filter

1. Open the waste water tank cover.

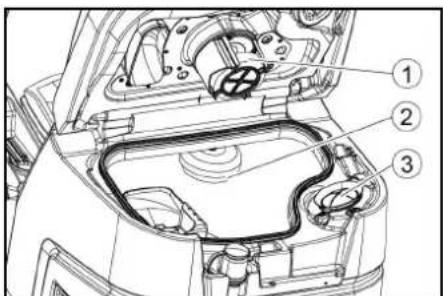

1 Float 2 Float switch 3 Fluff filter

2. Rinse the float with clear water.

3. Rinse the float switch with clear water.

4. Remove and clean the fluff filter.

Replacing the disc brush Note Replace the disc brushes when the bristle length has reached 10 mm.

1. Raise the cleaning head.

2. Push the brush replacement pedal down.

3. Pull the disc brush sideways and out

from underneath the cleaning head.

4. Hold the new disc brush under the

cleaning head, then press upwards and latch it into position. Replacing the roller brushes Note Replace the roller brushes when the bristle length has reached 10 mm.

1. Raise the cleaning head.

2. Pull out the brush replacement handle.

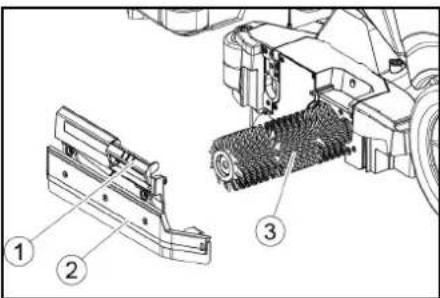

1 Brush replacement handle 2 Bearing cover with squeegee blade 3 Roller brush

3. Remove the bearing cover including the

4. Pull out the roller brush.

5. Fit the new roller brush and centre it on

the driver. 1 Driver 2 Mounting mandrel

6. Install the bearing cover with the squee-

gee blade. Note Make sure the roller brush sits on the mounting mandrel and not underneath.

7. Pivot the brush replacement handle up-

wards and latch it into place.

8. Repeat the entire procedure at the other

side. Replacing the side scrubbing deck brush (option)

1. Press the brush replacement lever

downwards. 1 Side scrubbing deck brush 2 Brush replacement lever The brush falls out of the support.

2. Hold the new brush under the side

scrubbing deck, then press upwards and latch it into position28 English Cleaning the fresh water filter

1. Drain the fresh water (see chapter

"Draining fresh water").

2. Unscrew the fresh water tank cap.

1 Fresh water filter 2 Fresh water tank lock

3. Pull out the fresh water filter and rinse

4. Insert the fresh water filter.

5. Fit the fresh water tank lock.

Note: Take care to ensure that the hose connection in the fresh water tank cap is positioned at the lowest point in the tank after screwing the cap in place. Cleaning the water distribution strip

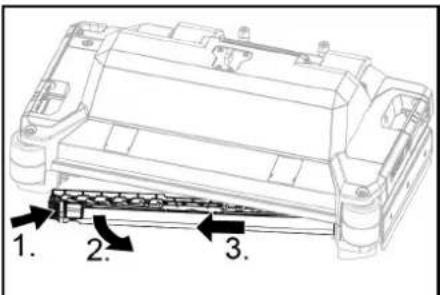

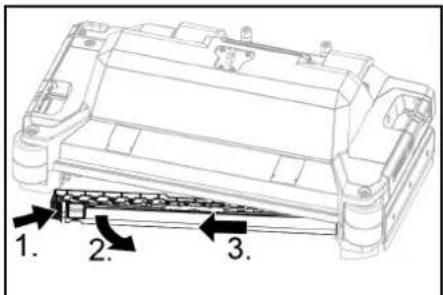

1. Press the latch in the direction of the ar-

row and hold it there.

2. Pivot the water distribution strip forward.

3. Pull out the water distribution strip

4. Clean the water distribution strip.

5. Fit the water distribution strip back into

the cleaning head and snap the lock into place. Cleaning batteries

1. Wear safety goggles, protective clothing

and protective gloves.

2. Keep the battery cell plugs closed.

3. Remove the batteries.

4. Only clean the plastic parts of the batter-

ies and the battery compartment with water or water-soaked cleaning cloths without additives.

5. Dry the surfaces after cleaning.

6. Reinstall the batteries.

Resetting the maintenance counter If maintenance work shown in the display has been carried out, the corresponding maintenance counter must then be reset. Note Resetting the maintenance counters is de- scribed in the chapter "Grey Intelligent Key". Troubleshooting guide DANGER The device can start unintentionally People working on the device can be injured. Remove the Intelligent Key prior to all work on the device. Before carrying out any work, pull the mains plug of the internal charger out of the socket. Disconnect the battery connector before performing any work.

1. Drain the waste water.

2. Drain the remaining fresh water.

Note If the malfunction cannot be remedied with the following instructions, contact Custom- er Service. Malfunctions with information shown on the display If the displayed malfunction is not in the fol- lowing list, do the following:

1. Turn the key-operated switch to "OFF".

3. Set the program switch to the previous

Service. Malfunction Rectification fresh water empty 1. Refill the fresh water tank water valve blocked 1. Set the programme switch to "OFF".

3. Set the program switch to the desired program.

overload brush head 1. Reduce the contact pressure of the brushes. blocked main brush 1. Check if the brushes are blocked by a foreign body and remove the foreign body if necessary.

2. Set the programme switch to "OFF".

4. Set the program switch to the desired program.

overload side brush 1. Reduce the contact pressure of the side scrubbing deck brush. blocked side brush 1. Check if the brushes are blocked by a foreign body and remove the foreign body if necessary.

2. Set the programme switch to "OFF".

4. Set the program switch to the desired program.

waste water tank full 1. Empty the waste water tank. overload drive motor 1. The gradient is too steep. a In cleaning operation: Cancel cleaning. b When transporting: Find a path with a lower gradient. blocked drive motor 1. Check the wheels for blockage, remove foreign objects.

2. Set the programme switch to "OFF".

3. If the engine has overheated, let it cool down for at least 15 minutes, otherwise wait 10 seconds.

4. Set the program switch to the desired program.

battery low 1. Set the program selector switch to TRANSPORT MODE.

2. Drive the device directly to the charger (or with an internal charger to the socket). Avoid gradients.

3. Charge the battery.

battery empty 1. Set the program selector switch to TRANSPORT MODE.

2. Drive the device by the shortest route to the charger (or to the socket in the case of an internal

charger). Avoid gradients.

3. Charge the battery.

seat switch open 1. Relieve the driver's seat briefly so that the control can check the function of the seat contact switch. switch on! 1. Set the safety switch to "1".English 29 Malfunctions without information shown on the display restart machine 1. Set the programme switch to "OFF".

3. Set the program switch to the desired program.

release throttle 1. Release the accelerator pedal. Malfunction Rectification Malfunction Rectification The device cannot be started 1. Sit in the driver's seat.

2. Take your foot off the accelerator before switching on the safety switch.

3. Turn the safety switch to "1".

4. Check the battery and charge if necessary.

5. Set the programme switch to "OFF".

7. Set the program switch to the desired program.

8. If possible, only drive the device on level ground.

9. Check the parking brake if necessary.

If the fault still occurs, call Customer Service. The device is no longer run- ning, display shows "battery empty"

1. Set the programme switch to "OFF".

4. Drive to the charging station.

5. If the device still does not run, charge the battery on site or unlock the brake (see "Operation/push-

ing the device") and push the device to the charging station. The device moves unevenly (jerks) when starting and stopping.

1. Unlock the brake lock (see "Operation/pushing the device").

The water volume is insuffi- cient

1. Check the fresh water filling level, if necessary fill the tank completely so that the air is pressed out.

2. Remove and clean the fresh water filter.

3. Insert the filter and screw on the cap.

4. Only with R cleaning head: Pull off the water distribution strip on the cleaning head.

5. Only with R cleaning head: Clean the water channel.

6. Check the hoses for clogging and clean if necessary.

The fresh water display shows the wrong filling level after emp- tying the tank manually.

1. Use the device. During operation, the hose system will vent and the filling level display will correct

itself. The bar of the filling level dis- play is flashing, "fresh water empty” display

1. Refill the fresh water tank.

The suction performance is too low

1. Clean the seals between the waste water tank and the cover, check for leaks and replace if necessary.

2. Check the fluff filter for soiling and clean if necessary.

3. Clean the suction lips at the suction bar, turn over or replace if necessary.

4. Close the lid on the waste water drain hose.

5. Close the cover of the waste water tank rinsing system.

6. Check the suction hose for clogging and clean if necessary.

7. Check the suction hose for leaks and replace if necessary.

8. Check the adjustment of the suction bar.

The cleaning results are un- satisfactory

1. Set the appropriate cleaning program for the cleaning task.

2. Use suitable brushes for the cleaning task.

3. Use a suitable detergent for the cleaning task.

4. Reduce the driving speed.

5. Adjust the contact pressure.

6. Adjust the squeegee blades.

7. Check the brushes for wear and replace if necessary.

8. Check the water output.

The brushes do not rotate 1. Reduce the contact pressure.

2. Check if the brushes are blocked by a foreign body and remove the foreign body if necessary.

3. If the motor is overloaded, let the motor cool down.

4. Set the programme switch to "OFF".

6. Set the program switch to the desired program.

7. Check that the plug of the device is plugged into the cleaning head.

The device does not brake 1. Undo the brake lock (see "Operation / Pushing the device"). The waste water drain hose is clogged

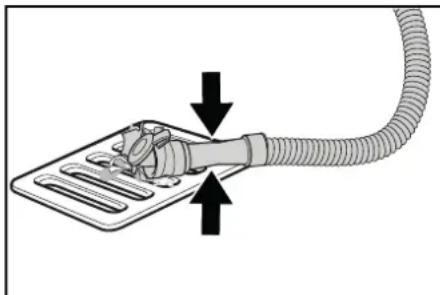

1. Open the dosing unit cover at the drain hose.

2. Pull the suction hose off the suction bar and close it by hand.

3. Set the programme switch to "Vacuum".

The blockage is sucked out of the drain hose into the waste water tank. The "Dose" detergent dosing unit does not work

1. "Dose" version only: Call Customer Service.30 English

Warranty The warranty conditions issued by our rele- vant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a war- ranty case, please contact your dealer (with the purchase receipt) or the next author- ised customer service site. (See overleaf for the address)

Accessories Cleaning head with roller brush accessories A: Packaging unit, B: Quantity required by the device Cleaning head with disc brushes accessories A: Packaging unit, B: Quantity required by the device Suction bar accessories A: Packaging unit, B: Quantity required by the device Description R 65 Part no. R 75 Part no. Description A B Roller brush, red (medium, stand- ard) 4.035-604.0 4.035-605.0 For maintenance cleaning of heavily soiled floors. 1 2 Roller brush, white (soft) 6.907-770.0 6.907-771.0 For polishing and maintenance cleaning of sensitive floors.

Roller brush, orange (high / low) 6.907-726.0 6.907-730.0 For scrubbing structural floors (safety tiles, etc.). 1 2 Roller brush, green (hard) 6.907-727.0 6.907-731.0 For basic cleaning of heavily soiled floors and for coat- ing removal (e.g. waxes, acrylates).

Roller brush, black (very hard) 6.907-728.0 6.907-732.0 1 2 Microfiber roller 4.114-054.0 4.114-007.0 For maintenance cleaning of smooth floors. 1 2 Pad roller shaft 4.762-626.0 4.762-627.0 For holding roller pads. 1 2 Roller pad, yellow (soft) 6.369-454.0 6.369-454.0 For polishing floors 20 96; 106 Roller pad, red (medium) 6.369-456.0 6.369-456.0 For cleaning lightly soiled floors. 20 96; 106 Roller pad, green (hard) 6.369-455.0 6.369-455.0 For cleaning normal to heavily soiled floors. 20 96; 106 Description D 65 Part no. D 75 Part no. Description A B Disc brush, natural colour (soft) 4.905-012.0 4.905-020.0 For polishing floors. 1 2 Disc brush, white 4.905-011.0 4.905-019.0 For polishing and maintenance cleaning of sensitive floors.

Disc brush, red (medium, standard) 4.905-010.0 4.905-018.0 For cleaning lightly soiled or sensitive floors. 1 2 Disc brush, black (hard) 4.905-013.0 4.905-021.0 For cleaning heavily soiled floors. 1 2 Fine diamond pad, green 6.371-235.0 6.371-236.0 For refreshing lime-containing coverings and epoxy res- in-coated floors.

) 581 (570) 51 (50) 510 (500) 41 (40) Device performance data Nominal voltage V 24 24 24 24 Battery capacity Ah (5 h) 170 / 285 170 / 285 170 / 285 170 / 285 Mean power input W 2350 2350 2350 2350 Nominal power W 2500 2500 2500 2500 Driving motor power W 600 600 600 600 Suction turbine power W 600 600 600 600 Brush drive power W 2 x 600 2 x 600 2 x 600 2 x 600 Degree of protection IPX3 IPX3 IPX3 IPX3 Vacuuming Suction performance, air quantity l/s ~25 ~25 ~25 ~25 Vacuum (max.) kPa (mbar) ~17 (~170) ~17 (~170) ~17 (~170) ~17 (~170) Vacuum (in operation) kPa (mbar) ~5 (~50) ~5 (~50) ~5 (~50) ~5 (~50) Cleaning brushes Brush diameter mm 100 355 100 385 Brush length mm 605 - 705 - Brush speed 1/min 1200 180 1200 180 Side scrubbing deck brush diameter mm - - 220 220 Side scrubbing deck brush speed 1/min - - 220 220 Internal charger Cable length m 2 2 2 232 English Subject to technical modifications. Declaration of Conformity We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us. Product: Floor cleaner Type: 1.161-xxx Currently applicable EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2014/53/EU (TCU) Applied harmonized standards EN 60335-1 EN 60335-2-29 EN 60335-2-72 EN 62233: 2008 EN 55012: 2007 + A1: 2009 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 61000-6-2: 2005 EN 61000-6-3: 2007 + A1:2011 TCU EN 301 511 V12.5.1 EN 300 440 V2.1.1 EN 300 328 V2.2.2 EN 300 330 V2.1.1 National standards used

The signatories act on behalf of and with the authority of the company management. Documentation supervisor: S. Reiser Alfred Kärcher SE & Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Ph.: [phone] Fax: [phone] Winnenden, 2021/09/01 We hereby declare that the product de- scribed below complies with the relevant provisions of the following UK Regulations, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the product is modified without our prior approval. Product: Floor cleaner Type: 1.161-xxx Currently applicable UK Regulations S.I. 2008/1597 (as amended) S.I. 2016/1091 (as amended) S.I. 2017/1206 (as amended) (TCU) Applied harmonized standards EN 60335-1 EN 60335-2-29 EN 60335-2-72 EN 62233: 2008 EN 55012: 2007 + A1: 2009 EN 61000-3-2: 2014 EN 61000-3-3: 2013 EN 61000-6-2: 2005 EN 61000-6-3: 2007 + A1:2011 TCU EN 301 511 V12.5.1 EN 300 440 V2.1.1 EN 300 328 V2.2.2 EN 300 330 V2.1.1 National standards used

5. Soltar as porcas.

2. Sørg for at sikre maskinen mod at glide

4. Sett inn filteret for rent vann.

2. Utaknite Intelligent Key.

2. Utaknite Intelligent Key.

www.kaercher.com/REACH

maintenance squeegee

maintenance turbine filter

maintenance fresh water filter
