GTE 450 Comfort - Grass trimmer AL-KO - Free user manual and instructions

Product type	Electric hand-held grass trimmer
Brand	AL-KO
Model	GTE 450 Comfort
Power supply	Mains (cable with plug)
Sound power level (LWA)	94 dB(A) measured, 96 dB(A) guaranteed
Cutting system	Cutting line with automatic length adjustment
Handle	Adjustable telescopic (extension approx. 10 cm)
Cutting head	180° swiveling and adjustable tilt
Additional handle	Adjustable tilt via rocker lever
Safety devices	Motor circuit breaker (overload cut-off), child safety (padlock possible)
Protection	Protection panel with integrated line cutter, plant protection bracket
Guide roller	Yes, provided
Line spool	Replacement possible (ref. 112966)
Weight	Not specified in the manual
Dimensions	Not specified in the manual
Maintenance	Clean after use; replace spool if necessary; do not clean with water jet
Storage	Hang by the handle, dry and frost-free place
Warranty	Legal warranty for material and manufacturing defects
Standards	CE, EN 60335-1, EN 50636-2-91, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, 2000/14/EC

Frequently Asked Questions - GTE 450 Comfort AL-KO

How to start the GTE 450 Comfort grass trimmer?

Plug the extension cord into the mains, hold the appliance with both hands, then press the switch on the upper handle. Caution: the cutting head continues to rotate for a few seconds after stopping.

How to adjust the length of the telescopic handle?

Unscrew the adjustment sleeve (rotate about 180° to the right), adjust the handle to the desired length (max. 10 cm extension), then retighten the sleeve.

How to replace the line spool?

Unplug the appliance. Open the protective cover by pressing the two latches. Remove the empty spool, place the new one making sure to replace the spring, feed the line out on both sides, then close the cover.

What to do if the motor does not start?

First check the motor circuit breaker: if it has tripped, wait about 15 minutes for cooling. Also check the mains voltage and the condition of the extension cord.

How to tilt the cutting head for hard-to-reach places?

Press the adjustment button on the head, tilt it to the desired angle, then release the button to lock.

What safety distance must be observed?

Keep people and animals at least 15 meters away from the work area. Wear goggles, a helmet, and hearing protection.

Can I use the grass trimmer on a slope?

Yes, but with caution: do not work on a slippery slope, always mow across the slope (never up and down) and do not exceed a 20° incline.

How to maintain the grass trimmer after use?

Clean the appliance with a dry cloth (no water jet). Check the condition of the cable, the protection panel, and the cutting head. Hang it by the handle in a dry place.

Can metallic blades be used instead of line?

No, this appliance is designed exclusively for cutting line. Never mount metal cutting elements (risk of injury and non-compliance).

How to activate the child safety?

The child safety is integrated into the switch on the upper handle. For additional locking, a padlock (not supplied) can be inserted into the 5 mm hole of the motor circuit breaker.

USER MANUAL GTE 450 Comfort AL-KO

AL-KO KOBER GROUP Kottz, Germany

This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP.

TECHNISCHE DATEN

GTE 350 GTE 450 GTE 550
350 W 450 W 550 W
230 - 240 V /50 Hz 230 - 240 V /50 Hz 230 - 240 V /50 Hz
a_vhw= 3,15 m/s2EN ISO 20643K = 1,5 m/s2		a_vhw= 3,15 m/s2EN ISO 20643K = 1,5 m/s2
L_PA= 85,8 dB(A)EN ISO 5395K = 2,5 dB(A)		L_PA= 85,4 dB(A)EN ISO 5395K = 2,5 dB(A)
96 dB(A) 96 dB(A) 96 dB(A)
/ II / II / II
25 cm 30 cm 30 cm
2,3 kg 2,9 kg 3,0 kg

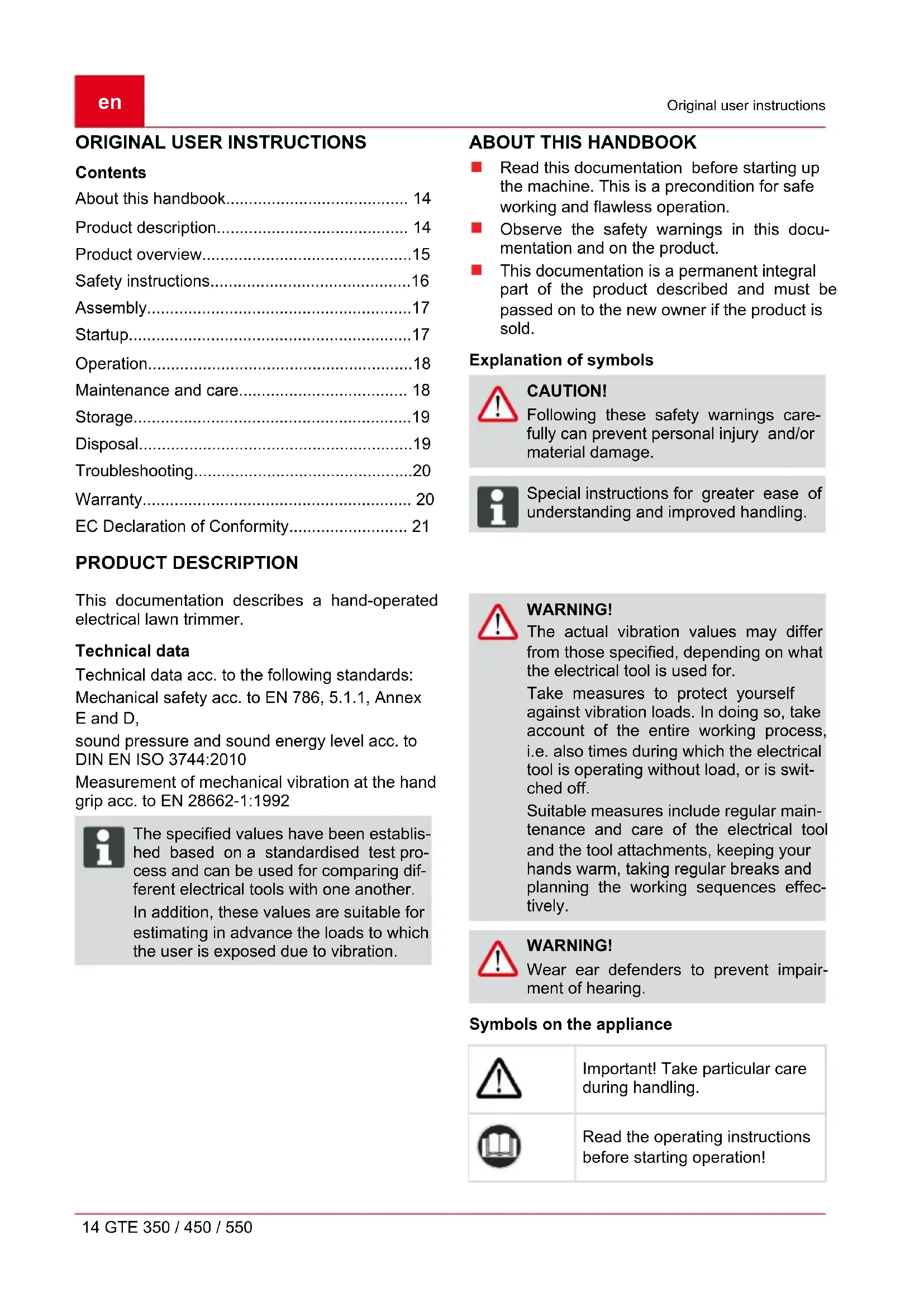

Product description. 14

Product overview. 15

Safety instructions. 16

Assembly. 17

Startup. 17

Operation. 18

Maintenance and care. 18

Storage. 19

Disposal. 19

Troubleshooting 20

Warranty 20

EC Declaration of Conformity 21

PRODUCT DESCRIPTION

This documentation describes a hand-operated electrical lawn trimmer.

Technical data

Technical data acc. to the following standards:

Mechanical safety acc. to EN 786, 5.1.1, Annex E and D,

sound pressure and sound energy level acc. to DIN EN ISO 3744:2010

Measurement of mechanical vibration at the hand grip acc. to EN 28662-1:1992

The specified values have been established based on a standardised test process and can be used for comparing different electrical tools with one another. In addition, these values are suitable for estimating in advance the loads to which the user is exposed due to vibration.

ABOUT THIS HANDBOOK

Read this documentation before starting up the machine. This is a precondition for safe working and flawless operation.
Observe the safety warnings in this documentation and on the product.
This documentation is a permanent integral part of the product described and must be passed on to the new owner if the product is sold.

Explanation of symbols

CAUTION!

Following these safety warnings carefully can prevent personal injury and/or material damage.

Special instructions for greater ease of understanding and improved handling.

WARNING!

The actual vibration values may differ from those specified, depending on what the electrical tool is used for.

Take measures to protect yourself against vibration loads. In doing so, take account of the entire working process, i.e. also times during which the electrical tool is operating without load, or is switched off.

Suitable measures include regular maintenance and care of the electrical tool and the tool attachments, keeping your hands warm, taking regular breaks and planning the working sequences effectively.

WARNING!

Wear ear defenders to prevent impairment of hearing.

Symbols on the appliance

Important! Take particular care during handling.

Read the operating instructions before starting operation!

Danger due to objects being thrown out!

Keep other people out of the danger area.

Make sure there is a gap of at least 15 m between the appli-ance and other people.

Protect the appliance against rain and moisture

Wear protective glasses and ear defenders.

Disconnect the plug from the mains if the extension cable is damaged or severed!

Adjustable telescopic handle

The lawn trimmer is equipped with an adjustable telescopic handle. This allows the appliance to be set to individual body sizes, and allows the motor head to be swivelled.

Swivelling and adjustable cutter head

GTE 450 and 550 have a swivelling cutter head with an adjustable angle.

Automatic tip

An automatic tip function is equipped in the spool head, allowing the cutting line to be extended while the motor is running.

Safety and protective equipment

Child protection

The hole (5mm) on the motor protection switch is provided for a padlock*. The padlock prevents the appliance from being switched on inadvertently.

• Not included in the scope of delivery

Motor protection switch

The lawn trimmer is equipped with a motor protection switch which deactivates in case of an overload.

The lawn trimmer can be switched back on again after a cooling-down phase of approx. 15 minutes.

CAUTION!

Risk of injury!

Safety and protective devices should not be disabled.

Designated use

This appliance is intended for trimming a lawn in non-commercial applications. Any use not in accordance with this designated use shall be regarded as misuse.

This tool is not intended to be used by people (including children) who have restricted physical, sensory or mental capabilities; neither is it intended to be used by people lacking experience and/or knowledge unless they are supervised by someone who is responsible for safety, or receive instructions from this supervisory person in how to operate the tool. Children should be supervised in order to make sure that they do not play with the tool.

CAUTION!

The equipment is intended for domestic use only.

PRODUCT OVERVIEW

Product overview

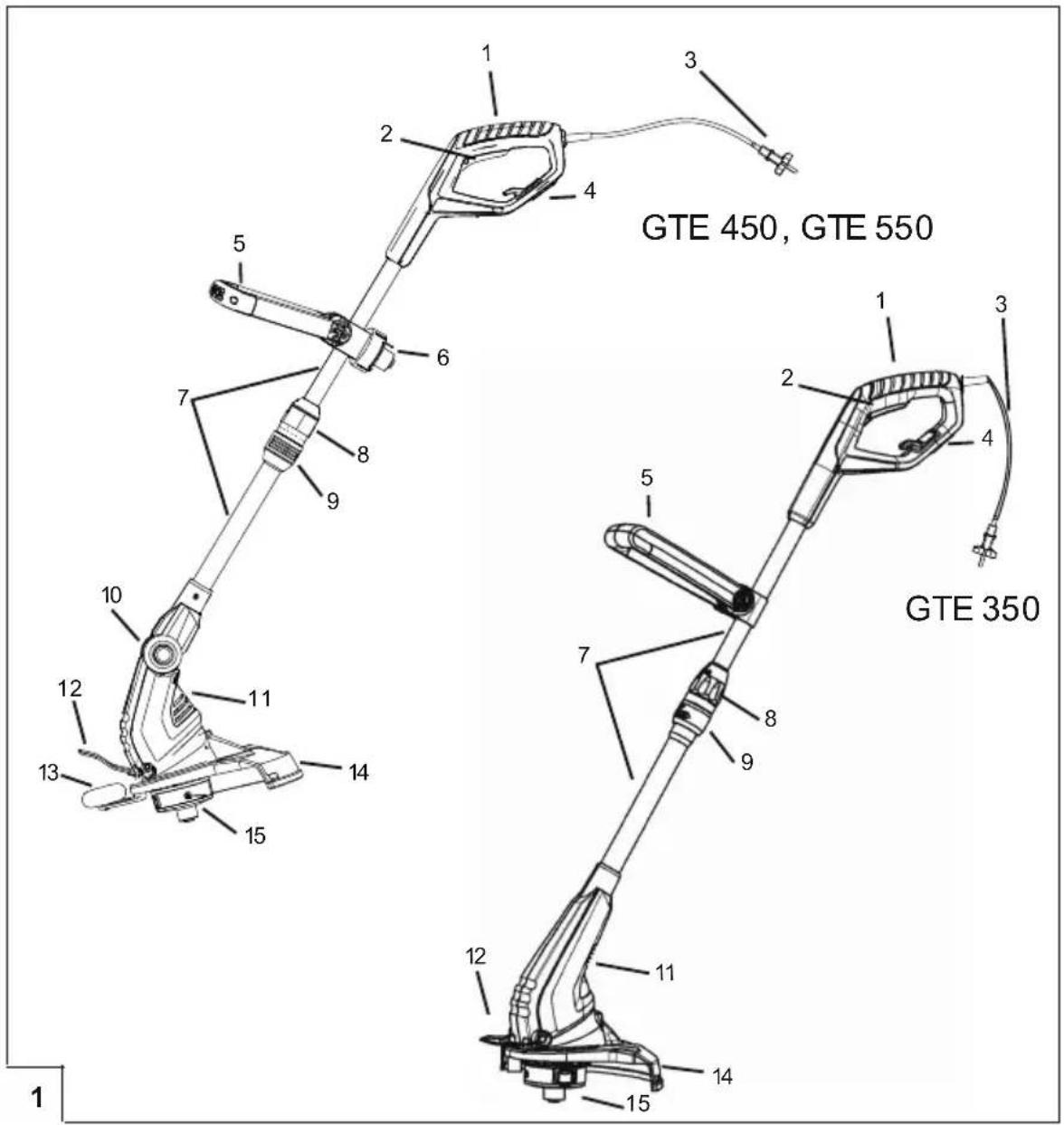

The product overview (1) provides an overview of the appliance.

1-1	Upper hand grip
1-2	Switch with child protection
1-3	Appliance plug
1-4	Cable strain relief
1-5	Auxiliary hand grip
1-6	Holder with additional spool *
1-7	Telescopic handle
1-8	Upper guide sleeve
1-9	Lower guide sleeve
1-10	Locking button for cutter head *
1-11	Cutter head with motor
1-12	Plant protection bar
1-13	Guide wheel *

1-14 Guard plate with line cutter

1-15 Spool

• appliance-specific

SAFETY INSTRUCTIONS

CAUTION!

The cutting tools continue to rotate even after the motor has been switched off.

Before using mains and extension cables, check them for any signs of damage or ageing.
- Keep extension cables away from the cutting tools.
If the cable becomes damaged during use, immediately disconnect from the mains. DO NOT TOUCH THE CABLE UNTIL IT HAS BEEN DISCONNECTED FROM THE MAINS.
Wear suitable clothing, eye protection and gloves
- Never allow children or uninstructed persons to operate or maintain the machine. Local regulations may specify the minimum age of people operating the machine
- Stop using the machine when people, especially children (and also pets) are in the vicinity.
Only mow during daylight hours or with good artificial lighting.
Before taking the machine into operation, and following any impact, check the machine for signs of wear or damage and undertake the necessary repairs.
Never use the appliance if any protective devices are damaged or missing.
Always keep hand and feet away from the cutting device, above all when switching on the motor.
Any device that is used for cutting off the line represents a danger of injury.
After pulling out a new line, always hold the machine in its normal working position before switching it on.
Never fit metallic cutting elements.
Only use genuine spare parts and genuine accessories.
- Disconnect the mains plug before carrying out any checks, cleaning or work on the machine, and when it is not in use.

Make sure that air openings are free from contamination.
In spite of technical and additional protective measures, there is always a residual risk when working with the machine.
Keep the handles dry and clean.
Remove foreign objects from the working area.
The equipment should be used only if in good order and condition
Always keep the guard, string head and engine free of mowing debris.
- Keep body and clothing away from cutting parts.
Persons who are not familiar with the trimmer should practise handling it with the engine switched off.
Wear appropriate working clothes.
Always ensure stability when working.
Always operate the appliance with two hands.
Keep others away from dangerous areas.
Do not leave the appliance unsupervised.
When mowing on sloping ground, always stand downhill of the cutting device.
If working on slopes:

Never work on a smooth and slippery slope.
Always make sure you are positioned securely.
Always work across the slope, never upward or downward.
Do not work on slopes with a more than 10^ gradient!
Take particular care when turning!

After contact with a foreign object:

Switch off the engine.
Examine the device for damage.

The machine must not be operated if the operator is under the influence of alcohol, drugs or medication.
Comply with the accident prevention regulations.

Electrical safety

CAUTION!

Danger when touching voltage conducting parts!

Disconnect the plug from the mains if the extension cable is damaged or severed! We recommend connecting a RCD (residual current operated device) having a nominal residual current of < 30mA .

The house mains voltage must agree with the details quoted in the technical data, do not use any other supply voltage.
Use only extension cables that are suitable for use outdoors - minimum cross-section 1.5mm^2 Cable drums should always be unrolled completely.
Damaged or brittle extension cables must not be used.

Check the condition of your extension cable each time you start to use the equipment.

Secure the extension cable in the cable strain relief.
Do not get the appliance wet or expose it to moisture.
Keep children away from appliances connected to the mains.

ASSEMBLY

CAUTION!

The machine must not be put in operation before it has been assembled completely.

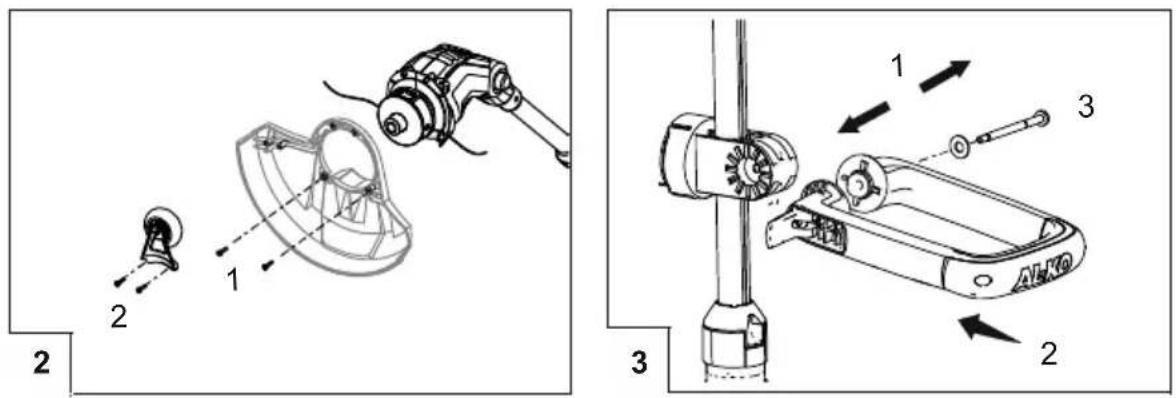

Install the guard plate

The knife integrated in the guard plate automatically cuts the line to the optimum length.

GTE 350

1. Set the guard plate in relation to the cutter head (2-1).
2. Make sure that the line is exposed.
3. Secure with the enclosed 4 screws.

GTE 450, GTE 550

1. Set the guard plate in relation to the cutter head (2-1).

2. Make sure that the line is exposed.

3. Screw the guard plate on at the rear with the supplied screws (2-1).

4. Place the guide wheel on the guard hood and tighten the screws (2.2).

Installation of auxiliary handle

GTE 350

1. Pull the grip bar of the auxiliary handle slightly apart (3-1).
2. Push the auxiliary handle onto the holder (3-2).
3. Engage the auxiliary handle in the splines.
4. Put on the pin holder and screw the clamping pin tight (3-3).

GTE 450, GTE 550

The angle of the handle can be individually adjusted using the tip lever.

1. Push the holder onto the shaft.
2. Pull the grip bar of the auxiliary handle slightly apart (3-1).
3. Push the auxiliary handle onto the holder (3-2).
4. Engage the auxiliary handle in the splines.
5. Place the tip lever with pin holder onto the clamping pin.
6. Screw the clamping pin tight so that the tip lever can be operated with little force (3-3).

STARTUP

CAUTION!

Always perform a visual check prior to start-up.

Adjusting the telescopic handle

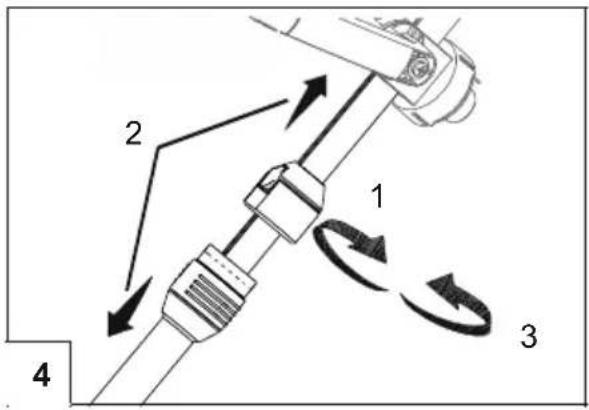

1. To release, turn the upper locking sleeve through about 180^ to the right (4-1).
2. Set the telescopic handle to the individual physique. The telescopic handle can be extended by approx. 10cm (4-2).
3. Tighten the locking sleeve (4-3).

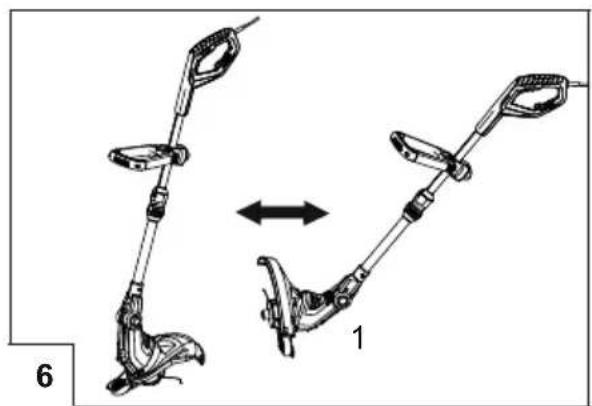

Swivelling the cutter head

To trim lawn edges, for example, it is possible to swivel the cutter head through 180^ (5, 6).

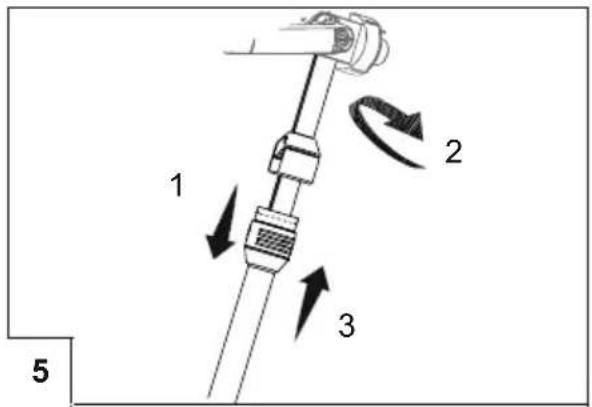

1. Loosen the lower locking sleeve (5-1).
2. Turn the telescopic handle through 180^ (5-2).
3. Screw the locking sleeve tight (5-3, 6-1).

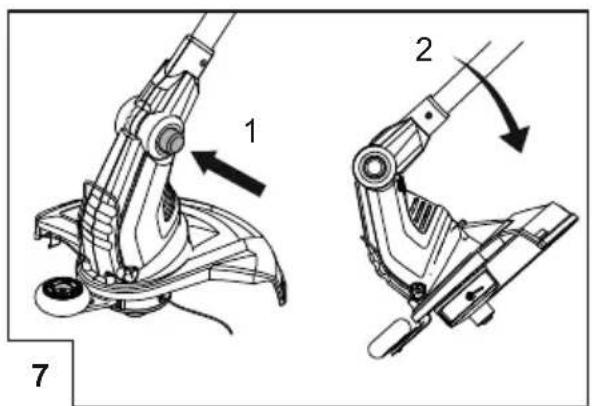

Angling the cutter head

By changing the pivot angle, it is also possible to trim areas that are difficult to access, e.g. under benches, overhangs, etc.

1. Press the locking button (7-1).
2. Engage the cutter head in the required angle (7-2).
3. Release the locking button.

Remove the guard on the line cutter before taking into operation for the first time.

Starting the lawn trimmer

1. Guide the extension cable through the strain relief.
2. Connect the extension cable to the mains supply.
3. Stand securely.
4. Hold the appliance with both hands. Do not place the cutter head on the ground when doing this.
5. Hold the auxiliary handle in one hand and the upper grip with your other hand.
6. Press the switch in the upper grip and hold it pressed. The appliance runs.
7. Let the lawn trimmer run at idling speed for a few moments. This causes the cutting line to be cut off to the correct length.
8. The appliance switches off when the switch is released.

After the appliance has been switched off, the spool head continues to rotate for a few seconds.

OPERATION

Switch on the appliance before approaching the grass to be cut.

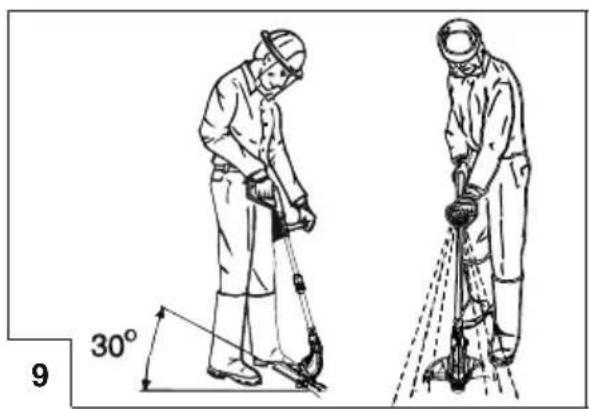

Angle the appliance forwards slightly, and walk forwards slowly (9).
Sweep the appliance to the right and left in order to cut the grass (9).

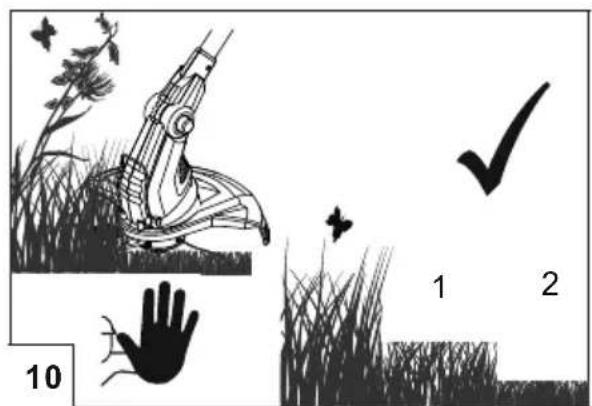

Long grass must be cut in several passes. Always proceed from top (10-1, 10-2) to bottom.

Tap the spool head on the ground from time to time when working. The automatic tip function always keeps the line at optimum length.

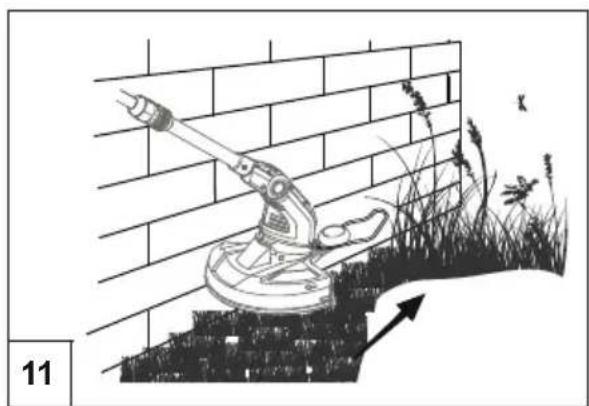

Use the plant protection car in order to hold the appliance at the correct distance from obstacles (11-1).
Make sure the motor is stopped before you remove any cuttings.

CAUTION!

The vibration value during use of the electrical implement may differ from the indicated value, depending on what the appliance is used for.

Do not overload the appliance during work.

MAINTENANCE AND CARE

CAUTION!

Danger from electrical current!

Before all maintenance and care jobs, disconnect the appliance from the mains and secure it to prevent it from being switched back on.

After use, disconnect the mains plug and check the machine for damage.
- Keep the appliance out of reach of children and unauthorised persons.
Electrical malfunctions are only allowed to be rectified by authorised specialist workshops.
Never use the appliance if the blade of the line cutter is missing or damaged.
Always keep the guard, string head and engine free of mowing debris.
Do not spray the machine with water! Penetrating water (ignition system, carburettor...) can lead to malfunctions.
Do not get the appliance wet or expose it to moisture.
Regularly check the appliance is in good working order.
- Do not use any cleaning agents or solvents. They can cause irreparable damage to the appliance.

Changing the spool

(Replacement spool GTE art. no. 112966)

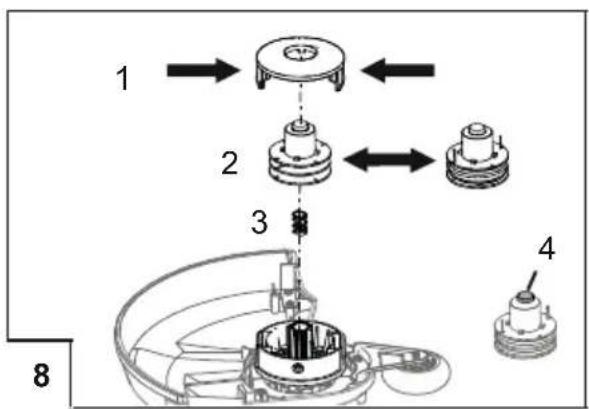

1. Press the two locking catches to open the cover (8-1).
2. Remove the empty spool (8-2).
3. Insert the new spool.

4. Make sure that the spring is re-inserted (8-3).

5. Guide the line outwards on both sides.

6. Put on the cover and engage the locking catches.

STORAGE

Clean the appliance and its accessories after each use.

Hang up the lawn trimmer by its handle. This avoids placing unnecessary load on the cutter head.

Store the appliance in a dry place protected against frost.

DISPOSAL

Do not dispose of worn-out machines or spent batteries (including rechargeable batteries) in domestic waste!

The packaging, machine and accessories are made from recyclable materials and must be disposed of accordingly.

TROUBLESHOOTING

Malfunction Possible cause Solution
Motor does not run Motor protection switch has swit-ched offNo mains voltage		Wait until the motor protection switch switches the trimmer back on. Check the fuses / RCCB, have the electrical power supply checked by an electrician Check the extension cable, use a new one if necessary
Trimmer vibrates Spool is contaminated Clean the spool, renew it if ne-cessary
	Spool is empty Change the spool Lawn is not cut well
	Line not long enough Set the line length

If you encounter any malfunctions that are not listed in this table or which you cannot rectify yourself, please contact our responsible customer service.

WARRANTY

We will address claims for any defects in materials and workmanship during the statutory period of limitation by means of repairs or replacements of our choice. The period of limitation is governed by the laws of the country in which the machine was purchased.

Our warranty applies only if:

The machine has been properly handled.
The operating instructions have been adhered to
Original replacement parts have been used

The warranty is no longer in effect if:

Efforts have been made to repair the machine
Technical modifications have been made to the machine
The machine has not been used for its intended purpose

The warranty does not cover:

Damage to paint work through normal use
Parts subject to wear as indicated in the replacement parts list with a box [xxx xxx (x)]
Internal combustion engines - separate warranty conditions of the respective engine manufacturer apply

The warranty period begins with the purchase by the first buyer. The warranty period begins on the date that appears on the original purchase receipt. In the event of a warranty claim, please your contact supplier or the nearest authorised customer service centre with this warranty declaration and the purchase receipt in hand. This warranty does not affect the legal warranty claims by the purchaser against the seller.

EC DECLARATION OF CONFORMITY

We hereby declare that this product in the version which we have introduced into circulation is in accordance with the requirements of the harmonised EU directives, EU safety standards and the product-specific standards.

Product Manufacturer Authorised representative

Serial number EU Directives Harmonised standards

G130130 2006/42/EC EN 60335-1

2014/30/EU EN 50636-2-91

Sound pressure level 2000/14/EC EN 55014-1

EN ISO 3744 2014/35/EU EN 55014-2

measured / guaranteed 2011/65/EU EN 61000-3-2

GTE 350 94/96 dB(A) EN 61000-3-3

GTE 450 94/96 dB(A)

GTE 550 94/96 dB(A)

Designated office Conformity evaluation Kotz, 04.07.2016

Societe Nationale de Certification 2000/14/EC Appendix VI

et d'Homologation

No. 0499

Wolfgang Hergeth

Managing Director

ORIGINELE GEBRUIKERSHANDLEIDING

Inhoudsopgave

INFORMATIONS SUR CE MANUEL

SCHEDA RICERCA GUASTI

VEDLIKEHOLD OG PLEIE

FORSIKTIG!

DEKLARACJA ZGODNOSCI WE

He otKIOUaHTe npEOxpaHNTbHbIe n 3aHTbIe npncnoc6JeHH.

IcnoJIb3OBaHHe no Ha3HaYeHnIO

3To yctpoiCTBO npedHa3HaueHO DnIynpaBHBaHnra30HOB TpaBbHa YaactHbixyactkax. Hoe, BbIXOJaee 3a 3TONCNoB3OBaHne CHTaETc HHeaJNeKaUIM(UCNOb3OBaHnem He No Ha3HaueHnO).

Данhoe yctpoCTBO He npedHa3HaeHo DЯ NcNoIb3OBaHn JIuamn (BkIouy a DeTei) C ORpaHueHHbIMN BO3MOXHOCTMn CEHCOPHO CNCTeMbI IIN ORpaHueHHbIMN INTEJIeKTyAJIbHbIMN BO3MOXHOCTMn, a TAKKe JInCaMn C HeIOCTaTOUHbIM ONbITOM n 3HaHnMaM, KpOME ClyuaeB KOHTPOJn IIN INHCTpyKTIpOBAHn IO BONpocAm NCNoIb3OBaHn Prnbopa Co CTOpOHbl Nt, OTBeTCTBeHHbIX 3a INx Be3OnaCHOCtb. 3a DeTbMn Heo6xOdmo PnPcMaTpPbAtb, YTO6bl OHn HE INrpaJn C DaHHbIM yCTpoCTBOM.

BHIMAHNE!

3anpeeHNO npmeHbYcTpoiCTBO nI npomblneHHbIX ceJeN.

OB3OP PPOdykTA

B o63ope n3denn (1) daetc kpatkn o63op n3denn.

HaKNoH pexyueI roJOBKn

I3MeHINb yroJ HAKNoHa, MoXHO nOJaPe3aTb TpaBy B TpydHODocTyNhbIX MecTax, HanpIMep, NOD CKaMeiKamn, BbICTyPamn I.T.Д.

1. Haxmte KhoNky fckauu (7-1).
   2.3aФнксypуTe peKyUIO rOIOBky BKeIaEMOM MecTe (7-2).
   3.OcbOboDnte KhoNkyΦnkCaunn.

Ipeud nepBbIM nCnoJb30BaHnEM cHmnte KOKyxC Jeckoo6pe3uKa.

BkIoueHne TpIMMepa

1.ПотянITE yДиHITeIbHbI Ka6eIb Yepe3 элactnHyO MyΦTy.
2.ПОДКЛIOUHTe yДИNHITeJIbHbI Ka6eJIb K 3JIeKTPocETn.
3. 3aIMTe HndexKHOe nOJOKeHHe.
4.ДерхиTe yctpoNCTBO DByM pyKAMn.B 3TOT MOMENT pexyua rOIOBka He DoJxHa HaxoINTbcr Ha 3eMne.
5.Bo3bMntecb 3a DoONHnTeIbHyo pyky OndHOpyKo, a 3a BepxHIO pUky dpyroI pykoJ.
6. Haxmte n Čepxnte BbIKIOuATEnb Ha BepxHe pyKe. YcTpoIcTBo HaunHaet pa6oTaB.
7.ДаTe yCTpoIcTBy HEMHOrO nopa6oTaTb Ha xOJocTOM xOy.YkopOTte pexyUIO necky Do Heo6xOIMOn dINHbl.
8. Ecnn BbIKNoaTeIb OTNycTnTb, yCTpOuCTBO BbIKNoaETcra.

Pocne BbIKIOUeHn yCTPOIcBapeKuAra rONOBka 6yDeT BpaaATbc8eue HeCKoNbKO CeKyHd.

OBCJNYKBAHNE

BknHouHTe yCTpoiCTBO, KOrda npn6n3ntecb K TpaBe, KOtOpyo Heo6xOdmo NODpe3aTb.
Clerka HAKNOHTE yCTPOINCTBO BnepeN MeDneHHO DnBraInTeCb BnepeN (9).
YTo6bI nOpe3aTb TpaBy, NOBOpauNbAte yCTpoiCTBO HAnpaBO n HaJeBO (9).

ДлннHyTo TpaBy nope3aOT cNoaMn. Bcerda nope3aIte cbepxy (10-1, 10-2) bHn3.

Bo BpeMpa60TbI nOdaa Jeckn DoJnxHa 6bItb NOBepHyTa B CTOpOhy ra30Ha. WaROBaA bTOMaTIka OBeCneuHbAeT ONTMaJIbHyO dINHy JNeCKN.

3aunthyO cKoby dIpaCTeHn nCNoB3yIOT, TTo6bl depKaTb ycTpoIcTBO Ha Tpe6yeMOM pacctoHN OT npenrTcBn (11-1).
CkoIeHHy TpaBy BbIHMaOT, KOrda yCTpOJCTBO HaxODNTcB B BepTnKaJIbHOM IIOJOxEHIN.

BHIMAHNE!

B npoecce 3Kcnpnyatau H 3JIeKTPoHnCTpyMeHTa BeNCHHa B6paun MOKeT OTnUaTbCra OT yKa3aHHOrO 3HaueHnB 3aBNCIMOCTN OT npimHeHn yCTpOCTBa.

He neperpykaTe yctpoiCTBO BO BpeMa pa6oTbl.

TEXOBCJNYKIBAHNEI YXOD

BHIMAHNE!

Yrpo3a 3JIeKtpoWoka!

Ipeod obcnyxnbHnem yctpoiCTB OTKIOUHTe erOOT cETN IOBeCneYbTe, UTO6bl HNKTO erO NOBTOPOH He BKIOUHJ.

Iocne nCnOJIb3OBaHnB bIbTe 1TEnCeJIb N3 po3eTKn I npOBepbTe, He NOBpeXdEHO JIn yCTpoiCTBO.
BbicyuHTe yctpoNCTBO n xpaHnTe erOB MeCTe, HeIOCTyHOM dIa DeTei NocTOPOHHX IuC.
3NeKtpnueckne HEnoJaKn NMeIoT npaBO yCTpaHrToB KBaJIuΦNcIupOBaHHbIe CneuaJIncTbl.
YCTPOINCTBOM HeIb3a NOIb3OBaTbcra,ecnHoxa B IeCKOO6pe3uKe HET INn OHNOBpeKdEh.
Bcerda depknte npedoxpaHntbHbIuNTOK, rONOBky c neckoN dBnraTeNbCBO6OdHbIMN OT OCTaTKOB CKOWeHHOnTpaBbl.
He o6daBaTb yCTpoNCTBO cTpye BODbl! PpOnHKHyBwaA BHyTpB BOa (CnCTema 3axnraHna, Kap6Opatop ...) MoKeT cTaTb npuHHoH HeNCnpaBHOCTe.
He noDBepraTe yCTpoNcTBO BO3DeNcTBnIO BlaRi.
Perynpho npOBepaTe nCnpaBHOCTb yctpoiCTBa.
He nCNoB3yIe yNCTaUne cpeCTBa n pactbOpnteJI. OHN MOyT Heo6paTnMo NOBpeDNTb yCTpoiCTBO.

3aMeHa KaTyUkN cpeKyuEJIeCKoI

(Pe3epBnaKaTuSha c JeckoN GTE No apt. 112966)

1. OTKpOInTe 3aUInTHyIO KpbIiKky, HaxaB Ha o6aФИKcaTopa (8-1).
2. ɪərʌnʌkʌnɪte nʊctyʊ kɑtɪyʌkʌy (8-2).
3. YcTaHOBInTe HOByIO KaTyUkY C NeckoN.
4. Y6eIntecb, yTO Iecka IeKNT Ha MeCTe (8-3).
5. BbIaHnTe KOHcbl Neckn c o6eNx CToPOH.
6. YcTaHOBnTe 3aHTHyIO KpbIuKy I 3aΦNKcnpyTeΦNKCaTOPbl.

XPAHEHNE

YnCTte yctpoiCTBO n erO KOMNOHeHTbI NocJe KaJDoRo NCNoJIb30BaHnI.

Bewaite trpMMep 3a pyky. TaKIM o6pa30m pexyua rOIOBka He 6yJeT neperpykeHa.

XpaHnTe yCTpoiCTBO B cyxom 3aunueHHOM OT MOp03a MeCTe.

YTNIN3AUIN

BbIeDnne n3 cTpo np6Opbl,
aKkymyIaTOpbl n 6aTapen
3anpeuaeTcra yTNlN3HPOBaTb BMeCTe
c 6bITOBbIMn OTXoJam!

HCTpyMeHT,ero ynaKOBka n npHaJTeJXHOCTn N3rTOBNeHbI N3 MaTePnaIOB, NOJExKaUx BTOpHuO Hpepa6OTKe, NO3ToMv Ix CJIeDuET yTINN3InPOBaTb COOTBeTCTByUoIm 06pa3OM.

YCTPAHEHNE HENCINPABHOCTEIN

Héncsopravbnoctb Bo3mochnaj原则上可以使用Cnocob yctpaheHnaj
MOTOR He BkIyouaetcra Cpa6otan BvIKNoucaTeJIb dIpy 3aIiHTbI MOTopa Het cTeBOrO NaPryJxHeHnaj	Подождnte,пoka BvIKNoucaTeJIb dIpy 3aIiHTbI MOTopa ChOBa He BkIyouHt TpIMMeR. ПрOBерTe рpeIoXpaHnTeJIb/ 3aIiHTbI BvIKNoucaTeJIb, почнTe ольТрИку прOBерNTb ЛиNiK OIeKTPoSHa6ЖeHnaj ПрOBерTe уdIIInHnTeJIbHnI Ka6eJIb, pri Heo6xOДmOCTn 3aMeHnTe
Триммер ВИбрирует Катушka с leckoIЗаграЗнeHa ПОчиртite KaTuShKу, pri Heo6xOДmOCTn 3aMeHnTe
	Катушka пуstя 3amEнITE катушky ПLoXO порpeЗaET trPavY
	НебостаTochna дIinHa leckn OTrpeTунPyIte дIinHy leckn

B cnyuae BO3HnKHOBeHn NOBpeJdeHn, KOToPbI He yKa3aHbI B DaHHoT Tabnue, INN NOBpeJdeHn, C KOToPbIM NOnb3OBATeJIb He MoXeT cnpaBnTcRc Cam, ObpaaTecb HnSy Kny6y 06cnyKuBaHn KnneHTOB.

TAPAHNTN

Ipon3BODHTeJb yCTpaHReT BO3MOXHbIe DeΦeKtbl MaTePnaIOB nII npOn3BOdCTBeHHbI 6pak yCTpoiCTBa B TeueHHe yCTaHOBJIeHHOro 3aKOHOM cPoka IOnaUn peKJaMaun Ha CBOe ycMOTpeHne Nytem pEmOHTa IIIN 3aMeHbI. Cpok onpe- DeJIeTcra 3aKOHoDaTeJIbCTBOM cTpaHbI, B KOTopoN npNo6peTeHo yCTpoiCTBO.

TapaHTnI DeIcTByET TOnbKO npi CneDyIOUx ycNoFapAHTnI aHHynpyeTcR

BnX:

PnINONbITkaxpeMOHTaycTpoCTBa

I npn HndnekaeM nCNoJIb3OBAHn I npTexHnuecknx N3MeHeHnX yCTpOJCTBa; ycTpoiCTBa;
Pn co6IIOeHnn pyKOoDcTba no - npn HpIMeHnn He No HasnaCHeHn (HaNPmep, B KOMMepuecknx cenyx). 3Kcnpnyatau
PnNcNoB3OBAHmOpnHaJIbHbIX3aIyAcTei

IapaHTnHe pacnpoctpaHReTc:

Ha NOBpeJdeHnaJakoBOrO NOKpbITnA, KOtOpbIe o6brcHryOTcHOPMaJIbHbIM N3HOCOM;
N3HaUNBaIOUneCReTeaJI, KOToPbIE B KaTaIore 3aNuaCTeR 3aKInOueHbB paMky [xxx xxx (x)]
DnBraTeJI BHyTpEHHero CrotapHna: Ha Hnx paCnpocTpaHryTCyCNOBna IpeOCTabNeHnra rapaHTnOT npOn3BO-DnteJIa

TapaHTnHbI nepnoHaunHaeTcC daTbI npno6peTeHna nepBbIM nokyNaTeHem. TaKoI daToI cHTaETcRaDATAOpN- rHaNbHorOdoKymeHTaHaNOKynk. B rapaHTnHOM cnyae o6paNTteCb C daHHbIM rapaHTnHbIM NcBmOM INOKMeHTOM, NOITBepXdaIOUm NOKynkTOBaPA, K CBOeMy dInNepy INB 6bnKaMn ABTopn3OBaHNbI cepBnCHbI cHTp. TapaHTnJaET npABo NOKyNaTeHIO npedbYBnTb Ipon3BOIDNTeHIO pPeTeH3IN OTHOCTeNBHO yCTpaHEHr HeDOCTaTKOB 3DeJIra.

3AABJIEHNE O COOTBETCTBUN EC

HactoIIM 3aBnEM, YTO daHHbI npOyKT B npEcdTaNHeHn HAM MoNΦkaun COOTBeCTByET Tpe6oBaHnM rapMOHN3npOBaHHbIX dIpeKTHB EC, cTaHdpTob 6e3oNaChocTN EC n CneuaJIbHbIX cTaHdpTob, pacpOcTpaHryUOxxCn Ha daHHbI npOyKT.

PpOyKT N3rOToBnTeNb YIOJHOMoUeHHbI

Tpmmep, 3eKtpueckn AL-KO Gerate GmbH Andreas Hedrich

Unpablaiouoi DnapekTop

IHCTPyK3 EKCnJyATAI

3mict

IpeEmMoBa do noci6Hnka. 141

OnncBuro6y 141

Orna npodykui 142

Bka3iBkn 143

MoHTaK 144

BVeDeHnB Eeknnyataciio. 144

KepyBaHHa 145

TexHicHe o6cnyroByBaHHra I dOrnla. 145

36epirahnna 146

Ytulizia 146

DonomoraBpa3i HenoJaoK. 147

Tapaantia 147

Дeкларачи npo BiINOBiHicTB cTaHapTam EC. 148

BmipuBaHHa MexaHnHex Bi6paui Ha pyuci 3a cTaHapToM EN 28662-1:1992

Bka3aHI 3NaueHn8 6yNo po3paxObaHo 3a DOnOMoroIO cTahdapTHoI TeCTBOoi npoueDypn;ix MOxHa BnKOpNCTOByBaTN 3aInpiBnHHn p3Hnx eJektpuHnX npnlaIb.

Okpim TOrO, 3HaueHH MoXHa BnKOpNCTOByBaTIN DnI NonepeHboro PO3paxyHky HabaHTaKeHb KOpNCTyBaay, CnpuHIOBAHx Bi6paicio.

NONEPEDKEHHRA!

B 3aIexHoCTi BiD BnKOpNCTaHHn npnady fakTnue 3NaueHnB Bi6paCiIMoKe BiDi3HrTnC8 BiD HadaHO.

3aJna 3axncty BiD Bi6pauii CnID Bxntu BiiNobiHnx 3axo1B. Pnp cIbOMy CnID BpaxOByBaTN BeCb npOec, BKIOUaIOUc Yac po60Tu npInaHy 6e3 HabaHTaKeHHA bO NiOTo BMKHeHH.

DobiINOBIDHx 3axoDIBiDHOCTbCpeyIaRnTexHiuHni DOrJaTa o6cnyroBaHn npnaNy Ta Noro HacaOk,po3irpiBaHHpyOK,peryIaRHi nepepBv B pOboTI ta PnAnHyBaHHpo6oYOr npouecy.

NONEPEDJXEHHRA!

3aДЯ yHnKHeHH IOuKOJKeHHcIyXcIiB BJaRaTn 3axNCT dIЯ opraHb Clyxv.

3HaKn Ha npncTrooi

YBara! PpOABnIe OcO6nBy oBepeKHiCtB NiI qac po60Tu i3 npicTpoem.

IpeedyBeDeHnM B ekCnnyatauio npouHTaTe DOBIDNK3ekCnnyatauii!

He6e3neka npn BnKndaHnippeMetib!

Hikomy He Do3B0JaTe 3axoDHTy He6e3neuHy 3OHy.

BicTaHb mix npucTroem Ta TpeIMNOCo6amn NOBHHa CKnaadTMiHIMyM 15 M.

He cnid nidaBatn npnaI dII BOJOrn YN BODN.

BnKOpNCTOByIe 3axNCHi OKyJnRn, zoJIOM Ta 3aco6n 3axNCTy cnyx.

HeraHOb BiD'EDHaNte WTeKepe BiEeKTPomepexi, kUO nOoBxByBaIbHn Ka6eNb nOwKOxDKeHn Yn NpeRHyTn!

PerylboBaHa TeleckoniuHa pyka

Ley Tpimep 6bHaHOppeyIbOaHO TeleckoniuHO pyko.3abJKNCbOMy npnla MoXHa peryIbOaTN BiIOBIDHO DO 3poCTy KopNCTyBaHa, 3MIHIOUH NIOJOxEHn KpnKn DBNrHyHa.

BiknHa ta perynbObaHa pi3aIbHa roJiBa

GTE 450 Ta 550 obnaHaHO BiKnIHOTo Ta peYnbObaHO 3a KytOM HaxnIy p3aJIbHOIO rOJIbKOIO.

ABTomatka DOTNY

B nHTaHn ronibu po3TaUObaHo npncptpi ABToMaTKn DoTnky (8-4), ToK DnBryn npauoe DoTN, DOKN BnTAYeTBcpaHa NiCKa.

Pnnctpoi 6e3neKu Ta 3ano6ixHni npnctpoi

3amok Bi d iTei

OTbip (5 MM) Ha cTapTepi MOTopy npn3HaueHo dIy BnCHoro 3aMka*. Bucn 3amok nonepeDntb BnnaKOBe aKTINByBaHHn pncToIO.

*He exodumb do kOmnnneKmy

3an06xHn aBtOMaT dIy DnBnryHa

Tpimep noctaactbca 6nlaHaHMM 3anobixHM aBTOMATOM dIyBnryHa, 0o BUMKAc DnBnyH y pa3i nepeBaHTaXeHH.

Iicna oxoJodKeHHa, 10 TpNBae 3a3BnuaH 15 XbUNH, TpIMep 3HOBy MOKHa BMkATn.

YBAGA!

He6e3neka OTPMaHnTpaBm!

He BiDkIIOuAaTe 3anobixHni 3axnChi npncTpoi.

BnKOpncTaHnHa 3a npn3HaueHHaM

Дани писрип риз nauseй дя пд pi3aHня ra3ohiv y npnbathomy cektopi. Inwe

3aCTOCyBaHHBbXJaETbcra 3aCTOCyBaHHm He 3a npn3HaueHHM.

Ley npicpti He npn3haeHO dny BnKOpNCTaHHO O06amn (BKnIOuAIOUy DiTei) 3i 3HnXKeHmN o3nHmN, ceHCOPHMn a6o po3ymOBmN 3dI6HOCTaMn a6o HeDOCTaTHIM DOCBIOM Yn/a6o 3HaHHMa, kUo TINbKN iX He KOHTpOJIcO cO6a, uO BiNObIaE 3i ixHIO 6e3neKy Ta Hadae IM Bka3IBKn 0do TORO, kCNI BnKOpNCTOBYBaTN npncptri. CniD cyBopo KOnTPOJHOBatn DiTei 3aIy yHnKHeHHr rpi 3 npNCPToem.

YBAGA!

Pnna He 03BOJcBc8 eknnnyatyBaTu 3 npocicinHOIO MeTOIO.

OrJaI PPOyKci

Y orlaipoodykui (1) HadaeTbcn onnc npuna.

He Kopnctyntecb npncptpoem y ctaHi cn'raHHn, nD BnINBOM HapKOTuHnx a6o likapcbknx 3acob.

CπiD doTpmyBaTnca npabn i3 3anobirHnHeuacnX BnnaKIB.

EneKtpnHa 6e3neKa

OBEPEKHO!

He6e3neka nID qac doTnky do ctpymonpoBihnx deTanei!

HeraHo BiD'EDHaIte WTekep BiEneKTpOmepeXi,ЯKUo NODBxByaJIbHNKa6eNb NOsKOJxH Neu nepeHyTuN!Mn peKOMeHdyEmo 3diChHTnNiKlNoyeHH Yepe3 aBTOMaTUnHn3aNo6ixHn BmIKaY i3 HOMiHaJIbHMcTpymo NoKoJxHHe<30 mA.

Домашня МерекеВа Hanpyra NOBINHa 3бiraTиСя 3 дAHIMN ДЯ МерекeBOI HanpyRn B TextHiHIN DoKymeHTaUII. He BKNOPcTObYuTe 6yDb-уKy iHsu HanpyrJ XNBJIeHHJ.
BnKOpNCToByTe TiIbKn NODOBKyBaIbHi Ka6eni, 10 np3HaueHi DnBnKOpNCtAHnHa BiKpntomy NobITpi, 3 MInImaIbHm IonepeuHm nepetHOM 1,5 MM2. Ka6JIbHi 6apabHn NOBHHI 6yTu NOBHicTHo po3MOTahi.
3a6opohreTbcB BnKOpNCTOByBaTHI NOxKOJKeHi Ta 3HOSeHi NODOBXyBaJIbHi Ka6eni.

Ipeod KOxHUM 6eDeEHMa eKcnpnyamaio nepeepnme cmaH nooBkyaeanbHuX Ka6enie.

CniD 3aKpInIIOBaTn NOOByBaYi y 3aTNCKyBaayx dny Ka6eJIb.
He cnid niDabatn npnaD dI BOnrn Cu BOiN.
Cπid trpmaTn diTei noaJI BiD πidKluOeHnx Do MepeXi XnBHeHH npuaIb.

MOHTAK

YBAGA!

Ekcnnyataia npnady Do3BOJrEcTbcraIiue nicna nobHoro 3aBepuen HnoROMontaxy.

BcTaHOBJIeHHaXnCHOro Ko3nPka

IHTerpoBaHn B 3axuChn KOBnaK HIX aBTOMaTHUHO o6pi3ae pixyuy Nicky do ONTImaJIbHOI DOBXHH.

GTE 350

1. 3axnchni Ko3npok Ha pi3aIbHi roJIbUci (2-1).
2. NpekeKaHaTeC8 B TOMy, HHTKByBnHO.
3. 3akpinitb II 4-MA TBnHTaMn.

GTE 450, GTE 550

1. 3axnchni Ko3npok Ha pi3aIbHi roJIbUci (2-1).
2. IpepeKoHaTeC8 B TOMy, 10 HNTky BuDHO.
3. Повсichtу 3aRbHHTiTb 3axuChn Ko3npok KOMJIeKTHUMI TBHHTam (2-1).
4. BctaHObitb HanpymHe KOleco Ha 3axnchn KOBnak Ta 3arBnHTtB rBnHTn (2-2).

MOHTAX donomixhoI pykn

GTE 350

1. 3nerka notarHitb nyckoby dyykky donomixHOI pyuKn (3-1).
2. 3HimItb donomixHy pyky 3 yTpmyBaHa (3-2).
3. BctaHOBIb DOnomixHy pyky y 3y6yate 3yennenHn.
4. Pnkpinitb 6oTObe KpinneHHa Ta 3aTARHITb CTXHN 6oT (3-3).

GTE 450, GTE 550

Tpmaoun kopomncno y donomixkni pyu, BiDperyIIOte Kyt haxnny pUKN 3a notpe6oJ.

1. BctaHOBiTb Ha pykoTky.
2. 3JIerKa notaHITb NyCKOBy dyKKy DOnOMixHOI pyuKn (3-1).
3. 3HimItbIOnomKHy pykCy 3yTpmyBaHa (3-2).
4. BcTaHOBiTb DonomixKHy pyky y 3y6aTe 3yennenHn.
   5.BcTaHOBItb KOpOMnCNo 3 6oNTOBUM kpinHeHHM CTaXHM 6oTOM.
5. 3aBnHTiB 6oJTOBe KpInIeHHra TaK, Ioo6 KopomncNo pyxaIOcra JIWe He3HaUHm 3ycuJIpm (3-3).

BBEENHBAKCNYYATAUIO

YBAGA!

Ipepe yBeeHnB EeknIyataio 3aBXnOrJaTe npictpi.

BidperyniTe TeneckoniuHy pyky

1.ДЯ BnBInbHeHnЯ NOBepHiTb BepXHc CTOnOpHe 3aTnCKaHHЯ npi6JI. Ha 180^ npabOpuy (4-1).
2. TeileckoniuHa pyuKa peryIIOeTbcB BIDNOiDHO Do 3poCtY KOpNCTyBaHa. TeileckoniuHa pyuKa noOBoKYeTbcr npn6JI. Ha 10 cm (4-2).
3. 3aTarrHItb CTOnOpHe 3aTnckKaHHa (4-3).

NobepHiB pi3aIbHy roJIbKy

Hanp.,ДЯTORO IO6OBo6bHTN OKpaIKn ra3OHiB, p3aJIbHy roJIbKy MoXHo NOBepHyTu Ha 180° (5, 6).

3aMiHa KoTyuKn IJIa JIickN

(3MiHHa KoTyUka dny Niickn GTE ApT. No 112966)

1. BiДкрип Te Kршky, HaTиСнчБин Ha OБиДВа ФikcaTopn (8-1).
2. BnIMiTb npoXHIO KOtyuKy dIa JicKn (8-2).
3. BCTaBTe HOBy KOtyuKy.
4. NepekoHaItecB Tomy, lo npyuKHy po3TaWoBaHO Ha BiIObIDHomy Micci (8-3).
   5.ПpoTЯн thi Jicky 3 06ox 6okiB Ha3OBHI.
5. 3akpnTe KpnkTy Ta aphiikcyte II.

3BEPIgAHH

Ppna Ta noro akcesayn cnid ouuhyBaTn nicra Koxhoro BkopncTaHHa.

Tpimep cnid BiwaTn Ha rauok. TaKIM YHOM pi3aIbHa roJIbKa He OTPMByBaTIme 3aIBORo HabaHTaXeHHJ.

Ppnilaad cniid 36epiratyn y cyxomy Tennomy Micci.

YTNJI3ALI

3a60pOHaCTbCay yTuJIi3yBaTn npIaN, 6atapei nn akymyIaTOPn, 1o cTaN HEnpuaTHMn, pa3OM i3 no6yTOBmN BIXxOaMn!

YnakOBka,cam npncptpi Ta noro npnilaDn BIKOHaHi 3 MaTePiaNIB,moKyTB 6yTN BIKOpNCtahi NOBTOpHO, TOMy BOH NiIJaTb BiIDNOBIDHi yTnI3aui.

ДОПOMΟΓΑВРАЗИНПОЛАДOK

TapaHTiHa He noWnpiOeTbc:

Ha N0IkoJxHHe JnKOBOro NOKpTTra, kI NOrCHIOHTbC HOpMaJIbHM 3HOuYBaHHM;
TeTani, 3HOsyIObCra, y KaTALO3i 3aHacTHN BKnIOueHi BpaMky [xxx xxx (x)]
BbnyHn BHytpiHbOro 3ropaHH: nna Hnx diOTb rapaHTiHi noIOXeHH BIDNOBHO HorO Bnp6Hnka.

TapaHTiHn nepioD nouHaεTbcra C daTn npudbaHHa nepuHm nokyncem. TaKoIO daTOO BBAxJaTbc DaT aOpriHaJIb- Horo DOkUMeHTy Ha npudbaHHa. Y rapaHTiHOMy BnnaIky 3BepHiTbc 3 daHIMrapaHTiHnM IINCTOM Ta DOKUMeHTOM, knnPiITBepdxKy e KynIBNIO To-Bapy, Do CBORO dInepa QNo Hau6nXqHO ABTOPn3OBaHO CepBicHO cHTpy. TapaHTia dae npabo nokyncebi nped'YbnTn Bnpo6HKoBI npTeH3II BiIDHOcO yCyBaHHa HeDoJIikB Bnpo6y.

DEKJIAPAUI IPO BIINOBIDHICTb CTAHdAPTAM EC

LIM DOKyMeHToM M3aBnEMo, 0u cIe cnpoekToBaHH HAMn npOdyKT BiINOBiDaE BmOram noroJxehnx dIpeKTHB CC, cTaHapTaM 6e3neKn CC, a TAKoX iHsIM cTaNapTaM, 0u 3actocobHi do Iboro npOdykTy.

IpoaykTBnO6HnK YnoBHOaKeHH npEcdTbHNK

Tpimep, eJektpuHn AL-KO Gerate GmbH Andreas Hedrich
