Trolley Me - Stroller CHICCO - Free user manual and instructions

Product type	Stroller
Brand	Chicco
Model	Trolley Me
Recommended age	From birth to 36 months
Maximum weight capacity	15 kg
Safety harness	5-point harness with shoulder straps, waist belt, and crotch strap
Backrest adjustment	Reclining via strap, multiple positions
Leg rest	Adjustable to 2 positions (horizontal/vertical)
Canopy	Integrated with sun net, not removable
Brakes	Rear twin brakes, central pedal control
Storage basket	Removable, maximum capacity 3 kg
Folding	One-hand, with automatic lock, trolley position
Carry handle	Retractable (trolley) for transport after folding
Wheels	Front and rear removable for compactness
Optional accessories	Rain cover (not included in all versions)
Maintenance	Clean with damp sponge and mild soap; lubricate moving parts with silicone oil
Warranty	Against conformity defects according to national conditions

Frequently Asked Questions - Trolley Me CHICCO

How to install the wheels on the Trolley Me stroller?

Insert the front wheels until they lock (click). For the rear wheels, insert the axle into the rear tube. Always check that they are securely attached before use.

How to adjust the safety harness for a newborn?

For children 0 to 6 months, pass the shoulder straps through the horizontal slots and the waist belt through the vertical slots. Adjust the height of the harness covers in the backrest slits.

How to fold the Trolley Me stroller?

Empty the basket and close the canopy. Slide the cursor A to the left while pressing button B, then push the handle down until fully closed. The stroller locks automatically.

What is the maximum weight capacity of the basket?

The storage basket supports a maximum weight of 3 kg. Do not overload it to avoid compromising the stroller's stability.

Can I use the stroller for jogging?

No, this product is not designed for jogging or rollerblading. It is intended for normal walking.

How to maintain the wheels?

Regularly check wheel wear and clean them to remove dust and sand. Lubricate moving parts with silicone oil if necessary. Store the stroller in a dry place.

Is the rain cover included?

The rain cover may be provided depending on the version purchased. Follow the attachment instructions: pass the ribbons around the stroller tubes on both sides. Never use it without the canopy.

How to clean the fabric parts?

The stroller is not removable. Clean the fabric parts with a damp sponge and mild soap. Plastic parts with a damp cloth. Dry metal parts if wet.

From what age can I use the stroller in a seated position?

From birth to 6 months, the backrest must be fully reclined. After 6 months, you can gradually raise the backrest according to the child's development.

How to release the rear brakes?

Press the central pedal in the opposite direction (upwards) to release the braking system. The pedal is located between the two rear wheels.

USER MANUAL Trolley Me CHICCO

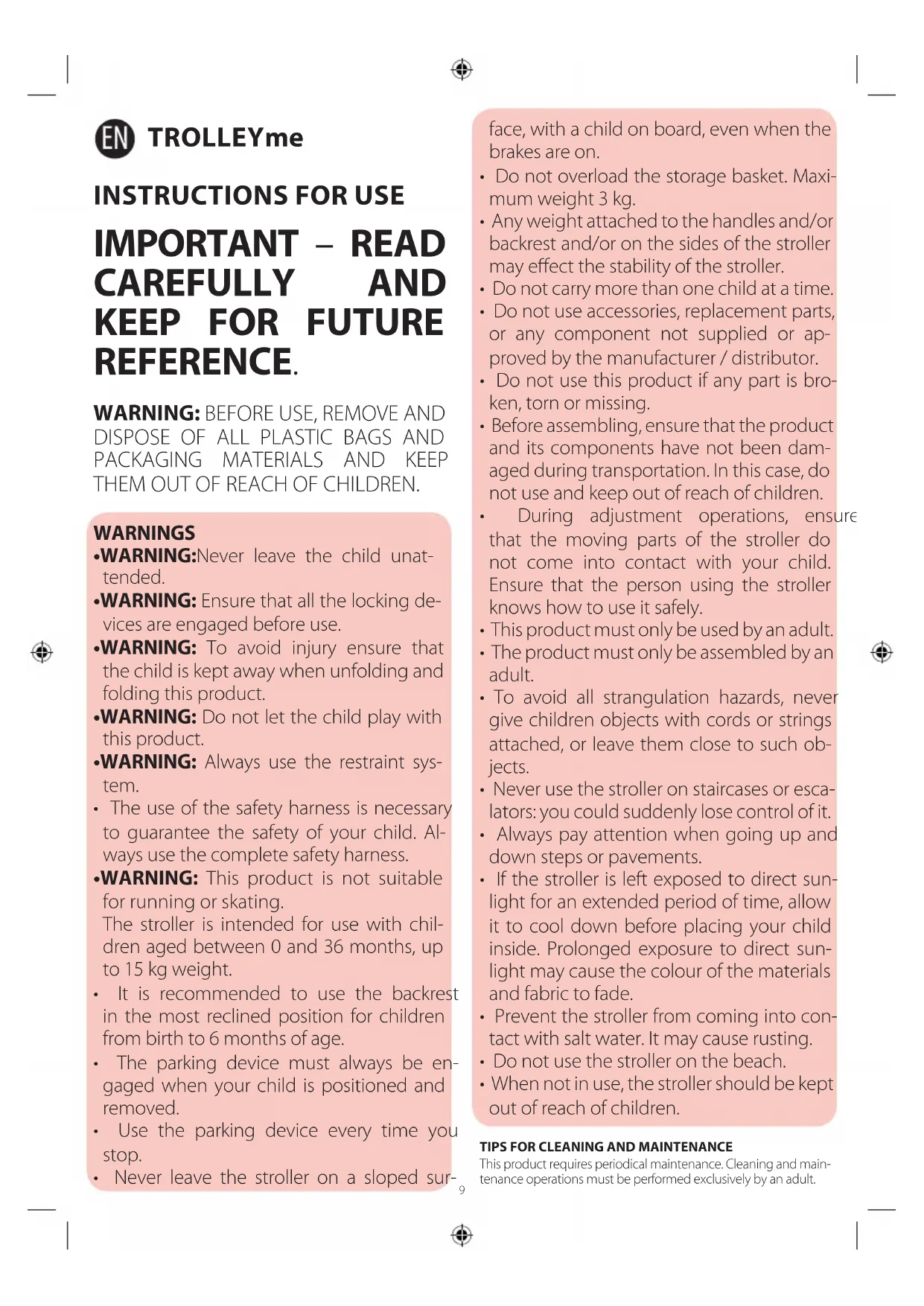

INSTRUCTIONS FOR USE IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

WARNING

-WARNING:Never leave the child unattended.
-WARNING: Ensure that all the locking devices are engaged before use.
-WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.
-WARNING: Do not let the child play with this product.
-WARNING: Always use the restraint system.
- The use of the safety harness is necessary to guarantee the safety of your child. Always use the complete safety harness.
-WARNING: This product is not suitable for running or skating. The stroller is intended for use with children aged between 0 and 36 months, up to 15 kg weight.
It is recommended to use the backrest in the most reclined position for children from birth to 6 months of age.
- The parking device must always be engaged when your child is positioned and removed.
- Use the parking device every time you stop.
- Never leave the stroller on a sloped sur

face, with a child on board, even when the brakes are on.

• Do not overload the storage basket. Maximum weight 3kg .
• Any weight attached to the handles and/or backrest and/or on the sides of the stroller may effect the stability of the stroller.
• Do not carry more than one child at a time.
• Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer / distributor.
• Do not use this product if any part is broken, torn or missing.
• Before assembling, ensure that the product and its components have not been damaged during transportation. In this case, do not use and keep out of reach of children.
  During adjustment operations, ensure that the moving parts of the stroller do not come into contact with your child. Ensure that the person using the stroller knows how to use it safely.
• This product must only be used by an adult.
• The product must only be assembled by an adult.
• To avoid all strangulation hazards, never give children objects with cords or strings attached, or leave them close to such objects.
• Never use the stroller on staircases or escalators: you could suddenly lose control of it.
  Always pay attention when going up and down steps or pavements.
• If the stroller is left exposed to direct sunlight for an extended period of time, allow it to cool down before placing your child inside. Prolonged exposure to direct sunlight may cause the colour of the materials and fabric to fade.
• Prevent the stroller from coming into contact with salt water. It may cause rusting.
• Do not use the stroller on the beach.
• When not in use, the stroller should be kept out of reach of children.

TIPS FOR CLEANING AND MAINTENANCE

This product requires periodical maintenance. Cleaning and maintenance operations must be performed exclusively by an adult.

CLEANING

The cover cannot be removed. Clean the fabric parts using a wet terry towel and neutral soap. Periodically wipe the plastic parts clean with a soft damp cloth. To prevent the formation of rust, always dry metal parts if they have come into contact with water.

The washing symbols and relative meanings are indicated below:

Do not wash with water.
not bleach
Brotumble dry
not iron
B. not dry clean

MAINTENANCE

If necessary, lubricate the moving parts with dry silicone lubricant.

Regularly check the condition of the wheels and clean off all dust and sand. To avoid friction that may compromise the correct functioning of the stroller, make sure all plastic parts that run along the metal tubes are clean of dust, dirt and sand.

Keep the stroller in a dry place.

GENERAL INSTRUCTIONS

OPENING THE STROLLER AND FIRST ASSEMBLY

WARNING: When opening the stroller, make sure that your child or other children are at a safe distance.

WARNING: Make sure that during these operations the moving parts of the stroller do not come into contact with your child.

1. Open the closing hook (Fig. 1) and pull up on the handle (Fig. 1A) until the structure opens completely (Fig. 1B).
   WARNING: Before use, make sure that the stroller is locked in open position, checking that the mechanism is actually locked.
2. Mount the front wheels on the stroller until they are locked in position (Fig. 2).
3. Fit the rear wheels by inserting the pin in the appropriate hole on the rear tube (Fig. 3).

WARNING: Before use, ensure that all the wheels are locked correctly.

CARRY-ALL BASKET

The storage basket is already installed. Should removal be necessary, follow the steps provided below.

1. The basket is attached to the frame at several points. Unfasten the 3 snap buttons on the rear tube of the stroller (Fig. 4); remove the lateral straps on the rear legs of the stroller (Fig. 4A); unfasten the snap buttons located on the inner part of the stroller joints (Fig. 4B); open the velcro segments on the front (Fig. 4C); remove the 3 straps attached to the footrest (Fig. 4D).
   To reassemble the basket follow these same steps in reverse order.

BUMPER BAR

1. The bumper bar cannot be removed; it can be opened by simultaneously pressing the two buttons located at the centre of the bar (Fig. 5-5A)
   WARNING: Never use the bumper bar to lift the stroller up with your child sitting in it.

HOW TO USE THE SAFETY HARNESS

This stroller has a five-point safety harness featuring two shoulder straps, two adjustment holes, a waist strap and a crotch strap with buckle.

1. WARNING: For use with children from birth to 6 months, you must use the shoulder straps, passing them first through the two adjuster slots (Fig. 6).
   The height of the shoulder straps can be adjusted by passing them through the different slots present on the backrest (Fig. 6A-6B)
2. After laying the child in the stroller, fasten the straps (Fig. 7) by passing first the two forks (A) inside the shoulder strap buckle (B) and then inside the crotch strap buckle (C); adjust the height of the shoulder straps so that they correctly fit your child's shoulders (Fig. 7A).

Always make sure that the straps are fastened correctly. To unfasten the strap, press and pull the side clips.

WARNING: Children must wear all the time the safety harness. To ensure your child's safety, it is necessary to always use the safety harness.

To make sure that the belts are fastened properly to the anchoring points, after placing your child inside the stroller, pull the end parts of the belts firmly.

The inclination of the backrest is adjustable with a belt adjustment mechanism.

1. To lower the backrest, use the rear adjustment system by pressing the buttons of the clips.

On the other hand, to raise the backrest, you will need to pull on the lateral straps (Fig. 8A) until the desired position has been achieved.

WARNING: These operations may be more difficult if your child is sitting in the chair.

REAR BRAKES

The rear wheels have linked brakes, which can be applied simultaneously on both rear wheels by using the support tube.
9. To brake the stroller, press down on the pedal located centrally (Fig. 9).
10. To release the brakes, press the pedal in the opposite direction (Fig. 10).

SUN CANOPY

The canopy is already installed on the stroller and cannot be removed.
11. To open and adjust the canopy use the front arch (Fig. 11). The rear part of the canopy is attached to the backrest with a zipper (Fig. 11A)

ADJUSTABLE LEGREST

The legrest can be used in 2 positions.
12. To use it in the horizontal position pull the transport handle out until the first click (Fig. 12-12A).
WARNING: When using the stroller, never pull the transport handle out any further than the first click.

WARNING: When opening the stroller, make sure that your child or other children are at a safe distance.
WARNING: Make sure that during these operations the moving parts of the stroller do not come into contact with your child.
before closing the stroller, make sure that the storage basket is empty and the canopy is closed.
The stroller has a closing device that can be used with one hand.
13. To close the stroller, push switch A to the left and simulta

neously press button B (Fig. 13); push down on the handle until the stroller closes completely (Fig. 13A - 13B).

The stroller will automatically lock in the closed position. When closed, the stroller stands on its own; to make it easier to transport, the transport handle may be pulled out and used as a trolley (Fig. 13C - 13D).

ACCESSIONS

WARNING: The accessories described below may not be included in some product versions. Please carefully read the instructions on the accessories available for the model purchased.

SHOULDER STRAPS AND CROTCH STRAPS

The stroller is fitted with padded shoulder straps and a soft crotch strap to ensure the safety and comfort of your child.

1. For assembly, insert the shoulder straps in the buckles (Fig. 14) and the crotch strap in the relevant padding (Fig. 14A).

WARNING: The waist belt can be adjusted by pressing on the buckles.

WARNING: To ensure you child's safety, it is important that they wear the safety harness at all times.

RAIN COVER

1. To fit the rain cover, fasten the straps around the stroller's frame in the positions shown in Fig. 15 (steps to be repeated on both sides of the stroller).

When you have finished using the rain cover, allow it to dry properly if it is wet.

WARNING: The rain cover cannot be used on the stroller without a hood, as it may cause suffocation.

WARNING: When the rain cover is fitted on the stroller, never leave it exposed to direct sunlight with your child inside, as the temperature will rise considerably.

REMOVING THE WHEELS

To make the stroller even more compact for transportation and storage, the wheels may be removed.

1. To remove the front wheels press the button shown in figure 16.
2. To remove the rear wheels press the button and remove the wheel pin from the hole in the rear tube (Fig. 17).

WARRANTY

The product is guaranteed against any conformity defect in normal conditions of use as stated in the instructions. Therefore, the warranty does not apply in the case of damage caused by improper use, wear or accidental events. For the duration of warranty on conformity defects, please refer to the specific provisions of national laws applicable in the country of purchase, where provided.
