USER MANUAL Stroll In 2 CHICCO

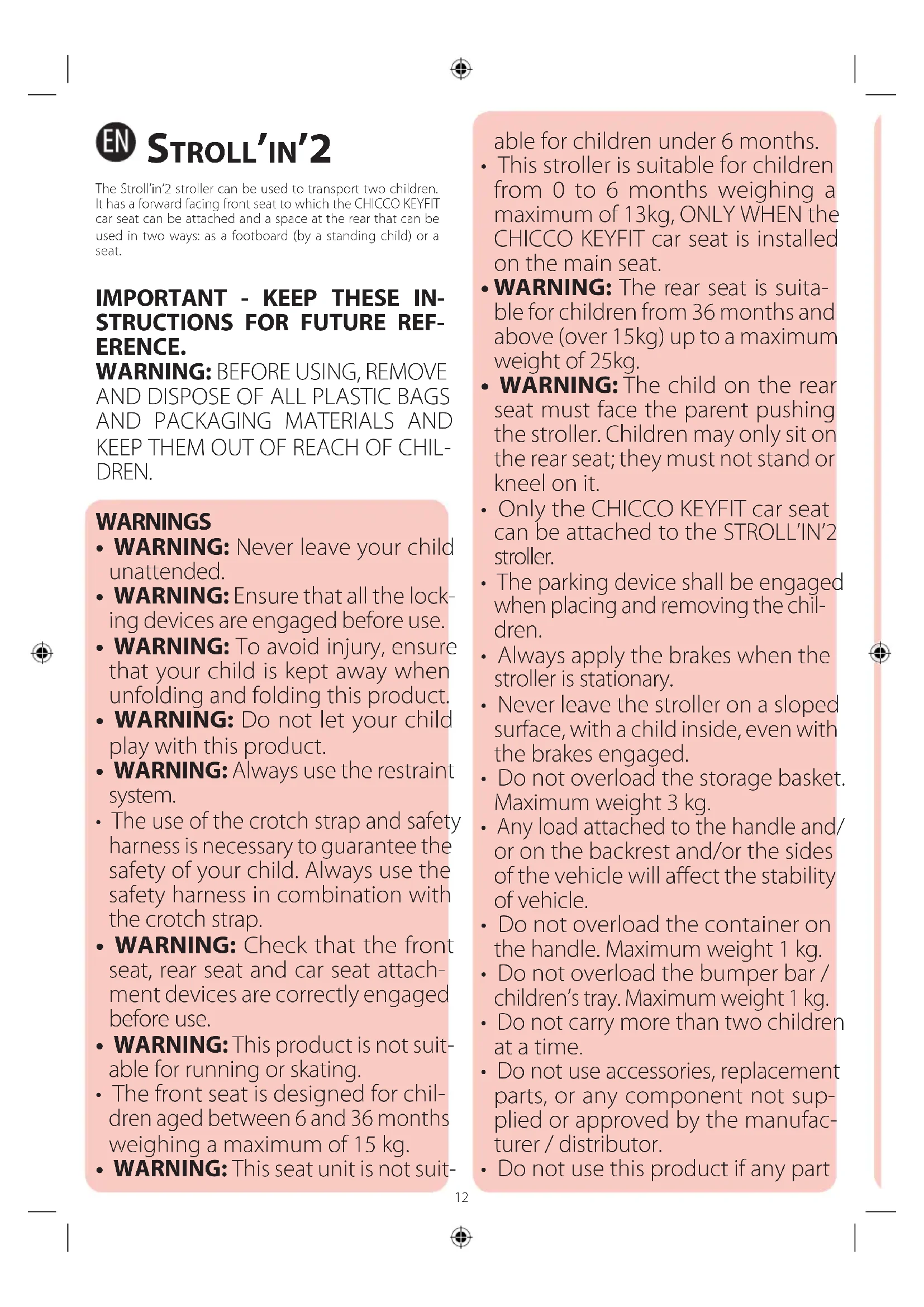

Stroll’in’2 The Stroll’in’2 stroller can be used to transport two children. It has a forward facing front seat to which the CHICCO KEYFIT car seat can be attached and a space at the rear that can be used in two ways: as a footboard (by a standing child) or a seat.

IMPORTANT - KEEP THESE IN-

KEEP THEM OUT OF REACH OF CHIL- DREN. WARNINGS

WARNING: Never leave your child unattended.

WARNING: Ensure that all the lock- ing devices are engaged before use.

WARNING: To avoid injury, ensure that your child is kept away when unfolding and folding this product.

WARNING: Do not let your child play with this product.

WARNING: Always use the restraint system.

The use of the crotch strap and safety harness is necessary to guarantee the safety of your child. Always use the safety harness in combination with the crotch strap.

WARNING: Check that the front seat, rear seat and car seat attach- ment devices are correctly engaged before use.

WARNING: This product is not suit- able for running or skating.

The front seat is designed for chil- dren aged between 6 and 36 months weighing a maximum of 15 kg.

WARNING: This seat unit is not suit- able for children under 6 months.

This stroller is suitable for children from 0 to 6 months weighing a maximum of 13kg, ONLY WHEN the CHICCO KEYFIT car seat is installed on the main seat.

W A R N I N G : The rear seat is suita- ble for children from 36 months and above (over 15kg) up to a maximum weight of 25kg.

WARNING: The child on the rear seat must face the parent pushing the stroller. Children may only sit on the rear seat; they must not stand or kneel on it.

Only the CHICCO KEYFIT car seat can be attached to the STROLL’IN’2 stroller.

The parking device shall be engaged when placing and removing the chil- dren.

Always apply the brakes when the stroller is stationary.

Never leave the stroller on a sloped surface, with a child inside, even with the brakes engaged.

Do not overload the storage basket. Maximum weight 3 kg.

Any load attached to the handle and/ or on the backrest and/or the sides of the vehicle will aﬀect the stability of vehicle.

Do not overload the container on the handle. Maximum weight 1 kg.

Do not overload the bumper bar / children’s tray. Maximum weight 1 kg.

Do not carry more than two children at a time.

Do not use accessories, replacement parts, or any component not sup- plied or approved by the manufac- turer / distributor.

Do not use this product if any part is broken, torn or missing.

For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

WARNING: The rear footboard must only be used by children of at least 36 months with good balance and coordination and weighing a maxi- mum of 25 kg.

WARNING: Your child must be able to use the footboard safely.

WARNING: Do not place hot liquids on the bumper bar/children’s tray.

WARNING: Do not leave glass bot- tles or feeding bottles on the bump- er bar/children’s tray.

WARNING: Check that your child or other children are at a safe dis- tance when opening and closing the stroller. Ensure that during these operations the moving parts of the stroller do not come into contact with your child.

WARNING: The bumper bar/chil- dren’s tray must be removed to use the CHICCO KEYFIT car seat.

WARNING: Always check that the CHICCO KEYFIT car seat is securely attached to the frame of the stroller by pulling it upwards.

WARNING: Always check that the safety harnesses are fastened when your child is sat in the CHICCO KEYFIT car seat installed on the stroller.

WARNING: Use this product only to transport babies that meet the weight and age limits indicated by the CHICCO KEYFIT car seat. For fur- ther warnings and instructions be- fore using this product, refer to the12

able for children under 6 months.

This stroller is suitable for children from 0 to 6 months weighing a maximum of 13kg, ONLY WHEN the CHICCO KEYFIT car seat is installed on the main seat.

W A R N I N G : The rear seat is suita- ble for children from 36 months and above (over 15kg) up to a maximum weight of 25kg.

WARNING: The child on the rear seat must face the parent pushing the stroller. Children may only sit on the rear seat; they must not stand or kneel on it.

Only the CHICCO KEYFIT car seat can be attached to the STROLL’IN’2 stroller.

The parking device shall be engaged when placing and removing the chil- dren.

Always apply the brakes when the stroller is stationary.

Never leave the stroller on a sloped surface, with a child inside, even with the brakes engaged.

Do not overload the storage basket. Maximum weight 3 kg.

Any load attached to the handle and/ or on the backrest and/or the sides of the vehicle will aﬀect the stability of vehicle.

Do not overload the container on the handle. Maximum weight 1 kg.

Do not overload the bumper bar / children’s tray. Maximum weight 1 kg.

Do not carry more than two children at a time.

Do not use accessories, replacement parts, or any component not sup- plied or approved by the manufac- turer / distributor.

Do not use this product if any part is broken, torn or missing.

For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

WARNING: The rear footboard must only be used by children of at least 36 months with good balance and coordination and weighing a maxi- mum of 25 kg.

WARNING: Your child must be able to use the footboard safely.

WARNING: Do not place hot liquids on the bumper bar/children’s tray.

WARNING: Do not leave glass bot- tles or feeding bottles on the bump- er bar/children’s tray.

WARNING: Check that your child or other children are at a safe dis- tance when opening and closing the stroller. Ensure that during these operations the moving parts of the stroller do not come into contact with your child.

WARNING: The bumper bar/chil- dren’s tray must be removed to use the CHICCO KEYFIT car seat.

WARNING: Always check that the CHICCO KEYFIT car seat is securely attached to the frame of the stroller by pulling it upwards.

WARNING: Always check that the safety harnesses are fastened when your child is sat in the CHICCO KEYFIT car seat installed on the stroller.

WARNING: Use this product only to transport babies that meet the weight and age limits indicated by the CHICCO KEYFIT car seat. For fur- ther warnings and instructions be- fore using this product, refer to the car seat manual.

WARNING: The CHICCO KEYFIT car seat must only be installed on the frame facing the rear. Your child must watch you as you push the stroller.

Before assembly, ensure that the product and its components have not been damaged during transpor- tation. In this case, do not use and keep out of reach of children.

Ensure that during these operations the moving parts of the stroller do not come into contact with your child.

Make sure that the person using the stroller knows how to use it safely.

The product must only be assembled by an adult.

This product must only be used by an adult.

To avoid all risk of suocation, never give children objects with cords or strings attached, or leave them close to such objects.

Never use the stroller on staircases or escalators: you could suddenly loose control of it.

Always pay attention when going up and down steps or pavements.

If the stroller has been exposed di- rectly to sunlight for a long time, leave it to cool down before placing your child in it. Prolonged exposure to direct sunlight may cause the colour of the materials and fabric to fade.

Prevent the stroller from coming into contact with salty water. It may cause rusting.

Do not use the stroller on the beach.

When not in use, the stroller should be kept out of reach of children.

Rear wheel installation kit (2 washers, 2 spring pins, 2 plugs)

Bumper bar/children’s tray

Comfort kit (padded shoulder and crotch straps)

WARNING: This product requires regular periodical maintenance.

The cleaning and maintenance of the product must only be carried out by an adult. CLEANING Clean the fabric parts using a wet sponge and neutral soap. The lining can be removed (please refer to the section “Fitting/ removing the seat lining”). Please refer to the care labels for instructions on how to clean the fabric parts. Below are the cleaning symbols and their meanings: Wash by hand with cold water. Do not bleach Do not tumble dry Do not iron Do not dry clean Routinely wipe clean plastic parts with a soft damp cloth. Never use solvents or abrasive detergents. Always dry the metal parts to prevent the formation of rust if the stroller has come into contact with water. MAINTENANCE If necessary, lubricate the moving parts with dry silicone lubri- cant. Regularly check the condition of the wheels and clean oﬀ all dust and sand. To avoid friction that may compromise the correct functioning of the stroller, make sure that all plastic parts that slide on the metal tubes are free of dust, dirt and sand. Keep the stroller in a dry place.

OPENING AND FIRST ASSEMBLY

1. Completely open the stroller frame (Fig. 1A-1B) until you

2. Insert the front wheel pins in the dedicated slots on the frame

(Fig. 2). Repeat the operation for the other front wheel.

WARNING: Before using, ensure that the wheels are correctly

attached by pulling them downwards.

3. To assemble the wheels on the rear axle, ﬁt the following

parts in the correct order, see Fig. 3:

plug (D) Make sure you insert the fastening spring pin as indicated in the diagram: the straight side must be inserted in the hole in the pin. Repeat this operation also for the other wheel, following the same sequence.

4. Fit the rear axle with the wheels mounted in the relevant

slots in the frame until you hear it click into place (Fig. 4).

WARNING: Before using ensure that the wheels and rear axle

are correctly attached.

5. To complete assembly attach the platform to the rear axle

(Fig. 5A-5B). When concluded, the platform will be assembled as in Figure 5C.

6. To ﬁt the hood, fasten the plastic clips to the frame’s tubes

matching the holes in the clips with the pins on the tubes (Fig. 6A-6B). To remove the hood, turn the fastening clips outwards (Fig. 6C).

7. Insert the bumper bar/children’s tray in the dedicated slots

until they click into place (Fig. 7A). To remove the bumper bar/ children’s tray press the two side buttons and pull towards you (Fig. 7B).

WARNING: Never use the bumper bar/children’s tray to lift the

stroller with your child sitting in it. SAFETY HARNESS On the front seat the stroller has a ﬁve-point safety harness which consists of two shoulder straps, a waist strap and a crotch strap with buckle. The rear seat has a three-point safety harness which consists of a waist strap and a crotch strap with buckle.

8. Make sure the shoulder straps are at a suitable height for

your child: adjust if necessary (Fig. 8).

9. After placing your child in the front seat, insert the two forks

in the buckle (Fig. 9A) and adjust the waist belt if necessary by pressing the buttons at the side of the buckle. To unfasten the waist belt press the central button (Fig. 9B).

10. After placing the second child in the rear seat, adjust the

waist belt by pressing the buttons at the side of the buck- le (Fig. 10A). To unfasten the waist belt press the central button (Fig. 10B).

WARNING: The use of the crotch strap, waist strap and safety

harness is necessary to guarantee the safety of your child.

WARNING: After removing the safety harness (e.g. to wash it),

ensure that the harness is reassembled correctly using the anchorage points. The harness must be re adjusted.

HOW TO ADJUST THE BACKREST

11. The backrest can be adjusted into two positions using the

lever at the rear. To lower the backrest pull the lever up and push the backrest back (Fig. 11). Vice versa, to straighten the backrest lift the lever or push it forwards.

WARNING: These operations may be more diﬃcult if your child

is sitting in the chair. REAR BRAKES The rear wheels have linked brakes, which can be applied simultaneously on both rear wheels using one pedal only.

12. To apply the brakes, press one of the two pedals at the sides

of the rear wheels down, as shown in Figure 12.

13. To release the brakes, push up one of the two pedals to the

sides of the rear wheels, as shown in Figure 13. SUN CANOPY

WARNING: The canopy must be ﬁxed to both sides of the

stroller. Ensure that the canopy is correctly secured (see point 6).

14. To open the canopy, push the front arch forward (Fig. 14).

15. For greater protection from the sun’s rays it is possible to

increase the fabric surface of the canopy by extending the wings and the central fabric segment folded under the canopy (Fig. 15A-15B).

CLOSING THE STROLLER

WARNING: When opening the stroller, make sure that your child

or other children are at a safe distance. Make sure that during these operations the moving parts of the stroller do not come into contact with your child. Before closing the stroller, make sure that the storage basket is empty and the canopy is closed. The stroller has a closing device that can be used with one hand.

16. To close the stroller push cursor “A” on the closing device (Fig.

16A) outwards and lift the tube at the same time (Fig. 16B).

17. When closed, the stroller stands up on its own (Fig. 17).

FITTING AND REMOVING THE STROLLER LINING

18. To remove the lining from the front seat lower the backrest

completely by pulling the lever and pushing it forwards (Fig. 18A), remove the three plastic side wings (left and right) from the backrest structure (Fig. 18B) and remove the lining from the top edge of the backrest (Fig. 18C). Undo the buttons under the seat and remove the fabric from the seat (Fig. 18D). Then remove the safety harness by passing the straps through the holes on the backrest and the seat (Fig. 18E-18F-18G).

19. To remove the fabric from the rear seat, pass the crotch

strap and waist strap through the holes as shown in Figures 19A and 19B. To replace the cover on the stroller, repeat these steps in reverse order and reassemble the safety harness by passing the straps through the fabric holes.

INSTALLING THE CHICCO KEYFIT CAR SEAT

The CHICCO KEYFIT car seat can be attached to the stroller.

WARNING: The CHICCO KEYFIT car seat can only be attached

to the stroller in the forward facing position.

20. To install the CHICCO KEYFIT car seat to the stroller remove

the bumper bar/tray and completely lower the backrest (Fig. 20A). Position the car seat as shown in Figure 20B until you hear a double click.

WARNING: Make sure it is attached properly by pulling the car

21. To remove the car seat from the stroller structure push the

lever on the car seat and lift it up (Fig. 21). REAR FOOTBOARD At the back of the stroller there is a footboard for transporting a second child in the standing position. This can only be used when the rear seat has been completely raised.

22. To raise the seat push it upwards (Fig. 22).

WARNING: When pushing the stroller do not allow your child

to stand on the footboard facing backwards. Do not allow your child to stand on the seat. To prevent falls, your child must hold the handles and keep both feet on the footboard (Fig. 22A-22B). RAIN COVER

23. To ﬁt the rain cover, fasten the straps around the stroller’s

frame, in the positions shown in Fig. 23 (the steps are to be repeated on both sides of the stroller). When you have ﬁn- ished using the rain cover, allow it to dry properly if it is wet.

WARNING: The rain cover cannot be used on the stroller without

a hood, as it may cause suﬀocation.

WARNING: When the rain cover is ﬁtted on the stroller, never

leave it exposed to direct sunlight with your child inside, as the temperature will rise considerably. WARRANTY The product is guaranteed against any conformity defect in normal conditions of use as provided for by the instructions for use. The warranty shall not therefore apply in the case of damages caused by improper use, wear or accidental events. For the duration of warranty on conformity defects please refer to the speciﬁc provisions of national laws applicable in the country of purchase, where provided. 30° C 30° C14
