Ohlala 3 - Stroller CHICCO - Free user manual and instructions
Find the device manual for free Ohlala 3 CHICCO in PDF.
| Brand | Chicco |
| Model | Ohlala 3 |
| Product type | Stroller |
| Recommended age | From birth to 36 months |
| Maximum supported weight | 15 kg |
| Maximum basket load | 3 kg |
| Restraint system | 5-point harness (shoulder straps, waist belt, crotch strap) |
| Brakes | Twin brakes on rear wheels |
| Front wheels | Swiveling with lock |
| Backrest adjustment | Yes, by strap with clamp (multiple recline positions) |
| Leg rest adjustment | Yes, 2 positions |
| Canopy | Yes, with sun visor, removable |
| Safety bar | Yes, removable, side opening |
| Folding | Yes, compact, stands upright when folded |
| Cover | Removable cover |
| Cover maintenance | Hand wash in cold water; do not bleach, machine dry, iron, or dry clean |
| Chassis maintenance | Clean plastic parts with damp cloth; wipe metal parts if wet; lubricate with silicone oil |
| Power supply | None (manual stroller) |
| Warranty | Against defects in conformity under normal use conditions |
Frequently Asked Questions - Ohlala 3 CHICCO
User questions about Ohlala 3 CHICCO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Stroller in PDF format for free! Find your manual Ohlala 3 - CHICCO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Ohlala 3 by CHICCO.

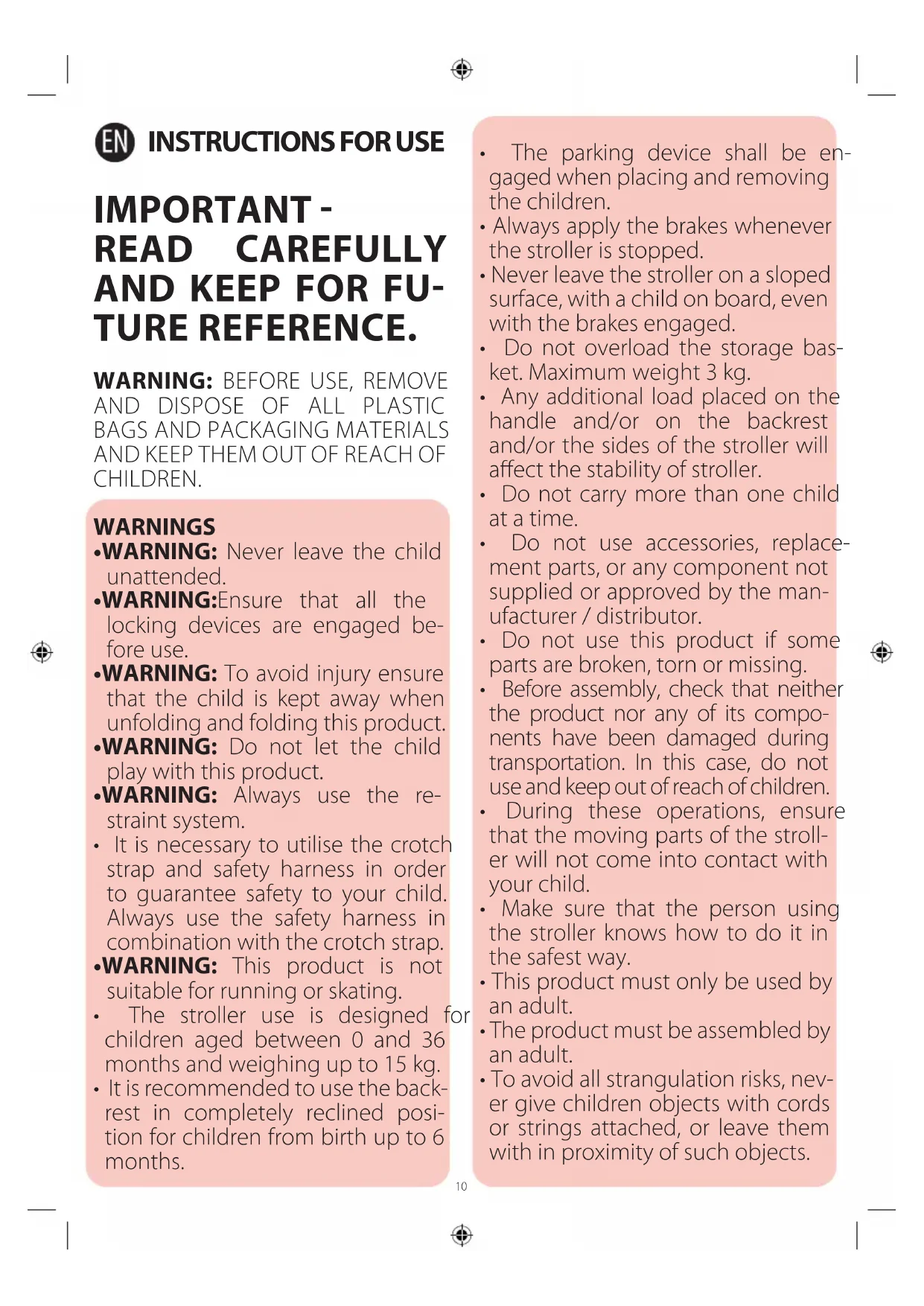

USER MANUAL Ohlala 3 CHICCO
IMPORTANT - READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.
WARNING
-WARNING: Never leave the child unattended.
-WARNING: Ensure that all the locking devices are engaged before use.
-WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.
-WARNING: Do not let the child play with this product.
-WARNING: Always use the restraint system.
- It is necessary to utilise the crotch strap and safety harness in order to guarantee safety to your child. Always use the safety harness in combination with the crotch strap.
-WARNING: This product is not suitable for running or skating.
- The stroller use is designed for children aged between 0 and 36 months and weighing up to 15kg .
- It is recommended to use the backrest in completely reclined position for children from birth up to 6 months.
- The parking device shall be engaged when placing and removing the children.
Always apply the brakes whenever the stroller is stopped. - Never leave the stroller on a sloped surface, with a child on board, even with the brakes engaged.
- Do not overload the storage basket. Maximum weight 3kg .
- Any additional load placed on the handle and/or on the backrest and/or the sides of the stroller will affect the stability of stroller.
- Do not carry more than one child at a time.
- Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer / distributor.
- Do not use this product if some parts are broken, torn or missing.
- Before assembly, check that neither the product nor any of its components have been damaged during transportation. In this case, do not use and keep out of reach of children.
- During these operations, ensure that the moving parts of the stroller will not come into contact with your child.
Make sure that the person using the stroller knows how to do it in the safest way. - This product must only be used by an adult.
The product must be assembled by an adult. -
To avoid all strangulation risks, never give children objects with cords or strings attached, or leave them with in proximity of such objects.
-
Never use the stroller on staircases or escalators: you could suddenly lose control of it.
Always pay attention when going up and down steps or pavements. - If the stroller has been exposed directly to sunlight for a long time, you must let it cool down before placing your child inside of it. Prolonged exposure to direct sunlight may cause the colour of the materials and fabric to fade.
- Prevent the stroller from contact with salty water. It might cause the formation of rust.
- Do not use the stroller on the beach.
- When unused, the stroller should be kept out of reach of children.
TIPS FOR CLEANING AND MAINTENANCE
This product requires periodical maintenance.
Cleaning and maintenance operations must be performed exclusively by an adult.
CLEANING
The lining can be removed (please see the section FITTING AND REMOVING THE STROLLER LINING).
Clean the fabric parts using a wet sponge and neutral soap. Periodically wipe clean plastic parts with a soft damp cloth. Always dry the metal parts to prevent the formation of rust if the folding cot has come into contact with water.
Below are the cleaning symbols and their meanings:
Wash by hand in cold water
Do not bleach
Do not tumble dry
Do not iron
Do not dry clean
MAINTENANCE
Lubricate the moving parts only if necessary, with a light application of a silicone based lubricant.
Regularly check the condition of the wheels and, keep them clean from dust and sand. To avoid friction that may prevent correct operation of the stroller, make sure that all the movable plastic parts along the metal frame are clean from dust, dirt or sand.
Keep the stroller in a dry place.
GENERAL INSTRUCTIONS
WARNING: When opening the stroller, make sure that your child or other children are at a safety distance.
WARNING: Make sure that during these operations the moving parts of the stroller will not come into contact with your child.
- Rotate the handgrip until reaching the vertical position (Fig.1), push the cursor A to the left and at the same time press the button B (Fig. 1A), pull the handle upwards to allow the stroller to open, until you hear the locking click (Fig. 2).
If at the end of the operation the handle should not be locked in a vertical position, repeat step 1.
WARNING: Before use, make sure that the stroller is locked in open position, checking that the mechanism is actually locked.
HOW TO ASSEMBLE THE FRONT WHEELS
- Fit the front wheels on the stroller until they are locked in position (fig. 3).
Repeat this procedure for the other wheel lock.
WARNING: Before use, ensure that the wheels are correctly locked into position.
ASSEMBLING THE REAR WHEELS
- Fit the rear axle into relevant slots in the frame until you hear it click twice into place (fig. 4).
WARNING: Always check the rear axle is fitted properly before using the stroller.
CARRY-ALL BASKET
- To fasten carry-all basket, insert the belts with snap button in the relevant slots (fig. 5).
- Fasten the lower belts of the basket to the U-shaped tube (fig. 6) and fasten them with the Velcro.
BUMPER BAR
- To fasten the bumper bar, fit it from above on the two pins located at the ends of the armrests until you hear it click into place (fig. 7).
- To pull out the bumper bar, press the two buttons at the extremities and pull it up (fig. 8).
- You can also open the bumper bar on one side only to facilitate placing your child in the seat (fig. 8A).
WARNING: Never use the bumper bar to lift the stroller up with the child sitting in it.
HOW TO USE THE SAFETY HARNES
This stroller has a five-point safety harness featuring two shoulder straps, two adjustment holes, a waist strap and a crotch strap with buckle.
- WARNING: To use it with children from birth to approx. 6 months of age, you must use the shoulder straps by threading them first through the two adjusting holes (fig. 9).
- After laying the child in the stroller, fasten the straps (Fig. 10) by passing first the two forks (A) inside the shoulder strap buckle (B) and then inside the crotch strap buckle (C); Adjust the height of the shoulder straps so that they adhere to your child's shoulders (fig. 11).
Make sure that the harness straps are fitted correctly.
To unfasten the waist strap, press and pull the side prongs.
WARNING: The safety harness must always be fastened to guarantee complete safety for your child.
WARNING: In the case of removal of the fabric part (e.g., for washing), make sure to reassemble the waist strap correctly making it run through the relevant holes in the fabric.
The harness must be re adjusted.
To make sure that the belts are fastened properly to the anchoring points, after placing your child inside the stroller, pull the end parts of the belts firmly.
HOW TO ADJUST THE BACKREST
The inclination of the backrest is adjustable with a belt adjustment mechanism.
- To lower the backrest, use the rear adjustment system by pressing the buttons of the tongs (fig.12) and adjust the position until you reach the desired inclination.
Vice versa, to raise the backrest, press the two lateral buttons of the adjustment tongs and pull the belt until you reach the desired position.
WARNING: The child's weight can make these operations more difficult.
REAR BRAKES
The rear wheels have linked brakes, which can be applied simultaneously on both rear wheels by using the support tube.
- To apply the brakes, press one of the two pedals on the sides of the rear wheels down (fig. 13).
- To release the brakes, press one of the two pedals on the sides of the rear wheel group up (fig. 14).
SWIVEL WHEELS
- To make the front wheels swivel, lower the lever fitted between the two wheels.
Use the swivel wheels on smooth surfaces.
To lock the wheels, raise the lever (fig. 15).
WARNING: The swivel wheels make the stroller easier to handle; it is recommended to use the wheels in fixed mode on uneven ground to guarantee better stability (on gravel, unpaved roads, etc.).
WARNING: Both wheels must always be locked or unlocked at the same time.
SUN CANOPY
- To fit the canopy, fasten the plastic clip to the frame's tube (fig. 16) and the velcro strips and snap buttons in the appropriate positions (fig. 17A and 17B).
WARNING: The hood must be fixed on both sides of the stroller.
Ensure that the hood is correctly secured into position.
To remove the canopy from the frame, detach the velcro strips and the plastic clips. - To open the canopy, push the front arch forward (fig. 18).
To close it, repeat the steps in reverse order.
ADJUSTABLE LEGREST
The legrest can be adjusted in 2 positions.
- To adjust it, use the buttons under the leg rest (fig. 19).
WARNING: When opening the stroller, make sure that your child or other children are at a safety distance.
Make sure that during these operations the moving parts of the stroller will not come into contact with your child.
Before closing the stroller, make sure that the storage basket is empty and that the hood is closed.
The stroller has a closing device that can be used with one
hand.
- To fold the stroller, push switch A to the left and press button B at the same time (fig. 1).
- Push the handle forward to fold the structure (fig. 20).
The stroller will lock automatically in closed position. Turn the handle downwards until reaching the maximum compactness (Fig. 21). When closed, the stroller stands on its own.
FITTING AND REMOVING THE STROLLER LINING
- To remove the stroller lining, open the snap button under both sides of the seat (fig. 22), release the velcro on the tube (fig. 23) behind the backrest and remove the lateral fabric flaps of the backrest (fig. 24).
- Starting from the legrest, remove the fabric (fig. 25). Detach the velcro strips under the seat, pull out the crotch strap belt, and remove the waist straps from the relevant holes in the backrest (fig. 26) until it is removed completely from the backrest (fig. 27).
To fit the lining on the stroller again, repeat the steps illustrated above in reverse order.
ACCESSIONS
WARNING: The accessories described below may not be included in some product versions. Please read carefully the instructions on the accessories available for the model purchased.
SHOULDER STRAPS AND CROTCH STRAPS
Ohlalà stroller can be provided with padded shoulder straps and a soft crotch strap to ensure safety and comfort of your child.
- Fit the pads over the straps (fig. 28) and fit the crotch strap inside the padding (fig. 29).
WARNING: Adjust the width of the waist belt if needed, pressing on the buckles.
WARNING: To ensure your child's safety, it is necessary to always use the safety harness.
RAIN COVER
- To fit the rain cover, fasten the straps around the stroller's frame, in the positions shown in Fig. 30 (the steps are to be repeated on both sides of the stroller).
When you have finished using the rain cover, allow it to dry properly if it is wet.
WARNING: The rain cover cannot be used on the stroller without hood, as it may cause suffocation.
WARNING: When the full-cover rain cover is fitted on the stroller, never leave it exposed to direct sunlight with the child inside, as the temperature will rise considerably.
WARRANTY
The product is guaranteed against any conformity defect in normal conditions of use as provided for by the instructions for use. The warranty shall not therefore apply in the case of damages caused by improper use, wear or accidental events. For the duration of warranty on conformity defects please refer to the specific provisions of national laws applicable in the country of purchase, where provided.
