Product type	High-pressure inflator
Brand	RYOBI
Model	One+ R18IWPI
Power source	18V Lithium-ion battery (One+ system)
Maximum pressure	10 bar (150 PSI)
Pressure gauge	Integrated (reference)
Air hose	With Thumb Lock valve
Included adapters	Presta valve, ball needle, cone adapter
Accessory storage	Yes, integrated
Handle	Insulated gripping surface
Weight	Approximately 1.2 kg
Dimensions (L x W x H)	Approximately 250 x 150 x 180 mm
Operating temperature	0°C to 40°C
Storage temperature	0°C to 40°C
Use	Domestic
Warranty	24 months (online extension possible)
Maintenance	Clean with a dry cloth; do not use solvents
Spare parts	Some parts replaceable by user; contact authorized service center
Safety	Do not exceed maximum pressure; do not leave unattended

Frequently Asked Questions - One+ R18IWPI RYOBI

How to use the RYOBI One+ R18IWPI inflator?

Attach the appropriate adapter, connect the hose, insert the battery, set the desired pressure (do not exceed 10 bar), then press the trigger. Monitor the gauge and stop at the desired pressure. Refer to the manual for details.

What is the maximum pressure I can reach?

The maximum pressure is 10 bar (150 PSI). Never preset a pressure higher than indicated on the item to be inflated.

Can I inflate car tires?

Yes, the inflator is designed for car tires, bicycle tires, and sports balls. Use the appropriate adapter and respect the pressure indicated on the tire.

How to maintain the device?

Clean with a clean, dry cloth. Do not use solvents. Regularly check for cracks in the hose or housing. Remove the battery before any maintenance.

What accessories are included?

The device comes with a Presta valve adapter, a sports ball needle, and a cone adapter.

Is the battery included?

The battery and charger are generally not included. The inflator works with One+ 18V Ryobi batteries. Check the package contents.

How to extend the warranty?

Register your tool on www.ryobitools.eu within 30 days of purchase to benefit from an extended warranty. The standard warranty is 24 months.

What to do if the hose leaks?

Stop using immediately. Do not attempt to repair the hose yourself. Contact an authorized Ryobi service center for replacement.

Can I use the device continuously?

After every 5 minutes of continuous use, let the pump cool down for 5 minutes. Never block the inflation openings.

How to store the device?

Store it indoors, in a dry and frost-free place. The recommended storage temperature is 0°C to 40°C. Remove the battery for long-term storage.

USER MANUAL One+ R18IWPI RYOBI

Ryobil RY-OI electric spray gun with attached cable and connector (no visible text or symbols on body)

(EN) Important!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modifications.

(FR) Attention!

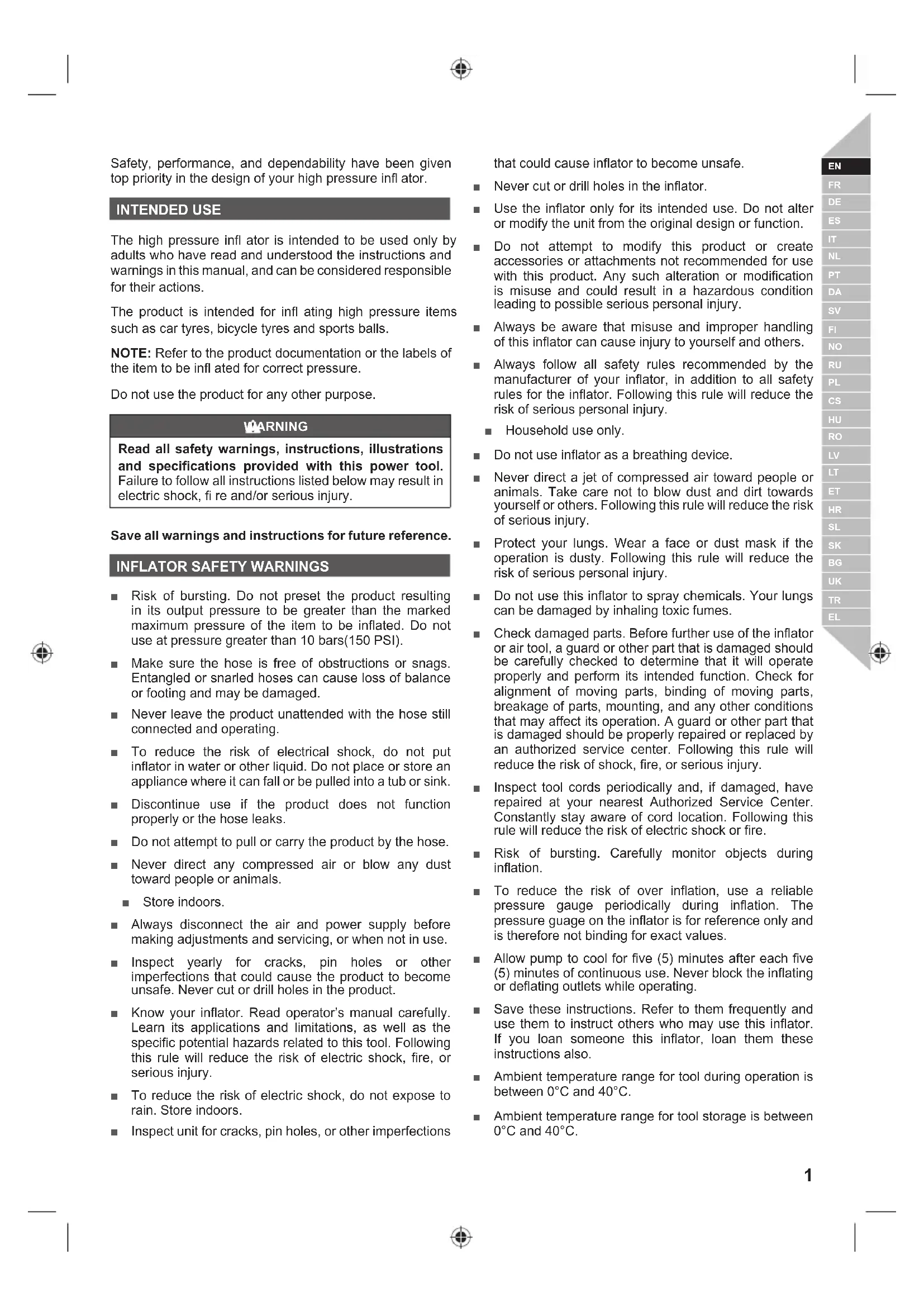

Safety, performance, and dependability have been given top priority in the design of your high pressure inflator.

INTENDED USE

The high pressure inflator is intended to be used only by adults who have read and understood the instructions and warnings in this manual, and can be considered responsible for their actions.

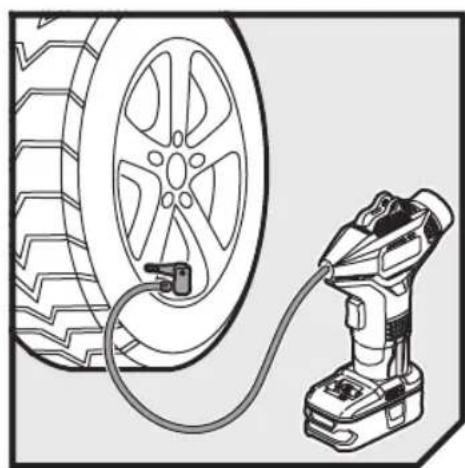

The product is intended for inflating high pressure items such as car tyres, bicycle tyres and sports balls.

NOTE: Refer to the product documentation or the labels of the item to be inflated for correct pressure.

Do not use the product for any other purpose.

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury.

Save all warnings and instructions for future reference.

INFLATOR SAFETY WARNINGS

■ Risk of bursting. Do not preset the product resulting in its output pressure to be greater than the marked maximum pressure of the item to be inflated. Do not use at pressure greater than 10 bars(150 PSI).
■ Make sure the hose is free of obstructions or snags. Entangled or snarled hoses can cause loss of balance or footing and may be damaged.
■ Never leave the product unattended with the hose still connected and operating.
■ To reduce the risk of electrical shock, do not put inflator in water or other liquid. Do not place or store an appliance where it can fall or be pulled into a tub or sink.
■ Discontinue use if the product does not function properly or the hose leaks.
■ Do not attempt to pull or carry the product by the hose.
■ Never direct any compressed air or blow any dust toward people or animals.
■ Store indoors.
■ Always disconnect the air and power supply before making adjustments and servicing, or when not in use.
- Inspect yearly for cracks, pin holes or other imperfections that could cause the product to become unsafe. Never cut or drill holes in the product.
- Know your inflator. Read operator's manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.
■ To reduce the risk of electric shock, do not expose to rain. Store indoors.
■ Inspect unit for cracks, pin holes, or other imperfections

that could cause inflator to become unsafe.

■ Never cut or drill holes in the inflator.
■ Use the inflator only for its intended use. Do not alter or modify the unit from the original design or function.
- Do not attempt to modify this product or create accessories or attachments not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
■ Always be aware that misuse and improper handling of this inflator can cause injury to yourself and others.
■ Always follow all safety rules recommended by the manufacturer of your inflator, in addition to all safety rules for the inflator. Following this rule will reduce the risk of serious personal injury.
■ Household use only.
■ Do not use inflator as a breathing device.
■ Never direct a jet of compressed air toward people or animals. Take care not to blow dust and dirt towards yourself or others. Following this rule will reduce the risk of serious injury.
■ Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury.
■ Do not use this inflator to spray chemicals. Your lungs can be damaged by inhaling toxic fumes.
- Check damaged parts. Before further use of the inflator or air tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center. Following this rule will reduce the risk of shock, fire, or serious injury.
- Inspect tool cords periodically and, if damaged, have repaired at your nearest Authorized Service Center. Constantly stay aware of cord location. Following this rule will reduce the risk of electric shock or fire.
■ Risk of bursting. Carefully monitor objects during inflation.
■ To reduce the risk of over inflation, use a reliable pressure gauge periodically during inflation. The pressure gauge on the inflator is for reference only and is therefore not binding for exact values.
- Allow pump to cool for five (5) minutes after each five (5) minutes of continuous use. Never block the inflating or deflating outlets while operating.
- Save these instructions. Refer to them frequently and use them to instruct others who may use this inflator. If you loan someone this inflator, loan them these instructions also.
■ Ambient temperature range for tool during operation is between 0°C and 40°C.
■ Ambient temperature range for tool storage is between 0°C and 40°C.

■ The recommended ambient temperature range for the charging system during charging is between 10^ C and 38^ C.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING

To reduce the risk of fi re, personal injury, and product damage due to a short circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

■ Ambient temperature range for battery during use is between 0°C and 40°C.
■ Ambient temperature range for battery storage is between 0°C and 20°C.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The operator should pay particular and additional attention to these points in order to reduce the risk of serious personal injury.

■ Use the product only for its intended use. Do not alter or modify the product from the original design or function.
■ Always be aware that misuse and improper handling of the product can cause injury to yourself and others.
■ Never leave the product unattended with the nozzle attached to the item being inflated.
- Do not continue to use the product or nozzle which leaks air or does not function properly.

■ Risk of Inflatable bursting

• Do not operate the product to result in output pressure greater than marked maximum pressure of item to be inflated.
  – Carefully monitor objects during inflation to reduce the risk of over inflation, use a reliable pressure gauge periodically during inflation.

RISK REDUCTION

It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud's Syndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

• Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome.
  ■ After each period of operation, exercise to increase blood circulation.
  ■ Take frequent work breaks. Limit the amount of exposure per day.

If you experience any of the symptoms of this condition, immediately discontinue use and see your doctor about these symptoms.

WARNING

Injuries may be caused, or aggravated, by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

KNOW YOUR PRODUCT

See page 85.

1. Pressure gauge
2. Hose storage area

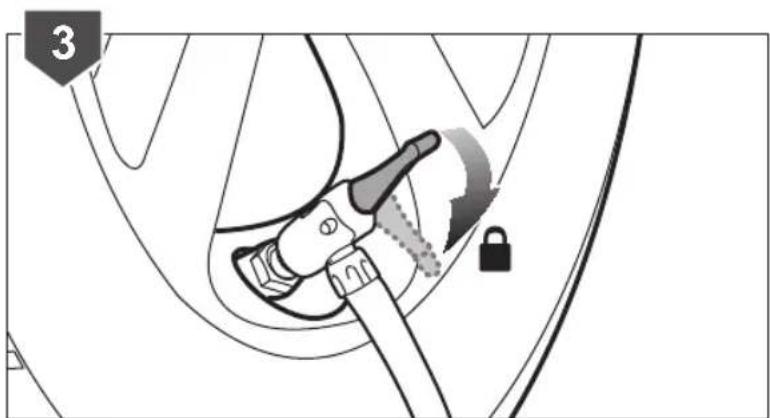

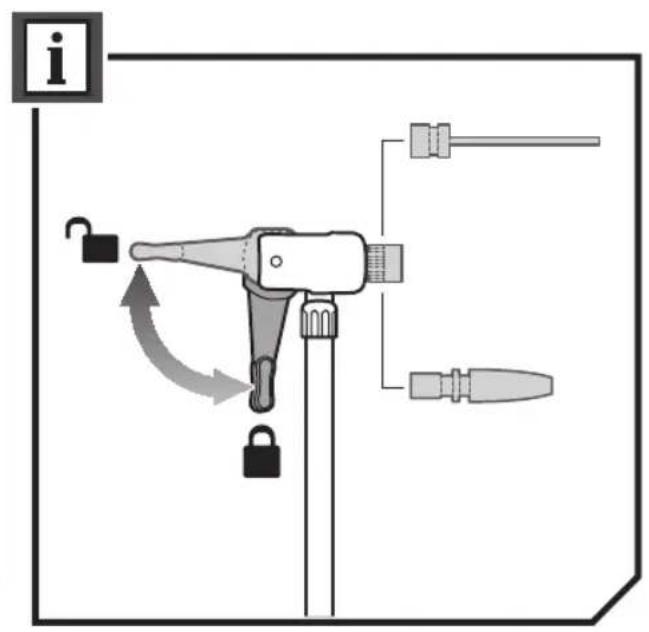

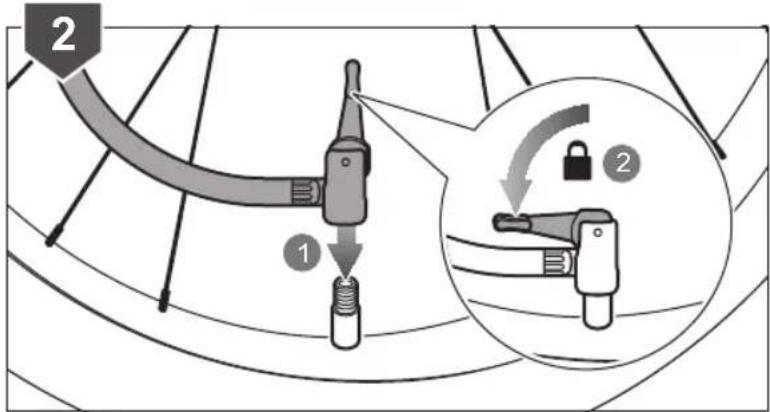

3. Thumb lock tyre valve
4. Air hose

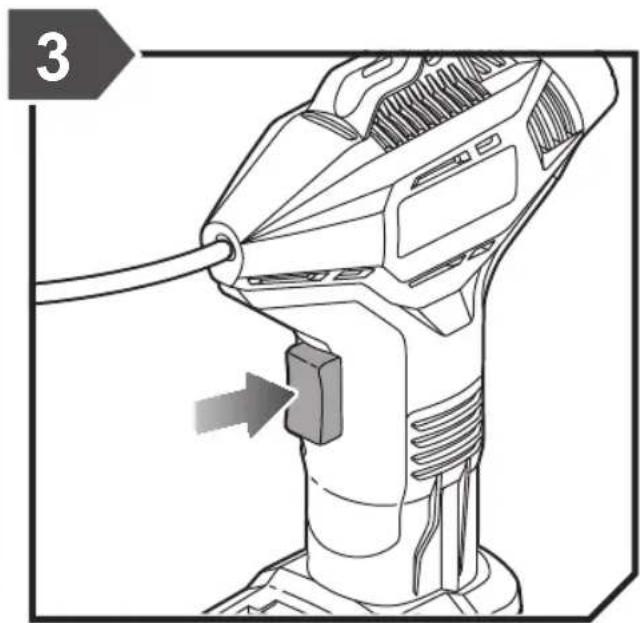

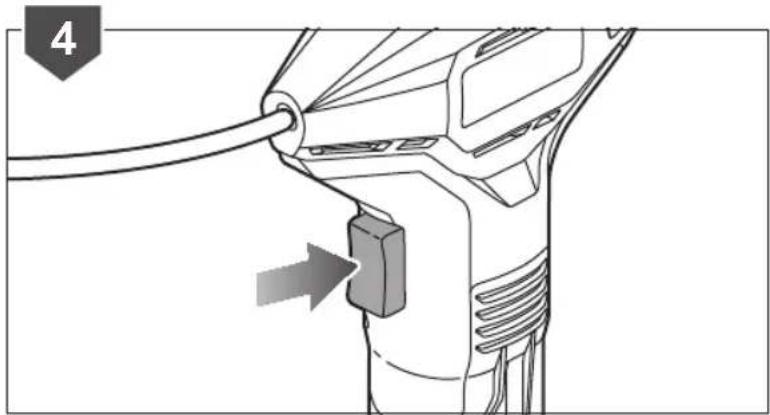

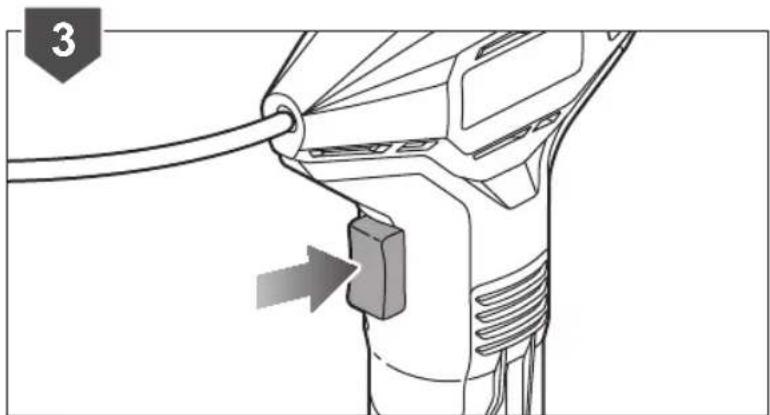

5. Switch trigger
6. Handle, insulated gripping surface

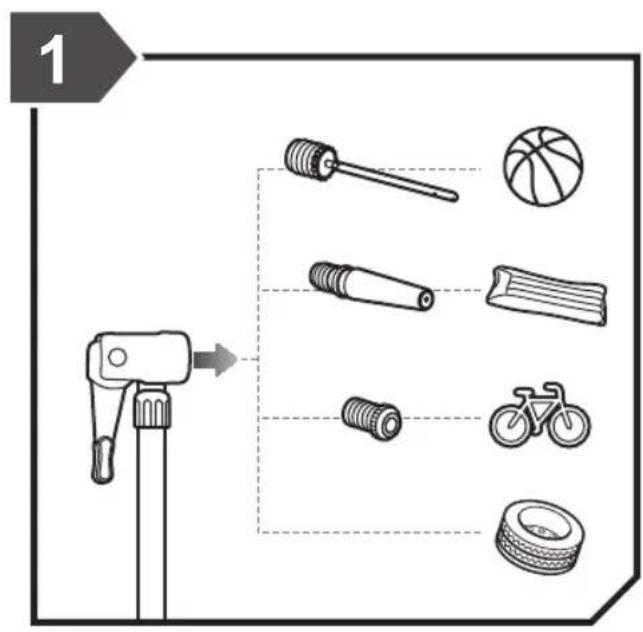

7. Accessory storage

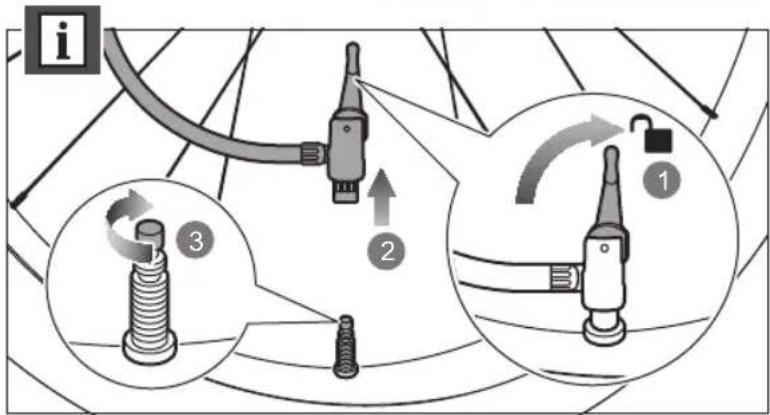

8. Presta valve adaptor
9. Sport ball needle
10. Tapered adaptor

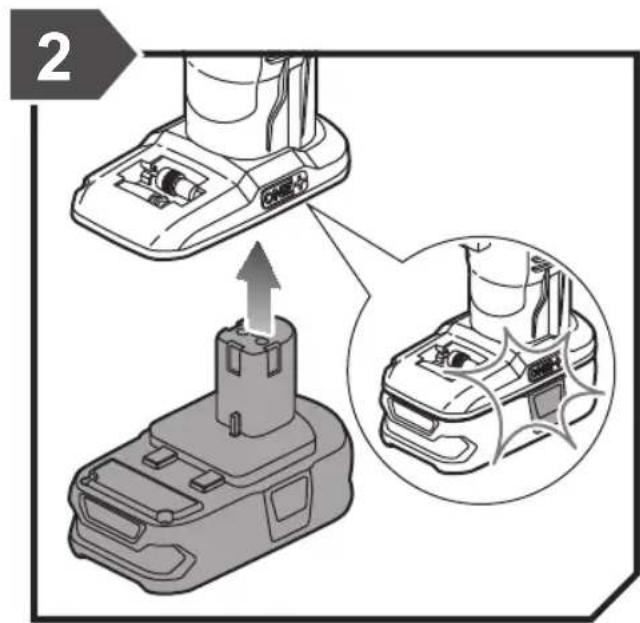

11. Battery port

MAINTENANCE

• When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.

• Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
  ■ Always wear safety goggles or safety glasses with side shields during power product operation or when blowing dust. If operation is dusty, also wear a dust mask.
  ■ To avoid serious personal injury, always remove the battery pack from the product when cleaning or performing any maintenance.

• Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.
  ■ Only the parts shown on the parts list are intended to be repaired or replaced by the customer. All other parts should be replaced at an authorized service center.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environment-friendly recycling.

SYMBOLS ON THE PRODUCT

Safety alert

V Volts

Direct current

Ukrainian mark of conformity

CE Conformity

EurAsian Conformity Mark

Please read the instructions carefully before starting the machine.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL

Note

Parts or accessories sold separately

The following signal words and meanings are intended to explain the levels of risk associated with this product:

DANGER

Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

CAUTION

(Without Safety Alert Symbol) Indicates a situation that may result in property damage.

REDUCTION DES RISQUES

APPRENEZ A CONNAITRE VOTRE PRODUIT

Voir page 85.

SYMBOLES APPLIQUES SUR LE PRODUIT

Alerte de sécurité

V Volts

Courant continu

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 85.

SYMBOLE AUF DEM PRODUKT

Sicherheitswarnung

V Volt

Gleichstrom

001

VEILIGHEIDSWAARSCHUWINGEN OPBLAASINRICHTING

SYMBOLER PÅ PRODUKTET

Sikkerhedsadvarsel

V Volt

Direkte strøm

SYMBOLER PÅ PRODUKTEN

Säkerhetsvarning

V Volt

Likström

SYMBOLER PÅ PRODUKTET

Sikkerhetsadvarsel

Hastighet ubelastet

V Volt

Likestrøm

Ukrainsk merke for konformitet

CE samsvar

EurAsian Konformitetstegn

SYMBOLER I MANUALLEN

Nb

KOMPRESSORI OHUTUSJUHISED

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Vid' strana 85.

1. Tlakomer
2. Priestor na uloženie hadice
3. Ventil na nafukovanie pneumatiky s palcovou poistkou
4. Vzduchová hadica
5. Spínač
6. Rúčka, izolovaný povrch na držanie

7. Uloženie príslušenstva

8. Adaptér pre ventil Presta

9. Ihla na nafukovanie športových lôpt
10. Kuželový adaptér
11. Otvor na akumulátory

ÚDRŽBA

Line drawing of a handheld device with a cable inserted, showing internal components and a directional arrow (no text or symbols)

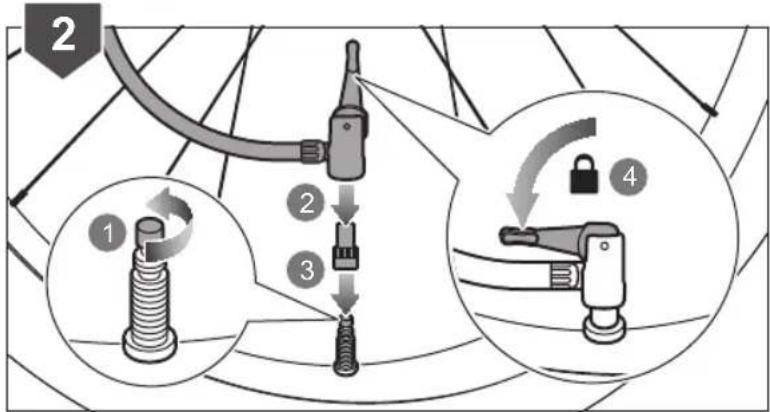

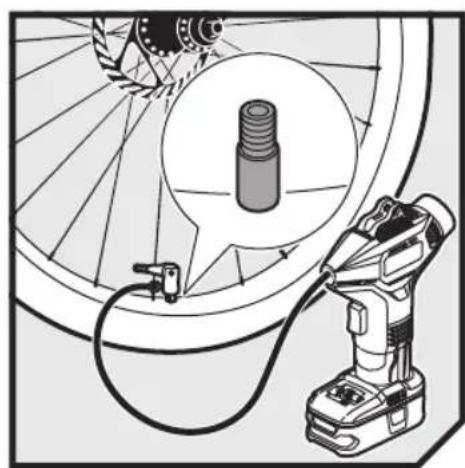

Diagram of a bicycle wheel connected to a robotic arm, with a magnified inset showing a threaded component (no text or symbols present)

Line drawing of a handheld device with a cable and a button, no text or symbols present

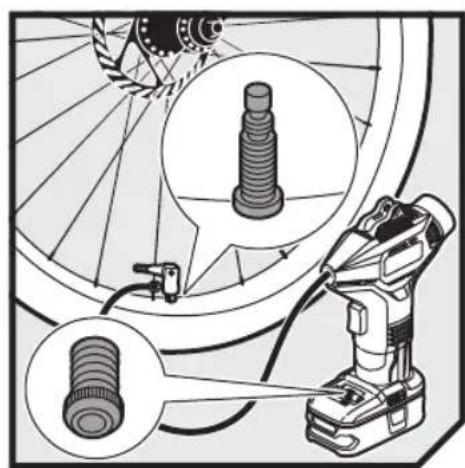

Mechanical assembly diagram showing a bicycle wheel connected to a robotic arm with two inset views of the bolt (no text or labels)

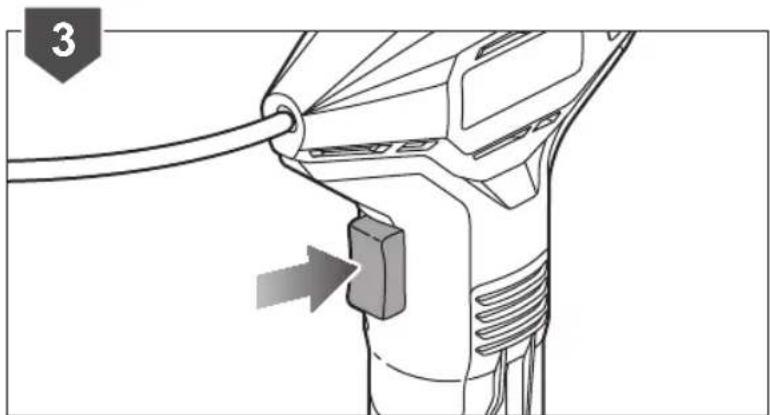

Line drawing of a device with a cable and a button, no text or symbols present

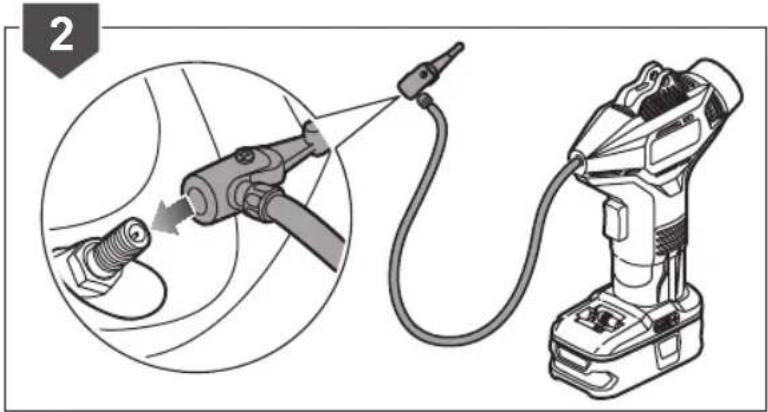

Diagram showing a car tire connected to a handheld electric vehicle (no text or symbols present)

Illustration of a welding torch and a robotic device with cable, showing mechanical assembly (no text or symbols)

Line drawing of a hairdryer with a cable inserted, showing a connector detail (no text or symbols)

English Français Deutsch Español Italiano Nederlands						Português
Product specifications	Caractéristiques de l'appareil	Produkt-Spezifikationen	Especificaciones del producto	Specifiche prodotto	Productspecificaties	Especificações do produto
High Pressure Inflator	Gonfleur haute pression	Druckluftkompressor Inflador	a alta presión	Gonfiatore ad alta pressione	Hogedruppomp	Insufiador de alta pressão
Model Modèle Modell	Modelo Modello Model Modelo
Voltage	Tension	Spannung	Tensión	Voltaggio	Spanning	Voltagem
Pressure hose length	Longueur du tuyau haute pression	Länge des Druckluftschauchs	Longitud de la manguera de presión	Lunghezza del tubo a pressione	Lengte van drukslang	Comprimento da mangueira de pressão
Maximum pressure	Pression maximale	Maximaldruck	Presión máxima	Pressione massima	Max. werkdruk	Pressão máxima
Gauge accuracy Précision	de la jauge Messgenauigkeit		Precisión del manómetro	Accuratezza del manometro	Nauwkeurigheid van de manometer	Precisão do manómetro
Pump Displacement	Cylindrée de la pompe	Pumpenverschiebung	Capacidad de desplazamiento de la bomba	Portata della pompa	Verplaatsing van de pomp	Deslocação da bomba
RPM	RPM	RPM	RPM	RPM	RPM	RPM
Weight - excluding battery pack	Poids - sans batterie	Gewicht - ohne Akkupack	Peso - Excluyendo conjunto de bateria	Peso - Senza gruppo batteria	Gewicht - exclusief accupack	Peso - excluindo conjunto de bateria
Weight According to EPTA-Procedure 01/2003	Poids Selon la procédure EPTA 01/2003	Gewicht Gemäß EPTA-Verfahren 01/2003	Peso Según el procedimiento EPTA 01/2003	Peso Secondo quanto indicato dalla EPTA-Procedura 01/2003	Gewicht Overeenkomstig de EPTA-procedure 01/2003	Peso De acordo com o Procedimento EPTA 01/2003
Measured sound values determined according to EN 62841:	Valeurs du son mesuré déterminées selon EN 62841:	Gemäß EN 62841; gemessene Schallwerte	Valores medidos del sonido en función de la norma EN 62841:	Valori del suono misurati determinati secondo lo standard EN 62841:	Gemeten geluidswaarden bepaald in overeenstemming met EN 62841:	Valores medidos do som em função da norma EN 62841:
A-weighted sound pressure level	Niveau de pression sonore pondéré A	A-bewerteter Schalldruckpegel	Nivel de presión acústica ponderada en A	Livello di pressione sonora pesato A	A-gewogen geluidsdrukniveau	Nivel de pressão sonora ponderada A
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
A-weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schalleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A	A-gewogen geluidsniveau	Nivel de potência sonora ponderada A
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
Wear ear protectors.	Portez une protection acoustique.	Tragen Sie Gehörschutz.	Utilice protección auditiva!	Indossare protezioni acustiche adeguate.	Draag oorbeschermers.	Sempre use a protecção dos ouvidos.
The vibration total values (triaxial vector sum) determined according to EN 62841:	La valeur totale des vibrations (somme vectorielle triaxiale) a été déterminée selon EN 62841:	Schwingungsgesamtwerte (Vektorsumme dreier Richtungen) ermittelt entsprechend EN 62841:	Los valores de vibración total (suma de vectores triax.), determinado según la norma EN 62841:	I valori totali delle vibrazioni (somma di vettori in tre direzioni) sono misurati conformemente alla norma EN 62841:	De totale trillingswaarden (triaxale verctorsom) vastgesteld in overeemstemming met EN 62841:	Os valores totais de vibração (soma do vector triax) são determinados em conformidade com a EN 62841:
Vibration emission level:	Niveau d'émission de vibrations :	Vibrationspegel	Nivel de emisión de vibración:	Livello di emissioni vibrazioni:	Trillingsemissieniveau:	Nivel de emissão de vibrações:
Uncertainty K	Incertitude K	Unsicherheit K	Incertidumbre K	Incertezza K	Onzekerheid K	Incerteza K
Replacement parts	Pièces de rechange	Ersatzteile	Piezas de repuesto	Ricambi	Vervangende onderdelen	Peças sobresselentes
Ball needle adaptor	Adaptateur pour aiguille de gonflage pour ballon	Adapter für Ballventilnadel	Adaptador de aguja para balones	Adattatore ago per palloni	Balnaald adapter	Adaptador da agulha da esfera
Universal valve adaptor	Adaptateur universel pour soupape	Adapter für Universalventil	Adaptador universal para válvulas	Adattatore valvola universale	Universele ventieladapter	Adaptador de válvula universal
Bicycle valve adaptor	Adaptateur pour soupape de vélo	Adapter für Fahrradventil	Adaptador para válvulas de bicicleta	Adattatore valvola bicicletta	Fietsventiel-adapter	Adaptador de válvula para bicicleta
Dansk Svenska Suomi Norsk Русский					Polski
Produkspeci kationer Produkspeci kationer		Tuotteen tekniset tiedot	Produkspesi kasjoner	Характеристики изделия	Parametry techniczne
Højtryksoppuster	Högtryckluftuppbläsare	Suurpainein aattori Høytykks oppblåser		Насос высокого давления	Pompka wysokociśnieniowa
Model	Modell	Malli	Modell	Модель	Model	R18PI
Spænding	Spänning	Jännite	Spenning	Напряжение	Napięcie	18 V ---
Trykslangens længde	Tryckslangens längd	Paineletkun pituus	Trykkslangelengde	Длина нагнетательного шланга	Długość weża ciśnieniowego	508 mm
Maks. Tryk	Maxtryck	Maksimipaine	Maksimum trykk	Максимальное давление	Maksymalne ciśnienie	150 PSI, 10,34 BAR, 1034 KPA
Mälernøjagtighed	Mätarens noggrannhet	Mittarin tarkkuus Mälernøyaktighet		Точность контрольно-измерительного прибора	Dokładność manometru	+/-7%
Pumpeforskydning	Pumpdeplacement	Pumpun iskutilavuus	Pumpeforskyvning	Рабочий объем насоса	Pojemność pompki	16 L/Min
RPM	RPM	RPM	RPM	RPM	RPM	14000 r/min
Vægt - Batteri medfølger ikke	Vikt - Batteri medføljer ej	Paino - ilman akkua	Vekt - uten batteripakke	Вес - без аккумуляторной батарен	Waga - bez akumulatora	0,65 kg
Vægt I henhold til EPTA-procedure 01/2003	ViktEnligt EPTA 01/2003	PainoEPTA-menetelmän 01/2003 mukaan	VektI henhold til EPTA-prosedyre 01/2003	ВесСоответствует требованиям EPTA-Procedure 01/2003	WagaZgodnie z procedurąEPTA 01/2003	1,08 kg
Mälte lydværdier bestemt iht. EN 62841:	Uppmätta ljudvården enligt EN 62841:	Mitatut arvot määritetty EN 62841: standardin mukaan:	Mälte lydverdier bestemt iht. EN 62841:	Измеренные значения параметров звука определены в соответствии с EN 62841:	Zmierzone wartości akustyczne zgodnie z normą EN 62841:
A-vægtet lydtryksniveau	A-vägd ljudtrycksnivå	A-painotettu äänenpainetaso	A-vektet lydtrykknivå	Уровень А-взвешенного звукового давления	А-ważony poziom ciśnienia hałasu	L_p = 80,5 ~dB(A)
Usikkerhed K	Osäkerhet K	Epätarkkuus K	Usikkerhet K	Разброс К	Niepewność pomiaru K	3 dB
A-vægtet lydeffektniveau	A-vägd ljudeffektsnivå	A-painotettu äänenteho	A-vektet lydeffektnivå	Уровень А-взвешенной звуковой мощности	А-ważony poziom natężenia hałasu	L_py = 91,5 ~dB(A)
Usikkerhed K	Osäkerhet K	Epätarkkuus K	Usikkerhet K	Разброс К	Niepewność pomiaru K	3 dB
Bær høreværn.	Bär hörselskydd.	Käylä korvasuojia.	Bruk hørselsvern.	Используйте наушники!	Stosować środki ochrony sluchul
Totale vibrationsvaerdier (triax vector sum) afgøres ifølge EN 62841:	Det totala vibrationsvärdet (treaxelvektorsumma) är framlaget enligt EN 62841:	Tärinän kokonaisarvot (kolmiakselinen vektorisumma) määrilettynä standardin EN 62841 mukaisesti:	De totale vibrasjonsverdiene (triax vektor-sum) er fastsalt i henhold til EN 62841:	суммарное значение вибрации (векторная сумма по трем координатам) определено в соответствии со стандартом EN 62841:	Wartości sumaryczne drgań (suma wektorowa przyspieszeń mierzona czujnikiem typu triax) określone zgodnie z normą EN 62841:
Vibrations-emissionsniveau:	Vibrationsnivå:	Tärinätaso:	Utslippsnivå for vibrasjoner:	Уровень вибрации:	Poziom emisji wibracji: a	r_b ≤ 2,5 ~m/s^2
Usikkerhed K	Osäkerhet K	Epätarkkuus K	Usikkerhet K	Разброс К	Niepewność pomiaru K	1,5 ~m/s^2
Reservedele	Reservdelar	Varaosat	Reservedeler	Запасные части	Części zamienne
Kuglenåladapter	Kulnåladapter	Pallon neulasovitin	Kulenåladapter	Игза для спортивного инвентаря	Adapter igły do pilek	5131041086
Universalventiladapter	Universell ventiladapter	Universaalı venttiilisovitin	Universal ventiladapter	Универсальный адаптер	Adapter zaworu uniwersalnego	5131041087
Cykelventiladapter	Cykelventiladapter	Polkupyörän venttiilisovitin	Sykkelventiladapter	Адаптер для велосипедного клапана	Adapter zaworu rowerowego	5131041088

Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti
Technické údaje produktu	Termék műszaki adatai Specificațile produsului Produkta		specifikácijas	Gaminio techninės savybės	Toote tehnilised andmed
Vysokotlaký vzduchový kompresor	Nagynyomásů pumpa Pompă presiune mare		Augstspiediena gaisa sūknis	Aukšto slėgio kompresorius	Kõrgsurvepump
Model Tipus Model Modelis	Modelis Mudeli tāhis
Elektrické napětí	Feszültség	Tensiune	Spriegums	Itampa	Pinge
Délka tlakové hadice	Fújótömlő hosszúsága	Lungime furtun de presiune	Saspiesta gaisa šjūtenes garums	Slėgio žarnos ilgis	Survevooliku pikkus
Maximální tlak	Maximális nyomás	Presiune maximă	Maksimálais spiediens	Didžiausias slėgis	Maksimaalrôhk
Přesnost tlakoměru	Mérömüszer pontossága	Precizie dispozitiv de măsurat	Mērījumu precizităte	Matavimo prietaiso tikslumas	Mõõturi täpsus
Výtlak čerpadla	Pumpa fújási sebessége	Înlocuire pompă	Sūkņa darba tilpums	Siurblio pajėgumas	Pumba õhuvājjasurve
RPM	RPM	RPM	RPM	RPM	RPM
Hmotnost - bez baterie	Tõmeg - akkumulátor nělkül	Greutate - exclusiv acumulatorul	Svars - izņemot akumulatora iepakojumu	Svoris - nejskaitant baterijos paketo	Mass - välja arvatud akupakett
Hmotnost Dle protokolu EPTA 01/2003	Tõmeg A 01/2003 EPTA-eljárás szerint	Greutate În conformitate cu Procedura EPTA din 01/2003	Svars Saskaņa ar EPTA procedūru 01/2003	Svoris Pagal Europos elektrinių įrankių asociacijos (EPTA) nustatytą tvarką 01/2003	Mass Vastavalt EPTA- protseduurile 01/2003
Naměřené hodnoty hluku zjištěné dle EN 62841:	A hang értékek meghatározása az EN 62841: szerint történt:	Valori de sunet măsurate determinate în conformitate cu EN 62841:	Izměritās skaņas vērtības ir noteiktas saskaņa ar EN 62841:	Išmatuotos garso vertės nustatytos pagal EN 62841:	Mõõteväärtused on kindlaks määratud vastavalt standardile EN 62841:
Hladina akustického tlaku váženă funkcí A	A-súlyozott hangnyomásszint	Nivel de presiune acustică ponderată A	A-līmeņa skapas spiediena līmenis	A svertinis garso slėgio lygis	A-kaalutud helirōhu tase
Nejistota K	Bizonytalanság K	Incertitudine K	Kļūdas vērtība K	Nepastovumas K	Mõõtemääramatus K
Hladina akustického výkonu váženă funkcí A	A-súlyozott hangteljesítményszint	Nivel de putere acustică ponderată A	A-līmeņa skaņas jaudas līmenis	A svertinis garso galios lygis	A-kaalutud helivõimsuse tase
Nejistota K	Bizonytalanság K	Incertitudine K	Kļūdas vērtība K	Nepastovumas K	Mõõtemääramatus K
Použlvejte chráníče sluchu.	Viseljen hallásvédöt.	Purtați aparatoare de urechi.	Lietojet dzirdes aizsargus.	Naudokite ausų apsaugos priemones.	Kasutage kuulmiskaltsevahendeid.
Celkové hodnoty vibrací (tříosý vektorový součet) určené v souladu s EN 62841:	Vibráció teljes értékei (hàromtengelyū vektorösszeg), az EN 62841 szerint meghatározva:	Valorile totale ale vibraṭjilor (suma vectorială a trei direcții) au fost determinate conform EN 62841:	Vibrāciju kopējās vērtības (trīsasu vektoru summa) tiek noteiktas atbilstoši EN 62841:	Bendros vibracijos vertės (trikampio vektorių suma) nustatornos pagal EN 62841:	Vibratsiooni koguväärtused (kolme suuna vektorsumma) on vastavalt standardile EN 62841 määratud järgmiselt:
Hladina vibračních emisi:	Vibrációkibocsátási szint:	Nivel de emisie vibraṭjii:	Vibrācijas emisijas līmenis:	Vibracijų emisijų lygis:	Vibratsiooniemissiooni tase.
Nejistota K	Bizonytalanság K	Incertitudine K	Kļūdas vērtība K	Nepastovumas K	Mõõtemääramatus K
Náhradní díly	Cserealkaltrészek	Piese de schimb	Maņas detalaļas	Atsarginės dalys	Varuosad
Jehlový nástavec na miče	Labda tűszelep adapter	Adaptor ac pentru gonflat	Bumbas adatas adapteris	Rutulinės adatos adapteris	Pallinõela adapter
Univerzální nástavec na ventilky	Univerzális szelep adapter	Adaptor supapă universală	Universálă ventiļa adapteris	Universalus ventilio adapteris	Universaalne ventiliadiapter
Nástavec na ventilky pro jízdní kola	Kerėkpárszelep adapter	Adaptor supapă bicicletă	Velosipēda ventiļa adapteris	Dviračio padangos ventílio adapteris	Jalgratta ventiliadiapter

Hrvatski Slovensko Slovenčina Bjelgarnia				українська мова	Türkçe Еллінвика
Speci kacije proizvoda	Speci kacije izdelka	Špeci kácie produktu	Технически характеристики	Техмічні характеристики продукту	Ürün Özellikleri	Продиурафієс Проївуюс
Visokotlačni napuhivač/ispuhivač	Visokotlačna tlačilka	Vysokotlakový kompresor na nafukovanie	Помпа под високо налягане	Насос високого тиску	Yüksek Basinchi Şişirici	Тројпа оуплініє пісціє
Model	Model	Model	Модел	Марка	Model	Мовтёло	R18PI
Napon	Napetost	Napătie	Напряжение	Напряжение Gerilim	Тотан	18 V	---
Duljina tlačnog crijeva	Dolžina tlačne gibke cevi	Dĺžka tlakovej hadice	Дължина на напорния маркуч	Pressure hose length	Basinch hortum uzunluğu	Мійкос рівхоніє спімпшероюв оаера	508 mm
Maksimalni tlak	Maksimalni tlak	Maximálny tlak	Максимально налягане	Максимальний тиск	Maksimum basins	Ме́гитн пісці	150 PSI, 10,34 BAR, 1034 KPA
Preciznost mjerača	Natančnost merilnika	Presnosť rozmeru	Точност на датчика	Точність калібрування	Basing őlçer doğruluğu	Акрібеша реєртиці	+/-7%
Istisnina pumpe	Prostornina črpalke	Objem pumpy	Работен обем на помпата	Переміщення насоса	Pompa Deplasmani	Актіла ектотиопіс 16 L/Min
RPM	RPM	RPM	RPM	RPM	RPM	RPM	14000 r/min
Težina - baterija nije uključena	Teža - razen baterij	Hmoutnosť - okrem jednotky akumulátora	Тегло - без батерията	Вага - без акумулятора	Ağırlık - Harici batarya takımı	Вáрос - хорієс пратарія	0,65 kg
Težina Prema EPTA-postupku 01/2003	Teža Skladno s postopkom EPTA 01/2003	Hmoutnosť Podľa EPTA-Procedure 01/2003	Тегло (спответствие с EPTA 01/2003)	Вага (відповідно до процедури EPTA 01/2003)	Ağırlık EPTA-Prosedürü 01/2003'e göre	Вáрос Σύμονα με την Διαδικαιοία EPTA 01/2003	1,08 kg
Mjerena vrijednost zvuka određena je prema EN 62841:	Izmerjene zvočne vrednosti določene v skladu s standardom EN 62841:	Namerané hodnoty určené podľa EN 62841:	Измерените стойности на звука са определена в съответствие с EN 62841:	Измеренные значення параметров звука определены в соответствии с EN 62841:	EN 62841: e göre hesaplannuș ses değerleri:	Метрімпівек щиєє їхов одуфровна ме то EN 62841:
Ponderirana razina tlaka zvuka	A-izmerjena raven zvočnega tlaka	Vážená A hladina akustického tlaku	Ниво на шумово налягане с равнище А	А-зважений рівень звукового тиску	A ağırlıklı ses basins seviyesi	А-отобіпрєєво епівебо піеопіє їхов	L_2 =80,5 dB(A)
Neodredenost K	Nedoloč. K	Odchýlka K	Променливост (К)	Незизначеність К Belirsizlik K	Аббіл	Анотітта К 3 dB
Ponderirana razina zvučne snage	A-izmerjena raven zvočne moči	Vážená A hladina akustického výkonu	Ниво на силата на шума с равнище А	А-зважений рівень звукової потужності	A ağırlıklı ses gücü seviyesi	А-отобіпрєєво епівебо ёвтаопіє їхов	L_w =91,5 dB(A)
Neodredenost K	Nedoloč. K	Odchýlka K	Променливост (К)	Незизначеність К Belirsizlik K	Аббіл	Анотітта К 3 dB
Nosite štünike za uši.	Nosite štünike za ušesa.	Použivajte chrániče sluchu.	Носете антифони	Діаметр ріжучої лінії.	Kulak koruyucu kullann.	Форітеomegaπідес.
Ponderirana energetska vrijednost Ukupne vrijednosti vibracija (troosni vektorski zbir) određuju se u skladu s EN 62841:	Skupna vrednost vibracij (vektorska vsota treh smeri) določena v skladu z EN 62841:	Celkové hodnoty vibrácií (sühm triaxiálneho vektora) určuje norma EN 62841:	Общата стойност на вибрациите (трносна векторна сума) е определена в съответствие с EN 62841:	Суммарное значепне вибрации (сумма векторов по трем координатным осям) определено в соответствии со стаңтартом EN 62841:	EN 62841 normuna uygun olarak belirlenniș titresim toplam değerleri (triaks vektör toplami):	Συνολικές αξίες крадаоюв (тришовичко бідновоцатико адроліма) спірфова ме EN 62841:
Razina vrijednosti vibracija:	Raven emisij vibracij:	Úroveň emisií vibrácií:	Ниво на вибрациите:	Рінень емісії вибрації:	Titresim emisyon seviyesi:	Епілебо ектоплів крадаоюв:	a_5 ≤ 2,5 m/s^2
Neodredenost K	Nedoloč. K	Odchýlka K	Променливост (К)	Незизначеність К Belirsizlik K	Аббіл	Анотітта К 1,5 m/s2
Zamjenski dijelovi	Vymeniteľné diely	Nadomestni deli	Смяна на части	Загасні частини	Yedek parcalar	Анталактика
Adapter igle za loptu	Iglični adapter za žoge	Adaptér pre ihlu na nafukovanje löpt	Адаптер за игла за топки	М'який адаптер для головок	Кüresel іgne adaptôrů	Просягарювáєс тупові беловас уся міталес	5131041086
Univerzalni adapter ventila	Adapter za univerzalne ventile	Adaptér pre univerzilny ventil	Адаптер за универсален вентил	Універсальний адаптер для клапана	Universal supap adaptôrů	Каволикós просягарювáєс бахфібас	5131041087
Adapter ventila bicikla	Adapter za ventile koles	Adaptér pre ventil na nafukovanie cyklistických pneumatik	Адаптер за вентил за велосиледна гума	Адаптер для клапана велосиледу	Bisiklet supap adaptôrů	Просягарювáєс уя лάоптиха побілдато	5131041088

English Français Deutsch Español Italiano Nederlands Português
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Bateria y cargador	Batteria e caricatore	Accu en lader	Bateria e carregador
Compatible battery pack (not included)	Pack batterie compatible (non compris)	Kompatible Akkus (nicht im Lieferumfang enthalten)	Packs de Bateria compatibles (no incluido)	Gruppo batterie compatibile (non incluso)	Compatibel accupack (niet inbegrepen)	Baterias compatíveis (não incluída)
Lithium-Ion	Lithium-Ion	Lithium-Ionen	Ión-litio	Ioni di litio	Lithium-Ion	lão-Litio
Compatible charger (not included)	Chargeur compatible (non compris)	Kompatibles Ladegerät (nicht im Lieferumfang enthalten)	Cargador compatible (no incluido)	Caricatore compatibile (non incluso)	Compatibele oplader (niet inbegrepen)	Carregador compatível (não incluída)

Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti
Baterie a nablječka	Akkumulátor és töltő	Baterie și încárcător	Akumulators un lădētājs	Baterija ir jkroviklis	Aku ja laadija
Kompatibilní akumulátor (nepříbalen)	Kompatibilis akkumulátor (nem tartozék)	Accumulatori compatibili (neinclus)	Saderīgu akumulatoru komplekts (nav kompl.)	Suderinamas baterijos paketas (nepridedama)	Ühilduvad akupaketid (ei ole komplektis)
Lithium iontový akumulátor	Lítiumion	Litiu-Ion	Litija-jonu	Litis-jonas	Liitiumioon
Kompatibilní nablječka (nepříbalen)	Kompatibilis töltő (nem tartozék)	Încárcător compatibil (neinclus)	Saderīgs lădētājs (nav kompl.)	Tinkamas jkroviklis (nepridedama)	Kasutatav laadija (ei ole komplektis)

Dansk Svenska Suomi Norsk Русский Polski
Batteri og oplader	Batteri och laddare	Akku ja laturi	Batteri og lader	Батарея и зарядное устройство	Akumulator i ładowarka
Kompatibelt batteri (medfølger ikke)	Kompatibelt batteripack (inte inkluderat)	Yhteensopiva akku (ei mukana)	Kompatible batteripakker (ikke inkludert)	Совместимая аккумуляторная батарея (не входит в комплект поставки)	Pasujące akumulatory (nie dołączona)	RB18L13RB18L15RB18L20RB18L25RB18L40RB18L50
Lithium-ion	Litiumjon	Litiumioni	Litium-Ion	Литий-ионная аккумуляторная батарея	Li-Ion
Kompatibel oplader (medfølger ikke)	Passande laddare (inte inkluderat)	Yhteensopiva laturi (ei mukana)	Kompatibel lader (ikke inkludert)	Совместимое зарядное устройство (не входит в комплект поставки)	Odpowiednia ładowarka (nie dołączona)	BCS618BCL14181HBCL14183HRC18150RC18627RC18120RC18118CRC18115

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

AVERTISSEMENT

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power (AC/DC) the warranty period over the period described above using the registration on the www.nyobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance

– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, voltage, frequency)

– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances

– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
- Power tool accessories provided with the tool or purchased separately, including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide, etc.
- Components (parts and accessories) subject to natural wear and tear, including but not limited to service & maintenance kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins & springs, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To find an authorised service centre near you, visit http://en.ryobitools.eu/ Pour trouver le service après-vente agréé le plus proche, rendez-vous sur http:// header/service-and-support/service-agents fr.ryobitools.eu/header/service-and-support/service-agents.

FR RYOBI® CONDITIONS D'APPLICATION DE LA GARANTIE

EC declaration of conformity

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Herewith we declare that the product

High Pressure Inflator

Brand: Ryobi

Model number: R18PI

Serial number range: 46271001000001 - 46271001999999

is in conformity with the following European Directives and harmonised standards

2006/42/EC, 2014/30/EU, 2011/65/EU,

EN 62841-1:2015, EN 55014-1:2017, EN 55014-2:2015

RoHS documentation is compiled according to EN 50581:2012

Andrew John Eyre (BEng, CEng, MIET)

Vice President, Regulatory & Safety

Authorised to compile the technical file:

Alexander Krug, Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

DÉCLARATION DE CONFORMITÉ EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC CONFORMITEITSVERKLARING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC OVERENSSTEMMELSESERKLÆRING

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Vi erklærer hermed, at produktet

Højtryksoppuster

Brand: Ryobi

Modelnummer: R18PI

Serienummerområde: 46271001000001 - 46271001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC-KONFORMITETSDEKLARATION

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC-SÄÄNNÖSTEN NOUDATTAMINEN

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PL DEKLARACJA ZGODNOŚCI EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RO DECLARATIE DE CONFORMITATE EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Alexander Krug, Director General

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

CS PROHLÁŠENÍ O SHODĚ EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Ar što paziņojam, ka produkti

Augstspiediena gaisa süknis

Modela numurs: R18PI

Zimols: Ryobi

Max-Eyth-Straße 10, 71364 Winnenden, Germany

HU EC IZJAVA O USKLAĐENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

LT EC ATITIKTIES DEKLARACIJA

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC VASTAVUSDEKLARATSIOON

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Kinnitame, et see toode

Körgsurvepump

Mark: Ryobi

Mudeli number: R18PI

Seerianumbri vahemik: 46271001000001 - 46271001999999

Max-Eyth-Straße 10, 71364 Winnenden, Germany

PREHLÁSENIE O ZHODE EC

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC IZJAVA O USKLAĐENOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

IZJAVA EC O SKLADNOSTI

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

EC Uygunluk beyani

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Max-Eyth-Straße 10, 71364 Winnenden, Germany

RYOBI®
