USER MANUAL SG3500 SCHEPPACH

Explanation of the symbols on the device Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompa- nying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

Attention! Failure to observe the safety signs and warning information a󰀩xed to the machine and failure to observe the safety and operating instructions can result in serious injury or even death. Warning - read the instruction manual to reduce the risk of injury. Wear hearing protection. Excessive noise can result in a loss of hearing. Wear work gloves! Do not expose the device to rain. Naked ames or smoking near the device is strictly prohibited! Warning - Hot parts! Warning against electrical voltage. Make sure that other persons maintain a su󰀩cient safety distance. Keep uninvolved persons away from the device. Attention: hot surface! Danger of burning. Before carrying out any cleaning or maintenance work, switch o󰀨 the engine and remove the spark plug connector from the spark plug. Danger of poisoning! Only use the device outdoors and never in closed or poorly ventilated rooms. Sparks are produced when the engine is started. These can ignite nearby ammable gases. Read the whole text of the operating instructions through carefully before start up!www.scheppach.com

Important. Always switch o󰀨 the engine before refuelling. Do not rell during operation. Be very careful when dealing with fuels and lubricants! Checking the oil level The product complies with the applicable European directives. m Attention! We have marked points in these operating instructions that impact your safety with this symbol.www.scheppach.com

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

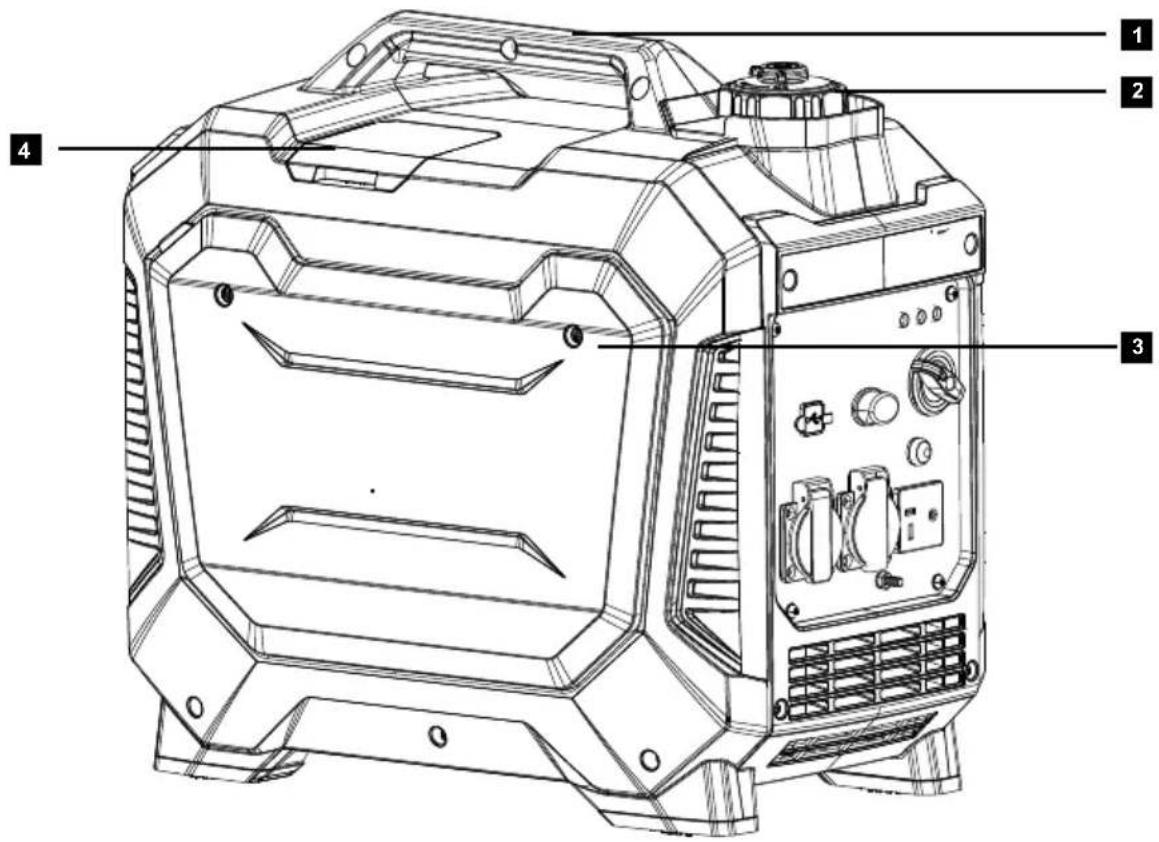

10. Energy-saving switch (ECO)

11. On/o󰀨 switch with choke

15. 12V DC safety trigger

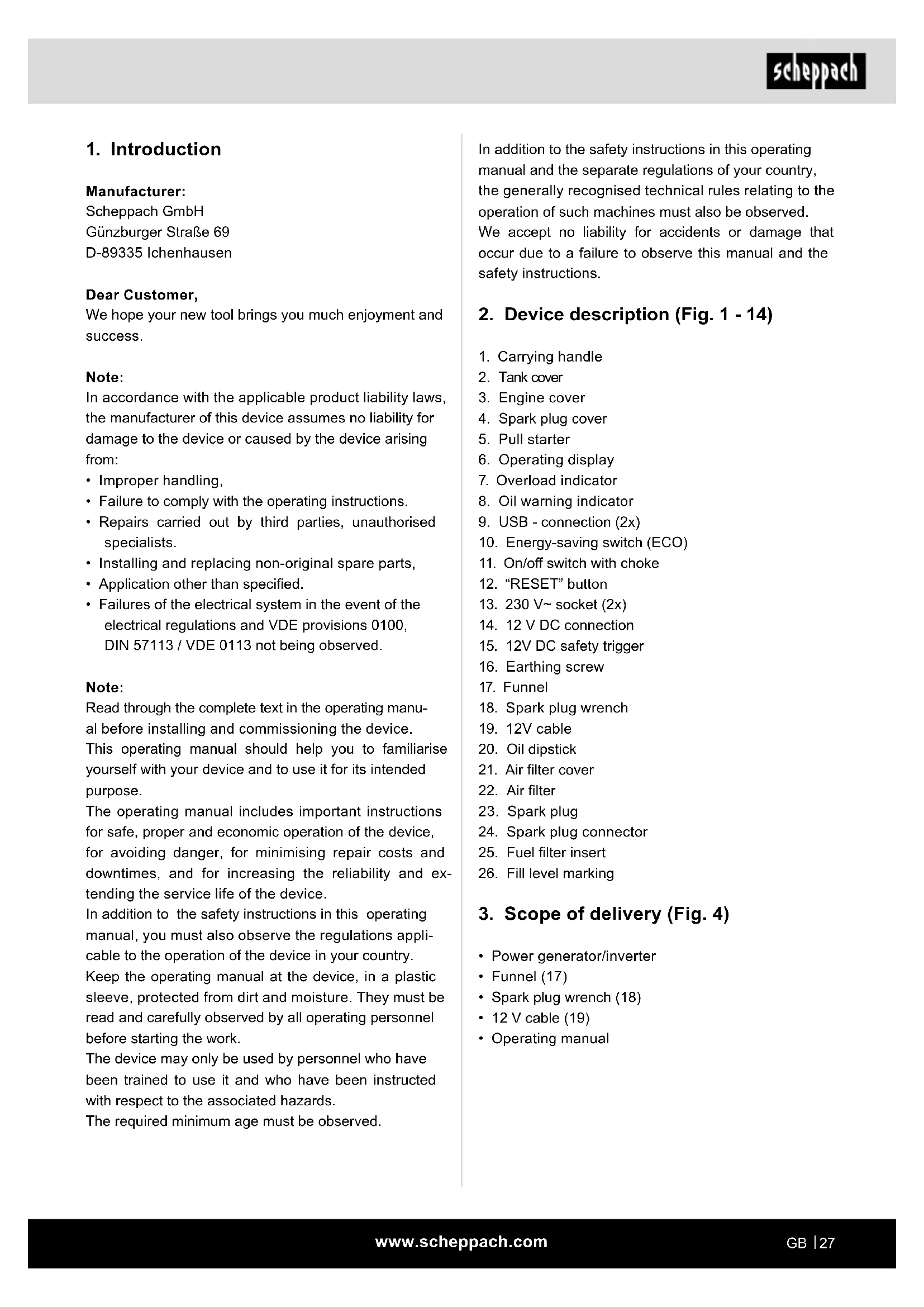

3. Scope of delivery (Fig. 4)

• Spark plug wrench (18)

Manufacturer: Scheppach GmbH Günzburger Straße 69 D-89335 Ichenhausen Dear Customer, We hope your new tool brings you much enjoyment and success. Note: In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Failure to comply with the operating instructions.

• Repairs carried out by third parties, unauthorised specialists.

• Installing and replacing non-original spare parts,

• Application other than specied.

• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE 0113 not being observed. Note: Read through the complete text in the operating manu- al before installing and commissioning the device. This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose. The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and ex- tending the service life of the device. In addition to the safety instructions in this operating manual, you must also observe the regulations appli- cable to the operation of the device in your country. Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.www.scheppach.com

m Attention! When using equipment, several safety warnings must be observed to prevent injuries and damage. For this reason, please carefully read this operating manual / safety instructions. If the device is handed over to an- other person, hand over the operating and safety in- structions with it. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions. m DANGER A failure to observe these instructions poses an ex- treme danger of death or the risk of life-threatening injuries. m WARNING A failure to observe these instructions poses a danger of death or the risk of serious injuries. m CAUTION A failure to observe these instructions poses a minor to moderate danger of injury. NOTE! A failure to observe these instructions poses a risk of damage to the engine or other property.

1. It is prohibited to make any modications to the

2. The manufacturer’s preset speed must not be

changed. Power generators or connected devices may be damaged.

3. Danger of poisoning! Exhaust gases, fuel and lu-

bricants are poisonous, exhaust gases may not be inhaled.

4. Fire risk! Petrol and fuel vapours are highly am-

mable and explosive.

5. Motor exhaust gases are toxic. The power gener-

ator must not be operated in unventilated rooms. If the generator is to be operated in well-ventilated rooms, the exhaust gases must be discharged di- rectly outside via an exhaust gas hose. Additional requirements for protection against re and explo- sion must also be observed. Toxic exhaust gases can also escape when operating an exhaust hose. Because of the risk of re, the exhaust hose must never be directed at ammable materials.

6. Never operate the power generator in rooms with

highly ammable substances.

The power generator is suitable for devices that are intended to operate on a 230 V AC or 12 V DC voltage source. With household devices and electronic devices, please check the suitability according to the respective manu- facturer’s specications. Attention! The power generator must not be connect- ed to the mains supply as a domestic emergency power supply. It can cause damage to the power generator or other electrical devices. The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or inju- ries of any type resulting from this. An element of the intended use is also the observance of the safety instructions, as well as the assembly in- structions and operating information in the operating manual. Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers. In addition, the applicable accident prevention regula- tions must be strictly observed. Other general occupational health and safety-related rules and regulations must be observed. The liability of the manufacturer and resulting damages are excluded in the event of modications of the ma- chine. Please note that our equipment was not designed with the intention of use for commercial or industrial purpos- es. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

5. General safety instructions

We have marked points in the operating manual that impact your safety with this symbol: m Furthermore, the operating manual contains other important text sections that are marked with the word “ATTENTION!”.www.scheppach.com

Factors inuencing the current exposure level of the worker include the characteristics of the work- space, other noise sources, airborne noise, etc., such as the number of machines and other adja- cent processes and the length of time an operator is exposed to the noise. The permitted exposure level may also vary from country to country. Nev- ertheless, this information will enable the opera- tor of the machine to make a better assessment of the risks and hazards. If necessary, acoustical measurements should be taken after installation to determine the sound pressure level.

26. Warning! Comply with the electrical safety regu-

lations applicable to the place where the inverter power generators are used.

27. Warning! Consider the requirements and precau-

tionary measures in case of re-supply of a system by inverter power generators depending on the protective measures of this system and the appli- cable directives.

28. Inverter power generators should only be used up

to their rated power under the rated ambient con- ditions. If the inverter power generator is used in conditions that do not comply with the reference conditions according to ISO 8528-8:2016, 7.1, and if the cooling of the engine or generator is im- paired, e.g. as a result of operation in restricted areas, a reduction in power is required.

29. Due to high mechanical loads, only durable rubber

hose lines (according to IEC 60245-4) or equiva- lent equipment should be used.

30. Observe the electrical safety regulations applica-

ble to the place where the power generator/invert- er is used.

31. Consider the requirements and precautionary

measures in case of re-supply of a system by in- verter power generators depending on the protec- tive measures of this system and the applicable directives.

8. Do not touch any mechanically moving or hot

parts. Do not remove any protective covers.

9. Protective equipment! Use suitable hearing pro-

tection when you are near the device.

11. Repair and adjustment work may only be carried

out by authorised specialist personnel.

12. Protect yourself from electrical hazards.

13. Never touch the power generator with wet hands.

14. Only use approved and appropriately identied ex-

tension cables for use outdoors (H07RN).

15. If extension leads or mobile distribution networks

are used, the resistance value must not exceed 1.5 Ω. As a guideline value, the total length of lines for a cross-section of 1.5 mm² should not exceed 60 m, and for a cross-section of 2.5 mm², 100 m should not be exceeded.

16. Never operate the power generator during rain or

17. Always switch o󰀨 the engine during transport and

18. Fuel is combustible and highly ammable. Do fuel

the unit during operation. Do not fuel the unit when someone is smoking or near open ames. Do not spill any fuel.

19. Do not refuel or empty the tank near open light, re

or ying sparks. Smoking prohibited!

21. Give the power generator a secure, level place.

Turning and tilting or changing location during op- eration are forbidden.

22. Place the power generator at least 1 m away from

walls or connected devices.

23. Children must be protected by ensuring that they

stay a safe distance away from the inverter power generator.

24. Some parts of the reciprocating internal com-

bustion motor are hot and may cause burns. The warnings on the generator must be observed.

25. Values specied in the technical data under sound

power level (LWA) and sound pressure level (LpA) represent emission levels and are not necessarily safe working levels. Since there is a correlation between emission and exposure levels, it cannot be reliably used to determine any additional pre- cautionary measures that may be required.www.scheppach.com

• Petrol must be lled before starting the combustion engine. While the combustion engine runs or if the machine is hot, the fuel cap must not be opened and petrol must not be lled.

• Open the fuel cap carefully and slowly. Wait for the pressure to equalise and only then remove the tank cover completely.

• Use a suitable funnel or ller pipe for refuelling so that no fuel can spill onto the combustion engine and housing or lawn.

• Do not overll the fuel tank!

• To leave room for the fuel to expand, never ll the fuel tank beyond the lower edge of the lling nozzle. Observe additional information in the combustion engine user manual.

• If petrol has overowed, do not start the combustion engine until the petrol-contaminated area has been cleaned. Avoid starting the engine until the fuel va- pours have evaporated (wipe dry).

• Always wipe up spilled fuel immediately.

• If petrol has got on clothing, it must be changed.

• The tank cover must be properly screwed on and tightened after each refuelling operation. The device must not be put into operation without the original tank cover screwed on.

• For safety reasons, check fuel line, fuel tank, fuel cap and connections regularly for damage, ageing (brittleness), tight t and leaks and replace if nec- essary.

• Only empty the tank outdoors.

• Never use beverage bottles or similar to dispose of or store operating materials, such as fuel. People, especially children, could be tempted to drink from it.

• Never store the device with petrol in the tank inside a building. Any fuel vapours produced can come into contact with naked ames or sparks and ignite.

• Do not place the device and fuel tank near heaters, radiant heaters, welding machines or other sources of heat. Risk of explosion! If a defect is detected on the tank, the tank cover or on fuel-carrying parts (fuel lines) during operation, the combustion engine must be switched o󰀨 immediately. Then consult a specialist dealer. Residual risks The electric tool has been built according to state- of-the-art and the recognised technical safety rules. However, individual residual risks can arise during op- eration. Electrical safety

1. Prior to use, the generator and its electrical equip-

ment (including lines and plug connectors) should be checked to ensure that there are no defects.

2. The power generating unit must not be connected

to another power source such as the power sup- ply of energy supply companies. In special cases where a reserve connection to existing electrical systems is provided, this must only be carried out by a qualied electrician who will take into account the di󰀨erences between the operated equipment using the public mains and operation of the power generating unit. According to this part of ISO 8528, the di󰀨erences in the operating manual must be specied.

3. Protection against electric shocks depends on

the circuit breakers which are matched precisely to the power generating unit. If a circuit breaker must be replaced, this should be done using a cir- cuit breaker with the same rating and performance characteristics. Warning! This power tool generates an electromag- netic eld during operation. This eld can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool. ATTENTION: Use only E10 unleaded petrol as fuel. m Use of petrol m Danger to life! Petrol is toxic and highly am- mable.

• Only store petrol in containers (canisters) designed and tested for this purpose. The tank caps must al- ways be properly screwed on and tightened. Defec- tive caps must be replaced for safety reasons.

• Keep petrol away from sparks, open ames, per- manent ames, heat sources and other sources of ignition. Do not smoke!

• Refuel outdoors only and do not smoke while refu- elling.

• Before refuelling, switch o󰀨 the combustion engine and let it cool down.www.scheppach.com

Operating mode S1 (continuous operation) The machine may be operated continuously with the specied power. Operating mode S2 (short-term operation) The machine may only be operated at maximum or peak power for a brief time. Noise and vibration m Warning: Noise can have serious e󰀨ects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection. Information on noise level per EN ISO 3744:1995, ISO 8528-10:1998 Noise data Sound power level L

• Open the packaging and carefully remove the de- vice.

• Remove the packaging material, as well as the pack- aging and transport safety devices (if present).

• Check whether the scope of delivery is complete.

• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.

• If possible, keep the packaging until the expiry of the warranty period.

• Familiarise yourself with the device by means of the operating manual before using for the rst time.

• With accessories as well as wearing parts and spare parts use only original parts. Spare parts can be ob- tained from your specialist dealer.

• When ordering please provide our article number as well as type and year of manufacture for your equip- ment. m WARNING! The device and the packaging material are not children‘s toys! Do not let children play with plas- tic bags, lms or small parts! There is a danger of choking or su󰀨ocating!

• Health hazard due to electrical power, with the use of improper electrical connection cables.

• Furthermore, despite all precautions having been met, some non-obvious residual risks may still re- main.

• Residual risks can be minimised if the “Safety infor- mation” and the “Proper use” together with the oper- ating manual as a whole are observed.

• Avoid accidental start-ups of the power generator.

• Use the device in the way that is recommended in this operating manual. This is how to ensure that your power generator provides optimum perfor- mance.

Power generator Digital inverter Protection category IP23M Continuous output P

230 V~ Rated current I

2 x 13 A (230 V~) Rated current I

50 Hz Performance class G1 Active power factor φ 1 Quality class A Drive motor type 4-stroke 1 cylinder air-cooled Displacement 141 cm

Max. power (engine) 3.6 kW / 4.8 PS Fuel Super E10 petrol Tank contents 6.3 l Engine oil type 15W40 Oil volume (approx.) 400 ml Consumption at full load 1.78 l/h Max. temperature. 40 °C Max. altitude (above mean sea level) 1000 m Spark plug A7RTC Technical changes reserved!www.scheppach.com

• Do not use bare wires for earthing.

• Power generator must be safely earthed. Earthing the housing is necessary to discharge static charging. To do this, connect a cable on one side to the earth terminal (16) of the power generator and on the other side to an external mass rising pipe (e.g. rod earth). m ATTENTION! Check before operation

• Check all sides of the engine for oil or fuel leaks.

• Check the engine oil level.

• Check the fuel level – Fill with at least 2 litres of Su- per E10 petrol.

• Check the condition of the air lter.

• Check the condition of the fuel lines.

• Look for signs of damage.

• Check that all protective covers are in place and all screws are tightened.

• Ensure that the device is su󰀩ciently ventilated.

• Make sure that the spark plug connector is attached to the spark plug (23).

• Disconnect any connected electrical devices from the power generator.

8.2 Top up oil (Fig. 7 + 8)

m Attention! The power generator is delivered without engine oil. Therefore, ensure that you add oil before start- ing it up. Use 15W40 oil here. Check the oil level regularly before commissioning. An oil level that is too low can damage the engine.

1. Place the power generator on a level, even sur-

2. Remove the engine cover (3) by unscrewing the

two screws with a Phillips screwdriver (not includ- ed in the scope of delivery).

3. Unscrew the oil dipstick (20).

4. Fill the tank with engine oil using a funnel (17).

Note the max. lling capacity of 400 ml. Carefully ll the oil up to the lower edge of the lling port.

5. Wipe the oil dipstick (20) with a clean, lint-free

6. Re-insert the oil dipstick (20) and check the oil lev-

el without screwing the dipstick tight again.

7. The oil level must be within the middle mark on

8. Before commissioning

Electrical safety Prior to use, the power generator and its electrical equipment (including lines and plug connectors) should be checked to ensure that there are no defects. Never connect the power generator to the mains (sock- et). The power lines to the consumer must be kept as short as possible. m DANGER! Risk of re and explosion! When lling, fuel may ignite and even explode. This can lead to severe burns or death. - Switch o󰀨 the engine and let it cool down. - Keep heat, ames and sparks away. - Only ll up with fuel outdoors. - Wear protective gloves. - Avoid contact with skin and eyes. - Start the device at a distance of at least 3 m from the fuel lling point. - Watch out for leaks. If petrol is leaking, do not start the engine. m WARNING! Health hazard! Inhaling petrol/lubricant vapours may lead to severe health damage, loss of consciousness and, in extreme cases, to death. - Do not inhale petrol/lubricant vapours. - Operate the device outdoors only. NOTE! Device damage Using the device without or with too little engine and gearbox oil can result in engine damage. - Fill with petrol and oil before commissioning. The device is supplied without engine and gearbox oil. NOTE! Environmental damage! Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution. - Fill/empty oil only on level, paved surfaces. - Use a lling nozzle or funnel. - Collect drained oil in a suitable container. - Wipe up spilled oil carefully immediately and dis- pose of the cloth according to local regulations. - Dispose of oil as per local regulations.www.scheppach.com

When the engine is cold

1. Attention! Never allow the pull starter (5) to whip

back. This can result in damage.

2. Set the on/o󰀨 switch (11) to the “CHOKE” position.

3. Now pull the pull starter (5) and the engine should

start. If the engine does not start, repeat the pro- cess.

4. Move the on/o󰀨 switch (11) from the “CHOKE” po-

sition to the “RUN” position after starting the en- gine (after approx. 15-30 seconds). (Fig. 6)

5. If the engine does not start even after several at-

tempts, read the “Troubleshooting” chapter. Note: If the engine is being started for the rst time, several tries are required to start until the fuel has been deliv- ered from the tank to the engine. Note: With high outside temperatures, it may be nec- essary to start the power generator without the choke even when the engine is cold! When the engine is warm

1. Set the on/o󰀨 switch (11) to the “RUN” position.

2. Now pull the pull starter (5) quickly. The device

should start after a maximum of 2 pulls. If the device has still not started, repeat the procedure described under “Starting the engine when cold”.

9.2 Shutting the engine o󰀨

Allow the power generator to run for a short time (ap- prox. 30 seconds) without load before switching it o󰀨 so that it can “cool down”.

1. Set the on/o󰀨 switch (11) to the “OFF” position.

2. Disconnect the power consumers from the device.

3. Set the ventilation on the tank cover (2) to “OFF”.

9.3 Operating display (6) (Fig. 3)

The operating display (6) is active when the engine is running.

9.4 Overload indicator (7) (Fig. 3)

The overload protection becomes active if the power consumption is too high and switches o󰀨 the 230 V ~ sockets (13).

1. Switch the device o󰀨 as described in section 9.2.

2. Disconnect the power consumers from the device.

8. If the oil level is too low, add the recommended

amount of oil (max. 400 ml).

9. Then screw the oil dipstick (20) in again.

10. Put the engine cover (3) on and x in place by

retightening the two screws.

m Attention! The power generator is delivered without petrol. It is therefore essential to ll with petrol before com- missioning. Use Super E10 petrol for this.

1. Unscrew the tank ller cap (2) and ll a maximum

of 6.3 l Super E10 petrol into the tank container using the funnel (17).

2. Ensure that the tank is not overlled (observe the

ll level marking (26)!) and that no petrol is spilled. Use a fuel lter insert (25). Clean up spilled petrol immediately and wait until the fuel vapours have evaporated (wipe dry).

3. Close the tank cover (2).

m ATTENTION! Refuel in a well-ventilated area with the engine stopped. If the engine was in operation immediately before, allow it to cool rst. Never refuel the engine in a building where the petrol vapour may come into contact with ames or sparks. Petrol is highly inammable and explosive. When handling fuels, you may su󰀨er burns or other se- vere injuries.

m Attention! Always make sure the device is fully assembled before commissioning!

9.1 Starting the engine (Fig. 5 + 6)

m Attention! Danger of poisoning! Only use the device outdoors and never in closed or poorly ventilated rooms.

1. Set the ventilation on the tank cover (2) to “ON”.

2. Set the on/o󰀨 switch (11) to the “RUN” position.

Note: The energy saving switch (10) must be set to “OFF”.www.scheppach.com

m DANGER! Danger due to incorrect charging.

1. Plug the adapter cable with 12 V terminals (19) into

the 12 V DC connection (14) provided for this.

2. If the 12 V DC safety release (15) has been tripped,

the 12 V DC safety release (15) can restore the output power of the inverter power generator. Press and hold the 12 V DC safety release button (15) for 1 second.

3. If the 12 V DC safety release (15) has not been

triggered, the 12 V DC safety release (15) is in- e󰀨ective.

10. Cleaning and maintenance

Before carrying out any cleaning or maintenance work, switch o󰀨 the engine and remove the spark plug con- nector (24) from the spark plug (23). ATTENTION! Danger of burning! Wait until the de- vice has cooled down before performing cleaning or maintenance work.

Keep protective devices, air vents and the motor hous- ing as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it o󰀨 with compressed air at low pressure. We recommend that you clean the device directly after every use. Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use any cleaning products or solvents; they could attack the plastic parts of the device. Make sure that no water can penetrate the device interior.

WARNING! Always wear protective gloves and a mask during maintenance work!

10.2.1 Checking the oil level

1. Proceed as described in 8.2.

10.2.2 Changing oil (Fig. 7 + 8)

Change the engine oil after 20 operating hours, then after 50 hours or every three months. The engine oil change should be carried out while the engine is at operating temperature.

9.5 “RESET” button (12) (Fig. 3)

If the overload protection has been triggered and the overload indicator (7) lights up red, the “RESET” button (12) can restore the output power of the power gen- erator/inverter. It is then not necessary to restart the engine.

1. Press and hold the “RESET” button (12) for 1 sec-

ond until the light (red) is extinguished and the op- eration indicator (6) (green) illuminates. If the overload protection has not tripped, the “RESET” button (12) has no e󰀨ect.

9.6 Oil warning indicator (8) (Fig. 3)

The indicator activates when the oil level is too low and deactivates as soon as the oil level is su󰀩cient.

9.7 Automatic oil cut-o󰀨

The automatic oil cut-o󰀨 system responds when there is too little engine oil. The oil warning indicator (8) starts ashing when there is too little oil in the engine. The indicator lamp starts to light up when the oil quan- tity has not reached the safety quantity. The engine switches itself o󰀨 after a short time. It is not possible to start the engine until the engine oil has been lled (see chapter 8.2). The indicator activates when the oil level is too low and deactivates as soon as the oil level is su󰀩cient. If the oil level is too low, the oil warning indicator (8) lights up during the start attempt. Top up engine oil as described in 8.2 and repeat the starting procedure.

9.8 Energy saving switch (10) (Fig. 3)

To reduce the fuel consumption when idle, move the energy saving switch (10) to the “ON” position. The energy saving switch (10) must be switched o󰀨 when electrical devices that require a high starting cur- rent are connected, for example a compressor. Even when the power generator is started, the energy saving switch must be initially set to “OFF”.

9.9 USB connection (9) (Fig. 3)

This power generator is equipped with two USB con- nections. These can be used to charge smartphones for example.www.scheppach.com

deposits present using a wire brush.

6. Check the spark plug gap. Set the electrode gap to

0.6 to 0.7 mm with a feeler gauge.

7. The re-assembly takes place in reverse order.

NOTE A loose spark plug can overheat and cause damage to the engine. Tightening the spark plug too much can damage the thread in the cylinder head.

10.2.5 Clean the fuel lter insert (Fig. 13 + 14)

Note: The fuel lter insert (25) is a lter cup which is located directly under the tank cover (2) and lters all the fuel lled in.

1. Set the on/o󰀨 switch (11) to the “OFF” position.

2. Open the tank cover (2).

3. Remove the fuel lter insert (25) and the ll level

marking (26). Clean it in a non-ammable solvent or a solvent with a high ash point.

4. Reinsert the fuel lter insert (25) with the ll level

5. Close the tank cover (2).

Please provide the following information in the event of any enquiries:

• Machine data - type plate

• Engine data - type plate Important note in the case of repairs: For return delivery of the device for repair, please en- sure for safety reasons that it is free of oil and fuel when it is sent to the service centre.

10.3 Ordering spare parts

Please provide the following information when ordering replacement parts:

• Device article number Service information With this product, it is necessary to note that the follow- ing parts are subject to natural or usage-related wear, or that the following parts are required as consumables. Wearing parts*: Spark plug, air lter

• may not be included in the scope of delivery! Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

1. Place the power generator on a level, even sur-

2. Remove the engine cover (3) as described in 8.2.

3. Provide a collection container (not included in the

4. Open the oil dipstick (20) and drain warm engine

oil into the collection container by tilting the power generator.

5. Fill up with new engine oil (approx. 0.35 l).

6. Screw the oil dipstick (20) in again.

7. Dispose of the used oil properly.

10.2.3 Air lter (Fig. 9 + 10)

NOTE! Risk of damage! Operating the engine without a lter element or with a damaged lter element can cause engine damage. - Never run the engine without the air lter element or with a damaged lter element. This would allow dirt into the engine, which would result in severe dam- age to the engine. Clean the air lter (22) every 50 operating hours, re- place if necessary.

1. Remove the engine cover (3) (Fig. 7).

2. Remove the air lter cover by pressing the fasten-

4. Do not use harsh cleaners or petrol to clean the

5. Clean the elements by knocking them out on a at

surface. If heavily soiled, wash with soapy water, then rinse with clean water and allow to air dry.

6. The re-assembly takes place in reverse order.

10.2.4 Spark plug (Fig. 11 + 12)

m ATTENTION: Only replace the spark plug when the engine is cold! Check the spark plug (22) for contamination for the rst time after 20 operating hours and clean it with a copper wire brush if necessary. Then maintain the spark plug (22) every 50 operating hours.

1. Open the spark plug cover (4).

2. Pull o󰀨 the spark plug connector (24) with a twist-

3. Remove the spark plug (23) with the enclosed

spark plug wrench (18).

4. Remove any dirt from the base of the spark plug

13. Disposal and recycling

Notes for packaging The packaging materials are recy- clable. Please dispose of packag- ing in an environmentally friendly manner. Notes on the electrical and electronic equipment act [ElektroG] Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of sepa- rately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their per- sonal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places: - Public disposal or collection points (e.g. municipal works yards) - Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or o󰀨er to do so voluntarily. - Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity. - Further supplementary take-back conditions of the manufacturers and distributors can be ob- tained from the respective customer service.

• If the manufacturer delivers a new electrical appli- ance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer’s customer service for this.

11.1 Preparation for storage

1. Empty the fuel tank using a petrol extraction pump

Warning: Do not remove the petrol in enclosed

spaces, near re or when smoking. Petrol fumes can cause explosions and re.

2. Change the oil at the end of every season.

3. To do so, remove the used engine oil from a warm

engine and rell with fresh oil.

4. Remove the spark plug (23). (Fig. 12)

5. Fill the cylinder with approx. 20 ml of oil from an

6. Pull the start pull cord slowly so that the oil pro-

tects the inside of the cylinder.

7. Screw the spark plug (23) back in.

8. Store the device in a well-ventilated place or area.

11.2 Drain petrol with a petrol extraction pump

In case of storage over a longer period of time, the pet- rol must be drained.

1. Hold a collection container under the hose of the

petrol extraction pump (not included in the scope of delivery).

4. Push the hose of the petrol suction pump into the

fuel tank and drain the petrol completely using the petrol extraction pump.

1. Empty the fuel tank using a petrol extraction pump

2. If operational, keep the engine running until the

remaining petrol has been used up.

3. Drain the engine oil from the warm engine (as de-

scribed under 10.2.2 Oil change).

4. Remove the spark plug connector (24) from the

5. Secure the device against slipping using a tension

6. The power generator can be lifted and moved via

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Un- ion, di󰀨erent regulations may apply to the disposal of waste electrical and electronic equipment. You can nd out how to dispose of the disused device from your local authority or city adminis- tration. Fuels and oils

• Before disposing of the unit, the fuel tank and the engine oil tank must be emptied!

• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!

• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop. Fault Possible cause Remedy Engine cannot be started Automatic oil cut-o󰀨 starts Check oil level, ll with engine oil Spark plug sooty Clean or replace spark plug No fuel Top up with fuel Generator has insu󰀩cient or no voltage Electronics defective Repair by an authorised service centre. Overload protection switch tripped Restart the power generator, reduce consumers Air lter dirty Clean or replace lterwww.scheppach.com

Always comply with the following maintenance intervals in order to ensure problem-free operation. ATTENTION! At initial start-up, engine oil and fuel must be lled. Before every use after operating for 20 hours after operating for 50 hours after operating for 300 hours Checking the engine oil

Changing the engine oil rst time, then every 50 hours

Visual inspection of the device

Cleaning the spark plug Gap: 0.6 - 0.7 mm, replace if necessary Check and readjust the throttle valve

Cleaning the cylinder head

Adjust the valve play

Attention: Only have points “X*” carried out by an authorised specialist company.www.scheppach.com

8,0 A (12 V) Courant nominal I

8,0 A (12 V) Nominale stroom I

9.4 Vulbelasting (7) (afb. 3)

8,0 A (12V) Corriente nominal I

8,0 A (12V) Corrente nominal I

8,0 A (12 V) Nazivna struja I

8,0 A (12V) Nazivni tok I

8,0 A (12V) Nominel strøm I

16. Declaration of conformity

Annex VI Noise: measured L

hereby declares the following conformity under the EU Direc- tive and standards for the following article
