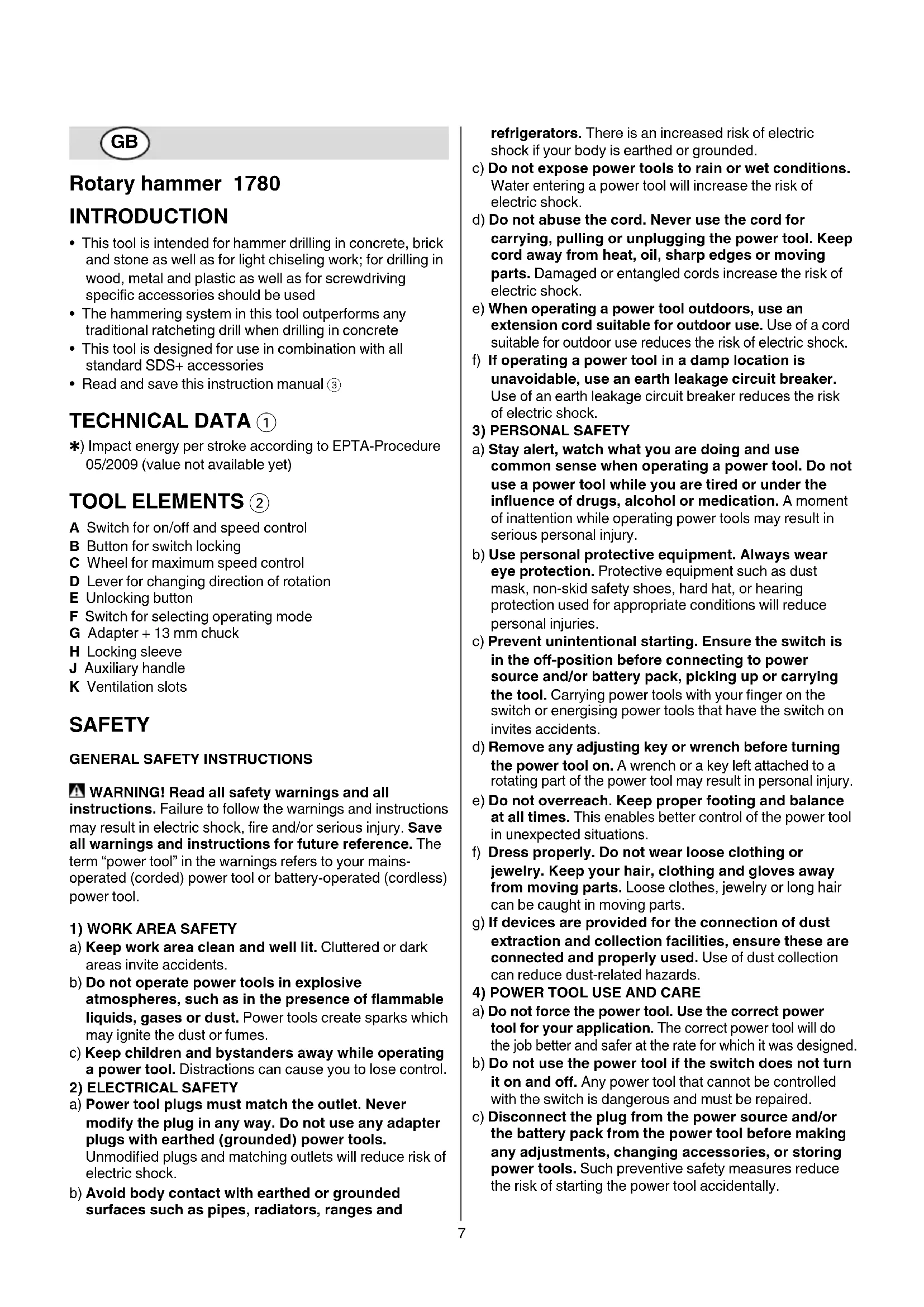

GB

Rotary hammer 1780

INTRODUCTION

• This tool is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work; for drilling in wood, metal and plastic as well as for screwdriving specific accessories should be used
• The hammering system in this tool outperforms any traditional ratcheting drill when drilling in concrete
• This tool is designed for use in combination with all standard SDS+ accessories
• Read and save this instruction manual ③

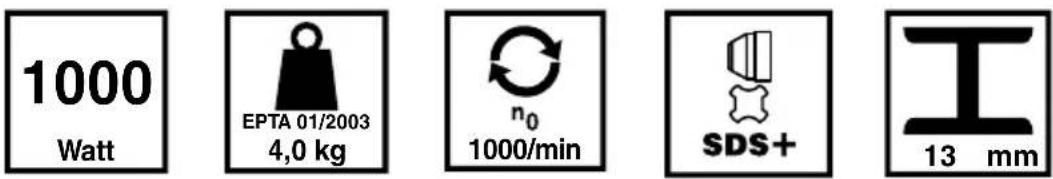

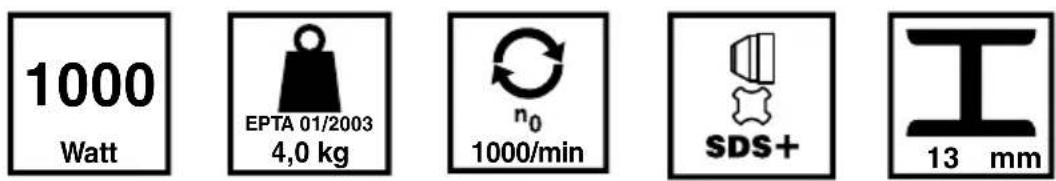

TECHNICAL DATA ①

*) Impact energy per stroke according to EPTA-Procedure 05/2009 (value not available yet)

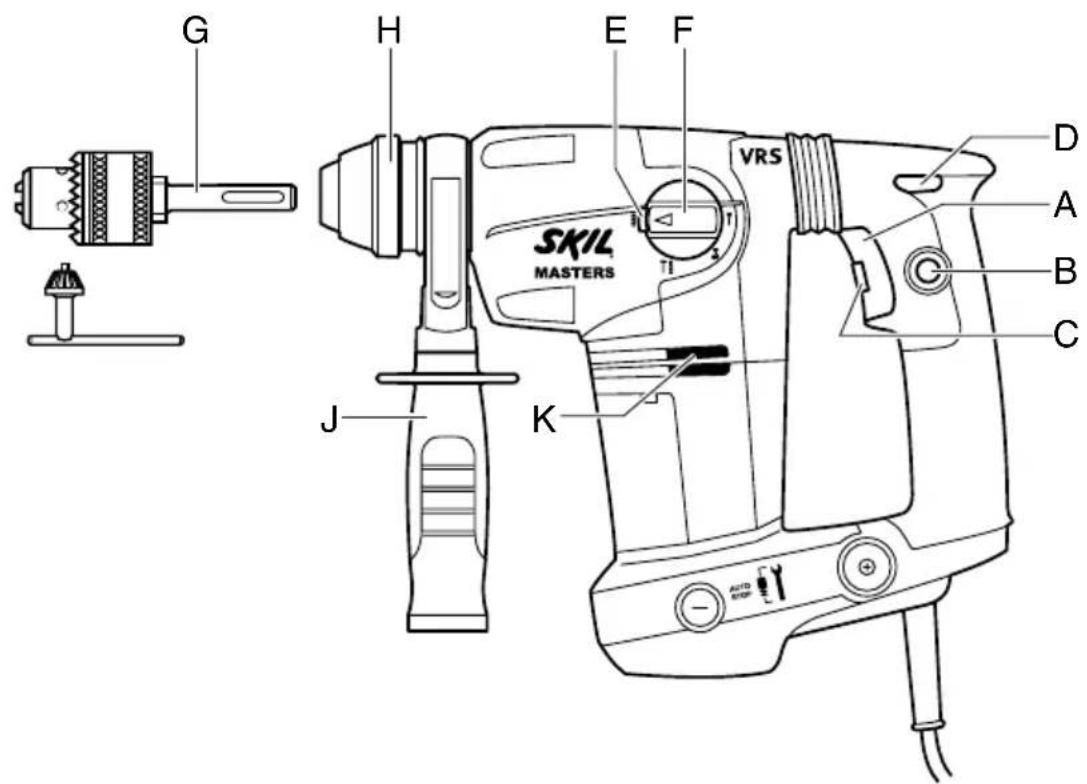

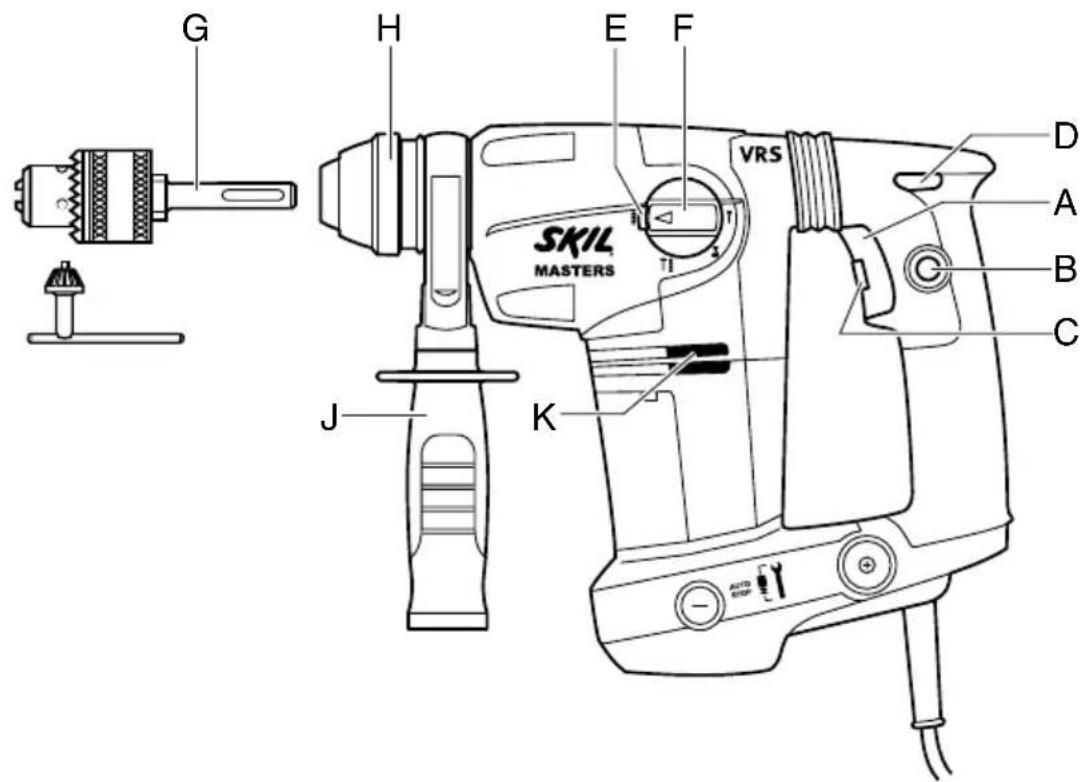

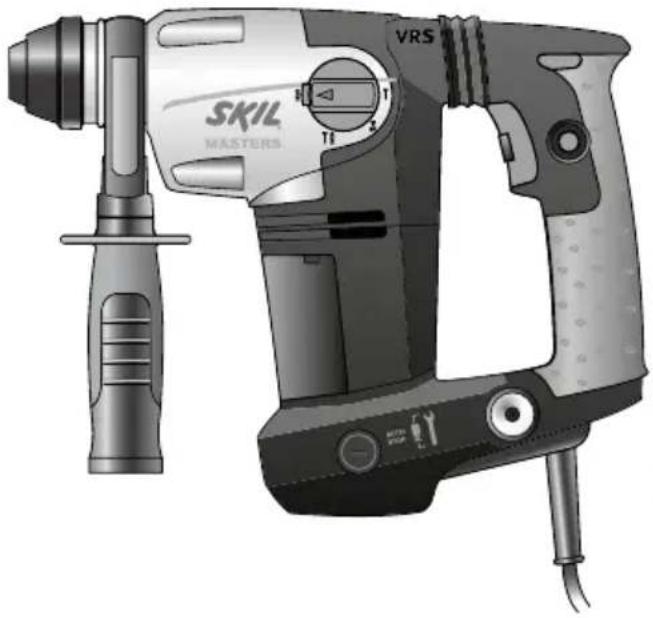

TOOL ELEMENTS ②

A Switch for on/off and speed control
B Button for switch locking
C Wheel for maximum speed control
D Lever for changing direction of rotation
E Unlocking button
F Switch for selecting operating mode
G Adapter + 13 mm chuck
H Locking sleeve
J Auxiliary handle
K Ventilation slots

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR HAMMERS

GENERAL

- Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool (tools with a rating of 230V or 240V can also be connected to a 220V supply)

- This tool should not be used by people under the age of 16 years

- Do not work materials containing asbestos (asbestos is considered carcinogenic)

- Never use the tool when cord is damaged; have it replaced by a qualified person

• Always disconnect plug from power source before making any adjustment or changing any accessory ACCESSORIES

- SKIL can assure flawless functioning of the tool only when the correct accessories are used which can be obtained from your SKIL dealer

- Use only accessories with an allowable speed matching at least the highest no-load speed of the tool

BEFORE USE

- Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

- Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)

- Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

- Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or

bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

DURING USE

• Wear ear protectors (exposure to noise can cause hearing loss)
• Use auxiliary handle(s), if supplied with the tool (loss of control can cause personal injury)
• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord (a cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)
  • Always keep the cord away from moving parts of the tool
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• If the drill bit becomes unexpectedly jammed (causing a sudden, dangerous reaction), immediately switch off the tool
• Be aware of the forces that occur as a result of jamming (especially when drilling metals); always use auxiliary handle J ^② and take a secure stance

AFTER USE

- When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

• Combined switch for on/off and speed control A ②

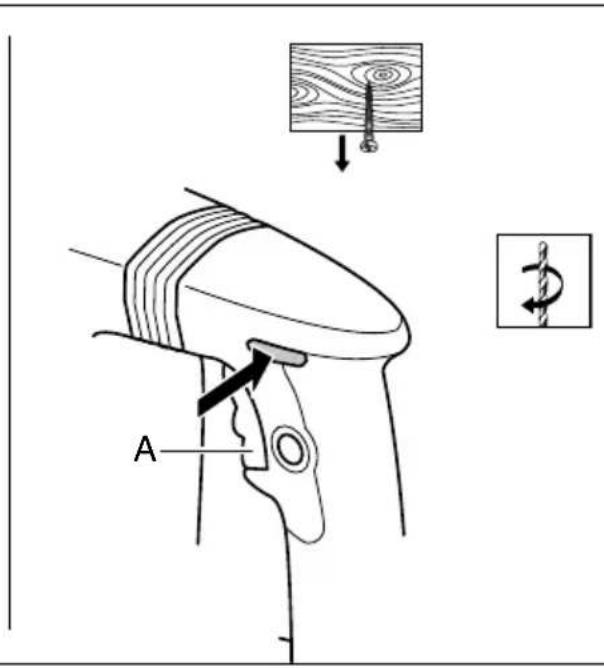

• Switch locking for continuous use (possible only when tool is set for right rotation)

- pull trigger A ②

• press button B ② with your thumb
• release the trigger
• unlock the switch by pulling again trigger A ② and then releasing it

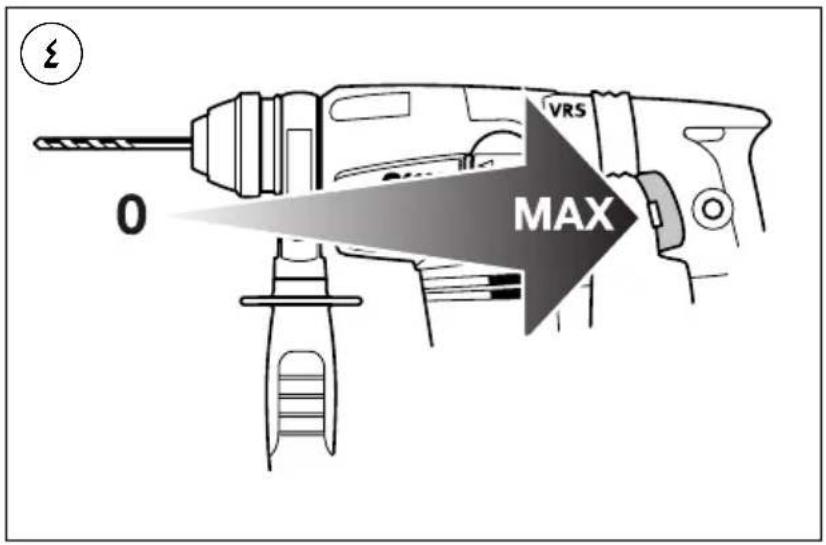

• Speed control for smooth starting ④

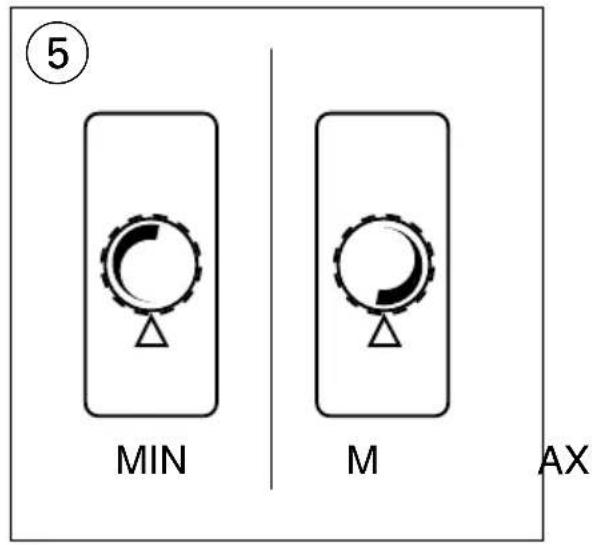

• Maximum speed control ⑤

With wheel C ② the maximum speed can be adjusted steplessly from minimum to maximum

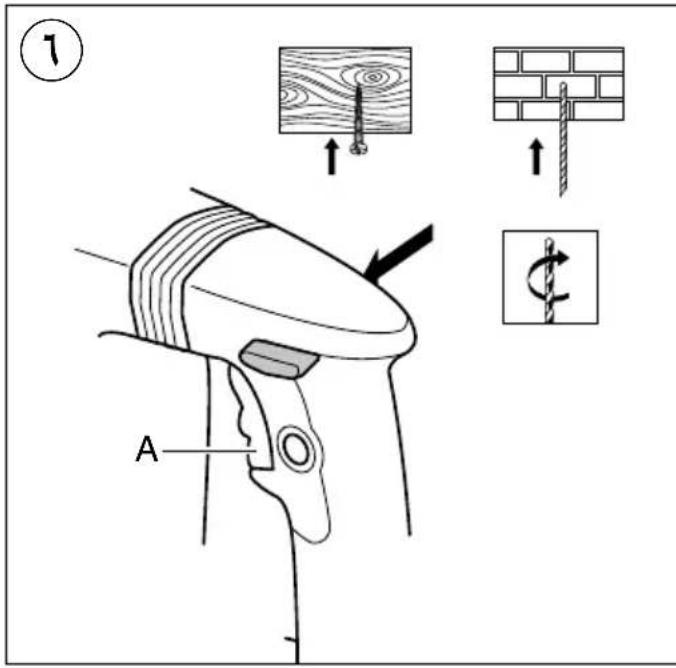

- Changing direction of rotation ⑥

• when not properly set in left/right position, switch A cannot be activated
• the tool functions at limited speed when set for left rotation

! change direction of rotation only when tool is at a complete standstill

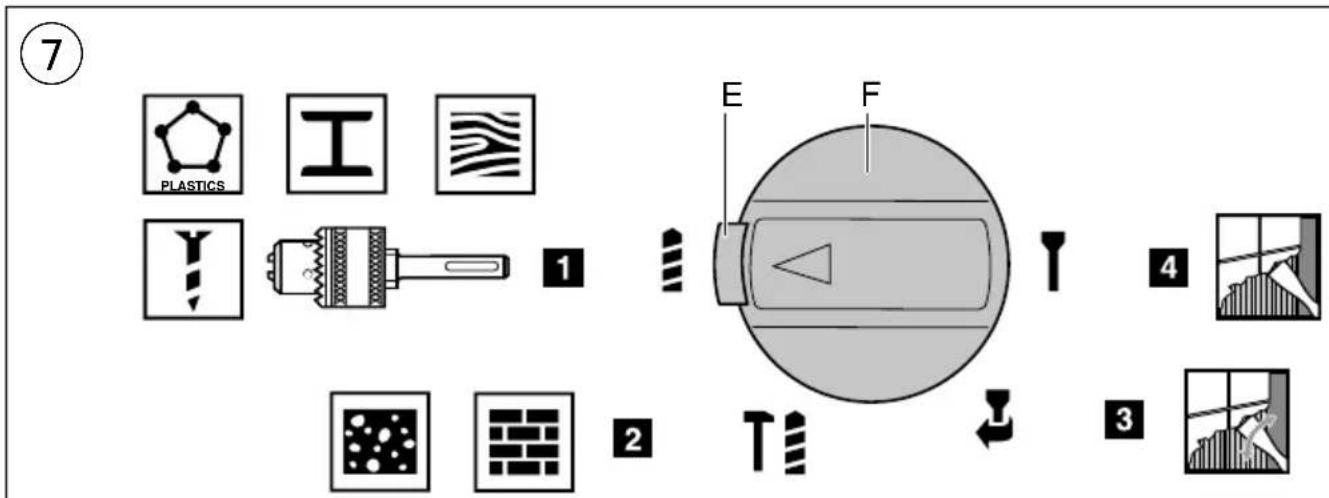

- Selecting operating mode ⑦

- press button E to unlock switch F

- turn switch F to the desired operating mode until it snap-locks

! start working only when switch F is locked

1 = normal drilling/screwdriving

2 = hammer drilling

3 = chiseling with rotating chisel

4 = chiseling with fixed chisel

! select operating mode only when tool is switched off and plug is disconnected

- the hammer mechanism is activated by applying a slight pressure on the tool when the drill bit is in contact with the workpiece

- best hammer drilling results can be obtained by only a slight pressure on the tool needed to keep the automatic clutch engaged; drilling performance will not improve by applying more pressure on the tool

• Normal drilling/screwdriving ⑧

For drilling in wood, metal and plastic as well as for screwdriving use adapter G ②

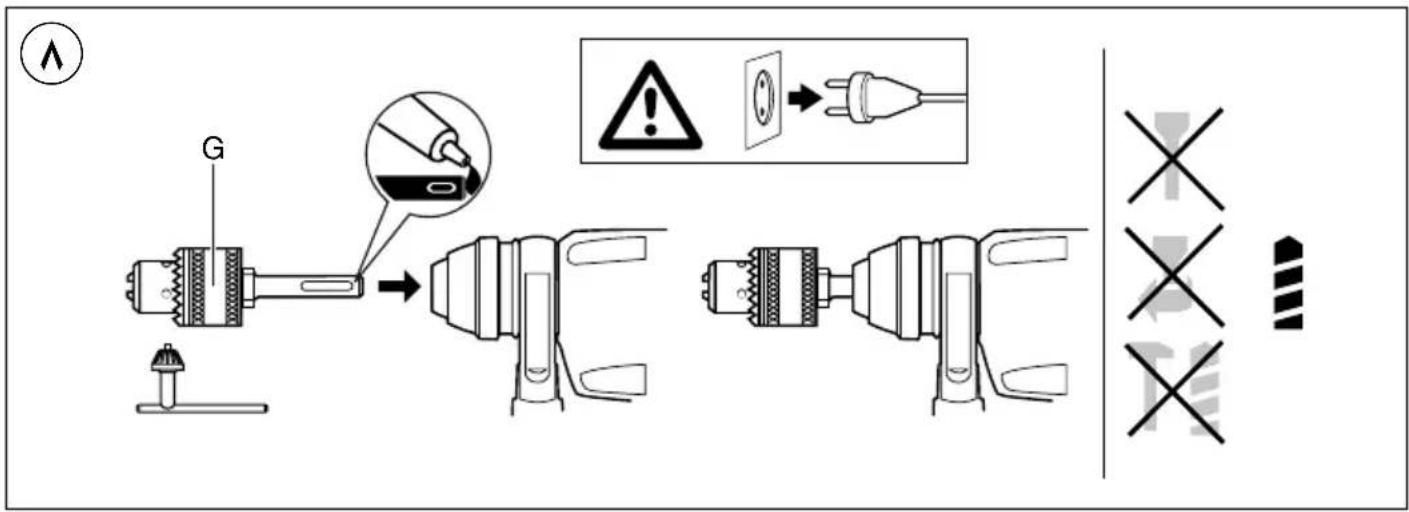

- clean and lightly lubricate adapter before insertion

- pull back locking sleeve H ② and insert adapter in SDS+ chuck while turning and pushing it until it engages; the adapter locks in position automatically

- pull adapter to check whether is it locked correctly

- set switch F ② to normal drilling (only activate when tool is switched off and plug is disconnected)

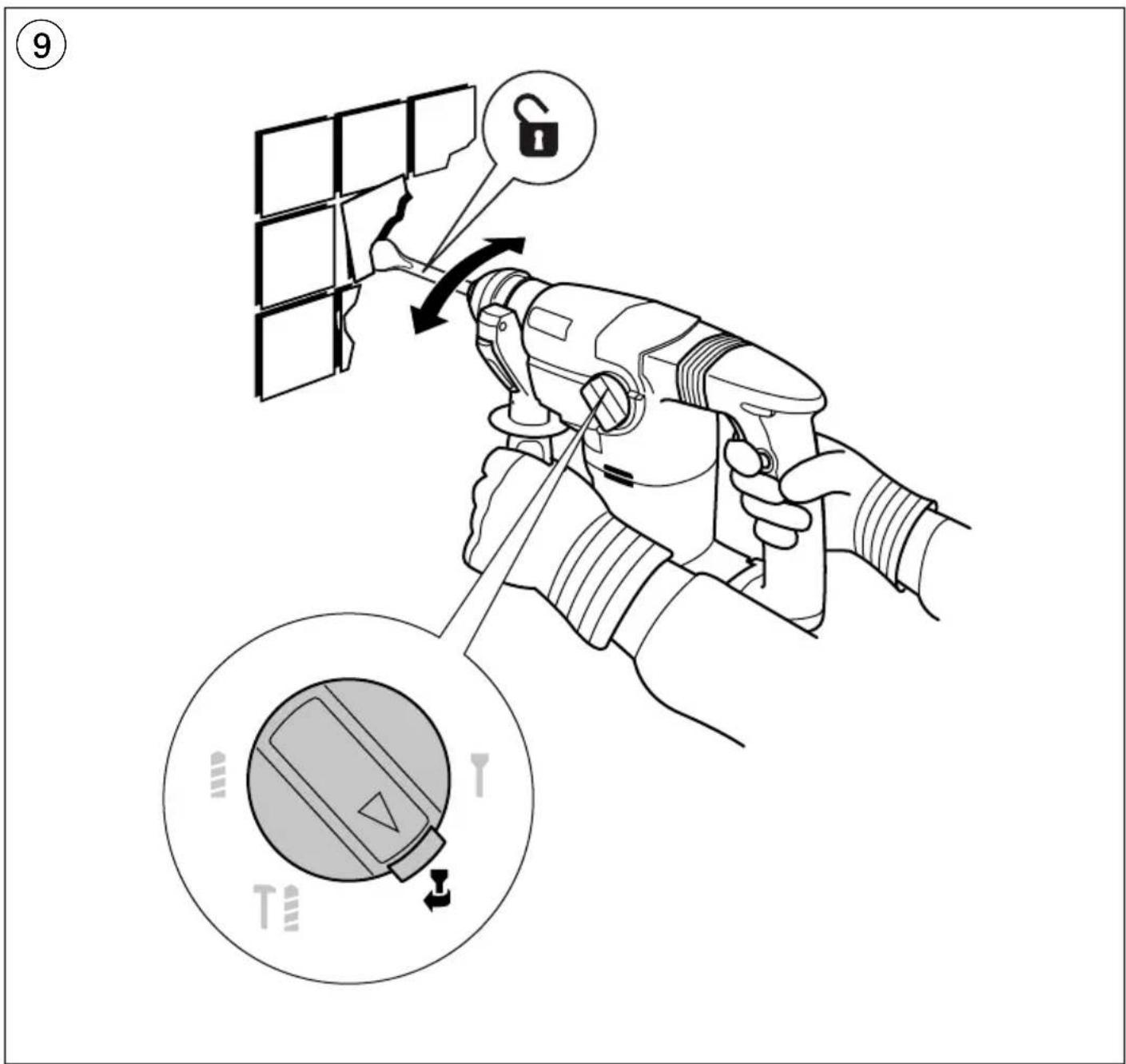

- Chiseling with rotating chisel ⑨

! switch off the tool and disconnect the plug

- select "rotating" chiseling mode

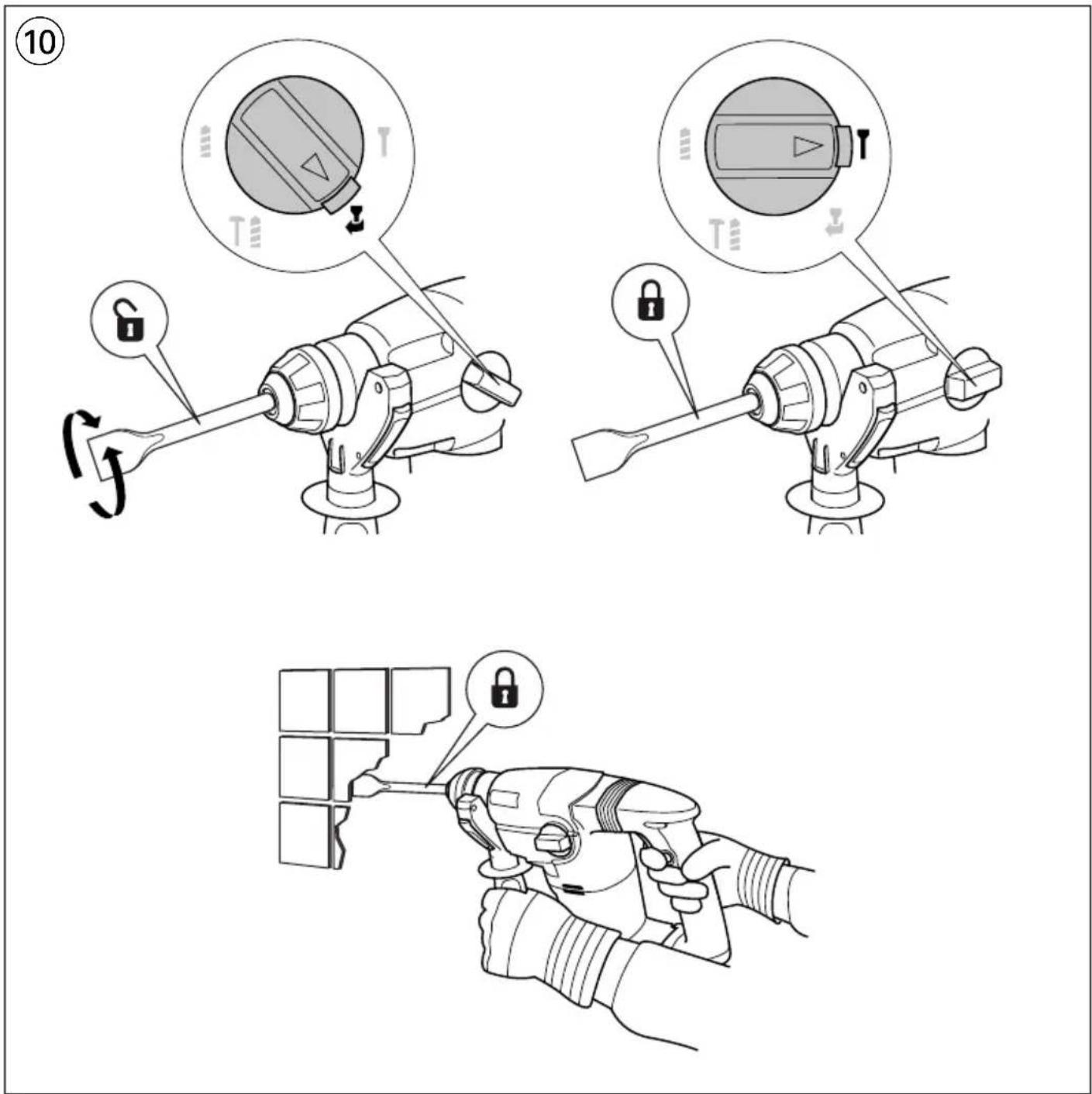

- Chiseling with fixed chisel ⑩

! switch off the tool and disconnect the plug

- select "rotating" chiseling mode

- place chisel in desired position

- select "fixed" chiseling mode

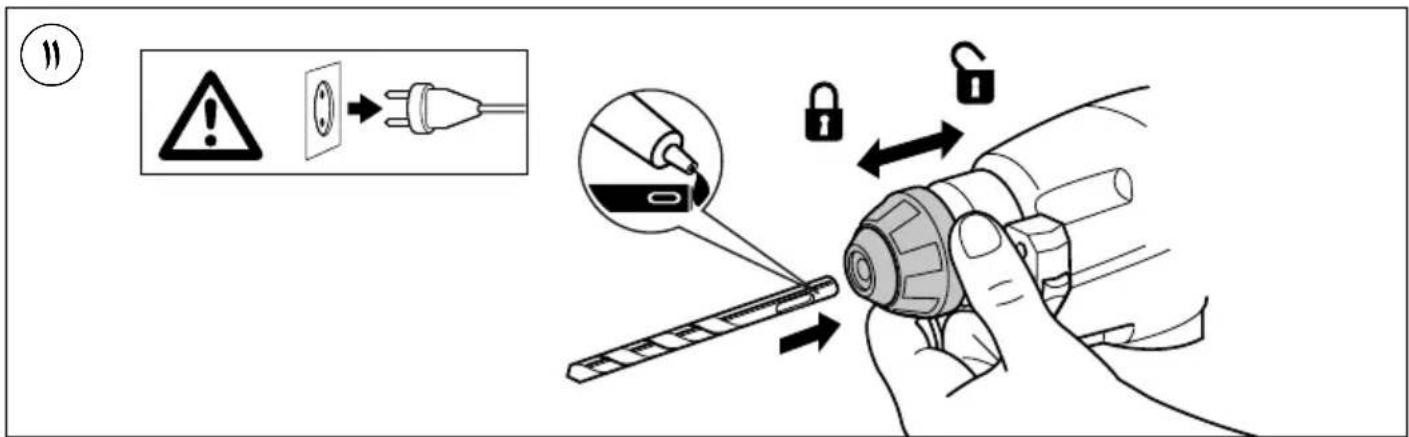

- Changing bits ⑪

! clean and lightly lubricate the SDS+ accessory before insertion

- pull back locking sleeve H ② and insert accessory in SDS+ chuck while turning and pushing it until it engages; the accessory locks in position automatically

- pull accessory to check that it is locked correctly

- remove accessory by pulling back locking sleeve H

! the SDS+ accessory requires freedom of movement which causes eccentricity when tool is off-load; however, the accessory automatically centres itself during operation without affecting drilling precision

! do not use bits/chisels with a damaged shank

! only use sharp bits/chisels

- Safety clutch

If the accessory gets jammed, the drive to the spindle is interrupted (causing a rattling noise)

- immediately switch off tool

- remove the jammed accessory

- switch on tool again

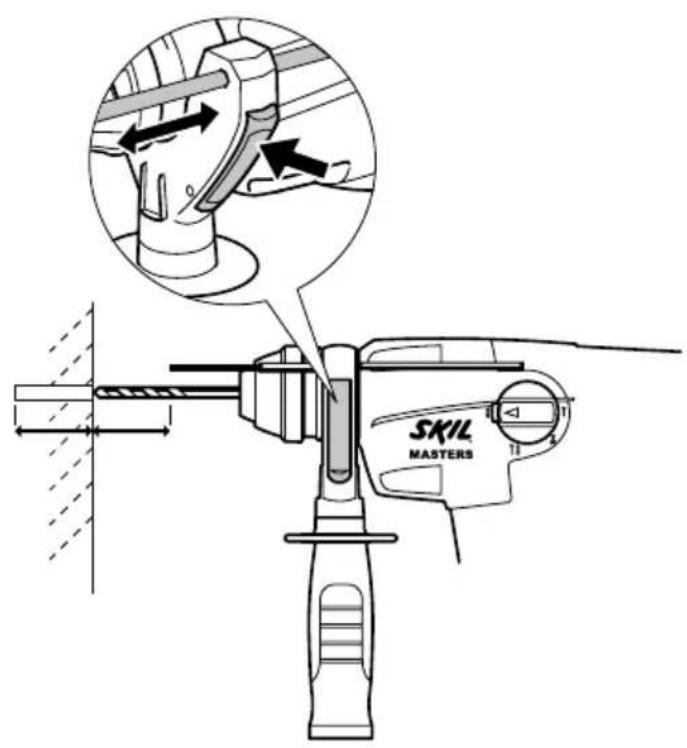

- Adjusting drilling depth ⑫

• AUTO-STOP Carbon brushes

- this tool is equipped with carbon brushes which pop up automatically when worn, thus preventing the motor from being damaged

- when the tool stops unexpectedly, send it to your dealer or the nearest SKIL service-station for having the brushes replaced

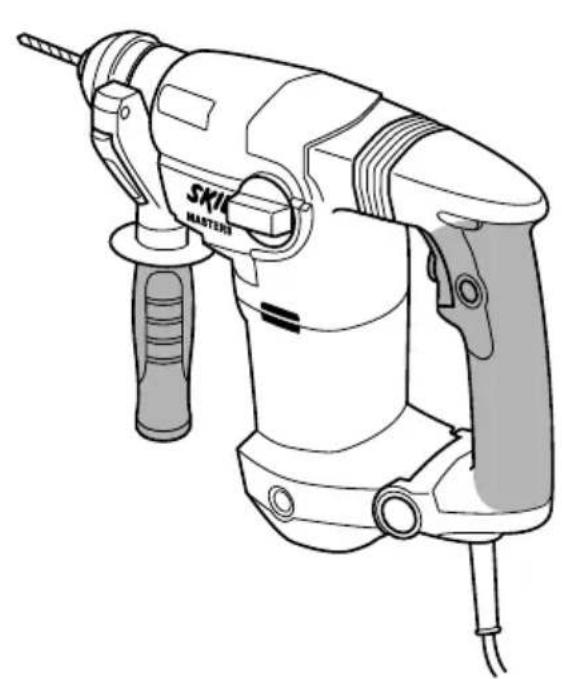

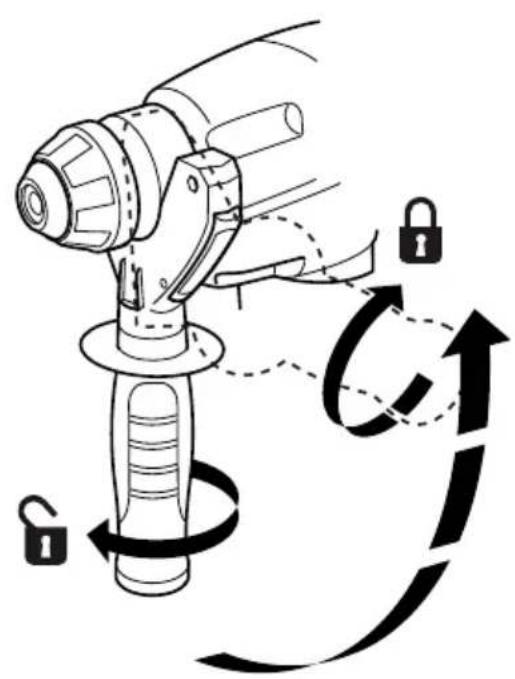

- Holding and guiding the tool ⑬

! while working, always hold the tool at the grey-coloured grip area(s)

- always use auxiliary handle J ② (can be adjusted as illustrated)

- keep the ventilation slots uncovered

- do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

- When drilling ferrous metals

- pre-drill a smaller hole, when a large hole is required - lubricate drill bit occasionally with oil

- When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a hole in order to avoid cracking of the wood

MAINTENANCE / SERVICE

- Always keep tool and cord clean (especially ventilation slots K②)

! disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skilmasters.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

- in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

- symbol ⑭ will remind you of this when the need for disposing occurs

DECLARATION OF CONFORMITY CE

- We declare under our sole responsibility that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60745, EN 61000, EN 55014, in accordance with the provisions of the directives 2004/108/EC, 2006/42/EC, 2011/65/EU

• Technical file at: SKIL Europe BV (PT-SEU/ENG1), 4825 BD Breda, NL

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

NOISE/VIBRATION

- Measured in accordance with EN 60745 the sound pressure level of this tool is 92 dB(A) and the sound power level 103 dB(A) (standard deviation: 3 dB), and the vibration * (hand-arm method)

* when hammer drilling in concrete 15.2 m/s ^2 (uncertainty K = 1.6 m/s ^2 )

* when chiseling 14.5 m/s ^2 (uncertainty K = 1.5 m/s ^2 )

- The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

- using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

- the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

BRUIT/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

GERÄUSCH/VIBRATION

• Normal borning/skruvdragning ⑧

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

LJUD/VIBRATION

• Normal boring/skruning ⑧

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

ST∅J/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

ST∅Y/VIBRASJON

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

RUIDOS/VIBRACIONES

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

ZAJ/REZGÉS

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

HLUČNOSTI/VIBRACÍ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

GÜRÜLTÜ/TİTREŞIM

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

HAŁASU/WIBRACJE

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

ШУМ/ВІБРАЦІЯ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

ΘΟΡΥΒΟ/ΚΡΑΔΑΣΜΟΥΣ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

ШУМ/ВИБРАЦИИ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

BUCI/VIBRACIJAMA

- Mjereno prema EN 60745 prag zvučnog tlaka ovog električnog alata iznosi 92 dB(A) a jakost zvuka 103 dB(A) (standardna devijacija: 3 dB), a vibracija * m/s² (postupkom na šaci-ruci)

* kod čekić bušenja u betonu 15,2 m/s² (nesigurnost K = 1,6 m/s²)

G Adapter + 13 mm glavu

H Stezna glava

J Pomoćna ručica

OPŠTA UPUTSTVA O SIGURNOSTI

PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima “električni alat” odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU
a) Držite Vaše područje rada čisto i pospremljeno. Nered ili neosvetljena radna područja mogu voditi nesrećama.
b) Ne radite sa aparatom u okolini ugroženoj od eksplozija u kojoj se nalaze zapaljive tečnosti, gasovi ili prašine. Električni alati proizvode varnice, koje mogu zapaliti prašinu ili isparenja.
c) Za vreme korišćenja električnog alata držite podalje decu i druge osobe. Kod skretanja možete izgubiti kontrolu nad aparatom.
2) ELEKTRIČNA SIGURNOST
a) Utikač za priključak aparata mora odgovarati utičnoj kutijici. Utikač se nesme nikako menjati. Ne upotrebljavajte adaptere utikača zajedno sa aparatima sa uzemljenom zaštitom. Ne promenjeni utikači i odgovarajuće utičnice smanjuju rizik od električnog udara.
b) Izbegavajte telesni kontakt sa uzemljenim gornjim površinama, kao što su cevi, grejanja, šporeti i rashladni ormani. Postoji povećani rizik od električnog udara, ako je Vaše telo uzemljeno.
c) Držite aparat podalje od kiše ili vlage. Prodiranje vode u električni aparat povećava rizik od električnog udara.
d) Ne koristite kabl da bi aparat nosili, obesili ili ga izvlačili iz utičnice. Držite kabl dalje od vreline, ulja, oštrih ivica ili pokretnih delova aparata. Oštećeni ili zamršeni kablovi povećavaju rizik od elektrinog udara.
e) Ako sa nekim električnim alatom radite u prirodi, upotrebljavajte samo produžne kablove koji su dozvoljeni za spoljno područje. Upotreba produžnog kabla pogodnog za spoljno područje smanjuje rizik od električnog udara.
f) Ako rad električnog alata ne može da se izbegne u vlažnoj okolini, koristite prekidač strujne zaštite pri kvaru. Upotreba prekidača strujne zaštite pri kvaru smanjuje rizik od električnog udara.
3) SIGURNOST OSOBA
a) Budite pažljivi, pazite na to, šta radite i idite razumno na posao sa električnim alatom. Ne upotrebljavajte aparat, kada ste umorni ili pod uticajem droga, alkohola ili lekova. Momenat nepažnje kod upotrebe aparata može voditi do ozbiljnih povreda.
b) Nosite ličnu zaštitnu opremu i uvek zaštitne naočare. Nošenje lične zaštitne opreme, kao maske za prašinu, sigurnosne cipele koje ne klizaju, zaštitni šlem ili zaštitu za sluh, zavisno od vrste i upotrebe električnog alata, smanjujete rizik od povreda.
c) Izbegavajte nenamerno puštanje u rad. Uverite se da je električni alat isključen, pre nego što ga priključite na struju i/ili na akumulator, uzmete ga ili nosite. Ako prilikom nošenja električnog alata držite prst na prekidaču ili aparat uključen priključujete na struju, može ovo voditi nesrećama.
d) Uklonite alate za podešavanje ili ključeve za zavrtnje, pre nego što uključite aparat. Alat ili ključ koji se nalazi u delu aparata koji se okreće, može voditi povredama.
e) Ne precenjujte sebe. Pobrinite se da sigurno stojite i održavajte u svako doba ravnotežu. Na taj način

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

BUKA/VIBRACIJE

- Mereno u skladu sa EN 60745 nivo pritiska zvuka ovog alata iznosi 92 dB(A) a jačina zvuka 103 dB(A) (normalno odstupanje: 3 dB), a vibracija * m/s ^2 (mereno metodom na šaci-ruci)

* pri bušenju sa čekićem betona 15,2 m/s² (nesigurnost K = 1,6 m/s²)
* pri klesanju 14,5 m/s² (nesigurnost K = 1,5 m/s²)

- Nivo emisije vibracija izmeren je u skladu sa standardizovanim testom datim u EN 60745; on se može koristiti za upoređenje jedne alatke sa drugom, kao i za preliminarnu procenu izloženosti vibracijama pri korišćenju ove alatke za pomenute namene

• korišćenje alatke u drugačije svrhe ili sa drugačijim ili slabo održavanim nastavcima može značajno povećati nivo izloženosti
• vreme kada je alatka isključena ili kada je uključena, ali se njome ne radi, može značajno smanjiti nivo izloženosti

! zaštitite se od posledica vibracija održavanjem alatke i njenih nastavaka, održavajući Vaše ruke toplim i organizovanjem Vaših radnih obrazaca

SLO

ÜLDISED OHUTUSJUHISED

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

MÜRA/VIBRATSIOON

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

TRIUKŠMINGUMAS/VIBRACIJA

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

БУЧАВА/ВИБРАЦИИ

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

صدا/ارتعاشات

: SKIL Europe BV (PT-SEU/ENG1), £A£0 BD Breda, NL £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £ا £а

Operations & Engineering

Olaf Dijkgraaf

Approval Manager

SKIL Europe BV, 4825 BD Breda, NL

21.01.2014

الاستخدام

Diagram illustrating three-step tool manipulation: tool positioning, lock operation, and tool application with lock buttons.

Diagram illustrating the installation of a device with warning symbols and lock icons, showing hand positioning and assembly steps.

Diagram illustrating the process of a plug-in electrical plug with warning symbols and safety indicators.

Diagram illustrating the step of using a power tool to adjust a device, with labeled parts and directional arrows.

0 VRS MAX

MIN M AX

Diagram illustrating a hairdryer tool with labeled parts and corresponding wood grain diagrams showing pin alignment and rotation.

A B

1
1780

1

G H E F VRS SKIL MASTERS D A B C J K

F

AR

FA

2610Z05974

01/14

سکیل أروبا ب.ق - کونینانبرج 60
