Product type	Electric hotplate with storage cabinet
Model	RCEG80700CSG (RCEG-80/700CSG)
Brand	Royal Catering
Dimensions (L x D x H)	800 x 740 x 930 mm
Weight	101 kg
Power supply	400 V / 3~ / 50 Hz
Power	10.8 kW
Protection rating	IPX4
Plate material	Metal (not precisely specified)
Temperature range	Adjustable via thermostat (not specified)
Control type	Rotary thermostat with indicator lights
Indicators	Green (power), Yellow (heating)
Oil drip tray	Yes, to be emptied regularly
Usage	Domestic and commercial use
Installation	Stable surface, 10 cm clearance on sides, 20 cm at rear, mandatory grounding
Maintenance and cleaning	Wipe with a damp cloth and non-corrosive cleaner; do not use water directly
Safety	Circuit breaker and residual current device recommended; installation by a certified electrician
Spare parts and repairability	Fuse, electrothermal tube, temperature regulator, contactors, replaceable indicators
General information	Manual available in multiple languages; contact [e-mail] for translation

Frequently Asked Questions - RCEG80700CSG Royal Catering

How to install the Royal Catering RCEG80700CSG grill plate?

Place the appliance on a stable surface with at least 10 cm clearance on the sides and 20 cm at the rear. The power supply must match the indicated voltage (400 V/3~). Have a power switch, circuit breaker, and protection device installed by a certified electrician. The equipment must be properly grounded.

How to turn on and use the plate?

Make sure the power is connected. Turn the thermostat clockwise to set the desired temperature. The green indicator lights up to indicate power, then the yellow indicator lights up during heating. When the temperature is reached, the yellow indicator turns off and the green turns back on. The thermostat automatically maintains the temperature.

What to do if the power indicator is off and the plate is not heating?

Check the fuse of the main switch: replace it if blown. Also ensure that the power line is properly connected and tighten it if necessary.

Why is the power indicator on but the plate is not heating?

This may be due to loose connections of the electrothermal tube or a burnt tube. Check and tighten the connections, or replace the electrothermal tube.

How to clean the grill plate?

Before cleaning, cut off the power. Wipe the surface and cord with a damp cloth and a non-corrosive cleaner. Do not use water directly on the machine. Regularly empty the oil drip tray to prevent overflow.

What is the procedure in case of malfunction during use?

Immediately stop using the appliance and perform a thorough check. Consult the troubleshooting section of the manual. If the problem persists, call a qualified professional.

Where can I find the wiring diagram?

The wiring diagram is included in the user manual. You can download the manual in PDF format from the website notice-facile.com.

How to dispose of the appliance at the end of its life?

Do not dispose of the appliance in household waste. Take it to a collection and recycling point for electrical and electronic appliances. Respect the symbols on the product and packaging.

What accessories or spare parts are available?

Spare parts include: fuse, electrothermal tube, temperature regulator, contactors, indicator lights. Only use parts of the same model and have them replaced by a professional.

The manual is not in my language, how to get it?

On the website notice-facile.com, you can request a translation by choosing your language and providing your email address. You will receive a specifically translated version. The official version is in English.

USER MANUAL RCEG80700CSG Royal Catering

Abstract white line drawing of a mythical creature on a blue background (no text or symbols)

DE	Produktname	Elektrische Bratplatte mit Schrank
EN	Product name	Electric griddle with cabinet
PL	Nazwa produktu	Patelnia elektryczna z szafką
CZ	Název výrobku	Elektrický gril se skříňkou
FR	Nom du produit	Plaque de cuisson électrique avec armoire
IT	Nome del prodotto	Piastra elettrica con mobiletto
ES	Nombre del producto	Plancha eléctrica con mueble
HU	Termék neve	Elektromos sütőlap szekrénnyel
DA	Produktnavn	Elektrisk stegeplade med kabinet
FI	Tuotteen nimi	Sähköparilaa kaappilla
NL	Productnaam	Elektrische bakplaat met kast
NO	Produktnavn	Elektrisk takke med skap
SE	Produktnamn	Elektrisk stekhäll med skåp
PT	Nome do produto	Chapa elétrica com armário
SK	Názov produktu	Elektrická panvica so skrinkou
BG	Име на продукта	Електрическа скара с шкаф
EL	Όνομα προϊόντος	Ηλεκτρικό ταψί με ντουλάπι
HR	Naziv proizvoda	Električni roštilj sa ormarićem
LT	Produkto pavadinimas	Elektrinė keptuvė su spintele
RO	Numele produsului	Plita electrica cu dulap
SL	Ime izdelka	Električni peč z omarico
DE Modell | EN Product model | PL Model produktu | CZ Model výrobku | FR Modèle | IT Modello | ES Modelo | HU Modell | DA Model | FI Tuotteen malli | NL Productmodel | NO Produktmodell | SE Produktmodell | PT Modelo do produto | SK Model | BG Модел на продукт | EL Movtělo προϊόντος | HR Model proizvoda | LT: Gaminio modelis | RO: Model de produs | SL: Model izdelka		RCEG-80/700CSRCEG-80/700CSGRCEG-80/700CG
DE Hersteller | EN Manufacturer | PL Producent | CZ Výrobce | FR Fabricant | IT Produttore | ES Fabricante | HU Termelő | DA Producent | FI Valmistaja | NL Producent | NO Produsent | SE Tillverkare | PT Fabricante | SK Výrobca | BG Производител | EL Κατασκευαστής | HR Proizvođač | LT Gamintojas | RO Producător | SL Proizvajalec		expondo Polska sp. z o.o. sp. k.
DE Anschrift des Herstellers | EN Manufacturer Address | PL Adres producenta | CZ Adresa výrobce | FR Adresse du fabricant | IT Indirizzo del produttore | ES Dirección del fabricante | HU A gyártó címe | DA Producentens adresse | FI Valmistajan osoite | NL Adres producent | NO Produsentens adresse | SE Tillverkarens adress | PT Endereço do fabricante | SK Adresa výrobcu | BG Адрес на производителя | EL: Διεύθυνση κατασκευαστή | HR Adresa proizvođača | LT Gamintojo adresas | RO Adresa producătorului | SL Naslov proizvajalca		ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Thermostat
SB1, SB2 - Temperaturregler
EH - Elektrothermische Röhre

This User Manual has been translated using machine translation. We have made every effort to ensure the translation is accurate, but please note that automated translations are not perfect and are not meant to replace human translators. The official version of the User Manual is in English. Any differences between the translated version and the original English are not legally binding. If you have any questions about the accuracy of the translation, please refer to the English version, which is the official reference. More language versions are available upon request via [e-mail].

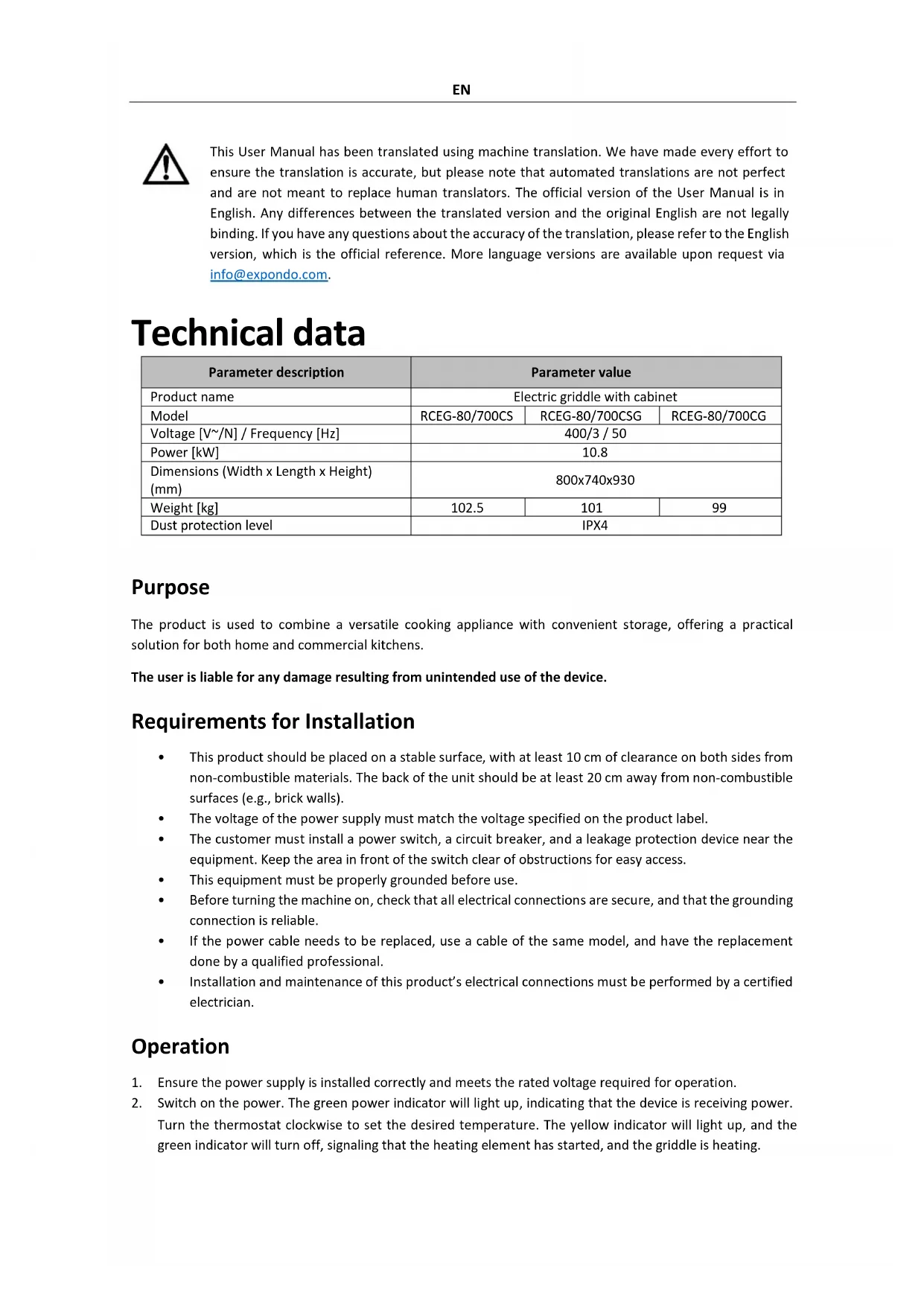

Technical data

Parameter description	Parameter value
Product name	Electric griddle with cabinet
Model	RCEG-80/700CS	RCEG-80/700CSG	RCEG-80/700CG
Voltage [V~/N] / Frequency [Hz]	400/3 / 50
Power [kW]	10.8
Dimensions (Width x Length x Height) (mm)	800x740x930
Weight [kg]	102.5	101	99
Dust protection level	IPX4

Purpose

The product is used to combine a versatile cooking appliance with convenient storage, offering a practical solution for both home and commercial kitchens.

The user is liable for any damage resulting from unintended use of the device.

Requirements for Installation

• This product should be placed on a stable surface, with at least 10 cm of clearance on both sides from non-combustible materials. The back of the unit should be at least 20 cm away from non-combustible surfaces (e.g., brick walls).
  • The voltage of the power supply must match the voltage specified on the product label.
• The customer must install a power switch, a circuit breaker, and a leakage protection device near the equipment. Keep the area in front of the switch clear of obstructions for easy access.
  • This equipment must be properly grounded before use.
• Before turning the machine on, check that all electrical connections are secure, and that the grounding connection is reliable.
• If the power cable needs to be replaced, use a cable of the same model, and have the replacement done by a qualified professional.
• Installation and maintenance of this product's electrical connections must be performed by a certified electrician.

Operation

1. Ensure the power supply is installed correctly and meets the rated voltage required for operation.

2. Switch on the power. The green power indicator will light up, indicating that the device is receiving power. Turn the thermostat clockwise to set the desired temperature. The yellow indicator will light up, and the green indicator will turn off, signaling that the heating element has started, and the griddle is heating.

3. Once the temperature reaches the set point, the thermostat will automatically cut off power. The yellow indicator will turn off, and the green indicator will light up again, showing that the heating element has stopped. As the temperature decreases slightly, the thermostat will automatically restore power, the yellow indicator will turn on, the green indicator will turn off, and the heating element will begin to reheat. This cycle maintains the temperature within a set range.

NOTE

• During use, regularly check the oil in the collection box to prevent overflowing.
• If any abnormalities occur during operation, stop using the device immediately and perform a thorough check before resuming operation.

Maintenance

• Before cleaning and maintenance, ensure the power supply is turned off to prevent accidents.
- After daily use, wipe the surface and power cord with a damp cloth and a non-corrosive cleaner. Do not use water directly to clean the machine, as this could damage its electrical components.
• Regularly empty the oil collection box during cleaning to avoid overflow.

Troubleshooting

Phenomenon	Possible Reasons	Handling Methods
Power is connected, but the indicator light is off and the griddle doesn’t heat up.	1. Fuse in the master switch is burned out.2. Power line is loose or not connected properly.	1. Replace the fuse.2. Tighten the power line.
Power indicator light is on, but the griddle doesn’t heat.	1. Some electrothermal tube connections are loose or disconnected.2. Electrothermal tube is burned out.	1. Check and tighten the connections and screws of the electrothermal tube.2. Replace the electrothermal tube.
Power indicator light is on, but the temperature setting doesn’t heat up.	1. Temperature controller is burned out.2. Contactors are burned out.	1. Replace the temperature controller.2. Replace the contactors.
Temperature controls function normally, but the indicator light doesn’t turn on.	Indicator light is burned out or has a loose connection.	Replace the indicator light or tighten the connection.

Transportation and Storage

• Handle the products with care to avoid strong vibrations during transport.
• Packed products should not be stored outdoors for extended periods. Instead, store them in a well-ventilated warehouse free from corrosive gases. Ensure they are not placed upside down.
  • If temporary storage is necessary, make sure to implement proper rainproof measures.

Disposing of Used Devices

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

Electrical diagram

L1 L2 L3 N E KM1 KM2 OH-380V EH1 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 – Thermostat
SB1, SB2 - Temperature controller
EH - Electrothermal tube
HL1, HL3 - Power indicator
HL2, HL4 - Heating indicator
KM1,KM2-Contactors
E - Grounded

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Termostat

SB1, SB2 - Regulator temperature

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - termostat

SB1, SB2 - Regulátor teploty

EH - Elektrotepelná trubice

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EAH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Thermostat

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EAH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Termostato

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EAH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Termostato

SB1, SB2 - Controlador de temperatura

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

L1 L2 L3 N E KM1 KM2 3N-380V EH1 SA1 SA2 SB1 SB2 HL2 HL1 KM1 KM2 HL4 HL3

SA1, SA2 - Termostat

SB1, SB2 - Temperaturregulator

EH - Elektrotermisk rør

HL1, HL3 - Strømindikator

HL2, HL4 - Indikator for opvarmning

KM1,KM2 - Kontaktorer

E - Jordforbindelse

L1 L2 L3 N E KM1 KM2 3N-380V EH1 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EAH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Thermostaat

HL1, HL3 - Stroomindicator

HL2, HL4 - Verwarmingsindicator

KM1,KM2 - Contactoren

E - Geaard

L1 L2 L3 N E KM1 KM2 3N-380V EH1 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Termostat

SB1, SB2 - Temperaturregulator

EH - Elektrotermisk rør

HL1, HL3 - Strømindikator

HL2, HL4 - Varmeindikator

KM1,KM2 - Kontaktorer

E - Jordet

L1 L2 L3 N E KM1 KM2 3N-380V EH1 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EAH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Termostato

SB1, SB2 - Controlador de temperatura

L1 L2 L3 N E KM1 KM2 3N-380V EH1 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - termostat

SB1, SB2 - Regulátor teploty

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Термостат
SB1, SB2 - Регулаторнатемпературата

L1 L2 L3 N E KM1 KM2 3N-380V EH1 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

L1 L2 L3 N E KM1 KM2 3N-380V EH1 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Termostat

SB1, SB2 - Regulator temperature

EH - Elektrotermalna cijev

HL1, HL3 - Indikator napajanja

HL2, HL4 - Indikator grijanja

KM1,KM2 - Kontaktori

E - Prizemljen

L1 L2 L3 N E KM1 KM2 3N-380V EH1 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Termostatas

SB1, SB2 - Temperatūros reguliatorius

EH - Elektroterminis vamzdis

HL1, HL3 - Maitinimo indikatorius

HL2, HL4 - Šildymo indikatorius

KM1,KM2 - Kontaktoriai

E - Ižemintas

L1 L2 L3 N E KM1 KM2 3N-380V EH1 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Termostat

SB1, SB2 - Regulator de temperatura

EH - Tub electrotermic

HL1, HL3 - Indicator de putere

HL2, HL4 - Indicator de incalzire

KM1,KM2 - Contactoare

E - Impământat

L1 L2 L3 N E KM1 KM2 3N-380V EH1 EH2 SA1 SA2 SB1 SB2 KM1 HL2 HL1 KM2 HL4 HL3

SA1, SA2 - Termostat

SB1, SB2 - Regulator temperature

For the disposal of the device please consider and act according to the national and local rules and regulations.
