USER MANUAL Spot Way SC STEINEL
GB....20 Follow written instructions!
RU. . . . .235 6paTnTe BnMaHne Ha TeKCTOByu YaCTb!
3.1 Way

3.2 Garden

3.3 Way



3.5 Way SC

3.4 Garden

3.6 Way NightAuto

3.7 Way

3.9 Garden NightAuto

3.10 Garden

3.8 Garden SC

3.11 Way SC


3.12 Way SC

3.15 Garden SC

3.13 Way SC

3.16 Garden SC

3.14 Garden SC

3.17

4.1 Way

4.4 Way

4.2 Way
4.5 Way


4.3 Way
4.6 Garden 4.7 Garden


4.8 Garden


5.1 NightAuto

6.1 Way

6.2 Garden

5.2

6.3

6.4

6.5

6.6

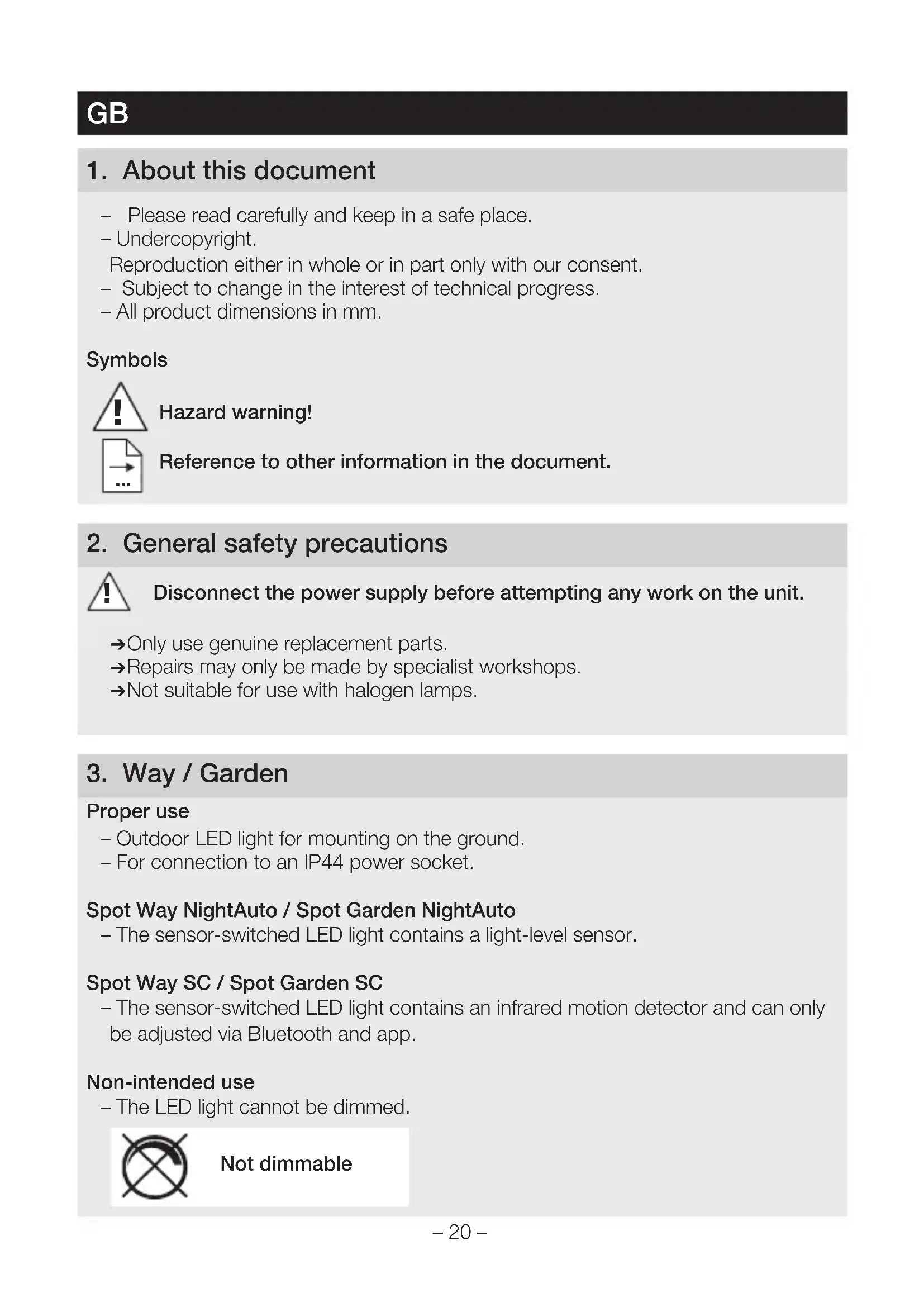

DE
- Please read carefully and keep in a safe place.
- Undercopyright.
Reproduction either in whole or in part only with our consent.
- Subject to change in the interest of technical progress.
- All product dimensions in mm.
Symbols

Hazard warning!

Reference to other information in the document.
2. General safety precautions

Disconnect the power supply before attempting any work on the unit.
Only use genuine replacement parts.
Repairs may only be made by specialist workshops.
Not suitable for use with halogen lamps.
3. Way / Garden
Proper use
- Outdoor LED light for mounting on the ground.
- For connection to an IP44 power socket.
Spot Way NightAuto / Spot Garden NightAuto
- The sensor-switched LED light contains a light-level sensor.
Spot Way SC / Spot Garden SC
- The sensor-switched LED light contains an infrared motion detector and can only be adjusted via Bluetooth and app.
Non-intended use
- The LED light cannot be dimmed.

Not dimmable
Way spot package contents (Fig. 3.1)
- Light including pillar, ground plate and power cord cable with mains plug
- Three screws
- Three ground plugs
Garden spot package contents (Fig. 3.2)
- Light including power cord cable with mains plug
Ground spike - Two screws

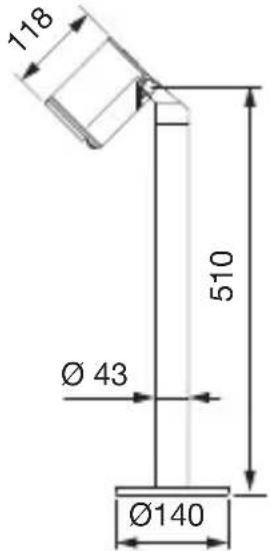

Spot Way product dimensions (Fig. 3.3)
Spot Garden product dimensions (Fig. 3.4)

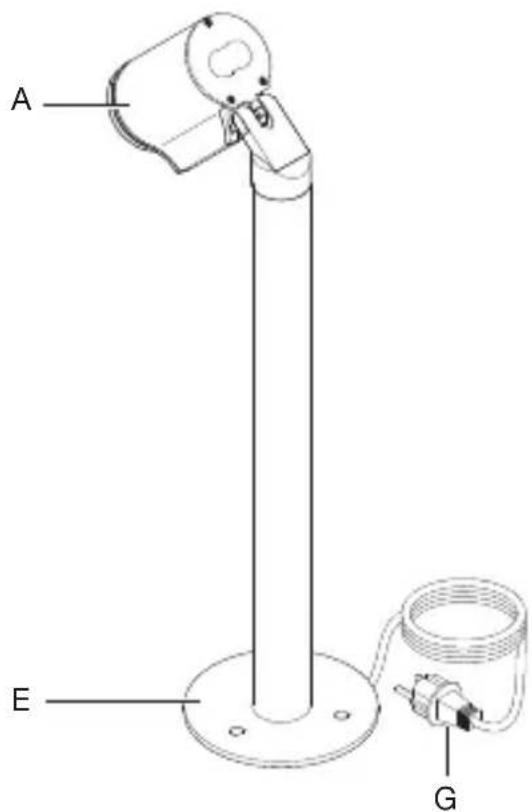

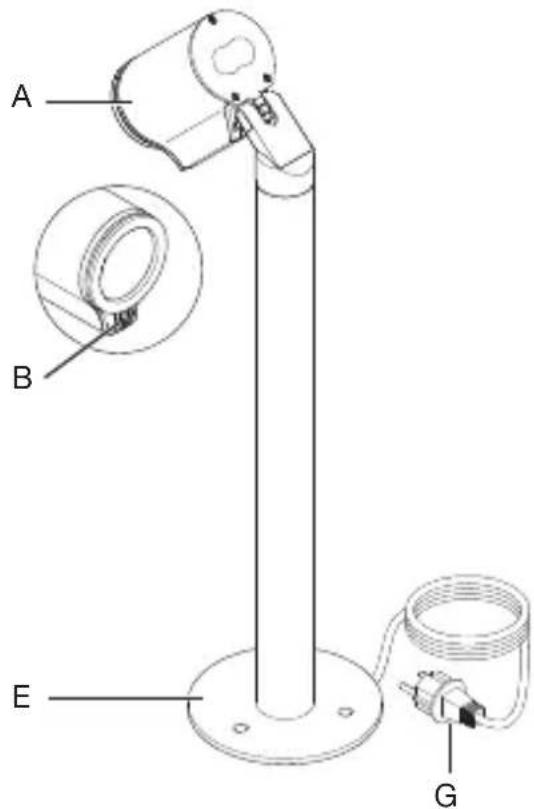

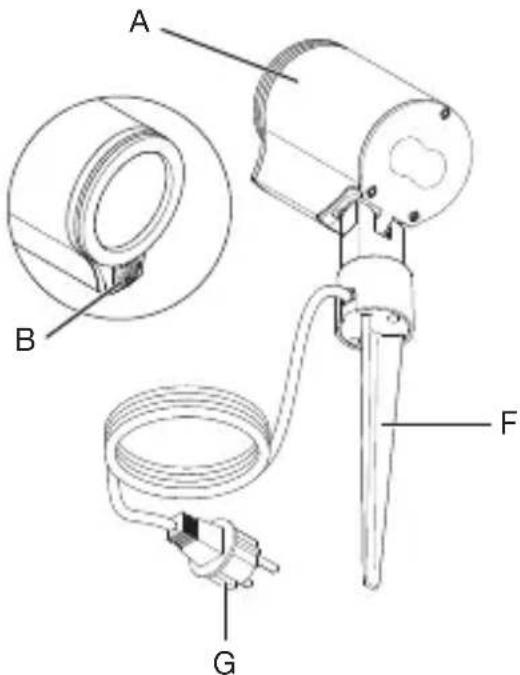

Product parts (Fig. 3.5 - 3.10)
A Light enclosure
B Motion sensor (Spot Way / Spot Garden SC only)
C Light-level sensor (Spot Way / Garden NightAuto only)
D Twilight setting (Spot Way / Garden NightAuto only)
E Pillar with ground plate (Spot Way only)
F Ground spike (Spot Garden only)
G Mains power cord with plug

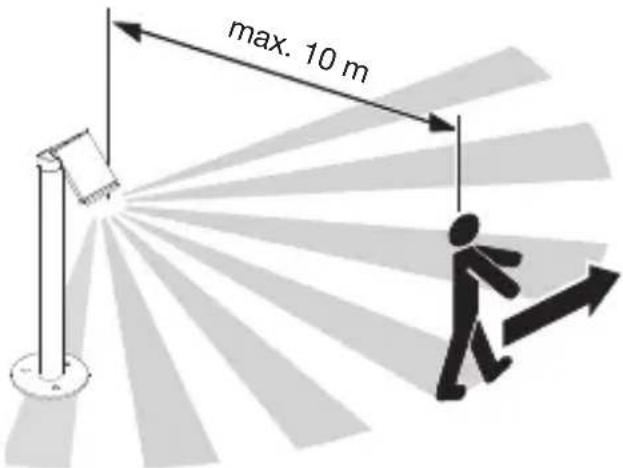

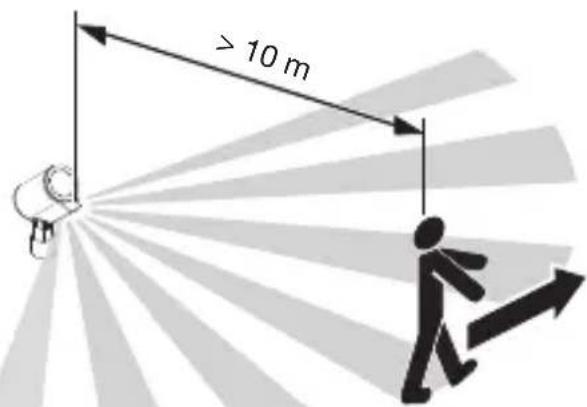

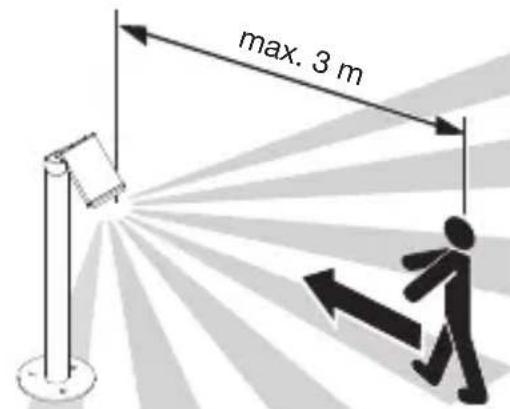

Detection zone for Spot Way / Spot Garden SC (Fig. 3.11 - 3.16)

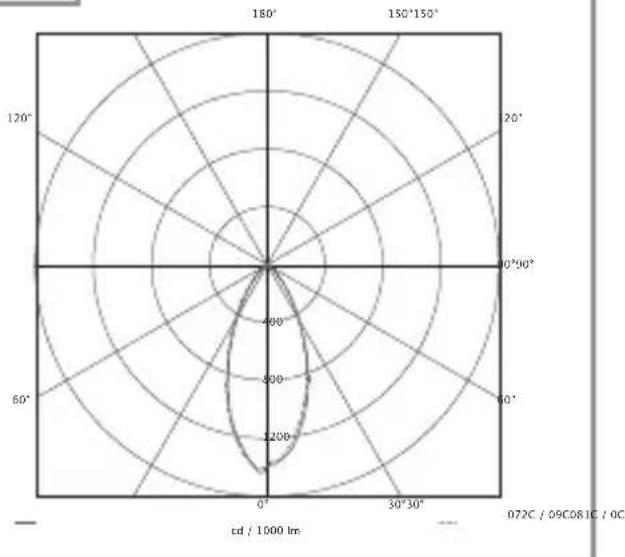

Luminous intensity distribution (Fig. 3.17)
4. Installation
Check all components for damage.
Do not use the product if it is damaged.
This light's external, flexible cord cannot be replaced.
If the cord gets damaged, the entire light must be replaced.
When installing the light, make sure the installation site is not subject to vibration.
Select an appropriate mounting location, taking the reach and motion detection into consideration.
Spot Way / Spot Garden SC only:
The most reliable way to detect movement is given by mounting the light to point across the direction in which people walk and by making sure no obstacles (e.g. trees, walls etc.) interrupt the line of sensor vision.
Way mounting procedure
Fit floodlight head on pillar and turn until it clicks into place. (Fig. 4.1)

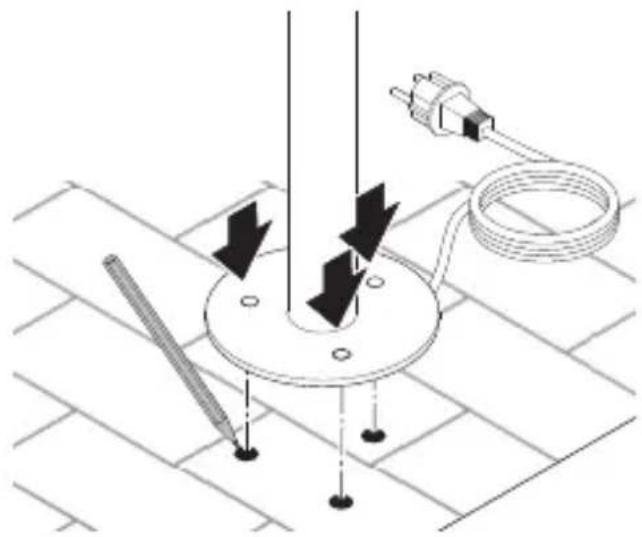

Mark drill holes for ground plate. (Fig. 4.2)
Drill holes and fit ground plugs. (Fig. 4.3)
Procedure for mounting light on ground. (Fig. 4.4)

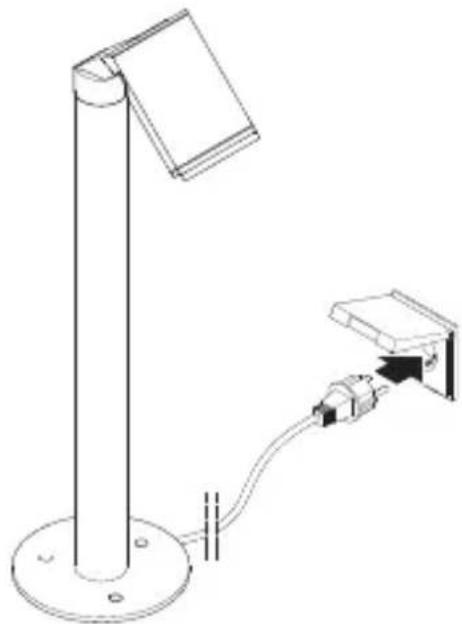

Connect plug. (Fig. 4.5)
Make settings.
,5 .Function
Mounting procedure for Garden
Attach ground spike to light. (Fig. 4.6)

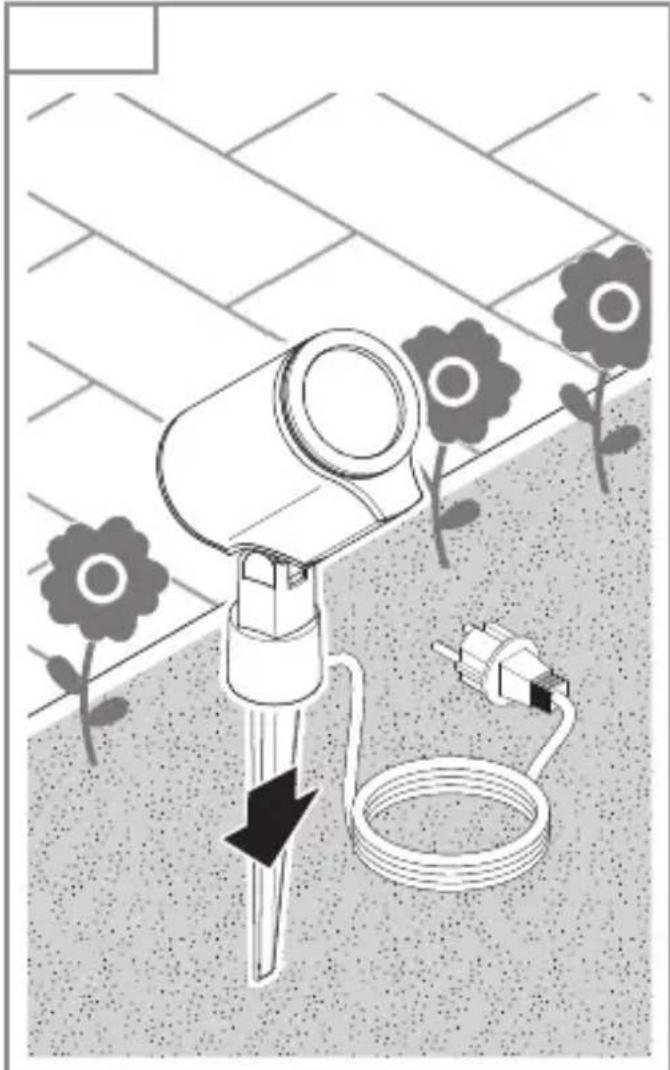

Push light into ground. (Fig. 4.7)
Connect plug. (Fig. 4.8)
Make settings.
,5 .Function
Information for NightAuto version
Make sure that the light-level sensor is not covered (e.g. by leaves).
5. Function
Spot Way NightAuto / Spot Garden NightAuto
Factory settings
- Control dial set to = permanently ON

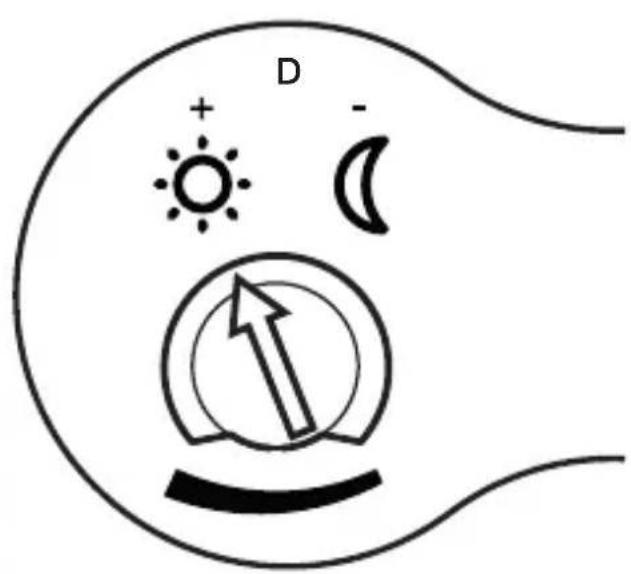

Twilight setting (Fig. 5.2 D)
The light's chosen response threshold can be infinitely varied from approx. 2 to 1,000 lux.
- Control dial set to = permanently ON
- Control dial set to = night-time operation (approx. 2 lux)
For performing the functional test in daylight, the control dial must be set to

Spot Way SC / Spot Garden SC
Factory settings
Twilight setting: 2,000 lux
- Time setting: 5 seconds
STEINEL Connect App
To configure the light via smartphone or tablet, you must download the STEINEL Connect App from your app store. You will need a Bluetooth-capable smartphone or tablet.

Android iOS

Following functions can be set via STEINEL Connect App:
- Time setting
Twilight setting - ON and OFF times
- Automatic / manual control, depending on situation
- Interconnection
- Grouping
- Naming groups and lights
Note:
After the light switches OFF, it takes approx. 1 second before it is able to start detecting movement again. The light will only switch ON in response to movement once this period has elapsed.
The Spot SC has an internal clock for time-based activation and deactivation.
This automatically synchronises with the clock of the connected smartphone via the STEINEL Connect App each time a Bluetooth connection is established.
To ensure correct function following an interruption in the light's power supply, it must be re-connected via the STEINEL Connect App. The internal clock is re-synchronised with the smartphone clock.
6. Light tilting / swivelling range / changing lamp
Light tilting / swivelling range
- Way (Fig. 6.1)
Garden (Fig. 6.2)
Changing lamp
Undo glass cover and detach from light enclosure. (Fig. 6.3)
Disconnect and remove lamp. (Fig. 6.4)

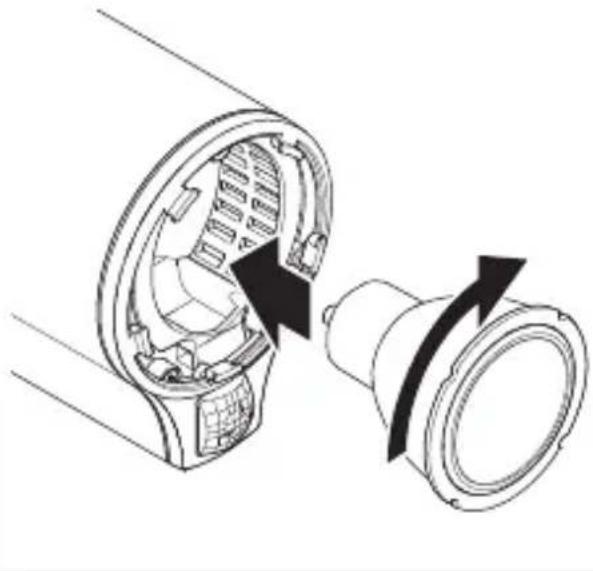

Insert new lamp and twist to engage. (Fig. 6.5)
Fit glass cover and twist to engage. (Fig. 6.6)
Important:
Only use GU10 LED lamp with a wattage up to 9 W.
Note:
On changing a lamp, make sure that the seal and sealing surface are not soiled or damaged.
7. Maintenance
The product requires no maintenance.
The light can be cleaned with a damp cloth (without detergents) if dirty.
Important note: the control gear cannot be replaced.

8. Disposal
Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.
EU countries only:
Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.
9. Declaration of Conformity
Hereby, STEINEL GmbH declares that the radio equipment type Spot Way SC / Spot Garden SC is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:
www.steinel.de/en/declarations-of-conformity
10. Manufacturer's Warranty
Manufacturer's warranty of STEINEL GmbH, Dieselstrasse 80-84, DE-33442
Herzebrock-Clarholz, Germany
All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the consumer, with a warranty under the following terms and conditions:
The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall apply to all STEINEL products sold and used in Germany - excluding STEINEL Professional products.
You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.
The warranty period for the STEINEL product you have purchased is 3 years (5 years for products from the XLED home range) in each case from the date on which the product was purchased.
We shall bear the shipping costs but not the transport risks involved in return shipment.
Statutory rights accruing from defects, gratuitousness
The warranty cover described here shall be applicable in addition to the statutory rights of warranty - including special consumer protection provisions - and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.
Exemptions from the warranty
All replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover:
- any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL product that are attributable to wear caused by use or other natural wear,
- any improper or non-intended use of the product or any failure to observe the operating instructions,
- any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory,
- supplementary or replacement parts which are not genuine STEINEL parts,
- any maintenance or care of products that is not carried out in accordance with the operating instructions,
- any attachment or installation that is not in accordance with STEINEL's installation instructions,
- any damage or loss occurring in transit.
Application of German law
The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).
Making claims
If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. - 25 Manasty Road, Axis Park, Orton Southgate, GB- Peterborough Cambs PE2 6UP United Kingdom. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.
| 11. Technical specifications | ||
| Dimensions (W × D × H) Spot Way: 140 × 226 × 572 mm (W × D × H) Spot Garden: 69 × 118 × 369 mm | ||
| Cord length 2,500 mm | ||
| Supply voltage 220 – 240 V, 50/60 Hz | ||
| Power consumption (Pon) Light* | Spot Way / Garden: 6.70 W Spot Way / Garden NightAuto: 7.86 W Spot Way / Garden SC: 7.90 W | |
| Luminous flux / brightness Light* | Spot Way / Garden: 512 lm; 76.40 lm/W Spot Way / Garden NightAuto: 512 lm; 65.10 lm/W Spot Way / Garden SC: 512 lm; 64.80 lm/W | |
| Luminous flux Lamp 620 lm 92.5 lm/W | ||
| Power consumption Lamp 6.7 W | ||
| Standby (light) | Spot Way / Garden NightAuto: 0.20 W Spot Way / Garden SC: 0.42 W | |
| Standby (network) (Pnet) Spot Way / Garden SC: 0.42 W | ||
| Colour temperature* | 3,000 K (warm white) | |
| Colour rendering index* | Ra > 80 | |
| Average rated life expectancy* | L70B50 at 25 °C: > 20,000 hours. | |
| Colour consistency SDCM* | 6 | |
| Sensor technology Passive infrared (Spot Way / Garden SC only) | ||
| Detection zone | (Spot Way / Garden SC only) | |
| →Angle of coverage | 90° | |
| →Angle of aperture | 90° | |
| Reach max. 10 m (Spot Way / Garden SC only) | ||
| Time setting 5 s – 60 min (Spot Way / Garden SC only) | ||
| Twilight setting 2 – 1,000 lux (Spot Way / Garden NightAuto only) 2 – 2,000 lux (Spot Way / Garden SC only) | ||
| IP rating IP44 | ||
| Protection class I | ||
| Ambient temperature -20 to +40 °C | ||
| Bluetooth frequency 2.4 – 2.48 GHz (Spot Way / Garden SC only) | ||
| Bluetooth transmitter power (Pnet) | 5 dBm / 0.60 mW (nur Spot Way / Garden SC) | |
| * for LED lamp provided This product contains an energy efficiency class „F“ light source. | ||
| 12. Troubleshooting | ||
| Malfunction Cause Remedy | ||
| LED light does not switch ON | Fuse has tripped, not switched ON, break in wiring | Activate, change fuse, turn ON mains switch, check wiring with voltage tester Check connections Change lamp |
| Short circuit Lamp faulty | ||
| NightAuto LED light does not switch ON | Twilight setting in night-time mode during daytime operation Mains switch OFF Fuse has tripped Detection zone not correctly adjusted | Reset Switch ON Activate, change fuse, check connection if necessary Readjust |
| NightAuto LED light does not switch OFF | The twilight setting is set to permanently ON during night-time operation Continued movement within the detection zone Light-level sensor is covered (e.g. by leaves). | Reset Check zone and readjust if necessary or apply shroud Remove shrouds from light-level sensor |
| SC LED light keeps switching ON/OFF | Animals moving in detection zone | Tilt sensor higher or fit shrouds to target sensor; adjust detection zone or fit shrouds |
| SC LED light switches ON when it should not | Wind is moving trees and bushes in the detection zone Cars in the street are being detected Sudden temperature changes due to weather (wind, rain, snow) or air expelled from fans or open windows Sensor-switched LED light is swaying (moving) due to gusts of wind or heavy rain | Change detection zone Change detection zone Adjust detection zone or install in a different place Mount sensor-switched LED light on a firm surface |
