XZ271UA - Monitor ACER - Free user manual and instructions

Product Type	LCD Monitor
Brand	Acer
Model	XZ271UA
Screen Size	27 inches (69 cm)
Maximum Resolution	2560 x 1440 @ 144 Hz
Panel Type	TN
Response Time	0.5 ms (gray to gray)
Brightness	400 cd/m² (typical)
Dynamic Contrast	100,000,000:1 (ACM)
Viewing Angle	170° horizontal, 160° vertical
Connectors	HDMI 2.0, DisplayPort, USB 3.0 x4, audio (optional)
Speakers	2 x 7 W (optional)
Power Supply	100-240 V, 50/60 Hz
Dimensions (W x H x D)	613.68 x 401.59 ~ 511.59 x 268.38 mm
Net Weight	8.35 kg
Power Consumption (on/standby/off)	25 W / 0.4 W / 0.3 W
Energy Class	A
Adjustments	Tilt -5° to +25°, swivel -30° to +30°, height 0-110 mm
Special Features	FreeSync, MPRT, Over Drive, crosshair, super sharpness
Cleaning	Use a soft cloth without solvent; avoid ammonia and alcohol
Safety	Do not expose to rain, do not open, store between -20°C and 60°C
Spare Parts	Removable stand, HDMI and DP cables included
Repairability	Do not attempt to repair yourself; contact a qualified technician

Frequently Asked Questions - XZ271UA ACER

How to clean the screen of my Acer XZ271UA monitor?

Turn off the monitor and unplug the power cord. Spray a solvent-free cleaning solution on a soft cloth and gently wipe. Never spray liquid directly on the screen. Avoid products containing ammonia or alcohol.

What cables are included with the monitor?

The monitor comes with an HDMI cable and a DisplayPort cable. An audio cable is optional depending on the model.

How to adjust the height of the monitor?

The monitor has a height adjustment of 0 to 110 mm. Grasp the base and lift or lower the screen to the desired position. Tilt can be adjusted from -5° to +25° and swivel from -30° to +30°.

What to do if the screen does not turn on?

Check that the power cord is properly connected to both the monitor and a power outlet. Make sure the power button is pressed. If the LED is orange, the monitor is in standby; press the power button to wake it. If nothing works, contact a qualified technician.

How to enable FreeSync technology?

FreeSync is enabled by default when using a compatible HDMI or DP source. You can check it in the OSD menu under Functions > FreeSync. Make sure your graphics card supports FreeSync and the driver is up to date.

What is the native resolution of the monitor?

The native resolution is 2560 x 1440 with a refresh rate of 144 Hz. For optimal image quality, set your source to this resolution.

Does the monitor have built-in speakers?

Yes, depending on the model, the monitor may be equipped with two 7 W speakers. Check for an audio input on the back. Speakers are optional and may not be present on all models.

How to change the input source?

Press the Input button located on the back of the monitor. Use the navigation buttons to select the desired source (HDMI or DP) and press OK to confirm.

Is the monitor compatible with VESA mounts?

Yes, the monitor is VESA compatible. The stand is removable. You can remove the base and attach a VESA arm. Mounting dimensions are not specified but are typically standard 100x100 mm.

Where can I download the full user manual for the monitor?

The full manual is available for free download on the notice-facile.com website or on Acer's official support site. You can also request a translation by email.

USER MANUAL XZ271UA ACER

LCD Monitor XZ1 series-XZ271U

USERGUIDE

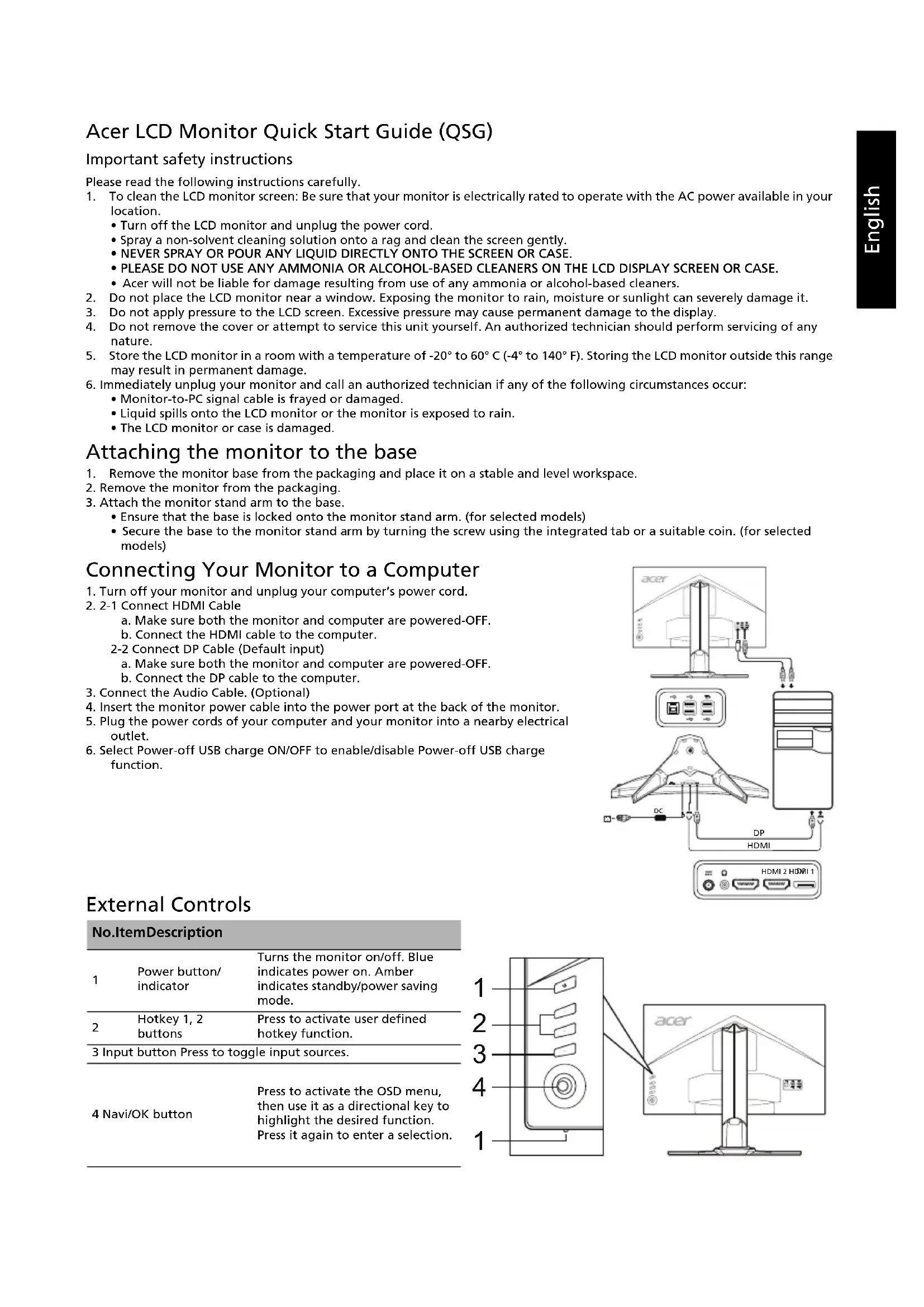

Acer LCD Monitor Quick Start Guide (QSG)

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen: Be sure that your monitor is electrically rated to operate with the AC power available in your location.

2. Turn off the LCD monitor and unplug the power cord.

3. Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
   NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.

4. PLEASE DO NOT USE ANY AMMONIA OR ALCOHOL-BASED CLEANERS ON THE LCD DISPLAY SCREEN OR CASE.

5. Acer will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

6. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.

7. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
8. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of any nature.
9. Store the LCD monitor in a room with a temperature of -20^ to 60^ C (-4° to 140° F). Storing the LCD monitor outside this range may result in permanent damage.
10. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:

Monitor-to-PC signal cable is frayed or damaged.
- Liquid spills onto the LCD monitor or the monitor is exposed to rain.
The LCD monitor or case is damaged.

Attaching the monitor to the base

1. Remove the monitor base from the packaging and place it on a stable and level workspace.
2. Remove the monitor from the packaging.

3. Attach the monitor stand arm to the base.

4. Ensure that the base is locked onto the monitor stand arm. (for selected models)

5. Secure the base to the monitor stand arm by turning the screw using the integrated tab or a suitable coin. (for selected models)

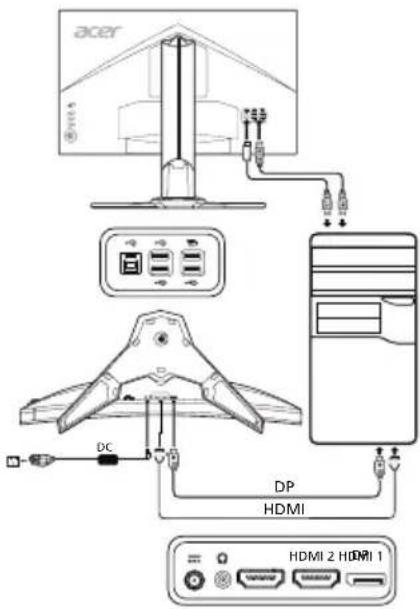

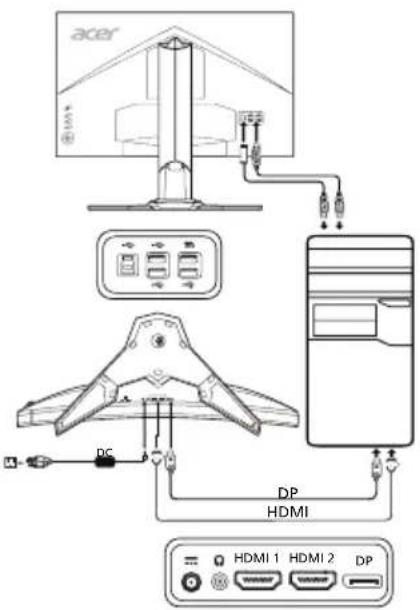

Connecting Your Monitor to a Computer

1. Turn off your monitor and unplug your computer's power cord.
2. 2-1 Connect HDMI Cable

a. Make sure both the monitor and computer are powered-OFF.

b. Connect the HDMI cable to the computer.

2-2 Connect DP Cable (Default input)

a. Make sure both the monitor and computer are powered-OFF.
b. Connect the DP cable to the computer.

1. Connect the Audio Cable. (Optional)

2. Insert the monitor power cable into the power port at the back of the monitor.

3. Plug the power cords of your computer and your monitor into a nearby electrical outlet.
4. Select Power-off USB charge ON/OFF to enable/disable Power-off USB charge function.

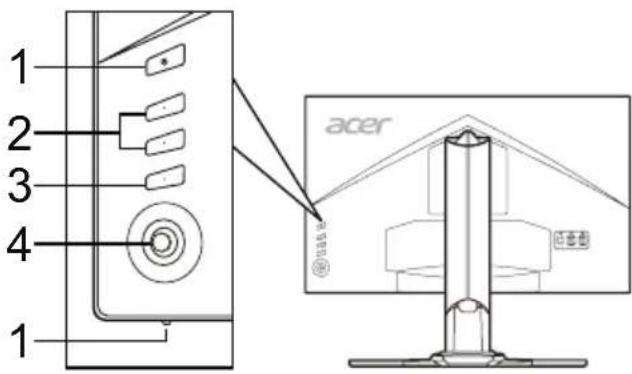

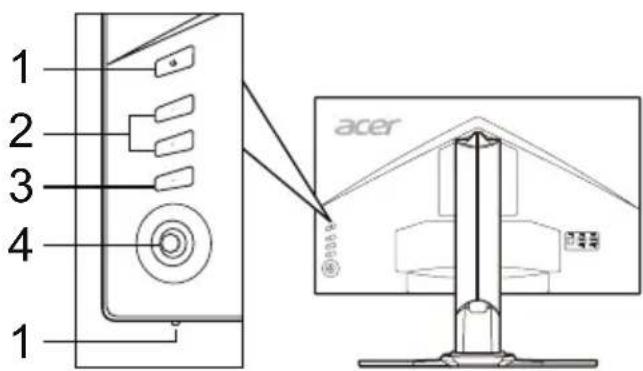

External Controls

No.ItemDescription
1	Power button/indicator	Turns the monitor on/off. Blue indicates power on. Amber indicates standby/power saving mode.
2	Hotkey 1, 2 buttons	Press to activate user defined hotkey function.
3	Input button Press to toggle input sources.
4	Navi/OK button	Press to activate the OSD menu, then use it as a directional key to highlight the desired function. Press it again to enter a selection.

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

CE declaration of Conformity

Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Notice:

In order to prevent damage to the monitor, do not lift the monitor by its base.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with EMC regulations.

Notice:

Acer monitor is purported for video and visual display of information obtained from electronic devices.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user authority, which is granted by the Federal Communications Commission, to operate this product.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

SPECIFICATION

LCD Panel	Driving System TFT Color LCD
	Size 27"W (69 cm)
	Pixel Pitch 0.233 mm (H) x 0.233 mm (V)
	Brightness	400 cd/m² (Typical)
	Contrast 100000000:1 Max (ACM)
	Viewable Angle 170° (H) 160° (V) (CR=10)
	Response Time 0.5 ms (G to G)
	Panel Type TN
	H-Frequency	HDMI 2.0: 31-222 KHzDP: 222-222 KHz
	V-Frequency	HDMI 2.0: 56-144 HDP: 40-144 HDM1 2.0: 40-144 Hz (FreeSync On)
Display Colors 16.7 Million
Dot Clock HDMI 2.0/DP: 600 MHz
Maximum Resolution 2560 x 1440 @ 144 Hz
Plug & Play VESA DDCCI/DDC2B
Energy Efficiency Class A
*Annual Energy Consumption 42 (kWh) (for HDMI-input Model)
Power Consumption (at 200 nits)	On Mode 25.0 W (Typical)
	Sleep Mode 0.4 W (Typical)
	Off Mode	0.3 W (Typical)
Input Connector		HDMI 19 pin (Only HDMI-Input Model)DP (Only DP-Input Model)
Input Video Signal		HDMI signal (Only HDMI-Input Model) (Optional)DP (Only DP-Input Model) (Optional)
Speakers		7 W x 2 (Only Audio-Input Model) (Optional)
USB		USB 3.0 x 4
Maximum Screen Size		Horizontal: 596.74 mmVertical: 335.66 mm
Power Source		100-240 V, 50/60 Hz
Environmental Considerations		Operating Temp: 0° to 40°CStorage Temp: -20° to 60°COperating Humidity: 20% to 80%
Dimensions		613.68 (W) x 401.59 - 511.59 (H) x 268.38 (D) mm
Weight (N. W.)		8.35 kg (net)
Mechanism Specifications		Tilt: -5° to +25° (Only at the highest point can 25 degrees of recline be offered for the angle of elevation)Swivel: -30° to +30°Height adjustment: 0 mm to 110 mmPivot: NoDetachable foot stand: Yes
External Controls	Switch/Buttons	Power ButtonInputHotkey 15 Navi KeyHotkey 2
	Functions	BrightnessLanguageOSD TimeoutTransparencyRefresh Rate NumInputSuper SharpnessAuto SourceGammaDP FormatWide ModeModelsHot Key AssignmentDDC/CIHDMI Black LevelQuick Start ModePower-Off USB ChargeDisplay InformationReset All SettingsExitAim Point
All specifications are subject to change without notice.

Find manuals and other documents for your Acer product on the official Acer support website.

*Annual energy consumption is calculated using the typical power consumption 4 hours per day, 365 days per year.

Panduan Praktis Monitor LCD Acer (QSG)

YCTaHOBka MOHHTopa Ha OCHOBaHne

1. 13BnKeHne OCHOBaHHe NOCTaBm MOHITopa H yNapOKBn I pa3MeCTNe erHa pOBHO n yctOuHBo pa6OeH noBepxHOCTn.
2. 13BnEKeNTe MOHHTOp u3 ynaKOBKn.

3. YCTAHOBITE CTOIKY MOHITOPA HA OCHOBAHNE.

4. Y6eHITcB, yTO OCHOBAHHe 3aФнКсИрОвАн Ho CTоIke MOHITopa (HeДЯ BCEx MoDEJIeN).
   3aKePnTe OCHOBaHHe Ha CToIke MOHTopa, NOBepHyB BnHT C NOMOuBcNEUaJIbHOro INCTpyMeHTa IIN NOxOJaEe MoHEtB (He nIg BCex MoDenei).

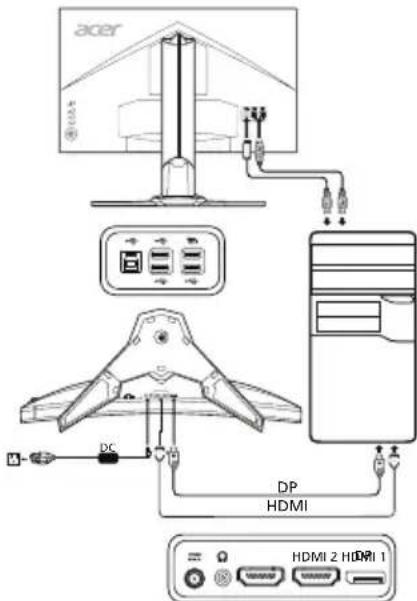

IOnKIOUeHHe MOHTOPa K KOMNbIOTepy
