USER MANUAL RBC42FSBO RYOBI

AVERTISSEMENT Un bouchon d'essence qui fuit entraîne un risque d'incendie et doit être remplacé immédiatement. Le bouchon d'essence comporte un fi ltre non remplaçable et un clapet anti-retour. Un fi ltre à essence bouché entraînera de mauvaises performances du moteur. Si les performances s'améliorent lorsque le bouchon d'essence est dévissé, le clapet anti-retour est peut-être défectueux, ou le fi ltre bouché. Remplacez le bouchon d'essence au besoin. BOUGIE D'ALLUMAGE Ce moteur utilise une bougie L8RTF/NHSP LD, ou une bougie L8RTF/BOSCH ou équivalente avec une distance de 0,5 mm entre les électrodes. Remplacez-la par un modèle identique. ATTENTION Prenez bien soin d'insérer la bougie correctement. Le vissage de travers de la bougie endommagera sérieusement le moteur.15 English (Original instructions) Safety, performance, and dependability have been given top priority in the design of your brushcutter/grass trimmer. INTENDED USE The brushcutter/grass trimmer is intended to be used only by adults who have read and understood the instructions and warnings in this manual and can be considered responsible for their actions. The product is only intended for use outdoors in a well ventilated area. For safety reasons, the product must be adequately controlled by using two-handed operation. The product fi tted with the grass trimmer head (and appropriate guard) is intended for cutting long grass, pulpy weed, and similar vegetation at or about ground level. When fi tted with the Tri-Arc™ blade (and appropriate guard), it can also cut bushes. When fi tted with the saw blade (and appropriate guard), it can also cut small trees. The cutting plane should be approximately parallel to the ground surface. The product should not be used to cut or trim hedges, bushes, or other vegetation where the cutting plane is not parallel to the ground surface. Do not use the product for any other purpose. WARNING To reduce the risk of injury, the user must read and understand the operator’s manual. WARNING Do not attempt to operate the product until you have read thoroughly and understood completely all instructions and safety rules contained in this manual. Failure to comply may result in accidents involving fire, electric shock, or serious personal injury. Save the operator’s manual and review frequently for continuing safe operation, and instructing others who may use the product. WARNING The product is not intended to be used by children or persons with reduced physical, mental, or sensory capabilities. Children should be adequately supervised to ensure they do not play with the product. READ ALL INSTRUCTIONS.

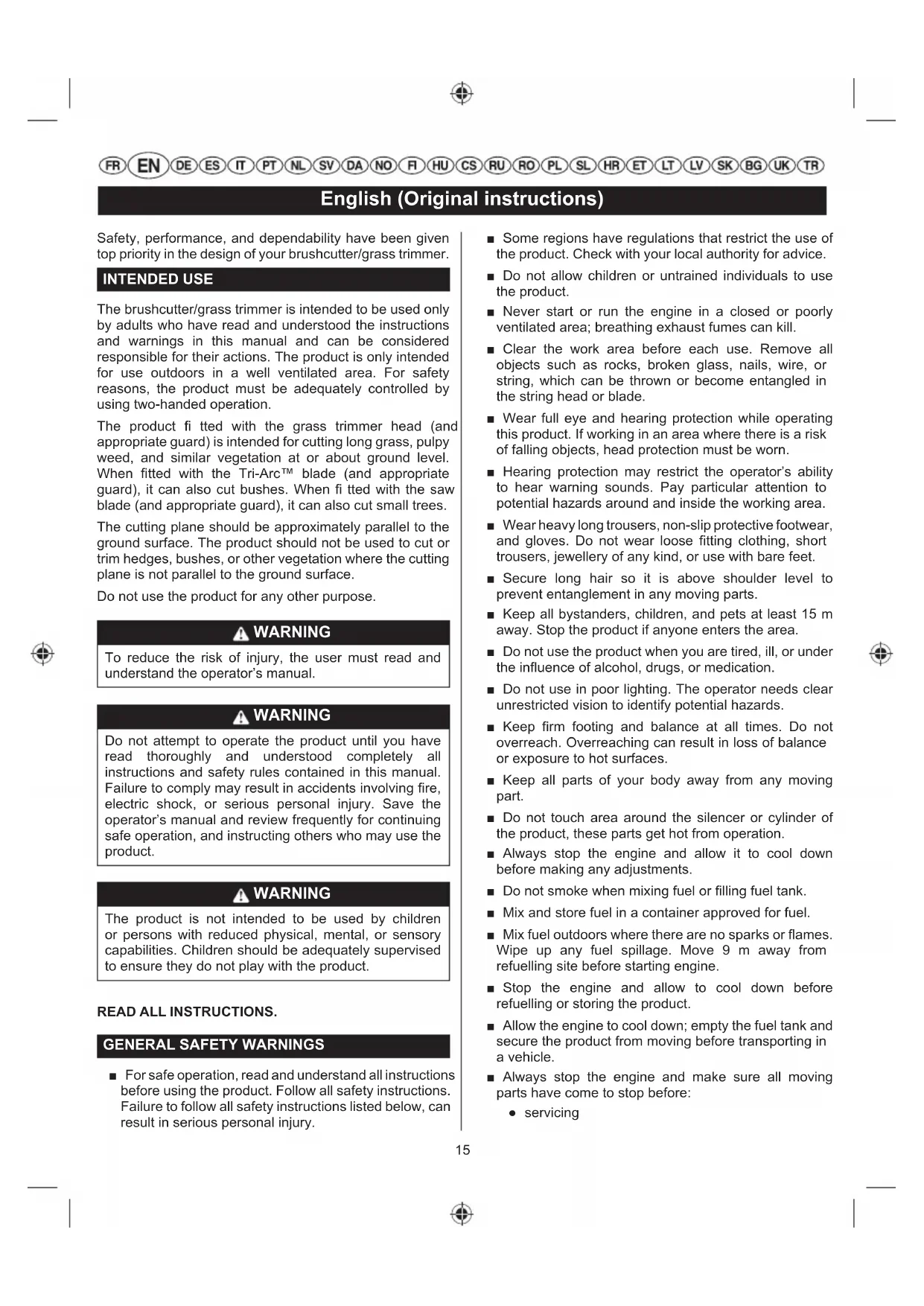

GENERAL SAFETY WARNINGS

■ For safe operation, read and understand all instructions before using the product. Follow all safety instructions. Failure to follow all safety instructions listed below, can result in serious personal injury. ■ Some regions have regulations that restrict the use of the product. Check with your local authority for advice. ■ Do not allow children or untrained individuals to use the product. ■ Never start or run the engine in a closed or poorly ventilated area; breathing exhaust fumes can kill. ■ Clear the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string, which can be thrown or become entangled in the string head or blade. ■ Wear full eye and hearing protection while operating this product. If working in an area where there is a risk of falling objects, head protection must be worn. ■ Hearing protection may restrict the operator’s ability to hear warning sounds. Pay particular attention to potential hazards around and inside the working area. ■ Wear heavy long trousers, non-slip protective footwear, and gloves. Do not wear loose fitting clothing, short trousers, jewellery of any kind, or use with bare feet. ■ Secure long hair so it is above shoulder level to prevent entanglement in any moving parts. ■ Keep all bystanders, children, and pets at least 15 m away. Stop the product if anyone enters the area. ■ Do not use the product when you are tired, ill, or under the influence of alcohol, drugs, or medication. ■ Do not use in poor lighting. The operator needs clear unrestricted vision to identify potential hazards. ■ Keep firm footing and balance at all times. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces. ■ Keep all parts of your body away from any moving part. ■ Do not touch area around the silencer or cylinder of the product, these parts get hot from operation. ■ Always stop the engine and allow it to cool down before making any adjustments. ■ Do not smoke when mixing fuel or filling fuel tank. ■ Mix and store fuel in a container approved for fuel. ■ Mix fuel outdoors where there are no sparks or flames. Wipe up any fuel spillage. Move 9 m away from refuelling site before starting engine. ■ Stop the engine and allow to cool down before refuelling or storing the product. ■ Allow the engine to cool down; empty the fuel tank and secure the product from moving before transporting in a vehicle. ■ Always stop the engine and make sure all moving parts have come to stop before: ● servicing16 English (Original instructions) ● leaving the product unattended ● cleaning your product ● changing accessories ● clearing blockages ● checking for any damage after hitting an object ● checking for any damage if the product starts to vibrate abnormally ● performing maintenance ● removing blade ● installing blade WARNING Never use cutting means or attachments, which are not specified by Ryobi in this manual. This includes the use of metal multi-piece pivoting chains and flail- blades. These items are known to break up during use and present a high risk of serious injury to the operator or bystanders. WARNING Inspection after dropping or other impacts: Thoroughly inspect the product and identify any problems or damage to it. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

GRASS TRIMMER SAFETY WARNINGS

■ Replace the string head if cracked, chipped, or damaged in any way. Be sure the string head is properly installed and securely fastened. Failure to do so can cause serious injury. ■ Avoid using on wet grass. ■ Do not walk backwards when using the product. ■ Walk, never run. ■ The small blade fitted to the cutting attachment guard is designed to trim the new extended line to the correct length for safe and optimum performance. It is very sharp; do not touch it, particularly when cleaning the product. ■ Always ensure that ventilation openings are kept clear of debris. ■ Before use and after any impact, check that there are no damaged parts. Examine the cutting means for signs of cracking or other damage. A defective switch or any part that is damaged should be properly repaired or replaced by an authorised service facility. ■ Make sure the head attachment is properly installed and securely fastened. ■ Make sure all guards, deflectors, handles, bolts, and fasteners are properly and securely attached. ■ Do not modify the product in any way. This may increase the risk of injury to yourself or others. ■ Use only the manufacturer’s replacement line in the cutting head. Do not use any other cutting attachment. ■ Never operate the product without the cutting attachment guard in place and in good condition. ■ Maintain a firm grip on both handles while trimming. Keep string head below waist level. Never cut with the string head located over 76 cm or more above the ground.

BRUSHCUTTER SAFETY WARNINGS

■ In addition to the above rules, these additional instructions are appropriate when using the product in brushcutter mode. ■ Use heavy-duty gloves while installing or removing the blades, they have sharp edges. ■ Do not attempt to touch or stop the blade when it is rotating. ■ A moving blade can cause severe injury. Maintain proper control of the product with both hands until the blade has completely stopped rotating. ■ Replace any blade that has been damaged. Always make sure the blade is installed correctly and securely fastened before each use. ■ Use only the manufacturer’s replacement Tri-Arc™ blade or saw blade. Do not use any other cutting attachment. ■ Never cut any material over 13 mm diameter for Tri- Arc™ blade and over 40 mm diameter for the saw blade. ■ Your brushcutter is fitted with a harness. Carefully adjust the harness to fit comfortably and help to support the weight of the product at your right side. ■ Identify the quick release mechanism and practice using it before you start using the product. Its correct use may prevent serious injury in case of an emergency. Never wear additional clothing over the harness or otherwise restrict access to the quick release mechanism. ■ Cover the blade with the blade protector before storing the product, or during transportation. Always remove the blade protector before using the product. If not removed, the blade protector could become a thrown object as the blade begins to turn. ■ Exercise extreme caution when using the blade with the product. Blade thrust is the reaction that may occur when the spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an17 English (Original instructions) instant, and suddenly “thrust” the product away from the object that was hit. This reaction can be violent enough to cause the operator to lose control of the product. Blade thrust may occur without warning if the blade snags, stalls, or binds. This is more likely to occur in areas where it is difficult to see the material being cut. ■ For cutting ease and safety, approach the weeds being cut from the right to the left. In the event an unexpected object or woody stock is encountered, this practice could minimise the blade thrust reaction. Both hands must be used at all times to control the product. RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk factors. The following hazards may arise in use and the operator should pay special attention to avoid the following: ■ Contact with cutting means – Ensure that the blade protectors are fitted when the product is not in use. Keep hands and feet away from the blades at all times. ■ Injury caused by vibration – Always use the right tool for the job, use designated handles, and restrict working time and exposure. ■ Hearing injury caused by exposure to noise – Wear hearing protection and limit exposure. ■ Eye injury caused by flying debris – Wear eye protection at all times. ■ Risk of falling objects – Wear head protection if there is any risk of falling objects. Kickback can occur when using the brushcutter. Ensure proper control by using both hands on the designated handles. Read and follow the directions elsewhere in this manual to help reduce the risk of kickback. RISK REDUCTION It has been reported that vibrations from handheld tools may contribute to a condition called Raynaud’s Syndrome. Symptoms may include tingling, numbness and blanching of the fi ngers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms. There are measures that can be taken by the operator to possibly reduce the effects of vibration: ■ Keep your body warm in cold weather. When operating the product, wear gloves to keep the hands and wrists warm. It is reported that cold weather is a major factor contributing to Raynaud's Syndrome. ■ After each period of operation, exercise to increase blood circulation. ■ Ensure that the product is correctly located in a designated working position before starting the product. ■ Limit the amount of exposure per day. Take frequent work breaks. If you experience any of the symptoms of this condition, immediately discontinue use and see your physician. WARNING Injuries may be caused or aggravated by prolonged use of the product. When using any tool for prolonged periods, ensure you take regular breaks.

TRANSPORTATION AND STORAGE

■ Stop the engine and allow it to cool down before storing or transporting. ■ Clean all foreign materials from the product. ■ If a cutting blade is fitted, cover it with the blade protector. ■ Drain all fuel from tank into a container approved for petrol. Remember to properly replace and tighten the fuel cap. ■ Run the engine until it stops, this will remove all fuel that could become stale and leave varnish and gum in the fuel system. ■ Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep away from corrosive agents, such as garden chemicals and de- icing salts. Do not store outdoors. ■ When transporting the product in a vehicle, secure it against movement or falling to prevent injury to persons or damage to the product. ■ Never carry or transport the product while the engine is running. ■ Abide all government and local regulations for the safety storage and handling of petrol. Excess fuel should be used in other 2-cycle engine powered equipment. SHORT TERM ■ Stop the engine, and allow it to cool down before storing. ■ Clean all foreign material from the product. ■ Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. ■ Keep away from corrosive agents such as garden18 English (Original instructions) chemicals and de-icing salts. ■ Do not store outdoors. SYMBOLS Some of the following symbols may be used on your brushcutter/grass trimmer. Please study them and learn their meaning. Proper interpretation of these symbols allows you to operate the product better and safer. Safety alert To avoid serious personal injury, do not attempt to use the product until you read thoroughly and understand completely the operator’s manual. Beware of thrown or fl ying objects. Keep all bystanders, especially children and pets, at least 15 m from the operating area. This guard is not intended for use with a toothed saw type blade. 7,370 min

Rotational direction and maximum speed of the shaft for the cutting attachment. Wear non-slip safety footwear when using the product. Wear non-slip, heavy-duty gloves. Beware of blade thrust. Wear eye, ear, and head protection. To reduce the risk of injury or damage, avoid contact with any hot surface. Keep hands away from blades. Keep hands away from saw blades. Hot surface Use unleaded petrol intended for motor vehicle use with an octane rating of 91 [(R + M)/2] or higher. Use 2-stroke oil for air cooled engines. Mix the fuel mix thoroughly and also each time before refueling Conforms to all regulatory standards in the country in the EU where the product is purchased. EurAsian Conformity Mark Ukrainian mark of conformity Tri-Arc™ blade Ignition switch: O = STOP, I = RUN

Pull the starter grip to start the engine. Squeeze throttle trigger to run. Starting a cold engine by hand Starting a warm engine by hand Starting a cold engine by electrical starter Starting a warm engine by electrical starter Direction of handle rotation Guaranteed sound power level is 112 dB. Choke closed Choke open Pull: Quick release tab Straight shaft symbol: When fi tting the line spool to the cutting means, this symbol should be visible to the operator.19 English (Original instructions) Lock Unlock Stop the product. DESCRIPTION

5. Cutting attachment guard

11. Mounting bracket

23. String head housing

28. String head cover

40. Air fi lter cover

ASSEMBLY UNPACKING The product requires assembly.

Carefully remove the tool and any accessories from the box. Make sure that all items listed in the packing list are included. ■ Inspect the tool carefully to make sure no breakage or damage occurred during shipping.

Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool.

ACKING LIST ■ Grass trimmer/brushcutter x 1 ■ ReelEasy™ grass trimmer head x 1 ■ Cutting attachment guard x 1 ■ Tri-Arc™ blade x 1 ■ Harness x 1 ■ Operator’s manual x 1 ■ Engine oil x 1 ■ Combination wrench x 1 ■ Wrench x 1 ■ Allen wrench (5 mm) x 1 ■ Allen wrench (4 mm) x 1 ■ Saw blade x 1 (RBC52FSBOS) ■ Saw blade guard x 1 (RBC52FSBOS) WARNING If any parts are damaged or missing, do not operate the product until the parts are replaced. Failure to heed this warning could result in serious personal injury.20 English (Original instructions) WARNING Do not attempt to modify the product or create accessories not recommended for use with the product. Any alteration or modifi cation is misuse and could result in a hazardous condition leading to possible serious personal injury. WARNING Never attach or adjust any attachment while power head is running. Failure to stop the engine may cause serious personal injury. WARNING Be certain all knobs and fasteners are fully tightened before operating the product; check it periodically for tightness during use to avoid serious injury.

SETTING UP THE HANDLE

2. Lift and rotate the handle to the desired position. Make

sure the alignment arrows are aligned.

3. Tighten the bike handle lock knob.

NOTE: The product has a built-in micro-switch that deactivates the engine if the bike handle lock knob is not fully tightened, and the alignment arrows are not properly aligned. WARNING Check the bike handle lock knob for tightness periodically to avoid serious injury.

1. Connect the latch on the harness to the strap hanger.

2. Adjust the strap hanger to a comfortable and balanced

position where the blade or cutter attachment will suspend between 100 mm and 300 mm above the ground surface. NOTE: Always use the harness with the product. NOTE: To quickly release the product from the harness, sharply pull the quick-release tab.

1. Attach the cutting attachment guard to the mounting

bracket and align the screw holes on the cutting attachment guard to the screws on the mounting bracket.

ighten screws. WARNING When using the ReelEasy™ grass trimmer head, the grass defl ector must be attached to the blade guard. See fi gure 24. When using the Tri-Arc™ blade, the grass defl ector must be removed from the blade guard. See fi gure 23. WARNING When using the saw blade, the saw blade guard must be attached to the mounting bracket.

2. Place the Allen wrench through the hole in the upper

fl ange washer and the hole in the gear head. Turn blade nut clockwise to remove.

3. Remove the blade nut, blade washer, and cupped

washer from the gear shaft.

4. Open the ReelEasy™ grass trimmer head depressing

the latches on each side. The contents of the bump head are spring-loaded, so keep your other hand over the string head cover while depressing the latches.

5. Remove the string head cover, bump knob, and line

6. Install the drive connector and string head housing

into the gear shaft. Place the Allen wrench through the hole in the upper fl ange washer and the hole in the gear head. Using the wrench, turn the drive connector counterclockwise to tighten securely.

7. Reinstall the line spool. For the straight shaft

attachment with the ReelEasy™ grass trimmer head, the spool should be placed so is visible on the line spool.

8. Replace the bump knob by inserting it into the centre

9. Replace the string head cover, aligning latches with

openings in the grass trimmer head. Press cover and grass trimmer head together until both latches snap securely into the openings.

10. Install the cutting line. Refer to "String replacement"

later in the manual for additional information.21 English (Original instructions) WARNING To reduce the risk of serious personal injury, always stop the engine before making any adjustments, such as changing cutting heads.

2. Open the ReelEasy™ Grass Trimmer Head by

depressing the latches on each side. The contents of the bump head are spring loaded, so keep your other hand over the string head cover while depressing the latches.

3. Remove the string head cover, bump knob, and line

4. Place the Allen wrench through the hole in the upper

fl ange washer and the hole in the gear head. Using a wrench, turn the drive connector clockwise to remove.

5. Remove the drive connector and string head housing

from the gear head. NOTE: Store the disassembled parts together for later use.

6. Remove the grass defl ector from the blade guard.

WARNING When using the Tri-Arc™ blade, the grass defl ector must be removed from the blade guard. See fi gure 23. Installing the Tri-Arc™ blade See fi gure 6. WARNING Be certain all knobs and fasteners are fully tightened before operating the product. Periodically check for tightness during use to avoid serious injury. WARNING Note that the blade nut is a nylon nut, which is to be used for one time assembly only. Do not reuse the nylon nut. When installing/reinstalling, use a new nylon nut. Failure to follow this procedure can result in serious injury. To reduce the risk of injury, keep the blade protector on the blade at all times. Remove the blade protector only during cutting operations.

1. Centre the blade on the upper fl ange washer and

make sure the blade sits fl at. Install the cupped washer and make sure it sits well into the gear shaft. Install the blade washer with the raised centre away from the blade.

2. Install the blade nut.

3. Place the Allen wrench through the hole in the upper

fl ange washer and the hole in the gear head. Using the wrench, turn the blade nut counterclockwise to tighten (20 Nm).

2. Place the Allen wrench through the hole in the upper

fl ange washer and the hole in the gear head. Turn blade nut clockwise to remove.

3. Remove the blade nut, blade washer, cupped washer,

and blade and retain for later use.

4. Attach the grass defl ector to the blade guard by

placing the two locking tabs into the two notches; tighten the screw. NOTE: Store the disassembled parts together for later use. Installing the ReelEasy™ grass trimmer head See fi gure 7.

1. Install the drive connector and string head housing

into the gear shaft. Place the Allen wrench through the hole in the upper fl ange washer and the hole in the gear head. Using the wrench, turn the drive connector counterclockwise to tighten securely.

2. Reinstall the spool. For the straight shaft attachment

with the ReelEasy™ string trimmer head, the spool should be placed so is visible on the line spool.

3. Replace the bump knob by inserting it into the centre

with openings in the grass trimmer head. Press cover and grass trimmer head together until both latches snap securely into the openings.

5. Install the cutting line. Refer to "String replacement"

later in the manual for additional information.

6. Install the grass defl ector into the blade guard.

WARNING When using the ReelEasy™ grass trimmer head, the grass defl ector must be attached from the blade guard. See fi gure 24.22 English (Original instructions)

2. Remove the cutting attachment guard from the

mounting bracket. Removing the ReelEasy™ grass trimmer head See fi gure 8.

1. Open the ReelEasy™ Grass Trimmer Head by

depressing the latches on each side. The contents of the bump head are spring loaded, so keep your other hand over the string head cover while depressing the latches.

2. Remove the string head cover, bump knob, and line

3. Place the Allen wrench through the hole in the upper

fl ange washer and the hole in the gear head. Using a wrench, turn the drive connector clockwise to remove.

4. Remove the drive connector and string head housing

from the gear head. NOTE: Store the disassembled parts together for later use. Installing the saw blade guard See fi gure 8.

1. Attach the saw blade guard to the mounting bracket

and align the screw holes on the saw blade guard to the screws on the mounting bracket.

2. Tighten screws securely.

WARNING When using the saw blade, the saw blade guard must be attached to the mounting bracket. Installing the saw blade See fi gure 8. WARNING Be certain all knobs and fasteners are fully tightened before operating the product. Periodically check for tightness during use to avoid serious injury. WARNING Note that the blade nut is a nylon nut, which is to be used for one time assembly only. Do not reuse the nylon nut. When installing/reinstalling, use a new nylon nut. Failure to follow this procedure can result in serious injury. To reduce the risk of injury, keep the blade protector on the blades at all times. Remove the blade protector only during cutting operations.

1. Centre the blade on the upper fl ange washer and make

sure the blade sits fl at. Install the cupped washer and make sure it sits well into the gear shaft. Install blade washer with the raised centre away from the blade.

2. Install the blade nut.

3. Place the Allen wrench through the hole in the upper

fl ange washer and the hole in the gear head. Using the wrench, turn the blade nut counterclockwise to tighten (20 Nm). WARNING Make sure the saw blade is in correct position. When installing the saw blade, the silkscreen on the blade is always on the top and towards the saw blade guard. CONVERTING FROM BRUSHCUTTER (SAW BLADE)

Removing the saw blade and saw blade guard See fi gure 9.

2. Place the Allen wrench through the hole in the upper

fl ange washer and the hole in the gear head. Turn the blade nut clockwise to remove.

3. Remove the blade nut, blade washer, cupped washer,

saw blade, and saw blade guard and retain for later use. NOTE: Store the disassembled parts together for later use. Installing the ReelEasy™ grass trimmer head See Figure 9.

1. Install the drive connector and string head housing

into the gear shaft. Place the Allen wrench through the hole in the upper fl ange washer and the hole in the gear head. Using the wrench, turn the drive connector counterclockwise to tighten securely.

2. Reinstall the spool. For the straight shaft attachment

with the ReelEasy™ grass trimmer head, the spool should be placed so the is visible on the line spool.

3. Replace the bump knob by inserting it into the centre23

English (Original instructions) of the line spool.

4. Replace the string head cover, aligning latches with

openings in the grass trimmer head. Press cover and grass trimmer head together until both latches snap into openings securely.

5. Install the cutting line. Refer to "String replacement"

later in the manual for additional information. Installing the cutting attachment guard See fi gure 9.

1. Attach the cutting attachment guard to the mounting

bracket and align the screw holes on the cutting attachment guard to the screws on the mounting bracket.

2. Tighten screws securely.

WARNING When using the ReelEasy™ grass trimmer head and Tri-Arc™ blade, the cutting attachment guard must be attached to the mounting bracket. WARNING When using the saw blade, the saw blade guard must be attached to the mounting bracket. OPERATION

Handling the fuel safely ■ Always handle fuel with care. It is highly flammable. ■ Always refuel outdoors where there are no sparks and flames. Do not inhale fuel vapour. Do not smoke. ■ Do not let petrol or lubricant come in contact with your skin. ■ Keep petrol and lubricant away from the eyes. If petrol or lubricant comes in contact with the eyes, wash them immediately with clean water. If irritation is still present, see a doctor immediately. ■ Clean up spilled petrol immediately.

■ This product is powered by a 2-stroke engine and requires pre-mixing petrol and 2-stroke lubricant. Premix unleaded petrol and 2-stroke engine lubricant in a clean container approved for petrol. ■ This engine is certifi ed to operate on unleaded petrol intended for motor vehicle use with an octane rating of 91([R+M]/2) or higher. ■ Do not use any type of pre-mixed petrol/lubricant from fuel service stations. ■ Use synthetic 2-stroke lubricant only. Do not use automotive lubricant or 2-cycle outboard lubricant. ■ Mix 2.5% synthetic 2-stroke lubricant into the petrol. This is a 40:1 ratio. ■ Mix the fuel thoroughly and also each time before refueling. ■ Mix in small quantities. Do not mix quantities larger than usable in a 30-day period. A synthetic 2-stroke lubricant containing a fuel stabiliser is recommended. 1 Litre + 25 ml = 2 Litres + 50 ml = 3 Litres + 75 ml = 40:1 4 Litres + 100 ml = 5 Litres + 125 ml =

■ Clean surface around fuel cap to prevent contamination. ■ Loosen fuel cap slowly to release pressure and to keep fuel from escaping around the cap. ■ Carefully pour fuel mixture into the tank. Avoid spillage. ■ Prior to replacing the fuel cap, clean and inspect the gasket. ■ Immediately replace the fuel cap and hand-tighten. Wipe up any fuel spillage. Move 9 m away from the refueling site before starting the engine. NOTE: It is normal for smoke to be emitted from a new engine during and after first use. WARNING Always shut off engine before fuelling. Never add fuel to the product when it is running or when the engine is hot. Move at least 9 m (30 ft) from refuelling site before starting the engine. Do not smoke.

STARTING AND STOPPING

Choke position A Choke position B WARNING Never start or run the engine inside a closed or poorly ventilated area; breathing exhaust fumes can kill.24 English (Original instructions) To start a cold engine by hand: See fi gure 15.

1. Lay the product on the ground.

2. Push the primer bulb approximately 10 times.

3. Set the choke lever to position A (choke closed).

4. Pull the starter grip with a quick fi rm and consistent

upward motion until the engine attempts to start. Do not pull the starter grip more than 4 times.

5. Set the choke lever to position B (choke open).

6. Pull the starter grip until the engine starts. Do not pull

the starter grip more than 6 times. NOTE: If the engine does not start, repeat the procedure from step 3.

7. Allow engine to warm up for 10 seconds prior to

operation. To start a warm engine by hand: See fi gure 16.

1. Lay the product on the ground.

2. Set the choke lever to position B (choke open).

3. Pull the starter grip with a quick fi rm and consistent

upward motion until the engine starts. Starting the engine using an electrical starter (optional): WARNING Only use the Ryobi OES18 electrical starter. Use of any other starter may damage the engine and cause serious personal injury. WARNING Before using the electrical starter to start the product, please read and understand completely the operation manual of the OES18 electrical starter to avoid improper operation and serious personal injury. To start a cold engine by electrical starter: See fi gure 21.

1. Install the starter bit into the electrical starter with the

pentagon bit facing outside.

2. Push the F/R button to the left until the pentagon

symbol shows on the F/R button.

3. Lay the product on the ground and make sure that the

cutting means do not come in contact with anything.

4. Press the primer bulb 10 times.

NOTE: After the 7th press, the fuel should be visible in the primer bulb. If not, continue pressing until the fuel is visible.

5. Set the choke lever to position A (choke closed).

6. Hold the insulated shaft with your left hand and

use your right hand to put the starter bit shaft to the shaft hole on the engine. Make sure the starter bit is properly engaged. NOTE: The electrical starter is equipped with a safety interlock. Do not press and hold on the switch button when putting the electrical starter shaft into the shaft hole on the engine. The starter will not turn if the electrical starter is not properly engaged.

7. Press and hold the electrical starter switch button until

the engine attempts to start. Do not press the electrical starter for more than 4 seconds.

8. Set the choke lever to position B (choke open).

9. Press and hold the electrical starter switch button until

the engine starts. NOTE: If the engine does not start, repeat the procedure from step 5. Do not repeat the procedure more than 1 time. If the engine does not start after the second attempt, see the solution instruction for the "Flooded engine" in the "Troubleshooting" section of this manual.

10. Allow the engine to warm up for 10 seconds prior to

operation. To start a warm engine by electrical starter: See fi gure 22.

1. Install the starter bit into the electrical starter with the

pentagon bit facing outside.

2. Push the F/R button to the left until the pentagon

symbol shows on the F/R button.

3. Lay the product on the ground and make sure that the

cutting means do not come in contact with anything.

4. Set the choke lever to position B (choke open).

5. Hold the insulated shaft with your left hand and

use your right hand to put the starter bit shaft to the shaft hole on the engine. Make sure the starter bit is properly engaged.

6. Press and hold the electrical starter switch button until

the engine starts. NOTE: If the engine does not start, repeat the procedure from step 5. Do not repeat the procedure more than 1 time. If the engine does not start after the second attempt, see the solution instruction for the "Flooded engine" in the "Troubleshooting" section of this manual. To stop the engine: See fi gure 20. Place the ignition switch to the “O” (OFF) position.

OPERATING THE GRASS TRIMMER

See fi gure 11. ■ Hold the product with the right hand on the trigger handle and the left hand on the left handle. Keep a25 English (Original instructions) firm grip with both hands while in operation. ■ The product should be held at a comfortable position with the trigger handle about hip height. ■ Always operate the product at full throttle. Prolonged cutting at partial throttle will result in lubricant dripping from the silencer. ■ Cut tall grass from the top down to prevent grass from wrapping around the shaft housing and string head, which may cause damage from overheating. ■ If grass or debris becomes wrapped around the cutting means, stop the engine. Wear heavy-duty gloves to prevent injury from the sharp blades and carefully remove the debris. CUTTING TIPS See fi gure 12. ■ Do not push into the grass to be cut. Move from side to side. Move forward a little at the end of each sweep. ■ Keep the product tilted towards the area being cut. ■ Do not use in dangerous environments. ■ Use the tip of the string to do the cutting; do not force the string head into the uncut grass. ■ Wire and picket fences cause extra string wear, even breakage. Stone and brick walls, kerbs and wood may wear string rapidly. ■ Avoid trees and shrubs. Tree bark, wood mouldings, cladding and fence posts can be easily damaged by the string.

Line advance is controlled by tapping the string head on grass while running engine at full throttle. ■ Run engine at full throttle. ■ Tap the knob on the ground to advance the string. The string advances each time the knob is tapped. Do not hold the knob on the ground. ■ The string should advance until it is cut to length by the line cutting blade located on the cutting attachment guard.

OPERATING THE BRUSHCUTTER

See fi gure 13 - 14. ■ To help reduce the risk of kickback: Do not push into the material to be cut. Move from right to left in steady sweeps. Move forward a little at the beginning of each new sweep. ■ Hold the product with the right hand on the trigger handle and the left hand on the left handle. Keep a firm grip with both hands while in operation. ■ The product should be held at a comfortable position with the trigger handle about hip height. ■ Maintain your grip and balance on both feet. Position yourself so that you will not be drawn off balance by the kickback reaction of the cutting blade. ■ Adjust the strap hanger to a comfortable position. Exercise extreme caution when using the blade with the product. Blade thrust is the reaction that may occur when the spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an instant, and suddenly “thrust” the product away from the object that was hit. This reaction can be violent enough to cause the operator to lose control of the product. Blade thrust may occur without warning if the blade snags, stalls, or binds. This is more likely to occur in areas where it is diffi cult to see the material being cut. For cutting ease and safety, approach the weeds being cut from the right to the left. In the event an unexpected object or woody stock is encountered, this could minimize the blade thrust reaction. TRI-ARC™ BLADE The Tri-Arc™ blade is suitable for cutting pulpy weeds and vines only. When the Tri-Arc™ blade becomes dull, it can be turned over to extend its life. Do not sharpen the blade. SAW BLADE The saw blade is suitable for cutting pulpy weeds, vines, bushes, and small trees. Worn saw blades can cause poor performance. Check the saw blade before each use. Replace the worn or damaged blade immediately. CUTTING TECHNIQUE WARNING The blades are sharp and can injure even if they are not moving. Exercise extreme caution when using the blade with the product. Safe operation of the product requires that you read and understand this operator’s manual and all labels affi xed to the tool. ■ Both hands must be used at all times to control the product. Keep a firm grip with both hands while in operation. ■ Maintain your grip and balance on both feet. Position yourself so that you will not be drawn off balance by the kickback reaction of the cutting blade. ■ Inspect and clear the area of any hidden objects such as glass, stones, concrete, fencing, wire, wood, metal, etc. ■ Never use blades near footpaths, fencing, posts, buildings or other immovable objects. ■ Never use a blade after hitting a hard object without first inspecting it for damage. Do not use if any26 English (Original instructions) damage is detected. ■ For cutting ease and safety, approach the weeds being cut from the right to the left. MAINTENANCE WARNING Use only original manufacturer's replacement parts and accessories. Failure to do so may cause poor performance, contribute to possible injury, and will void your warranty. ■ The cutting attachment must not rotate in idle mode. If this requirement is not satisfied, the clutch has to be adjusted or the product needs an urgent maintenance by a qualified technician. ■ You may make adjustments and repairs described in this user manual. For other repairs, have the product serviced by an authorised service centre. ■ Consequences of improper maintenance may include excess carbon deposits resulting in loss of performance and discharge of black oily residue dripping from the silencer. ■ Make sure the cutting attachment guards, harness and handles are properly and securely attached to avoid the risk of personal injury. STRING REPLACEMENT See fi gure 10. ■ Ensure the ignition switch is in the “off” position. ■ Use a 2.4 mm diameter monofilament string. ■ Cut one piece of string approximately 6 m in length. ■ Rotate the knob on the string head until the line on knob aligns with the arrows on the top of string head. ■ Insert one end of the string into the eyelet located on the side of the string head and push until string comes out through eyelet on the other side. Continue to push string through the string head until the middle section of the string is inside the string head and string outside the string head is evenly divided on each side. ■ Rotate the knob on the string head clockwise to wind the string. ■ Wind the string until approximately 20 cm remains protruding from the string head. BLADE PROTECTOR See fi gure 17 - 18. Always place the blade protector on the blade when the product is not in use. The blade protector has clips round the edges to snap over the blade and keep it in place. Wear gloves and be cautious when handling the blade. NOTE: Always remove the blade protector before using the product. If not removed, the blade protector could become a thrown object as the blade begins to turn.

CLEANING THE EXHAUST PORT AND SILENCER

Depending on the type of fuel used, the type and amount of oil used, and/or your operating conditions, the exhaust port and silencer may become blocked with carbon deposits. If you notice a power loss with your petrol- powered tool, a qualifi ed service technician will need to remove these deposits to restore performance.

See fi gure 19. ■ Ensure the ignition switch is in the “off” position. ■ Remove the air filter knob and air filter cover. ■ Remove the air filter and clean it with warm soapy water. ■ Rinse, and let the air filter dry completely. ■ Replace the air filter. NOTE: If damaged, replace immediately. ■ Replace the air filter cover. ■ Tighten the air filter knob. NOTE: The air fi lter should be replaced annually for the best performance.
