USER MANUAL One+ RY18BI150A RYOBI

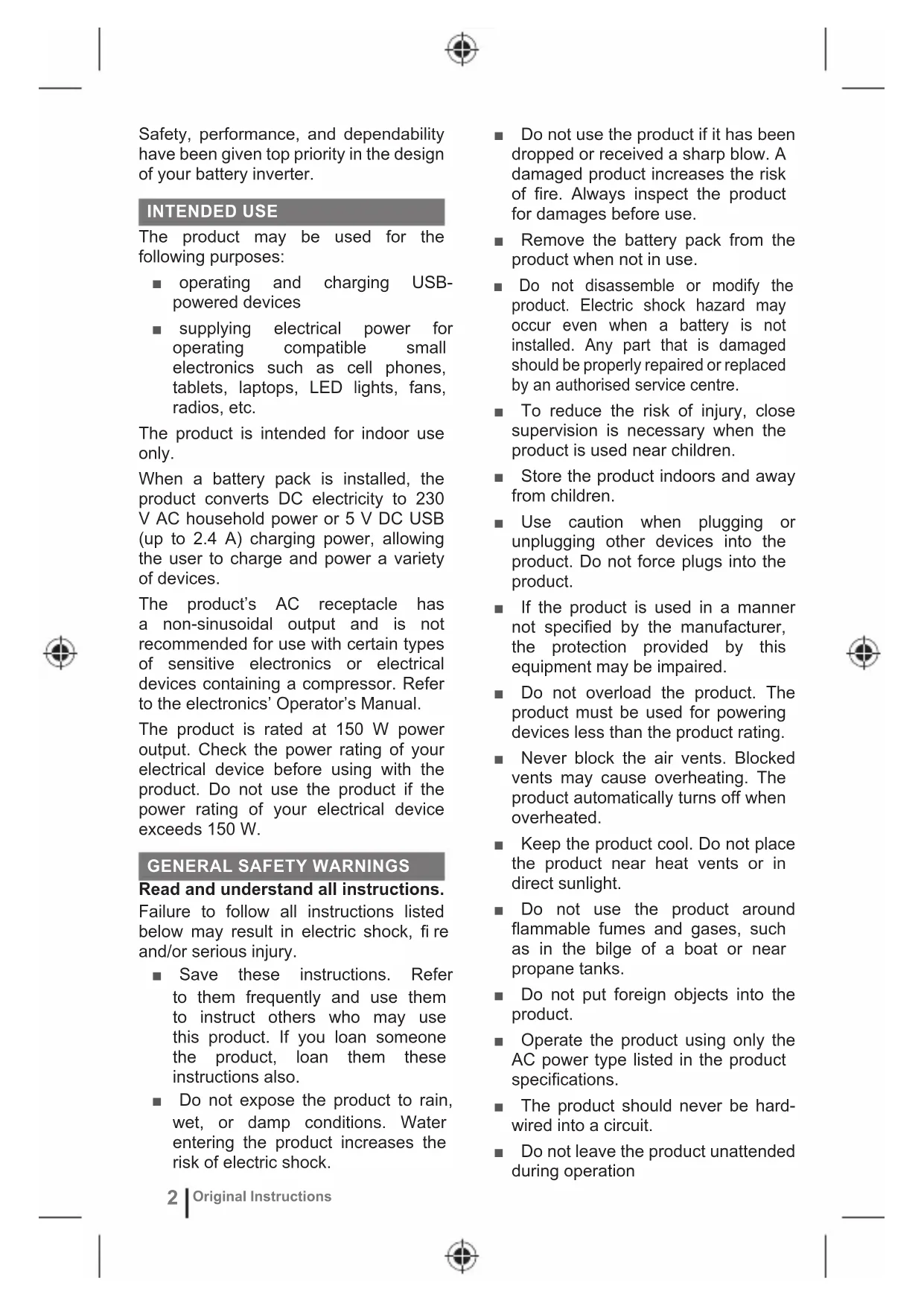

Original Instructions Safety, performance, and dependability have been given top priority in the design of your battery inverter. INTENDED USE The product may be used for the following purposes: ■ operating and charging USB- powered devices ■ supplying electrical power for operating compatible small electronics such as cell phones, tablets, laptops, LED lights, fans, radios, etc. The product is intended for indoor use only. When a battery pack is installed, the product converts DC electricity to 230 V AC household power or 5 V DC USB (up to 2.4 A) charging power, allowing the user to charge and power a variety of devices. The product’s AC receptacle has a non-sinusoidal output and is not recommended for use with certain types of sensitive electronics or electrical devices containing a compressor. Refer to the electronics’ Operator’s Manual. The product is rated at 150 W power output. Check the power rating of your electrical device before using with the product. Do not use the product if the power rating of your electrical device exceeds 150 W.

GENERAL SAFETY WARNINGS

Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. ■ Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone the product, loan them these instructions also. ■ Do not expose the product to rain, wet, or damp conditions. Water entering the product increases the risk of electric shock. ■ Do not use the product if it has been dropped or received a sharp blow. A damaged product increases the risk of fire. Always inspect the product for damages before use. ■ Remove the battery pack from the product when not in use. ■ Do not disassemble or modify the product. Electric shock hazard may occur even when a battery is not installed. Any part that is damaged should be properly repaired or replaced by an authorised service centre. ■ To reduce the risk of injury, close supervision is necessary when the product is used near children. ■ Store the product indoors and away from children. ■ Use caution when plugging or unplugging other devices into the product. Do not force plugs into the product. ■ If the product is used in a manner not specified by the manufacturer, the protection provided by this equipment may be impaired. ■ Do not overload the product. The product must be used for powering devices less than the product rating. ■ Never block the air vents. Blocked vents may cause overheating. The product automatically turns off when overheated. ■ Keep the product cool. Do not place the product near heat vents or in direct sunlight. ■ Do not use the product around flammable fumes and gases, such as in the bilge of a boat or near propane tanks. ■ Do not put foreign objects into the product. ■ Operate the product using only the AC power type listed in the product specifications. ■ The product should never be hard- wired into a circuit. ■ Do not leave the product unattended during operationEN

Original Instructions ■ Operate the product only in temperatures between 0°C and 40°C. ■ Do not use the product to power life support devices or other medical equipment. ■ Risk of electric shock. When using a grounded appliance, the product does not provide an electrical path to earth ground. Do not power devices which are damaged or with damaged or frayed power cords. ■ An internal cooling fan runs to regulate the product’s operating temperature. Always wait for the fan to stop before disconnecting the battery pack from the product. ■ Use RYOBI 18V ONE+ battery packs only. Do not use battery packs from other manufacturers. ■ Do not at any time, let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic, which could result in serious personal injury. ■ The light source of the product is not replaceable. When the light source reaches its end of life, the product must be replaced.

5. USB charging port

SYMBOLS ON THE PRODUCT

Safety alert Remove the battery pack before starting any work on the product. Beware of electric shock hazard Do not expose to rain or damp conditions Read the instructions carefully before starting the product. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice. Double insulation Isolated inverter F20A*2 Fast blow fuse Indoor use only Conforms to all regulatory standards in the country in the EU where the product is purchased. EurAsian Conformity Mark Ukrainian mark of conformity PRODUCT SPECIFICATIONS Battery Inverter Model: RY18BI150A Supply: 18 V DC, 12.5 A MAX, 225 W MAX Output: AC 230 V 50 Hz 150 W USB 5 V DC each 2.4 A total 2.4 A Dimensions: 140 mm x 75 mm x 80 mm Weight: 300 g Compatible battery packs (not included): RB18L***4 Original Instructions

POWER BUTTON LED FUNCTIONS

LED indicator Status Troubleshooting Green The product is on. Flashing red The product is overloaded.

2. Disconnect all devices. Make

sure that the battery is suffi ciently charged.

3. Press the power/light button to

turn on the AC socket.

4. Reconnect all devices. If the LED

indicator fl ashes red again, the devices exceed the capacity of the product. Red The product is overheated.

1. Disconnect all devices. Allow the

product to cool down until the LED indicator fl ashes red.

2. Briefl y press the power/light

button to reset the product. When the LED indicator turns green, reconnect the devices. Flashing yellow The battery charge is low. Remove and charge the battery. Flashing red (3x) The battery charge is insuffi cient. Remove and charge the battery.EN

MACHEN SIE SICH MIT IHREM

SYMBOLE AUF DEM PRODUKT

TUOTTEEN TEKNISET TIEDOT

KJENN PRODUKTET DITT

WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was

purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.

2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period

over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly- acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration conrmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.

3. The warranty covers all defects of the product during the warranty period due to faults in

workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to: – any damage to the product that is the result of improper or lack of maintenance – any product that has been altered or modified – any product where original identification (trade mark, serial number) markings have been defaced, altered or removed – any damage caused by non-observance of the instruction manual – any product not displaying the CE approval mark on the rating plate – any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries – any product connected to improper power supply (amps, voltage, frequency) – any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture) – any damage caused by external influences (water, chemical, physical, shocks) or foreign substances – normal wear and tear spare parts – inappropriate use, overloading of the tool – use of non-approved accessories or parts – Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc. – Any periodic adjustments to or maintenance cleaning of carburettors – Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

4. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for

each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender’s address and accompanied by a short description of the fault.

5. A repair / replacement under this warranty is free of charge. It does not constitute an extension

or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain una󰀨ected.

6. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein,

Turkey and Russia. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

To nd an authorised service centre near you, visit http://uk.ryobitools.eu/header/service-and-support/ service-agents.FR
