USER MANUAL AD 5053 ADLER

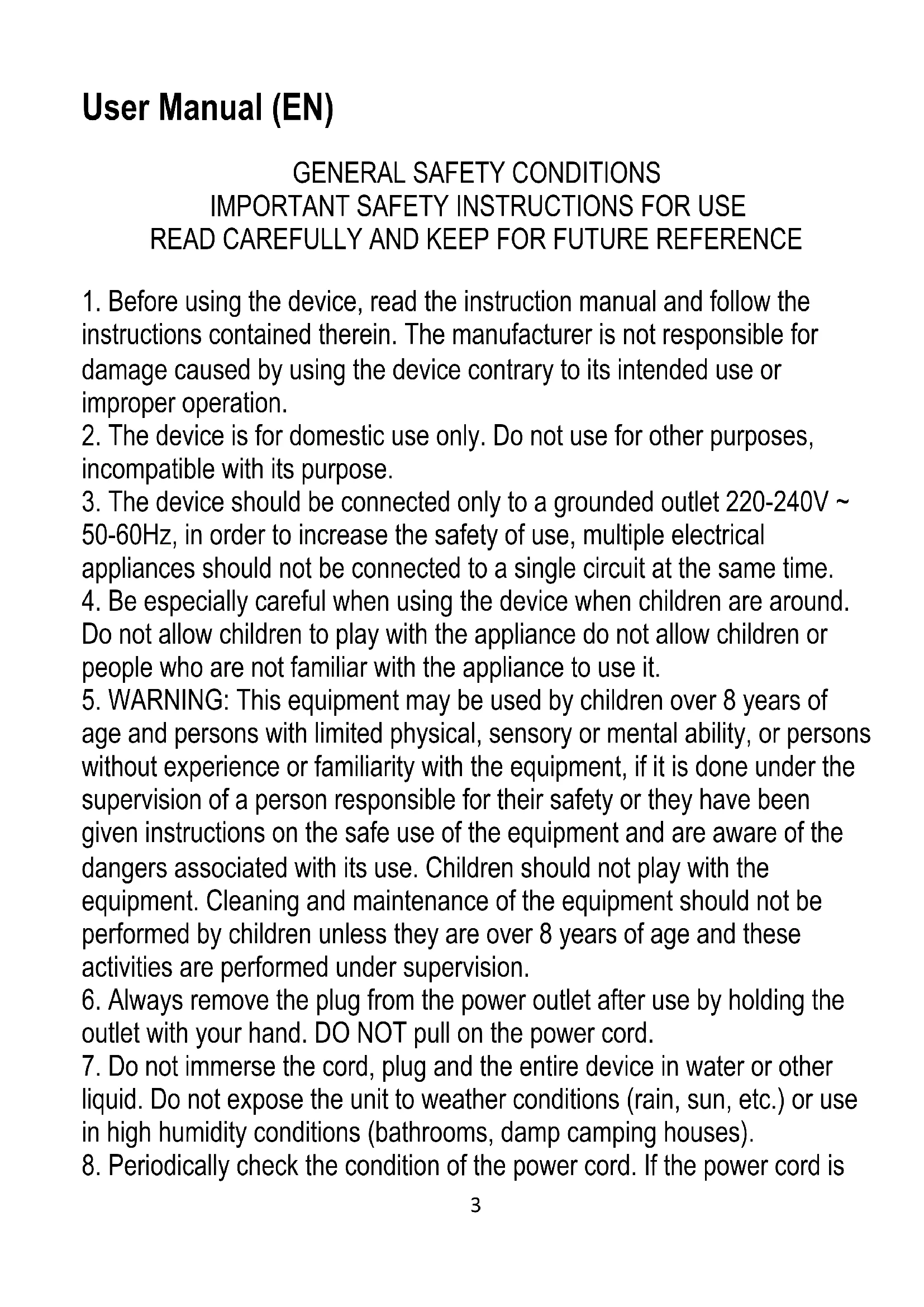

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS FOR USE

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the instruction manual and follow the instructions contained therein. The manufacturer is not responsible for damage caused by using the device contrary to its intended use or improper operation.
2. The device is for domestic use only. Do not use for other purposes, incompatible with its purpose.
3. The device should be connected only to a grounded outlet 220 - 240V 50 - 60Hz , in order to increase the safety of use, multiple electrical appliances should not be connected to a single circuit at the same time.
4. Be especially careful when using the device when children are around. Do not allow children to play with the appliance do not allow children or people who are not familiar with the appliance to use it.
5. WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental ability, or persons without experience or familiarity with the equipment, if it is done under the supervision of a person responsible for their safety or they have been given instructions on the safe use of the equipment and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the equipment should not be performed by children unless they are over 8 years of age and these activities are performed under supervision.
6. Always remove the plug from the power outlet after use by holding the outlet with your hand. DO NOT pull on the power cord.
7. Do not immerse the cord, plug and the entire device in water or other liquid. Do not expose the unit to weather conditions (rain, sun, etc.) or use in high humidity conditions (bathrooms, damp camping houses).
8. Periodically check the condition of the power cord. If the power cord is

damaged, it should be replaced by a specialized repair facility to avoid danger.

1. Do not use the device with a damaged power cord or if it has been dropped or damaged in any other way or is not working properly. Do not repair the device yourself, as there is a risk of electrocution. Return a damaged device to a competent service center for inspection or repair. All repairs may be made only by authorized service centers. Improper repair may cause serious danger to the user.
2. Place the appliance on a cool stable, level surface, away from hot kitchen appliances such as an electric stove, gas burner, etc.
3. Do not use the device near flammable materials.
4. The power cord must not hang over the edge of the table or touch hot surfaces.
5. Do not leave the device plugged into an outlet unattended.
6. To provide additional protection, it is advisable to install in the electrical circuit, a residual current device (RCD) with a rated residual current of not more than 30mA . In this regard, consult a specialist electrician.
7. If it is necessary to use an extension cord, use only one with a grounding pin and suitable for the loaded power, not less than the iron connected to it. Other ("weaker") extension cords may overheat. Arrange the cable so as to avoid accidental pulls or tripping over it.
8. Always, before filling the iron with water or when the iron is not in use, disconnect it from the power supply.
9. Touching the hot foot, contact with hot steam or water risks burns. Be careful when you turn the iron upside down with the foot, as there may still be hot water in the reservoir, even when the iron is unplugged.
10. DO NOT allow the hot iron to come into contact with fabrics or flammable materials for too long.
11. Be careful that the power cord does not come into contact with the hot iron foot. Allow the iron to cool completely before putting it away.
12. If you do not use the iron even for a short time, turn off the steam options.
13. Do not, under any circumstances, iron clothes or materials on people

or animals.

1. Never direct the steam onto people or animals.
2. Use the iron on a stable level surface and only put it down on such a surface.
3. Do not pour water with chemical additives, fragrances or descaling preparations into the tank.
4. Do not fill the water tank above the MAX level.
5. The power plug must be unplugged from the plug socket before filling the tank with water (for irons with steam humidification and irons with a washer.
6. The opening for filling the water tank must not be opened during ironing

DEVICE DESCRIPTION

1. LCD display
2. Steam regulator knob
3. Temperature control button "+"
4. Temperature control button "-"
5. Spray button
6. Steam ejection button
7. Self-cleaning button
8. Washer outlet nozzle
9. Power cord
10. Water tank cover
11. Water tank
12. Iron foot

PREPARATION:

Sort the laundry to be ironed, Choose the right temperature according to the material you want to iron. It is recommended to start ironing with the material with low temperature, and finally iron the material that requires maximum temperature.

Note: If the fabric consists of different types of fibers, always choose the lowest ironing temperature of the composition of these fibers. Start ironing clothes that require a low temperature, this reduces the waiting time (the iron needs less time to heat up than to cool down) and eliminates the risk of burning the fabric.

The following information shows the temperature setting and the corresponding fabric to be ironed shown on the display (1)

Setting 0 : standby state "Stdby"

Setting 1:Acrylic

Setting 2 : Nylon

Setting 3 : Satin

Setting 4: Viscose

Setting 5 : Silk

Setting 6: Polyester

Setting 7:Mix

Setting 8 : Wool

Setting 9 : Cotton

Setting 10: Jeans

Setting 11: Linen

Table:

MARKINGS ON LABELS	TYPE OF MATERIAL	THERMOSTAT CONTROL
●	Silk - wool	Low temperature -
●●	Synthetic fiber	Medium temperature - -
●●●	Cotton	High temperature - - - -
●●●●	DO NOT PRAISE

FILLING WITH WATER

1. Set the steam regulator knob (2) to the no steam position by turning the knob to the left as far as it will go.
2. Open the water tank cover (10)
3. Fill the water tank with water to the "MAX" level.
4. Close the water tank lid (10).

FIRSTUSE

When using the iron for the first time, you may notice a slight emission of smoke and hear sounds coming from the plastic. This is quite normal and stops after a short time. A small amount of water may remain in a brand-new iron after a routine leak check of the product.

Dry ironing function (no steam)

1. Plug the power cord of the appliance into a grounded outlet. The display (1) will illuminate blue, showing information that the machine has gone into standby mode.
2. Set the steam control knob (2) to the no steam position by turning the knob to the left as far as it will go.
3. Press the button (3) "+" (4) - to adjust the iron settings and select the appropriate ironing temperature.
4. After selecting the appropriate setting (from 1 to 11), the display will light up orange, the information on the display will flash, this means.

that the iron plate is heating up.
3. When the iron reaches the desired temperature, the information on the display will stop flashing and the display will turn red.
4. After use, hold down the (4) "-" button for 3 seconds, the display will turn blue and go into standby mode.
5. Remove the plug from the power outlet.

WASHER FUNCTION

1. Fill the tank with water as described in "Filling with water".
2. Press the water spray button (5).
3. Note: Regardless of the type of ironing: steam or dry ironing, the spray will always work in any case.

STEAM IRONING FUNCTION

1. Fill the tank with water as described in "Filling with water".
2. Plug the power cord of the appliance into a grounded outlet. The display (1), will light up blue, showing information about the

transition in the standby state.

1. Set the steam regulator knob (2) to the steam ejection position by turning the knob to the right.
2. Press the (3) "+" (4) "-" button to adjust the iron settings and select the desired ironing temperature.
3. Steam will only come out automatically on the setting from 8 to 11.
4. When you select the appropriate setting from 8 to 11, the display will light up orange, the information on the display will blink, it means

this means that the iron plate is heating up.

1. When the iron reaches the desired temperature, the information on the display will stop flashing and the display will turn red.
2. After use, hold down the (4) " - " button for 3 seconds, the display will turn blue and the iron will go into standby mode
3. Remove the plug from the power outlet

STEAM EJECTION FUNCTION

This function will be able to provide more steam to remove stubborn creases.

1. This function works with a temperature setting from level 8 to level 11.
2. Press the steam ejection button (6). There should be a gap of 3-5 seconds between two presses of the steam ejection button (5) to get the best steam ironing result.
3. Fill water to the MAX position before using this function.
4. To prevent water leakage from the iron foot, do not press the steam ejection button (5) continuously for more than 5 seconds.

VERTICAL STEAM IRONING FUNCTION

The vertical steam ironing system allows you to use the iron to iron vertically. This is especially useful for removing creases from hanging clothes, curtains.

1. Fill the tank with water as described in "Filling with water".
2. Plug the unit's power cord into a grounded outlet. The display (1) will light up blue, showing information about the transition in the

standby state.

1. Set the steam regulator knob (2) to the steam ejection position by turning the knob to the right as far as it will go.
2. Press the (3) "+" (4) "-" button to adjust the iron settings and select the desired ironing temperature.
3. Steam will only come out automatically on the setting from 8 to 11.
4. When you select the appropriate setting from 8 to 11, the display (1) will light up orange, the information on the display will start flashing, it means

this means that the iron plate is heating up.

1. When the iron reaches the desired temperature, the information on the display will stop flashing and the display will turn red.
2. Hang your clothes on the clothes rack and tighten them with one hand.
3. Hold the iron upright with the other hand and press the steam ejection button (6) to iron the clothes. Tap the garment lightly with the iron to remove creases. To prevent water leakage from the iron foot, do not press the steam ejection button (6) continuously for more than 5 seconds.
4. After use, turn the steam control knob (2) to the no steam position by turning the knob to the left as far as it will go, hold the (4) "-" button for 3 seconds, the display will turn blue and the iron will go into standby mode.
5. Remove the plug from the wall socket.
6. After each use, make sure the water tank is empty.
7. Note: Do not use the steam ironing function on clothes or fabrics worn by people or animals. The temperature is too high.

SELF-CLEANING FUNCTION

Note: Before starting the self-cleaning procedure, make sure the iron is not plugged in and the steam regulator knob (2) is in position

no steam

1. Fill the tank with water to "MAX". Do not use vinegar or other descaling liquids in the water tank.
2. Set the steam regulator knob (2) to the steam ejection position by turning the knob to the right as far as it will go.
3. Press the button (3) "+" (4) "-" to set the iron to the maximum power setting 11.
4. Hold the iron in a horizontal position over the sink. Press and hold the Self-Clean button (7).
5. Steam and boiling water containing salts and minerals that have accumulated in the steam chamber from previous uses will begin to flow out of the holes in the ironing plate.
6. Gently rock the iron back and forth until the water reservoir is empty.

Note: The water flowing out during self-cleaning is very hot. Be very careful that it does not fall on you.

1. When the water tank is empty, release the self-cleaning button.
2. Wait until the iron has cooled completely.
3. Wipe the ironing foot with a cold damp cloth.

ANTI-LIMESCALE SYSTEM

A special filter inside the water tank softens the water and prevents scale buildup in the foot. The filter is durable and does not need to be replaced.

1. Use only tap water.
2. Distilled and demineralized water renders the anti-limescale system ineffective by changing its physicochemical properties.

ANTI-DRIP SYSTEM

The iron is equipped with a drip stop function: the iron automatically stops steaming when the temperature is too low to prevent water from dripping from the iron foot.

Thanks to the anti-drip system, you can perfectly iron even the most delicate fabrics.

AUTO SHUT-OFF SYSTEM

1. The electronic safety device will automatically turn off the heating element if the iron has not been moved more than 30 seconds in the horizontal position. If the iron is left in the vertical position, this will happen after 8 minutes.

AFTER PRESSING:

To prolong the life of the iron, it is recommended to empty the reservoir after ironing as follows:

Unplug the iron from the power outlet. Empty the iron by opening the water tank lid and holding it with the tip facing down. Shake it lightly over the sink, then close the lid. Clean the iron foot with a dry cloth from traces of moisture.

CLEANING AND MAINTENANCE

Before cleaning, unplug the iron from the power outlet and wait for the iron to cool down sufficiently.

1. Wipe the iron foot with a damp cloth and a non-abrasive (liquid) cleaner.
2. If the fiber is stuck to the iron foot, use a damp cloth with vinegar to wipe the iron foot.
3. Never use strong acid or alkali to avoid damaging the iron foot.

TECHNICAL SPECIFICATIONS:

Voltage: 220-240V ~ 50-60Hz

Power: 3000W

Power consumption in off state, with information display:: 0,45W

Note hot surface:

The temperature of the accessible surfaces of the operating device may be high. Do not touch the hot surfaces of the unit

For the sake of the environment. Information about waste electrical and electronic equipment In accordance with Article 13(1) and (2) of the Law of September 11, 2015 on waste electrical and electronic equipment, we inform you about the proper handling of waste electrical and electronic equipment:

1. It is forbidden to place waste electrical and electronic equipment together with other waste - this is confirmed by marking in the form of a "crossed out basket", ordering selective collection of this type of waste.

2. Electrical and electronic equipment may contain hazardous substances, mixtures and components that, when released into the environment, can cause serious danger to the health and life of humans and living organisms. They can lead to numerous health ailments, such as vision, hearing and speech disorders, and can also damage the kidneys, liver and heart, and cause skin diseases. Harmful substances, can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on contaminated soils, and products made from them, can risk the aforementioned health effects.

3. Waste electrical and electronic equipment should be handed over only to authorized collection points, a list of which should be included on each Municipality's website.

4. The household plays an important role, in contributing to the reuse and recovery, including recycling, of waste equipment. It also plays a key role in the waste electrical and electronic equipment management system due to the possibility of direct delivery to authorized collection points and the elimination of undesirable social habits resulting in leaving waste equipment in places not intended for it.

In addition, Donate waste electrical and electronic equipment at the point of delivery. A distributor, when supplying equipment intended for households to a

purchaser, is obliged to take back used household equipment free of charge at the place of delivery of such equipment, provided the used equipment is of the same type and performed the same functions as the supplied equipment.

Cardboard packaging and polyethylene (PE) bags should be placed in the appropriate containers for separate collection of municipal waste according to their description. If there are batteries in the equipment, remove them and separately dispose of them at a collection and storage facility.

Do not dispose of the device in the municipal waste container!!!

Service If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt.
