USER MANUAL SAW1300 MSW

Manufacturer Address

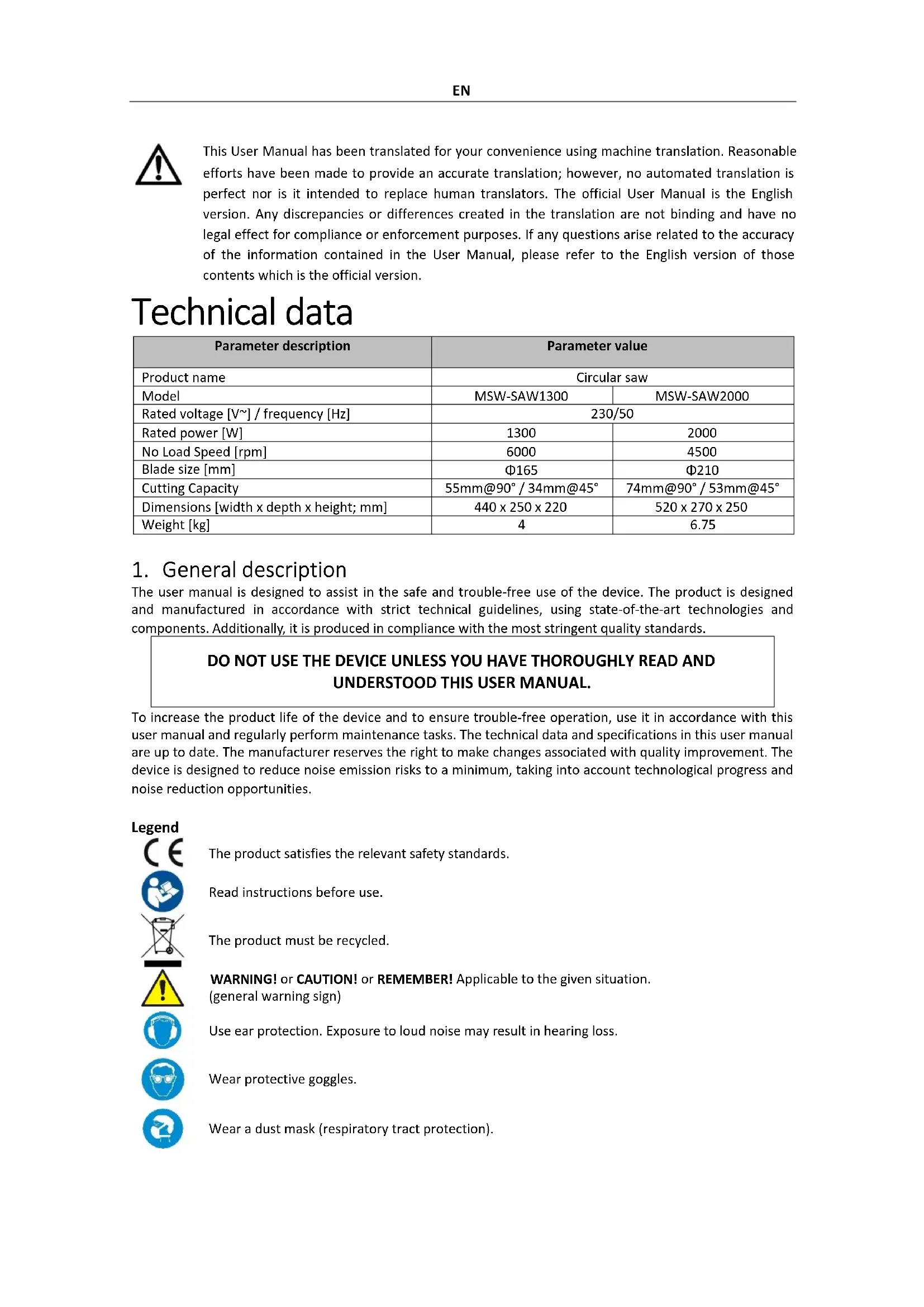

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards. DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL. To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities. Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

Use ear protection. Exposure to loud noise may result in hearing loss.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death. The terms "device" or "product" are used in the warnings and instructions to refer to: Circular saw 2.1. Electrical safety a) The plug has to fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock. b) Avoid touching earthed elements such as pipes, heaters, boilers and fridges. There is an increased risk of electric shock if the earthed device is exposed to rain, in direct contact with a wet surface or operating in a humid environment. Water ingression into the device increases the risk of damage to the device and of electric shock. c) Use the cable only in accordance with its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock. d) If working with the device outside, make sure to use an extension lead suitable for external use. Using an extension lead suitable for external use reduces the risk of electric shock. e) If using the device in a humid environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock. f) Hold the device through insulated handles taking particular care in order not to cut the power cord or other live wires. Cutting the cord may cause an electric shock. 2.2. Safety in the workplace a) Make sure the workplace is orderly and well lit. A messy or poorly lit workplace may lead to accidents. Try to anticipate what may happen, observe what is going on and use common sense when working with the device. b) Do not use the device in an explosion hazard zone, for example in the presence of flammable liquids, gasses or dust. The device generates sparks which may ignite dust or fumes. c) Upon discovering damage or irregular operation, immediately switch the device off and report it to a supervisor without delay. d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service. e) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently! f) If a fire starts, use solely powder or carbon dioxide (CO2) fire extinguishers suitable for use on live devices to put it out. g) Children or unauthorised persons are forbidden from entering a work station. (A distraction may result in a loss of control over the device). h) Use the device in a well-ventilated space.

i) During operation with the device it is produced dust and debris, it is necessary to protect unauthorized

persons against their harmful effects.

Remember! When using the device, protect children and other bystanders.EN 2.3. Personal safety a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device. b) When working with the device, use common sense and stay alert. Temporary loss of concentration whilst using the device may lead to serious injuries. c) Use personal protection equipment as required for working with the device, specified in section 1 (Legend). The use of correct, approved personal protection equipment reduces the risk of suffering an injury. d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source. e) Do not overestimate your abilities. When using the device keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations. f) Do not wear loose clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose clothing, jewellery or long hair may get caught in moving parts. g) If suction is to be connected to the device, check all connections and make sure they are tight. Using a de-dusting system may reduce the risk associated with dust. h) Remove all adjusting tools or spanners before turning the device on. A tool or spanner left in the revolving part of the device may cause injury. 2.4. Safe device use a) Do not overload the device. Use appropriate tools for the given task. A correctly selected device will perform the task for which it was designed better and in a safer manner. b) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and have to be repaired. c) Make sure the plug is disconnected from the socket before attempting any adjustments, tool replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device. d) When not in use, store in a safe place, away from children and people not familiar with the device, who have not read the user manual. The device may pose a hazard in the hands of inexperienced users. e) Maintain the device in a good technical state. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use. f) Keep the device out of the reach of children. g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use. h) To ensure the operational integrity of the device, do not remove factory fitted guards and do not loosen any screws.

i) When transporting and handling the device between the warehouse and the destination, take into

account the occupational health and safety principles for manual transport operations which apply in the country where the device will be used. j) Avoid situations where the device halts during use due to excessive loading. This may result in overheating of the drive elements and device damage. k) Do not touch articulated parts or accessories, unless the device has been disconnected from a power source. l) Do not use damaged, cracked or deformed saw blades. m) Never use damaged or improper seals and screws that fasten the cutting disc. The seals and bolts installed are suitably designed for a given saw in order to increase productivity and safety of use. n) Use discs of appropriate size and shape. Using a wrong disc may result in loss of control over the device. o) Note: Keep hands away from the cutting surface and cutting blade. Hold the other hand on the additional saw handle. If both hands hold the saw, it is not possible to injure the hands with the blade. p) Do not reach under the workpiece with your hand in the course of the saw operation. The blade shield does not protect the user from contact with the blade below the workpiece.EN q) Never hold the workpiece by hand or between your legs. It must be fastened on a stable surface. When working with the device, it is necessary to perform the work properly in order to minimize the chance of causing bodily injury, blocking the cutting blade or losing control over the device. r) The result of improper use of the device, i.e.: causing the disc to jam in the gap, wrong adjustment of the disc, wrong setting of the disc in the gap (getting the cutting teeth stuck in the workpiece) it is the recoil of the device from the workpiece towards the user. s) It is forbidden to use the device, if the lower shield or shield springs are damaged or defective. t) Never stand in line with the saw, because if a kickback occurs, the saw will hit the user. It is necessary to stand aside.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

The circular saw is a device designed for cutting wood and wood-like elements. The product is intended for home use only. The user is liable for any damage resulting from unintended use of the device. 3.1. Device description The description applies to both models.EN

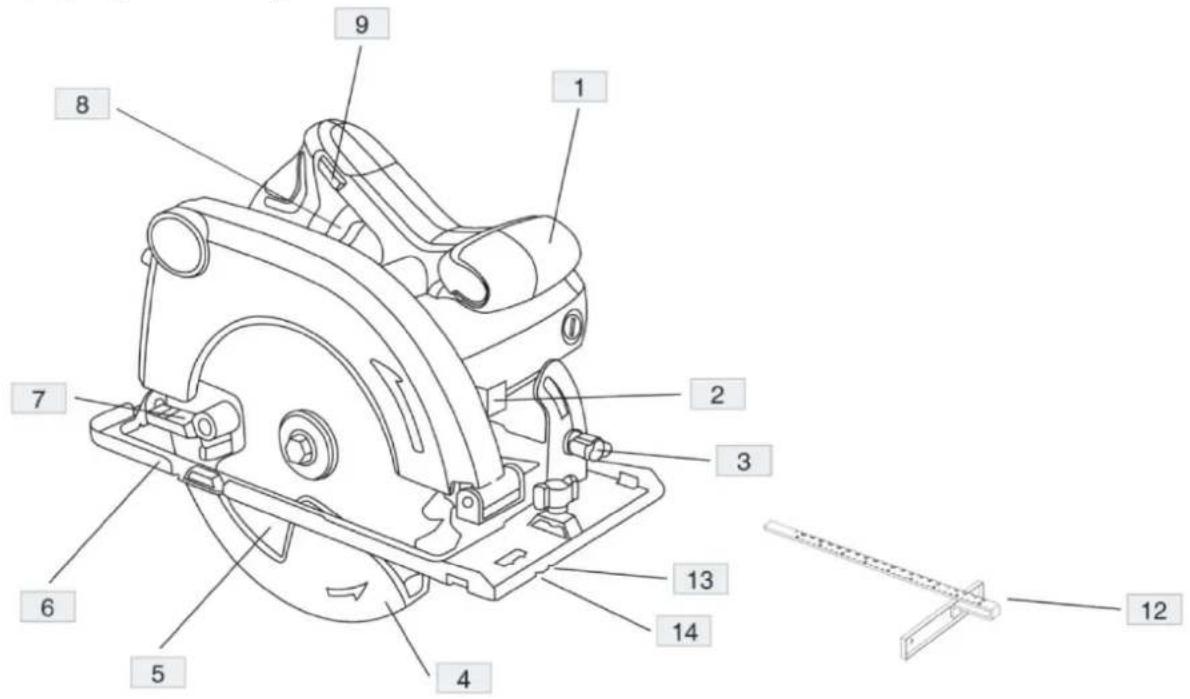

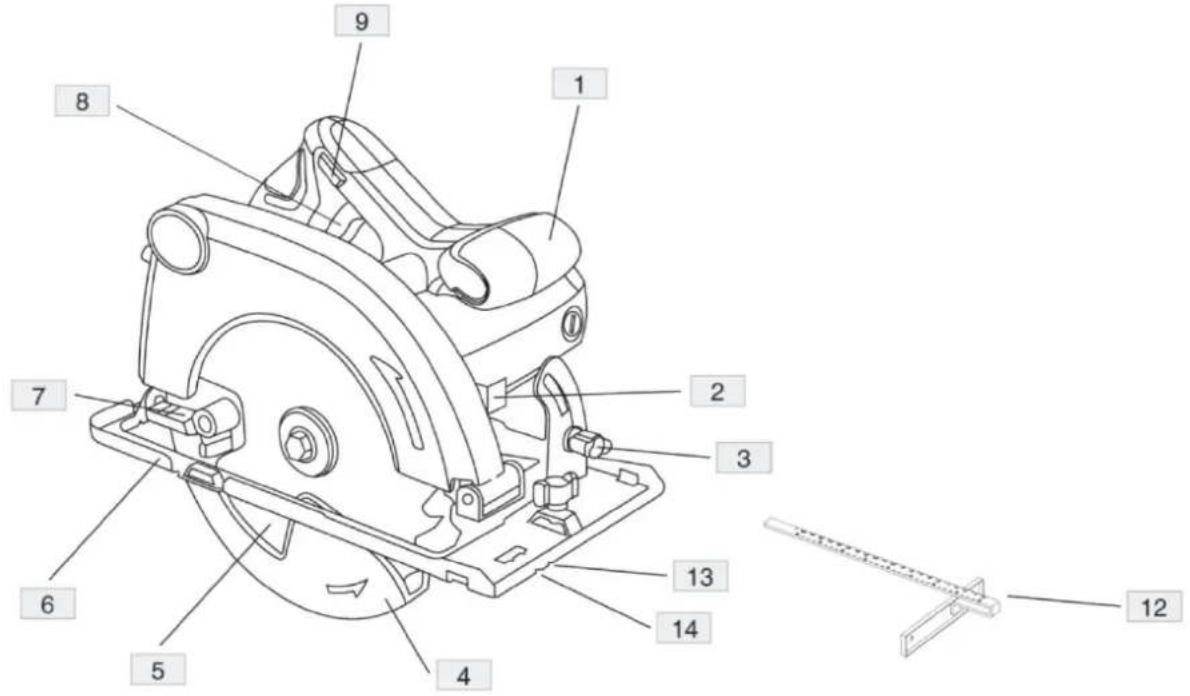

7. Lower guard retracting lever

3.2. Preparing for use

ADDITIONAL SAFETY RULES

1. Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or

motor housing. If both hands are holding the saw, they cannot be cut by the blade.

2. Do not reach underneath the workpiece. The guard cannot protect you from the blade below the

3. Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth

should be visible below the workpiece.

4. Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable

platform. It is important to support the work properly to minimize body exposure, lade binding, or loss of control.

5. Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool

may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.

6. When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and

reduces the chance of blade binding.

7. Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do

not match the mounting hardware of the saw will run eccentrically, causing loss of control.

8. Never use damaged or incorrect blade washers or bolt. The blade washers and bolt ere specially

designed for your saw, for optimum performance and safety of operation. Further safety instructions for all saws causes and operator prevention of kickback:

1. Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled

saw to lift up and out of the workpiece toward the operator.

2. When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor

reaction drives the unit rapidly back toward the operator.

3. If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig

into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

1. Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.

Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.

2. When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw

motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.EN

3. When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are

not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.

4. Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag

under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.

5. Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf

causing excessive friction, blade binding and kickback.

6. Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade

adjustment shifts while cutting, it may cause binding and kickback.

7. Use extra caution when making a "plunge cut" into existing walls or other blind areas. The protruding

blade may cut objects that can cause kickback. Safety instructions for saws with a pendulum blade guard

1. Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not

move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.

2. Check the operation of the lower guard spring. If the guard and the spring are not operating properly,

they must be serviced before use.

3. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.

Lower guard should be retracted manually only for special cuts such as" plunge cuts “and "compound cuts". Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.

4. Always observe that the lower guard is covering the blade before placing saw down on bench or floor.

An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released. Additional safety instructions for all saws with riving knife

1. Use the appropriate riving knife for the blade being used. For the riving knife to work, it must be

thicker than the body of the blade but thinner than the tooth set of the blade.

2. Adjust the riving knife as described in this instruction manual. Incorrect spacing, positioning and

alignment can make the riving knife ineffective in preventing kickback.

3. Always use the riving knife except when plunge cutting. Riving knife must be replaced after plunge

cutting. Riving knife causes interference during plunge cutting and can create kickback.

4. For the riving knife to work, it must be engaged in the workpiece. The riving knife is ineffective in

preventing kickback during short cuts.

5. Do not operate the saw if riving knife is bent. Even a light interference can slow the closing rate of a

guard. Additional safety instructions for circular saws

1. Wear ear protectors. Exposure to noise can cause hearing loss.

2. Preferably wear a dust mask.

3. Do not use blades of larger or smaller diameter than recommended. For the proper blade rating refer

to the technical data.

4. Do not use distorted or cracked saw blades.

5. Do not use a blade made of high-speed steel.

6. Do not use a blade not in conformity with features as described in this manual.

7. Do not exert lateral force to stop the blade.

8. Do not set the movable guard in the open position.

9. Ensure freely moving guard without binding.

10. Ensure proper movement of retracting mechanism of all the protection system.

11. Prior to blade replacement, adjustment or other maintenance, always unplug the tool.

12. Never use any abrasive wheel unless a tool is specially designed for abrasive wheels.

13. Do not use a blade with thinner blade body than the riving knife and tooth set.EN

14. The riving knife must be adjusted not more than 5 mm from the blade tooth circle, and the tooth

length below the lower edge of the riving knife shall not be bigger than 5 mm.

15. Always use the riving knife except when plunge cutting.

16. Never use abrasive cut-off wheels.

WARNING: Some dust created by power Cutting contains chemicals known to cause cancer, birth defects

or other reproductive harm. Some examples of these chemicals are:

1. Lead from lead-based paints.

2. Arsenics and chromium from chemically reacted lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment. 3.3. Device use Prior to assembly and adjustment always unplug the tool. Depth of cut adjustment:

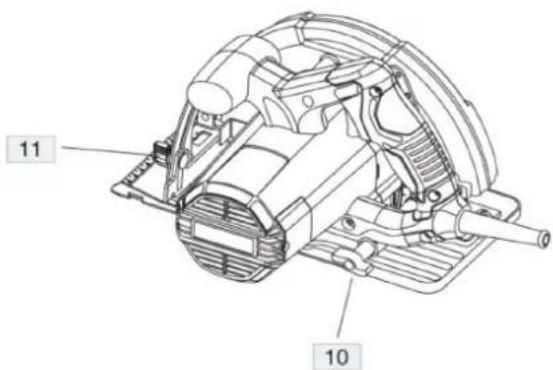

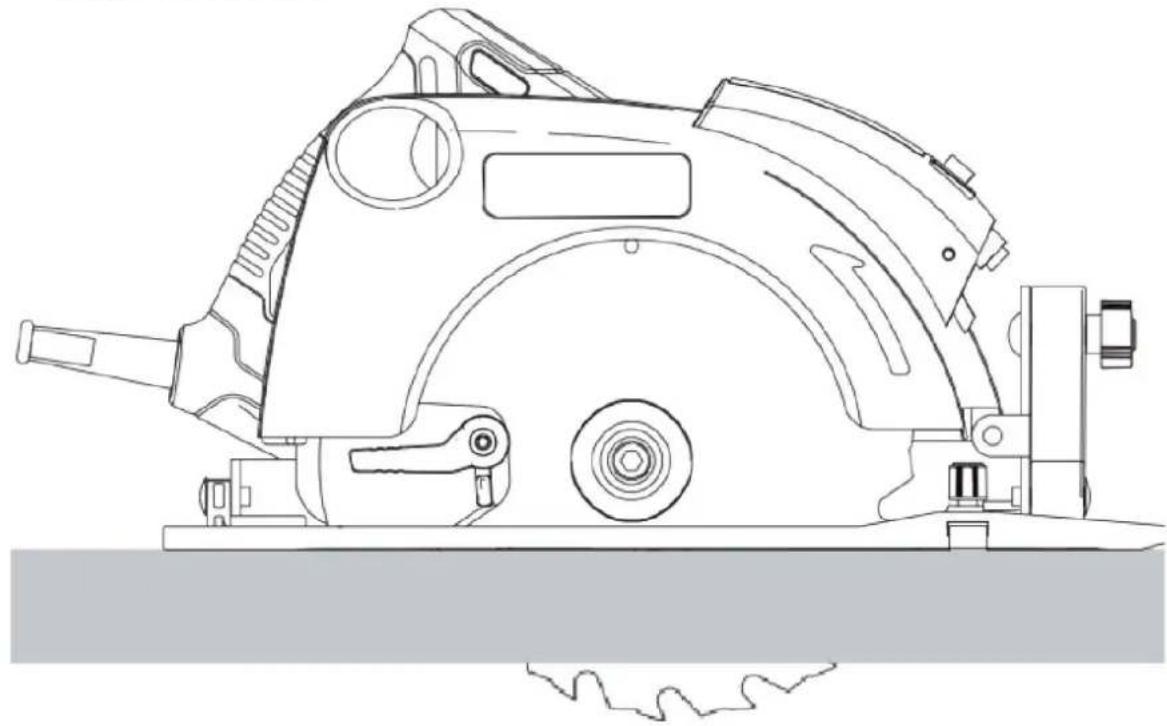

1. Loosen the depth adjustment knob (11).

2. Move the base plate (6) to obtain the correct depth of cut.

3. Tighten the depth adjustment knob (11). For optimal results, allow the saw blade to protrude from the

workpiece by about 3 mm.

Bevel adjustment: The bevel angle can be adjusted between 0°and 45°.

1. Loosen the bevel adjustment knob (3).

2. Set the bevel angle by tilting the base plate (6) until the mark indicates the desired angle on the scale.

3. Tighten the bevel adjustment knob (3).

Shoe adjustment for 90°cuts.

1. Adjust the saw to 0° bevel.

2. Retract the blade guard using the lever (7) and place the saw on the blade side.

3. Loosen the bevel adjustment knob (3).

4. Place a square against the blade and shoe to adjust the 90°setting.EN

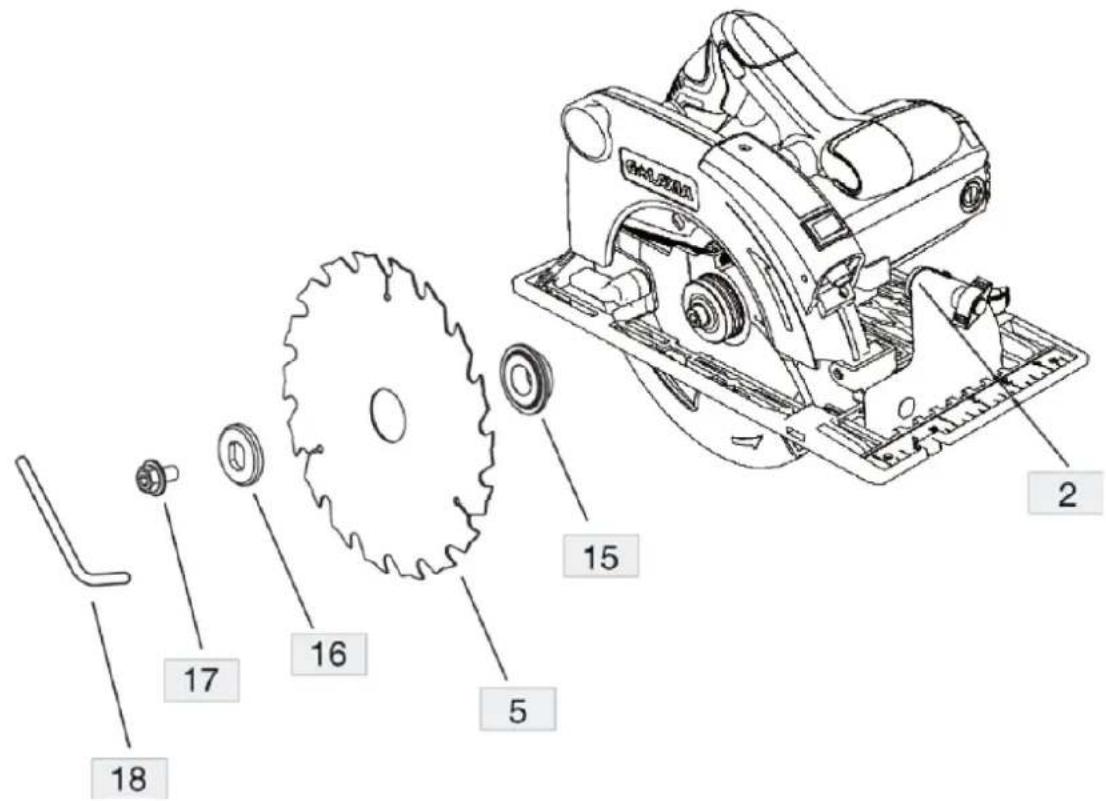

Replacing the saw blade: Be careful to turn off the switch and unplug the power plug before installing or disassembling the wheel disc. To disassemble the blade (5), press the shaft lock rod forcefully first so that the blade cannot rotate. Loosen the hexagon bolts (14) counterclockwise using spanner (18). Remove hex bolts (17), washers (16) and (15) and blade (5). Install the blade (5) according to the reverse procedure of dismantling the wheel blade. When installing the blade, make sure that the direction indicated by the arrow on the blade surface is the same as the direction indicated by the arrow on the wheel cover. The hexagonal bolt (17) must be tightened firmly.

Mounting and adjusting the parallel fence: The parallel fence (12) is used for cutting parallel to the edge of the workpiece. Mounting

1. Slacken the locking screw (3) as to allow the parallel fence to pass.

2. Insert the parallel fence (12) in the base plate (6) as shown.

1. Slacken the locking screw (3) and set the parallel fence (12) to the desired width.

2. Tighten the locking screw (3).

Instructions for use

1. Always observe the safety instructions and applicable regulations.

2. Ensure the material to be sawn is firmly secured in place.

3. Apply only a gentle pressure to the tool and do not exert side pressure on the saw blade.

4. Avoid overloading.

5. Do not use excessively worn saw blades.

6. Do not use your saw for pocket cuts.

1. Make sure the guards have been mounted correctly. The saw blade guard must be in closed position.EN

2. Make sure the saw blade rotates in the direction of the arrow on the blade.

Switching on and off For safety reasons the on/off switch (8) of your tool is equipped with a safety button (9).

1. Press the safety button to unlock the tool.

2. To run the tool, press the on/off switch (8). As soon as the on/off switch is released the safety switch

is automatically activated to prevent unintended starting of the machine. Do not switch the tool on or off when the saw blade touches the workpiece or other materials. Do not operate the spindle lock while the tool is running. Holding and guiding the tool

1. Hold the tool by the main grip and the front handle (1) to guide the saw properly.

2. For optimum results, clamp the workpiece bottom up.

3. Follow the line drawn on the workpiece using the mark.

4. In case of a bevel angle of 45 degree follow the line drawn on the workpiece using the mark.

5. Lead the cord away in line with the rear of the tool.

3.4. Cleaning and maintenance a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.

• Wait for the rotating elements to stop. b) Use only non-corrosive cleaners to clean the surface. c) After cleaning the device, all parts should be dried completely before using it again. d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight. e) Do not spray the device with a water jet or submerge it in water. f) Do not allow water to get inside the device through vents in the housing of the device. g) Clean the vents with a brush and compressed air. h) The device must be regularly inspected to check its technical efficiency and spot any damage.

i) Use a soft cloth for cleaning.

j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance. k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device. DISPOSING OF USED DEVICES: Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment. Contact local authorities for information on your local recycling facility.PL
