USER MANUAL The Grexia NG FABER

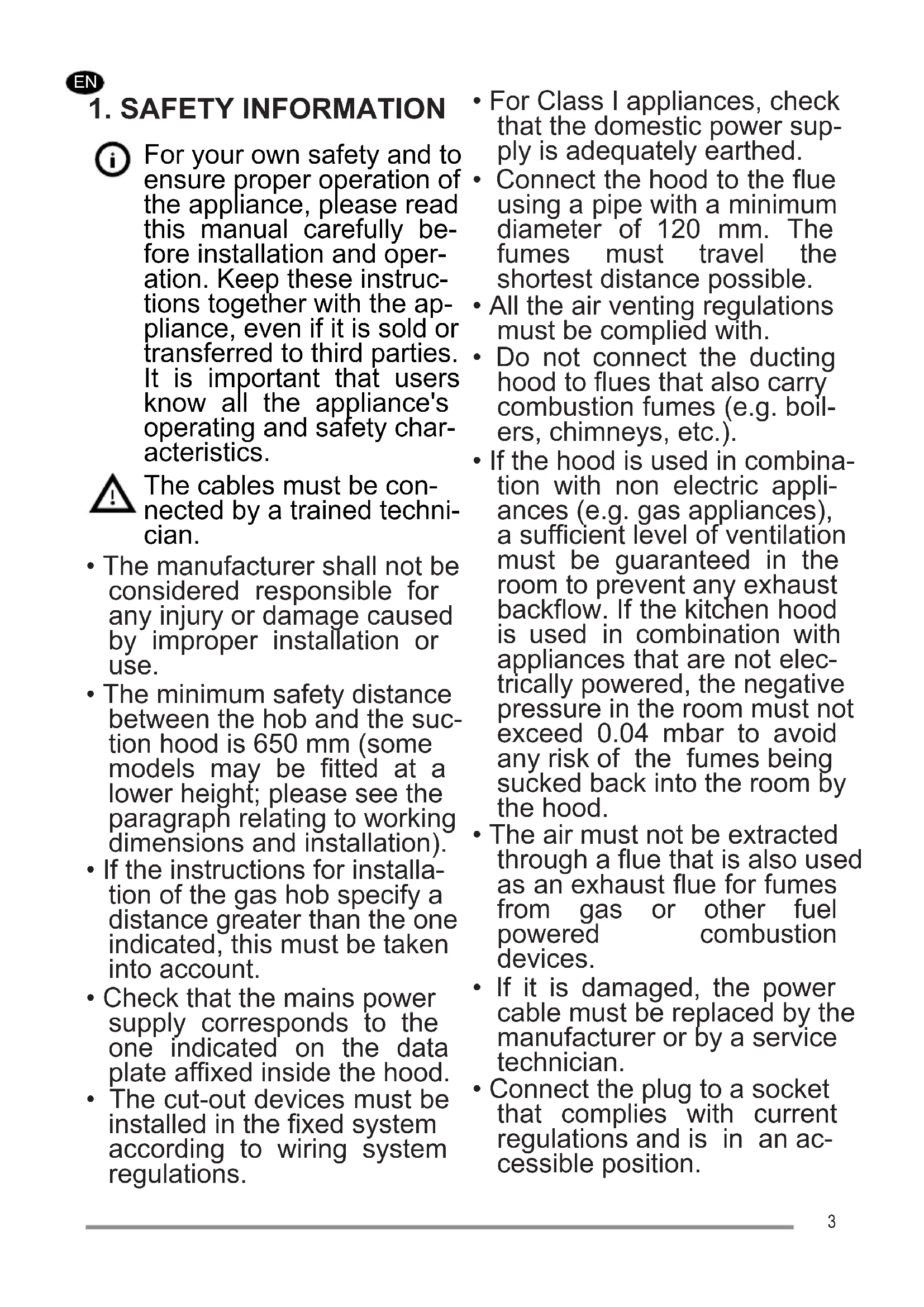

For your own safety and to ensure proper operation of the appliance, please read this manual carefully be- fore installation and oper- ation. Keep these instruc- tions together with the ap- pliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety char- acteristics. The cables must be con- nected by a trained techni- cian.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.

• The minimum safety distance between the hob and the suc- tion hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).

• If the instructions for installa- tion of the gas hob specify a distance greater than the one indicated, this must be taken into account.

• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power sup- ply is adequately earthed.

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.

• All the air venting regulations must be complied with.

• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boil- ers, chimneys, etc.).

• If the hood is used in combina- tion with non electric appli- ances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not elec- trically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.

• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.

• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.

• Connect the plug to a socket that complies with current regulations and is in an ac- cessible position. 3• As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously. CAUTION: remove the protective films before in- stalling the hood.

• Only use screws and hard- ware of a sort suitable for the hood. CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of elec- tric shocks.

• Do not look directly at the light through optical devices (bin- oculars, magnifying glasses…).

• Do not flambé food under the hood: you might cause a fire.

• This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insuf- ficient experience and know- ledge, provided they are care- fully supervised and instruc- ted on how to use the appli- ance safely and on the dangers that it involves. Make sure that children are not al- lowed to play with the appli- ance. Cleaning and mainten- ance to be performed by the user must not be carried out by children, unless they are under supervision.

• Supervise children, to make sure they do not play with the appliance.

• The appliance must not be used by persons (including children) with limited psycho- physical or sensory capacit- ies or with insufficient experi- ence and knowledge, unless they are carefully supervised and instructed. Accessible parts may be- come extremely hot during the use of cooking appli- ances

• Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

• The room must be adequately ventilated when the hood is used simultaneously with ap- pliances that use gas or other fuels (not applicable to appli- ances that only discharge air into the room).

• The symbol on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a spe- cialist re-cycling centre for electrical and electronic com- ponents. By making sure that this product is disposed of properly, you will help prevent possible negative con- sequences for the environ- ment and for health that might result from its improper dis- posal. For more detailed in- 4formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

• The suction hood has been designed exclusively for domestic use, to elim- inate kitchen odours.

• Never use the hood for purposes other than those for which it was de- signed.

• Never leave high flames under the hood when it is in operation.

• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.

• Deep-fryers must be kept under con- stant supervision when in use: the oil may catch fire if it gets too hot.

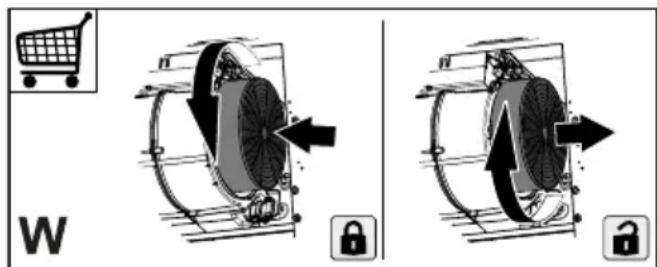

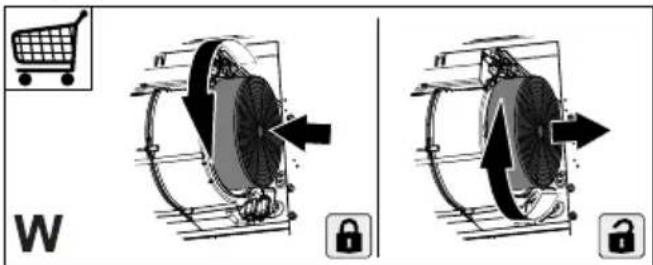

• The activated carbon filter is neither washable nor regenerable and must be replaced approximately every 4 months of operation or more fre- quently in case of very intense use (W).

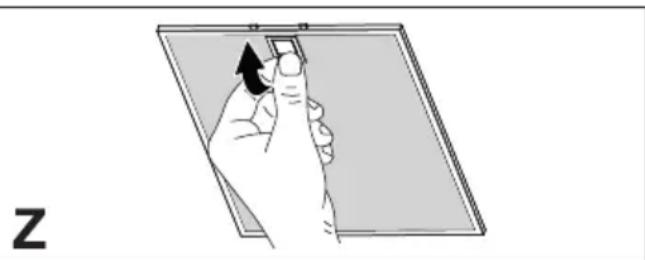

• The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

• Clean the hood using a damp cloth and a neutral liquid detergent.

• For external and internal cleaning of the hood avoid alcoholic or silicone products. If the product or one of its parts is made of stainless steel, use specific non-ab- rasive products for cleaning and follow the lines of the satin finish during clean- ing.

Turns the motor on/off at the first speed. Fixed. Turns the hood off at any speed. - Signals the saturated Metal Grease Filters alarm and the need to wash them. The alarm is activated after 100 hours of effective hood operation. Slow flashing with the hood off. Signals the saturated Activated Carbon Odour Filter alarm. The alarm is activ- ated after 200 hours of effective hood operation. Fast flashing with the hood off.

It turns the motor on at the second speed. Fixed. Long press when all loads are off (Motor+Light): Activates/Deactivates the Activated Carbon Filters alarm. LED A flashes twice: alarm activated. LED A flashes once: alarm deactivated.

Turns the motor on at the third speed. Fixed Long press when all loads are off (Motor+Light): performs a saturated Filters alarm reset. The LED flashes three times. D Turns the motor on at the Intensive speed. This speed is timed for 6 minutes. At the end of this time, the system automatic- ally returns to the previously selected speed. If activated with the motor off, once the time has passed it switches to OFF mode. It is deactivated by pressing the same key or by switching off the motor. Fast flashing. Long press when all loads are off (Motor+Light): Activates/Deactivates the remote control. LED A flashes twice: remote control activated. LED A flashes once: remote control deactiv- ated.

Turns the lights on/off at maximum intensity. Fixed.

• Please contact the Service Depart- ment to change it ("Please contact the service department to purchase it"). 6FR
