USER MANUAL CON.LED108 Singercon

BEAM MOVING HEAD SPOT MOVING HEAD MOVING HEAD LIGHT

USER MANUAL

Bedienungsanleitung

nstrukcja obslugi

Návod k použití

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Beam Moving Head	Spot Moving Head		Moving Head Light
Model	CON.LED-106	CON.LED-107	CON.LED-108	CON.LED-111
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	60	55	105	90
Light source	1x40W RGBW 4-in-1	1x60W White LED	1x80W White LED	1x35W LED; 6x4W LED
Dimensions [width x depth x height; mm]	310 x 250 x 220	300 x 200 x 200	200 x 250 x 350	200 x 160 x 220
Weight [kg]	3	3.1	6.35	2.25

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

Min 0.5m distance from flammable materials to all exterior surfaces of the luminaire.

Luminaries not suitable for direct mounting on normally flammable surfaces.

Caution, very bright light.

Replace any damaged or cracked protection screen shields.

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Beam Moving Head

Spot Moving Head

Moving Head Light

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.

2.2. Safety in the workplace

a) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
b) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
c) In case of fire, use a powder or carbon dioxide (CO 2) fire extinguisher (one intended for use on live electrical devices) to put it out.
d) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
e) Keep packaging elements and small assembly parts in a place not available to children.
f) Keep the device away from children and animals.
g) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
b) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual.
b) Keep the device in perfect technical condition.
c) Keep the device out of the reach of children.
d) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
e) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
f) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
g) Keep the device away from sources of fire and heat.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is a lighting device intended for entertainment, exhibition, and architectural purposes only. It is not suitable for domestic lighting.

The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

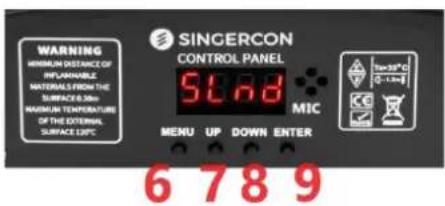

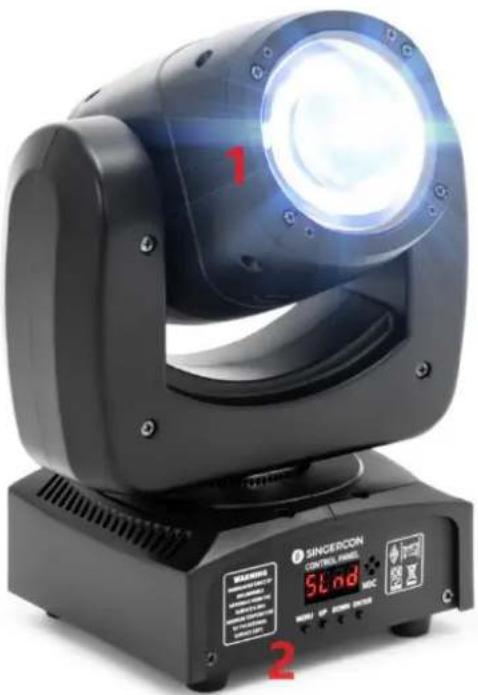

3.1.1. CON.LED-106

1-LED Head
2 - Control panel
3 - DMX Input
4-DMX Output

5-Power cord socket

6-MENU button
7-UP button
8-DOWN button
9-ENTER button

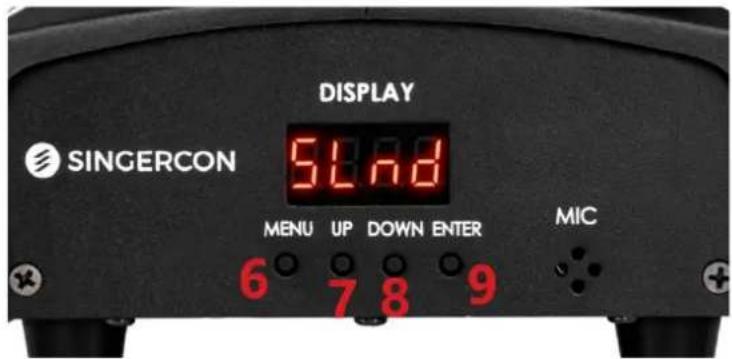

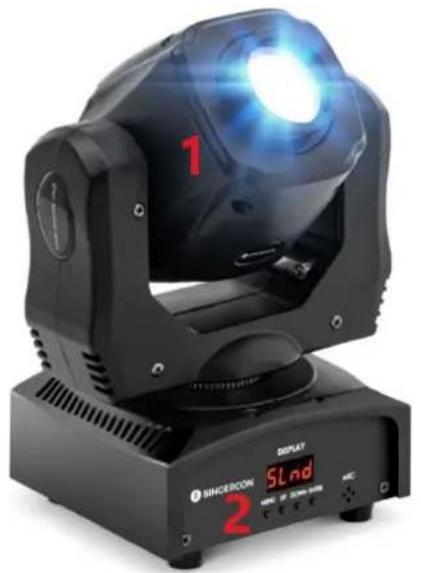

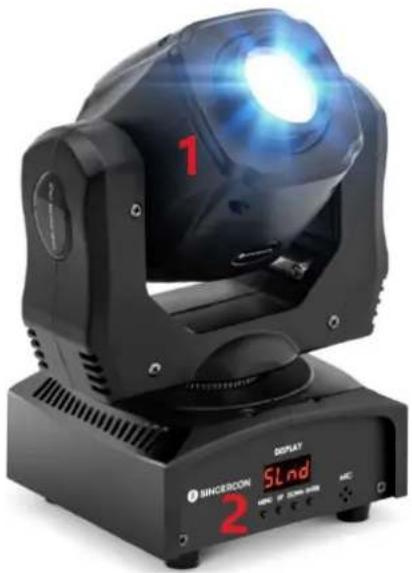

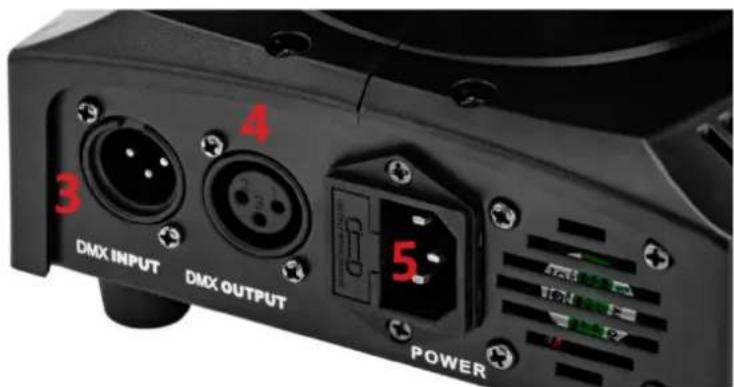

3.1.2. CON.LED-107

1-LED Head
2-Control panel
3-DMX Input
4-DMX Output

5 - Power cord socket

6-MENU button
7-UP button
8-DOWN button
9-ENTER button

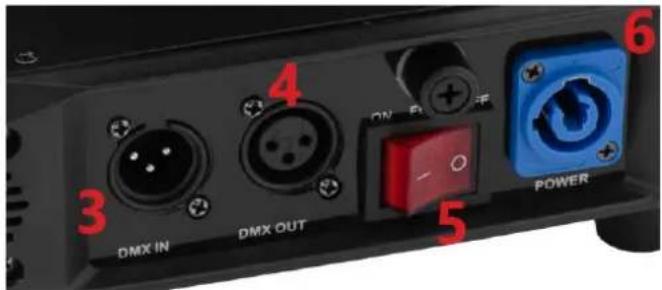

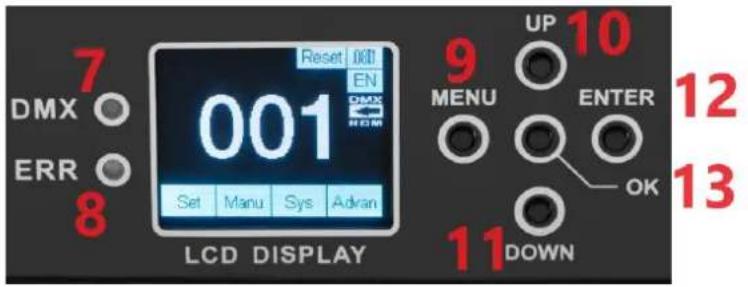

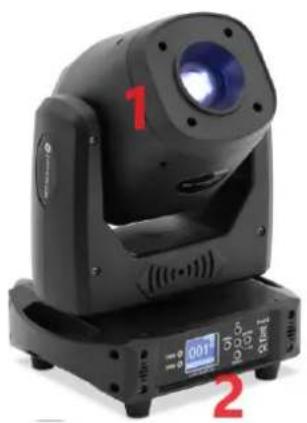

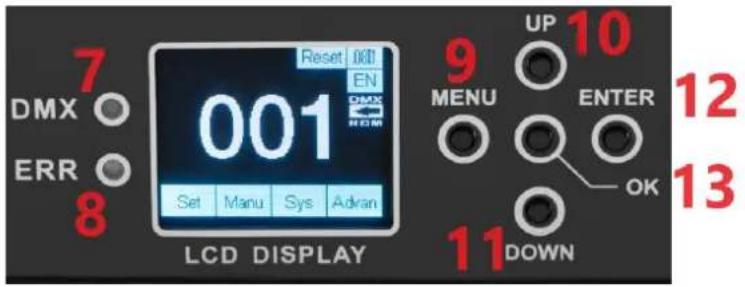

3.1.3. CON.LED-108

1-LED Head
2-Control panel
3-DMX Input
4-DMX Output
5-Power switch
6-Power cord socket
7 - DMX control light
8-ERROR control light
9-MENU button
10-UP button
11-DOWN button
12-ENTER button
13-OK button

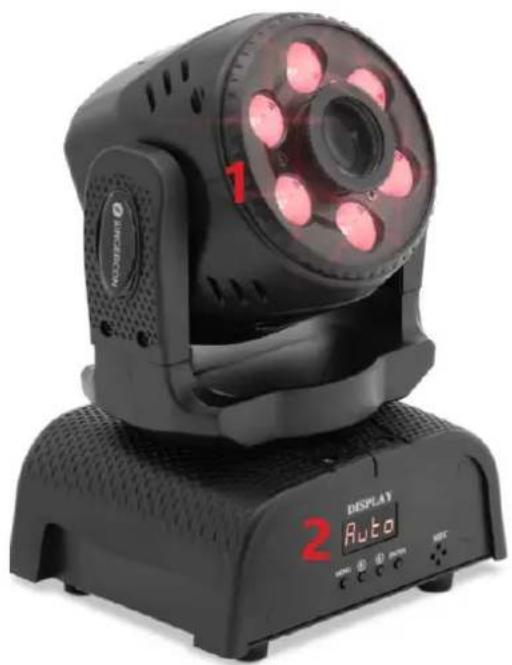

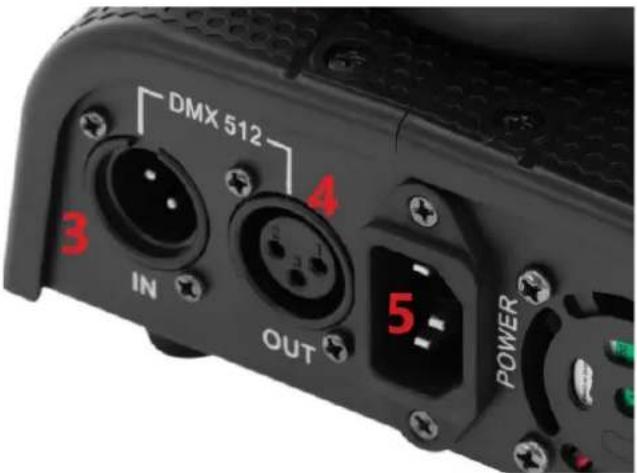

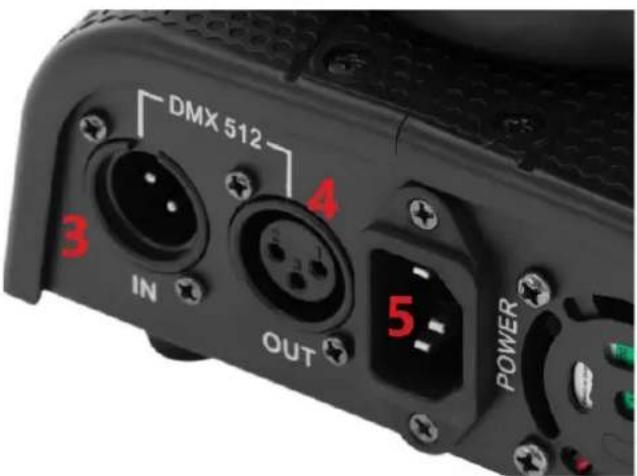

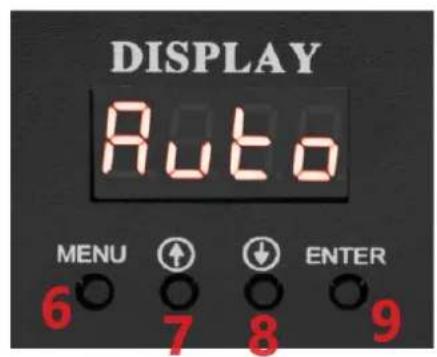

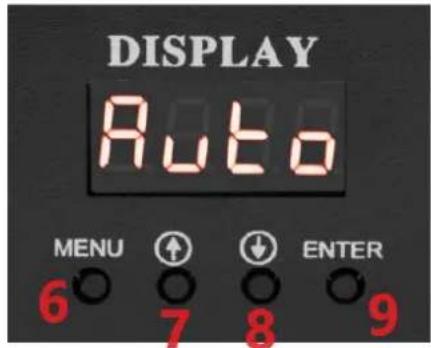

3.1.4. CON.LED-111

1-LED Head
2-Control panel
3 - DMX Input
4-DMX Output
5-Power cord socket
6-MENU button
7-UP button
8-DOWN button
9-ENTER button

3.2.Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ and the relative humidity should be less than 85% . Ensure good ventilation in the room in which the device is being used. There should be at least 10cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Device use

The MENU, UP, DOWN and ENTER buttons are used to set the operating modes.

• MENU: selection of main menu items / return to main menu level.
  UP and DOWN: move up one menu level / change settings.
  ENTER/OK:select option / confirm setting.

Overview of setting options for operation mode

3.3.1. CON.LED-106

Serial Number/Main Menu	Description
Addr	A001-A512 DMX add code
CHnd	13Channel Set
SLnd	Operation mode selection (DMX / Auto / voice control)
Pan	YES, NO Motor X forward and reverse settings
Tilt	YES, NO Motor Y forward and reverse settings
SEne	Voice control sensitivity adjustment (0-100)
LED	ON,OFF screen always on setting
DISP	YES, NO display, forward and reverse settings
Ver	V100 Software version number
Faet	YES, NO Reset

13 channel DMX mode:

13-CH Mode	Function	DMX Value	Description
1	Pan	0-255
2	Pan Fine	0-255
3	Tilt	0-255
4	Tilt Fine	0-255
5	Pan&Tilt Speed	0-255	From fast to slow
6	Dimmer	0-255	Linear dimming from dark to bright
7 Strobe		0	No Function
		1-255	Synchronous strobe speed from slow to fast (1HZ-25HZ)
8	Red	0-255	Red dimming from dark to bright
9	Green	0-255	Green dimming from dark to bright
10	Blue	0-255	Blue dimming from dark to bright
11 White	0-255		White dimming from dark to bright
12	Macro function	0-49	CH1 to CH13 effect
		50-200	Auto
		201-255	Voice control
13 Reset		0-240	No Function
		241-255	Light body reset, effective for 5s

3.3.2. CON.LED-107

Addr	A001-A512	512 Address Set
CHnd	11CH	11Channel Set
	9CH	9Channel Set
SLnd	MAST	Master Mode
	SL 1	DMX512 Mode
	SL 2	Slave Mode
SHnd SH 0 Effect0		(Recommend)
	SH 1	Effect1
	SH 2	Effect2
	SH 3	Effect3
Soud	on	Open the sound control mode
	oFF	Close the sound control mode
SEnS	0-99	Adjust the sensitivity of sound
bLAnd	bLAc	Without the 512 signal, return to zero
HoLd	Auto	Without the 512 signal, Auto
	Soun	Without the 512 signal, Sound
		Without the 512 signal, keep last state of controller
LED	OFF	Close the screen after 5 seconds
	ON	Screen open all the time
dISP	no	Display reverse
	YES	Display forward
rPAN	no	X motor forward
	YES	X motor reverse
rTil	no	Y motor forward
	YES	Y motor reverse
REST	YES	System Reset

9-Channel Mode:

Channel	Function	Introduction
1	Pan Running	0-255
2	Tilt Running	0-255
3	Color
	0-139	Choose color
	140-255	Change the color automatically, from slow to fast
4	Gobo
	0-63	Fixed Gobo
	64-127	Pattern dither
	128-255	Change the pattern automatically, from slow to fast
5	Strobe	0-255
6	Dimming	0-255
7	Running in Pan/Tilt	0-255
8	Auto Mode	0-255 Up-regulation for rotation, Down-regulation for reverse rotation
9	Reset	250-255(5 seconds)

11-Channel mode:

Channel	Function	Introduction
1	Pan Running	0-255
2	Pan Fine	0-255
3	Tilt Running	0-255
4	Tilt Fine	0-255
5	Color
	0-139	Choose color
	140-255	Change the color automatically, from slow to fast
6	Gobo
	0-63	Fixed gobo
	64-127	Pattern dither
	128-255	Change the pattern automatically, from slow to fast
7	Strobe	0-255
8	Dimming	0-255
9	Running Speed in Pan/Tilt	0-255
10	Auto Mode
	0-59	Function of Other Channel
	60-84	Auto Mode3
	85-109	Auto Mode2
	110-134	Auto Mode1
	135-159	Auto Mode0
	160-184	Sound Mode3
	185-209	Sound Mode2
	210-234	Sound Mode1
	235-255	Sound Mode0
11	Resst	250-255(5 seconds)

3.3.3. CON.LED-108

CHANNEL MODE: Std.14CH

1	DIMMER
2	STOP/STROBE
3	PAN
4	TILT
5	PAN-TILT TIME
6	PRISM RT COLOUR
7	GOBO
8	GOBO1
9	GOBO1_RT
10	PRISM
11	FOCUS
12	PAN FINE
13	TILT FINE
14	RESET

COLOR

BIT	EFFECT
255	FAST ROTATION
......	......
80	SLOW ROTATION
75-79	PINK+ WHITE
70	LAVENDER+ PINK
65	LIGHT GREEN+ LAVENDER
60	GREEN+ LIGHT GREEN
55	AQUAMARINE+ GREEN
50	ORANGE+ AQUAMARINE
45	RED+ ORANGE
40	WHITE+ RED
35-39	PINK
30	LAVENDER
25	LIGHT GREEN
20	GREEN
15	AQUAMARINE
10	ORANGE
5	RED
0	WHITE

> STOP/STOBE

BIT	EFFECT	Remarks
252-255	UNUSED	Controlled by dimming channel
251	FAST STROBE
......	......
4	SLOW STROBE
0-3 UNUSED		Controlled by dimming channel

> DIMMER

BIT	EFFECT
255	100%
……	……
0	0%

>PRISM

BIT	EFFECT
255	PRISM FAST ROTATION
......	......
15	PRISM SLOW ROTATION
10-14	PRISM INSERTED
0-9	PRISM EXCUSED

GOBO1

BIT	EFFECT
226-230	GOBO6 SHAKE, SLOW to FAST
......	......
226-230	GOBO1 SHAKE, SLOW to FAST
225	FAST ROTATION
......	......
135	SLOW ROTATION
130-134	STOP
129	SLOW ROTATION
......	......
70	FAST ROTATION
60-69	GOBO 6
50	GOBO 5
40	GOBO 4
30	GOBO 3
20	GOBO 2
10	GOBO 1
0	WHITE

FOCUS

BIT	EFFECT
255	100%
......	......
0	0%

GOBO1 ROTATION

BIT	EFFECT
255	FAST ROTATION
......	......
193	SLOW ROTATION
191-192	STOP
190	SLOW ROTATION
......	......
128	FAST ROTATION
127	SLOW ROTATION
......	......
64	FAST ROTATION
0-63	POSITION

RESET

BIT	EFFECT	Remarks
255-255	COMPLETE RESET	Reset is activated passing through the unused range and staying 5 seconds.
0-254	UNUSED RANGE

PAN-TILT TIME

	Timing Channel	Channel function	Remark
0-255	Pan-Tilt time	Pan-Tilt- (Pan fine-Tilt fine)	255 SLOW SPEED ...... ...... 0 FAST SPEED

3.3.4. CON.LED-111

Addr		d001-d512	512 Address Settings
SLnd		Auto	Host auto mode
		Soun	Host sound mode
Set	CHnd	18CH	18 Channel Settings
		13CH	13 Channel Settings
	SHnd	SH 0	Effect 0(Recommendation)
		SH 1	Effect 1
		SH 2	Effect 2
		SH 3	Effect 3
	SEnS	0-99	Sound sensitivity adjusting
	rPAn	no	X motor is transferred
		YES	X motor inversion
	rtiL	no	Y motor forward rotation
		YES	Y motor inversion
	LED	OFF	After 5 seconds, the screen is off
		ON	The screen keeps on
	dISP	no	Display reverse
		YES	Display positive
	Load	no
		YES	Restore factory settings
REST		YES	System reset

13 Channel mode

Channel	Function	Description
1	Horizontal operation	0-255
2	Vertical operation	0-255
3	Horizontal and Vertical Running Speed Regulation	0-255
4	Total dimming	0-255
5	Pattern Dimming	0-255
6	single color selection	0-127
	Automatic color jump from slow to fast	128-255
7	Pattern selection	0-63
	Patterns beat from fast to slow	64-127
	Automatic patterns jump from slow to fast	128-255
8	Dyed red light	0-255
9	Dyed green light	0-255
10	Dyed blue light	0-255
11	Dyed white light	0-255
12	Strobe from slow to fast	0-255
13	none	0-249
	reset	250-255

18 Channel mode

Channel	Function	Description
1	Horizontal operation	0-255
2	pan fine	0-255
3	Vertical operation	0-255
4	Tilt Fine	0-255
5	Horizontal and Vertical Running Speed Regulation	0-255
6	Total Dimming	0-255
7	Flash from slow to fast	0-255
8	Pattern dimming	0-255
9	Pattern selection	0-63
	Patterns beat from fast to slow	64-127
	Automatic patterns jump from slow to fast	128-255
10	Dyed red light	0-255
11	Dyed green light	0-255
12	Dyed blue d light	0-255
13	Dyed white light	0-255
14	Strobe from fast to slow	0-255
15	Dyeing built-in effect	0-255
16	Quick Self-Walking and Voice Control	0-127
	Slow Self-Walking, Sound-Controlled Opening	128-255
17	Sound sensitivity adjustment	0-255
18	none	0-20
	X-axis operation	21-100
	Y-axis operation	101-200
	XY operation	201-249
	Reset	250-255

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

MODALITA CANALE: Std.14CH

1	DIMENSIONATORE
2	STOP/STROBO
3	PADELLA
4	INCLINARE
5	TEMPO DI PAN-TILT
6	PRISMA RT COLORE
7	GOBO
8	GOBO1
9	GOBO1_RT
10	PRISMA
11	MESSA A FUOCO
12	PAN FINE
13	INCLINAIZIONE FINE
14	RESET

COLORE

MORSO	EFFETTO
255	ROTAZIONE VVELOCE
......	......
80	ROTAZIONE LENTA
75-79	ROSA+BIANCO
70	LAVANDA+ ROSA
65	VERDE CHIARO+LAVANDA
60	VERDE+VERDE CHIARO
55	ACQUAMARINA+VERDE
50	ARANCIO+ACQUAMARINA
45	ROSSO+ ARANCIONE
40	BIANCO+ROSSO
35-39	ROSA
30	LAVANDA
25	VERDE CHIARO
20	VERDE
15	ACQUAMARINA
10	ARANCIONE
5	ROSSO
0	BIANCO

> STOP/STOBE

APPEARATETS PLACERING

6-MENU-painike
7-UP-painike
8-ALAS-painike
9-ENTER-painike

3.1.2. CON.LED-107

6-MENU-painike
7-UP-painike
8- ALAS-painike
9-ENTER-painike

3.1.3. CON. LED-108

1-LED-paa

9-MENU-painike
10-UP-painike
11-ALAS-painike
12-ENTER-painike
13-OK-painike

3.1.4. CON.LED-111

1-LED-paa

2-Ohjauspaneeli

6-MENU-painike
7-UP-painike
8-ALAS-painike
9-ENTER-painike

PLAATS VAN HET APPARAAT

APPARATENS PLACERING

Paraacularly, do not use the word "o" in the sentence. Paraacularly, do not use the word "o" in the sentence. Paraacularly, do not use the word "o" in the sentence. Paraacularly, do not use the word "o" in the sentence. Paraacularly, do not use the word "o" in the sentence. Paraacularly, do not use the word "o" in the sentence. Paraacularly, do not use the word "o" in the sentence. Paraacularly, Do not use the word "o" in the sentence. Paraacularly, Do not use the word "o" in the sentence. Paraacularly, Do not use the word "o" in the sentence. Paraacularly, Do not use the word "o" in the sentence. Paraacularly, Do not use the word "o" in the sentence. Paraacularly, Do not use the word "o" in the sentence. Paraacularly, Do not use the. ^ 出 in the sentence. Paraacularly, Do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the. sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do not use the word "o" in the sentence. Para-ocularly, do NOT use the word "o" in the sentence.

O produits esté en conformidade com as normas de seguranca aplicáveis.

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
