USER MANUAL CON.LED-105 Singercon

LED RGBW PAR LIGHT SET OF 2 SMD BACKLIGHT SET OF 2 MULTIFUNCTIONAL PAR LIGHT SET OF 2

USER MANUAL

Bedienungsanleitung

Instrukcja obsługi

Návod k použití

6 6075 2 1 4 5 3 4 7 1 SINGERCON vspondu.com PRODUCT NAME LED RGBW MAX LIGHT MODEL CONJED-110 LIGHT SOURCE 14.5W RGBW 4x1 POWER 40W VOLTAGE AC90-22W 10-40HZ PRODUCTION YEAR 2023 Max. 80°C on the surface temperature under ready state conditions Min 0.5m distance from flexible materials to all other surfaces of the luminaire

KON.LED-104 / KON.LED-105

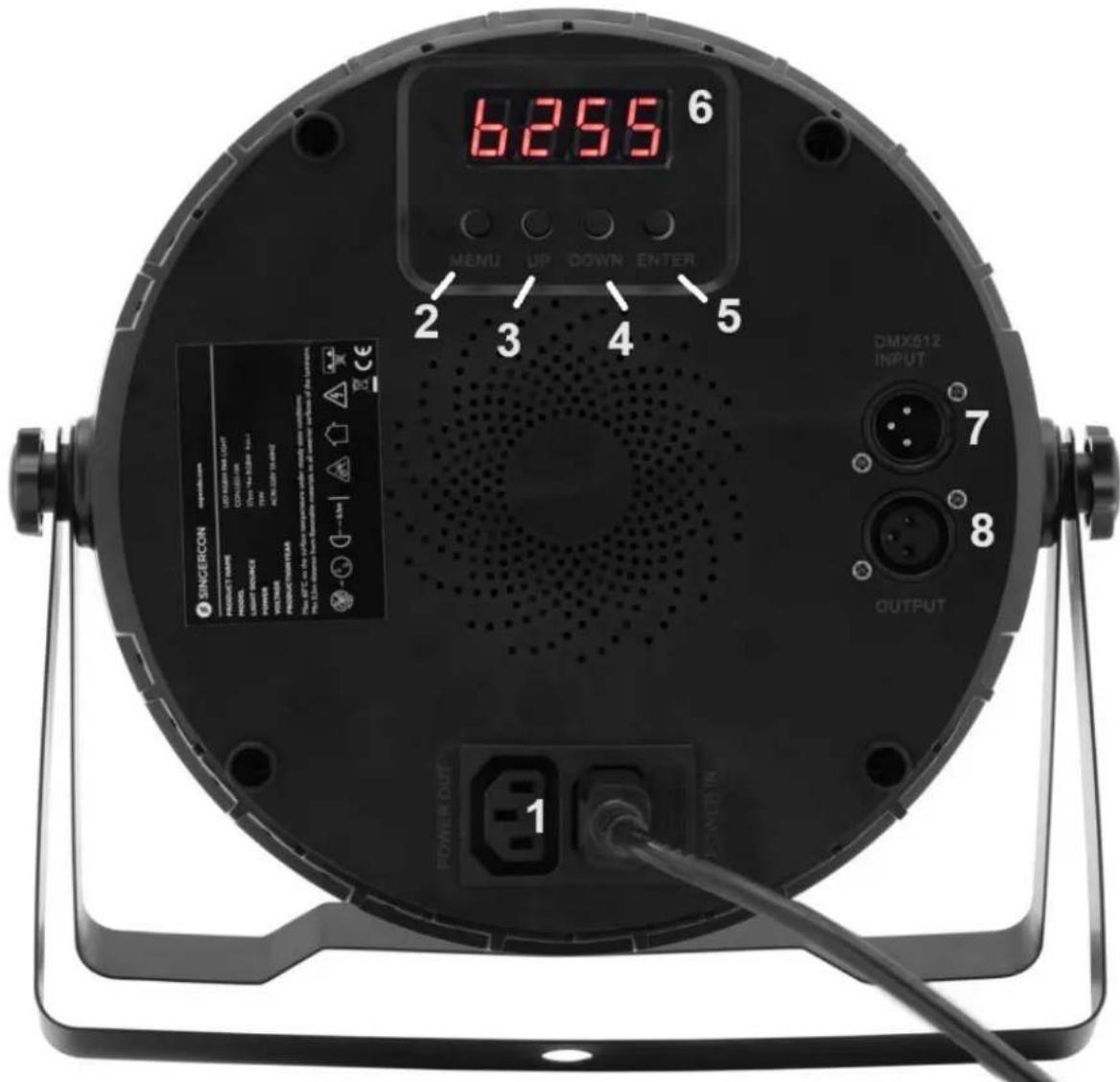

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

1 - Leistung OUT

2 - MENU-Taste

3 - Taste UP

4 - Taste DOWN

5 - ENTER-Taste

6 - Anzeige

7 - DMX512-Eingang

8 - Ausgabe

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	LED RGBWPar Light Set of 2	SMDBacklight Set of 2	LED RGBWPar Light Set of 2	Multifunctional Par Light Set of 2
Model	CON.LED-100	CON.LED-101	CON.LED-104	CON.LED-105
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	80	48	120
Dimensions [width x depth x height; mm] 220 x 230 x 80			240 x 240 x 80	270 x 280 x 90
Weight [kg]	2	1.75	2.95	3.4

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

ATTENTION! Electric shock warning!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

LED RGBW Par Light Set of 2 / SMD Backlight Set of 2 / LED RGBW Par Light Set of 2 / Multifunctional Par Light Set of 2

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.

2.2. Safety in the workplace

a) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
b) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
c) In case of fire, use a powder or carbon dioxide (CO _2 ) fire extinguisher (one intended for use on live electrical devices) to put it out.
d) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
e) Keep packaging elements and small assembly parts in a place not available to children.
f) Keep the device away from children and animals.
g) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
b) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual.

b) K keep the device in perfect technical condition.

c) Keep the device out of the reach of children.

d) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
e) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
f) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
g) Keep the device away from sources of fire and heat.
h) Do not cover ventilation holes.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is a lighting device intended for entertainment, exhibition, and architectural purposes only. It is not suitable for domestic lighting.

The user is liable for any damage resulting from unintended use of the device.

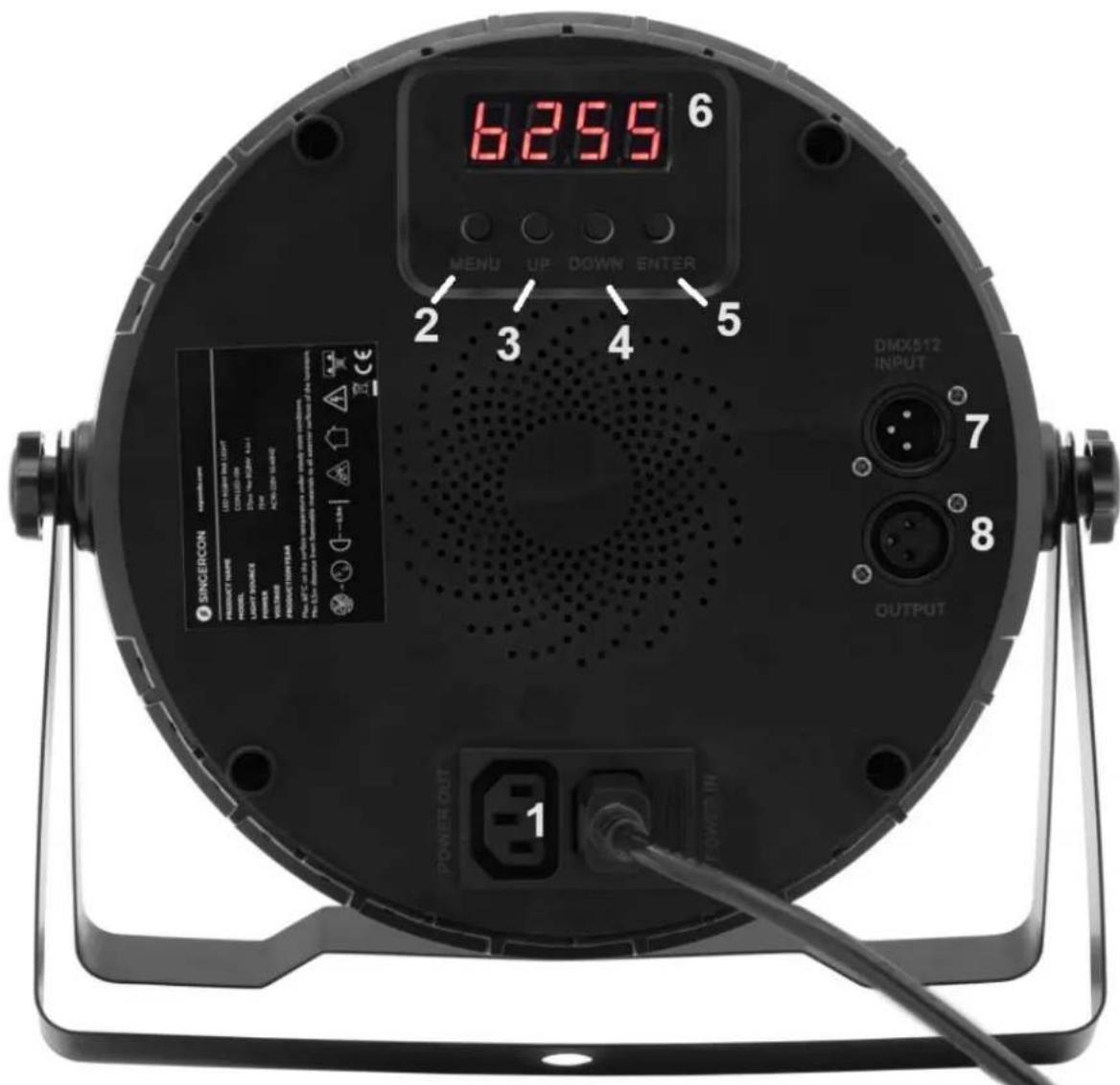

3.1. Device description

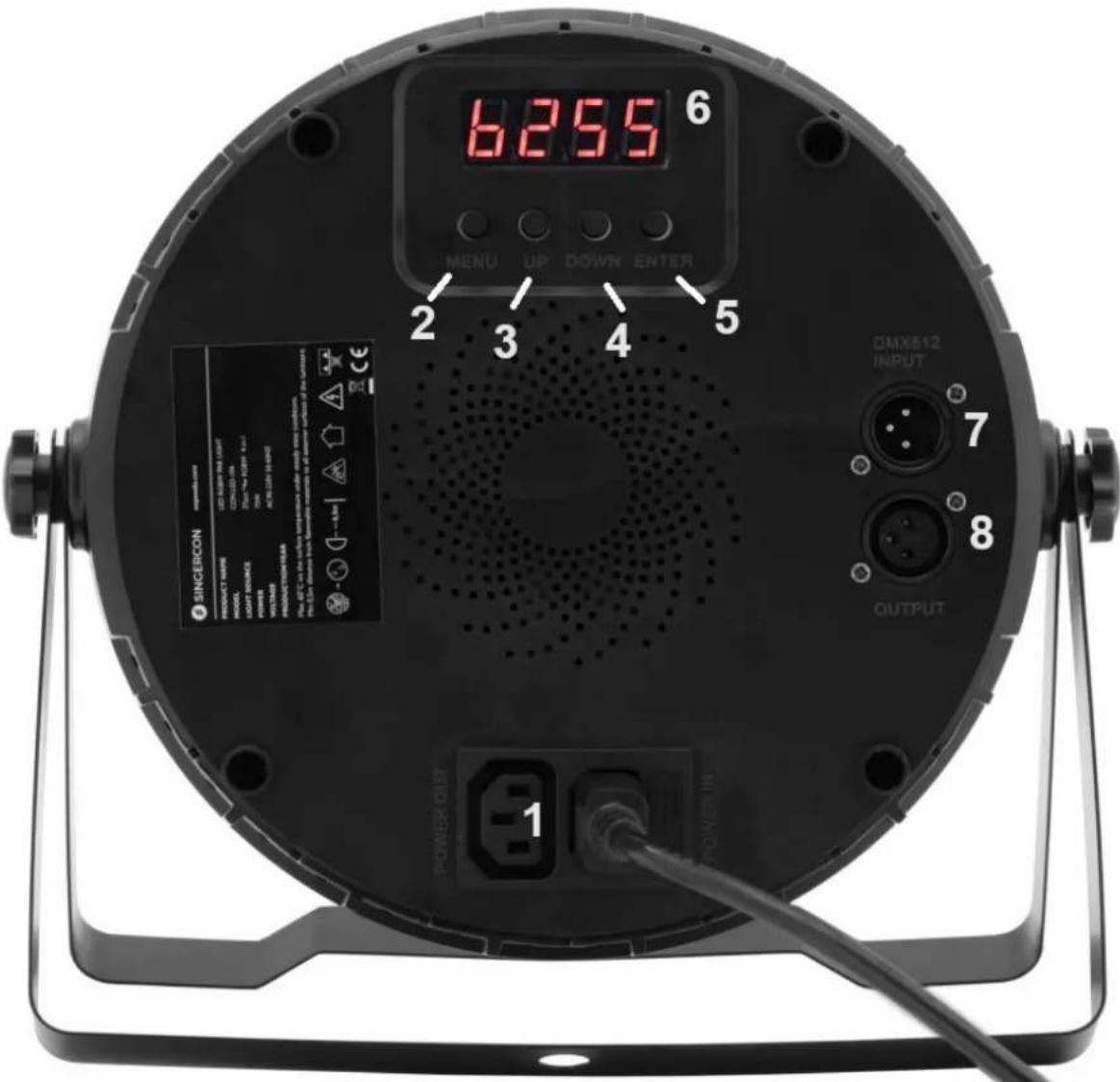

6 6075 2 1 4 5 3 4 7 1 SINGERCON expedia.com PRODUCT NAME LED RGBV/MS LIGHT MODEL CONJED-100 LIGHT SOURCE 14 MHz RGBV 4x1 POWER 40W VOLTAGE ACN-120V 10-80Hz PRODUCTION YEAR 2023 Max. 80°C on the surface temperature under steady state conditions. Min 0.5m distance from flammable materials to all exterior surfaces of the luminaire.

CON.LED-104 / CON.LED-105

SINCERCON SINGERCON 2 3 4 5 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

1 - Power OUT

2-MENU button

3 - UP button

4 - DOWN button

5 - ENTER button

6 - Display

7 - DMX512 input

8 - Output

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.3. Device use

The display (6) and the MENU (2), UP (3), DOWN (4) and ENTER (5) buttons are used to set the operating modes.

• MENU (2): selection of main menu items / return to main menu level.
• UP (3) and DOWN (4): move up one menu level / change settings.
• ENTER (5): select option / confirm setting.

Overview of setting options for operation mode

3.3.1. CON.LED-100

No.	Display	Function Description
1	d001	Address code (001-512)
2	8Ch4Ch	8、4 channel selection
3	Au01----Au08Au09Au10So01So02	Au01-Au08 Fixed colour selectionAu09 JumpAu10 GradientSo01 Sound 1So02 Sound 2
4	St00St01----St16	St00 No strobeSt01-St16 Strobe from slow to fast
5	SP00SP01----SP16	SP00SP01-SP16 Auto speed from slow to fast
6	r255	Red colour selection (000-255)
7	G255	Green colour selection (000-255)
8	b255	Blue colour selection (000-255)
9	u255	White colour selection (000-255)

8-channel DMX mode:

No.	Function	Description
1CH	Total dimming	R;G;B;W total dimming, linear dimming, from dark to bright
2CH	R dimming	R dimming, linear dimming, from dark to bright
3CH	G dimming	G dimming, linear dimming, from dark to bright
4CH	B dimming	B dimming, linear dimming, from dark to bright
5CH	W dimming	W dimming, linear dimming, from dark to bright
6CH Total strobe		R;G;B;W total strobe, from slow to fast
7CH	Function selection	0 – 3 : DMX channel control ;4 – 127 : 8 fixed colour128 – 169 : jump ;170 – 210 : gradient ;211 – 229 : sound 1 ;230 – 255 : sound 2 ;
8CH Function speed		Function speed, from slow to fast

4-channel DMX mode:

No.	Function	Description
1CH	R dimming	R dimming, linear dimming, from dark to bright
2CH	G dimming	G dimming, linear dimming, from dark to bright
3CH	B dimming	B dimming, linear dimming, from dark to bright
4CH	W dimming	W dimming, linear dimming, from dark to bright

3.3.2. CON.LED-101

No.	Display		Function Description
1	d001		Address code (001-512)
2	Chnd		4、28 Channel selection
3	Auxx		Au01-Au16 16 effectsAu17 AutoSo08 Sound
4	St00		St00 No strobeSt01-St16 Strobe from slow to fast
5	SP00		SP01-SP16 Auto speed from slow to fast
6	R255	Press OK to switch	red colour selection (000-255) up/down key to modify colour selection
	G255		Green colour selection (000-255) up/down key to modify colour selection
	B255		Blue colour selection (000-255) up/down key to modify colour selection

4-channel DMX mode:

4CH	Function	Description
1	Total dimming	Total dimming, linear dimming, from dark to bright
2	Total strobe	Total strobe, from slow to fast
3	Function selection	0 – 6 : No effect7 – 159 : 16 effects to choose160 – 200 : Auto201 – 255 : Sound
4	Function speed	Function speed, from slow to fast

28-channel DMX mode:

28CH	Function	Function Description
1	Total dimming	Total dimming, linear dimming, from dark to bright
2	Total strobe	Total strobe, from slow to fast
3	Function selection	0-6: No effect7-159: 16 effects to choose160-200: Auto201-255: Sound
4	Function speed	Function speed, from slow to fast
5	R1 dimming	R1 dimming, linear dimming, from dark to bright
6	G1 dimming	G1 dimming, linear dimming, from dark to bright
7	B1 dimming	B1 dimming, linear dimming, from dark to bright
8	R2 dimming	R2 dimming, linear dimming, from dark to bright
9	G2 dimming	G2 dimming, linear dimming, from dark to bright
10	B2 dimming	B2 dimming, linear dimming, from dark to bright
11	R3 dimming	R3 dimming, linear dimming, from dark to bright
12	G3 dimming	G3 dimming, linear dimming, from dark to bright
13	B3 dimming	B3 dimming, linear dimming, from dark to bright
14	R4 dimming	R4 dimming, linear dimming, from dark to bright
15	G4 dimming	G4 dimming, linear dimming, from dark to bright
16	B4 dimming	B4 dimming, linear dimming, from dark to bright
17	R5 dimming	R5 dimming, linear dimming, from dark to bright
18	G5 dimming	G5 dimming, linear dimming, from dark to bright
19	B5 dimming	B5 dimming, linear dimming, from dark to bright
20	R6 dimming	R6 dimming, linear dimming, from dark to bright
21	G6 dimming	G6 dimming, linear dimming, from dark to bright
22	B6 dimming	B6 dimming, linear dimming, from dark to bright
23	R7 dimming	R7 dimming, linear dimming, from dark to bright
24	G7 dimming	G7 dimming, linear dimming, from dark to bright
25	B7 dimming	B7 dimming, linear dimming, from dark to bright
26	R8 dimming	R8 dimming, linear dimming, from dark to bright
27	G8 dimming	G8 dimming, linear dimming, from dark to bright
28	B8 dimming	B8 dimming, linear dimming, from dark to bright

3.3.3. CON.LED-104

No.	Display	Function Description
1	d001	Address code (001-512)
2	8Ch4Ch	8、4 channel selection
3	Au01----Au08Au09Au10So01So02	Au01-Au08 Fixed colour selectionAu09 JumpAu10 GradientSo01 Sound 1So02 Sound 2
4	St00St01----St16	St00 No strobeSt01-St16 Strobe from slow to fast
5	SP00SP01----SP16	SP00SP01-SP16 Auto speed from slow to fast
6	r255	Red colour selection (000 - 255)
7	G255	Green colour selection (000 - 255)
8	b255	Blue colour selection (000 - 255)
9	u255	White colour selection (000 - 255)

4-channel DMX mode:

No.	Function	Description
1CH	R dimming	R dimming, linear dimming, from dark to bright
2CH	G dimming	G dimming, linear dimming, from dark to bright
3CH	B dimming	B dimming, linear dimming, from dark to bright
4CH	W dimming	W dimming, linear dimming, from dark to bright

8-channel DMX mode:

No.	Function	Description
1CH	Total dimming	R;G;B;W total dimming, linear dimming, from dark to bright
2CH	R dimming	R dimming, linear dimming, from dark to bright
3CH	G dimming	G dimming, linear dimming, from dark to bright
4CH	B dimming	B dimming, linear dimming, from dark to bright
5CH	W dimming	W dimming, linear dimming, from dark to bright
6CH Total strobe		R;G;B;W total strobe, from slow to fast
7CH	Function selection	0-3:DMX channel control;4-127:8 fixed colour128-169:jump;170-210:gradient;211-229:sound 1;230-255:sound 2;
8CH Function speed		Function speed, from slow to fast

3.3.4. CON.LED-105

No.	Display	Function Description
1	A001	A001-512 12 Ch DMX mode
2	Au01	Au01-15 Fixed colour selection
3	UF01	UF01-99 RGBP Colour jump
4	FF01	FF01-99 WW/CW Colour jump
5	UC01	UC01-99 RGBP Colour gradient
6	FC01	FC01-99 WW/CW Colour gradient
7	UE01	UE01-99 RGBP Colour pulse variable
8	FE01	FE01-99 WW/CW Colour pulse variable
9	R001	R000-255 Red Manual dimming
10	G001	G000-255 Green Manual dimming
11	B001	B000-255 Blue Manual dimming
12	P001	P000-255 White manual dimming
13	U001	U000-255 Warm White hand dimming
14	C001	C000-255 Amber hand dimming
15	F000	F000-255 Stroboscopic mode 1-20Hz
16	Auto	Automatic mode, repeated cloud jump/gradient/pulse change
17	Soud	BLOF /bLON "OF" means silent control OF light, "ON" silent control OF black field
		VOL1~VOL9 1-9 sensitivity adjustment

12-channel DMX mode:

channel	Channel value	Functional description
CH1 0-255 0-100	0% Linear total dimming
CH2	0 Strobe off
	0-255	Stroboscopic from slow to fast 1-20hz
CH3	0 Red off
	1-255 0-100% linear dimming
CH4	0 Green off
	1-255 0-100% linear dimming
CH5	0 Blue off
	1-255 0-100% linear dimming
CH6	0 White off
	1-255 0-100% linear dimming
CH7 0 Warm white 1 off1-255 0-100% linear dimming
CH8	0 Amber 1 off
	1-255 0-100% linear dimming
CH9	0 Warm white 2 off
	1-255 0-100% linear dimming
CH10	0 Amber 2 off
	1-255 0-100% linear dimming
CH11	0-10	No function, the first 10 channels are valid
	11-40	RGBW colour jump
	41-70	WW/A colour jump
	71-100	RGBW colour gradient
	101-130	WW/A colour gradient
	131-160	RgbW colour pulse change
	161-190	WW/A colour pulse change
	191-220	Automatic mode
	221-255 Sound Mode
CH12	0-255	Speed from slow to fast / sensitivity from small to large

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

6 6075 2 1 4 5 3 4 7 1 SINGERCON expedia.com PRODUCT NAME LED RGBV TIN LIGHT MODEL CONLED-HIO LIGHT SOURCE H-400 RGBV 4x1 POWER 40W VOLTAGE ACED-120V 10-60HZ PRODUCTION YEAR 2023 MAX. 80°C on the surface temperature under ready state conditions. Min 0.5m distance from flexible materials to all exterior surfaces of the luminaire.

CON.LED-104 / CON.LED-105

SINCECON 2 3 4 5 6 8 DMX512 INPUT OUTPUT 1 SINGERCON DCI: 100 MHz (100A) ON/OFF: 100 MHz LIGHT RESOES POWER ACCELERATION Power/DCI: 100 MHz (100A) DCI: 100 MHz (100A) DCI: 100 MHz (100A) DCI: 100 MHz (100A) DCI: 100 MHz (100A) DCI: 100 MHz (100A) DCI: 100 MHz (100A) DCI: 100 MHz (100A) DCi: 100 MHz (100A) DCi: 100 MHz (100A) DCi: 100 MHz (100A) DCi: 100 MHz (100A) DCi: 100 MHz (100A) DCi: 100 MHz (100A) DCi: 100 MHz (100A) DCi: UP UP DOWN ENTER MENU UP DOWN ENTER

6 6075 2 1 4 5 3 1 SINGERCON expedia.com PRODUCT NAME TEST RGBW MAX LIGHT MODEL CONLED-140 LIGHT SOURCE 14.9kV RGBW 4m1 POWER 40kV VOLTAGE ACRO-120V 10-40HZ PRODUCTION YEAR 2023 Max. 80°C on the surface temperatures under steady state conditions. Min 0.5m distance from flammable materials to all exterior surfaces of the luminaire.

CON.LED-104 / CON.LED-105

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

6 6075 2 1 4 5 3 4 7 1 SINGERCON vspondu.com PRODUCT NAME LED RGBW MAX LIGHT MODEL CONJED-110 LIGHT SOURCE 14.5W RGBW 4x1 POWER 40W VOLTAGE AC90-22W 10-40HZ PRODUCTION YEAR 2023 Max. 80°C on the surface temperature under ready state conditions Min 0.5m distance from flexible materials to all other surfaces of the luminaire

CON.LED-104 / CON.LED-105

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

1 - SORTIE
2 - Bouton MENU
3 - Bouton HAUT
4-Bouton BAS
5 - Bouton ENTRER
6 - Affichage
7 - Entrée DMX512
8 - Sortie

6 6075 2 1 4 5 3 4 7 1 SINGERCON vspondu.com PRODUCT NAME LED RGBW MAX LIGHT MODEL CONJED-110 LIGHT SOURCE 14.5W RGBW 4x1 POWER 40W VOLTAGE AC90-22W 10-40HZ PRODUCTION YEAR 2023 Max. 80°C on the surface temperature under ready state conditions Min 0.5m distance from flexible materials to all other surfaces of the luminaire

CON.LED-104 / CON.LED-105

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

6 6075 2 1 4 5 3 4 7 1 SINGERCON vspondu.com PRODUCT NAME LED RGBW MAX LIGHT MODEL CONJED-110 LIGHT SOURCE 14.5W RGBW 4x1 POWER 40W VOLTAGE AC90-220V 10-40HZ PRODUCTION YEAR 2023 Max. 80°C on the surface temperature under ready state conditions Min 0.5m distance from flexible materials to all other surfaces of the luminaire

CON.LED-104 / CON.LED-105

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

6 6075 2 1 4 5 3 4 7 1 SINGERCON expedia.com PRODUCT NAME LED RGBV N/A LIGHT MODEL CONJED-100 LIGHT SOURCE 14 MHz RGBV 4x1 POWER 40W VOLTAGE AC10-120V SD-BDH2 PRODUCTIONYAR 2023 Max. 80°C on the surface temperature under ready state conditions. Min. 0.5m distance from flammable reservoirs to all exterior surfaces of the luminaire.

CON.LED-104 / CON.LED-105

SINCERICON SINCEKON USSR 6255 UP DOWN ENTER MENU UP DOWN 2 3 4 5 DMX512 INPUT 7 OUTPUT POWER OUT 1

6 6075 2 1 4 5 3 1 SINGERCON expedia.com PRODUCT NAME LED RGBW/MS LIGHT MODEL CONJED-100 LIGHT SOURCE H 100% RGBW 4x1 POWER 40V VOLTAGE ACIO-120V 10-50Hz2 PRODUCTION YEAR 2023 Max. 80°C on the surface temperature under ready use conditions. Min 0.5m distance from flammable materials to all exterior surfaces of the luminaire.

CON.LED-104 / CON.LED-105

1 - Strømudgang

2 - MENU-knap

3 - OP-knap

4 - NED-knap

5 - ENTER-knap

6 - Display

7 - DMX512-indgang

8 - Udgang

APPARATETS PLACERING

6 6075 2 1 4 5 3 7 8 SINGERCON PRODUCT NAME LED RGBW PWR LIGHT MODEL CON-LED-100 LIGHT SOURCE H *WF RGBW 4bit POWER 4GW VOLTAGE ACTN-USBV 30-MWC PRODUCTION YEAR 2023 Max. 40°C on the surface temperature under steady state conditions Min. 0.5m discrete from flexible materials to all sensor surfaces of the luminaire. © - © - -1.5m | ⚠️ ↑ 🏛️ A® CE

CON.LED-104 / CON.LED-105

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

6 6075 2 1 5 3 4 1 SINGERCON vspamide.com PRODUCT NAME LED RGBW 10A LIGHT MODEL CONJED-100 LIGHT SOURCE H 4W RGBW 4H POWER 40V VOLTAGE ACW-220V 10-62HZ PRODUCTION YEAR 2023 Flux: 80°C on the surface temperature under steady state conditions. Min 0.5m distance from flexible materials to all exterior surfaces of the luminaire.

CON.LED-104 / CON.LED-105

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

1 - Stroom UIT

2-MENU-knop

3 - OMHOOG-knop

4 - OMLAAG-knop

5 - ENTER-knop

6 - Weergave

7 - DMX512-ingang

8 - Uitgang

PLAATS VAN HET APPARAAT

6 6075 2 1 4 5 3 7 8 SINGERCON expondo.com PRODUCT NAME LED RGBW INR LIGHT MODEL CONJED-HB LIGHT SOURCE H MAX RGBW 4n1 POWER 40V VOLTAGE AC10-20V 10-60HZ PRODUCTION YEAR 2023 Max. 80°C on the surface temperature under ready state conditions. Min 0.5m distance from flammable materials to all exterior surfaces of the luminaire.

CON.LED-104 / CON.LED-105

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

1 - Strøm UT
2-MENU-knapp
3 - OPP-knapp
4 - NED-knapp
5 - ENTER-knapp
6 - Display
7 - DMX512 inngang
8 - Utgang

6 6075 2 1 5 3 4 1 SINGERCON vspmdo.com PRODUCT NAME LED RGBW 10A LIGHT MODEL CONJED-100 LIGHT SOURCE H 4W RGBW 4H1 POWER 40W VOLTAGE ACW-220V 10-62HZ PRODUCTION YEAR 2023 Flux: 80°C on the surface temperature under steady state conditions. Min 0.5m distance from flexible materials to all exterior surfaces of the luminaire.

CON.LED-104 / CON.LED-105

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

1 - Ström UT
2-MENU-knapp
3 - UPP-knapp
4 - NED-knapp
5 - ENTER-knapp
6 - Display
7 - DMX512-ingång
8 - Utgång

APPARATENS PLACERING

6 6075 2 1 4 5 3 4 7 1 SINGERCON vspondu.com PRODUCT NAME LED RGBW MAX LIGHT MODEL CONJED-110 LIGHT SOURCE 14.5W RGBW 4x1 POWER 40W VOLTAGE AC90-220V 10-40HZ PRODUCTION YEAR 2023 Max. 80°C on the surface temperature under ready state conditions Min 0.5m distance from flexible materials to all other surfaces of the luminaire

CON.LED-104 / CON.LED-105

6 2 5 5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 OUTPUT POWER OUT 1

1 - DESLIGAMENTO

2 - Botão MENU

3 - Botão PARA CIMA

6 6075 2 1 4 5 3 7 8 SINGERCON esponbi.com PRODUCT NAME LED RGBW 10A LIGHT MODEL CONLED-100 LIGHT SOURCE H *90F RGBW 4m1 POWER 40kV VOLTAGE ACRD-120V 10-60HZ PRODUCTION YEAR 2023 Max. R/C on the surface temperatures under ready state conditions. Min 0.5m distance from flammable materials to all exterior surfaces of the luminaire.

CON.LED-104 / CON.LED-105

SINGERCON PRODUCT NAME MODEL LIGHT SOURCE POWER OUTPUT 6:25:5 MENU UP DOWN ENTER 2 3 4 5 DMX512 INPUT 7 8 POWER OUT 1

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
