USER MANUAL Sprint Joie

13kg sprint enhanced child restraint1

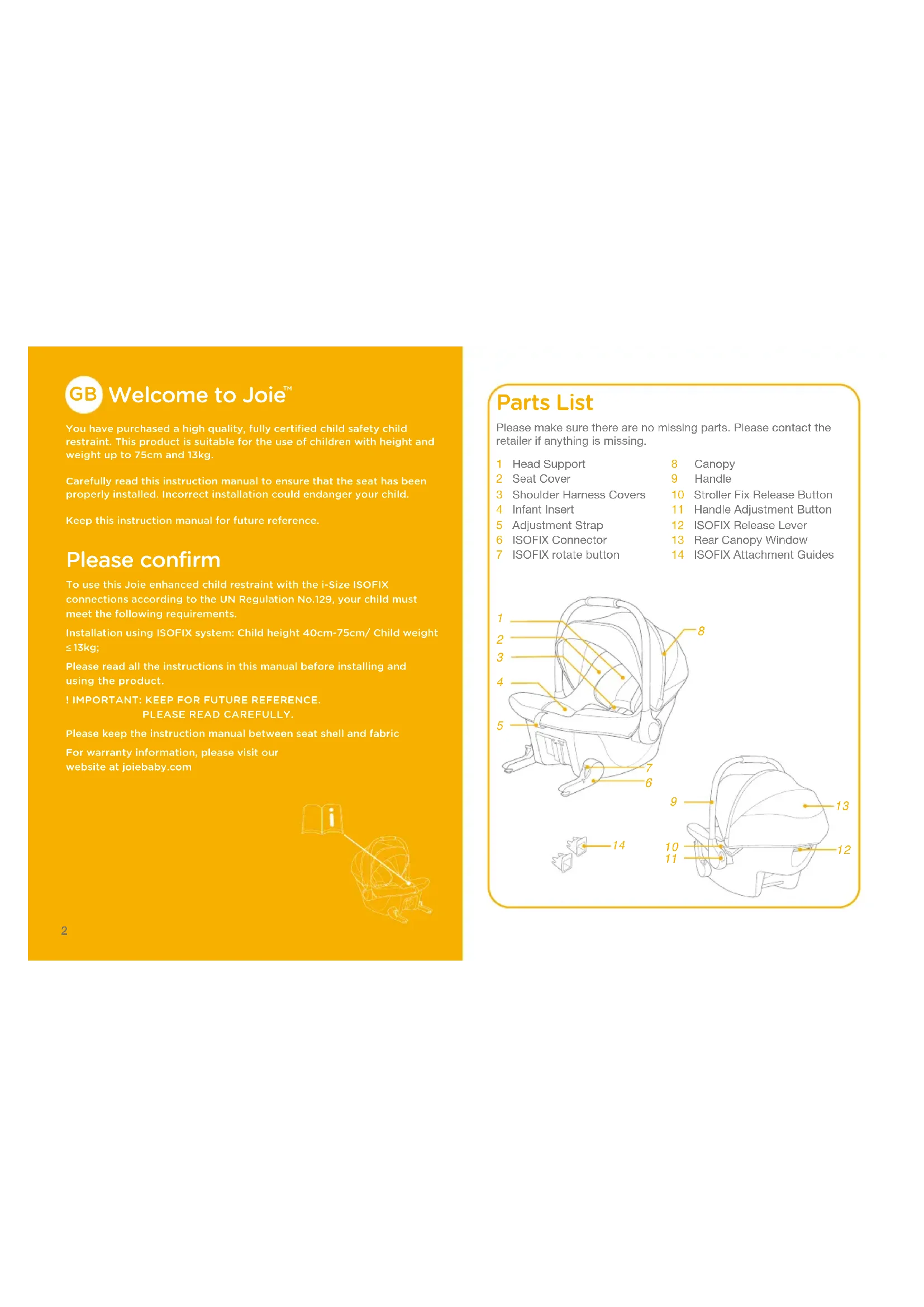

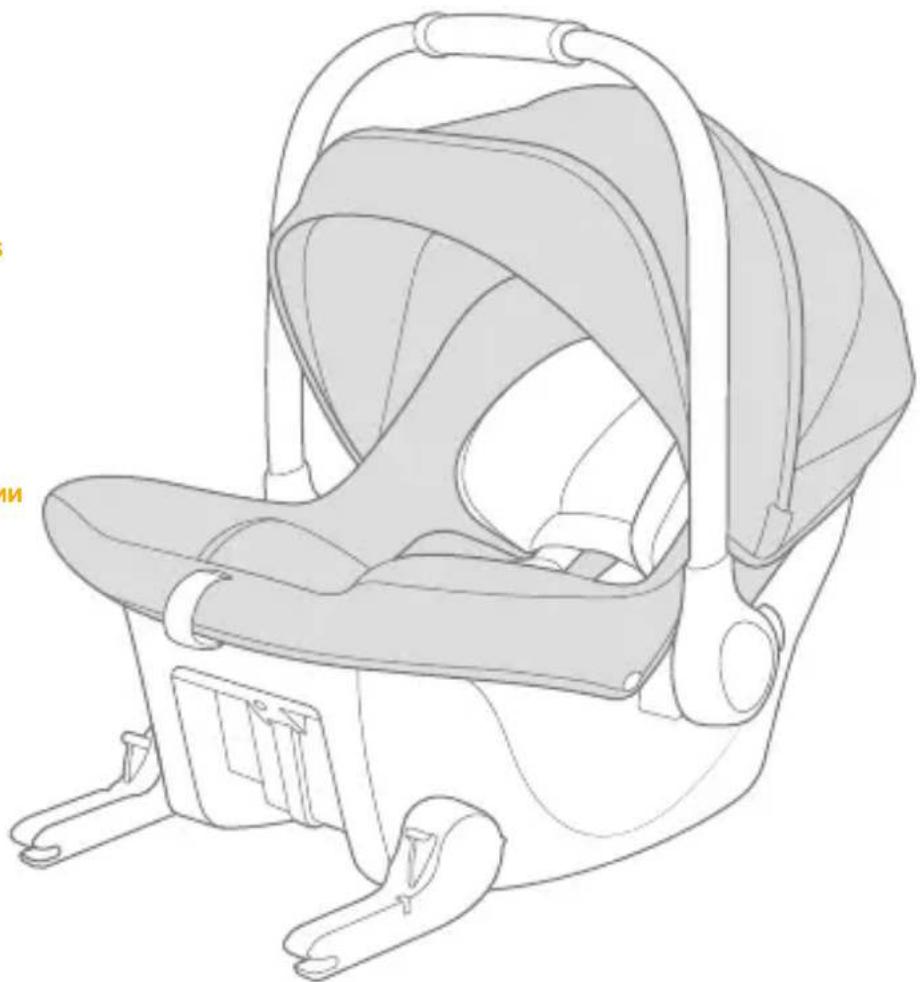

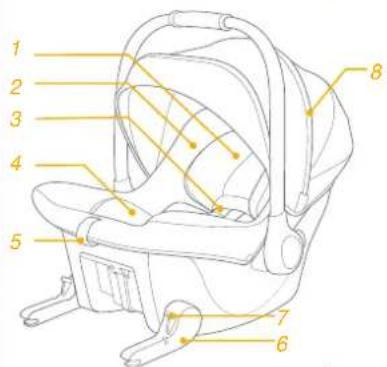

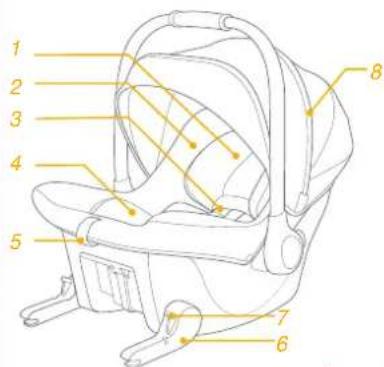

You have purchased a high quality﹐ fully certified child safety child restraint. This product is suitable for the use of children with height and weight up to 75cm and 13kg.Carefully read this instruction manual to ensure that the seat has been properly installed. Incorrect installation could endanger your child.Keep this instruction manual for future reference. Please confirm To use this Joie enhanced child restraint with the i-Size ISOFIX connections according to the UN Regulation No.129﹐ your child must meet the following requirements.Installation using ISOFIX system: Child height 40cm-75cm/ Child weight 13kg;Please read all the instructions in this manual before installing and using the product.! IMPORTANT: KEEP FOR FUTURE REFERENCE. PLEASE READ CAREFULLY.Please keep the instruction manual between seat shell and fabric For warranty information﹐ please visit our website at joiebaby.com Parts List 1 Head Support2 Seat Cover3 Shoulder Harness Covers4 Infant Insert5 Adjustment Strap6 ISOFIX Connector7 ISOFIX rotate button8 Canopy9 Handle10 Stroller Fix Release Button11 Handle Adjustment Button12 ISOFIX Release Lever13 Rear Canopy Window14 ISOFIX Attachment GuidesPlease make sure there are no missing parts. Please contact the retailer if anything is missing.

WARNING ! BE cautious that the rigid items and plastic parts of the enhanced child restraint system shall be so located and installed that they are not liable to become trapped by a movable seat or in the door of the vehicle. ! DO NOT use the rearward facing enhanced child restraint systems in seating positions where there is an active frontal airbag installed. ! To use this enhanced child restraint with base according to the UN Regulation No.129, your child must meet the following requirements. Child height 40cm-75cm/ Child weight ≤13kg. ! Please check if this enhanced child restraint can be installed prop- erly in your vehicle before you purchase it. ! The enhanced child restraint may not fit in all approved vehicles. Please refer to the fitting list included for more details. ! Make sure the support leg is fully down until it is in contact with the vehicle floor. Any straps restraining the child should be positioned well to the child’s body, and should not be twisted. ! DO NOT use any load bearing contact points other than those described in the instructions and marked on the enhanced child restraint. ! After your child is placed in this enhanced child restraint, the safety belt must be used correctly. ! This enhanced child restraint should be replaced when it has been subject to violent stresses in an accident. An accident can cause damage to it that you cannot see. ! Consider the danger of making any alterations or additions to the device without approval of the adequate authority, and the danger of not following closely to the installation instructions provided by the enhanced child restraint manufacturer. ! Please keep this enhanced child restraint away from sunlight, other- wise it may be too hot for child’s skin. Always touch the enhanced child restraint before placing child in it. ! DO NOT leave your child unattended in the enhanced child restraint system. WARNING ! Any luggage or other objects liable to cause injuries in the event of a collision shall be properly secured. ! The enhanced child restraint system shall NOT BE USED without the seat cover. ! The seat cover should not be replaced with any other than the one recommended by the manufacturer, because the soft goods consti- tutes an integral part of the restraint performance. ! NO enhanced child restraint can guarantee full protection from injury in an accident. However, proper use of this enhanced child restraint will reduce the risk of serious injury or death to your child. ! DO NOT install this enhanced child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death. ! DO NOT use this enhanced child restraint if it has damaged or miss- ing parts. ! The instructions can be retained on the child restraint for its life period. ! For an “i-Size Enhanced Child Restraint System”, the user shall also be referred to the vehicle manufacturer’s handbook.5 6 Choose Your Installation Emergency In case of emergency or accidents, it is most important to have your child taken care of with first aid and medical treatment immediately. Product Information Installation without base

1. This is an Integral Specific Vehicle ISOFIX Enhanced Child Restraint

2. If in doubt, consult either the Enhanced Child Restraint System

manufacturer or the retailer. Installation with base

1. This is an “i-Size” Enhanced Child Restraint System. It is approved

according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual.

2. If in doubt, consult either the Enhanced Child Restraint System

manufacturer or the retailer. Materials Plastics, metal, fabrics Patent No. Patents pending Figure for Installation Child height 40cm-75cm/ Child weight≤13kg Suitable for with i-Base lx 2 Child height 40cm-75cm/ Child weight≤13kg Child height 40cm-75cm/ Child weight≤13kg with i-Base Encore Please refer to i-Base lx 2 instruction manual for the use of i-Base lx 2. Please refer to i-Base Encore instruction manual for the use of i-Base Encore.7 8 see images

1. The infant carrier handle can be adjusted to 3 positions.

2. To adjust the handle, squeeze handle buttons on both sides.

! Handle has to stay upright when used in the car. Handle Adjustment Installation Concerns see images

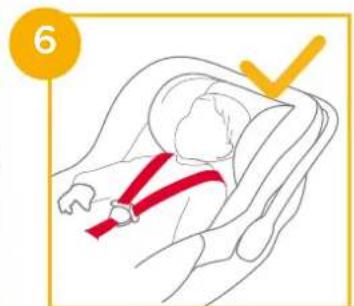

! Shoulder harness straps must be nearest to your childs shoulders.

! If the shoulder harness straps are not at proper height, the child might be ejected from the enhanced child restraint in the event of a crash. ! Head support must be installed at all time while using the infant carrier.

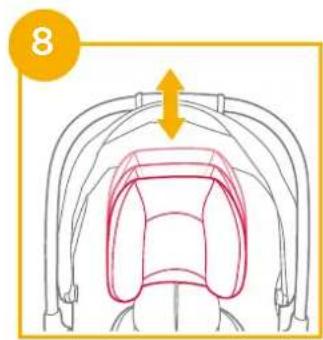

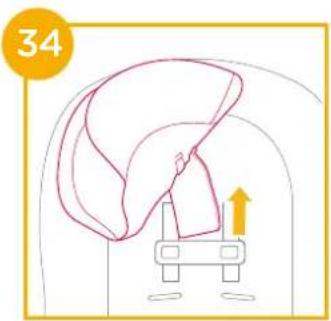

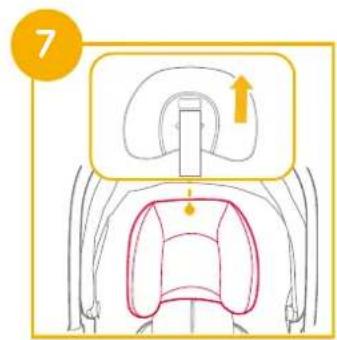

Pull the head support up or down to adjust the position.

Head Support Height Adjustment

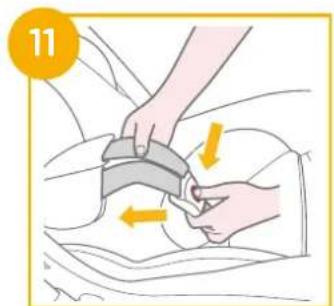

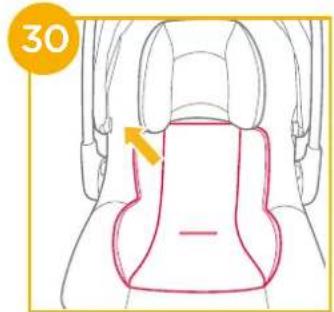

1. Infant insert is for child's side protection. We recommend using

the infant insert when the baby is under 60cm or until they outgrow the insert.

2. Make sure the infant insert already has the foam wedge in it

Note Remove the infant insert when your child's shoulders no longer fit comfortably. Securing Child in the Enhanced Child Restraint see images

After the child is placed into the seat, check whether the shoulder harness straps are at proper height.

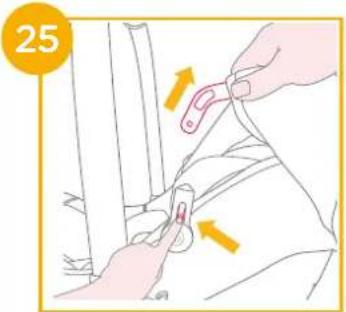

1. To lengthen the shoulder harness belts, press the harness

adjustment button first while pulling forward the shoulder harnesses to loosen.

1. Insert ISOFIX guides to assist with installation.

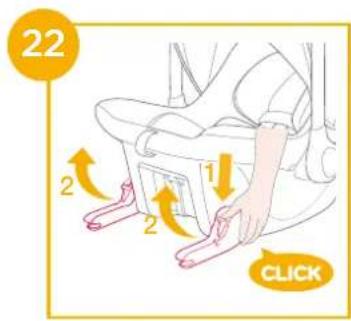

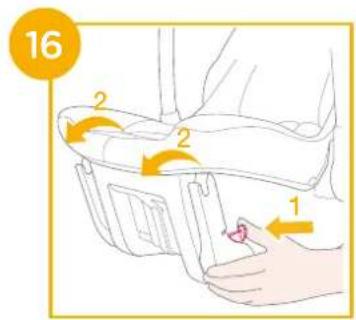

2. Press the ISOFIX rotate buttons both sides first to turn the ISOFIX

3. Rotate the ISOFIX connectors to the suitable position to your vehicle

4. Line up the ISOFIX connectors with the ISOFIX guides, and then

click both ISOFIX connectors into the ISOFIX anchor bars.

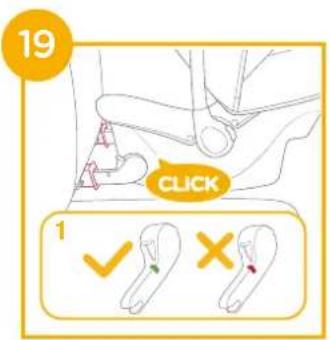

! Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor bars. There should be two audible clicks, and the colors of the indicators on the both ISOFIX connectors should be completely green.

! Check to make sure the child restraint is securely installed by pulling on both ISOFIX connectors.

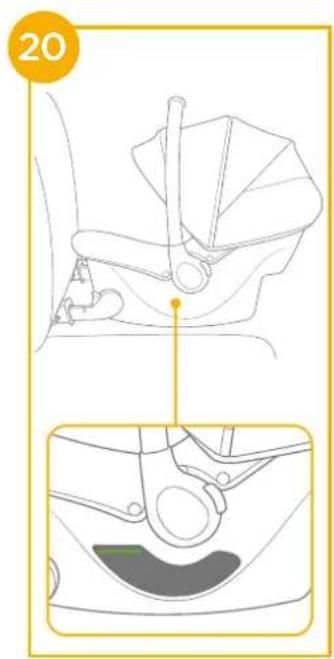

5. Make sure the level line on the restraint label is level with the ground.

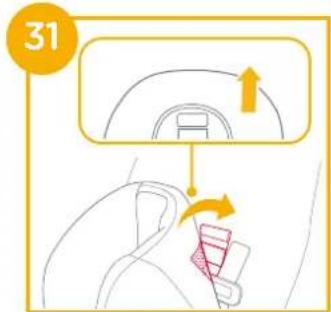

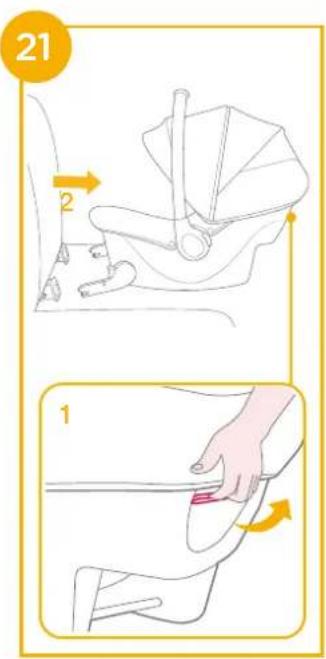

back of infant carrier and pull the infant carrier away from the ISOFIX anchor bars.

7. Press the ISOFIX rotate buttons to fold ISOFIX connectors back to

the storage position, remove child restraint from the vehicle.

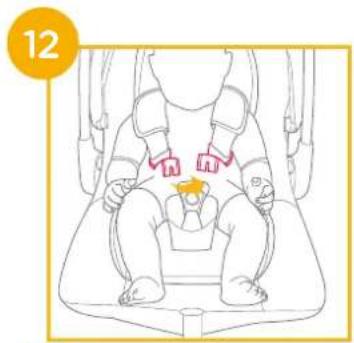

2. Open the harness buckle by pressing the red button.

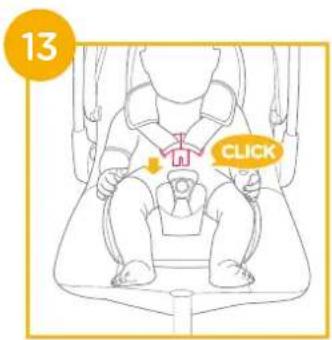

3. Place the child into the infant carrier and lock the buckle.

Engage the buckle. Please refer to

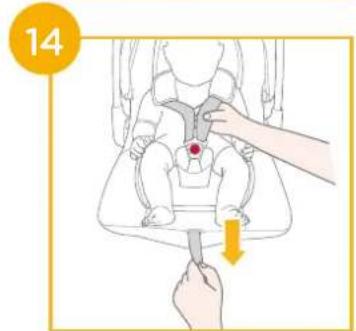

4. Pull the adjustment strap and adjust it to the proper length to make

sure your child is properly secured.

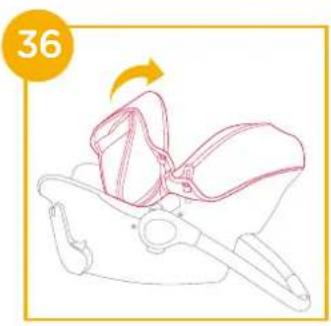

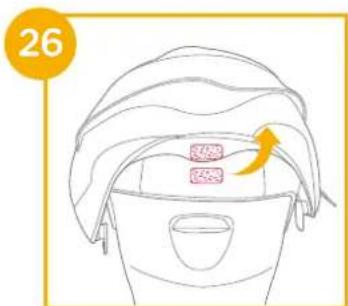

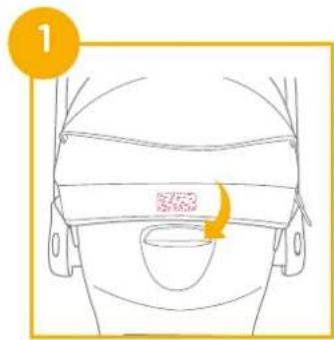

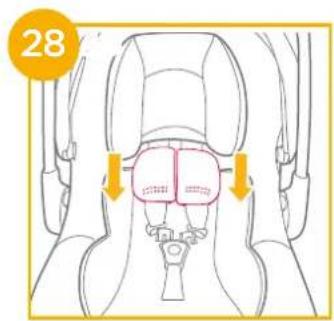

! Always keep child secured in harness and properly tightened by removing any slack. Any belt slack reduces the safety performance of the child restraint system. To re-assemble the soft goods, reverse the aforementioned steps. Detaching Canopy and Seat Pad see images

The infant carrier can attach to Joie strollers using adapters. Adapters are included with Joie strollers.

Visit joiebaby.com for more information. Accessories Care and Maintenance ! Please store the pad somewhere out of the child’s reach. ! Please wash the soft goods with cold water under 30°C. ! Do not iron the soft goods. ! Do not bleach or dry clean the soft goods. ! Do not use undiluted detergents gasoline or other organic solvent to wash the enhanced child restraint or base. It may cause damage to the enhanced child restraint. ! Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles. ! Please hang dry the soft goods in the shade. ! Please remove the enhanced child restraint from the vehicle seat if it will not be in use for a long period of time.11 12 Bienvenue dans l'univers de Joie

Figure for Installation Child height 40cm-75cm/ Child weight≤13kg Suitable for with i-Base lx 2 Child height 40cm-75cm/ Child weight≤13kg Child height 40cm-75cm/ Child weight≤13kg with i-Base Encore

Remove the infant insert when your child's shoulders no longer fit comfortably.
