USER MANUAL LYCOS 40740 B Set Wolf Garten

(Original operating instructions)

FR Francais 22

(OpunHnHaBna HNcTpyKzma no 3kCnIyataa

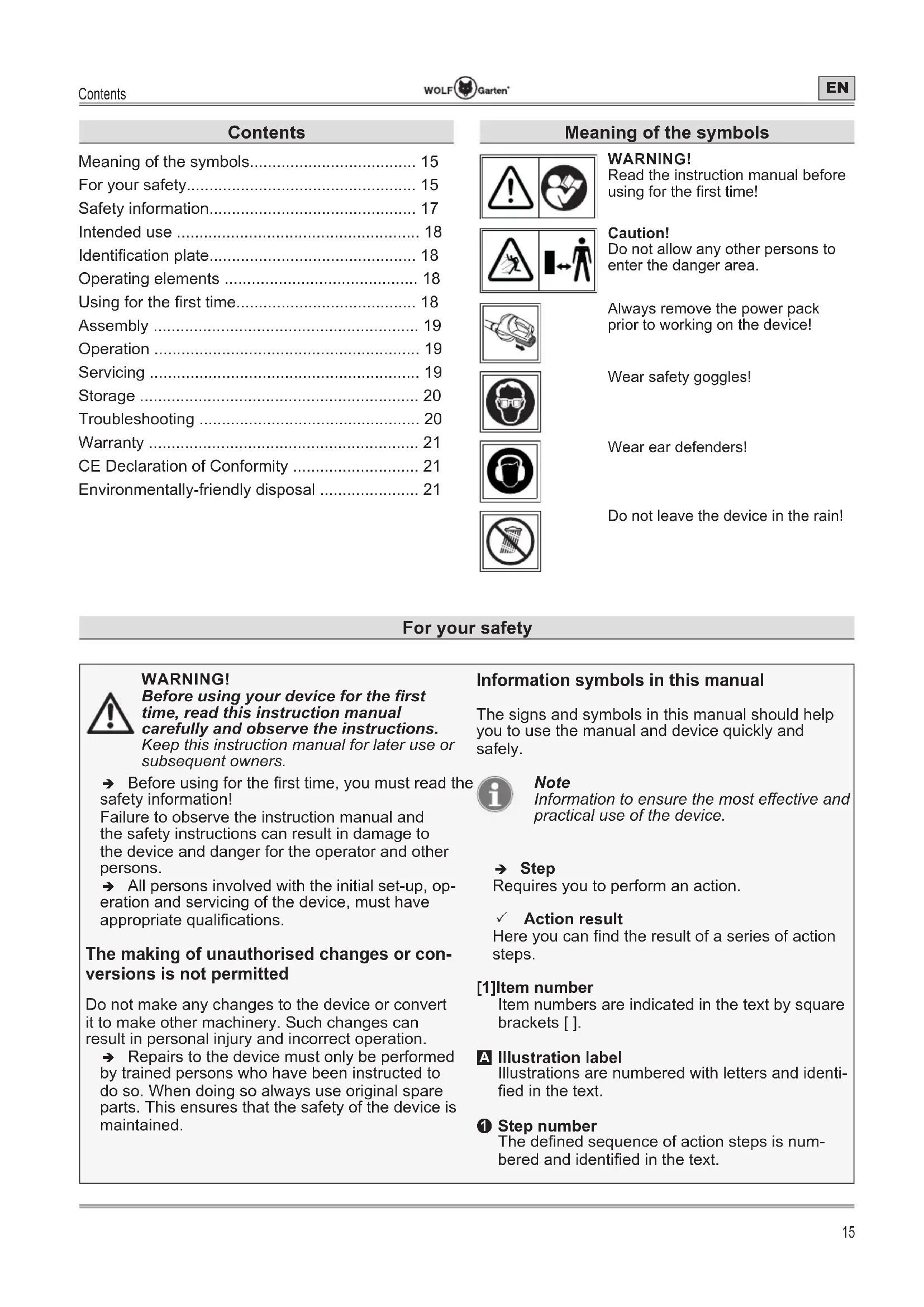

Inhalt

Meaning of the symbols. 15

For your safety. 15

Safety information. 17

Intended use 18

Identification plate. 18

Operating elements 18

Using for the first time. 18

Assembly 19

Operation 19

Servicing 19

Storage 20

Troubleshooting 20

Warranty 21

CE Declaration of Conformity 21

Environmentally-friendly disposal 21

Meaning of the symbols

WARNING!

Read the instruction manual before using for the first time!

Caution!

Do not allow any other persons to enter the danger area.

Always remove the power pack prior to working on the device!

Wear safety goggles!

Wear ear defenders!

Do not leave the device in the rain!

For your safety

WARNING!

Before using your device for the first time, read this instruction manual carefully and observe the instructions.

Keep this instruction manual for later use or subsequent owners.

Before using for the first time, you must read the safety information!

Failure to observe the instruction manual and the safety instructions can result in damage to the device and danger for the operator and other persons.

All persons involved with the initial set-up, operation and servicing of the device, must have appropriate qualifications.

The making of unauthorised changes or conversions is not permitted

Do not make any changes to the device or convert it to make other machinery. Such changes can result in personal injury and incorrect operation.

Repairs to the device must only be performed by trained persons who have been instructed to do so. When doing so always use original spare parts. This ensures that the safety of the device is maintained.

Information symbols in this manual

The signs and symbols in this manual should help you to use the manual and device quickly and safely.

Note

Information to ensure the most effective and practical use of the device.

Step

Requires you to perform an action.

√ Action result

Here you can find the result of a series of action steps.

[1]Item number

Item numbers are indicated in the text by square brackets [ ].

A Illustration label

Illustrations are numbered with letters and identified in the text.

Step number

The defined sequence of action steps is numbered and identified in the text.

Safety information

Danger levels of warning information

The following danger levels are used in this instruction manual, to indicate potentially dangerous situations:

DANGER!

A dangerous situation is highly likely and, if the measures are not followed, will result in severe injury and even death.

WARNING!

A dangerous situation may occur and, if the measures are not followed, will result in severe injury and even death.

CAUTION!

A dangerous situation may occur and, if the measures are not followed, will result in slight or minor injuries.

Attention!

A possibly harmful situation may occur which if not avoided will result in property damage.

Safety information content

DANGER!

Type and source of the danger!

Consequences of non-observation
Measure for preventing the danger

Protection of yourself and others

For safety reasons, children or persons who are not familiar with the instruction manual and operation of the leaf blower, must not use it. The minimum age of users may be defined by local or national legislation.
Do not operate the leaf blower when there are people (especially children) or animals in the immediate vicinity. Ensure children do not play with the leaf blower.

Stop using the device if persons (especially children) or animals are nearby. Do not allow any other persons to enter the danger area.

This device must not be used by children or persons with reduced physical, sensory or mental capabilities or with inadequate experience and knowledge. Likewise persons must be familiar with this instruction manual before using the device. The minimum age for using the device may be specified by local or national legislation.
Cleaning and servicing may not be carried out by children.
Always wear sturdy shoes and long trousers as well as other appropriate personal protective equipment (safety glasses, ear defenders, safety gloves etc.) when working with the leaf blower. The wearing of personal protective equipment minimises the risk of injury.
Any person intending to operate this device must not be under the influence of intoxicants such as alcohol, drugs or medicines.
The operator or user is responsible for accidents, injuries to other people or damage to their property.

Before use

Before working with the leaf blower, make sure you are familiar with its functions and operating elements.
Do not use any leaf blower whose switch is defective and which can no longer be switched on or off. It must be repaired by a qualified expert or workshop.
Read and observe the operating manual of the power pack and the power pack charger.
Before use, always check the device for damage and, if necessary, arrange for the device to be repaired by a workshop prior to use.

Tips for use

Remove the power pack from the device:
- Whenever you leave the device unattended.
- Before removing blockages.
- Before checking, cleaning or working on the device.
- After impacting a foreign body, to check the device for damage.
- For immediate checking, if the device starts to vibrate excessively.
Never leave the leaf blower unattended during breaks and store it in a secure location.

Safety information

Wear suitable safety goggles and ear defend General safety information
ers!
Adopt a normal posture. Ensure you are standing securely and that you maintain your balance at all times. Pay particular attention, if you are working on a slope. Do not run, rather walk forwards at a steady pace. This will ensure that you can maintain better control of the device if unexpected situations occur.
Take extra care if you are walking backwards. Risk of tripping!
Switch the motor off when carrying the device to or from separate working positions.
Never bypass or manipulate switching mechanisms installed on the device (e.g. by taping the push-button to the handle).
Never aim the device toward people, pets or windows. Always blow in a direction away from where there are people or animals, or where there are easily damaged hard surfaces (such as windows, walls, cars, etc.).

After use

Switch the device off, remove the power pack and check the device for damage.
If you need to clean or service the device, switch it off and remove the power pack.
Ensure that ventilation slots are free from dirt.
Do not clean the leaf blower using water.
Store the device in a safe, dry location out of the reach of children.
Do not repair the device yourself; it must be repaired by a qualified expert or workshop.

Never use a device with damaged or missing guards or covers. They must be repaired or replaced by a qualified expert or workshop.
Spare parts must meet the requirements of the manufacturer. Therefore use only original spare parts or spare parts approved by the manufacturer. During replacement, always observe the supplied fitting instructions and first remove the power pack.
Repairs must only be performed by a qualified expert or workshop.
The device must not be used for purposes other than those intended because of the risk of bodily injury to the user or other persons.
Only use the leaf blower in daylight or under bright artificial light. Keep your work area clean and well lit.
Only use the leaf blower in dry weather conditions. Keep it away from rain or damp. The ingress of water into the leaf blower increases the risk of an electric shock.
Do not touch any dangerous moving parts before the moving parts have come to a standstill and the power pack has been removed.
Even if all safety and operating instructions are heeded, there is always a residual risk of injury and property damage. Always bear this in mind.
Do not use the device if it is raining or there is a risk of storms.
Replace all worn or damaged information signs on the device.
Only use power packs and chargers approved by the manufacturer. The designations of the approved power packs/chargers are listed in the enclosed CE Declaration of Conformity.

Intended use

The leaf blower is intended solely for the blowing together of leaves and mowed cuttings in private households.

Any other use is classed as an unintended use. The user is liable for any damage arising from unintended use.

Incorrect/abnormal use

This leaf blower should not be used in public facilities, parks, sports grounds, roads etc. nor in agriculture or forestry.

Identification plate

Position

The identification plate is located on the leaf blower casing.

Note

The label has the status of a certificate. It must never be altered or obliterated.

Structure

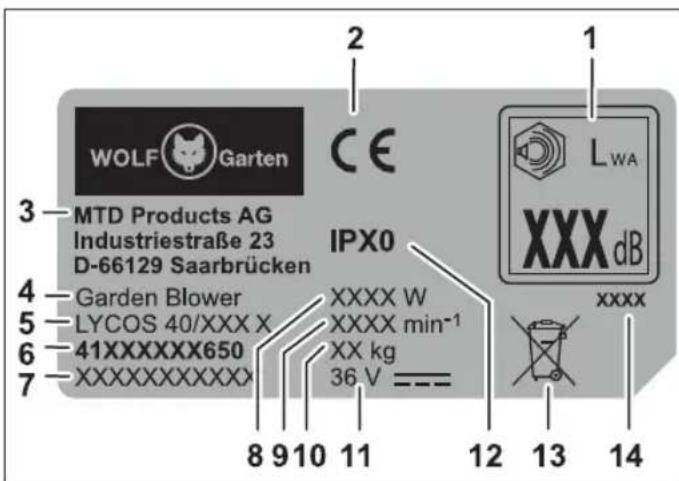

1 Guaranteed sound level
2 CE label
3 Manufacturer
4 Device group
5 Model name
6 Model number
7 Serial number
8 Power
9 Engine speed in rpm
10 Weight
11 Rated voltage, current type
12 Protection class /IP rating
13 Disposal instruction
14 Year of manufacture

Operating elements

Operating elements 1

1 Hook for carrying belt
2 Handle
3 Adjustment wheel for blowing speed
4 Turbo button
5 Blowing tube locating button
6 Blowing tube
7 Attachment for short blowing tube
8 Attachment for long blowing tube
9 Power pack release
10 Power pack compartment
11 Leaf blower casing
12 On/off switch
13 Carrying belt
14Rake

Information

Operating elements marked with are optionally available as accessories and are not contained in the scope of the delivery.

Using for the first time

Supplementary documentation

Make sure the supplied instruction manuals of the charger and the power pack are available. Please read and understand them before using the device.

Power pack charging

WARNING!

Risk of injuries or material damage Charge the power pack using the charger approved by the manufacturer. The designations of the approved chargers are listed in the enclosed CE Declaration of Conformity.

Attention!

The power pack is supplied partially charged. Before first use, fully charge the power pack to ensure full capacity of the power pack.

Power pack charging must be carried out according to the instructions in the supplementary documentation.

Operating times

Observe the times stipulated in local byelaws. Check with your local authorities to determine if there are any operating time limitations.

Assembly

Assembly ABCD E

Pick up the leaf blower casing and press the locating button B 1.
Press the upper part of the blowing tube on to the leaf blower casing B 2.

The blowing tube comes with a shorter A b and a longer A c attachment. Select according to the application.

Press the attachment of your choice onto the blowing tube using a twisting movement, until it locks in place C.
Attach the carrying at the two hooks D.

Note

For safety reasons only carry the device supported over your shoulder and never around your neck.

The optional rake A e, is typically used to loosen wet leaves from the ground.

To fit the rake, push it laterally onto the mounting on the long attachment E.

Inserting the power pack F

WARNING!

Incorrect handling of the power pack and the charger

Risk of injuries and material damage.

Read and observe the operating manual of the power pack and charger.

The 2-stage latching mechanism is used to set operating or transport mode of the power pack.

Position 1

The power pack is in transport mode.

• The electric contacts are open to prevent the power pack from self-discharge during storage.

Position 2

The power pack is in operating mode.

The electrical contacts are closed and the device is ready for use.

Operation

Switching the device on

The blowing speed level can be set using the continuously adjustable adjustment wheel.

Set the desired blowing speed using the adjustment wheel (1 - 5)
Press the on/off switch
The device operates.

Turbo mode

The leaf blower has an additional turbo mode for extra high blowing speeds.
Press the turbo button to switch the function on/off 3.

Working with the device

Hold the device with one hand on the handle, so that the thumb encircles the handle.
Direct the blowing tube towards the ground.
Move slowly forwards in a controlled manner.

Note

Use a lower speed for light material and a higher speed for heavy material. Adjusting the blowing speed or switching the turbo function on/off can be performed with the device running.

Switching the device off

Release the on/off switch[12] to switch the device off.

Removing the power pack

Press the power pack release
Remove the power pack

Servicing

WARNING!

Risk of injuries or material damage due to moving parts.

Always remove the power pack prior to working on the device.

Repair and service work as well as the replacement of safety elements must be performed by a qualified expert or workshop.

Cleaning

Attention!

Do not clean the device with water.

Keep the ventilation slots clean and free from dust.
Wipe down the housing only with a damp cloth.

Storage

Thoroughly clean your device at the end of each season.
Always store the device in a dry and safe location that is inaccessible to children. Store the power pack and leaf blower separately.

Store the power pack in a cool and dry location. Recommended storage temperature 0 - 23^
- Keep the leaf blower and especially its plastic components away from brake fluids, petrol, mineral oil containing products, penetrating oils etc. They contain chemical substances that can damage, attack or destroy the plastic components of the leaf blower.
Fertilizers and other garden chemicals contain substances that may have a highly corrosive effect on the metal parts of the leaf blower. Therefore do not store your leaf blower in the vicinity of these substances.

Troubleshooting

WARNING!

Risk of injuries or material damage

In case of doubt always go to a specialist workshop.

Before any inspection or any work on the device, switch off the motor and remove the power pack.

Problem Possible cause Remedy

The device switches off.	The power pack is too hot. Allow the power pack to cool.
	The power pack is discharged. Charge the power pack.
	The temperature of the device (electronics) is too high. Allow the device too cool and if necessary, clean the air inlet.
	Overcurrent release If this occurs again take your device to a specialist workshop.
The device will not switch on.	The power pack is discharged. Charge the power pack.
	Overvoltage release If this occurs again take your device to a specialist workshop.
	Overcurrent release If this occurs again take your device to a specialist workshop.
	Power pack temperature too high or too low Let the power pack cool down or warm up.
	The power pack is defective. Replace the power pack.

Warranty

The warranty conditions of our local company or importer apply in all countries. Under the terms of the warranty we will repair faults on your device free of charge, insofar as material or manufacturing defects are the cause. To make a claim under warranty please contact your seller or your nearest branch.

CE Declaration of Conformity

Further details about the device are contained on the separately enclosed CE Declaration of Conformity, which forms part of this instruction manual.

Environmentally-friendly disposal

Power tools, accessories and packaging must be routed to an environmentally sound recycling chain.

Power packs/batteries:

Do not dispose of power packs/batteries in domestic waste, by burning or throwing into water. Power packs/batteries must be collected, recycled or disposed of in an environmentally-friendly manner.

Power tools (without power packs/batteries):

Do not throw your old power tool away in the domestic waste. Take it to a local authority recycling facility.

Table des matieres

Outils electriques (sans accumulateurs/ batteries):

Satta in batteriet F

WARNING!

✓ Akkumulatoren staredi transportstilling.

YcTpaHHeH HeuCnpaBHOCTe 139

TapaHTnA 140

ДeКларачи COOTBETCTBЯ EC 140

3KoIorHueckn 6e30nachna yTnIn3aun 140

3HaueHne cIMBOJOB

PENDYNPEXKDEHNE!

IpeE BBODOM B 3KcNlyaTaCIO npOHTe pyKOBoDCTBO NO 3KcNly- aTaCNI!

OctopoxHo!

He onyckaIte B onachyIO 30Hy TpeTbIX NIIc.

Ipeed Haayanom NIO6bix pa60 no 06cnyKnBaHNO yCTpoiCTBA OTOeDHHtB aKKyMnyTOpHyo 6aTaapeio.

Hocntb 3aunTHbIe ouKn!

Hocntb npotnBOwymhble hayuHNK!

He donyckaite nonaHa Ha yctpoiCTBO DOKDeBOBBo!

ДяВаш经6e3oanacHocTn

PPEyPPEKDEHNE!

Ipeod nepbim ucnonb3o8aHuem ycmpoucmea eHumameJIbHO npOumme hacmouee pyko8ocmeo no 3Kcnnyamauuu u deucmeyume e coomsem-cmeuu c Hum. CoxpaHume hacmouee pyko8ocmeo no 3Kcnnyamauuu dna nocnedykueseo uCnONb308aHua UJU dna nocnedykueseo eIadenebuca.

→ПердпервимВБОДМВЗКПЛУТAUIO6Я3ATENBHO npOHTte yka3AHnnoTExHnke 6e3OnaCHOCTn!
B cnyae HecobnOeHn pyKoBoCTBa n 3KnnyaTaunu yka3aHn n ToTexHKe 6e3OnaCHOCTN BO3MOxHO NobpeXdHeHne yCtpoiCTBa, TaKcMe MoYr BO3HNKHyTb OnaCHOCn Dnna NpIb3OBaTeJI r Ipynx IIOde.
Bce nua, BbINOHnHIOUne BBOD B 3KcNpyaLIO, o6ClyXnBaHHe nTexHnueCKOE 06ClyXnBaHne yCTpoi CTBa, DOnxHbI O6IaDaTb COOTBeTCTByIOUe KBaINoKu KaUne.

3anpet Ha cAmOBoJIbHbIe N3MeHeHn I nepe- o6OpydoBaHne

3aIpeaaeTcBHOCTbN3MeHeHnB KOHCTpyKuH OYCTPOIcTBa NIN N3ROTaBJIbBaTb N3 Hero DOONIHTeNbHbIe YcTPOIcTBa.Takne N3MeHeHnMoYr npNBecTN K TpaBMam HEnCnpaBHocTm.
→PemOHInPOBaTb yCTpOINCTBO MOrYT TOJIbKO JInua, IMeIOUIIne COOTBETCTByIOUIIne IONHOMOChN IN PPOJEdUIIne 06yueHn. Pn ATOM Bcerda NcNoJIb3yIte Oprn HAnlbHbIe 3aIaNCHbIe YactN. 3TO N03BOJNT COxpaHnITb 6e3OpacHOCTb yCTpOINCTBa.

HhOpMaunOHbIe CmBOLbl B HactoJeM pyKOBoDCTBe

3HaKn n CnMBOJbI B HAcTOraUeM pyKOBoDCTBe DOnXHbI NOMOyB Bam 6bICTpO n 6e3oNaCHO nCNoNb-3OBaTB pyKOBoDCTBO n yCTpOJaCTBO.

YKa3aHue

Hhopmaua O haubonee 3phiekmuBHom u npakmuHOM uCnOJIb30aHuu ycmpoucmea.

→ War deiCtBnA

PpeIINCbIbAeT DeIcTBVe.

Pe3yIbTaT DeIcTBnA

3decbyka3bBAeTcpe3yIbTaT nocneIOBaTeNbHOCTN WaOB DeiCTBn.

[1]Homep no3nui

Homepa no3nui o6o3naeHbI B TeKCTe KbaDpaTHbIMn c0kamn []

BnI nIcTOUHnK ONaCHOCTN

TocneIcTBnI rHOpuPoBaHHa

Mepa no npedeTbpaueHnO onachoctn

HnBnDyaIbHa 3aunTa

No coo6paKeHnM 6e30nachocTn DeTAM nnn nnam,He O3HaKOMNBWHmCn CpYkoBOdCTBOM nO kcnnyatauH,NCNOJb3OBaTB Bo3dyXoDyBky 3anpeueHo.MNHMaJIbHbN BIo3pact NOnb3OBaTeJIa MOKeT ONpeJeTBC MeCTHBIM HOpMaTUBaMn.
He 3anyckaIte BO3dyxOyBky, ecn B heNoog CTBeHHoN 6n30CTn HaxOaTc IHOu (B OCO-6eHHocTn DeTu) nn XMBOTbIe. CneNTe 3a TeM, UTO6bl DeTu He irpaJInc C BO3dyxOyBkoI.
BbIKIOHTe MaunHy,ecn pRanom HaxoTcIIOHn (BOOCO6eHHocTN-DeTN)nn DOMaunHeXNBOTHbIE.Hn B KOem cnyae He donyckaTe BONaCHyIO 3OHy TpeTBx NIIc.

3To yctpoCTBO He DoJXHO 3KcNlyaTnpoBAtbCn DeTbMn N IuCaMn C OrpaHnueHHbIMN cI3NuYeCKnMM, ceHCOPhblm Nnn YmCTBeHHblMn cNoCo6HoCTaMn, a TaKxE - npn OTCyTCTBnOnbIta n 3HaHn. TaKxe 3To yctpoCTBO He DOJXHO 3KcNlyaTnpoBaTbcr IuCaMn, He O3-HakOMNBWHMNcC HAcTOraUM pYkoBODCTBOM No 3KcNpyataun. MeCThBi ePpeINcaHn MoryT yCTaHaBnBaTb OrpaHnueHn BO3pacta NOJIb3OBATeJe.

OuNTka n TexHnueckoe 06cIyXnBaHne He DOJIxHbI BblONHrTbCra DeTbMn.
Bo Bpempa60tbcBO3dyxo4yBkoHnH BO3Je Hee BceIa Hocnte npOHyo 06yBbN DHHbIe Wtahbl, a TaKKe NcNoJIb3yInTe NOXoJUe CpeCTBa HNDNBuaJbHOH 3aunTbI (3aunTHbIe OOKN, IpOTNBOwymHbIe HayuHNKn, pa60yne nepaTkn n T. d.). UcNoJIb3OBaHne CpeCTB INDINBUdyaJbHOH 3aunTbI CHNXaET ONaCHOCTb TpaBM.
3anpeaetcpa6oTaTb c yctpoiCTBOM JIOdAM, KOtOpbIe HaxoJrTcN oD BO3DeiCTBnEM ONbHryuOxxCpeiCTB (HaNPmep, aIKORoJIb, HApKOTKN NIM MeNkAmEHTbl).
OTBeTCTBHeHOCtB 3a HecuactHbIe CnyuaN yUsep6, npuHHeHHbI dpyrM IIOJAM NIN Nx IMyEcTBy, BO3NaRaETcHa OnepaTopa Nn Ha NOJIb3OBaTeJIa.

Peped npimHeHHem

Npeed hauanom pa6oTbI 03HaKOMbTecb C BO3dyXOyBko, ee cyHKUaMn u 3JeMeHTamu ynpabHeHH.
He nCnoIb3yIte Bo3dyxOyBky,ecJn ee BblKIOuAteJIb HEnCnpaBeH NpepctaJI BKIOUaTbcra NN BblKIOuAtbcra. Iopuynte eepMOHT KBaJIncPnIPOBaHHOMy CneuaJIncTy nn CNEuaJIncIPOBaHHoM MaCTepcKOJ.
Почтnte n co6нюдайte pykoBoIDCTBO no 3Kcnpnyatauau n akkymyIaTOpHoi 6aTapeu n 3apnHOro yctpoiCTBa dIra akkymyIaTOpHoi 6aTapeu.
Ipeed KaXdbIM NcNoJIb3OBaHHeM npOBeprTe yCTpoIcTBO Ha OTCyTCTBnE NOBpeJxDeHn, pRn IX HAnuNn NopUaIte peMOHT CneuaHn3n-POBaHHoMaCTepckOi.

BoBpeMa npImeHeHna

N3BNeKaITe aKKyMnyTOpHyo 6aTapeo n3 yctpoNCTBa:

• Bcerda, korda Bbl octablanteye yctpoictBO.
• neped cHraTneM 6noknpOBKn.
  -перд ВьлонHeHemnpOBepKN,ОчNTKNИpa6OT Ha yCTpoiCTBe.

Yka3aHnnoTexHnke6e3onachOCTn

• NOCNE CTOLKHOBENHc npeTCTBnEM, dIy npOBepKN yCTPOINCTBA Ha npeMET NOBpeKdEHNI. -DnA HeMeIeHHoN pOBepKn, KOrDa yCTPOINCTBa NaHHaET Ype3MepHo Bn6pnpoBaTb.
  Bo Bpem nepepbIBOB pa6oTe Hn B KOe Cnyae He octabnIte BO3dYxOyBky 6e3 npncmOTpa H xpaHnTE ee B HaJeXHom MeCTe. IcnoJb3yIte nOxDoxaunze 3aunTHbIe oUKN npotnBOwMhIe HayuHNK!

  N36eraTe Heyo6hIx NOJoxHn TeJa. CJeDnte 3a XopoWei yToUHBOCTbIO N BcerdaNoIepXNBaTe paBHOBeCne.ByIbTe OcO6EHHO OCTOpOXHbI,pePdBnraCb No cKnOHy.HN BKOEM Cnyae He 6eraTe, DBurAITecb BpePeIDcNOKOBNT Bam lyuwe KOHTPOINPOBaTb YCTPOICTBO B HeOxHnAHHBIX CNTyaUNx.
  BydTe oco6eHHO OCTopoXHbI, Dnuracb Ha3aD. OnachocTB cNOTbikaHna!
  BoBpemTpaHcnpOpOBKn yctpoiCTBa n npn nepexoJe MeKdy OTdeJbHbIM MeCTaM npa60tbl Bcerda BBIKIOuayTe DBURatelb.
  He nepembikaTe yctaHOBJeHHbIe Ha ycTPOINCTBe ycTPOINCTBa BKNIOUChEN H BblKIOUChENn HE BblONHnTe C HmN HnKaKx HHeAIDeJkaux X DeiCTBn (HaNPmep, NyTem npMaTbIBAHN KhONKn Ha pyKoTKe).
  He HanpaBnIte yCTpOcTBO Ha IIOe, DoMaunHX XNBOTbIX nII N OKHa. Bcerda HanpaBnIte CtpyIO BO3dYxa B HanpaBnEHH, rDe HET IHOeN nII XNBOTbIX, a TAKKe YBCTBnTeNbHbIX TBepDbIX NOBepXHOCTe (HanpIMep, OKOH, CTeh, ABTomO6nJe).

Pocne npmehnna

BbIKIOUHTe yCTPOINCTBO,CHIMITE aKKyMnTTopHyO 6aTapeIO n IpOBepbTe yCTPOINCTBO Ha npedMeT NOBpeKdEHN.
EcnBam Heo6xOJMo BbInOnHnTb pa60TbI NO TexHueckOMy 06cnyXnBaHNu N OChCTke yCtpoiCTBa, BBIKHOHTe eRo N CHIMTe aKKMyJrTopHyIO 6aTapeio.
CneiTe 3a TeM, yTo6bI BeHTnJIauNoHHbI ueHn He 6bln 3arpa3HeHbl.

He MoTe BO3dyxOyBky BOdoN.
XpaHnTe yCTpOyCTBO B HaJeXHOM, cyxom HHeOCTynHom dJa DeTeMecTe.
He pemOHnpyTe yCTpoNcTBO cAMoCTOaTeIbHo, nOpyuAte erO peMOHT ToIbKO KBaIIuΦnCnPObaHHOMy CneuaJIHCTU INn CneuaJIH3npOBaHHo MaCTepCKo.

06üne yka3aHnno TeXnke 6e3onacHOCTn

He 3Kcnpnyatnpyute yctpoieCTBO c nobpeXdHHbIMN nIN OTCyTCTBYUOUMN 3aunTHbIMN yctpoieCTBAMN nIN KpbIkwamn. Nopyaute INx peMOHT nIN 3aMeHy KBaJIncuPobAHHomy CneuajnCTy nIN CneuJaUN3npOBaHHOJ MaCTepCKoI.
3aunactndoJXhblCOOTBeCTBOBaTb Tpe6oBaHnM, yCTaHOBHeHHbIM npON3BODNTeIe.10aTOMy nCNOJb3yIte TOJbKO opINHaJIbHbIe 3aunactn nnODo6peHHbIe npON3BODNTeIe.3aunactn. Ppi 3aMeHe BcERda CO6NIOdaIte npInIraaEMbIe HNCtpyKUIN NO yCTaHOBKe I CHMaITe aKKymyTAToPHyU 6atapeu.
NopuyaIte npoBeHne peMOHTa ncklIOuHTeIbHO KBaIINΦnCupOBaHHOMy CneuaJIInCTU INIcneuaJIIN3npOBaHHO MaCTepCKoI.
N3-3a onachocTN TpaBMnpoBaHnna NOB30BaTeNn INn Dpyrnx IIODee BO3DyXoYbky HeNb3ra NCNOJb3OBaTb B HecBOINCTBeHHbIX eIn ceIax.
NcnoJb3yIte BO3dYxOyBky TOJIbKO dHem Hnn npn HaNNX OPOwero NCKycCTBeHHo- ro OCbeueHn. MeCTo pa60tbl DOJIxHO 6blTb YNCTbIM XOPoWIO OCBeUeHHbIM.
NcnoIb3yIte BO3dyXOyBky TOIbKO B Cyxyo noroody. Bepernte ee otdojra nn cyipoCTn. IonaaHne BObl B BO3dyxOyBky NOBbIwaet OnaCHOCTb nopajEHHN 3JIeKTPnueCKM TOKOM.
He npkacaTecb K onaChbIM NOdBHXHbIM qactm Do cHTnycyCTBa aKKymyIaTropHO6batapeu n do noJHOH OCTaHOBKn NOdBHXhBX qacteN.
Дахе npс co6нюдень Сex yka3ани no texнke 6e3oNaChOCTn n ynpaBNeHnIO cyueCTByeT OCTaTOUhBI pNCK TpaBM n MaTePNaIbHorO yuep6a. Bcerda nomHnte o6 3tOM.
He3KcnIpyaTnpyTe yCTpoNCTBO BO BpeMa DOxJnI rpo3bl.
Bcerda 3aMeHnTe n3HoWeHHbIe nIN nobpeXdeHHbIe yKa3aTeNbHbIe Ta6JnUKN.
NcnoNb3yIte TOnbKO aKKymJrTOpbl N 3apdHbIe yCTPOINCTBa, pa3peSeHHbIe npOn3BOJnTeIem. O6o3NaYeHnOdo6peHHbIX aKKymJrTOpOB N 3apdHbIX yCTPOINCTB Yka3aHbIB npNJaraemoi DeKnapauu coOTBeTCTBnE EC.

PpmeHne no Ha3HaeyHIO

Bo3dyxoyBkA npedHa3nueHa NCKHOnHTeBHO nIyBaHn IINCTbeB INCKOeHHOro MaTePnana B DOMaHem X03JCTBE.

JIIO6oe BbIXOJaIe 3a 3TN paMKn NCNoJb3OBaHne CHTaETcR npIMHeHem He NO Ha3HaueHIno. 3a yUep6, npOn30WeDiBnB CnYyae npIMHeHnHe No Ha3HaueHIno, OTBeYaet Nlb3OBaTeIb.

PpImeHHe He no Ha3HaueHHIO

3Ta Bo3DyXoYbKa He DoJxHa NcONb3OaTbC B MecTx 6Bueero NOnb3ObaHn, Napkax, ObekTax CnpTUBHO INHpactpyKTypbI, Ha yInuax, a TaKke Ha npednpnTnx CEbckOrO n IeCHOrO Xo3RnCTBa.

PacnoptTha TabnUyka

NoJoxeHne

PacnopTHa Ta6nUka HaxoIITcHa KOpnyce B03dyXOyBKN.

Yka3aHue

Pacnpma mabuka Hocum xapakmep Dokymeha - ee Heb3a U3MeHmb un npueodumb e Heumaembu bud.

CTpyKTypa

1 TapaHTIpOBaHHoe 3HaueHne 3ByKOBo MOnHocTn
2 3HaK CE
3Пpon3BODNTeNb
4Pynna yctpoinCTB
5 Ha3BaHne MoJeJI
6 Hmep moeJIIN
7 CepinHbH Homep
8 MoUHOCtB
9 Yactota BpaueHnIy DnIraTeTJI, 06/MnH
10 Bec
11 PaceTHoe HnpanjKeHne, pOJ TOKa
12 Knacc 3auntbI/CTeeneHb 3auntbI
13 Yka3aHne no yTNIm3aUIN
14 T od Bbinycka

3nemEnbI ynpaBneHna

3neMeHTbI ynpaBneHnI

1 KpIouKn IOD HAnJIeHbI pEmHb
2 PykoTka
3KoIeScnKO dIpyI npOBKn ckOpocTn nToTa BO3dyxa
4 KhoNka «Tpy6o»
5 KhoIkaФИKcaUIM Tpy6bI
6 Tpy6a
7 Hacaika ha Tpy6y, KopoTka
8 HacaKaHa Tpy6y, nnHHHaa
9 KhoIka pa36bokpOBk nAkkymyTOpHn 6aTapeN
10 AkkymyIaTOpHbIOTcK
11 Kopnyc BO3dyxOyBkn
12 BbiknioyateIb
13 HanneHybI pemHb
14 Tpe6eHb ★

YKa3aHue

Anemhbl ynpaeneHua, o603aehnble ★ -OnuOHbIe, mo ecmb, OHU NOcmaJyomc8 bude npuHaedNkHocmeu U He BXODm B KOMnJeKm NOcmaeku.

BbD B 3KcnnyatauH

DOnOpHnTeJbHaJaOkymeHTaUa

Bbodume ycmpooucmbo 3kcnnyamauuo nuub b mom cnuyae, ecnu y Bac umeomc npunasaemble pykoosodcmba no 3kcnnyamaauuu 3aprdho2o ycmpoucmea u akkymyamopa u Bbl nohnnu u co6nodaeme ux.

3apkaakkyMnyTopHo6atapen

PNEyPEXDEHNE!

OnacHOCTb TpaBM n IOBpeXeHnI NMy-

3apjkaTb aKKymyIToHyIO 6aTaapeH TOJIbKO C NOMOuBIO ODo6peHHOro IpoN3BOINTeJIeM 3apJHOrO yCTPOINCTBa. O6o3NaueHnA ODo6peHHbIX 3apJHbIX yCTPOINCTB YkA3AHBI INpUInaraEMOI JeKnapaun COOTBeTCTBnE EC.

BhumaHue!

AkkymyJIaTOPHa8 6aTapeI NOCTaBnIeTCB YacTNUHO 3apJxHHom COCToHm. JIra OBeCneueHINPOHOMOuHOCTN AKKymyJIaTOpHoN 6aTapeINONHOCTbIO 3apJdnte ee nepeI nepBbIM NcNoNb-3OBaHNEM.

→3apnTe aKKymyTopHyo 6aTaapeH B COOTBETCBN C HCTpyKUmaM, COepeKaUIMNCB DONOHNTEbHOJ DOKyMeHTaUN.

Yacbl pa60Tbl

Co6nOdaTe pernoHaJIbHbIe npednucanra.
→ Y3haIte o pa3peWeHHbIX yacax pa6oTbIB MeCTHOM oprahe obueCTBHeHHoro npabONopraKa.

C6opka

C6opka A B C D E

Bo3bMnte Bo3IyOxyBky 3a Kopnyc n HaXMMTe KHOKNKCAUIN B
HaeneBte BepxHIOu qactb Tpy3Ha KOpnyc BO3dyXOyBKN 2.

B KOMJIeK T NOCTaBKn BXOJNT KOPOTKaA b n DnHHa A c HacaJa dIg Tpy6bl. IcnoJb3yIte INX B COOTBETCTBnN CO CneuHkoB BbINOJIHReMoI pa60Tbl.

→HadeHeTe c nobopoTOM Bbl6paHHyU HacaKy Ha Tpy6y C do qnkcaun.
3aueHnTe HnJIeHbI peM A 3a o6a KpUcKa D.

Yka3aHue

I3 coo6paqexHu 6e3onacHocMu nepeHocu me ycmpoucmeo, nepe6pocue pemehyepe3 nneyo, a He uepe3 weio.

IcnoJb3yIe OIuOHHbI rpe6eHb A e, Hapumep, IJIa OTJeHnB BnaXHbIX JNCTbeB OT y6npaemOnOBepxHOCTn.
→Дя yctaHOBK rpe6HЯ HaDbHbTe erO B 60-KOBOM HappaBHeHn Ha KpePHeHne DInHHoH NaCakN E.

YctaHObKa aKKyMyJrTOpHoi 6aTapen F

PPEyPPEKDEHNE!

HenpaBnIbHoe o6paueHne cakymyIaTropHO 6aTaapee n 3apAHyIM yCTpOINCTBOM

OnachocTb TpaBM IN NOBpeKdEHHN MyuectBa

ПочтITEи CO6JIIOДaTepyKOBODCTBO NO3KcNJIyatauINakKymJrTOpHOn 6aTapeNиЗapЯнOrOyCTpoNCTBaДЛЯ akKymJrTOpHOn6aTapeN.

Pn nomo2-CTyneHcyatoro fNkcaTopa MoxHo HactpanBaTb pa6OuH peKm nnpeKm TpaHCnOpTnpOBKn aKKymJrTOpHO 6aTapen.

Ctynehb 1

AkkymyIopHa8 6aTapeH haoDITcB peKIMe TpaHCnOpTnPOBKn.
3NeKtpnueckne KOHTaKTbI pa3BeiHHeHbI, Yem npEDoTbpaUaTcra HeKeJaTeJIbHbI CaMo- p4d aKKymJrTOpHO BatapEn BO BpeM xpaHeHn.

CtyneHb 2

AkymyTopHa 6atape HaxoNTcB pa6oempeKmE.
- 3neKtpnueckne KOHTaKtbl CoeDnHeHb, yCTpoi

CTBO TOTOBOK3KcnnlyaTaUIN.3Kcnnyatau

BknHcHne ycTpoCtBa C

C nOMOJIbIO peRyIINPOBOUHOro KOJecNka MoXHO 6ecCTyIeHHTo HAcTpONtB CKOPoCTb NOTOKa BO3dYxa.

→ YctaHOBnTe Tpe6yeMyIO CKOPoCTb NOTOKa BO3dYxac NOMOuIpopeyIINPOBOUHORO KOJecNka (1-5) 0.
→HaXMMTe BbIKHIOuHaTe
√ YcTpoIcTBo pa6OtaeT.

PexnM «Typ6o»

YcTpaHHe HEnCpPaBHOCTe

PNEyPExKdHne!

Onachoctb TpaBM IN NOBpeKdEHHa MyuieCTBa

При BO3нКНовен ComHEN Bcerda opaauTecb Cneuaan3npoBaHHyIO MaTepeckyo.
Перед каддю поверков сип понаном paбOT c устpoиCTBOM bblKIOUaHTe DBIraTeNB CHIMaIte aKKMyJIaTOpHyO 6aTapeHo.
