GAS 18 VLI Professional - Heat gun BOSCH - Free user manual and instructions

Product type	Cordless bagless vacuum cleaner
Brand	Bosch
Model	GAS 18 VLI Professional
Category	Heat gun
Power supply	18 V lithium-ion battery (battery pack)
Battery type	Lithium-ion, compatible with the Bosch 18 V system
Dust container capacity	Approx. 0.5 L (estimate)
Filtration system	HEPA filter with cover grille
Suction power	2 levels: High (max) and reduced
LED lighting	Yes, to illuminate the work area
Cleaning	Removable dust container, washable HEPA filter (brush)
Maintenance	Remove the battery before cleaning
Safety	Protection against unintentional startup (battery removal)
Included accessories	Not specified, but compatible with Bosch accessories
Weight	Approx. 1.2 kg (estimate with battery)
Dimensions (L x W x H)	Approx. 30 x 20 x 15 cm (estimate)
After-sales service	Bosch Power Tools, spare parts available at www.bosch-pt.com
Repairability	Spare parts available, Bosch customer service

Frequently Asked Questions - GAS 18 VLI Professional BOSCH

How to start and stop the vacuum cleaner?

Press the On/Off button (4) to turn on or off. The LED (2) lights up when the device is on.

How to adjust the suction power?

When starting, the power is set to 'High'. Press the button (3) to reduce power, and again to return to maximum.

How to clean the dust container?

Remove the dust container (8) by pressing the release button (1). Take out the filter (15), empty the container over a trash bin, and clean it with a damp cloth if necessary. Replace the filter and snap the container back on by applying pressure.

How to clean the HEPA filter?

Remove the dust container, take out the filter (15), unclip the cover grille (16) from the seal (17), remove the HEPA filter (18) and brush the pleats with a soft brush. Reassemble in reverse order.

What to do if suction power decreases?

Check if the dust container is full, if the filter is clogged, or if the battery is low. Clean the container and filter regularly to maintain optimal suction.

Which battery to use?

The device uses a Bosch 18 V lithium-ion battery. Charge it with the appropriate charger (not included). Remove the battery before any maintenance operation.

How to obtain spare parts?

Order parts online at www.bosch-pt.com or contact Bosch Customer Service at 0811 360 122 (France). Specify the 10-digit article number on the rating plate.

Does the vacuum cleaner have lighting?

Yes, an LED (2) lights up when the device is on to illuminate the work area in dark places.

What are the safety instructions?

Always remove the battery before cleaning the vacuum cleaner, making adjustments, or changing an accessory. Keep the device clean and the ventilation slots clear.

Where to find the complete manual?

Download the manual in PDF format at notice-facile.com. You can also request a translation into your language via the online form.

USER MANUAL GAS 18 VLI Professional BOSCH

OBJ BUCH-2315-002 book Page 1 Friday, October 28, 2016 12:24 PM

Robert Bosch Power Tools GmbH

70538 Stutgart

GERMANY

www.bosch-pt.com

16099242F4(2015.05)AS/138EURO

160992A2F4

GAS Professional

14.4V-LI|18V-LI

BOSCH

de Originaltreiborsanleitung

en Original instructions

fr Notice originate

es Manual original

pt Manual Original

OBI_BUCH-2315-002.book Page 8 Friday, October 28, 2016 12:24 PM

8 | Deutschland

OBI_BUCH-2315-002.book Page 9 Friday, October 28, 2016 12:24 PM

Deutsch|9

OBI_BUCH-2315-002.book Page 11 Friday, October 28, 2016 12:24 PM

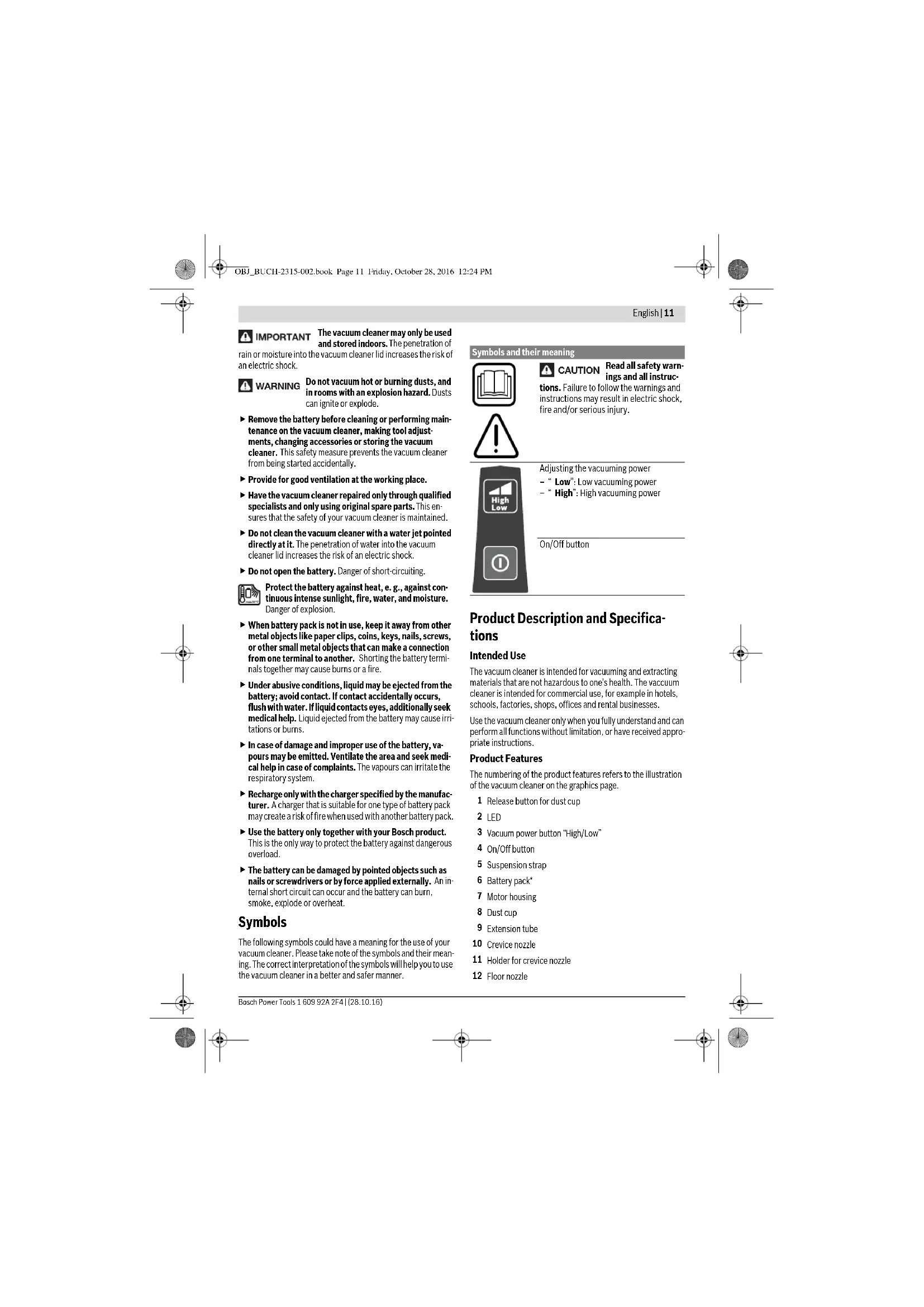

IMPORTANT The vacuum cleaner may only be used and stored indoors. The penetration of rain or moisture into the vacuum cleaner lid increases the risk of an electric shock.

WARNING Do not vacuum hot or burning dusts, and in rooms with an explosion hazard. Dusts can ignite or explode.

• Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.
  Provide for good ventilation at the working place.
  Have the vacuum cleaner repaired only through qualified specialists and only using original spare parts. This ensures that the safety of your vacuum cleaner is maintained.
• Do not clean the vacuum cleaner with a water jet pointed directly at it. The penetration of water into the vacuum cleaner lid increases the risk of an electric shock.
  Do not open the battery. Danger of short circuiting.

Protect the battery against heat, e.g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritations or burns.
In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Use the battery only together with your Bosch product. This is the only way to protect the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

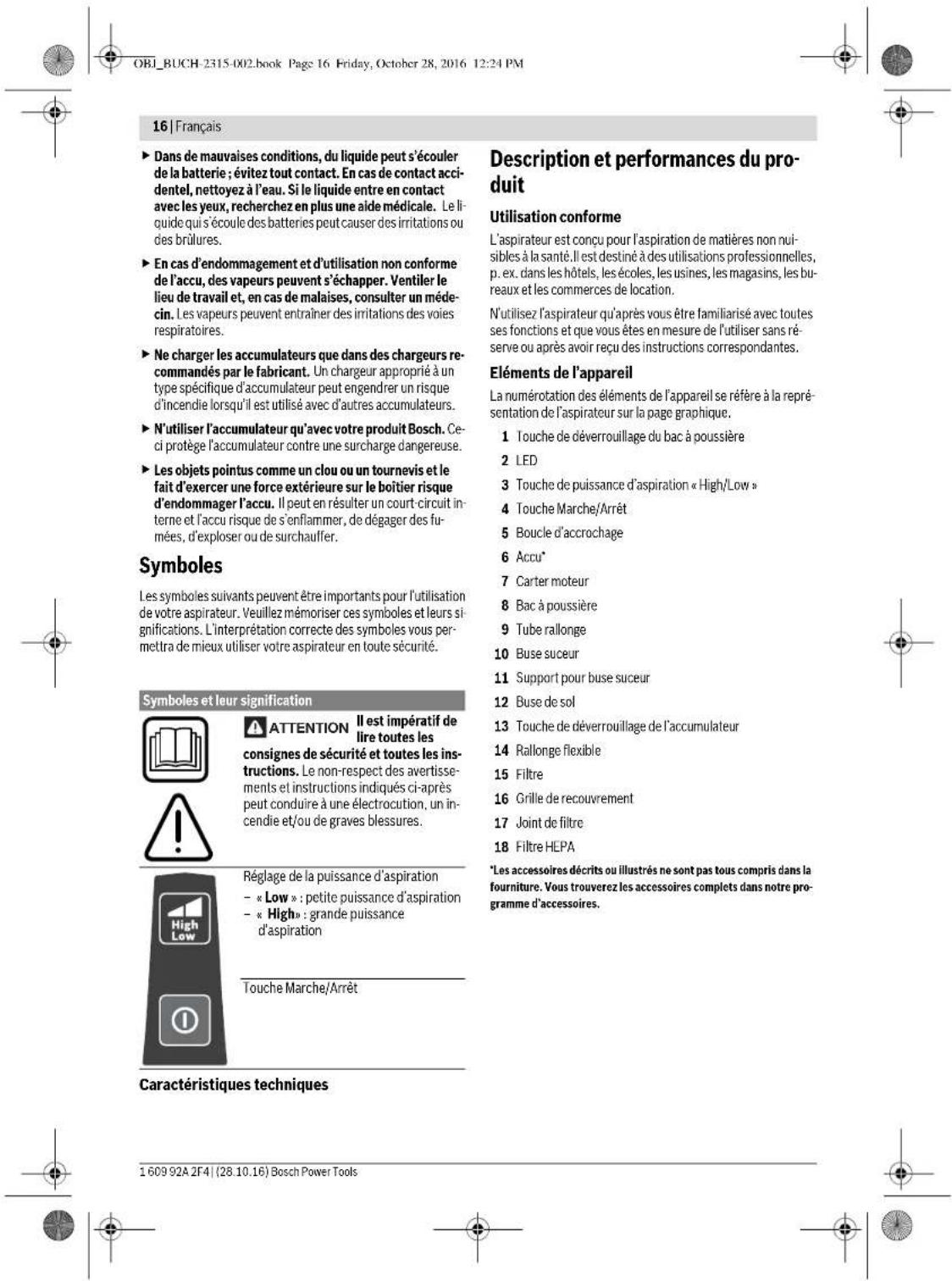

Symbols

The following symbols could have a meaning for the use of your vacuum cleaner. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the vacuum cleaner in a better and safer manner.

Symbols and their meaning

CAUTION Read all safety warnings and all instruc

tions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Adjusting the vacuuming power
- Low: Low vacuuming power
- High: High vacuuming power

On/Off button

Product Description and Specifications

Intended Use

The vacuum cleaner is intended for vacuuming and extracting materials that are not hazardous to one's health. The vacuum cleaner is intended for commercial use, for example in hotels, schools, factories, shops, offices and rental businesses.

Use the vacuum cleaner only when you fully understand and can perform all functions without limitation, or have received appropriate instructions.

Product Features

The numbering of the product features refers to the illustration of the vacuum cleaner on the graphics page.

1 Release button for dust cup
2 LED
3 Vacuum power button "High/Low"
4 On/Off button
5 Suspension strap
6 Battery pack
7 Motor housing
8 Dust cup
9 Extension tube

10 Crevice
11 Holder for crevice nozzle
12 Floor nozzle

Bosch Power Tools 1609 92A 2F4(28.10.16)

OBI_BUCH-2315-002.book Page 13 Friday, October 28, 2016 12:24 PM

English|13

The combination possibilities of the various vacuum cleaner accessories can be viewed in the figure.

• Connect the vacuum cleaner accessories firmly to the connection at the dust cup 8 and in to each other.

Operation

• Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.

Starting Operation

Before vacuuming, ensure that the filter assembly is assembled securely.
- Only use an undamaged filter (no cracks, small holes, etc.). Replace a damaged filter immediately.

Switching On and Off

To save energy, only switch the vacuum cleaner on when using it.

Toswitch on the vacuum cleaner, press the On/Off button 4. The LED 2 lights up when the vacuum cleaner is switched on and enables the illumination of the work area in poor visibility.
- Toswitch off the vacuum cleaner, press the On/Off button4 again.

Adjusting the vacuuming power

After switching on, the "High" vacuuming power stage is set by default.

• Press button 3 for low vacuuming power.
• To switch back to high vacuuming power, press button 3 again.

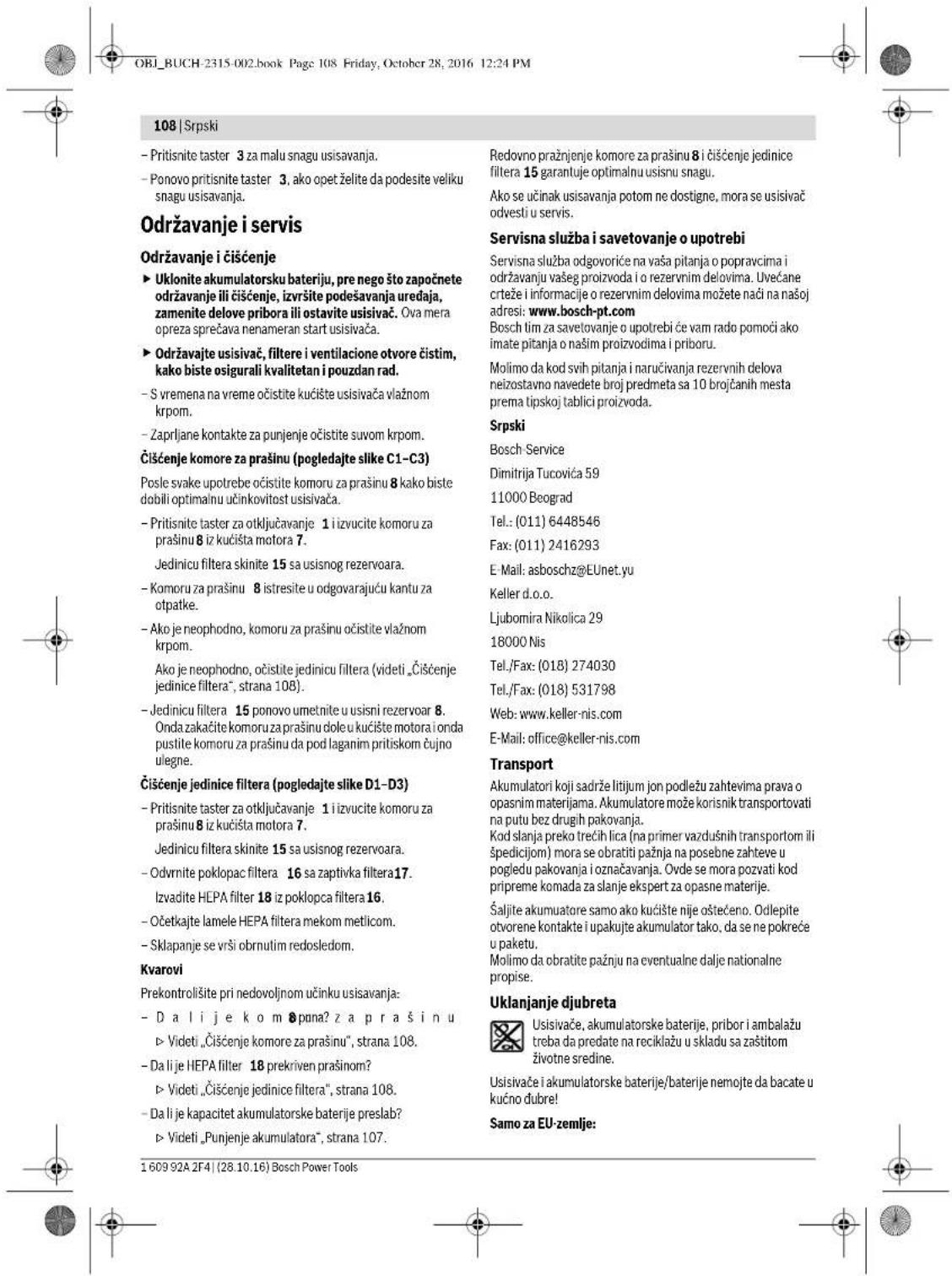

Maintenance and Service

Maintenance and Cleaning

• Remove the battery before cleaning or performing maintenance on the vacuum cleaner, making tool adjustments, changing accessories or storing the vacuum cleaner. This safety measure prevents the vacuum cleaner from being started accidentally.
  For safe and proper working, always keep the vacuum cleaner, the filter assembly and the ventilation slots clean.
  Clean the vacuum cleaner housing from time to time using a moist cloth.
  Clean soiled charger contacts using a dry cloth.

Cleaning the Dust Cup (see figures C1-C3)

To maintain the optimum performance of the vacuum cleaner, clean the dust cup 8 after each use.
- Press release button 1 and remove the dust cup 8 from the motor housing 7.

Remove the filter assembly 15 from the dust cup.

• Shake/tap out the dust cup 8 over a suitable waste bin.
• If required, clean the dust cup with a moist cloth.

If required, clean the filter assembly (see "Cleaning the Filter Assembly", page 13).

Reinsert the filter assembly 15 into the dust cup 8.
Afterwards, hang the dust cup at the bottom into the motor housing, apply light pressure until the dust cup can be heard to engage.

Cleaning the Filter Assembly (see figures D1-D3)

• Press release button 1 and remove the dust cup 8 from the motor housing 7.
  Remove the filter assembly 15 from the dust cup.
• Remove the filter cover 16 from the filter seal 17.
  Remove the HEPA filter18 from filter cover 16.
• Brush off the lamellas of the HEPA filter with a soft hand brush.
  Assembly is carried out in reverse order.

Malfunctions

In the case of insufficient vacuuming performance, check the following:
Is the dust cup 8 full?

See "Cleaning the Dust Cup", page 13.

Is the HEPA filter 18 clogged with dust?
See "Cleaning the Filter Assembly", page 13.

• Is the capacity of the battery pack too low?

See "Battery Charging", page12.

Regular emptying of the dust cup 8 and cleaning of the filter assembly 15 ensures optimal vacuum capacity.

If the vacuuming performance is not achieved thereafter, take the vacuum cleaner to customer service.

After-sales Service and Application Service

Our after sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

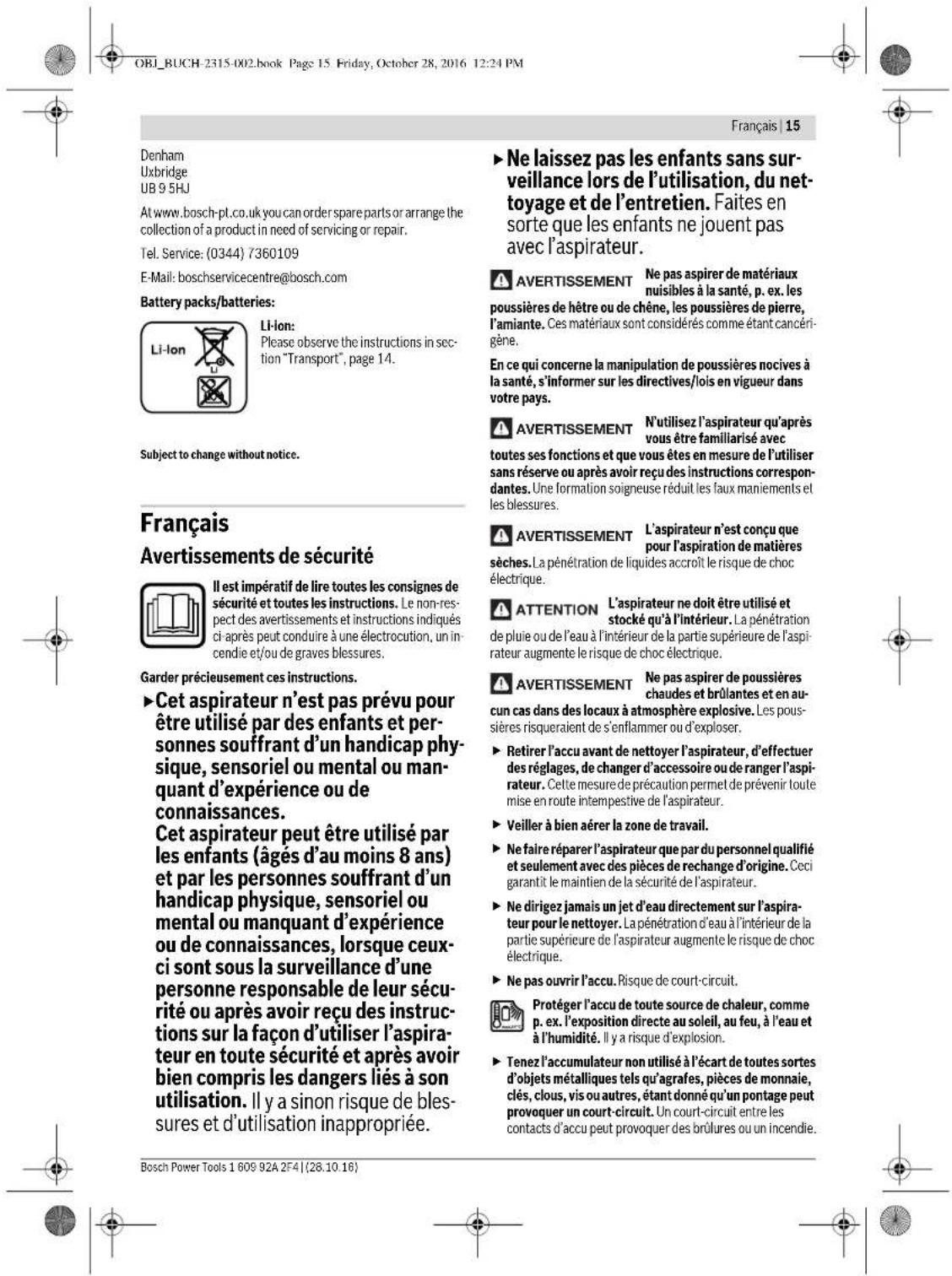

Great Britain
