Product type	Electronic battery charger
Brand	Black & Decker
Model	BXAE00022
Input voltage	220-240 V AC, 50/60 Hz
Charging voltage	6 V / 12 V
Charging current	1 A / 4 A
Compatible battery capacity	4 to 120 Ah
Compatible battery types	Lead-acid, wet, GEL, AGM (Start&Stop, Spiral)
Protection rating	IP65
Operating temperature	-10°C to +40°C
Storage temperature	-20°C to +50°C
Minimum detectable battery voltage	0.8 V
Charging cycles	Automatic with mode selection (6V/12V, current, battery type)
Safety functions	Spark protection, short-circuit protection, reverse polarity protection, overheating protection, voltage compensation
LED indicators	Power (green), charging (orange), full charge (green), fault (red), reverse polarity (red)
Automatic resume after power failure	Yes, retains settings for up to 12 hours
Supplied accessories	Cable with 30 A crocodile clips (ref. BXAE00025), cable with 6 mm rings and cap
Usage	Indoor, ventilated space, flat surface
Maintenance	Clean the exterior casing with a soft cloth; store in a dry place
Warranty	2 years limited (manufacturing and material defects)

Frequently Asked Questions - BXAE00022 BLACK & DECKER

What types of batteries can I charge with the BXAE00022?

This charger is designed for lead-acid batteries of 6V or 12V, including wet, GEL, AGM (Start&Stop and Spiral) batteries.

How do I select the correct charging mode?

Press the selection button to choose the voltage (6V/12V), current (1A/4A) and battery type (wet/GEL or AGM). The process starts automatically.

What does the flashing orange light mean?

An orange flashing light indicates a very low battery voltage. The charger attempts to recover the battery automatically.

How do I know if the battery is fully charged?

The Full LED lights up solid green when the battery reaches 100% charge. The charger then switches to maintenance mode.

Can I leave the charger connected permanently?

Yes, once full charge is reached, the charger switches to maintenance mode to keep the battery at an optimal level without overcharging.

What should I do if the red 'Fault' LED lights up?

This indicates a problem with the battery (voltage too high, excessive capacity, or faulty battery). Check the compatibility and condition of the battery.

How to protect the charger from reverse polarity?

The charger is equipped with reverse polarity protection. If the clips are incorrectly connected, the red 'REVERSE' LED lights up.

Is the charger waterproof?

Yes, it has an IP65 protection rating, which protects against dust and water splashes.

How to clean and maintain the charger?

Unplug the charger and clean the casing with a soft cloth. Store it in a dry place away from humidity.

What to do in case of a power outage during charging?

The charger records the current cycle and automatically resumes when power is restored (settings retained for up to 12 hours).

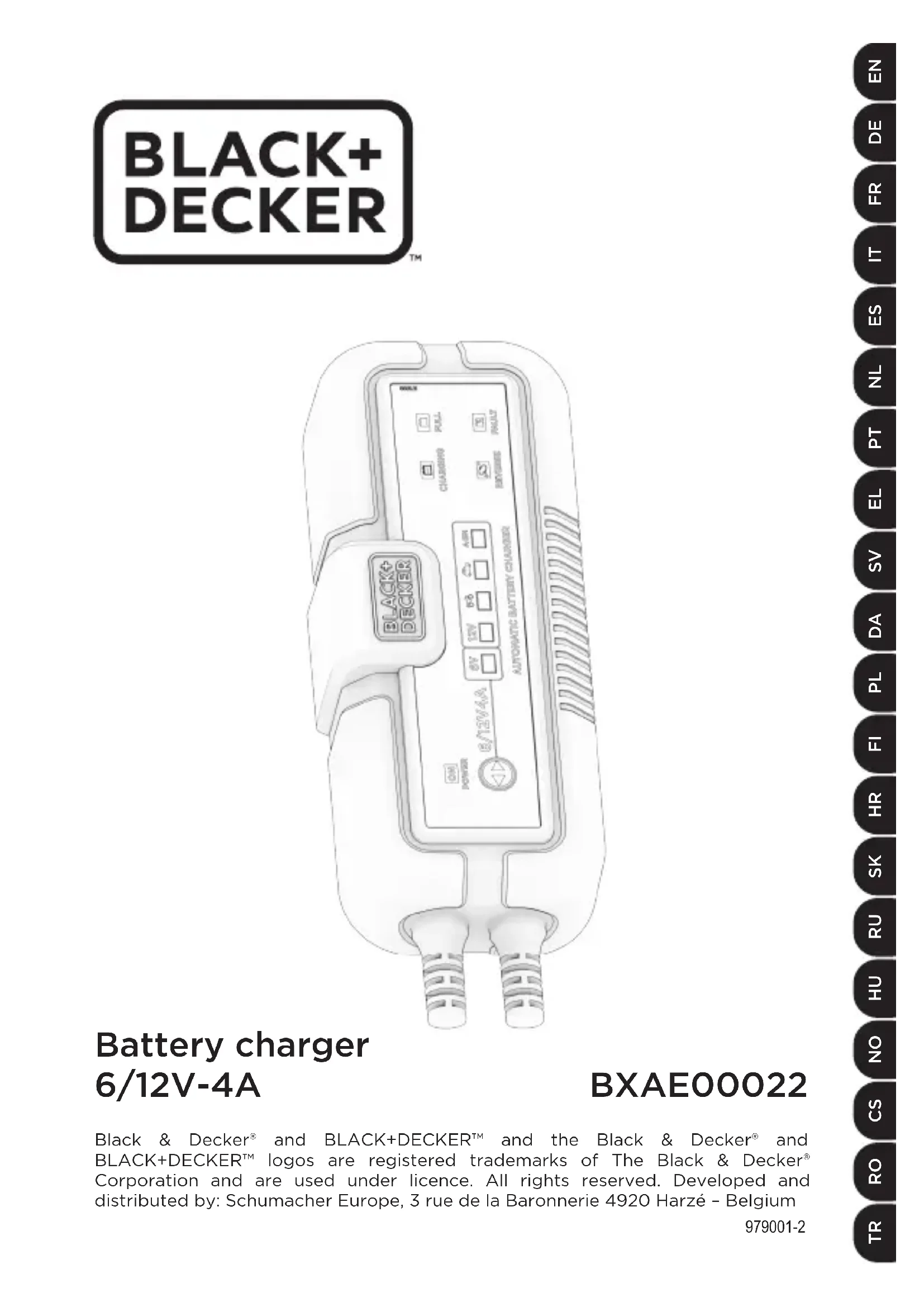

USER MANUAL BXAE00022 BLACK & DECKER

BLACK+ DECKER™

BLACK+ DECKER POWER 8V 12V 50 AIR EASY/856 AUTOMATIC BATTERY CHANGER BOLL CHARGERS PULL PAAU

Battery charger 6/12V-4A

BXAE00022

Black & Decker® and BLACK+DECKER™ and the Black & Decker® and BLACK+DECKER™ logos are registered trademarks of The Black & Decker® Corporation and are used under licence. All rights reserved. Developed and distributed by: Schumacher Europe, 3 rue de la Baronnerie 4920 Harzé - Belgium

979001-2

EN - English

Instructions for use

1. CAUTION

PLEASE READ THE INSTRUCTIONS AND SAFETY GUIDELINES CAREFULLY BEFORE USE. KEEP THESE INSTRUCTIONS.

This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully.

1.1. IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS

This manual contains important safety and operating instructions.

WARNING: Only use the charger to recharge 6V or 12V rechargeable lead-acid batteries. Do not use it for any other purpose. Do not use with non-rechargeable batteries. This charger is designed for use only with a supply voltage of 220V-240V, 50/60Hz circuit.

The charger is suitable for indoor use only, in a well-ventilated area and on a flat surface.

Two triangular warning symbols: lightning bolt symbol and flame symbol, commonly used in safety or hazard prevention contexts.

RISK OF ELECTRIC SHOCK OR FIRE.

1. Keep out of reach of children.
2. This charger is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the charger by a person responsible for their safety.
3. The charger must be kept in a dry area away from liquids. Do not expose the charger to rain or snow.
4. Use only recommended attachments. Use of an attachment not recommended or sold by the manufacturer may result in a risk of fire, electric shock or injury to persons or damage to property.
5. Connect and disconnect charging connectors (clamps, eyelets, cigarette lighter plug...) only after removing AC cord from the mains.
6. Never pull on the AC cord to remove the AC plug from the mains. This may damage the cord or the plug.
7. Unplug the charger from the outlet before attempting any maintenance or cleaning.
8. Do not operate the charger with a damaged mains cable or output lead; have the damaged part replaced immediately by a qualified service person.
9. Do not disassemble the charger; take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.
10. Never put the charger on top of the battery while charging it.
11. Do not attempt to charge a damaged battery

1.2. PERSONAL PRECAUTIONS

RISK OF EXPLOSIVE GASES. A SPARK NEAR THE BATTERY MAY CAUSE A BATTERY EXPLOSION. RISK OF CONTACT WITH BATTERY ACID. BATTERY ACID IS A HIGHLY CORROSIVE SULFURIC ACID.

1. Explosive gases can be emitted during the charging duration.
2. NEVER smoke or allow a spark or flame in the vicinity of a battery.
3. Never charge a frozen battery.
4. Remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid battery. A lead-acid battery can produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn.
5. Be extra cautious, to reduce the risk of dropping a metal tool onto the battery. It might spark or short-circuit the battery or other electrical part that may cause an explosion.
6. To prevent sparking, NEVER allow clamps to touch together or contact the same piece of metal.
7. Wear protective clothes, gloves and goggles to use the charger. Avoid touching your eyes while working near the battery.
8. If battery acid contacts your skin or clothing, immediately wash the area with soap and water. If acid enters your eye, immediately flood the eye with cold running water for at least 10 minutes and get medical attention right away.
9. If battery acid is accidentally swallowed, drink milk, the whites of eggs or water. DO NOT induce vomiting. Seek medical attention immediately.
10. Read, understand and follow all instructions for the charger, battery, vehicle and any equipment used near the battery and the charger.
11. Determine the voltage of the battery by referring to the vehicle owner's manual and make sure that the output voltage of the charger is correct.

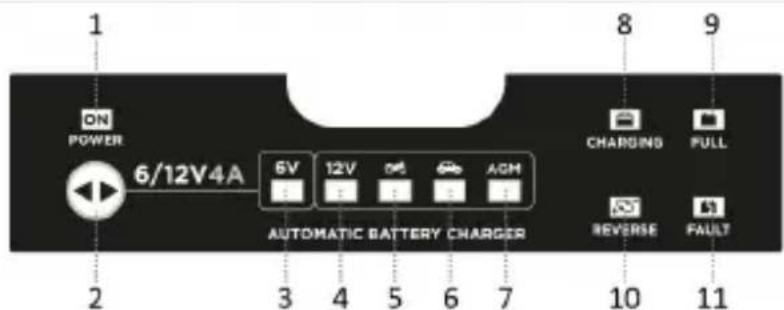

2. Description

ON POWER 6/12V4A 6V 12V ACM AUTOMATIC BATTERY CHARGER CHARGING FULL REVERSE FAULT 1 2 3 4 5 6 7 8 9 10 11

Two black cable connectors with attached wires, labeled 12 and 13 (no text or symbols on the cables themselves)

1.	Power LED - Green: the charger is connected to the AC power (mains).
2.	Selection push button to choose the charging parameters.
3.	Mode for 6V battery
4.	Mode for 12V battery
5.	Charging current for batteries: from 4Ah to 30Ah.Maintenance mode for batteries: from 4Ah to 70Ah.Suitable for charging WET or GEL batteries.
6.	Charging current for batteries: from 30Ah to 80Ah.Maintenance mode for batteries: from 30Ah to 120Ah.Suitable for charging WET or GEL batteries.
7.	Mode for charging AGM-START&STOP and AGM-SPIRAL batteries.
8.	Charge LED indicator (orange).
9.	Full LED: lightening up green when fully charged.
10.	Reverse polarity LED (red).
11.	Fault LED: lightening up when there is an issue with the battery (red).
12.	Output lead: Cable with clamps 30A - Ref: BXAE00025.
13.	Output lead: Cable with rings 6mm and protective, insulating, watertight cap.

2.1. Technical specifications

Reference	BXAE00022
Model	Charger 6/12V-4A
Voltage (Mains)	220~240V AC 50/60Hz
Charging voltage	6V / 12V
Charging current	1A / 4A
Battery size	4Ah to 120Ah batteries
Operating temperature	-10° to +40°C
Storage temperature	-20° to +50°C
IP indication	IP65
Minimum battery voltage	0,8V

2.2. Battery types

This electronic battery charger is designed to charge all types of lead batteries, conventional batteries and batteries of the latest generation. This battery charger is ideal for both everyday use, as a key working tool, and extensive charging cycles. All charging parameters are set using the charge function key on the control panel.

2.3. Charge cycles

The charge cycles of the battery charger have been specially developed to optimize the charge of all types of batteries currently available in the market. The numerous constructional technologies of currently available batteries require different charging curves to ensure correct and complete charging. This battery charger extends the lives of your batteries because it provides each with the proper charge cycle.

2.4. Interruption of the charge cycle

In case of blackouts in the 230V mains, the battery charger saves the work cycle it was performing in order to restore it automatically as soon as the power supply of the 230V mains is restored. This function is crucially important if the battery charger is used to charge batteries without the operator supervising the cycle; for example, during very long work cycles (maintenance charges) or when charging overnight (charges for vehicles that need to be charged daily). The set parameters are stored for 12 hours; after 12 hours the battery charger will resume charging with the default parameters.

2.5. Safety devices

The battery charger is equipped with safety devices to ensure the utmost safety during use and operation.

■ Full protection against sparks
■ Protection against short-circuits
■ Voltage compensation
■ Protection against overheating
■ Protection against polarity reversal
■ High protection rating against external agents, IP65

2.6. Battery tests and error indications

The battery charger is designed to determine the battery's condition before and while charging, and inform about any connection faults between the battery charger and the battery to charge.

LED / Icon /Error		CAUSE	SOLUTION
		Very low battery.	Charger is trying to recover the battery.
→ Blink
		The clamps/rings of the output lead are not connected correctly to the battery. Polarity reversal.	Position the clamps/rings correctly and start charging the battery again.
		Battery voltage too high.You are attempting to charge a 24V battery with the charger settled at 12V or you are attempting to charge a 12V battery with the charger settled at 6V.	Check the battery voltage.
→ Blink		Battery capacity excessive.	Use battery charger with greater charging capacity.
		Battery cannot maintain a good level of charge.	The battery may be defective.Contact your battery service center.
		Battery flat.	Press the button again, to restart charging, and try to recover the battery.
		The battery may be defective.	Contact your battery service center.
		Battery unrecoverable after a complete desulfurization cycle.	The battery may be defective.Contact your battery service center.
Battery charge don’t start the charging process and no fault indicator lights on.	Leads disconnected, leads short-circuited.	Position the clamps/rings correctly and start charging the battery again.
	Battery completely short-circuited.	The battery may be defective. Contact your battery service center.

3. Instructions manual

Turn OFF ignition (heating, lighting...) before using the charger when battery is installed in the vehicle. Clean the battery terminals before using the charger.

Silhouette of a person reading a document beside a car (no text or symbols)

3.1. Charging a battery

1. Before connecting the charger: make sure that the power supply lead is not plugged into the mains!
2. Connection to the battery

Check first if the negative terminal is connected/grounded to the chassis. If not, contact your reseller.

Connect the outlet cable to the charger.

■ Output cable with clamps

Connect the red clamp (+) to the positive terminal (+) of the battery, then connect the black clamp (-) to the earth/chassis of the vehicle (a heavy gauge metal part of the frame or engine block. Do not connect to the carburetor or fuel lines).

■ Output cable with rings

Loosen and remove each nut from the bolts at the battery terminals. Connect the positive ring (+) to the positive terminal (+) of the battery, then connect the negative ring (-) to the negative (-) terminal of the battery. Replace and tighten back the nuts to secure them.

In both cases: make sure that the charger outlet lead make tight connections.

1. Connection to the mains

Plug the power supply lead of the battery charger into the mains.

The power LED "ON" is lighting up green = "Stand by" mode.

1. Selection of the charging mode

Press the button once to activate the unit, and then choose the charging parameters, for the type of battery and the charging current by pushing the selection push button. The charging process will start automatically.

Different possibilities:

Voltage	Current/Type
		Charge for 12V batteries: 4Ah to 30Ah.Maintenance charge for 12V batteries: 4Ah to 70Ah.
		Suitable for charging WET or GEL batteries.
		Charge for 12V batteries: 30Ah to 80Ah.Maintenance charge for 12V batteries: 30Ah a 120Ah.Suitable for charging WET or GEL batteries.
		Charge for 12V batteries: 30Ah to 80Ah.Maintenance charge for 12V batteries: 30Ah a 120Ah.Suitable for charging AGM-START&STOP and AGM-SPIRAL.
		Charge for 6V batteries: 4Ah to 30Ah.Maintenance charge for 6V batteries: 4Ah to 70Ah.Suitable for charging WET or GEL batteries.

5. End of charging

Unplug the AC power supply lead of the charger from the mains.

6. Disconnect the output lead

Disconnect first the negative outlet lead from negative (-) terminal of the battery of from the earth/chassis, then the positive outlet lead of the positive (+) terminal.

3.2. Charge indicators description

	The charging orange LED lights on: the battery is charging.
	The charging orange LED blinks: the voltage of the battery is very low.The charger is trying to recover the battery.
	The full green LED lights on: the battery is fully charged (100%); the battery charger will switch to the maintenance step, keeping the state of efficiency of the battery constantly monitored, so that it is always at an optimal level of charge.

3.3. Storage

When the battery charger is not being used, it must be stored in a dry place to protect it against humidity. Disconnect the battery charger and use a soft cloth to clean its outer casing.

4. Warranty

Schumacher Europe, Belgium, offers a limited warranty for the benefit of the original purchaser of this product. The warranty is not transferable. The warranty applies to manufacturing and material faults during a two-year period from the date of purchase. To benefit from the guarantee, the purchaser is required to return the device with proof of purchase to the place of purchase. The devices on which will have been seen any abuse, improper use or improper handling or modifications, as well as entrusting the device to be repaired to third parties other than authorized representatives will void the warranty. Schumacher Europe gives no other guarantee than this limited warranty and expressly excludes all implied warranties, including warranties against indirect damage. Schumacher Europe is not bound by any other guarantee which exceeds the scope of this limited warranty.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

1. VORSICHT

Two triangular warning symbols: lightning bolt symbol and flame symbol, commonly used in safety or hazard prevention.

GEFAHR EINES STROMSCHLAGS ODER BRANDES.

Two black cable connectors with attached wires, labeled 12 and 13 (no text or symbols on the cables themselves)

Silhouette of a car with a person reading a document inside a circle (no text or symbols)

Two triangular warning symbols: lightning bolt and flame symbol

RISQUE D'ÉLECTROCUTION OU D'INCENDIE.

Two types of electrical connectors with visible wiring and connectors, labeled 12 and 13 (no text or symbols on the devices themselves)

Silhouette of a car with a person reading a document inside a circle (no text or symbols)

Two triangular warning symbols: a lightning bolt symbol and a flame symbol, indicating electrical hazard or hazard.

RISCHIO DI SCOSSE ELETTRICHE O DI INCENDIO.

Two types of electrical connectors with labeled parts (12 and 13), no visible text or symbols on the devices themselves.

Silhouette of a car with a person holding a document inside a circle (no text or symbols)

Two black cable connectors with attached wires, labeled 12 and 13 (no text or symbols on the cables themselves)

Silhouette of a car with a person reading a document inside a circle (no text or symbols)

CHARGING FULL

Two triangular warning symbols: lightning bolt and flame symbol, commonly used in safety or hazard prevention contexts.

RISICO OP ELEKTRISCHE SCHOK OF BRAND.

Warning symbols including explosion triangle, sunglasses face, and gloves

RISICO VAN EXPLOSIEVE GASSEN. EEN VONK IN DE BUURT VAN DE ACCU KAN HET ONTPLOFFEN VAN DE ACCU VEROORZAKEN.

RISICO OP CONTACT MET ACCUZUUR. ACCUZUUR IS EEN ZEER BIJTEND ZWAVELZUUR.

Two types of electrical connectors with visible wires, labeled 12 and 13 (no text or symbols on the devices themselves)

Silhouette of a person reading a document beside a car (no text or symbols)

3.1. Een accu opladen

CHARGING FULL

Two triangular warning symbols: lightning bolt symbol and flame symbol, commonly used in safety or hazard prevention contexts.

RISCO DE CHOQUE ELÉCTRICO OU INCÊNDIO.

Two black cable connectors with labeled parts, no visible text or symbols on the cables themselves.

Silhouette of a car with a person holding a document inside a circle (no text or symbols)

Two types of electrical connectors with visible wires, labeled 12 and 13 (no text or symbols on the devices themselves)

Silhouette of a person reading a document inside a car, enclosed in a circle (no text or symbols)

Two triangular warning symbols: a lightning bolt symbol and a flame symbol, commonly used in safety or hazard prevention.

RISKER FÖR ELSTÖT OCH BRAND.

Warning symbols including a triangular warning triangle, a person wearing sunglasses, and a pair of gloves

RISK FÖR EXPLOSIVA GASER GNISTOR NÄRA BATTERIET KAN ORSAKA BATTERIEXPLOSION RISK FÖR KONTAKT MED BATTERISYRA. BATTERISYRA ÄR EN MYCKET FRÄTANDE SVAVELSYRA.

Two black cable connectors with attached wires, labeled 12 and 13 (no text or symbols on the cables themselves)

Silhouette of a person reading a document inside a car, enclosed in a circle (no text or symbols)

3.1. Ladda

Two black cable connectors with attached wires, labeled 12 and 13 (no visible text or symbols on the devices themselves)

Silhouette of a car with a person holding a document inside a circle (no text or symbols)

CHARGING FULL

Den orange lade-LED lyser: Batteriet oplades.

Two triangular warning symbols: a lightning bolt symbol and a flame symbol, commonly used in safety or hazard prevention contexts.

RYZYKO PORAŻENIA PRĄDEM I WYSTĄPIENIA POŻARU.

Two types of electrical connectors with visible wiring and terminal blocks, labeled 12 and 13 (no text or symbols on the devices themselves)

Silhouette of a car with a person holding a document, enclosed in a circle (no text or symbols)

Two black cable connectors with attached wires, labeled 12 and 13 (no visible text or symbols on the devices themselves)

Silhouette of a car with a person holding a document inside a circle (no text or symbols)

Two triangular warning symbols: lightning bolt and flame symbol, commonly used in safety or hazard prevention contexts.

OPASNOST OD ELEKTRIČNOG UDARA ILI POŽARA.

Warning symbols including a triangular warning triangle, a person wearing sunglasses, and a pair of gloves with their hands.

RIZIK OD EKSPLOZIVNIH PLINOVA. ISKRA PORED AKUMULATORA MOŽE UZROKOVATI NJEGOVU EKSPLOZIJU.

RIZIK OD DODIRA S AKUMULATORSKOM KISELINOM. KISELINA IZ AKUMULATORA JE JAKO NAGRIZAJUĆA SUMPORNA KISELINA.

Two types of electronic devices with black cables and connectors, labeled 12 and 13 (no visible text or symbols on the devices themselves)

Silhouette of a car with a person holding a document inside a circle (no text or symbols)

3.1. Punjenje akumulatora

1.1. DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY – TENTO NÁVOD USCHOVAJTE

Two triangular warning symbols: lightning bolt symbol and flame symbol, commonly used in safety or hazard prevention contexts.

NEBEZPEČENSTVO ÚRAZU ELEKTRICKÝM PRÚDOM ALEBO POŽIARU.

Two black cable connectors with attached wires, labeled 12 and 13 (no text or symbols on the cables themselves)

1. LED napájania - zelená: nabíjačka je pripojená k AC napájaniu (elektrickej sieti).
2. Tlačidlo výberu na zvolenie parametrov nabíjania.

Silhouette of a car with a person holding a document inside a circle (no text or symbols)

Two triangular warning symbols: lightning bolt symbol and flame symbol, commonly used in safety or hazard prevention contexts.

Two types of electrical connectors with wires, labeled 12 and 13 (no visible text or symbols on the devices themselves)

Silhouette of a person reading a document beside a car (no text or symbols)

Two triangular warning symbols: a lightning bolt symbol and a flame symbol, commonly used in safety or hazard prevention contexts.

ÁRAMÜTÉS VAGY TÜZ VESZÉLYE.

Two types of electrical connectors with labeled parts (12 and 13), no visible text or symbols on the devices themselves.

Silhouette of a car with a person holding documents inside a circle (no text or symbols)

Silhouette of a car with a person holding a document inside a circle (no text or symbols)

CHARGING FULL

Den oransje LED-ladelampen lyser: batteriet lades.

Two triangular warning symbols: lightning bolt and flame symbol, commonly used in safety or hazard prevention contexts.

RIZIKO ÚRAZU ELEKTRICKÝM PROUDEM NEBO POŽÁRU

Two black cable connectors with attached plug connectors, labeled 12 and 13 (no text or symbols on the cables themselves)

Silhouette of a car with a person holding a document inside a circle (no text or symbols)

Two triangular warning symbols: a lightning bolt symbol and a flame symbol, commonly used in safety or hazard prevention.

RISC DE ŞOC ELECTRIC SAU INCENDIU.

Two types of electrical connectors with labeled parts (12 and 13), no visible text or symbols on the devices themselves.

Silhouette of a person reading a document beside a car (no text or symbols)

Two triangular warning symbols: a lightning bolt symbol and a flame symbol, commonly used in safety or hazard prevention contexts.

ELEKTRİK ÇARPMASI VEYA YANGIN RİSKİ.

Two types of electrical connectors with visible wires, labeled 12 and 13 (no text or symbols on the devices themselves)

Silhouette of a car with a person reading a document inside a circle (no text or symbols)

3.1. Pili şarj etme
