USER MANUAL UC 18YGL2 HiKOKI

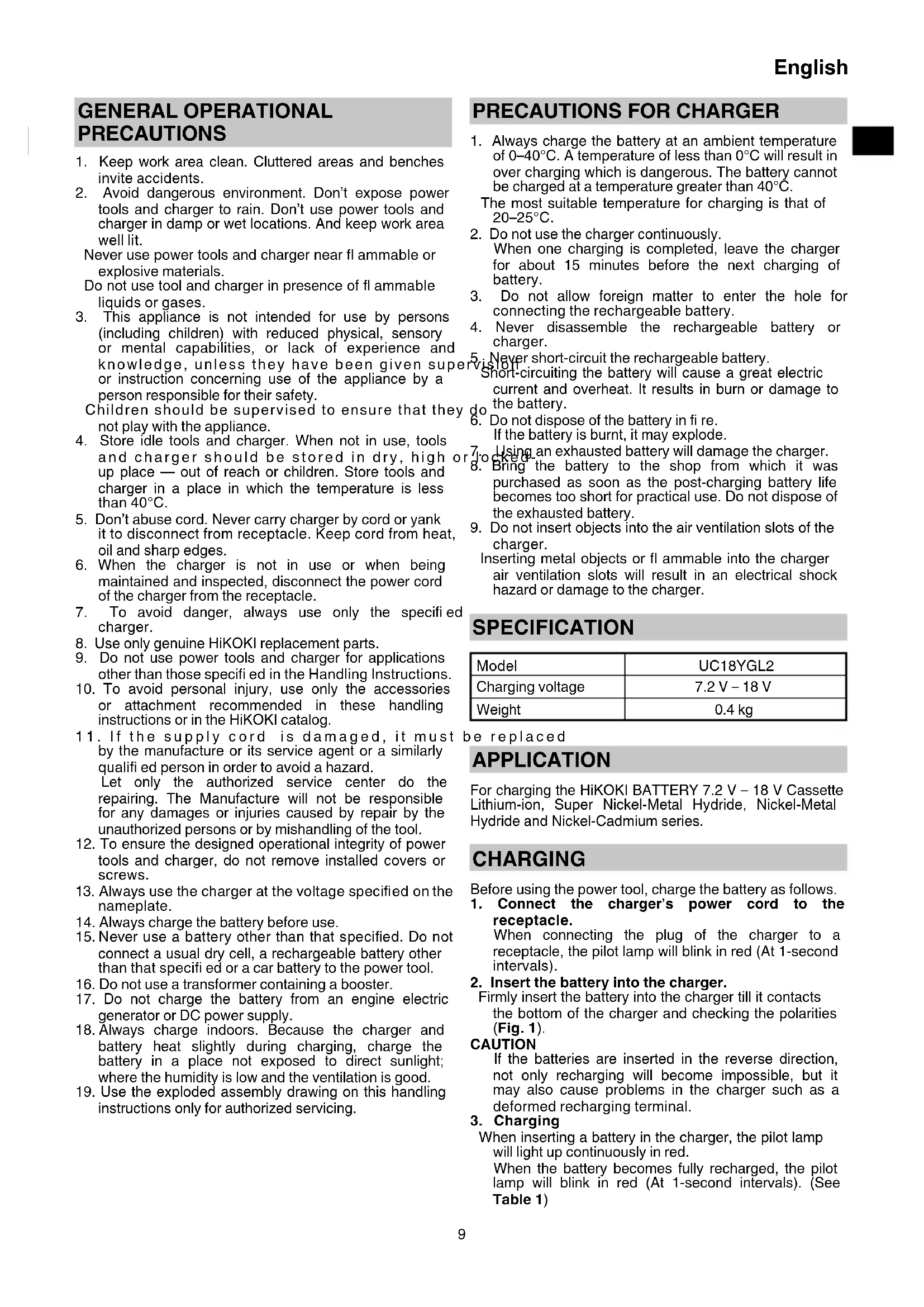

1. Keep work area clean. Cluttered areas and benches

tools and charger to rain. Don’t use power tools and charger in damp or wet locations. And keep work area well lit. Never use power tools and charger near fl ammable or explosive materials. Do not use tool and charger in presence of fl ammable liquids or gases.

3. This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

4. Store idle tools and charger. When not in use, tools

and charger should be stored in dry, high or locked- up place — out of reach or children. Store tools and charger in a place in which the temperature is less than 40°C.

5. Don’t abuse cord. Never carry charger by cord or yank

it to disconnect from receptacle. Keep cord from heat, oil and sharp edges.

6. When the charger is not in use or when being

maintained and inspected, disconnect the power cord of the charger from the receptacle.

8. Use only genuine HiKOKI replacement parts.

9. Do not use power tools and charger for applications

other than those specifi ed in the Handling Instructions.

10. To avoid personal injury, use only the accessories

or attachment recommended in these handling instructions or in the HiKOKI catalog.

11. If the supply cord is damaged, it must be replaced

by the manufacture or its service agent or a similarly qualifi ed person in order to avoid a hazard. Let only the authorized service center do the repairing. The Manufacture will not be responsible for any damages or injuries caused by repair by the unauthorized persons or by mishandling of the tool.

12. To ensure the designed operational integrity of power

tools and charger, do not remove installed covers or screws.

13. Always use the charger at the voltage specifi ed on the

14. Always charge the battery before use.

15. Never use a battery other than that specifi ed. Do not

connect a usual dry cell, a rechargeable battery other than that specifi ed or a car battery to the power tool.

16. Do not use a transformer containing a booster.

17. Do not charge the battery from an engine electric

generator or DC power supply.

18. Always charge indoors. Because the charger and

battery heat slightly during charging, charge the battery in a place not exposed to direct sunlight; where the humidity is low and the ventilation is good.

19. Use the exploded assembly drawing on this handling

instructions only for authorized servicing.

PRECAUTIONS FOR CHARGER

1. Always charge the battery at an ambient temperature

of 0–40°C. A temperature of less than 0°C will result in over charging which is dangerous. The battery cannot be charged at a temperature greater than 40°C. The most suitable temperature for charging is that of 20–25°C.

2. Do not use the charger continuously.

When one charging is completed, leave the charger for about 15 minutes before the next charging of battery.

3. Do not allow foreign matter to enter the hole for

connecting the rechargeable battery.

4. Never disassemble the rechargeable battery or

5. Never short-circuit the rechargeable battery.

Short-circuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

6. Do not dispose of the battery in fi re.

If the battery is burnt, it may explode.

7. Using an exhausted battery will damage the charger.

8. Bring the battery to the shop from which it was

purchased as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

9. Do not insert objects into the air ventilation slots of the

charger. Inserting metal objects or fl ammable into the charger air ventilation slots will result in an electrical shock hazard or damage to the charger. SPECIFICATION Model UC18YGL2 Charging voltage 7.2 V – 18 V Weight 0.4 kg APPLICATION For charging the HiKOKI BATTERY 7.2 V – 18 V Cassette Lithium-ion, Super Nickel-Metal Hydride, Nickel-Metal Hydride and Nickel-Cadmium series. CHARGING Before using the power tool, charge the battery as follows.

1. Connect the charger’s power cord to the

receptacle. When connecting the plug of the charger to a receptacle, the pilot lamp will blink in red (At 1-second intervals).

2. Insert the battery into the charger.

Firmly insert the battery into the charger till it contacts the bottom of the charger and checking the polarities (Fig. 1). CAUTION If the batteries are inserted in the reverse direction, not only recharging will become impossible, but it may also cause problems in the charger such as a deformed recharging terminal.

When inserting a battery in the charger, the pilot lamp will light up continuously in red. When the battery becomes fully recharged, the pilot lamp will blink in red (At 1-second intervals). (See Table 1) 000BookUC18YGL2.indb9000BookUC18YGL2.indb9 2019/10/0517:23:402019/10/0517:23:4010 English Table 1 Indications of the pilot lamp Pilot lamp (red) Before charging Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) While charging Lights Lights continuously Charging complete Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Overheat standby Blinks Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds) Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible Flickers Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds) Malfunction in the battery or the charger (2) Regarding the temperatures and charging time of the rechargeable battery The temperatures and charging time will become as shown in Table 2 Table 2 Charger Battery UC18YGL2 Charging voltage V

– 18 Type of battery Ni-Cd Ni-MH Li-ion Temperatures at which the battery can be recharged -5oC – 55oC-5oC – 50oC0oC – 50oC Charging time for battery capacity, approx. (At 20oC)

Number of battery cells

3.0/4.0 Ah : 8 18 V pcs. 15 15 1.5/2.0 Ah : 5 3.0/4.0 Ah : 10 CAUTION ○ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds). In such a case, fi rst let the battery cool, then start charging. ○ When the pilot lamp fl ickers in red (at 0.2-second intervals), check for and take out any foreign objects in the charger’s battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center. NOTE The recharging time may vary according to the ambient temperature and power source voltage.

4. Disconnect the charger’s power cord from the

5. Hold the charger fi

rmly and pull out the battery. NOTE Be sure to pull out the battery from the charger after use, and then keep it. (1) Pilot lamp indication The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery. 000BookUC18YGL2.indb10000BookUC18YGL2.indb10 2019/10/0517:23:402019/10/0517:23:4011 English ○ Since the built-in micro computer takes about 3 seconds to confi rm that the battery being charged with UC18YGL2 is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

MAINTENANCE AND INSPECTION

1. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

2. Cleaning of the charger

When the charger is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

3. Store idle charger

When not in use, the charger should be stored in dry, high or locked-up place — out of reach of children. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. NOTE Due to HiKOKI’s continuing program of research and development, the specifi cations herein are subject to change without prior notice. 000BookUC18YGL2.indb11000BookUC18YGL2.indb11 2019/10/0517:23:402019/10/0517:23:4012 Deutsch ALLGEMEINE VORSICHTSMASSNAHMEN

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that Charger, identifi ed by type and specifi c identifi cation code *1), is in conformity with all relevant requirements of the directives *2) and standards *3). Technical fi le at *4) – See below. The European Standard Manager at the representative offi ce in Europe is authorized to compile the technical fi le. The declaration is applicable to the product affi xed CE marking.
